LIGMAN BILLUND 1 BIU-90041-SO-60.

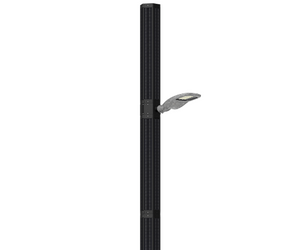

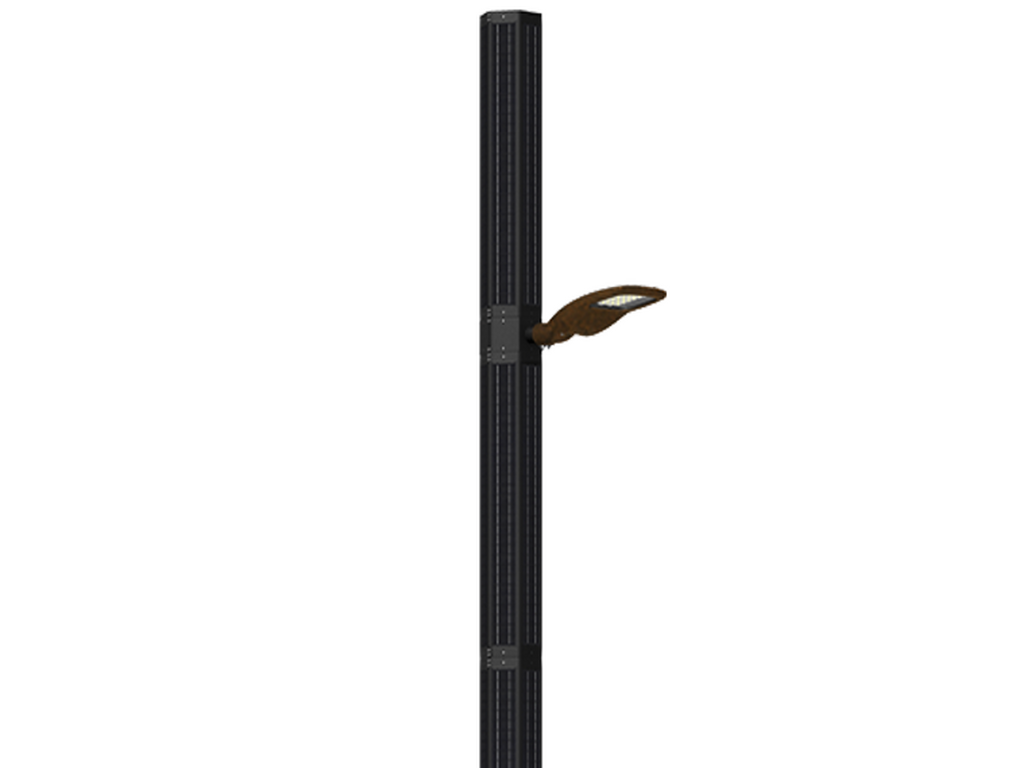

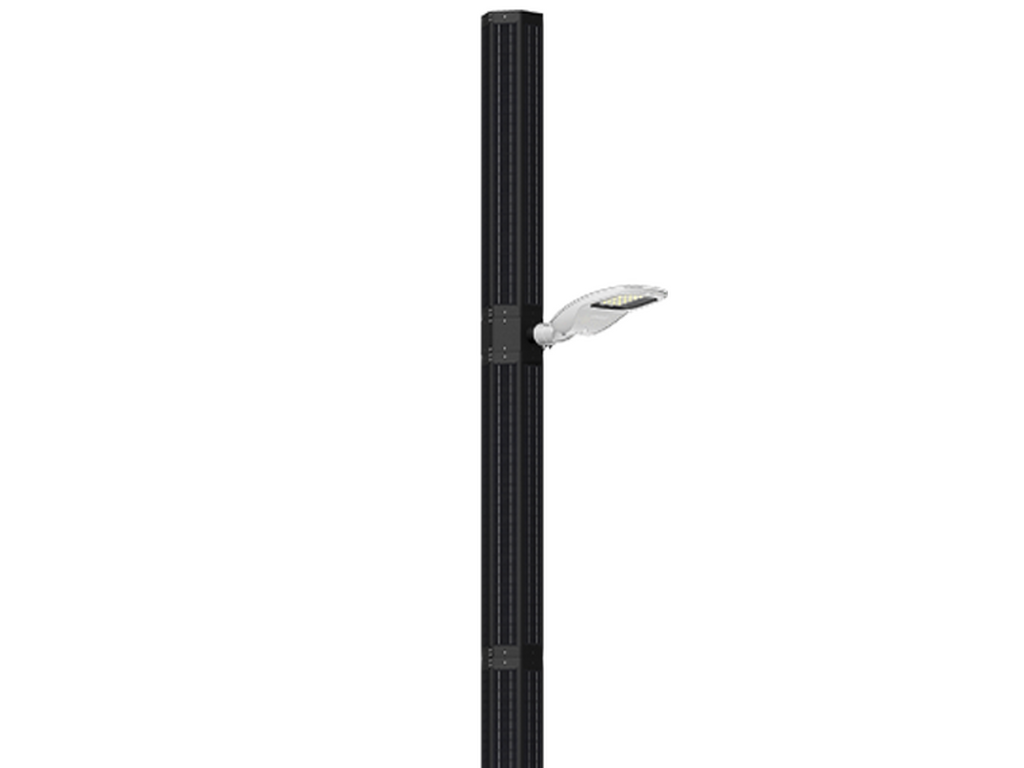

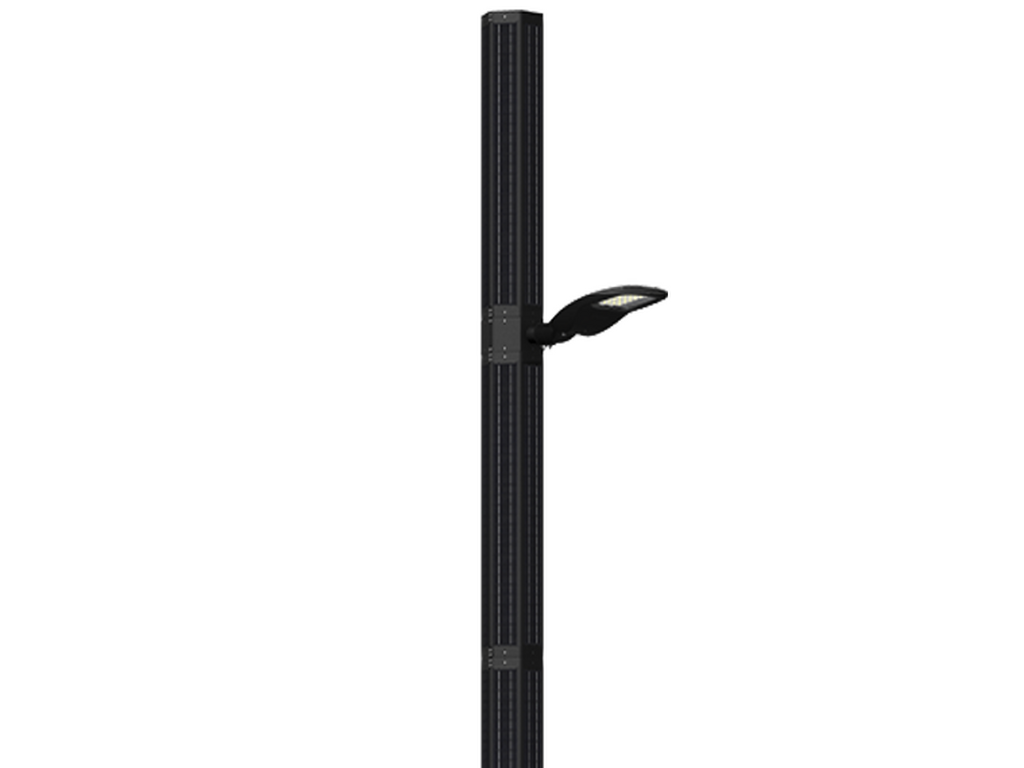

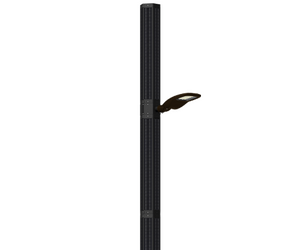

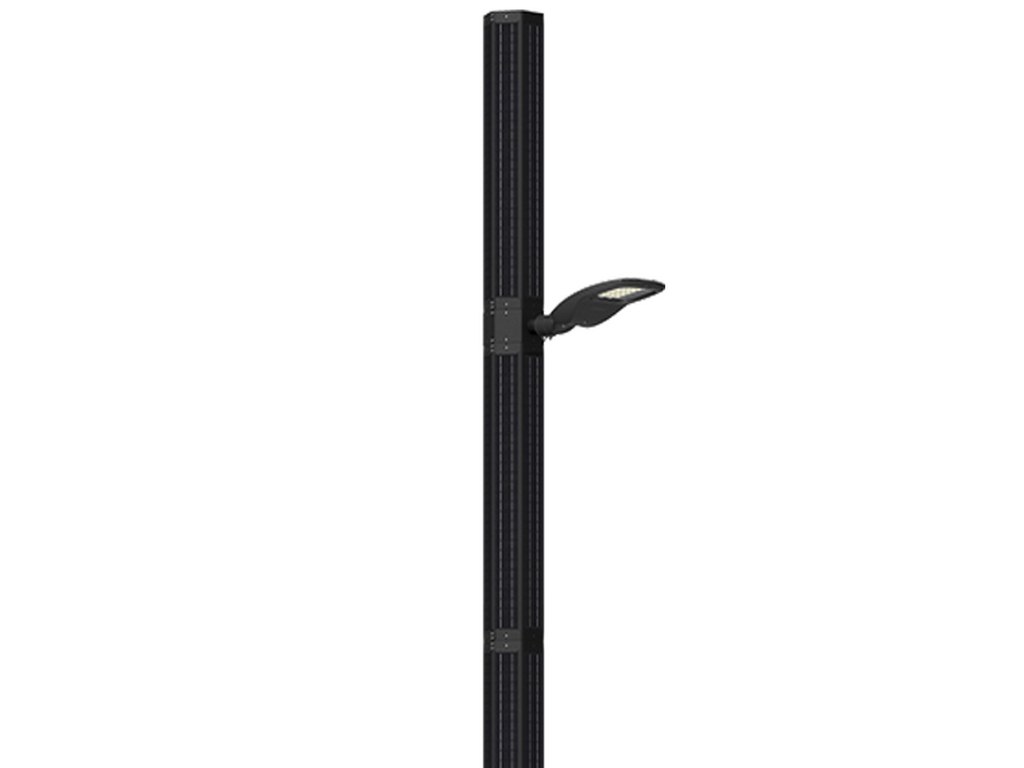

BILLUND 1BIU-90041-SO-60Luminaires made to order for Vertical solar PV poles

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
NEW
BILLUND 1Black
BILLUND 1Dark Grey
BILLUND 1White
BILLUND 1Matt Silver
BILLUND 1Bronze
BILLUND 1Concrete - Urban
BILLUND 1Softscape - Urban
BILLUND 1Stone - Urban
BILLUND 1Corten - Urban
BILLUND 1Oak - Woodland
BILLUND 1Walnut - Woodland
BILLUND 1Pine - Woodland
BILLUND 1Black
BILLUND 1Dark Grey
BILLUND 1White
BILLUND 1Matt Silver
BILLUND 1Bronze
BILLUND 1Concrete - Urban
BILLUND 1Softscape - Urban
BILLUND 1Stone - Urban
BILLUND 1Corten - Urban
BILLUND 1Oak - Woodland
BILLUND 1Walnut - Woodland
BILLUND 1Pine - Woodland
Made to order for 60 W Vertical solar PV pole
CEClass IIIIP66IK09

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
2 x 12 LED
Power (W)
60 W
Lumen (lm)
6550 - 8012 lm
Efficacy (lm/W)
109 - 134 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
Solar 36 VDC
Optic
M, W, EW, T1, T2, T3, T4, ME, SCL
Optic value
31°, 56°, 108°x115°, 147°x78°, 138°x51°, 134°x95°, 107°x71°, 140°x65°, 151°x69°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G0, B2-U0-G1, B2-U0-G2, B3-U0-G0, B3-U0-G3
ULR
<1%
ULOR
<1%
CIE flux code nº3
95, 96, 97, 98, 99
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
6.1 kg
Operating temperature
-20 °C to 40 °C
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens

DOWNLOADS

For BIM files (Revit - RFA), please check the Variant code

LIGHT EFFECT

Optic
M (31°)
W (56°)
EW (108°x115°)
T1 (147°x78°)
T2 (138°x51°)
T3 (134°x95°)
T4 (107°x71°)
ME (140°x65°)
SCL (151°x69°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
