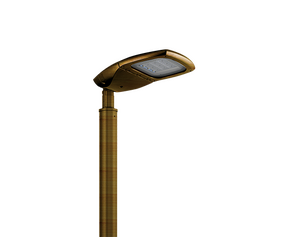

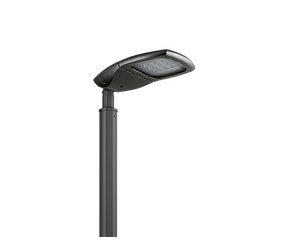

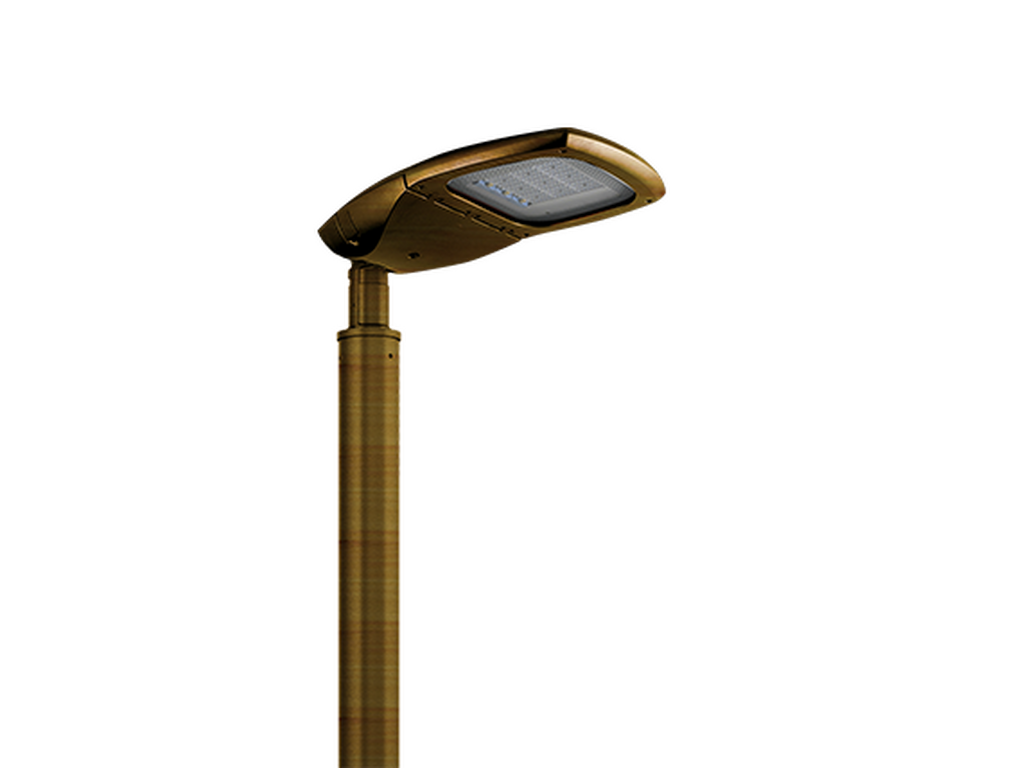

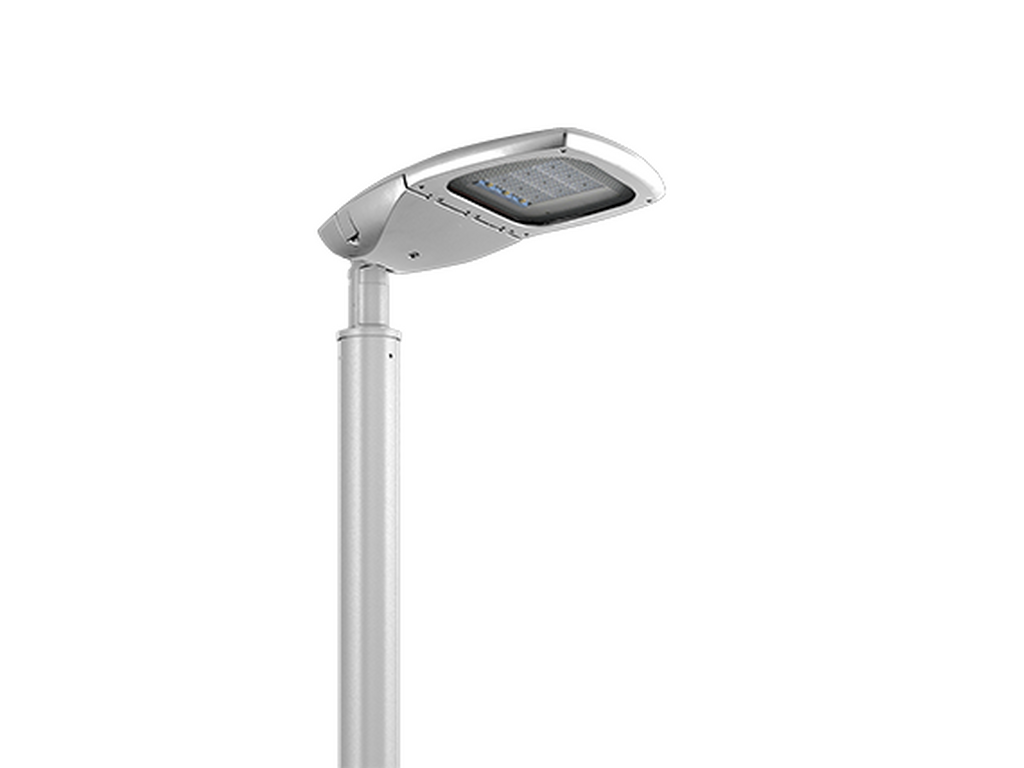

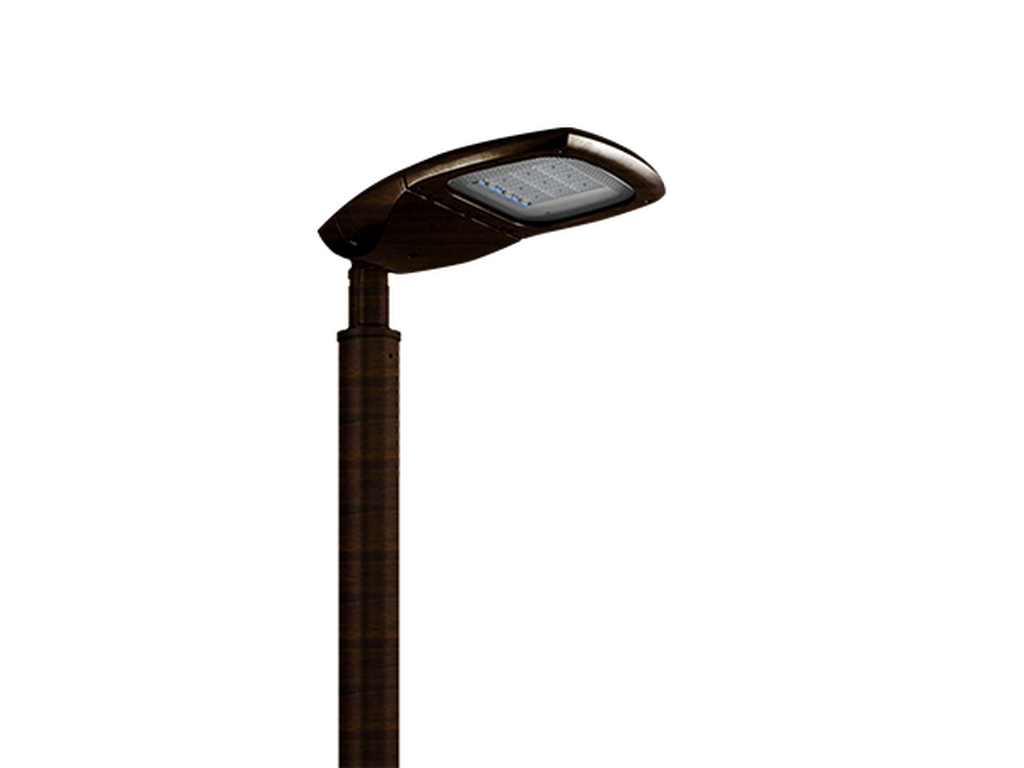

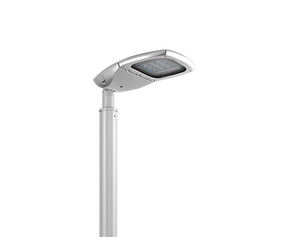

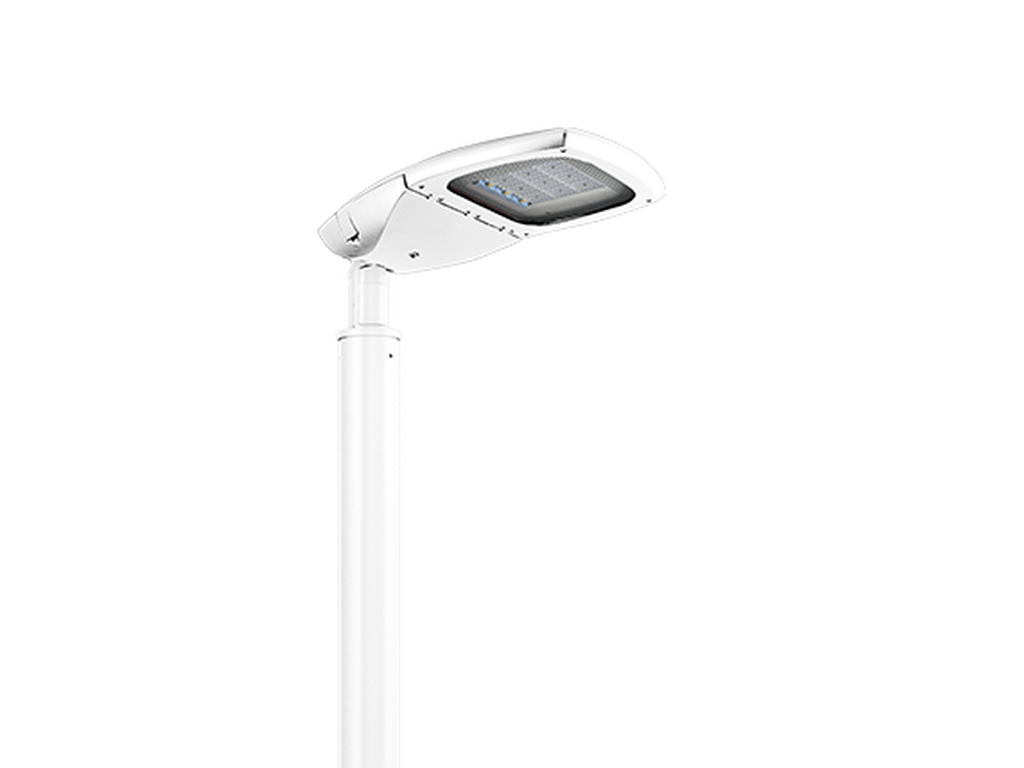

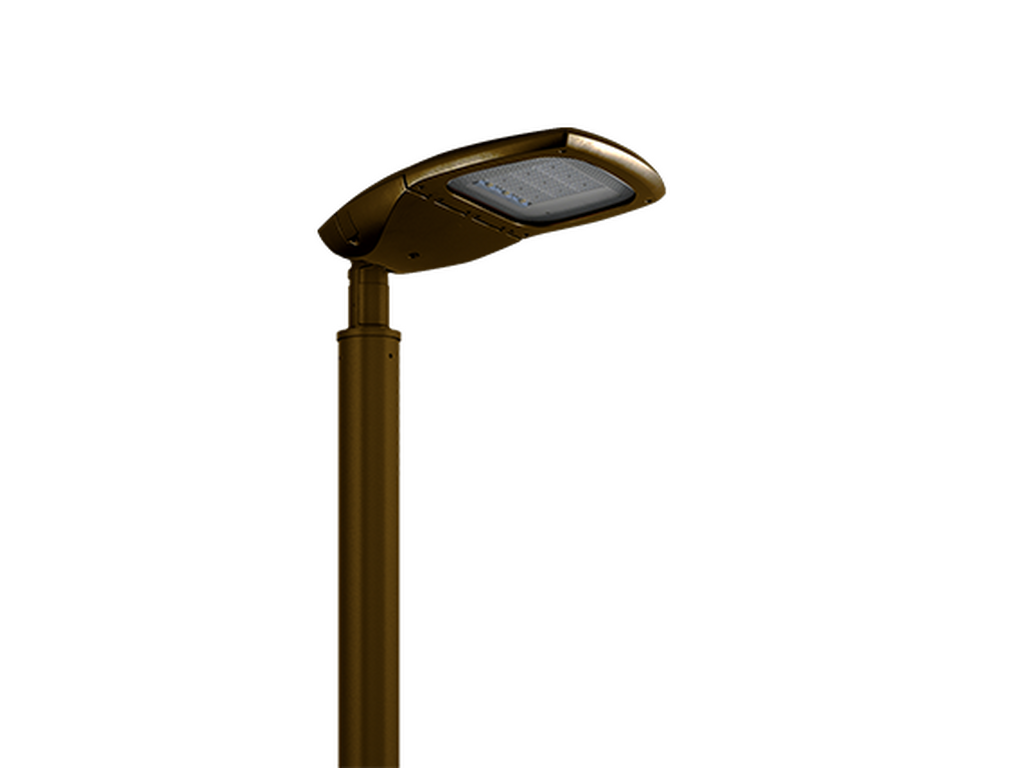

BILLUND 2BIU-90053BILLUND

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.


BILLUND 2Black
BILLUND 2Dark Grey
BILLUND 2White
BILLUND 2Matt Silver
BILLUND 2Bronze
BILLUND 2Concrete - Urban
BILLUND 2Softscape - Urban
BILLUND 2Stone - Urban
BILLUND 2Corten - Urban
BILLUND 2Oak - Woodland
BILLUND 2Walnut - Woodland
BILLUND 2Pine - Woodland
BILLUND 2Black
BILLUND 2Dark Grey
BILLUND 2White
BILLUND 2Matt Silver
BILLUND 2Bronze
BILLUND 2Concrete - Urban
BILLUND 2Softscape - Urban
BILLUND 2Stone - Urban
BILLUND 2Corten - Urban
BILLUND 2Oak - Woodland
BILLUND 2Walnut - Woodland
BILLUND 2Pine - Woodland
Medium
CEClass IIP66IK09

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
48 LED
Power (W)
122 W
Lumen (lm)
12353 - 16298 lm
Efficacy (lm/W)
101 - 134 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T1, T2, T3, T4, ME, SCL
Optic value
31°, 56°, 106°x113°, 149°x72°, 137°x51°, 126°x89°, 103°x74°, 138°x56°, 151°x65°
CCT / CRI
3000K CRI70, 3000K CRI80, 4000K CRI70, 4000K CRI80
Bug
B2-U0-G2, B3-U0-G1, B3-U0-G3, B4-U0-G1
ULR
0%
ULOR
0%
CIE flux code nº3
96, 97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
11.5 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.3 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens
MacAdam Ellipse
5 SDCM
Lifetime L90B10 (hours)
> 35,000
Lifetime L80B10 (hours)
> 74,000
Lifetime L80B50 (hours)
> 80,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
