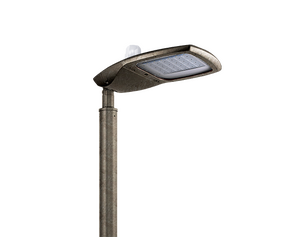

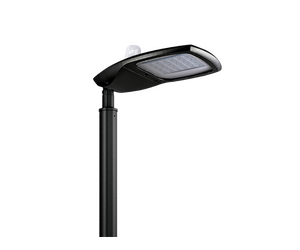

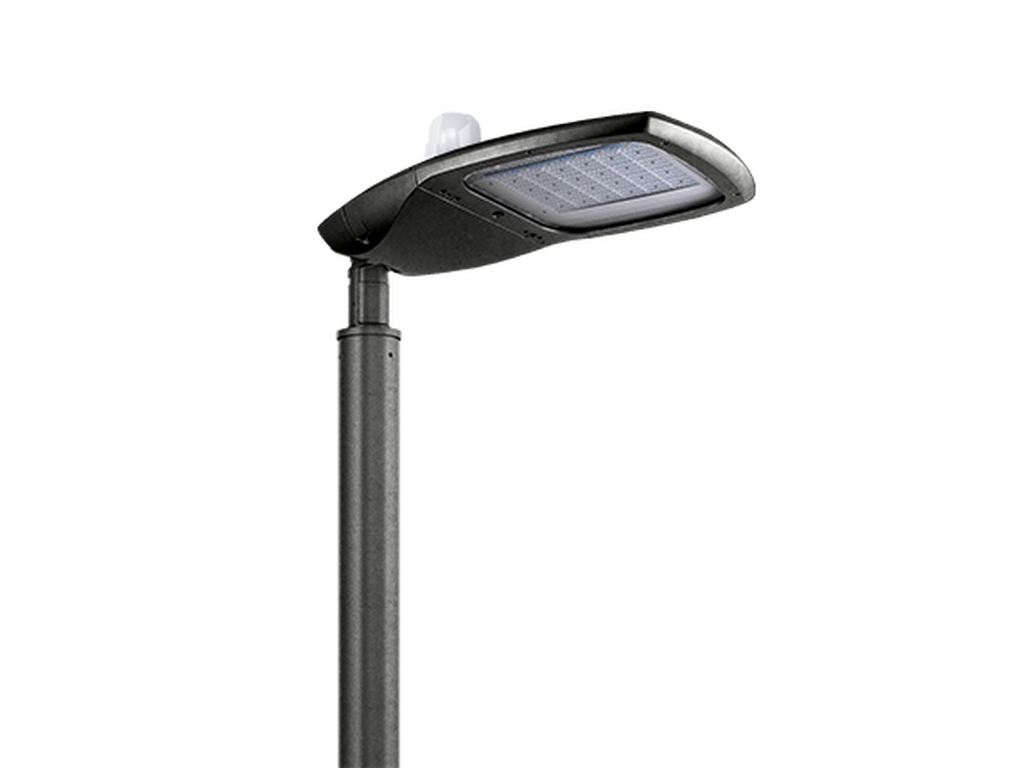

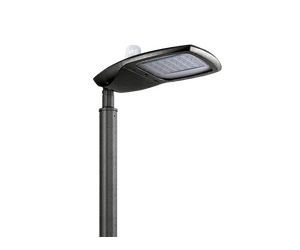

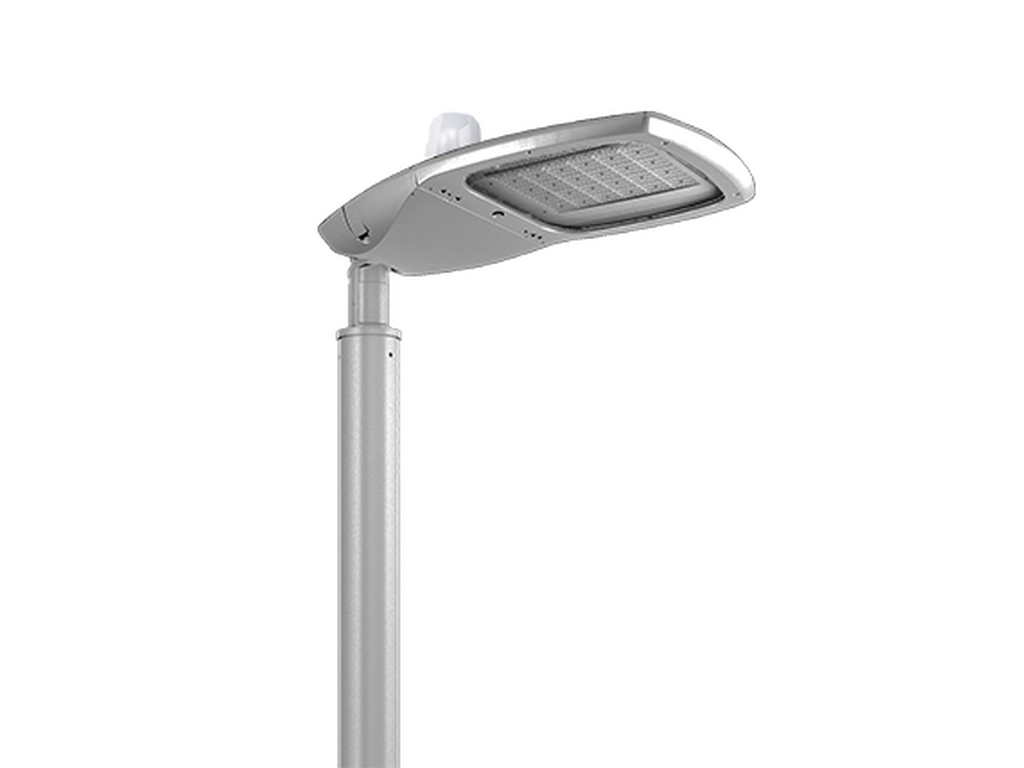

LIGMAN BILLUND 3 BIU-90025-LC.

BILLUND 3BIU-90025-LCBILLUND

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.


BILLUND 3Black
BILLUND 3Dark Grey

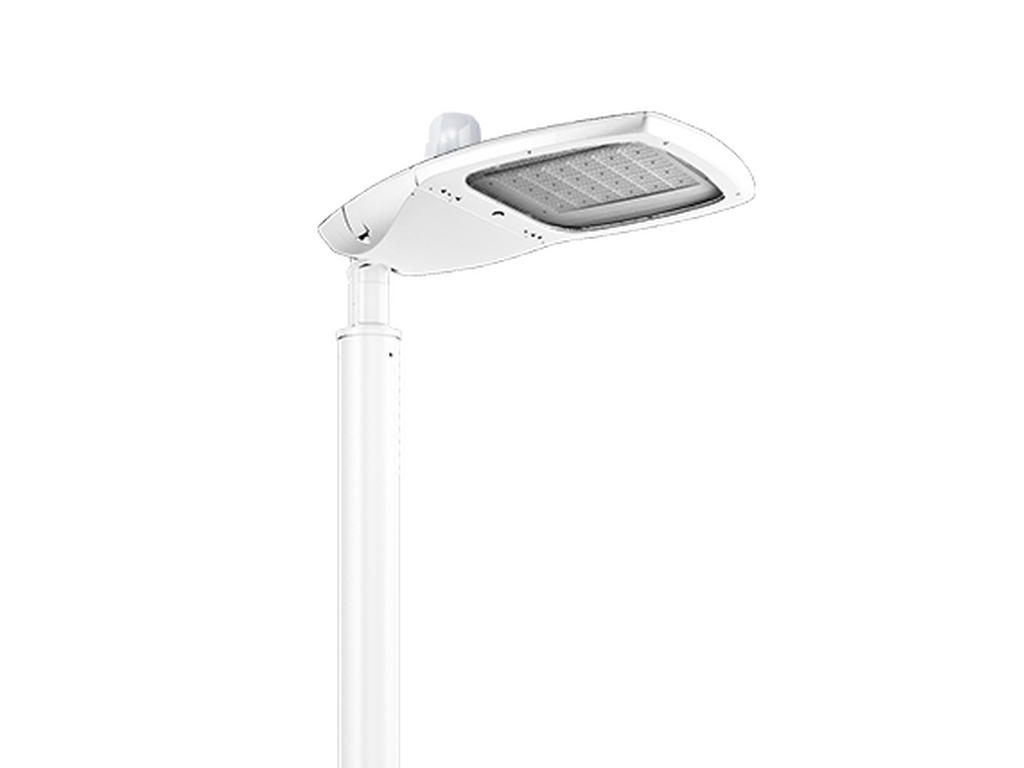

BILLUND 3White

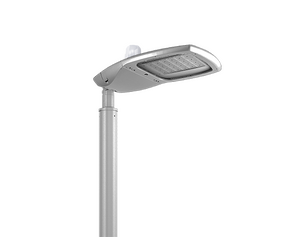

BILLUND 3Matt Silver

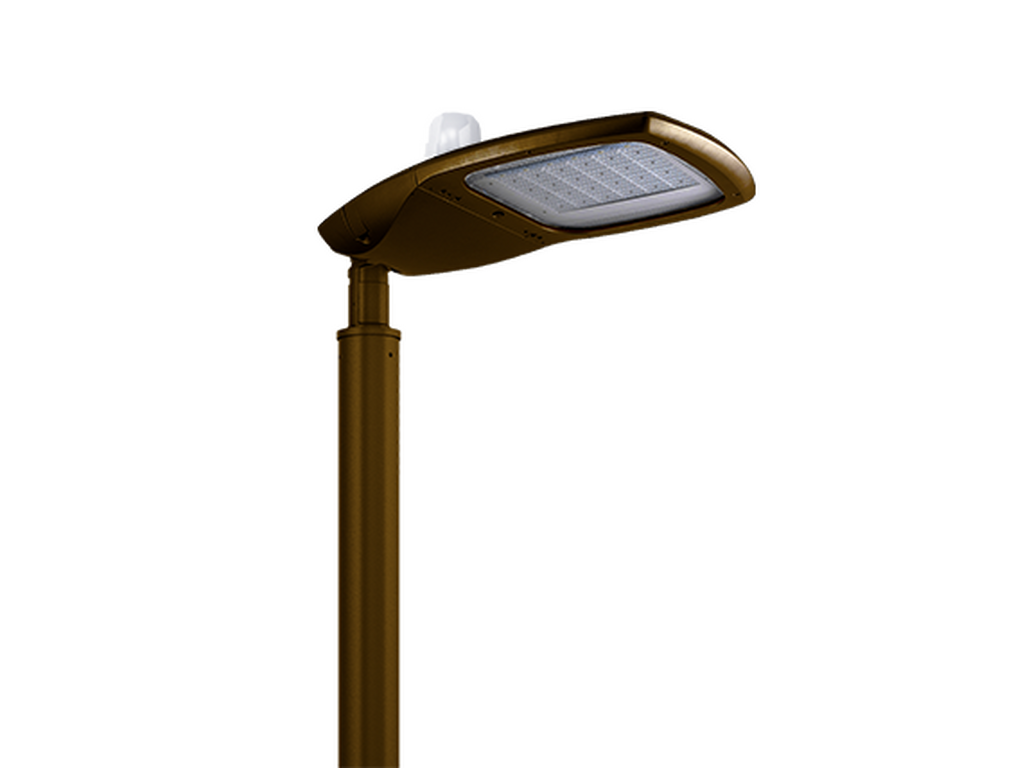

BILLUND 3Bronze
BILLUND 3Concrete - Urban
BILLUND 3Softscape - Urban
BILLUND 3Stone - Urban

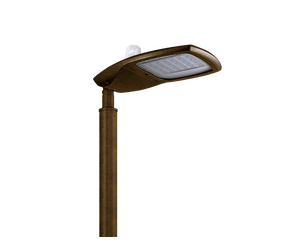

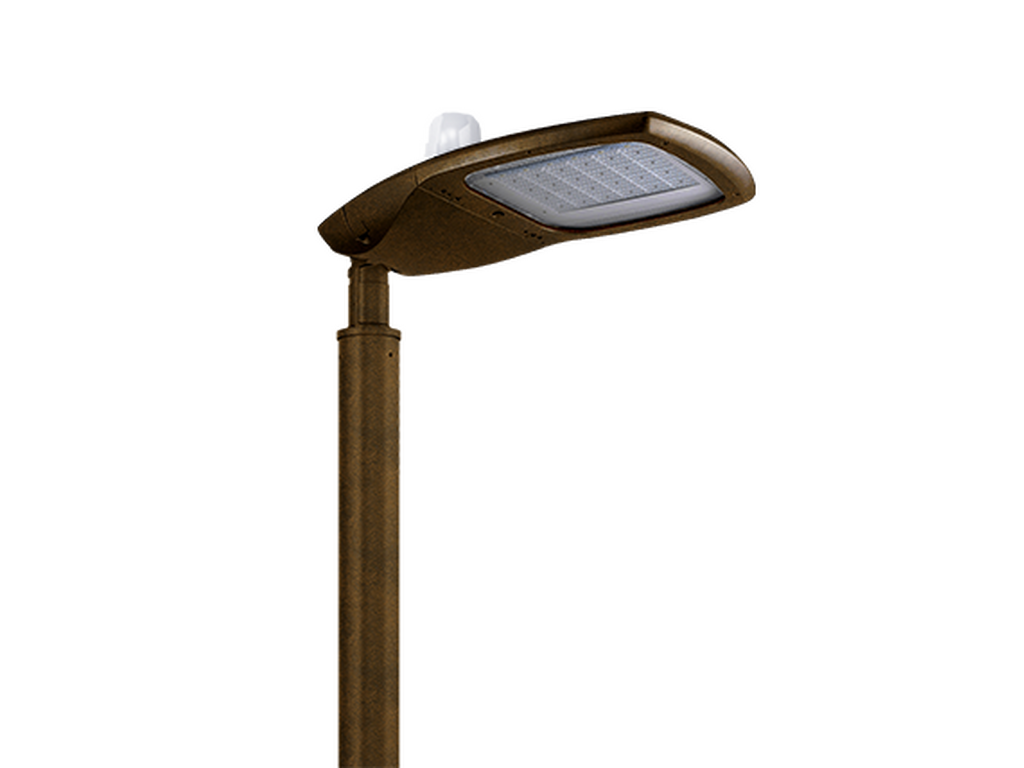

BILLUND 3Corten - Urban
BILLUND 3Oak - Woodland

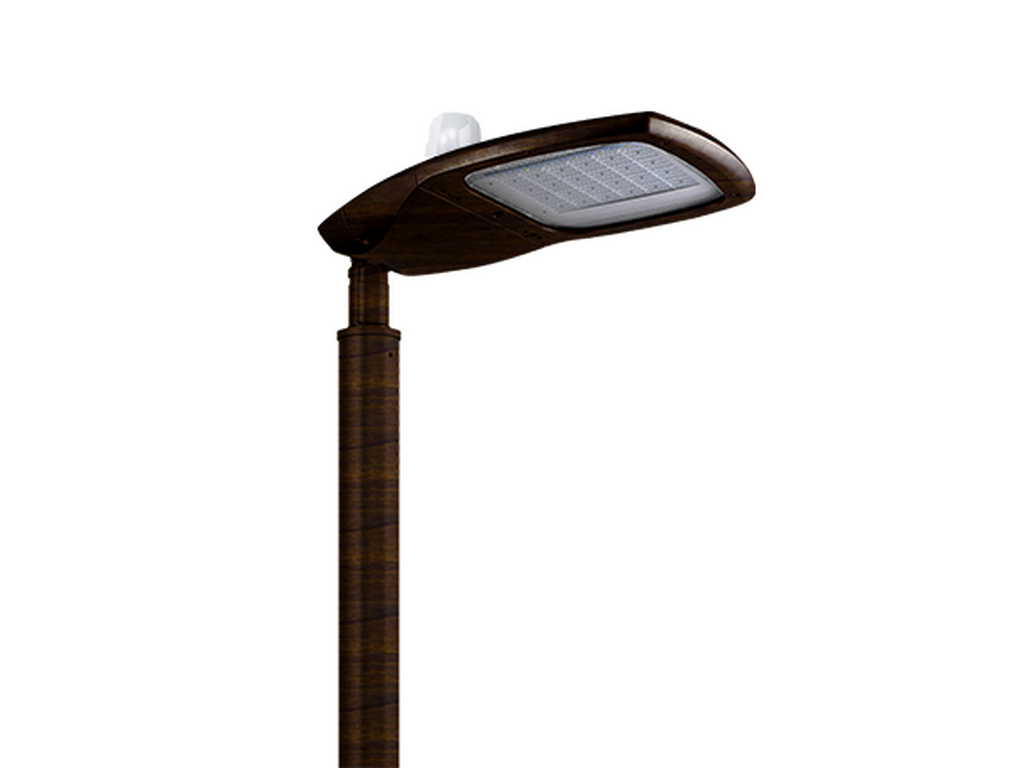

BILLUND 3Walnut - Woodland

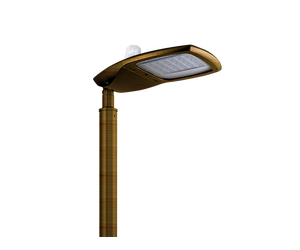

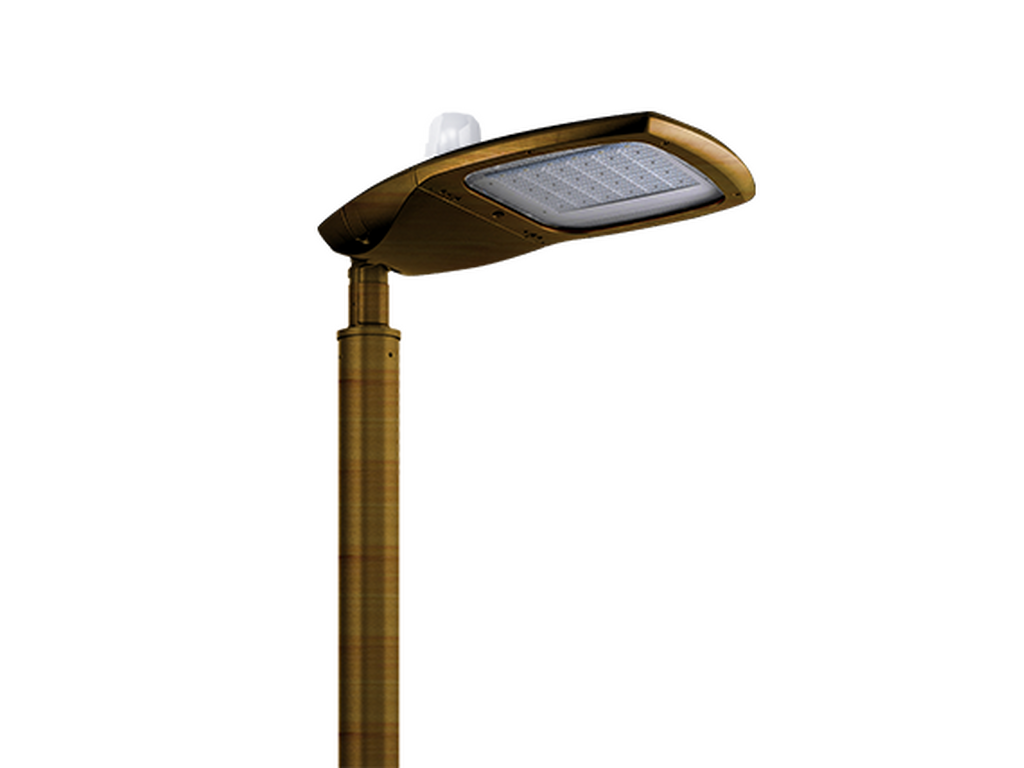

BILLUND 3Pine - Woodland
BILLUND 3Black
BILLUND 3Dark Grey
BILLUND 3White
BILLUND 3Matt Silver
BILLUND 3Bronze
BILLUND 3Concrete - Urban
BILLUND 3Softscape - Urban
BILLUND 3Stone - Urban
BILLUND 3Corten - Urban
BILLUND 3Oak - Woodland
BILLUND 3Walnut - Woodland
BILLUND 3Pine - Woodland
Large - LIGHTCONNECT™
CEClass IIP66IK09

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
144 LED
Power (W)
275 W
Lumen (lm)
33136 - 41464 lm
Efficacy (lm/W)
120 - 151 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T1, T2, T3, T4, T5
Optic value
146°x100°, 138°x125°, 140°x63°, 133°x66°, 111°x65°, 92°x121°
CCT / CRI
3000K CRI70, 4000K CRI70
Bug
B4-U0-G3, B4-U0-G4, B5-U0-G2, B5-U0-G5
ULR
0%
ULOR
0%
CIE flux code nº3
100, 95, 96, 97
Dimming type
DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
15.1 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.3 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

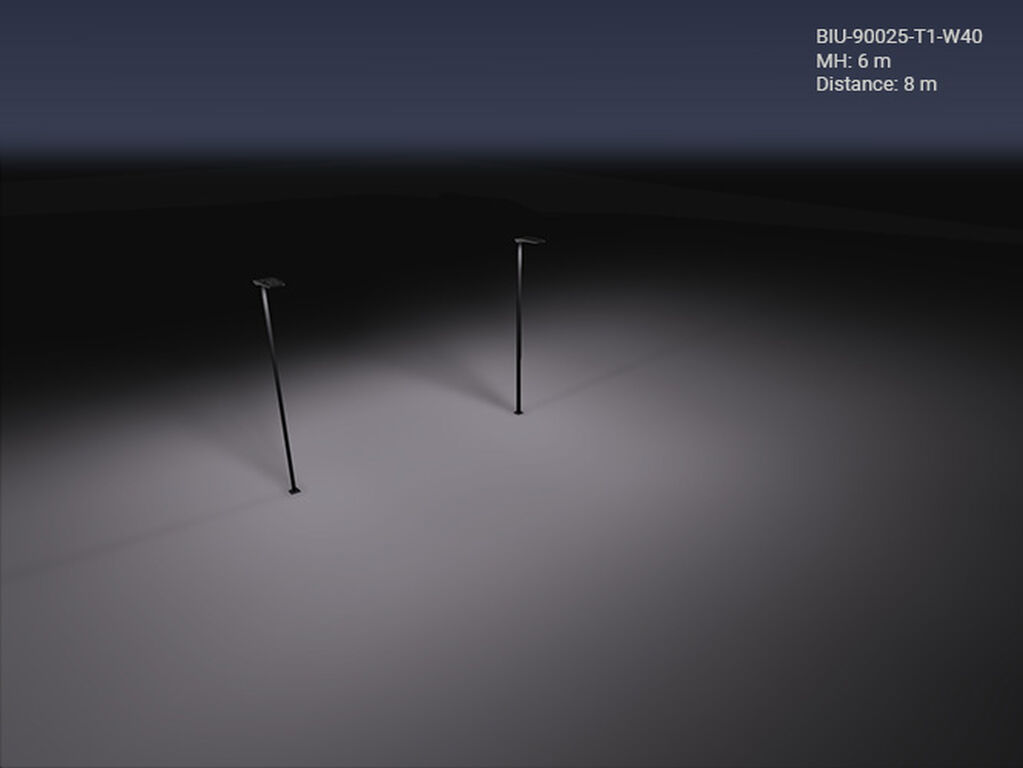

LIGHT EFFECT

Optic
T1 (138°x125°)
T2 (140°x63°)
T3 (133°x66°)
T4 (111°x65°)
T5 (92°x121°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: BIU-90025-LC-T2-A-7030-DA-01
Lumen (lm): 36317 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Black
Variant code: BIU-90025-LC-T2-A-7030-DA-02
Lumen (lm): 36317 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90025-LC-T2-A-7030-DA-03
Lumen (lm): 36317 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: White
Variant code: BIU-90025-LC-T2-A-7030-DA-05
Lumen (lm): 36317 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90025-LC-T2-A-7030-DA-06
Lumen (lm): 36317 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90025-LC-T2-A-7030-DA-SU01
Lumen (lm): 36317 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90025-LC-T2-A-7030-DA-SU02
Lumen (lm): 36317 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90025-LC-T2-A-7030-DA-SU03
Lumen (lm): 36317 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90025-LC-T2-A-7030-DA-SU04
Lumen (lm): 36317 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90025-LC-T2-A-7030-DA-SW01
Lumen (lm): 36317 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90025-LC-T2-A-7030-DA-SW02
Lumen (lm): 36317 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90025-LC-T2-A-7030-DA-SW03
Lumen (lm): 36317 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90025-LC-T2-A-7040-DA-01
Lumen (lm): 38908 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Black
Variant code: BIU-90025-LC-T2-A-7040-DA-02
Lumen (lm): 38908 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90025-LC-T2-A-7040-DA-03
Lumen (lm): 38908 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: White
Variant code: BIU-90025-LC-T2-A-7040-DA-05
Lumen (lm): 38908 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90025-LC-T2-A-7040-DA-06
Lumen (lm): 38908 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90025-LC-T2-A-7040-DA-SU01
Lumen (lm): 38908 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90025-LC-T2-A-7040-DA-SU02
Lumen (lm): 38908 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90025-LC-T2-A-7040-DA-SU03
Lumen (lm): 38908 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90025-LC-T2-A-7040-DA-SU04
Lumen (lm): 38908 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90025-LC-T2-A-7040-DA-SW01
Lumen (lm): 38908 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90025-LC-T2-A-7040-DA-SW02
Lumen (lm): 38908 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90025-LC-T2-A-7040-DA-SW03
Lumen (lm): 38908 lm
Optic:
Optic value: 153°x97°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90025-LC-T3-A-7030-DA-01
Lumen (lm): 33136 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Black
Variant code: BIU-90025-LC-T3-A-7030-DA-02
Lumen (lm): 33136 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90025-LC-T3-A-7030-DA-03
Lumen (lm): 33136 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: White
Variant code: BIU-90025-LC-T3-A-7030-DA-05
Lumen (lm): 33136 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90025-LC-T3-A-7030-DA-06
Lumen (lm): 33136 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90025-LC-T3-A-7030-DA-SU01
Lumen (lm): 33136 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90025-LC-T3-A-7030-DA-SU02
Lumen (lm): 33136 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90025-LC-T3-A-7030-DA-SU03
Lumen (lm): 33136 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90025-LC-T3-A-7030-DA-SU04
Lumen (lm): 33136 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90025-LC-T3-A-7030-DA-SW01
Lumen (lm): 33136 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90025-LC-T3-A-7030-DA-SW02
Lumen (lm): 33136 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90025-LC-T3-A-7030-DA-SW03
Lumen (lm): 33136 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90025-LC-T3-A-7040-DA-01
Lumen (lm): 35500 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Black
Variant code: BIU-90025-LC-T3-A-7040-DA-02
Lumen (lm): 35500 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90025-LC-T3-A-7040-DA-03
Lumen (lm): 35500 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: White
Variant code: BIU-90025-LC-T3-A-7040-DA-05
Lumen (lm): 35500 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90025-LC-T3-A-7040-DA-06
Lumen (lm): 35500 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90025-LC-T3-A-7040-DA-SU01
Lumen (lm): 35500 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90025-LC-T3-A-7040-DA-SU02
Lumen (lm): 35500 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90025-LC-T3-A-7040-DA-SU03
Lumen (lm): 35500 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90025-LC-T3-A-7040-DA-SU04
Lumen (lm): 35500 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90025-LC-T3-A-7040-DA-SW01
Lumen (lm): 35500 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90025-LC-T3-A-7040-DA-SW02
Lumen (lm): 35500 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90025-LC-T3-A-7040-DA-SW03
Lumen (lm): 35500 lm
Optic:
Optic value: 146°x100°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90025-LC-T1-7030-DA-01
Lumen (lm): 34991 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Black
Variant code: BIU-90025-LC-T1-7030-DA-02
Lumen (lm): 34991 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90025-LC-T1-7030-DA-03
Lumen (lm): 34991 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: White
Variant code: BIU-90025-LC-T1-7030-DA-05
Lumen (lm): 34991 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90025-LC-T1-7030-DA-06
Lumen (lm): 34991 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90025-LC-T1-7030-DA-SU01
Lumen (lm): 34991 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90025-LC-T1-7030-DA-SU02
Lumen (lm): 34991 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90025-LC-T1-7030-DA-SU03
Lumen (lm): 34991 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90025-LC-T1-7030-DA-SU04
Lumen (lm): 34991 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90025-LC-T1-7030-DA-SW01
Lumen (lm): 34991 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90025-LC-T1-7030-DA-SW02
Lumen (lm): 34991 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90025-LC-T1-7030-DA-SW03
Lumen (lm): 34991 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90025-LC-T1-7040-DA-01
Lumen (lm): 37488 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Black
Variant code: BIU-90025-LC-T1-7040-DA-02
Lumen (lm): 37488 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90025-LC-T1-7040-DA-03
Lumen (lm): 37488 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: White
Variant code: BIU-90025-LC-T1-7040-DA-05
Lumen (lm): 37488 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90025-LC-T1-7040-DA-06
Lumen (lm): 37488 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90025-LC-T1-7040-DA-SU01
Lumen (lm): 37488 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90025-LC-T1-7040-DA-SU02
Lumen (lm): 37488 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90025-LC-T1-7040-DA-SU03
Lumen (lm): 37488 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90025-LC-T1-7040-DA-SU04
Lumen (lm): 37488 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90025-LC-T1-7040-DA-SW01
Lumen (lm): 37488 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90025-LC-T1-7040-DA-SW02
Lumen (lm): 37488 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90025-LC-T1-7040-DA-SW03
Lumen (lm): 37488 lm
Optic: T1
Optic value: 138°x125°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90025-LC-T2-7030-DA-01
Lumen (lm): 36847 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Black
Variant code: BIU-90025-LC-T2-7030-DA-02
Lumen (lm): 36847 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90025-LC-T2-7030-DA-03
Lumen (lm): 36847 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: White
Variant code: BIU-90025-LC-T2-7030-DA-05
Lumen (lm): 36847 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90025-LC-T2-7030-DA-06
Lumen (lm): 36847 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90025-LC-T2-7030-DA-SU01
Lumen (lm): 36847 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90025-LC-T2-7030-DA-SU02
Lumen (lm): 36847 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90025-LC-T2-7030-DA-SU03
Lumen (lm): 36847 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90025-LC-T2-7030-DA-SU04
Lumen (lm): 36847 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90025-LC-T2-7030-DA-SW01
Lumen (lm): 36847 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90025-LC-T2-7030-DA-SW02
Lumen (lm): 36847 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90025-LC-T2-7030-DA-SW03
Lumen (lm): 36847 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90025-LC-T2-7040-DA-01
Lumen (lm): 39476 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Black
Variant code: BIU-90025-LC-T2-7040-DA-02
Lumen (lm): 39476 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90025-LC-T2-7040-DA-03
Lumen (lm): 39476 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: White
Variant code: BIU-90025-LC-T2-7040-DA-05
Lumen (lm): 39476 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90025-LC-T2-7040-DA-06
Lumen (lm): 39476 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90025-LC-T2-7040-DA-SU01
Lumen (lm): 39476 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90025-LC-T2-7040-DA-SU02
Lumen (lm): 39476 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90025-LC-T2-7040-DA-SU03
Lumen (lm): 39476 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90025-LC-T2-7040-DA-SU04
Lumen (lm): 39476 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90025-LC-T2-7040-DA-SW01
Lumen (lm): 39476 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90025-LC-T2-7040-DA-SW02
Lumen (lm): 39476 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90025-LC-T2-7040-DA-SW03
Lumen (lm): 39476 lm
Optic: T2
Optic value: 140°x63°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90025-LC-T3-7030-DA-01
Lumen (lm): 36317 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Black
Variant code: BIU-90025-LC-T3-7030-DA-02
Lumen (lm): 36317 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90025-LC-T3-7030-DA-03
Lumen (lm): 36317 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: White
Variant code: BIU-90025-LC-T3-7030-DA-05
Lumen (lm): 36317 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90025-LC-T3-7030-DA-06
Lumen (lm): 36317 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90025-LC-T3-7030-DA-SU01
Lumen (lm): 36317 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90025-LC-T3-7030-DA-SU02
Lumen (lm): 36317 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90025-LC-T3-7030-DA-SU03
Lumen (lm): 36317 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90025-LC-T3-7030-DA-SU04
Lumen (lm): 36317 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90025-LC-T3-7030-DA-SW01
Lumen (lm): 36317 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90025-LC-T3-7030-DA-SW02
Lumen (lm): 36317 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90025-LC-T3-7030-DA-SW03
Lumen (lm): 36317 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90025-LC-T3-7040-DA-01
Lumen (lm): 38908 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Black
Variant code: BIU-90025-LC-T3-7040-DA-02
Lumen (lm): 38908 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90025-LC-T3-7040-DA-03
Lumen (lm): 38908 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: White
Variant code: BIU-90025-LC-T3-7040-DA-05
Lumen (lm): 38908 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90025-LC-T3-7040-DA-06
Lumen (lm): 38908 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90025-LC-T3-7040-DA-SU01
Lumen (lm): 38908 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90025-LC-T3-7040-DA-SU02
Lumen (lm): 38908 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90025-LC-T3-7040-DA-SU03
Lumen (lm): 38908 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90025-LC-T3-7040-DA-SU04
Lumen (lm): 38908 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90025-LC-T3-7040-DA-SW01
Lumen (lm): 38908 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90025-LC-T3-7040-DA-SW02
Lumen (lm): 38908 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90025-LC-T3-7040-DA-SW03
Lumen (lm): 38908 lm
Optic: T3
Optic value: 133°x66°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90025-LC-T4-7030-DA-01
Lumen (lm): 34196 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Black
Variant code: BIU-90025-LC-T4-7030-DA-02
Lumen (lm): 34196 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90025-LC-T4-7030-DA-03
Lumen (lm): 34196 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: White
Variant code: BIU-90025-LC-T4-7030-DA-05
Lumen (lm): 34196 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90025-LC-T4-7030-DA-06
Lumen (lm): 34196 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90025-LC-T4-7030-DA-SU01
Lumen (lm): 34196 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90025-LC-T4-7030-DA-SU02
Lumen (lm): 34196 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90025-LC-T4-7030-DA-SU03
Lumen (lm): 34196 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90025-LC-T4-7030-DA-SU04
Lumen (lm): 34196 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90025-LC-T4-7030-DA-SW01
Lumen (lm): 34196 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90025-LC-T4-7030-DA-SW02
Lumen (lm): 34196 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90025-LC-T4-7030-DA-SW03
Lumen (lm): 34196 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90025-LC-T4-7040-DA-01
Lumen (lm): 36636 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Black
Variant code: BIU-90025-LC-T4-7040-DA-02
Lumen (lm): 36636 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90025-LC-T4-7040-DA-03
Lumen (lm): 36636 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: White
Variant code: BIU-90025-LC-T4-7040-DA-05
Lumen (lm): 36636 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90025-LC-T4-7040-DA-06
Lumen (lm): 36636 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90025-LC-T4-7040-DA-SU01
Lumen (lm): 36636 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90025-LC-T4-7040-DA-SU02
Lumen (lm): 36636 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90025-LC-T4-7040-DA-SU03
Lumen (lm): 36636 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90025-LC-T4-7040-DA-SU04
Lumen (lm): 36636 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90025-LC-T4-7040-DA-SW01
Lumen (lm): 36636 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90025-LC-T4-7040-DA-SW02
Lumen (lm): 36636 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90025-LC-T4-7040-DA-SW03
Lumen (lm): 36636 lm
Optic: T4
Optic value: 111°x65°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90025-LC-T5-7030-DA-01
Lumen (lm): 38702 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Black
Variant code: BIU-90025-LC-T5-7030-DA-02
Lumen (lm): 38702 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90025-LC-T5-7030-DA-03
Lumen (lm): 38702 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: White
Variant code: BIU-90025-LC-T5-7030-DA-05
Lumen (lm): 38702 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90025-LC-T5-7030-DA-06
Lumen (lm): 38702 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90025-LC-T5-7030-DA-SU01
Lumen (lm): 38702 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90025-LC-T5-7030-DA-SU02
Lumen (lm): 38702 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90025-LC-T5-7030-DA-SU03
Lumen (lm): 38702 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90025-LC-T5-7030-DA-SU04
Lumen (lm): 38702 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90025-LC-T5-7030-DA-SW01
Lumen (lm): 38702 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90025-LC-T5-7030-DA-SW02
Lumen (lm): 38702 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90025-LC-T5-7030-DA-SW03
Lumen (lm): 38702 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 3000K CRI70
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90025-LC-T5-7040-DA-01
Lumen (lm): 41464 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Black
Variant code: BIU-90025-LC-T5-7040-DA-02
Lumen (lm): 41464 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90025-LC-T5-7040-DA-03
Lumen (lm): 41464 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: White
Variant code: BIU-90025-LC-T5-7040-DA-05
Lumen (lm): 41464 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90025-LC-T5-7040-DA-06
Lumen (lm): 41464 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90025-LC-T5-7040-DA-SU01
Lumen (lm): 41464 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90025-LC-T5-7040-DA-SU02
Lumen (lm): 41464 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90025-LC-T5-7040-DA-SU03
Lumen (lm): 41464 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90025-LC-T5-7040-DA-SU04
Lumen (lm): 41464 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90025-LC-T5-7040-DA-SW01
Lumen (lm): 41464 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90025-LC-T5-7040-DA-SW02
Lumen (lm): 41464 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90025-LC-T5-7040-DA-SW03
Lumen (lm): 41464 lm
Optic: T5
Optic value: 92°x121°
CCT / CRI: 4000K CRI70
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (BILLUND Street & area lighting luminaires)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
