LIGMAN BILLUND 4 BIU-90006.

BILLUND 4BIU-90006

(Version 1)

BILLUND

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
BILLUND 4Black

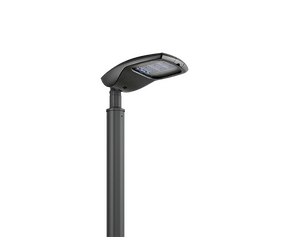

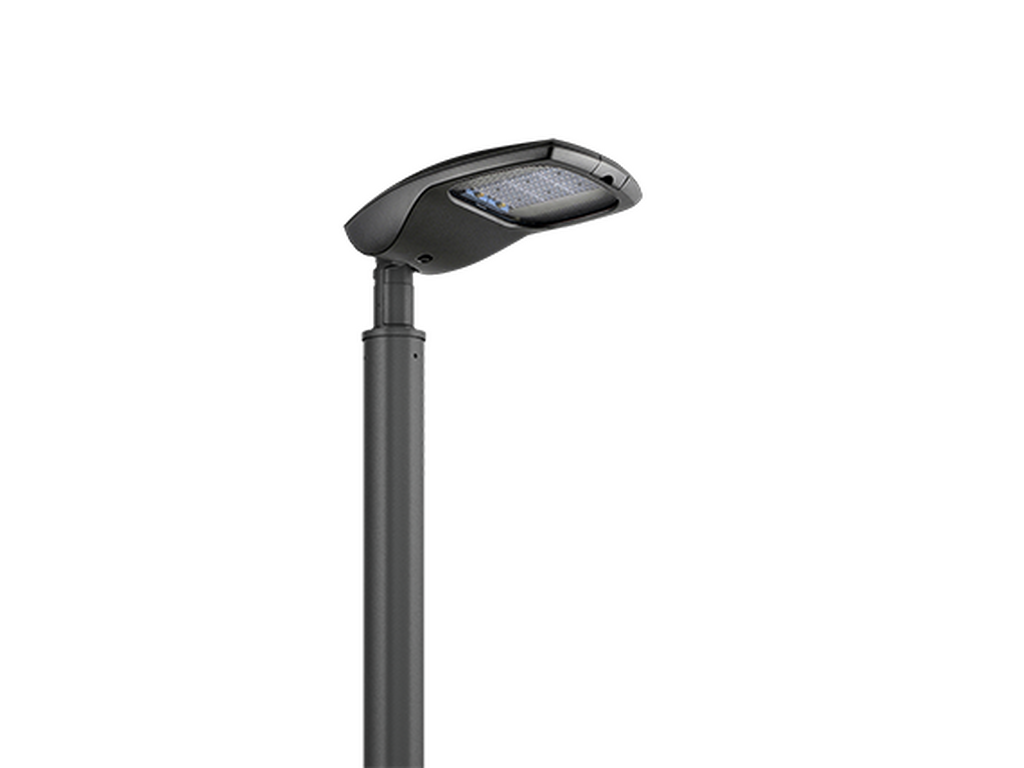

BILLUND 4Dark Grey

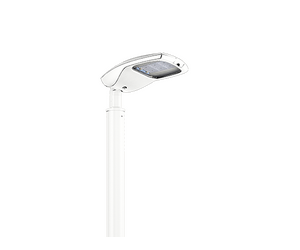

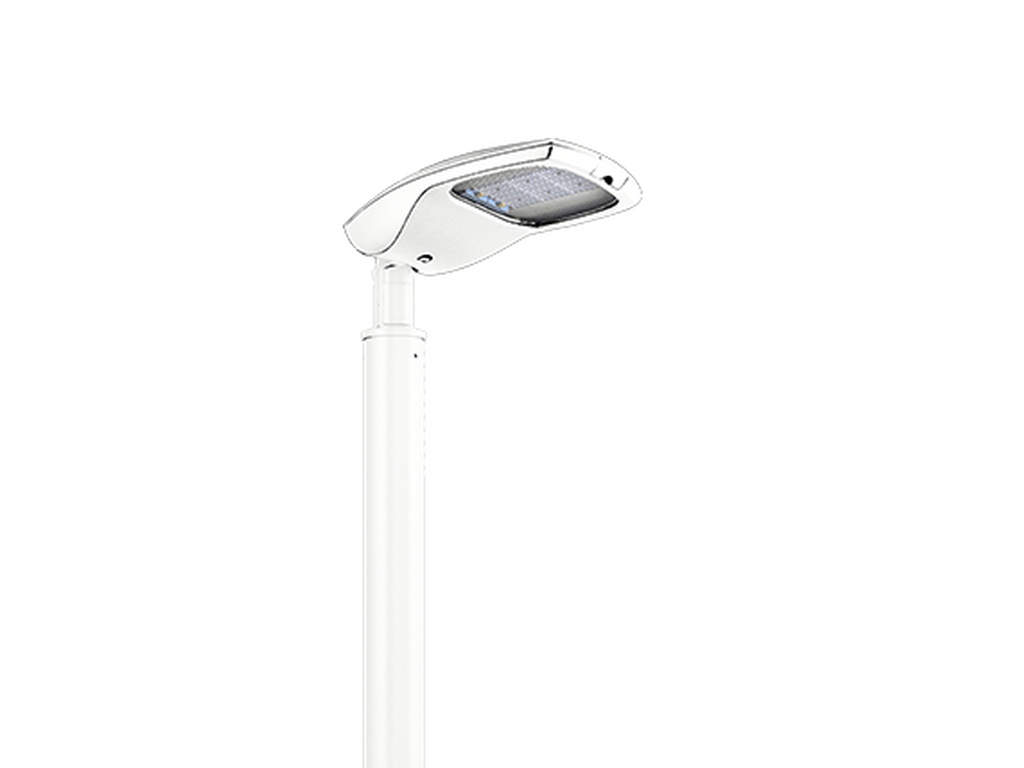

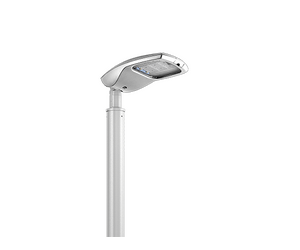

BILLUND 4White
BILLUND 4Matt Silver

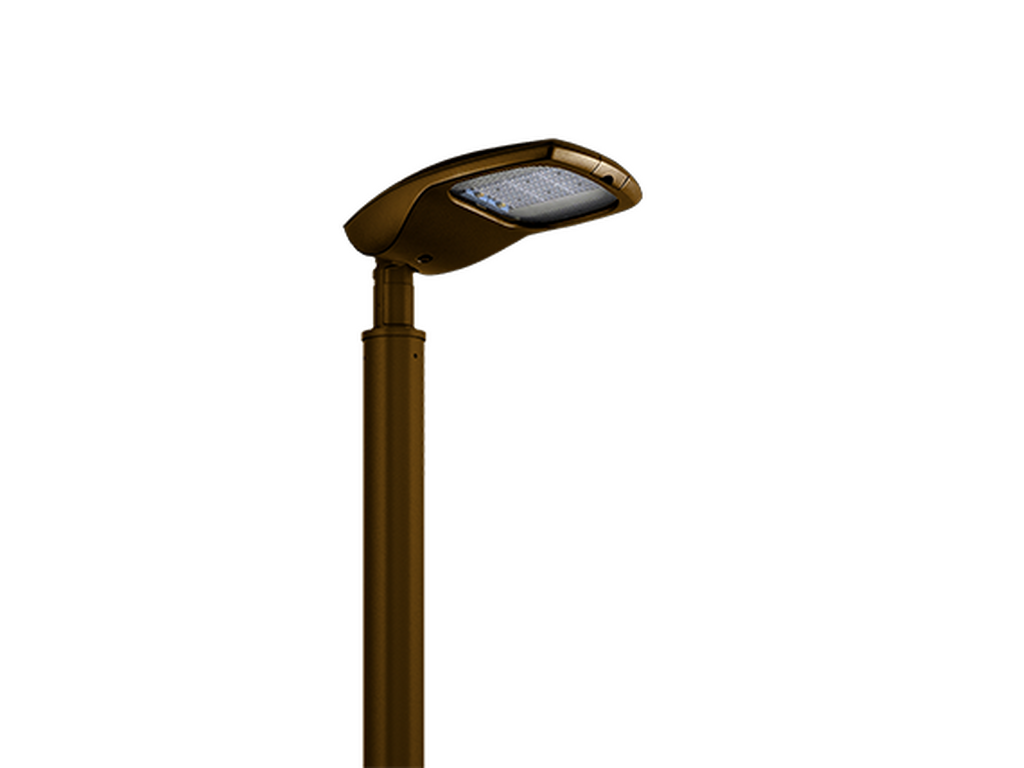

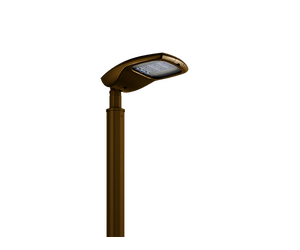

BILLUND 4Bronze
BILLUND 4Concrete - Urban
BILLUND 4Softscape - Urban

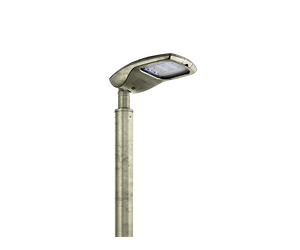

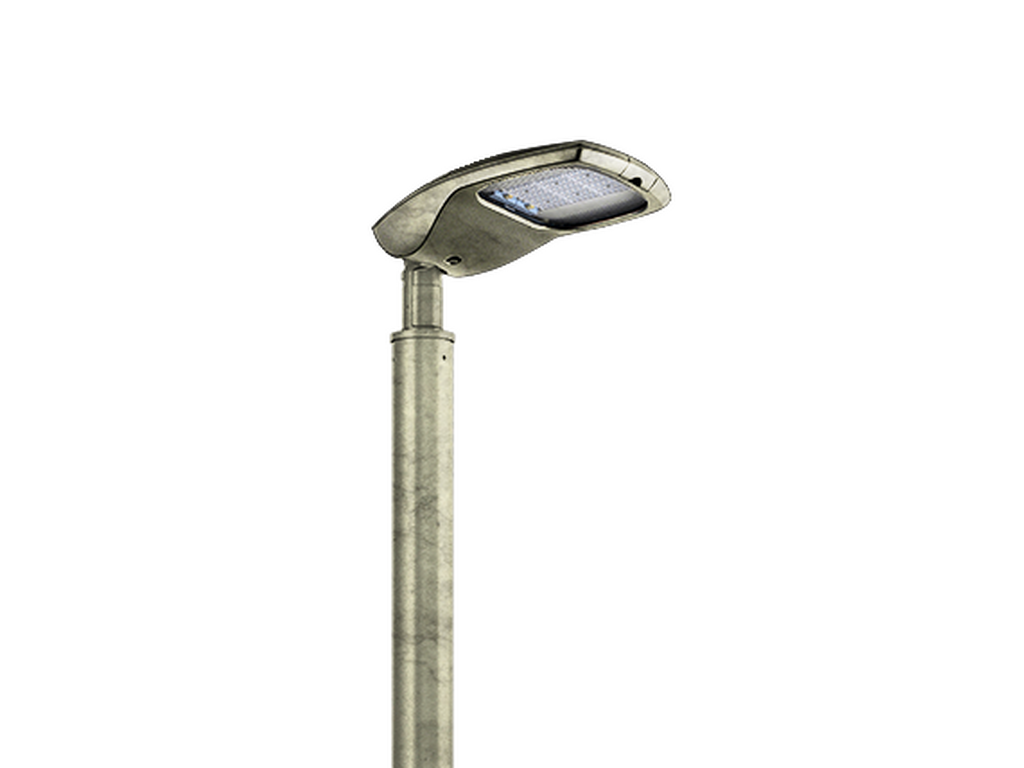

BILLUND 4Stone - Urban
BILLUND 4Corten - Urban

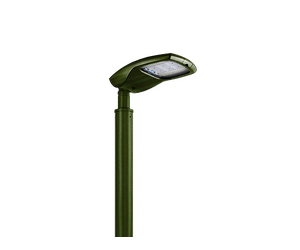

BILLUND 4Oak - Woodland
BILLUND 4Walnut - Woodland

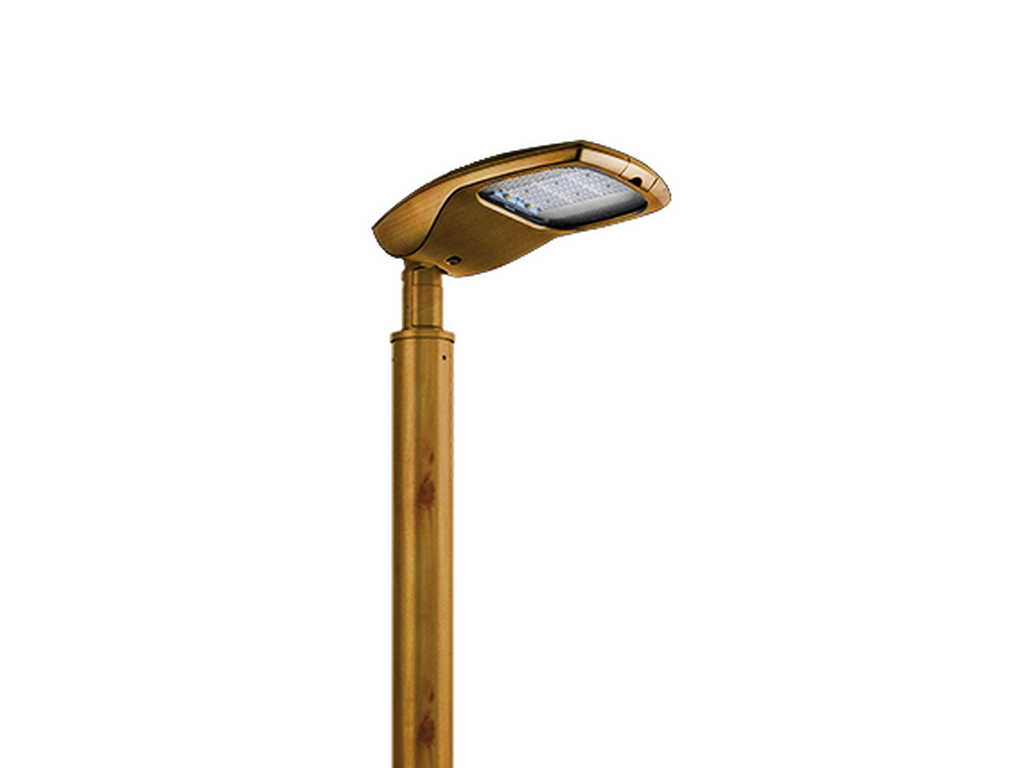

BILLUND 4Pine - Woodland
BILLUND 4Black
BILLUND 4Dark Grey
BILLUND 4White
BILLUND 4Matt Silver
BILLUND 4Bronze
BILLUND 4Concrete - Urban
BILLUND 4Softscape - Urban
BILLUND 4Stone - Urban
BILLUND 4Corten - Urban
BILLUND 4Oak - Woodland
BILLUND 4Walnut - Woodland
BILLUND 4Pine - Woodland
Small - with CLO & Night dimming
CEClass IIP66IK09

Technical information

Material
Aluminium
Light source
12 LED
Power (W)
28 W
Lumen (lm)
2477 - 3327 lm
Efficacy (lm/W)
88 - 119 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, T1, T2, T3, T4, T5, ME, SCL
Optic value
24°, 50°, 146°x66°, 142°x47°, 141°x59°, 100°x78°, 105°, 136°x32°, 150°x66°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B1-U0-G1, B2-U0-G2, B3-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
96, 97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
6.1 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.040
Cable
One IP68 connector supplied with 0.3 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Light effect

Optic
M (24°)
W (50°)
T1 (146°x66°)
T2 (142°x47°)
T3 (141°x59°)
T4 (100°x78°)
T5 (105°)
ME (136°x32°)
SCL (150°x66°)
