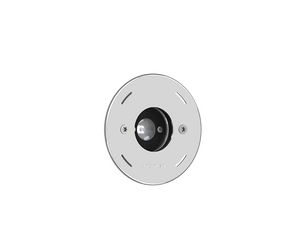

BORNHOLM 1
Without remote box IP-rated - With remote driver / recessing box - Constant current (CC) 350 mA
CERETILAPClass IIIIP68IK07

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
1 LED
Power (W)
6 W
Lumen (lm)
250 - 408 lm
Efficacy (lm/W)
42 - 68 lm/W
Driver option
Remote driver (included)
Driver
Constant current (CC)
Input voltage
350 mA, 12 VDC
Optic
N, M, W, VW, E
Optic value
13°, 18°, 28°, 63°, 13°x42°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U0-G0, B1-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100
Dimming type
On/Off, 1-10V
Product colours
Stainless Steel
Weight
0.8 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 109,000
Lifetime L80B10 (hours)
> 109,000
Lifetime L80B50 (hours)
> 109,000
Variants (On/Off, 1-10V)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
N (13°)
M (18°)
W (28°)
VW (63°)
E (13°x42°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: BOH-60001-N-8030-ND-00
Lumen (lm): 378 lm
Optic: N
Optic value: 13°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60001-N-8040-ND-00
Lumen (lm): 408 lm
Optic: N
Optic value: 13°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60001-N-8030-DI-00
Lumen (lm): 378 lm
Optic: N
Optic value: 13°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: BOH-60001-N-8040-DI-00
Lumen (lm): 408 lm
Optic: N
Optic value: 13°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: BOH-60001-M-8030-ND-00
Lumen (lm): 308 lm
Optic: M
Optic value: 18°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60001-M-8040-ND-00
Lumen (lm): 333 lm
Optic: M
Optic value: 18°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60001-M-8030-DI-00
Lumen (lm): 308 lm
Optic: M
Optic value: 18°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: BOH-60001-M-8040-DI-00
Lumen (lm): 333 lm
Optic: M
Optic value: 18°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: BOH-60001-W-8030-ND-00
Lumen (lm): 336 lm
Optic: W
Optic value: 28°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60001-W-8040-ND-00
Lumen (lm): 363 lm
Optic: W
Optic value: 28°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60001-W-8030-DI-00
Lumen (lm): 336 lm
Optic: W
Optic value: 28°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: BOH-60001-W-8040-DI-00
Lumen (lm): 363 lm
Optic: W
Optic value: 28°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: BOH-60001-VW-8030-ND-00
Lumen (lm): 250 lm
Optic: VW
Optic value: 63°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60001-VW-8040-ND-00
Lumen (lm): 270 lm
Optic: VW
Optic value: 63°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60001-VW-8030-DI-00
Lumen (lm): 250 lm
Optic: VW
Optic value: 63°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: BOH-60001-VW-8040-DI-00
Lumen (lm): 270 lm
Optic: VW
Optic value: 63°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: BOH-60001-E-8030-ND-00
Lumen (lm): 344 lm
Optic: E
Optic value: 13°x42°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60001-E-8040-ND-00
Lumen (lm): 372 lm
Optic: E
Optic value: 13°x42°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60001-E-8030-DI-00
Lumen (lm): 344 lm
Optic: E
Optic value: 13°x42°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: BOH-60001-E-8040-DI-00
Lumen (lm): 372 lm
Optic: E
Optic value: 13°x42°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
