LIGMAN BORNHOLM 1 BOH-60003.

BORNHOLM 1BOH-60003

(Version 1)

Recessed underwater projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

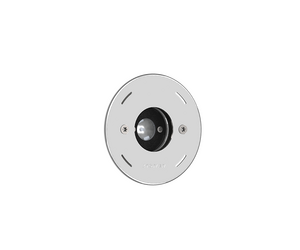

BORNHOLM 1
Without remote driver - With recessing box - Constant voltage (CV) 24 V
CERETILAPClass IIIIP68IK07

Technical information

Material
Stainless Steel
Light source
1 LED
Power (W)
4 W
Lumen (lm)
211 - 358 lm
Efficacy (lm/W)
53 - 90 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
N, M, W, VW, E
Optic value
12°, 18°, 33°, 62°x54°, 46°x14°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U0-G0, B1-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100
Dimming type
On/Off
Product colours
Stainless Steel
Weight
0.8 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 109,000
Lifetime L80B10 (hours)
> 109,000
Lifetime L80B50 (hours)
> 109,000

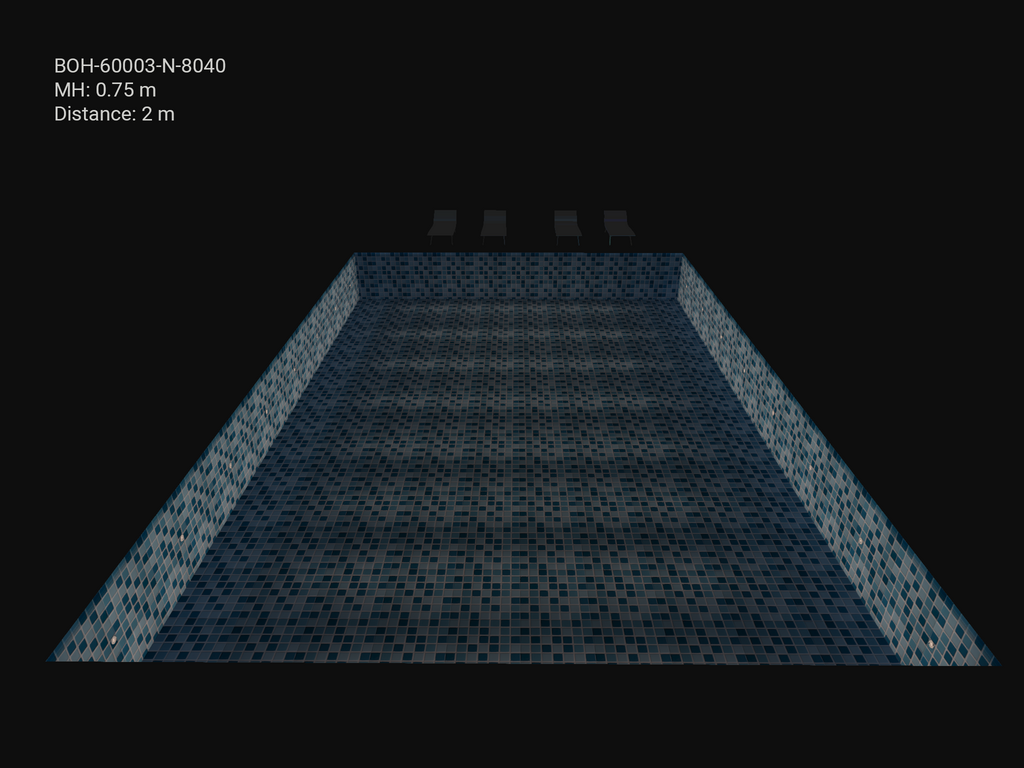

Light effect

Optic
N (12°)
M (18°)
W (33°)
VW (62°x54°)
E (46°x14°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: BOH-60003-N-8030-ND-00
Lumen (lm): 306 lm
Optic: N
Optic value: 12°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60003-N-8040-ND-00
Lumen (lm): 358 lm
Optic: N
Optic value: 12°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60003-M-8030-ND-00
Lumen (lm): 257 lm
Optic: M
Optic value: 18°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60003-M-8040-ND-00
Lumen (lm): 301 lm
Optic: M
Optic value: 18°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60003-W-8030-ND-00
Lumen (lm): 286 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60003-W-8040-ND-00
Lumen (lm): 334 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60003-VW-8030-ND-00
Lumen (lm): 211 lm
Optic: VW
Optic value: 62°x54°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60003-VW-8040-ND-00
Lumen (lm): 247 lm
Optic: VW
Optic value: 62°x54°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60003-E-8030-ND-00
Lumen (lm): 277 lm
Optic: E
Optic value: 46°x14°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: BOH-60003-E-8040-ND-00
Lumen (lm): 324 lm
Optic: E
Optic value: 46°x14°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
