BORNHOLM 3BOH-60022 (Version 1)
Recessed underwater projectors
Without remote driver - Constant voltage (CV) 24 V - RGBW
TECHNICAL SPECIFICATIONS
Material
Stainless Steel
Light source
8 LED
Power (W)
15 W
Lumen (lm)
853 - 1133 lm
Efficacy (lm/W)
57 - 76 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
N, M, W, VW, E
Optic value
11°, 17°, 32°, 71°, 14°x43°
CCT / CRI
RGBW30, RGBW40
Bug
B1-U0-G0, B2-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100
Dimming type
DMX, DMX/RDM
Product colours
Stainless Steel
Weight
2.3 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 2 m of 5x0.75 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code

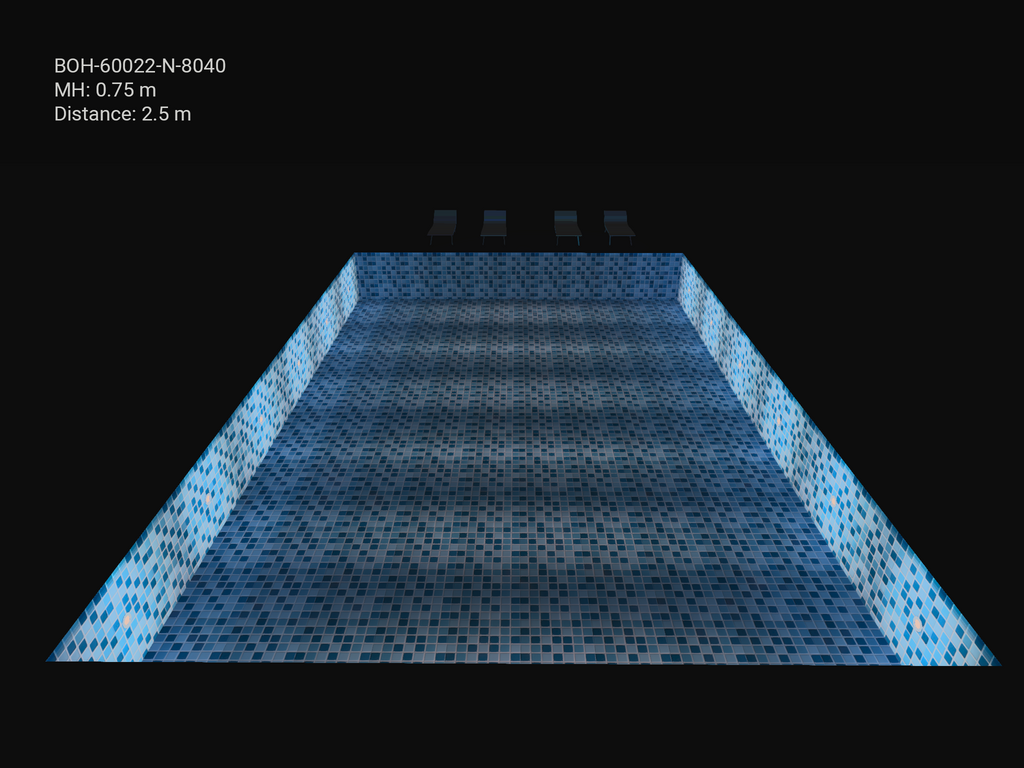

LIGHT EFFECT
Optic
N (11°)
M (17°)
W (32°)
VW (71°)
E (14°x43°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: BOH-60022-N-30-DMX-00
Lumen (lm): 1098 lm
Optic: N
Optic value: 11°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60022-N-40-DMX-00
Lumen (lm): 1133 lm
Optic: N
Optic value: 11°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60022-N-30-DMXRDM-00
Lumen (lm): 1098 lm
Optic: N
Optic value: 11°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60022-N-40-DMXRDM-00
Lumen (lm): 1133 lm
Optic: N
Optic value: 11°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60022-M-30-DMX-00
Lumen (lm): 927 lm
Optic: M
Optic value: 17°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60022-M-40-DMX-00
Lumen (lm): 957 lm
Optic: M
Optic value: 17°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60022-M-30-DMXRDM-00
Lumen (lm): 927 lm
Optic: M
Optic value: 17°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60022-M-40-DMXRDM-00
Lumen (lm): 957 lm
Optic: M
Optic value: 17°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60022-W-30-DMX-00
Lumen (lm): 919 lm
Optic: W
Optic value: 32°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60022-W-40-DMX-00
Lumen (lm): 949 lm
Optic: W
Optic value: 32°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60022-W-30-DMXRDM-00
Lumen (lm): 919 lm
Optic: W
Optic value: 32°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60022-W-40-DMXRDM-00
Lumen (lm): 949 lm
Optic: W
Optic value: 32°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60022-VW-30-DMX-00
Lumen (lm): 853 lm
Optic: VW
Optic value: 71°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60022-VW-40-DMX-00
Lumen (lm): 880 lm
Optic: VW
Optic value: 71°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60022-VW-30-DMXRDM-00
Lumen (lm): 853 lm
Optic: VW
Optic value: 71°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60022-VW-40-DMXRDM-00
Lumen (lm): 880 lm
Optic: VW
Optic value: 71°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60022-E-30-DMX-00
Lumen (lm): 1019 lm
Optic: E
Optic value: 14°x43°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60022-E-40-DMX-00
Lumen (lm): 988 lm
Optic: E
Optic value: 14°x43°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60022-E-30-DMXRDM-00
Lumen (lm): 1019 lm
Optic: E
Optic value: 14°x43°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60022-E-40-DMXRDM-00
Lumen (lm): 988 lm
Optic: E
Optic value: 14°x43°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
