CINATI 1CI-30121 (Version 3)
CINATI

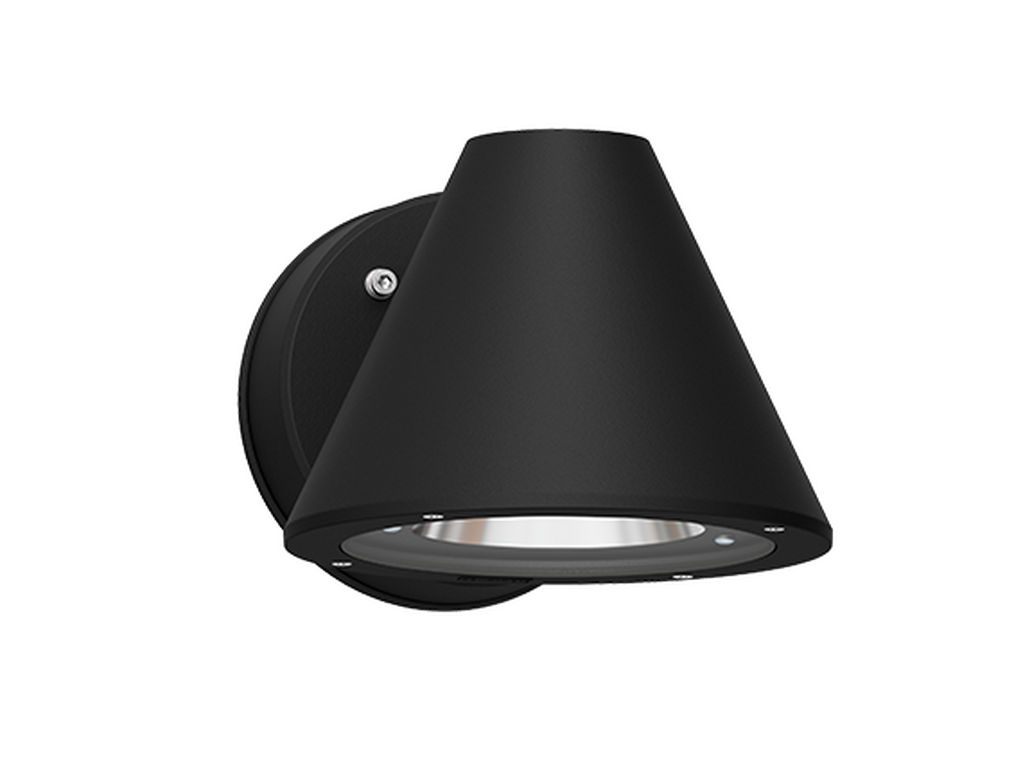

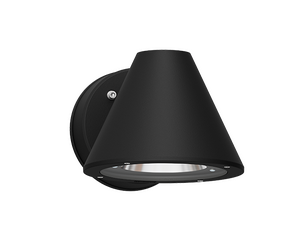

Black

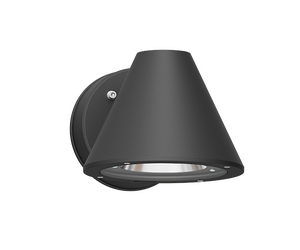

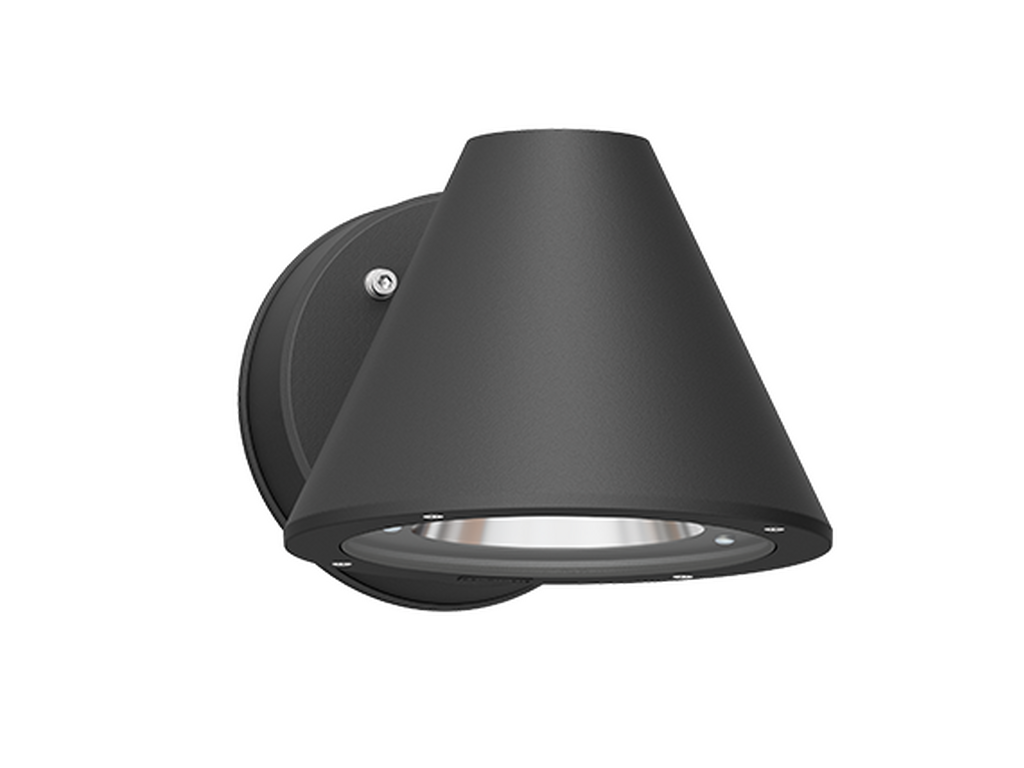

Dark Grey
White
Matt Silver
Bronze

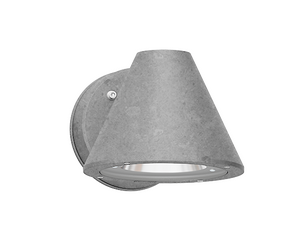

Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland

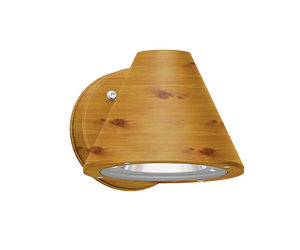

Pine - Woodland
Black
Dark Grey

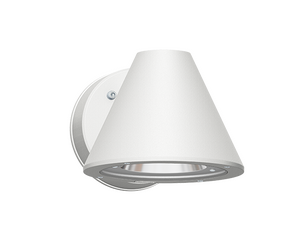

White

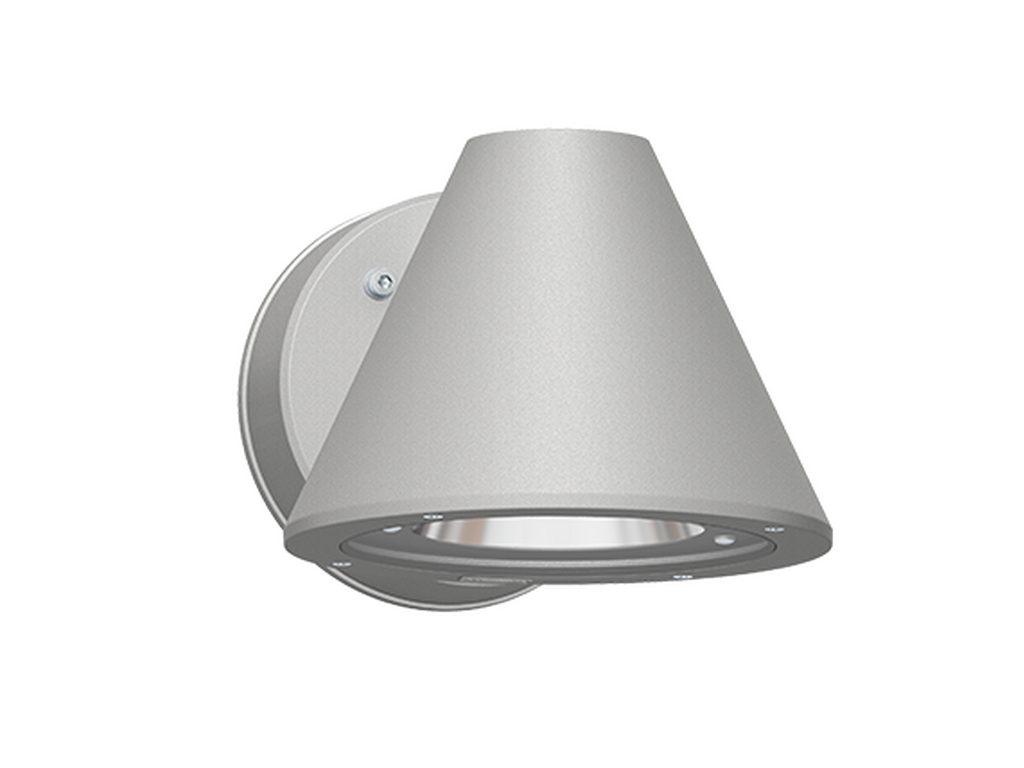

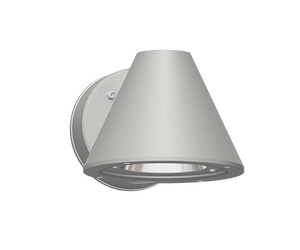

Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban

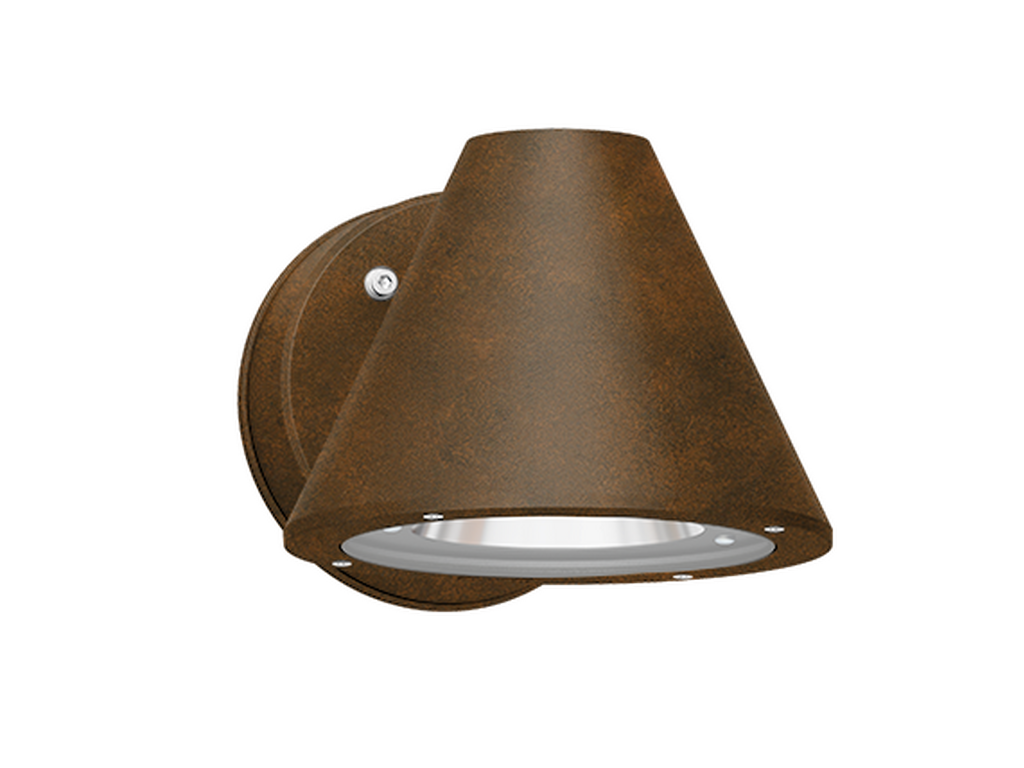

Corten - Urban

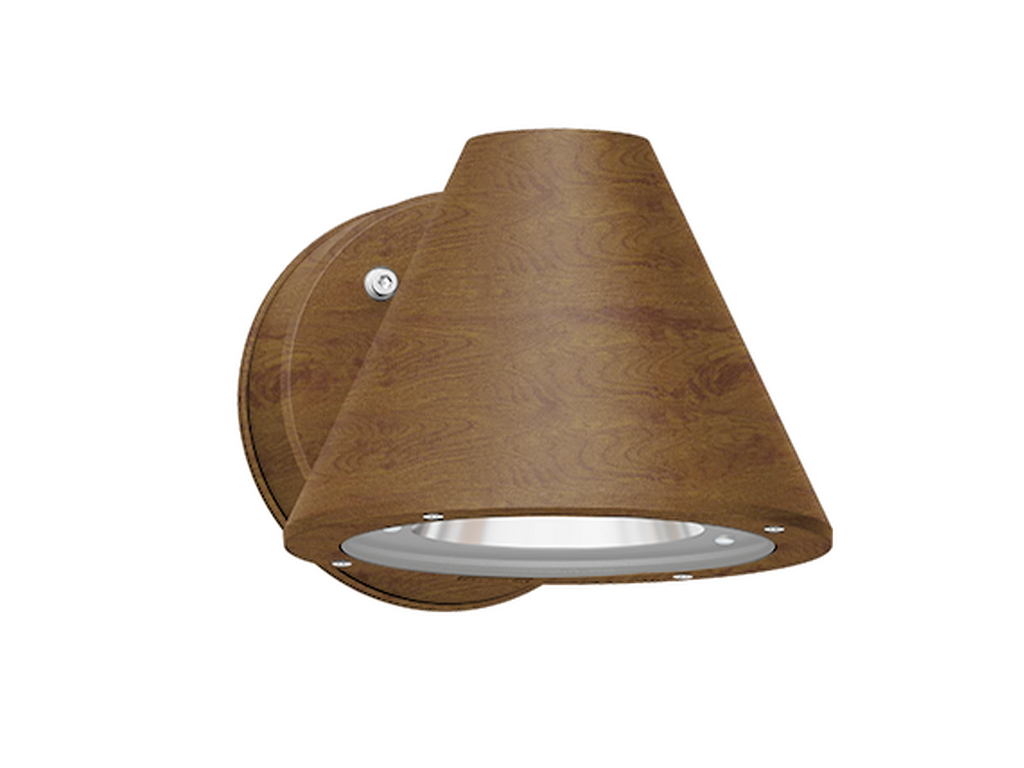

Oak - Woodland

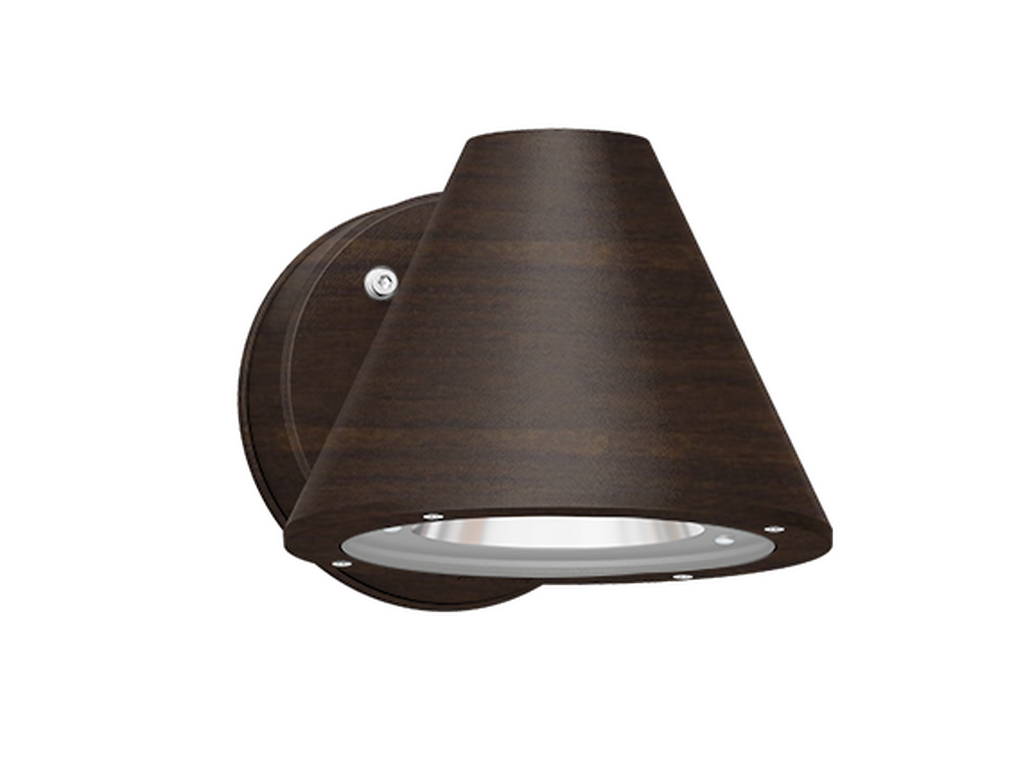

Walnut - Woodland

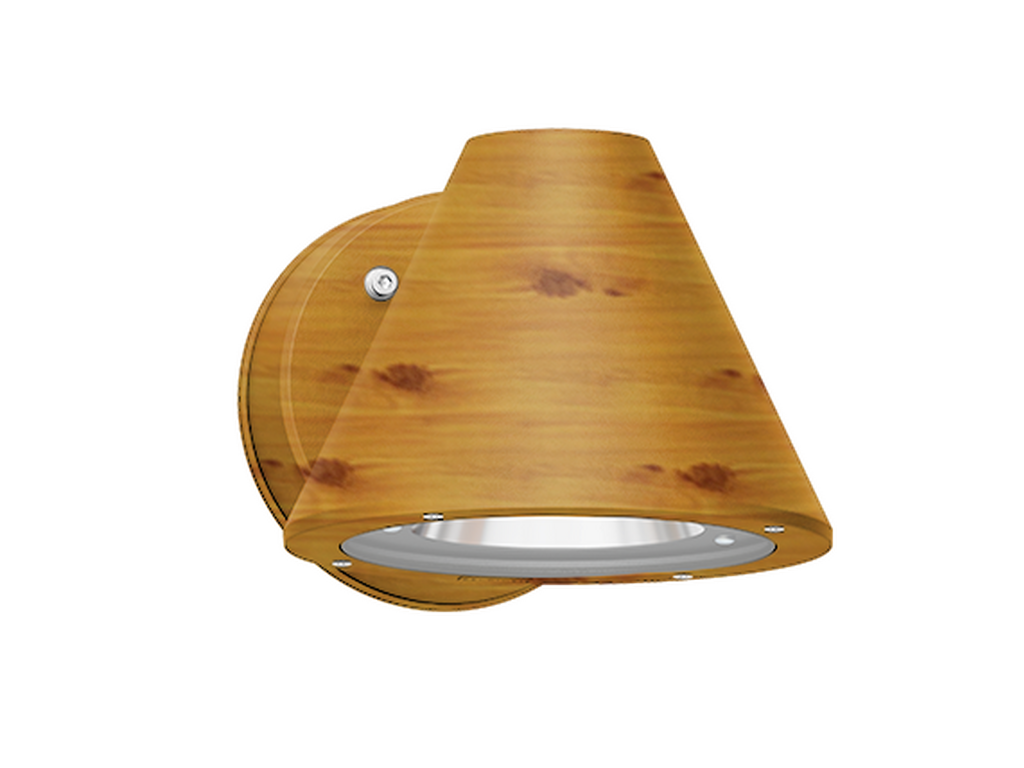

Pine - Woodland
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
1 COB
Power (W)
20 W
Lumen (lm)
2180 - 2624 lm
Efficacy (lm/W)
109 - 131 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW
Optic value
9°, 20°, 38°, 71°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
3.3 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 61,000
Variants (On/Off, 1-10V)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code

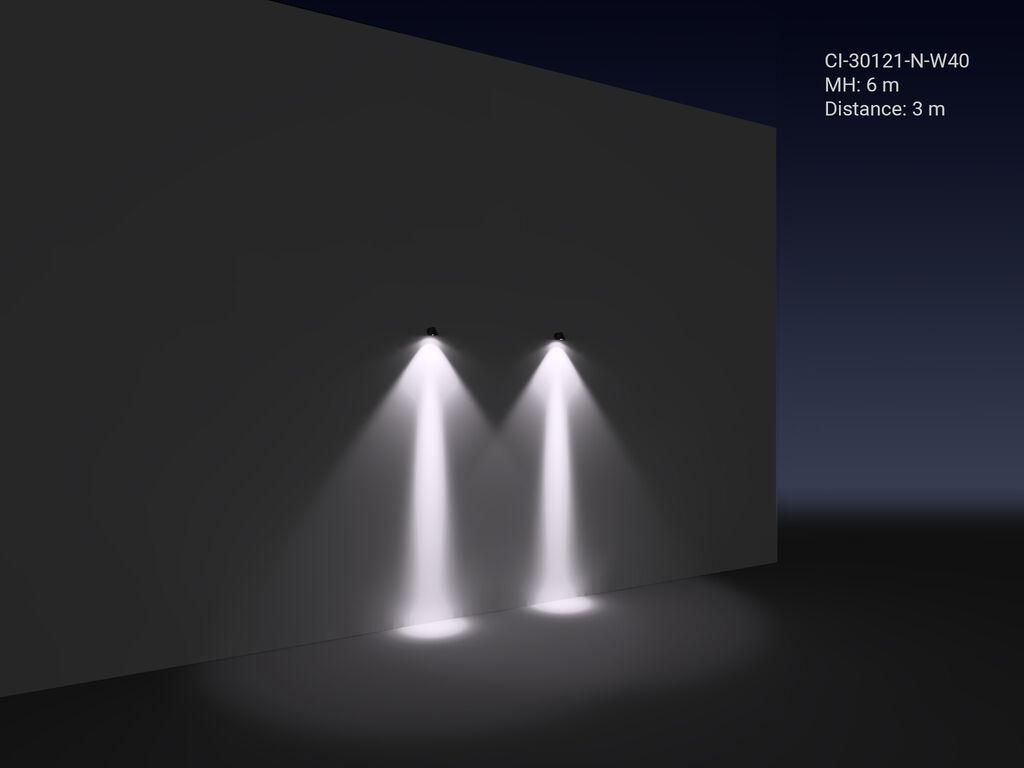

LIGHT EFFECT
Optic
N (9°)
M (20°)
W (38°)
VW (71°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
