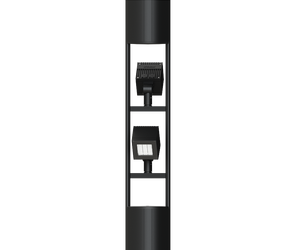

Cluster projectors - LADOR (2)
Cluster projectors - LADOR (2)
Cluster projectors - LADOR (2)
Cluster projectors - LADOR (2)
2 x LD-50021 projectors
CEClass IIP65IK07

Technical information

- Adjustable: Tilt 60° (Up) & 70° (Down), Rotation 20°
- Up to 1975 lm per projector
- 3000K, 4000K
- 10°, 19°, 33°, 41°x14°, 71°
Light source
2 x 9 LED
Power (W)
42 W
Lumen (lm)
3084 - 3950 lm
Efficacy (lm/W)
91 - 116 lm/W
Input voltage
220-240V 50/60Hz
Optic
N, M, W, VW, E
Optic value
10°, 18°, 29°, 69°, 12°x41°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U0-G0
ULR
0, <1%
ULOR
0, <1%
CIE flux code nº3
100
Dimming type
On/Off, DALI
Weight
18.5 kg
EPA (m2)
0.148

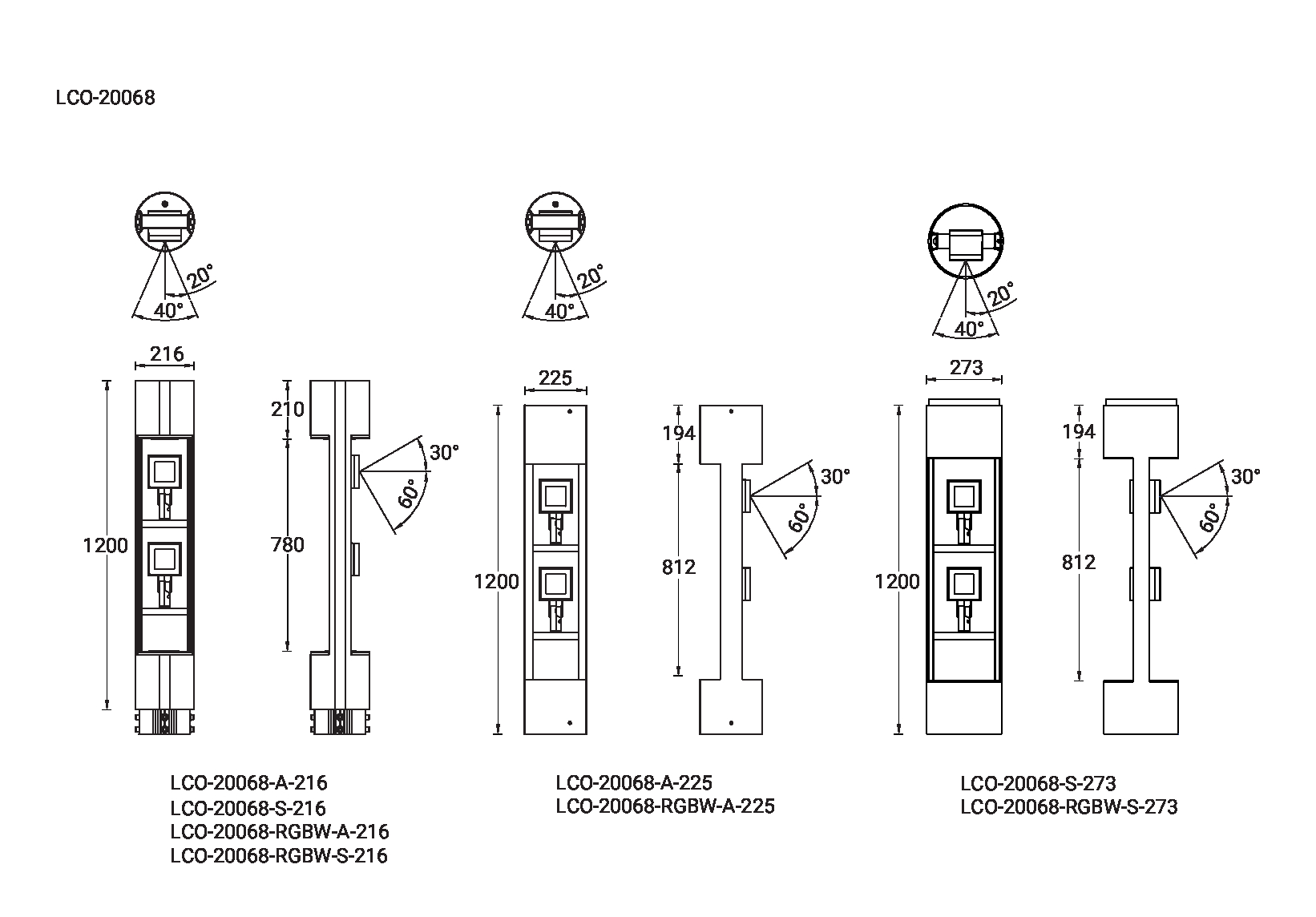

Tilt
30°(Up)/ -60°(Down)

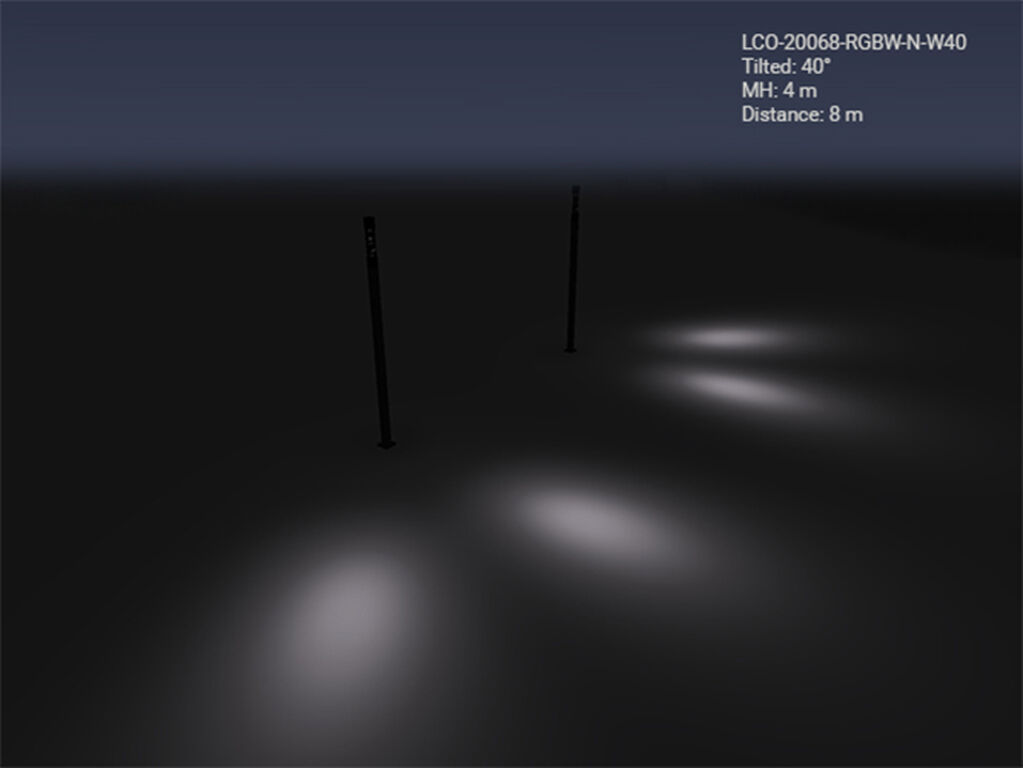

Light effect

Optic
N (10°)
M (18°)
W (29°)
VW (69°)
E (12°x41°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: LCO-20068-A-216
Lumen (lm): lm
Optic:
Optic value:
CCT / CRI:
Dimming type:
Product colour:
Variant code: LCO-20068-A-225
Lumen (lm): lm
Optic:
Optic value:
CCT / CRI:
Dimming type:
Product colour:
Variant code: LCO-20068-S-216
Lumen (lm): lm
Optic:
Optic value:
CCT / CRI:
Dimming type:
Product colour:
Variant code: LCO-20068-S-273
Lumen (lm): lm
Optic:
Optic value:
CCT / CRI:
Dimming type:
Product colour:
Variant code: LCO-20068-N-8030-ND
Lumen (lm): 3688 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: LCO-20068-N-8040-ND
Lumen (lm): 3950 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: LCO-20068-N-8030-DA
Lumen (lm): 3688 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: LCO-20068-N-8040-DA
Lumen (lm): 3950 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
Variant code: LCO-20068-M-8030-ND
Lumen (lm): 3344 lm
Optic: M
Optic value: 18°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: LCO-20068-M-8040-ND
Lumen (lm): 3582 lm
Optic: M
Optic value: 18°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: LCO-20068-M-8030-DA
Lumen (lm): 3344 lm
Optic: M
Optic value: 18°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: LCO-20068-M-8040-DA
Lumen (lm): 3582 lm
Optic: M
Optic value: 18°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
Variant code: LCO-20068-W-8030-ND
Lumen (lm): 3378 lm
Optic: W
Optic value: 29°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: LCO-20068-W-8040-ND
Lumen (lm): 3616 lm
Optic: W
Optic value: 29°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: LCO-20068-W-8030-DA
Lumen (lm): 3378 lm
Optic: W
Optic value: 29°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: LCO-20068-W-8040-DA
Lumen (lm): 3616 lm
Optic: W
Optic value: 29°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
Variant code: LCO-20068-VW-8030-ND
Lumen (lm): 3084 lm
Optic: VW
Optic value: 69°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: LCO-20068-VW-8040-ND
Lumen (lm): 3302 lm
Optic: VW
Optic value: 69°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: LCO-20068-VW-8030-DA
Lumen (lm): 3084 lm
Optic: VW
Optic value: 69°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: LCO-20068-VW-8040-DA
Lumen (lm): 3302 lm
Optic: VW
Optic value: 69°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
Variant code: LCO-20068-E-8030-ND
Lumen (lm): 3470 lm
Optic: E
Optic value: 12°x41°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: LCO-20068-E-8040-ND
Lumen (lm): 3714 lm
Optic: E
Optic value: 12°x41°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: LCO-20068-E-8030-DA
Lumen (lm): 3470 lm
Optic: E
Optic value: 12°x41°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: LCO-20068-E-8040-DA
Lumen (lm): 3714 lm
Optic: E
Optic value: 12°x41°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:

Accessory
