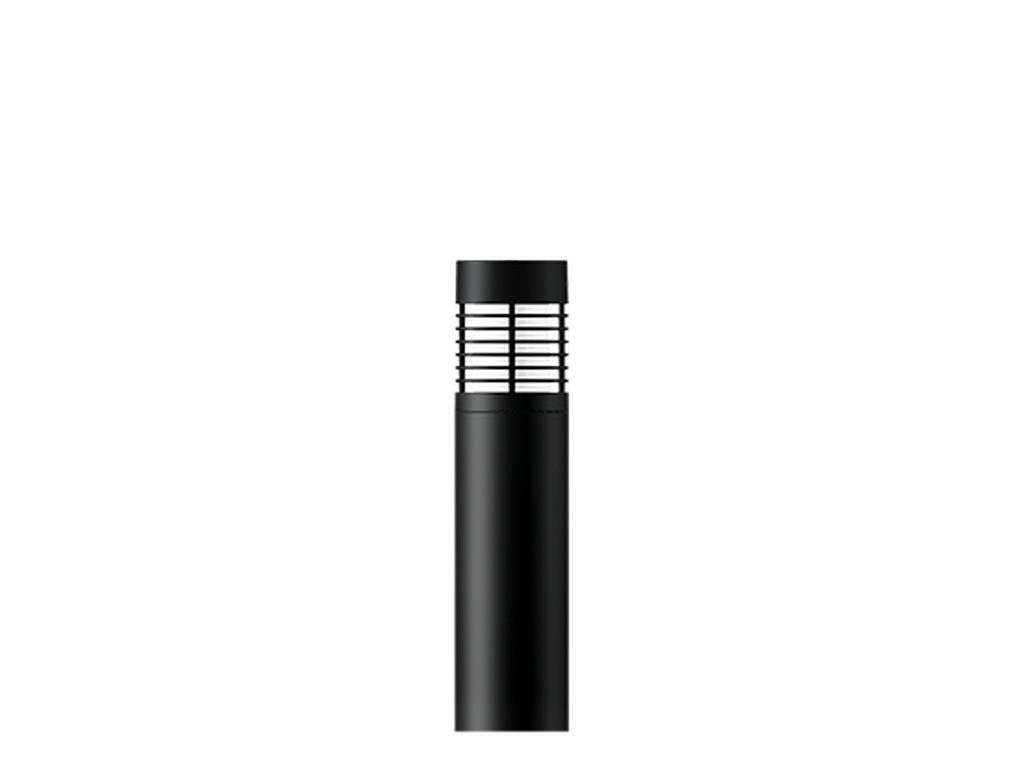

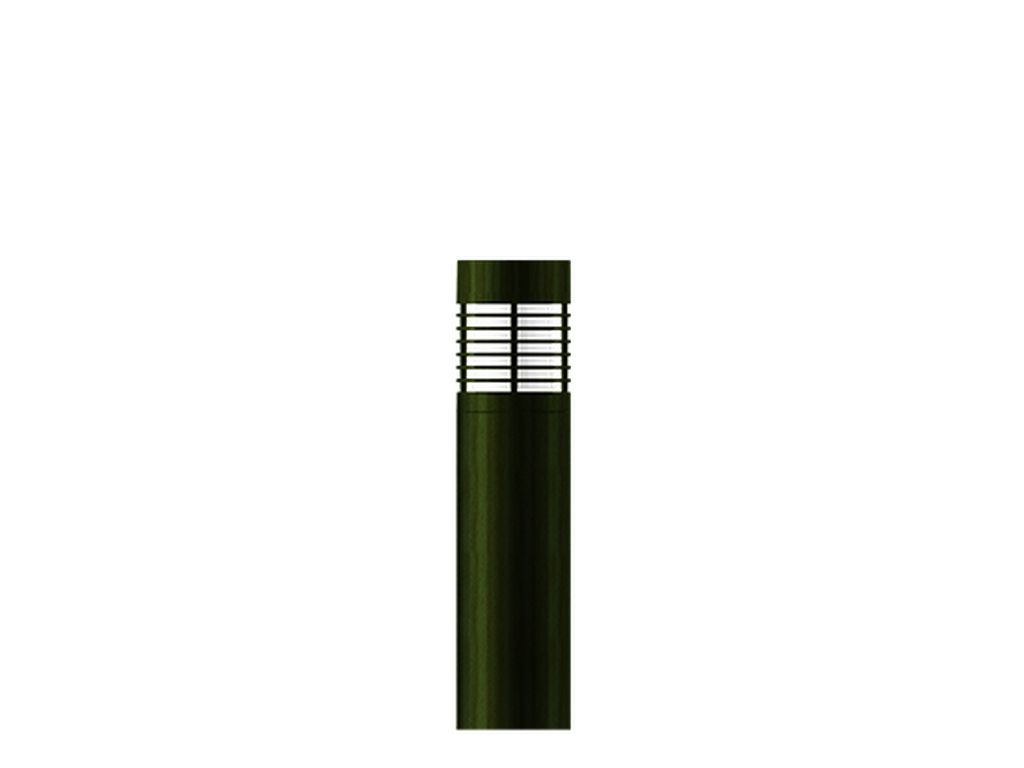

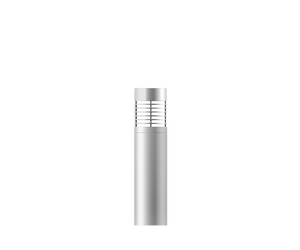

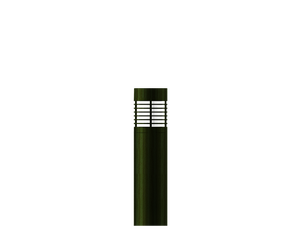

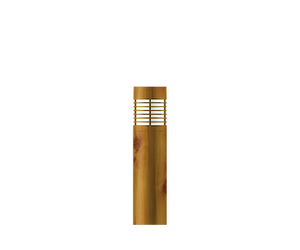

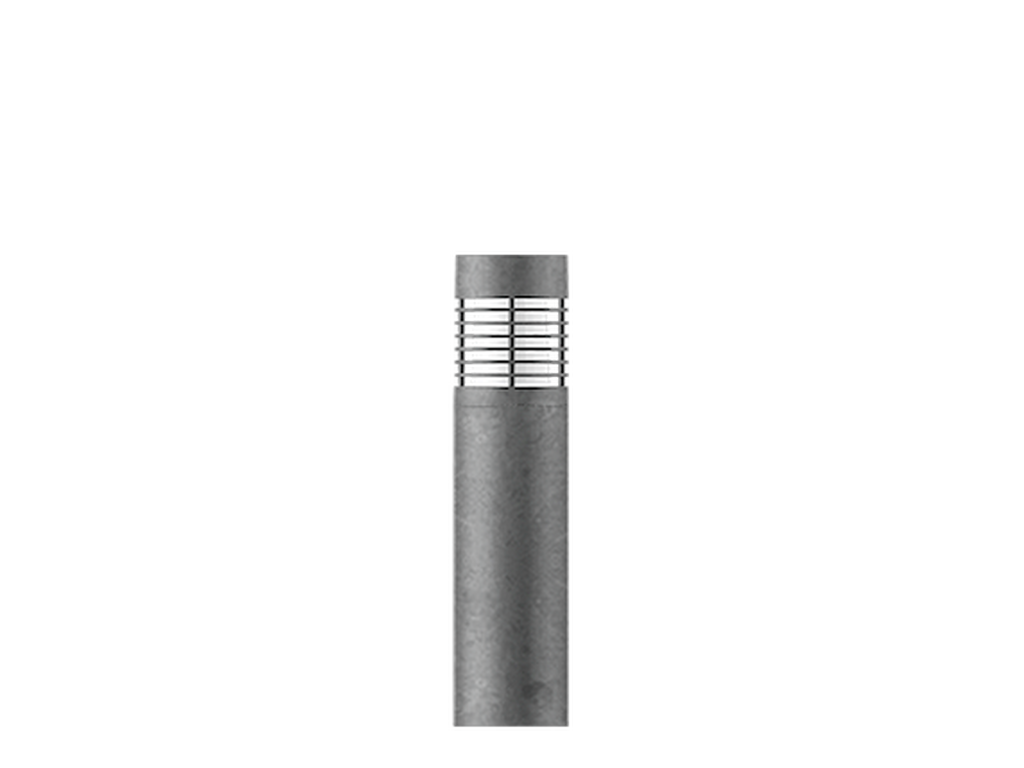

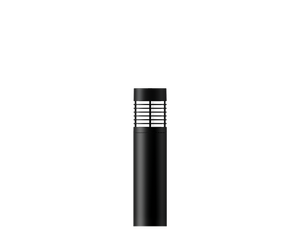

DUOMO 3DU-10216-2-SBDUOMO

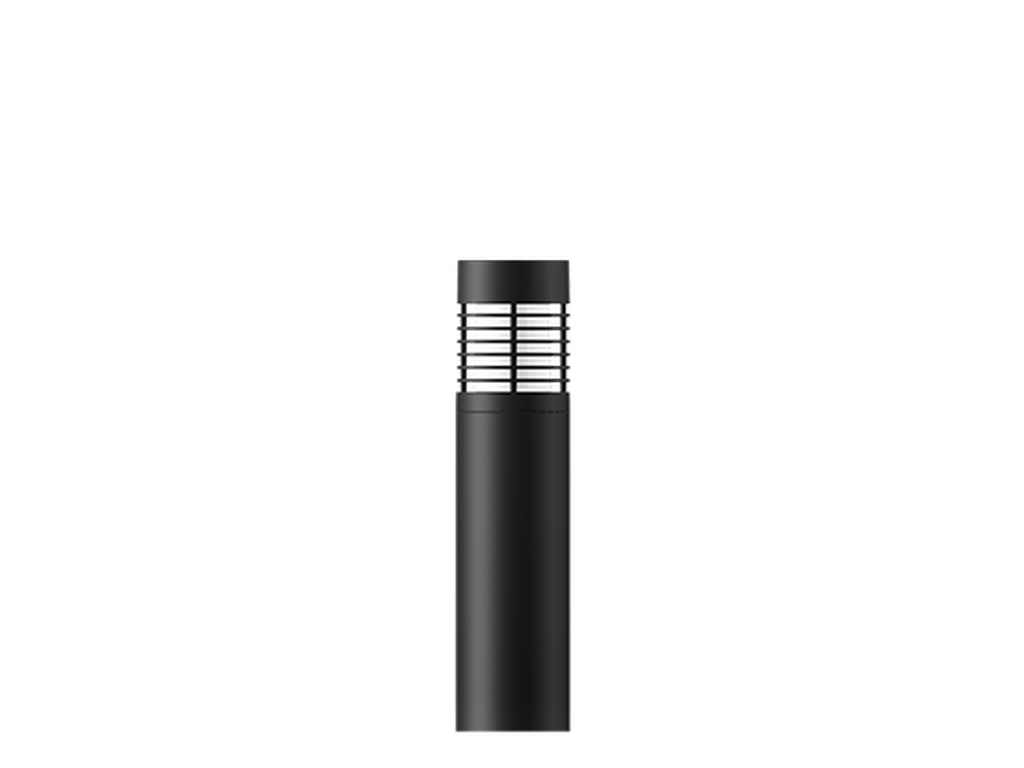

Black
Dark Grey

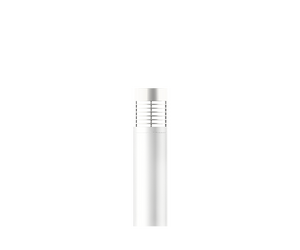

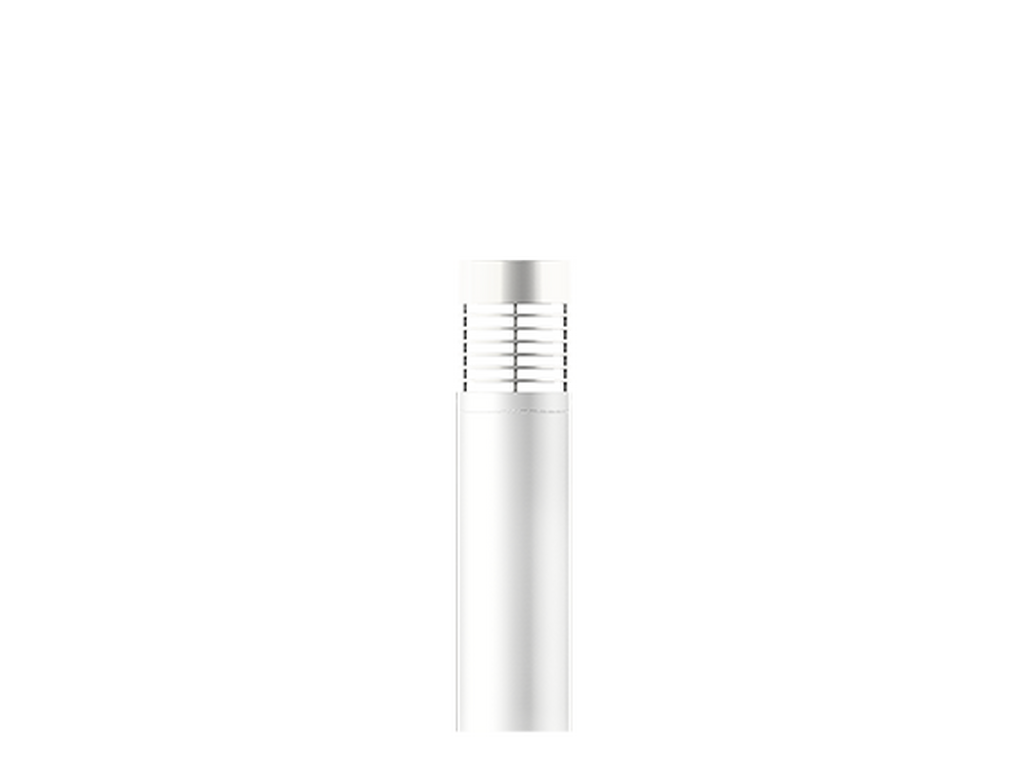

White

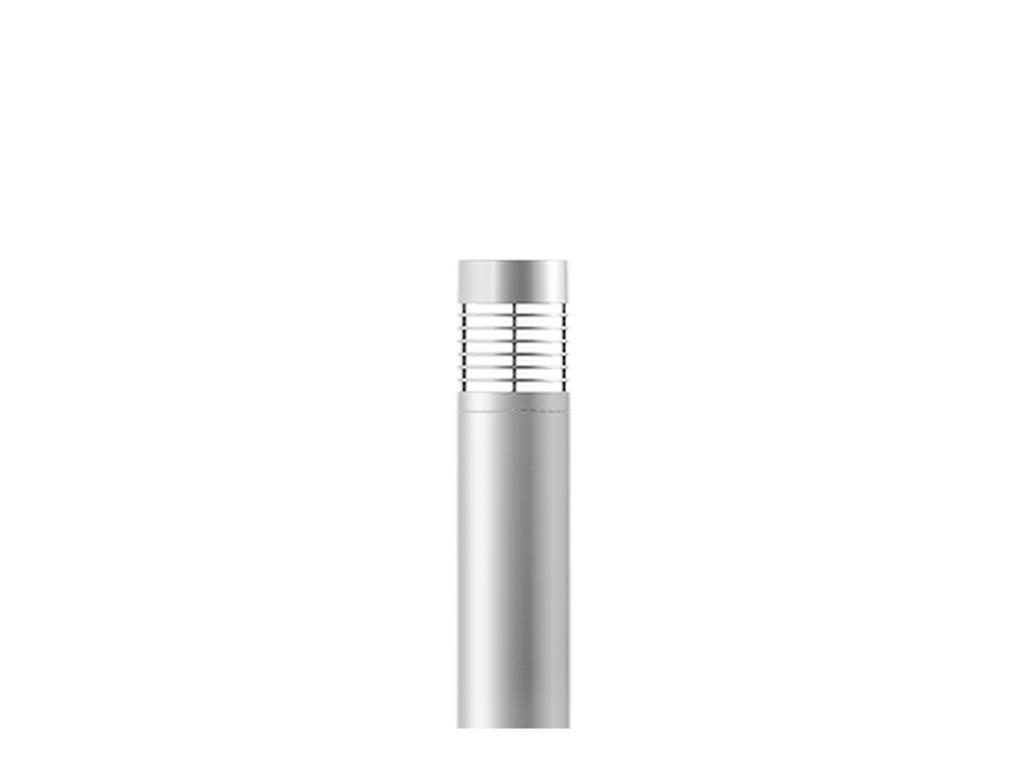

Matt Silver

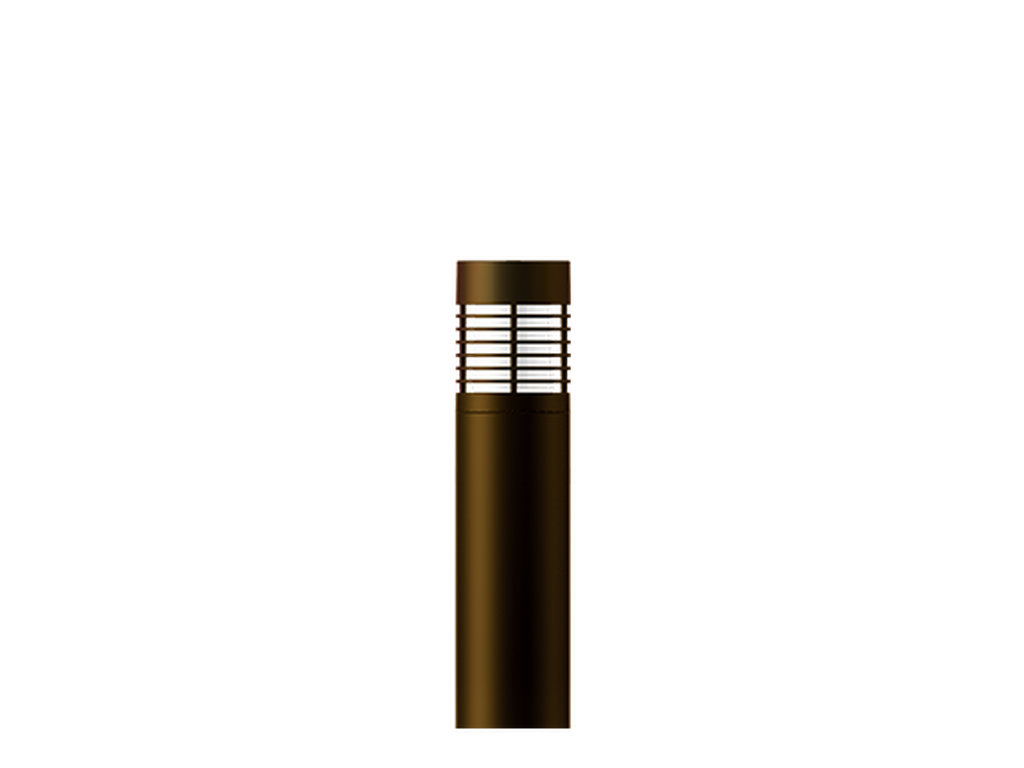

Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - WoodlandØ217 - 763 mm - Flat top - With integrated security core (Anti-traffic)
TECHNICAL SPECIFICATIONS
Light source
1 COB
Power (W)
41 W
Lumen (lm)
385 - 390 lm
Efficacy (lm/W)
9 - 10 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
360°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U3-G1
ULR
45%
ULOR
45%
CIE flux code nº3
29
Dimming type
On/Off, 1-10V, DALI
Weight
10.4 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Opal toughened glass diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 55,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
CE documentFor BIM files (Revit - RFA), please check the Variant code

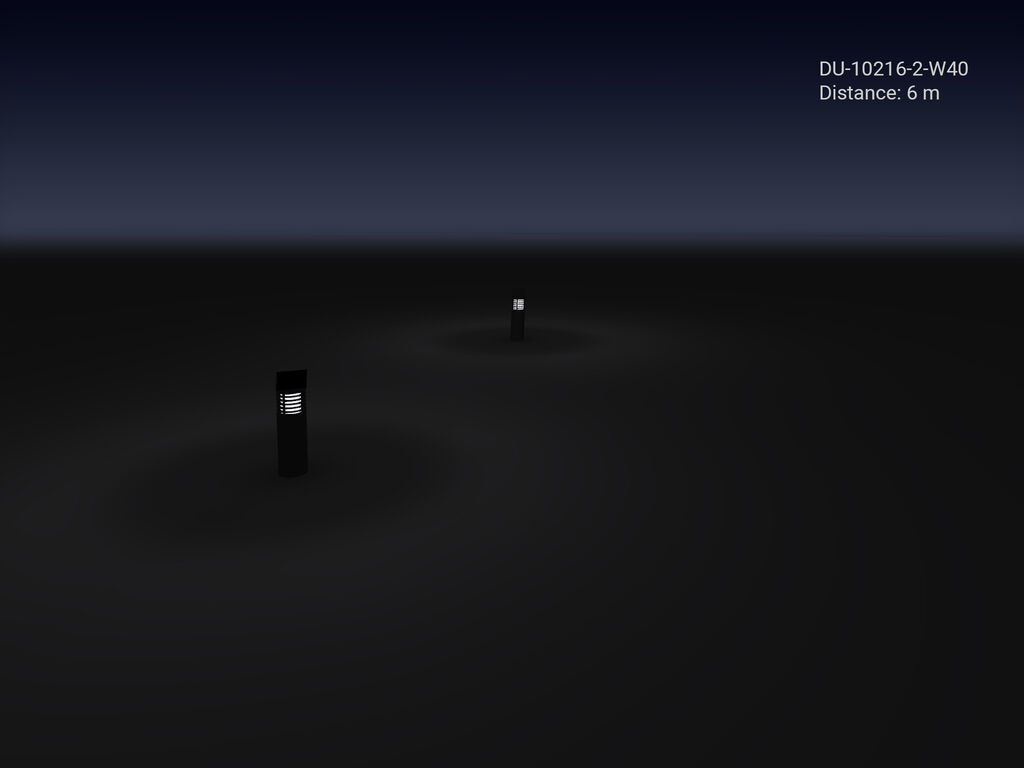

LIGHT EFFECT
Optic
G (360°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: DU-10216-2-SB-G-8030-ND
Lumen (lm): 385 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: DU-10216-2-SB-G-8040-ND
Lumen (lm): 390 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: DU-10216-2-SB-G-8030-DI
Lumen (lm): 385 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: DU-10216-2-SB-G-8040-DI
Lumen (lm): 390 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: DU-10216-2-SB-G-8030-DA
Lumen (lm): 385 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: DU-10216-2-SB-G-8040-DA
Lumen (lm): 390 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
