LIGMAN FORREY 17 FOR-30001.

FORREY 17FOR-30001FORREY

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
FORREY 17Black
FORREY 17Dark Grey
FORREY 17White
FORREY 17Matt Silver
FORREY 17Bronze
FORREY 17Concrete - Urban
FORREY 17Softscape - Urban
FORREY 17Stone - Urban
FORREY 17Corten - Urban
FORREY 17Oak - Woodland
FORREY 17Walnut - Woodland
FORREY 17Pine - Woodland
FORREY 17Black
FORREY 17Dark Grey
FORREY 17White
FORREY 17Matt Silver
FORREY 17Bronze
FORREY 17Concrete - Urban
FORREY 17Softscape - Urban
FORREY 17Stone - Urban
FORREY 17Corten - Urban
FORREY 17Oak - Woodland
FORREY 17Walnut - Woodland
FORREY 17Pine - Woodland
Ø660 - 707 mm - With shade
CERETILAPBISClass IIP65IK08

Technical information

Material
Aluminium
Light source
1 COB
Power (W)
48 W
Lumen (lm)
4247 - 4813 lm
Efficacy (lm/W)
89 - 101 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4, T5
Optic value
143˚x86˚, 132˚x99˚, 131˚x117˚, 119˚x134˚
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U0-G1, B2-U0-G2, B3-U0-G1
ULR
<1%
ULOR
<1%
CIE flux code nº3
94, 96
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
9.6 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
White coated aluminium reflector on the top of luminaire, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,700
Lifetime L80B10 (hours)
> 63,500
Lifetime L80B50 (hours)
> 63,500
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

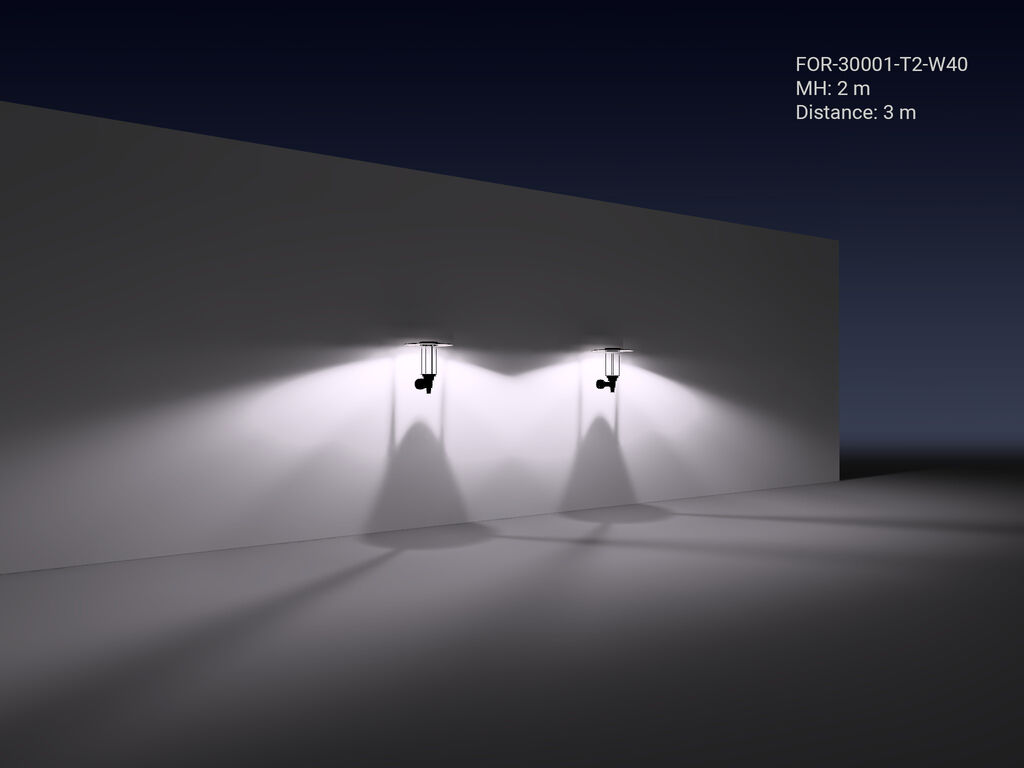

Light effect

Optic
T2 (143˚x86˚)
T3 (132˚x99˚)
T4 (131˚x117˚)
T5 (119˚x134˚)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory

Project reference (FORREY Surface facade luminaires)
