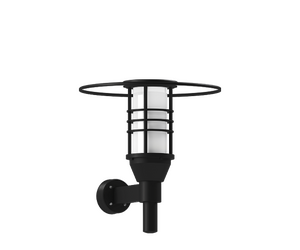

FORREY 18Black
FORREY 18Dark Grey

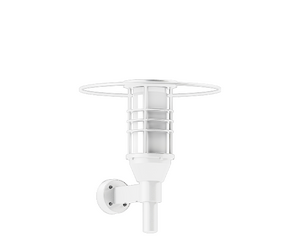

FORREY 18White
FORREY 18Matt Silver
FORREY 18Bronze

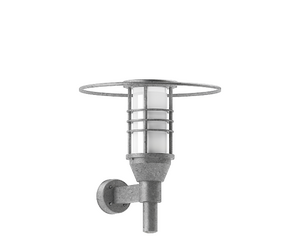

FORREY 18Concrete - Urban
FORREY 18Softscape - Urban

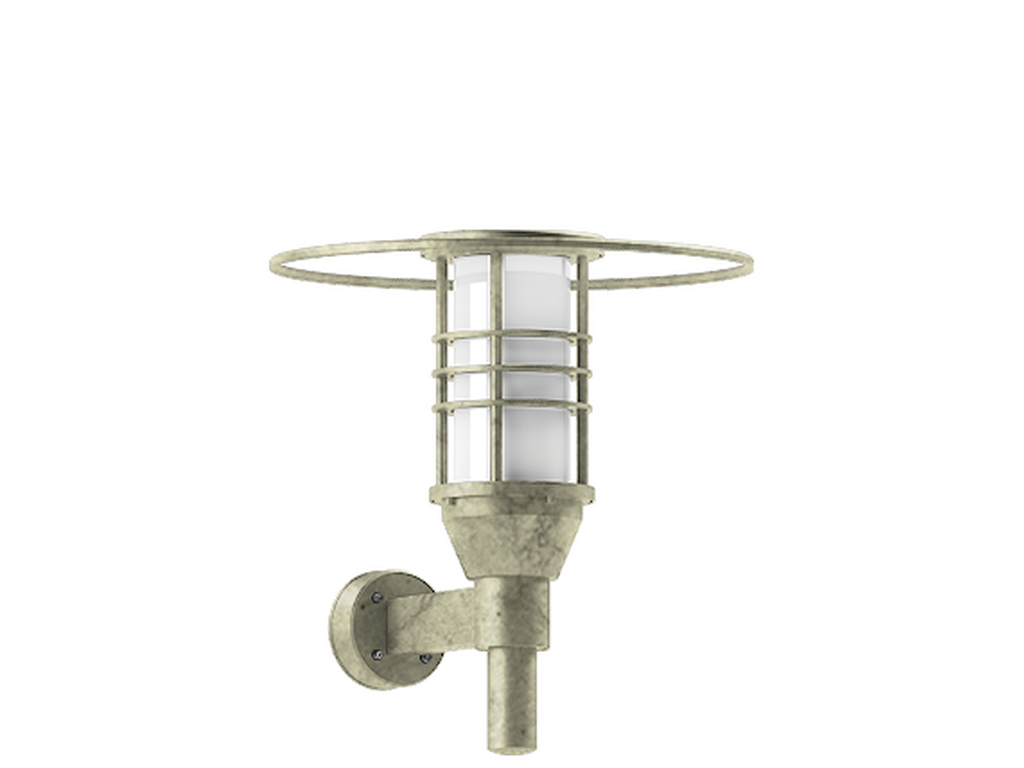

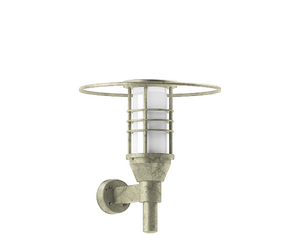

FORREY 18Stone - Urban

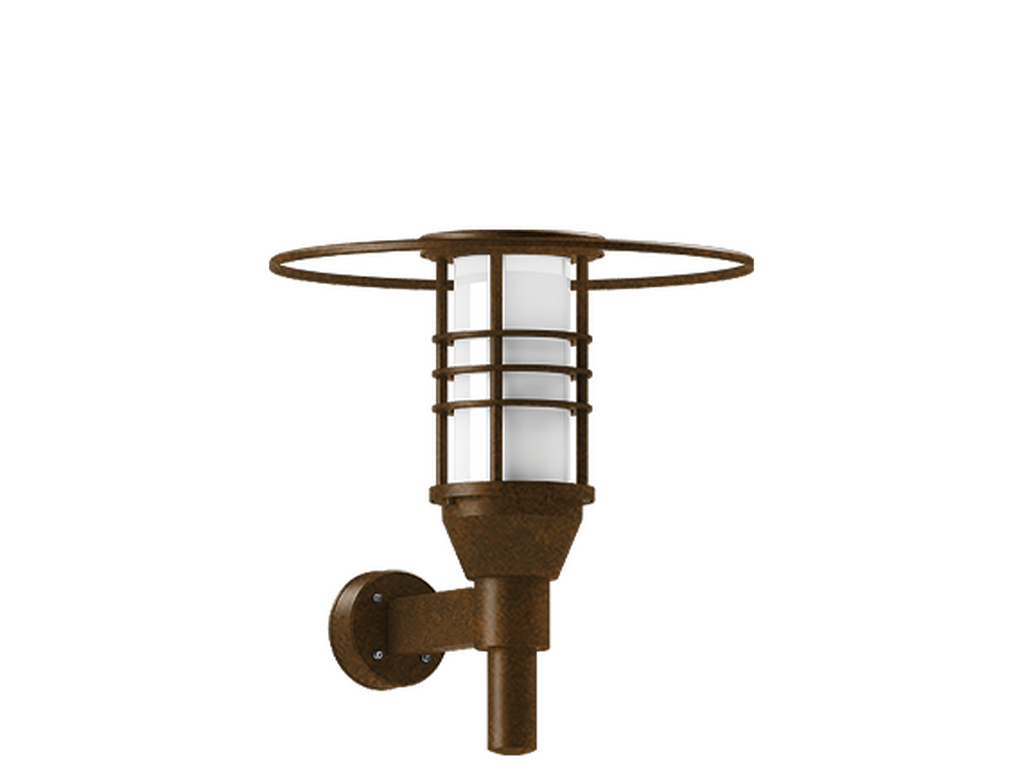

FORREY 18Corten - Urban
FORREY 18Oak - Woodland

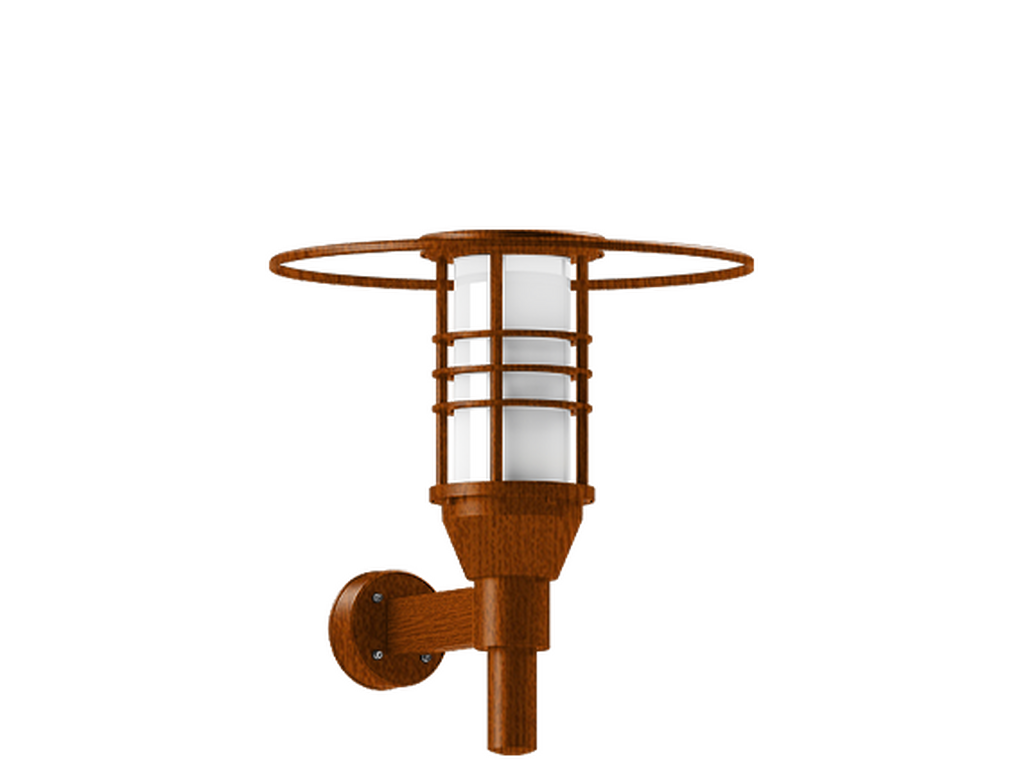

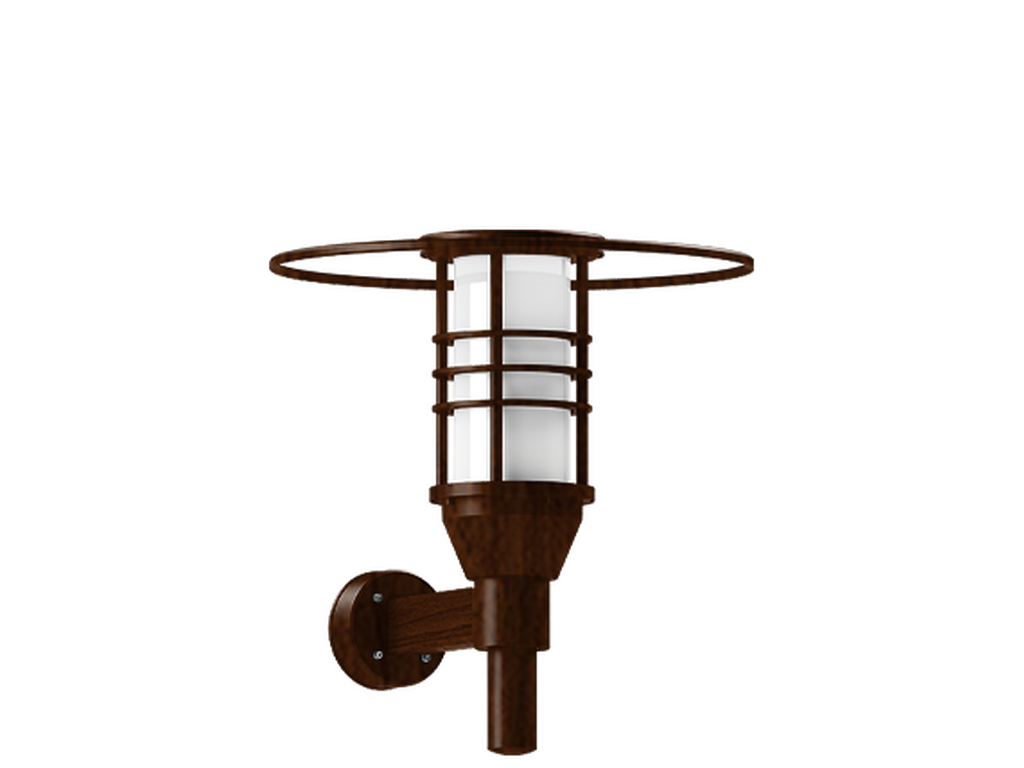

FORREY 18Walnut - Woodland

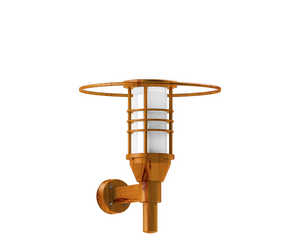

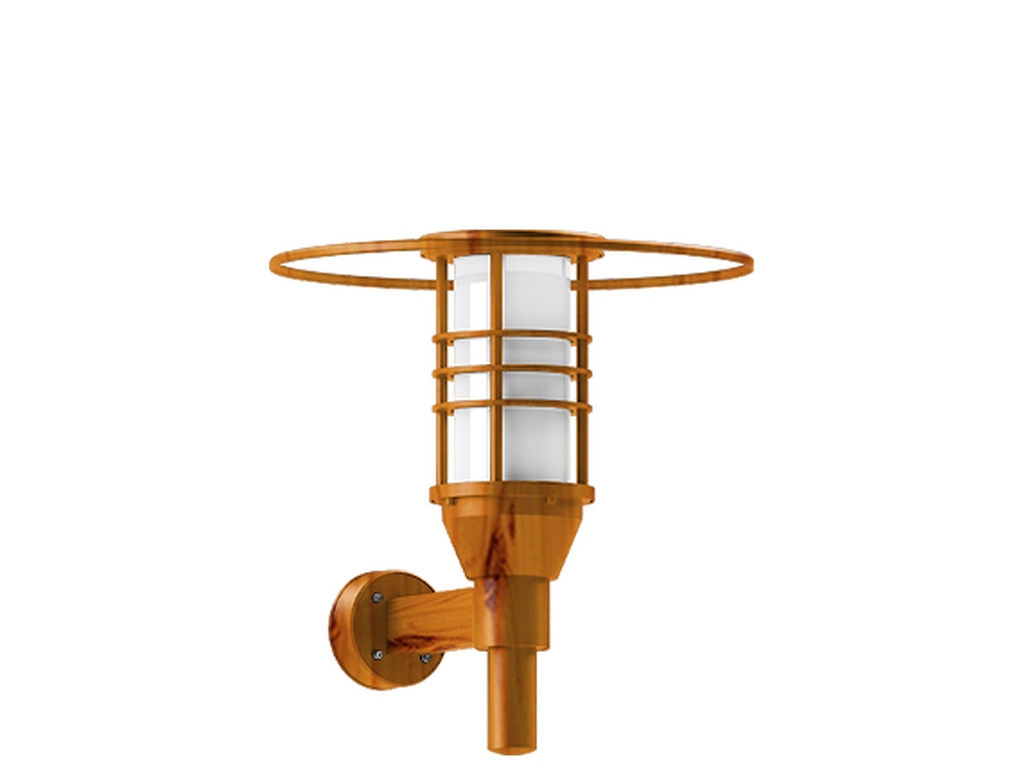

FORREY 18Pine - Woodland

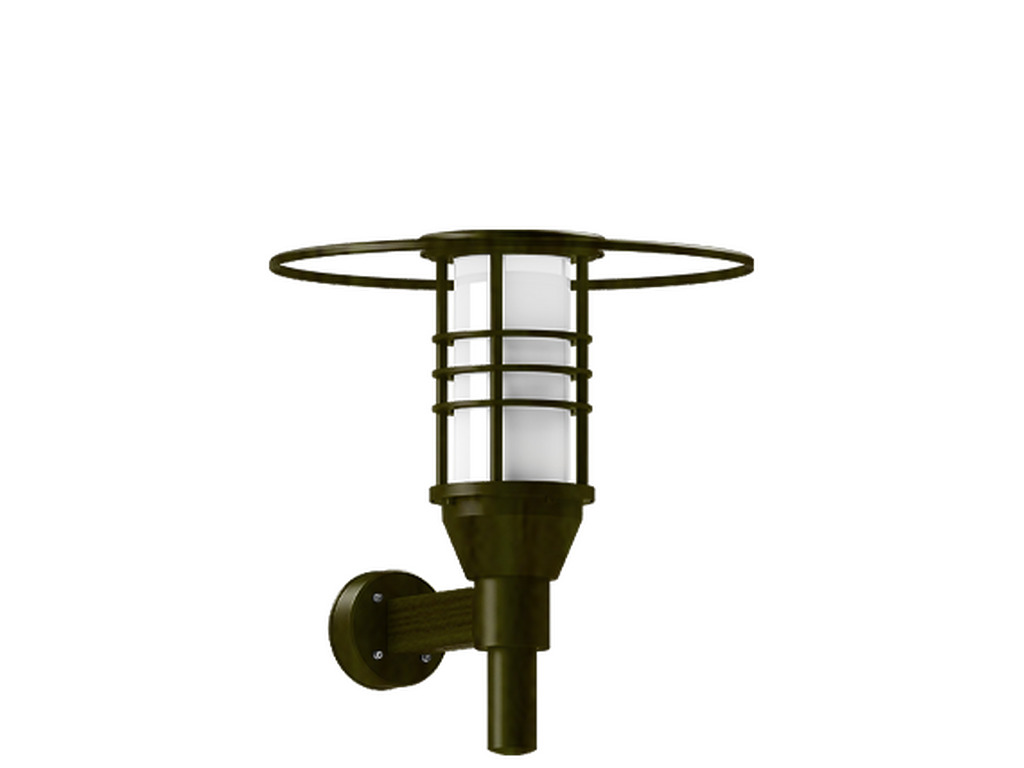

FORREY 18Black
FORREY 18Dark Grey
FORREY 18White

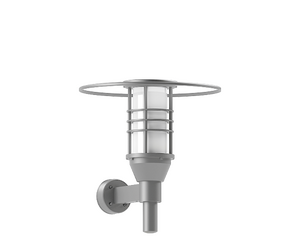

FORREY 18Matt Silver
FORREY 18Bronze
FORREY 18Concrete - Urban
FORREY 18Softscape - Urban
FORREY 18Stone - Urban
FORREY 18Corten - Urban
FORREY 18Oak - Woodland
FORREY 18Walnut - Woodland
FORREY 18Pine - Woodland
Ø660 - 707 mm - With shade & louver & opal diffuser
CERETILAPClass IIP65IK08

Technical information

Material
Aluminium
Light source
160 LED
Power (W)
50 W
Lumen (lm)
3046 - 3275 lm
Efficacy (lm/W)
61 - 65 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
360˚
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U4-G3
ULR
32%
ULOR
32%
CIE flux code nº3
67
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
11.5 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
White coated aluminium reflector on the top of luminaire, Opal UV-stabilised polycarbonate diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 23,000
Lifetime L80B10 (hours)
> 45,000
Lifetime L80B50 (hours)
> 49,000
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Light effect

Optic
G (360˚)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: FOR-30012-G-8030-ND-01
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: FOR-30012-G-8030-ND-02
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: FOR-30012-G-8030-ND-03
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: FOR-30012-G-8030-ND-05
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: FOR-30012-G-8030-ND-06
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: FOR-30012-G-8030-ND-SU01
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: FOR-30012-G-8030-ND-SU02
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: FOR-30012-G-8030-ND-SU03
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: FOR-30012-G-8030-ND-SU04
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: FOR-30012-G-8030-ND-SW01
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: FOR-30012-G-8030-ND-SW02
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: FOR-30012-G-8030-ND-SW03
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: FOR-30012-G-8040-ND-01
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: FOR-30012-G-8040-ND-02
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: FOR-30012-G-8040-ND-03
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: FOR-30012-G-8040-ND-05
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: FOR-30012-G-8040-ND-06
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: FOR-30012-G-8040-ND-SU01
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: FOR-30012-G-8040-ND-SU02
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: FOR-30012-G-8040-ND-SU03
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: FOR-30012-G-8040-ND-SU04
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: FOR-30012-G-8040-ND-SW01
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: FOR-30012-G-8040-ND-SW02
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: FOR-30012-G-8040-ND-SW03
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: FOR-30012-G-8030-DI-01
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: FOR-30012-G-8030-DI-02
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: FOR-30012-G-8030-DI-03
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: FOR-30012-G-8030-DI-05
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: FOR-30012-G-8030-DI-06
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: FOR-30012-G-8030-DI-SU01
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: FOR-30012-G-8030-DI-SU02
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: FOR-30012-G-8030-DI-SU03
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: FOR-30012-G-8030-DI-SU04
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: FOR-30012-G-8030-DI-SW01
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: FOR-30012-G-8030-DI-SW02
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: FOR-30012-G-8030-DI-SW03
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: FOR-30012-G-8040-DI-01
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: FOR-30012-G-8040-DI-02
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: FOR-30012-G-8040-DI-03
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: FOR-30012-G-8040-DI-05
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: FOR-30012-G-8040-DI-06
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: FOR-30012-G-8040-DI-SU01
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: FOR-30012-G-8040-DI-SU02
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: FOR-30012-G-8040-DI-SU03
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: FOR-30012-G-8040-DI-SU04
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: FOR-30012-G-8040-DI-SW01
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: FOR-30012-G-8040-DI-SW02
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: FOR-30012-G-8040-DI-SW03
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: FOR-30012-G-8030-DA-01
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: FOR-30012-G-8030-DA-02
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: FOR-30012-G-8030-DA-03
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: FOR-30012-G-8030-DA-05
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: FOR-30012-G-8030-DA-06
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: FOR-30012-G-8030-DA-SU01
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: FOR-30012-G-8030-DA-SU02
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: FOR-30012-G-8030-DA-SU03
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: FOR-30012-G-8030-DA-SU04
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: FOR-30012-G-8030-DA-SW01
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: FOR-30012-G-8030-DA-SW02
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: FOR-30012-G-8030-DA-SW03
Lumen (lm): 3046 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: FOR-30012-G-8040-DA-01
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: FOR-30012-G-8040-DA-02
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: FOR-30012-G-8040-DA-03
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: FOR-30012-G-8040-DA-05
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: FOR-30012-G-8040-DA-06
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: FOR-30012-G-8040-DA-SU01
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: FOR-30012-G-8040-DA-SU02
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: FOR-30012-G-8040-DA-SU03
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: FOR-30012-G-8040-DA-SU04
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: FOR-30012-G-8040-DA-SW01
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: FOR-30012-G-8040-DA-SW02
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: FOR-30012-G-8040-DA-SW03
Lumen (lm): 3275 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

Accessory

Project reference (FORREY Surface facade luminaires)

Need professional lighting expertise? Chat with our specialists.
LIGMAN.AIBETA
LIGMAN.AI Assistant
Online
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Rename
