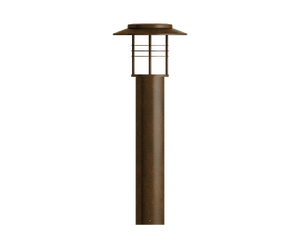

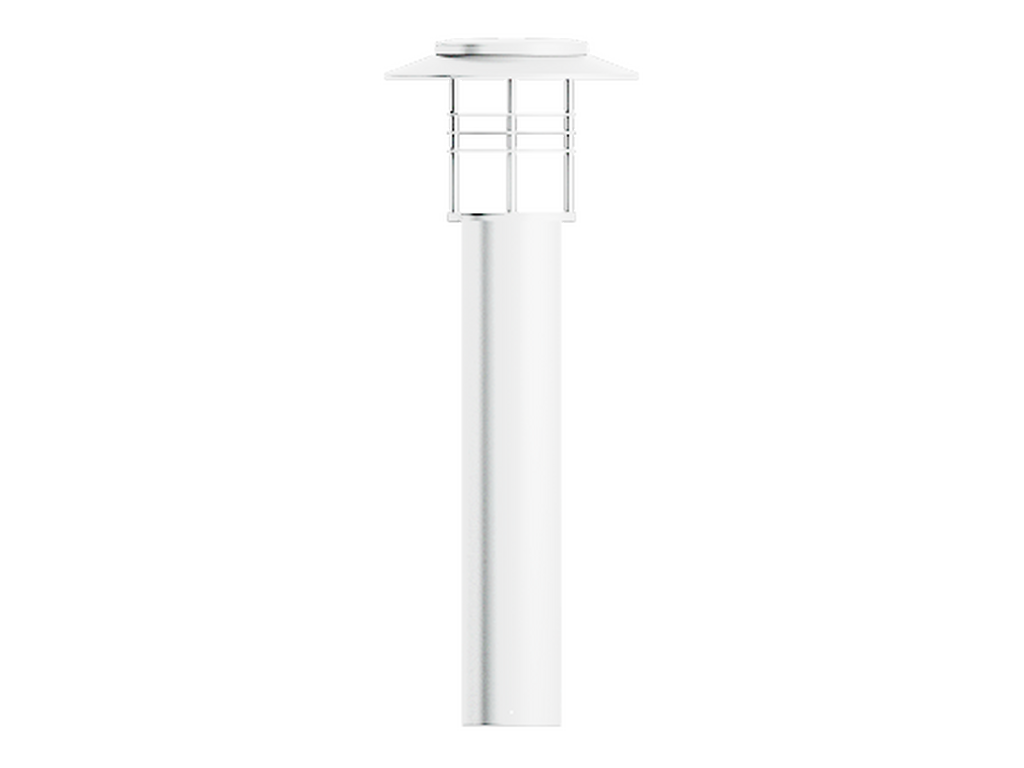

FORREY 2FOR-10012FORREY

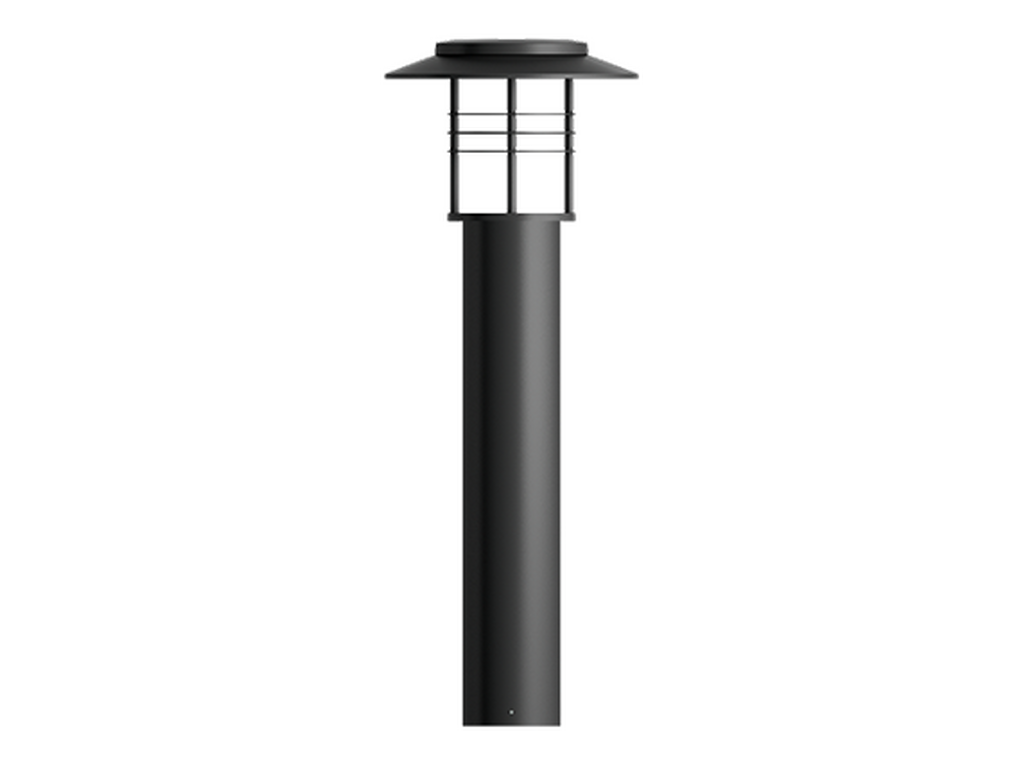

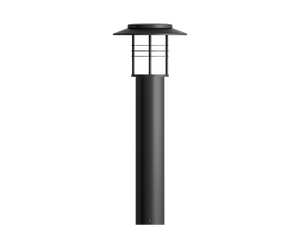

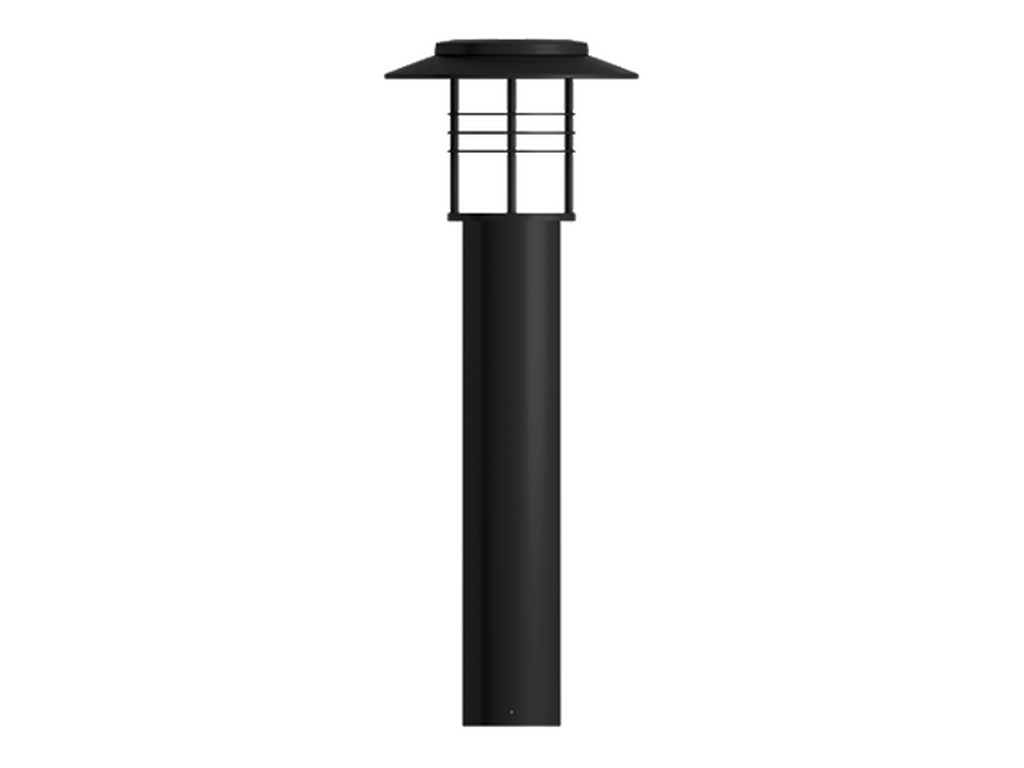

Black
Dark Grey
White

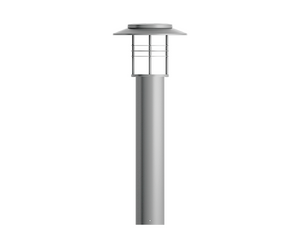

Matt Silver

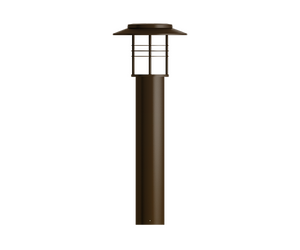

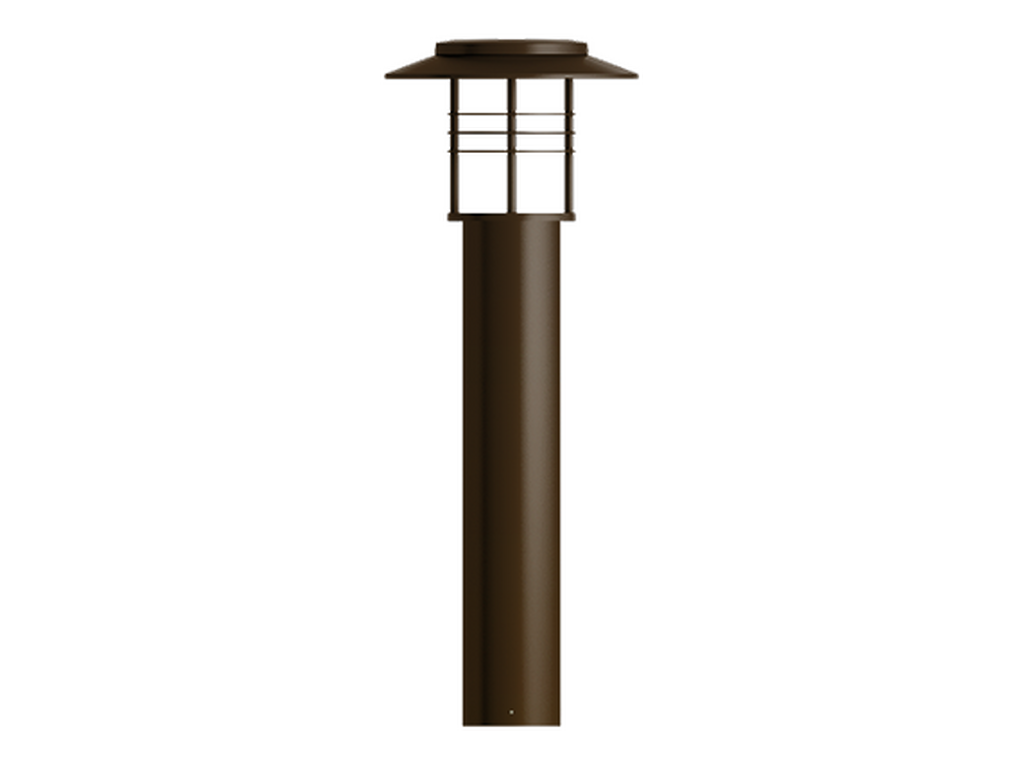

Bronze

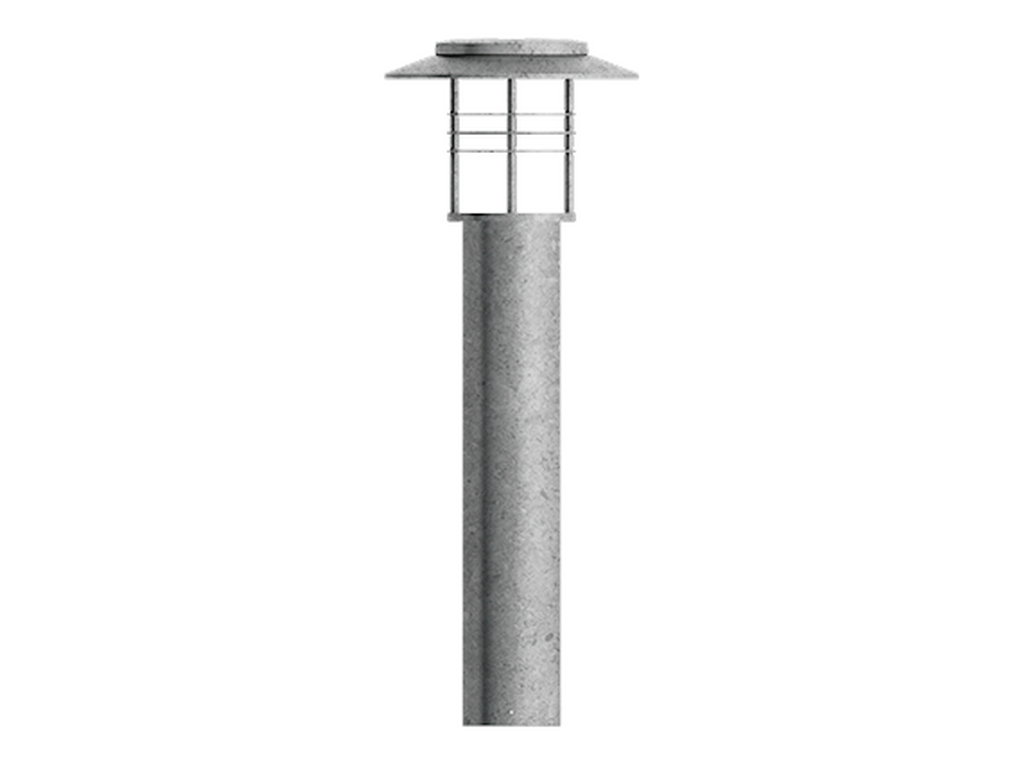

Concrete - Urban
Softscape - Urban

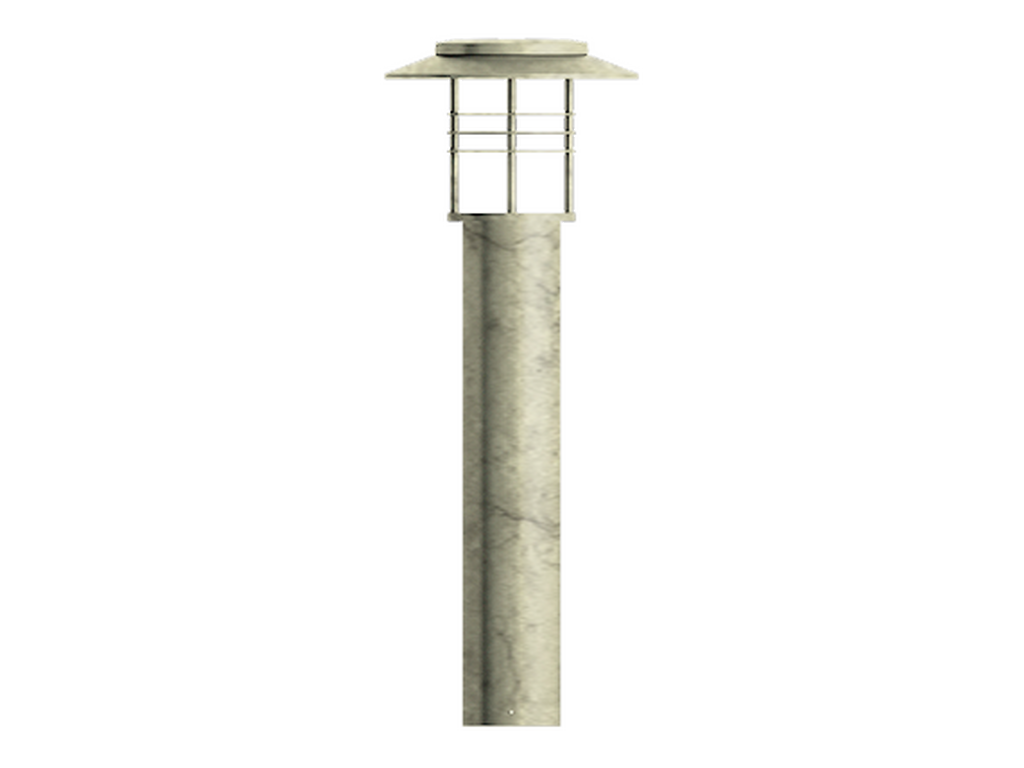

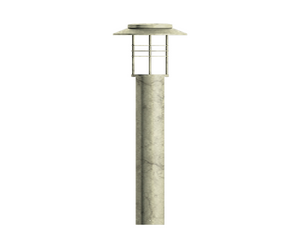

Stone - Urban

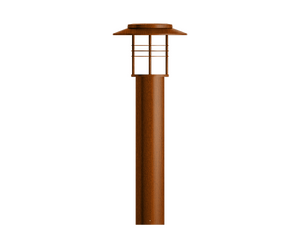

Corten - Urban
Oak - Woodland

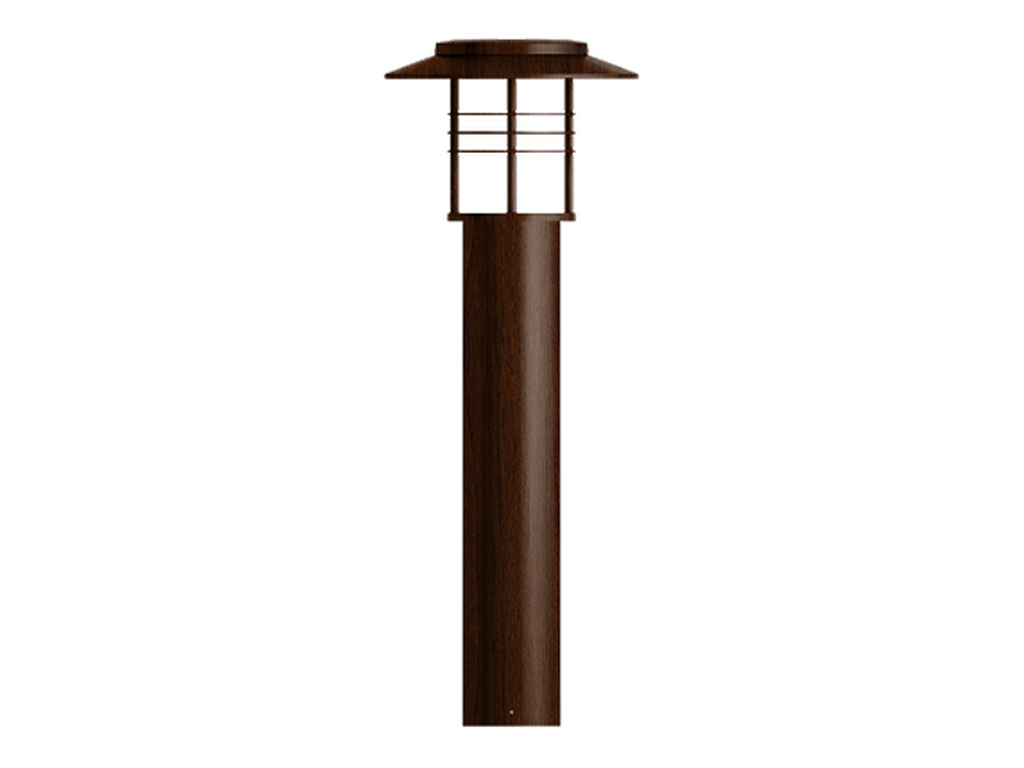

Walnut - Woodland

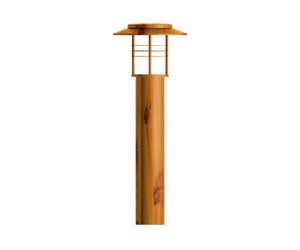

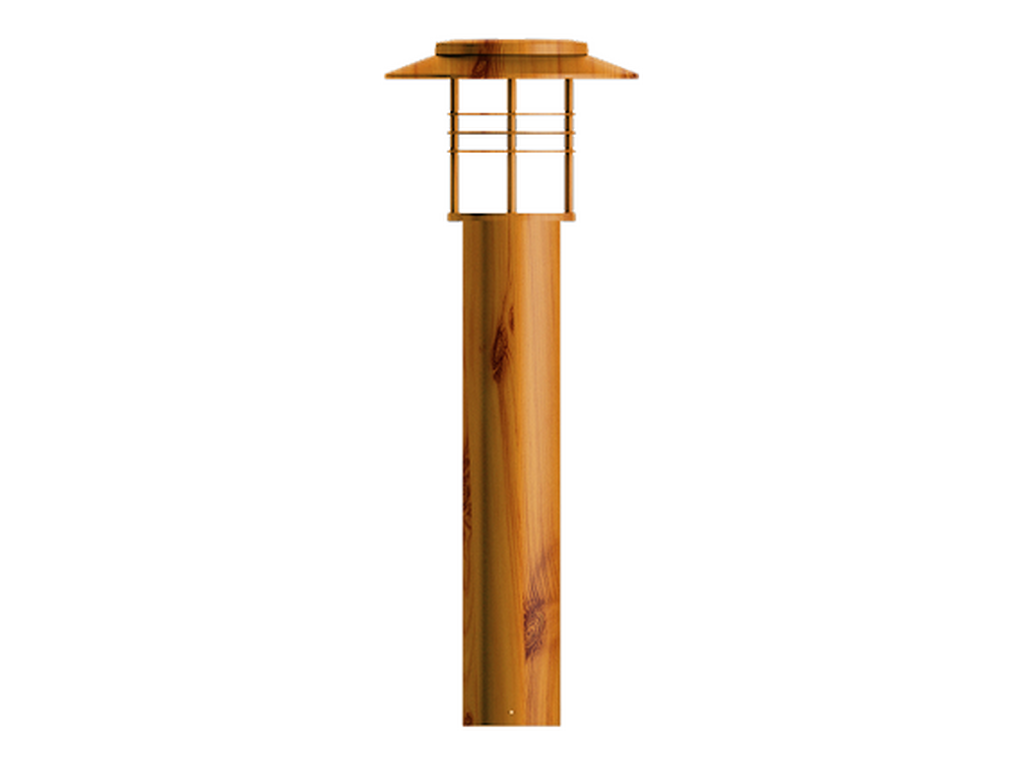

Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Ø160 - 1129 mm - With shade & louver
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
1 COB
Power (W)
47.6 W
Lumen (lm)
3235 - 3527 lm
Efficacy (lm/W)
68 - 74 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4, T5
Optic value
140˚x100˚, 132˚x103˚, 137˚x117˚, 73˚
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G1, B2-U0-G2, B3-U0-G1
ULR
0%
ULOR
0%
CIE flux code nº3
94, 95, 96
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
8.9 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
White coated aluminium reflector on the top of luminaire, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,700
Lifetime L80B10 (hours)
> 63,500
Lifetime L80B50 (hours)
> 63,500
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic

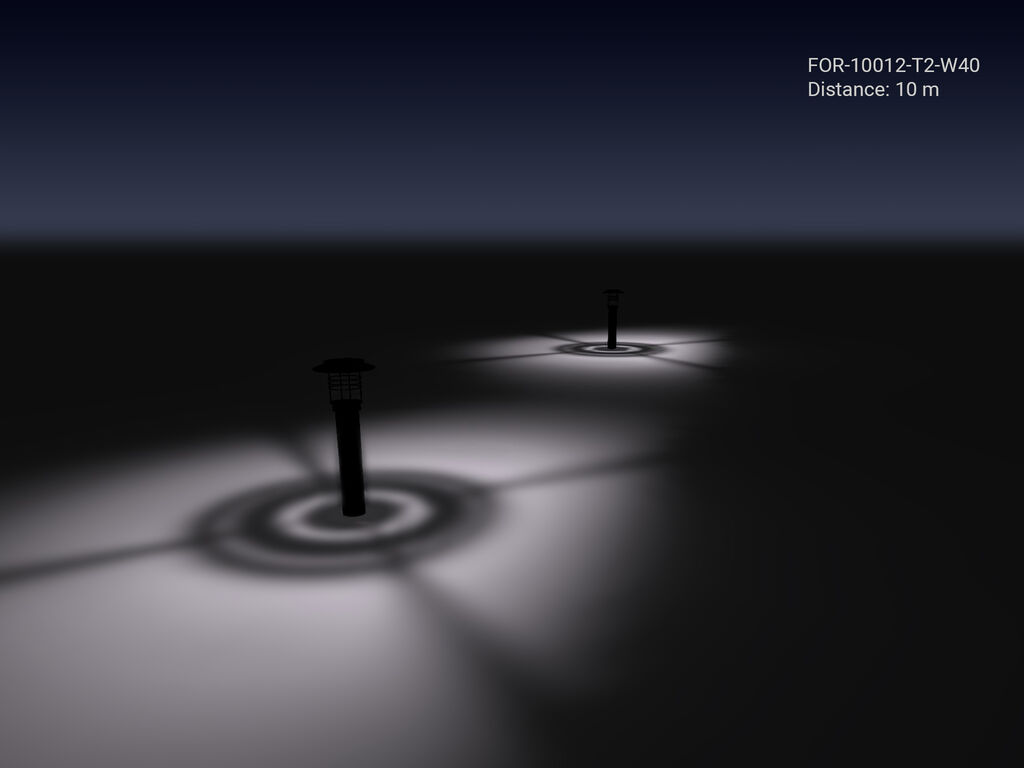

T2 (140˚x100˚)
T3 (132˚x103˚)
T4 (137˚x117˚)
T5 (73˚)
