LIGMAN FORREY 24 FOR-30072.

FORREY 24FOR-30072FORREY

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

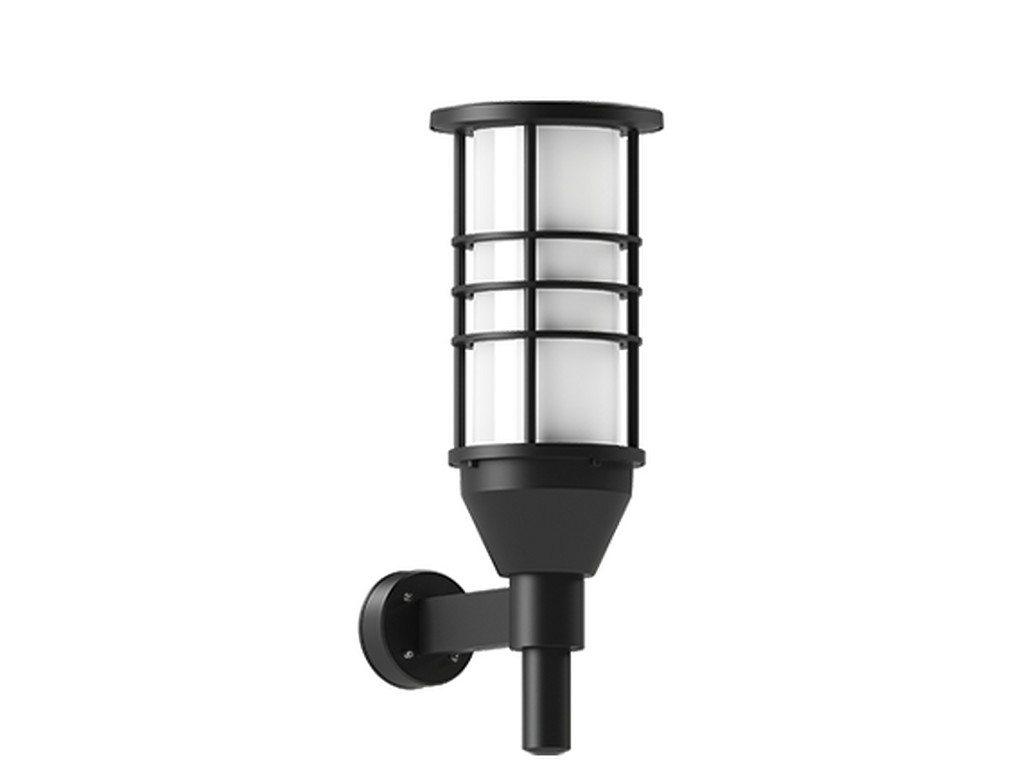

FORREY 24Black
FORREY 24Dark Grey
FORREY 24White

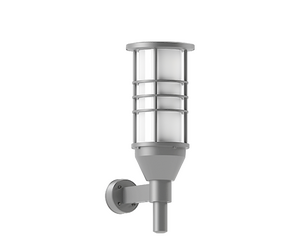

FORREY 24Matt Silver
FORREY 24Bronze
FORREY 24Concrete - Urban
FORREY 24Softscape - Urban
FORREY 24Stone - Urban

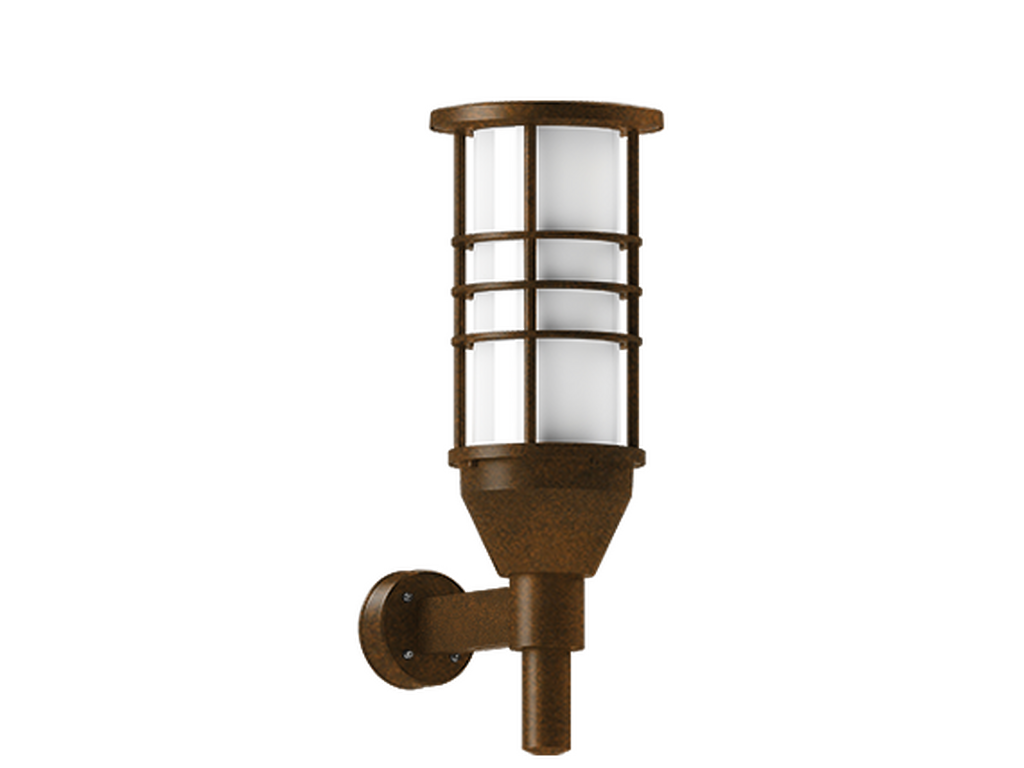

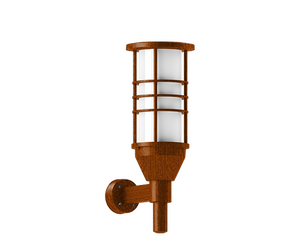

FORREY 24Corten - Urban
FORREY 24Oak - Woodland
FORREY 24Walnut - Woodland
FORREY 24Pine - Woodland

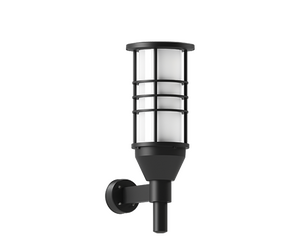

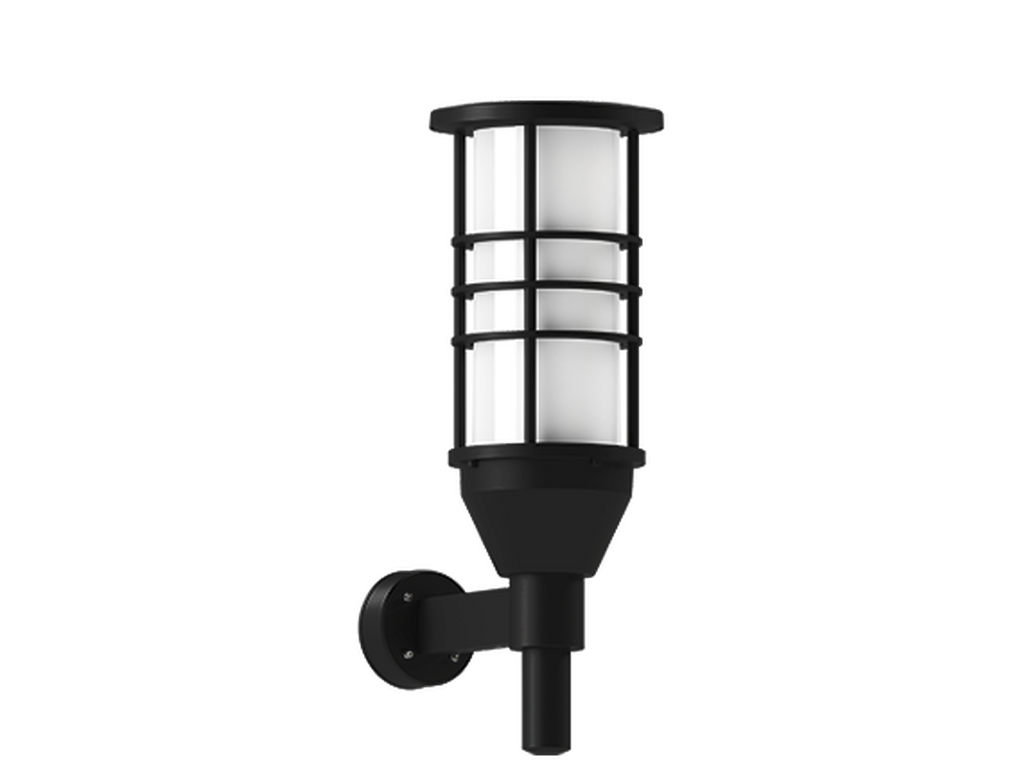

FORREY 24Black
FORREY 24Dark Grey

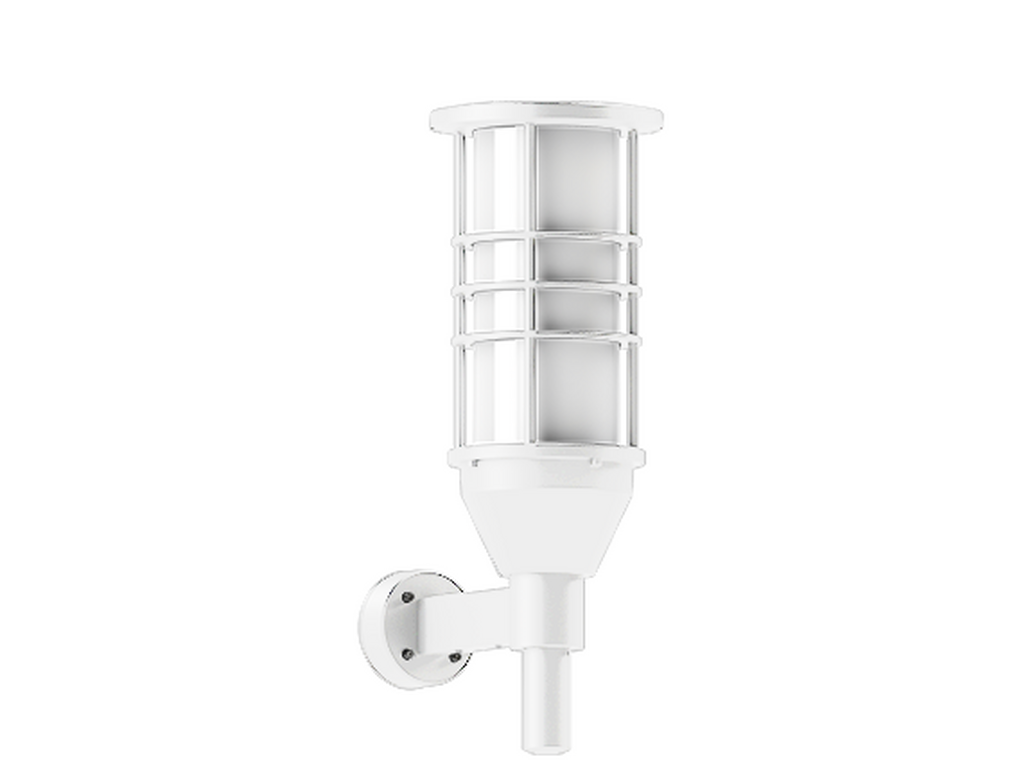

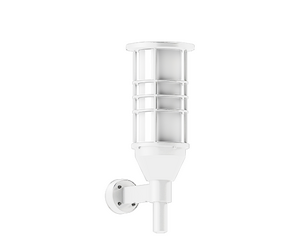

FORREY 24White
FORREY 24Matt Silver

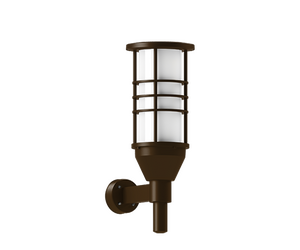

FORREY 24Bronze
FORREY 24Concrete - Urban
FORREY 24Softscape - Urban

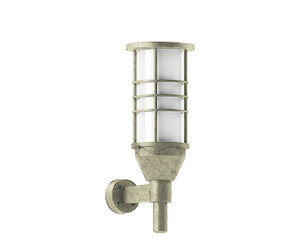

FORREY 24Stone - Urban
FORREY 24Corten - Urban
FORREY 24Oak - Woodland

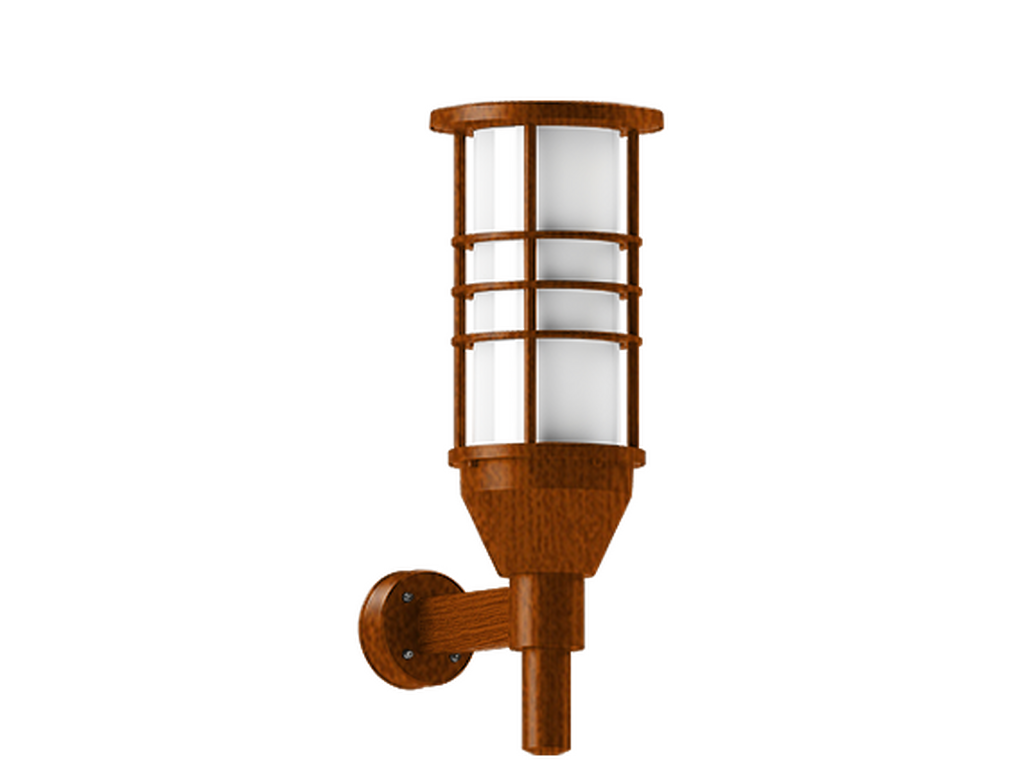

FORREY 24Walnut - Woodland

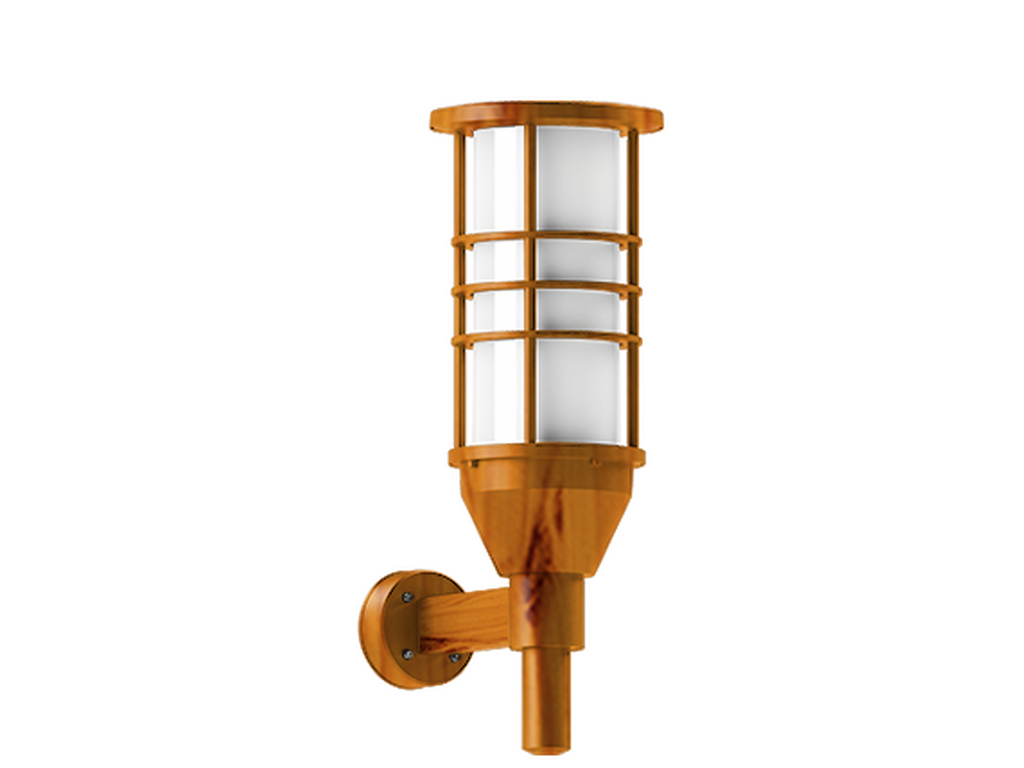

FORREY 24Pine - Woodland
Ø320 - 885 mm - With louver & opal diffuser
CERETILAPClass IIP65IK08

Technical information

Material
Aluminium
Light source
180 LED
Power (W)
60 W
Lumen (lm)
3469 - 4053 lm
Efficacy (lm/W)
58 - 68 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
360˚
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
13.0 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Opal UV-stabilised polycarbonate diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 23,000
Lifetime L80B10 (hours)
> 45,000
Lifetime L80B50 (hours)
> 49,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Light effect

Optic
G (360˚)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: FOR-30072-G-8030-ND-01
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: FOR-30072-G-8030-ND-02
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: FOR-30072-G-8030-ND-03
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: FOR-30072-G-8030-ND-05
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: FOR-30072-G-8030-ND-06
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: FOR-30072-G-8030-ND-SU01
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: FOR-30072-G-8030-ND-SU02
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: FOR-30072-G-8030-ND-SU03
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: FOR-30072-G-8030-ND-SU04
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: FOR-30072-G-8030-ND-SW01
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: FOR-30072-G-8030-ND-SW02
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: FOR-30072-G-8030-ND-SW03
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: FOR-30072-G-8040-ND-01
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: FOR-30072-G-8040-ND-02
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: FOR-30072-G-8040-ND-03
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: FOR-30072-G-8040-ND-05
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: FOR-30072-G-8040-ND-06
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: FOR-30072-G-8040-ND-SU01
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: FOR-30072-G-8040-ND-SU02
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: FOR-30072-G-8040-ND-SU03
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: FOR-30072-G-8040-ND-SU04
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: FOR-30072-G-8040-ND-SW01
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: FOR-30072-G-8040-ND-SW02
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: FOR-30072-G-8040-ND-SW03
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: FOR-30072-G-8030-DI-01
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: FOR-30072-G-8030-DI-02
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: FOR-30072-G-8030-DI-03
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: FOR-30072-G-8030-DI-05
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: FOR-30072-G-8030-DI-06
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: FOR-30072-G-8030-DI-SU01
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: FOR-30072-G-8030-DI-SU02
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: FOR-30072-G-8030-DI-SU03
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: FOR-30072-G-8030-DI-SU04
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: FOR-30072-G-8030-DI-SW01
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: FOR-30072-G-8030-DI-SW02
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: FOR-30072-G-8030-DI-SW03
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: FOR-30072-G-8040-DI-01
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: FOR-30072-G-8040-DI-02
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: FOR-30072-G-8040-DI-03
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: FOR-30072-G-8040-DI-05
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: FOR-30072-G-8040-DI-06
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: FOR-30072-G-8040-DI-SU01
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: FOR-30072-G-8040-DI-SU02
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: FOR-30072-G-8040-DI-SU03
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: FOR-30072-G-8040-DI-SU04
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: FOR-30072-G-8040-DI-SW01
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: FOR-30072-G-8040-DI-SW02
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: FOR-30072-G-8040-DI-SW03
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: FOR-30072-G-8030-DA-01
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: FOR-30072-G-8030-DA-02
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: FOR-30072-G-8030-DA-03
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: FOR-30072-G-8030-DA-05
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: FOR-30072-G-8030-DA-06
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: FOR-30072-G-8030-DA-SU01
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: FOR-30072-G-8030-DA-SU02
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: FOR-30072-G-8030-DA-SU03
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: FOR-30072-G-8030-DA-SU04
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: FOR-30072-G-8030-DA-SW01
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: FOR-30072-G-8030-DA-SW02
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: FOR-30072-G-8030-DA-SW03
Lumen (lm): 3469 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: FOR-30072-G-8040-DA-01
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: FOR-30072-G-8040-DA-02
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: FOR-30072-G-8040-DA-03
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: FOR-30072-G-8040-DA-05
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: FOR-30072-G-8040-DA-06
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: FOR-30072-G-8040-DA-SU01
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: FOR-30072-G-8040-DA-SU02
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: FOR-30072-G-8040-DA-SU03
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: FOR-30072-G-8040-DA-SU04
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: FOR-30072-G-8040-DA-SW01
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: FOR-30072-G-8040-DA-SW02
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: FOR-30072-G-8040-DA-SW03
Lumen (lm): 4053 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

Accessory

Project reference (FORREY Surface facade luminaires)

Need professional lighting expertise? Chat with our specialists.
LIGMAN.AIBETA
LIGMAN.AI Assistant
Online
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Rename
