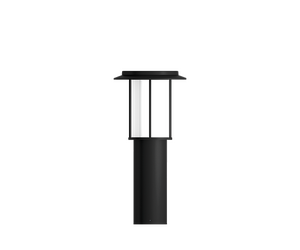

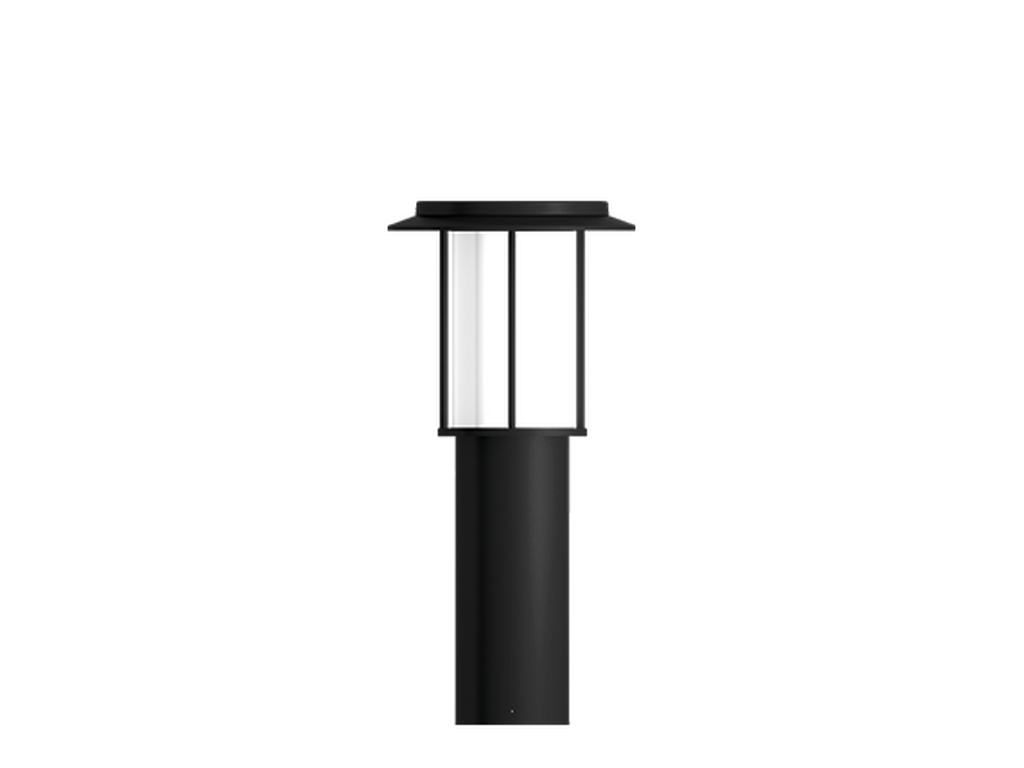

FORREY 3Black

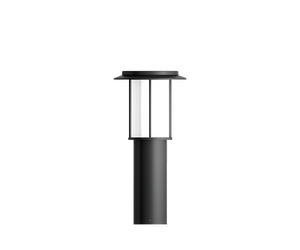

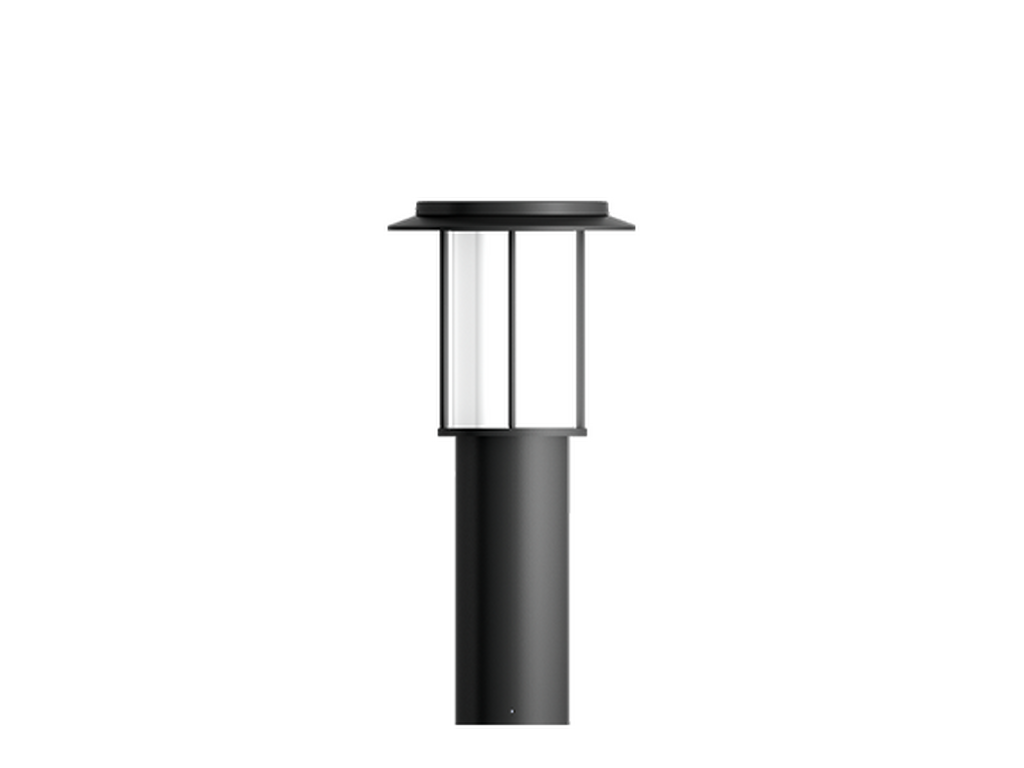

FORREY 3Dark Grey

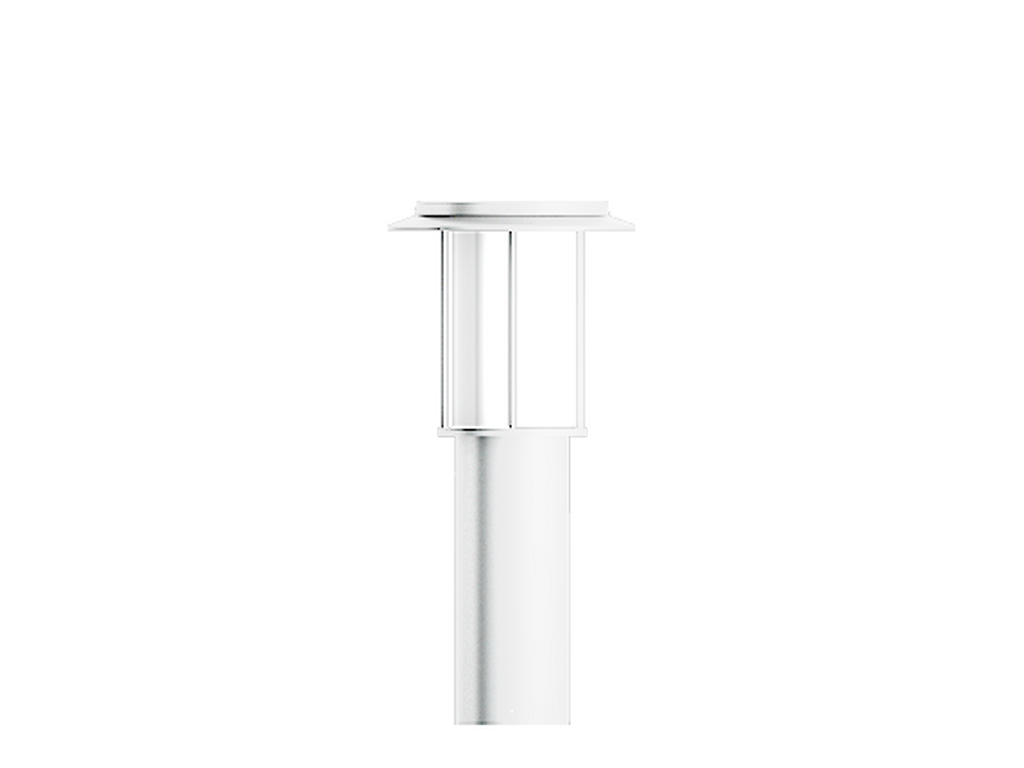

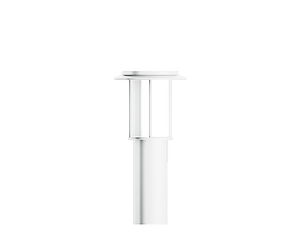

FORREY 3White

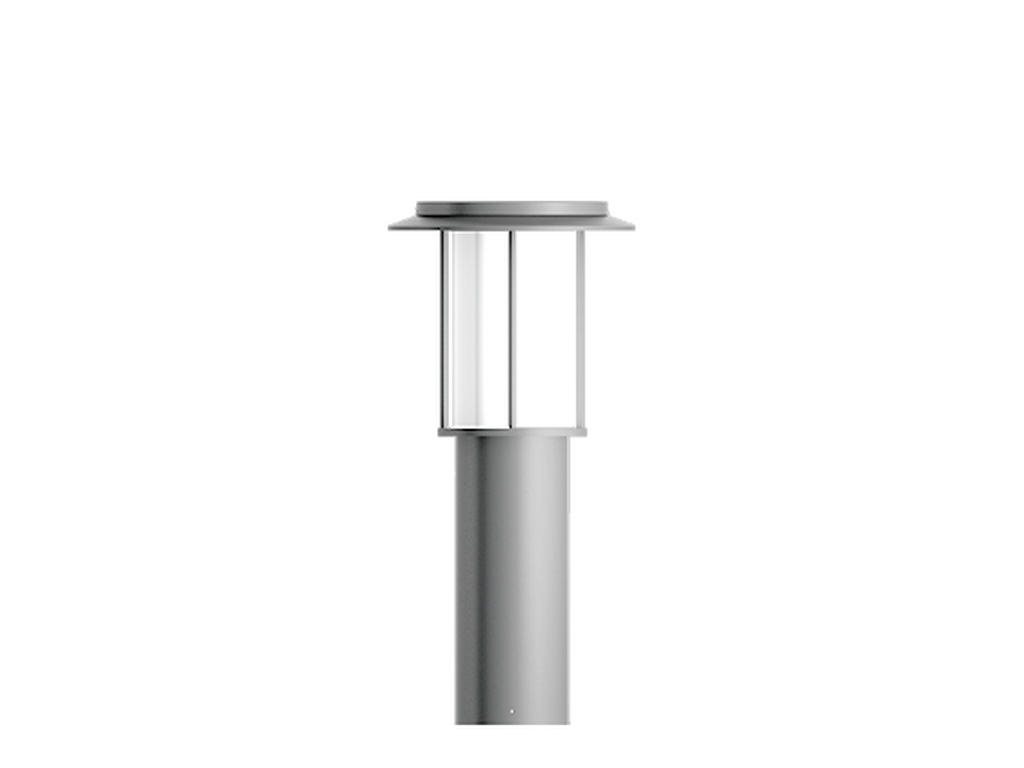

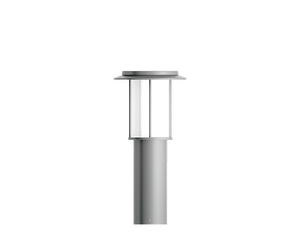

FORREY 3Matt Silver

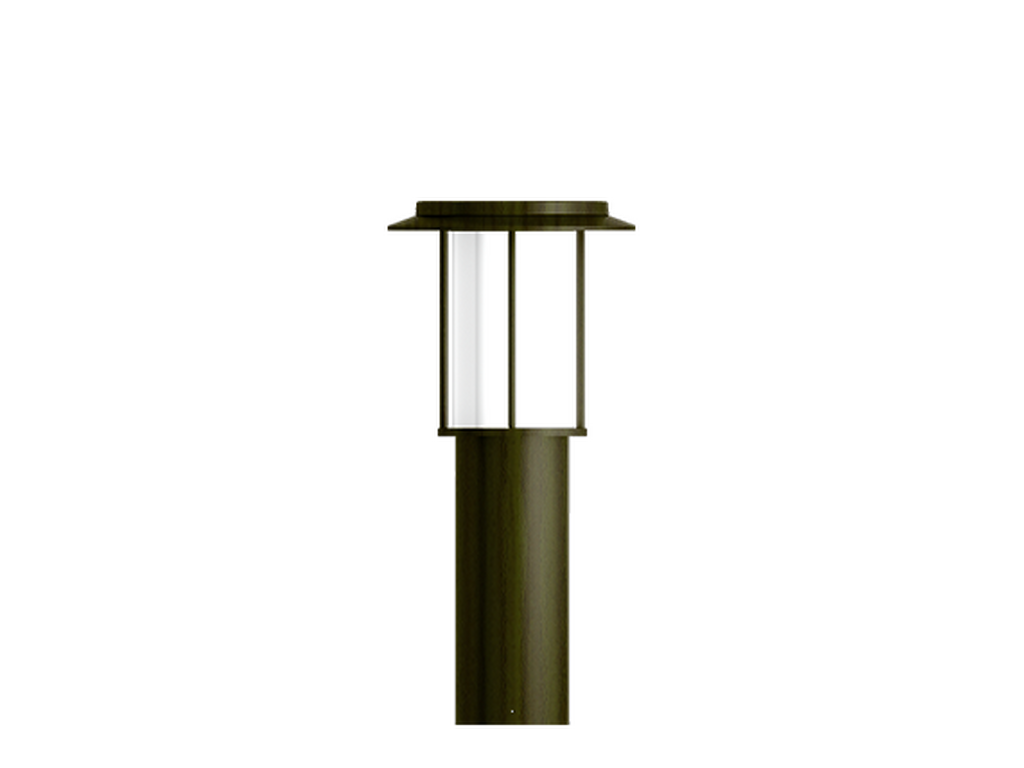

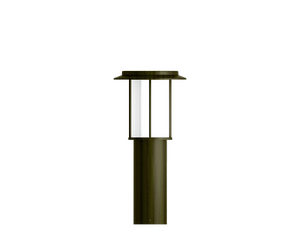

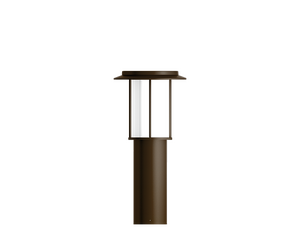

FORREY 3Bronze

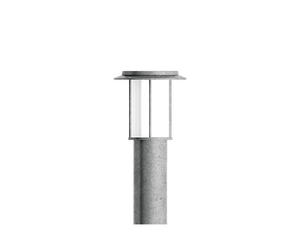

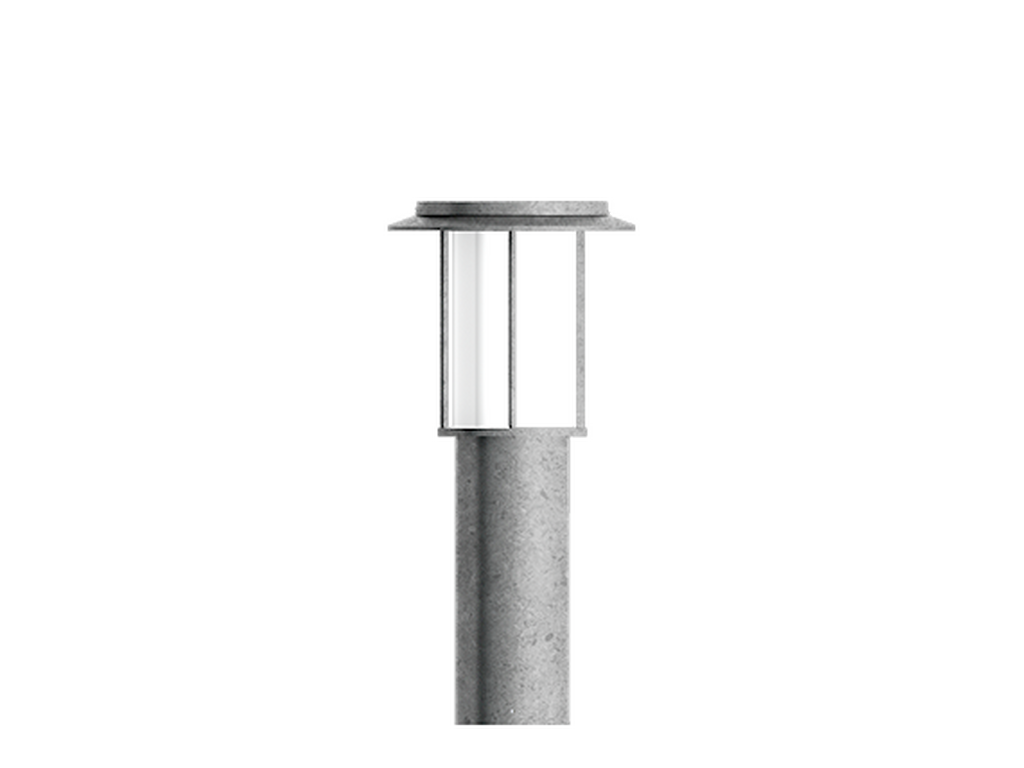

FORREY 3Concrete - Urban
FORREY 3Softscape - Urban

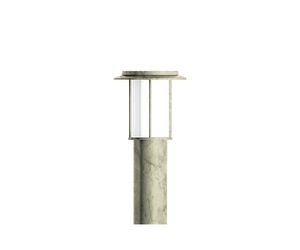

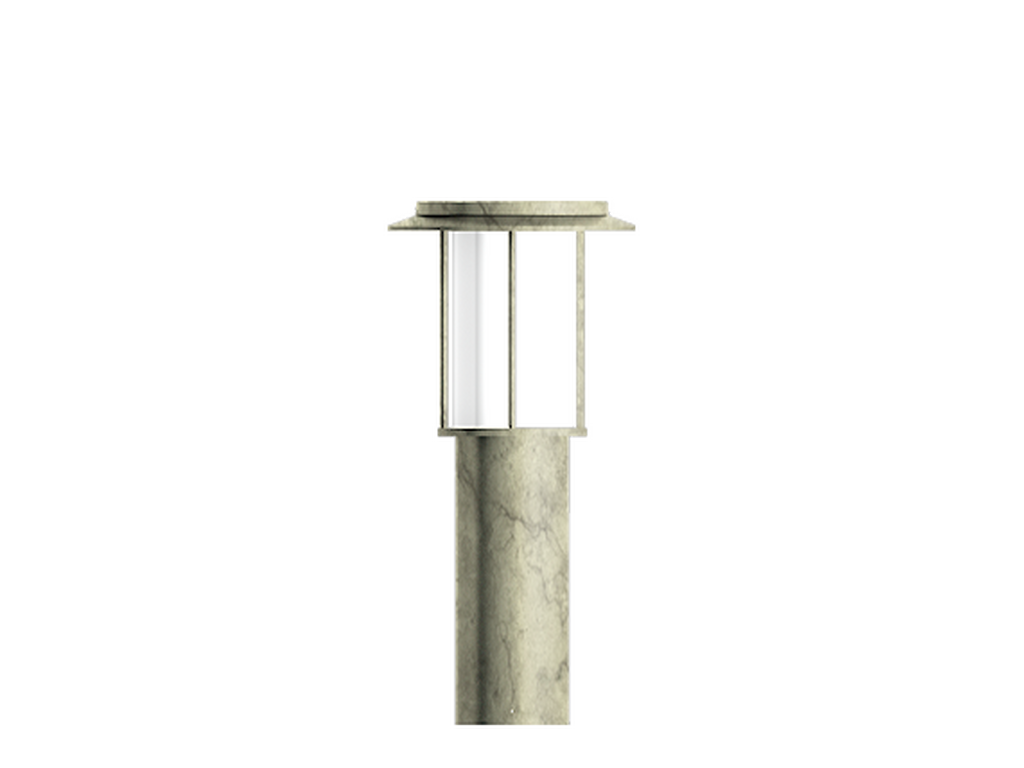

FORREY 3Stone - Urban

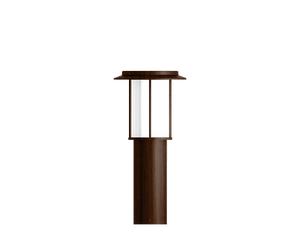

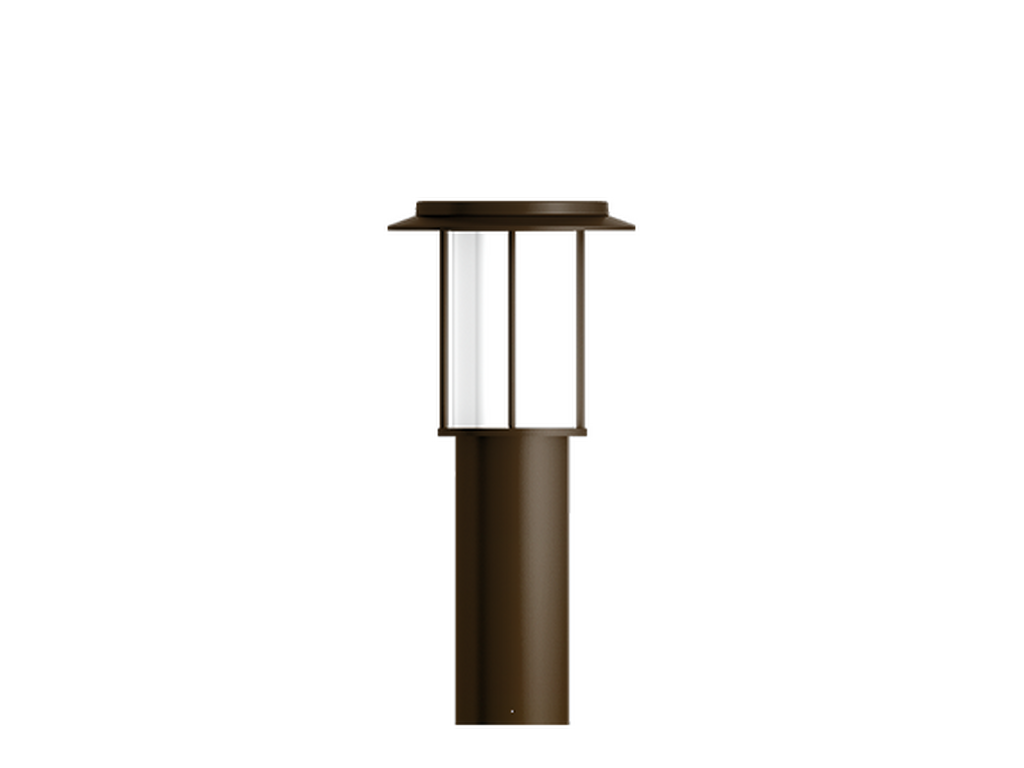

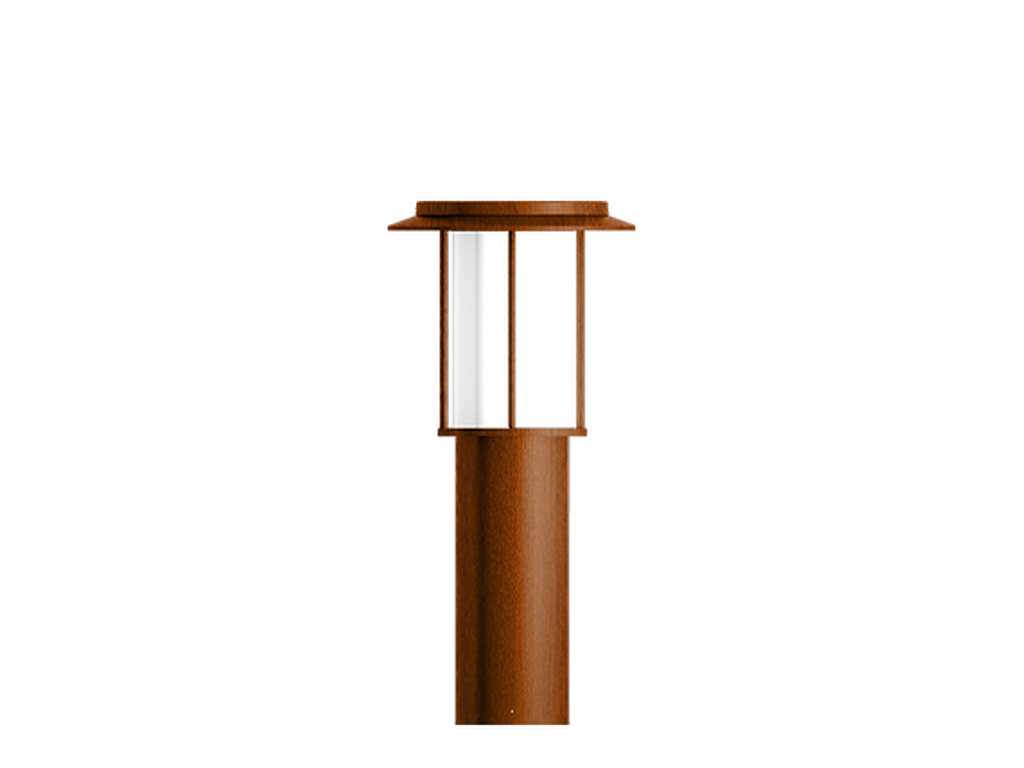

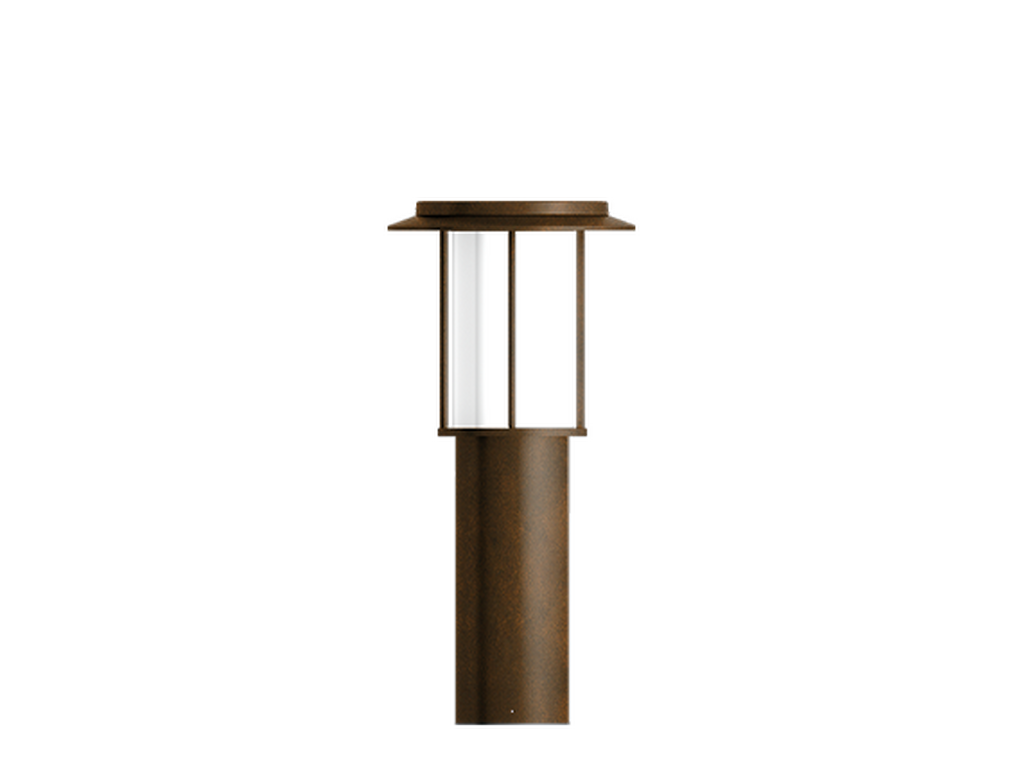

FORREY 3Corten - Urban

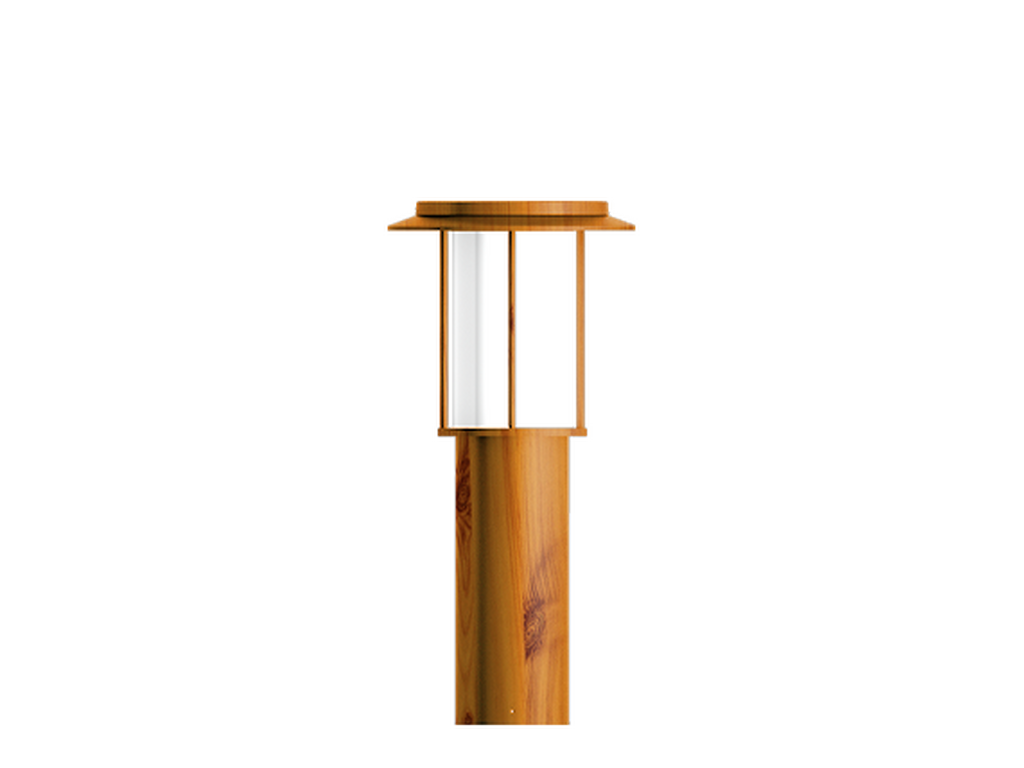

FORREY 3Oak - Woodland

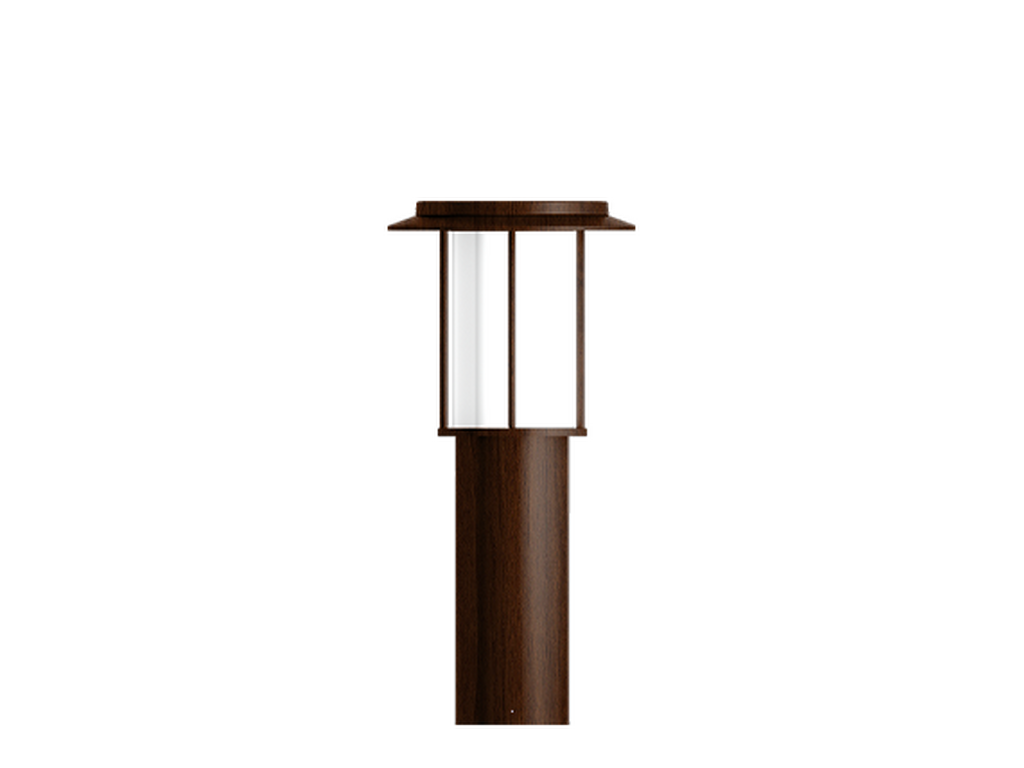

FORREY 3Walnut - Woodland

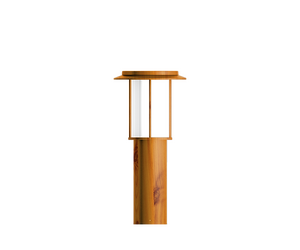

FORREY 3Pine - Woodland
FORREY 3Black
FORREY 3Dark Grey
FORREY 3White
FORREY 3Matt Silver
FORREY 3Bronze
FORREY 3Concrete - Urban
FORREY 3Softscape - Urban
FORREY 3Stone - Urban
FORREY 3Corten - Urban
FORREY 3Oak - Woodland
FORREY 3Walnut - Woodland
FORREY 3Pine - Woodland
Ø186 - 874 mm - With shade - With integrated security core (Anti-traffic)
Class IIP65IK08

TECHNICAL SPECIFICATIONS

Light source
1 COB
Power (W)
50.2 W
Lumen (lm)
4036 - 4340 lm
Efficacy (lm/W)
80 - 86 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
360˚
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Weight
13.2 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
White coated aluminium reflector on the top of luminaire, Opal UV-stabilised polycarbonate diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 23,000
Lifetime L80B10 (hours)
> 45,000
Lifetime L80B50 (hours)
> 49,000
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
G (360˚)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: FOR-10101-SB-G-8030-ND
Lumen (lm): 4036 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10101-SB-G-8040-ND
Lumen (lm): 4340 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10101-SB-G-8030-DI
Lumen (lm): 4036 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10101-SB-G-8040-DI
Lumen (lm): 4340 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10101-SB-G-8030-DA
Lumen (lm): 4036 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10101-SB-G-8040-DA
Lumen (lm): 4340 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
