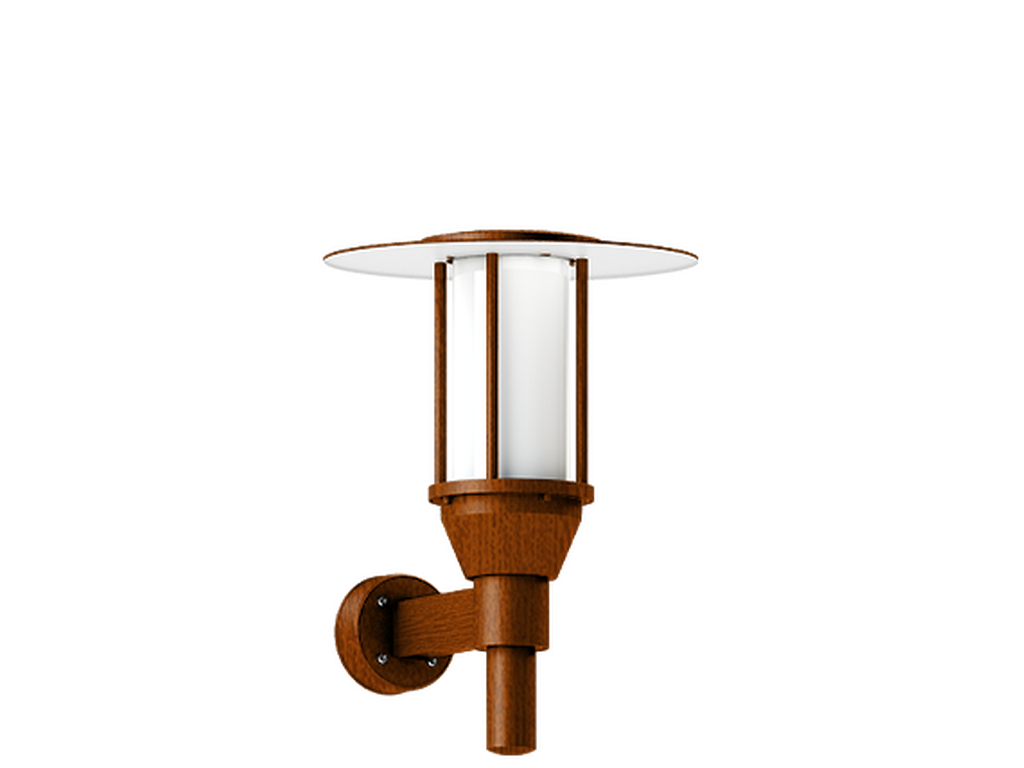

FORREY 35
FORREY 35
FORREY 35
FORREY 35

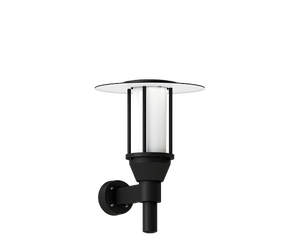

FORREY 35Black

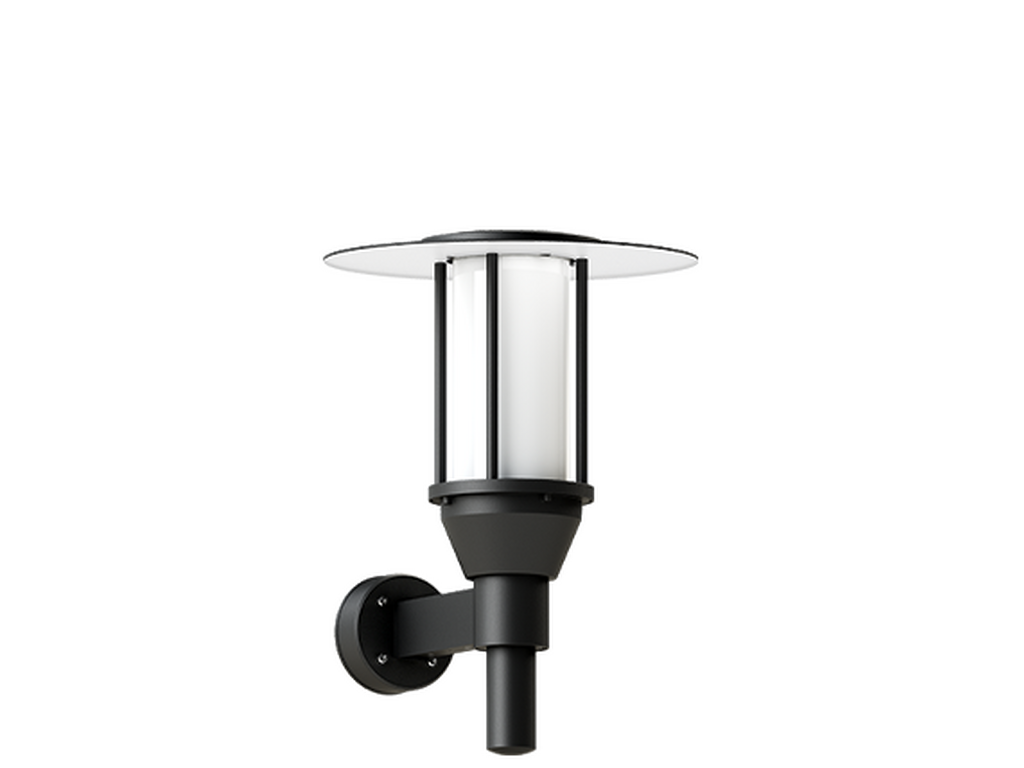

FORREY 35Dark Grey
FORREY 35White

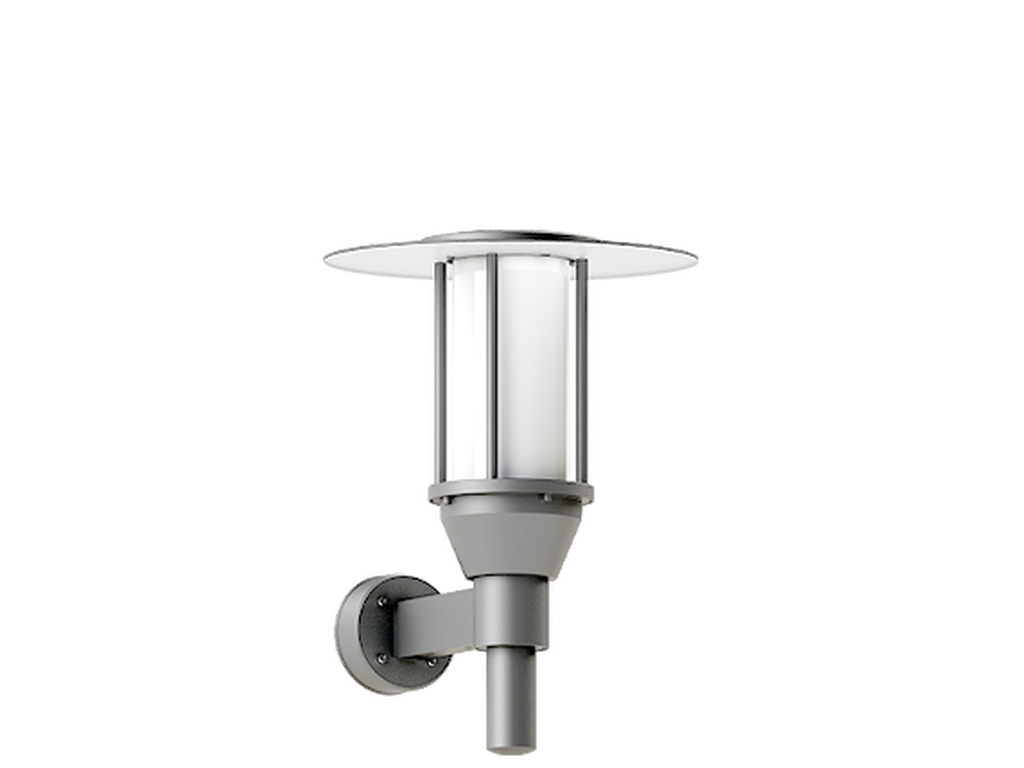

FORREY 35Matt Silver

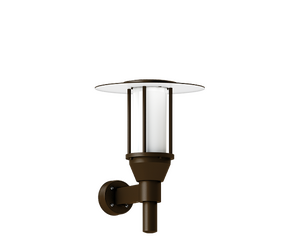

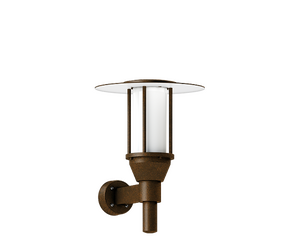

FORREY 35Bronze
FORREY 35Concrete - Urban
FORREY 35Softscape - Urban
FORREY 35Stone - Urban

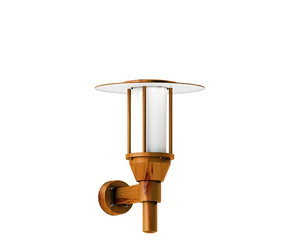

FORREY 35Corten - Urban
FORREY 35Oak - Woodland

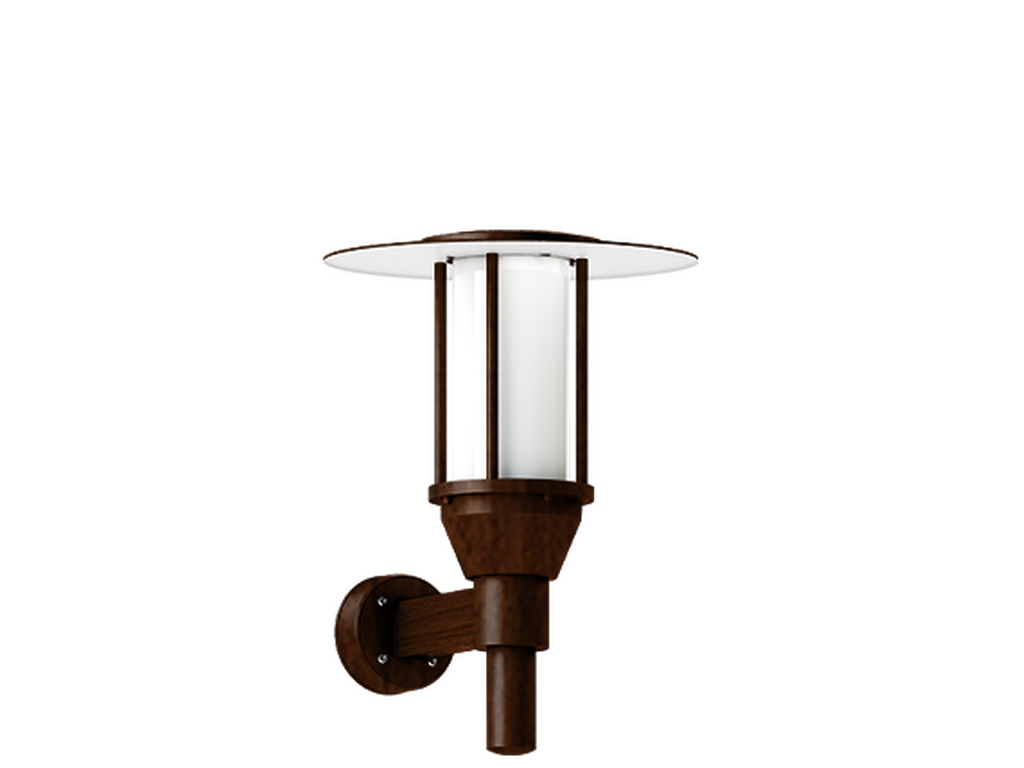

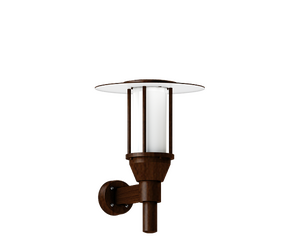

FORREY 35Walnut - Woodland
FORREY 35Pine - Woodland
FORREY 35
FORREY 35
FORREY 35
FORREY 35
FORREY 35Black
FORREY 35Dark Grey
FORREY 35White
FORREY 35Matt Silver
FORREY 35Bronze
FORREY 35Concrete - Urban
FORREY 35Softscape - Urban
FORREY 35Stone - Urban
FORREY 35Corten - Urban
FORREY 35Oak - Woodland
FORREY 35Walnut - Woodland
FORREY 35Pine - Woodland
Ø508 - 707 mm - With shade & opal diffuser
CEClass IIP65IK08

Technical information

Material
Aluminium
Light source
160 LED
Power (W)
50 W
Lumen (lm)
3903 - 4197 lm
Efficacy (lm/W)
78 - 84 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
360˚
CCT / CRI
3000K, 4000K
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
15.0 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
White coated aluminium reflector on the top of luminaire, Opal UV-stabilised polycarbonate diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 23,000
Lifetime L80B10 (hours)
> 45,000
Lifetime L80B50 (hours)
> 49,000
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Light effect

Optic
G (360˚)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: FOR-30091-G-8030-ND-01
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Black
Variant code: FOR-30091-G-8030-ND-02
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Dark Grey
Variant code: FOR-30091-G-8030-ND-03
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: White
Variant code: FOR-30091-G-8030-ND-05
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: FOR-30091-G-8030-ND-06
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Bronze
Variant code: FOR-30091-G-8030-ND-SU01
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: FOR-30091-G-8030-ND-SU02
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: FOR-30091-G-8030-ND-SU03
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: FOR-30091-G-8030-ND-SU04
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: FOR-30091-G-8030-ND-SW01
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: FOR-30091-G-8030-ND-SW02
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: FOR-30091-G-8030-ND-SW03
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: FOR-30091-G-8040-ND-01
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Black
Variant code: FOR-30091-G-8040-ND-02
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Dark Grey
Variant code: FOR-30091-G-8040-ND-03
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: White
Variant code: FOR-30091-G-8040-ND-05
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: FOR-30091-G-8040-ND-06
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Bronze
Variant code: FOR-30091-G-8040-ND-SU01
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: FOR-30091-G-8040-ND-SU02
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: FOR-30091-G-8040-ND-SU03
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: FOR-30091-G-8040-ND-SU04
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: FOR-30091-G-8040-ND-SW01
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: FOR-30091-G-8040-ND-SW02
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: FOR-30091-G-8040-ND-SW03
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: FOR-30091-G-8030-DI-01
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: 1-10V
Product colour: Black
Variant code: FOR-30091-G-8030-DI-02
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: FOR-30091-G-8030-DI-03
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: 1-10V
Product colour: White
Variant code: FOR-30091-G-8030-DI-05
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: FOR-30091-G-8030-DI-06
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: 1-10V
Product colour: Bronze
Variant code: FOR-30091-G-8030-DI-SU01
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: FOR-30091-G-8030-DI-SU02
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: FOR-30091-G-8030-DI-SU03
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: FOR-30091-G-8030-DI-SU04
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: FOR-30091-G-8030-DI-SW01
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: FOR-30091-G-8030-DI-SW02
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: FOR-30091-G-8030-DI-SW03
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: FOR-30091-G-8040-DI-01
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: 1-10V
Product colour: Black
Variant code: FOR-30091-G-8040-DI-02
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: FOR-30091-G-8040-DI-03
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: 1-10V
Product colour: White
Variant code: FOR-30091-G-8040-DI-05
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: FOR-30091-G-8040-DI-06
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: 1-10V
Product colour: Bronze
Variant code: FOR-30091-G-8040-DI-SU01
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: FOR-30091-G-8040-DI-SU02
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: FOR-30091-G-8040-DI-SU03
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: FOR-30091-G-8040-DI-SU04
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: FOR-30091-G-8040-DI-SW01
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: FOR-30091-G-8040-DI-SW02
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: FOR-30091-G-8040-DI-SW03
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: FOR-30091-G-8030-DA-01
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: DALI
Product colour: Black
Variant code: FOR-30091-G-8030-DA-02
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: DALI
Product colour: Dark Grey
Variant code: FOR-30091-G-8030-DA-03
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: DALI
Product colour: White
Variant code: FOR-30091-G-8030-DA-05
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: DALI
Product colour: Matt Silver
Variant code: FOR-30091-G-8030-DA-06
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: DALI
Product colour: Bronze
Variant code: FOR-30091-G-8030-DA-SU01
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: FOR-30091-G-8030-DA-SU02
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: FOR-30091-G-8030-DA-SU03
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: DALI
Product colour: Stone - Urban
Variant code: FOR-30091-G-8030-DA-SU04
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: DALI
Product colour: Corten - Urban
Variant code: FOR-30091-G-8030-DA-SW01
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: FOR-30091-G-8030-DA-SW02
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: FOR-30091-G-8030-DA-SW03
Lumen (lm): 3903 lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: FOR-30091-G-8040-DA-01
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: DALI
Product colour: Black
Variant code: FOR-30091-G-8040-DA-02
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: DALI
Product colour: Dark Grey
Variant code: FOR-30091-G-8040-DA-03
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: DALI
Product colour: White
Variant code: FOR-30091-G-8040-DA-05
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: DALI
Product colour: Matt Silver
Variant code: FOR-30091-G-8040-DA-06
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: DALI
Product colour: Bronze
Variant code: FOR-30091-G-8040-DA-SU01
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: FOR-30091-G-8040-DA-SU02
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: FOR-30091-G-8040-DA-SU03
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: DALI
Product colour: Stone - Urban
Variant code: FOR-30091-G-8040-DA-SU04
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: DALI
Product colour: Corten - Urban
Variant code: FOR-30091-G-8040-DA-SW01
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: FOR-30091-G-8040-DA-SW02
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: FOR-30091-G-8040-DA-SW03
Lumen (lm): 4197 lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K
Dimming type: DALI
Product colour: Pine - Woodland

Accessory

Project reference (FORREY Surface facade luminaires)

Need professional lighting expertise? Chat with our specialists.
LIGMAN.AIBETA
LIGMAN.AI Assistant
Online
Rename
