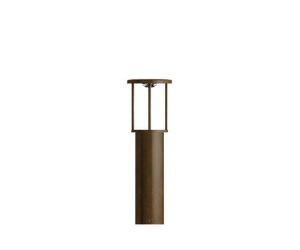

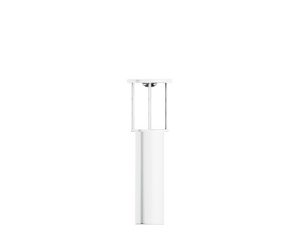

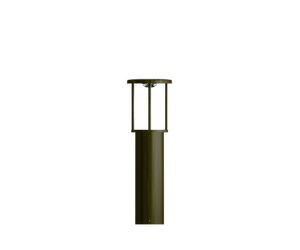

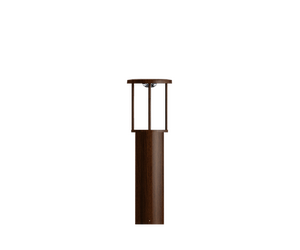

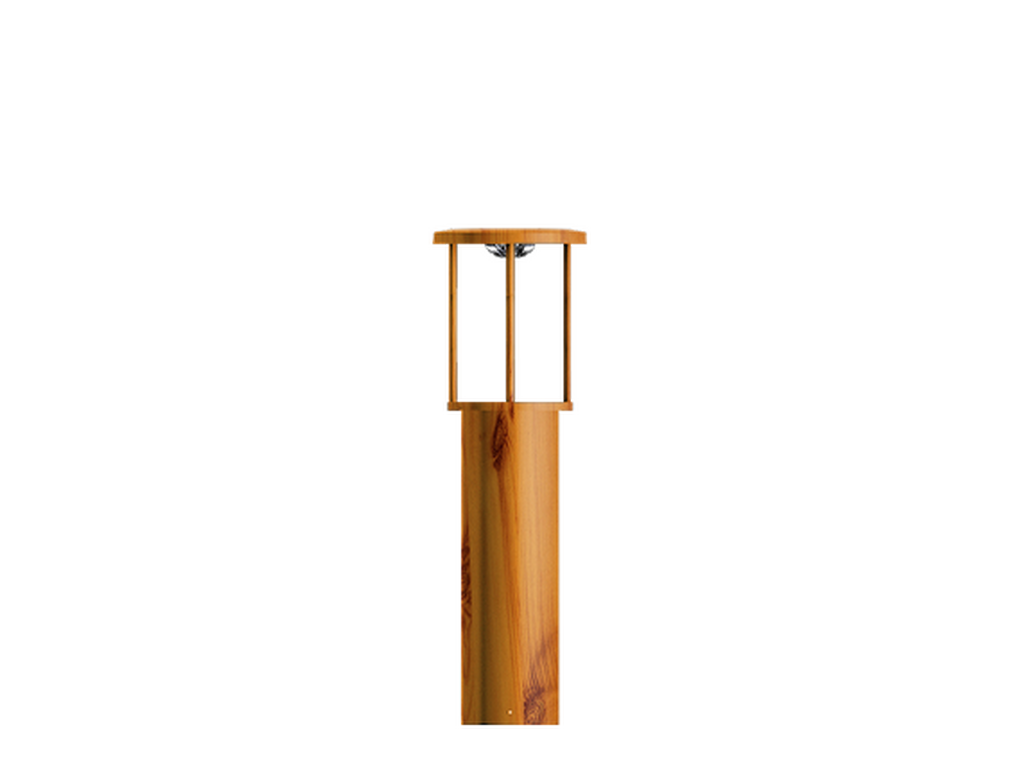

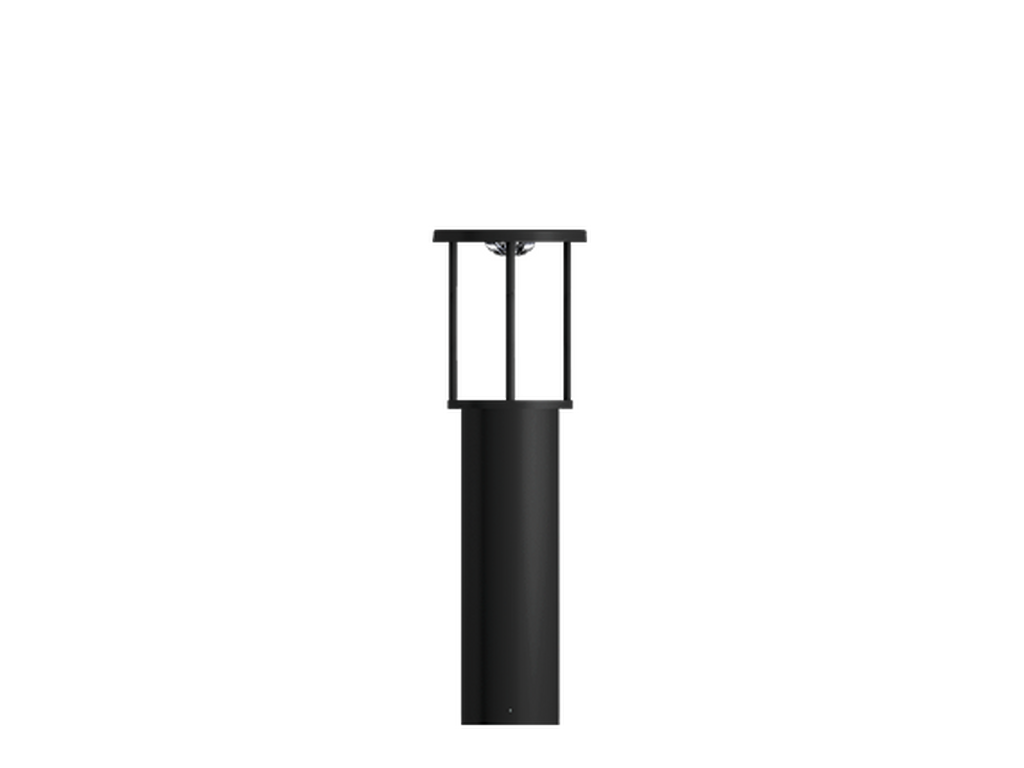

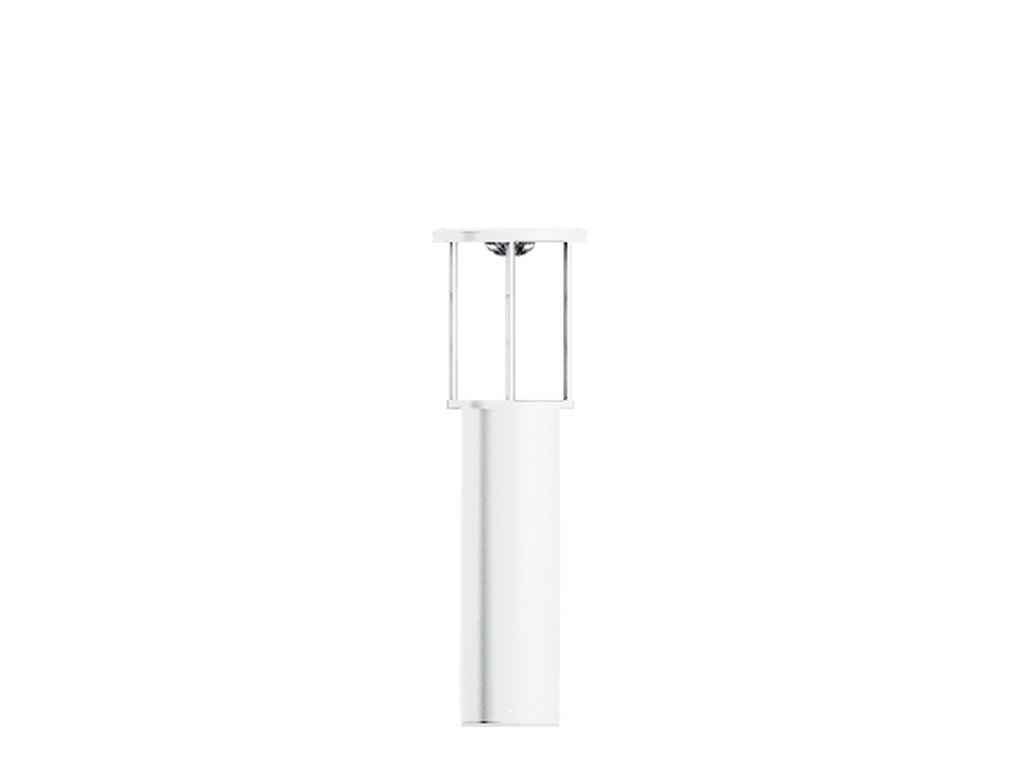

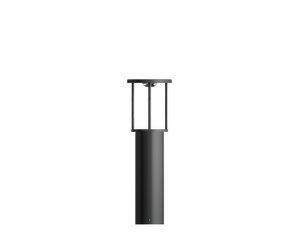

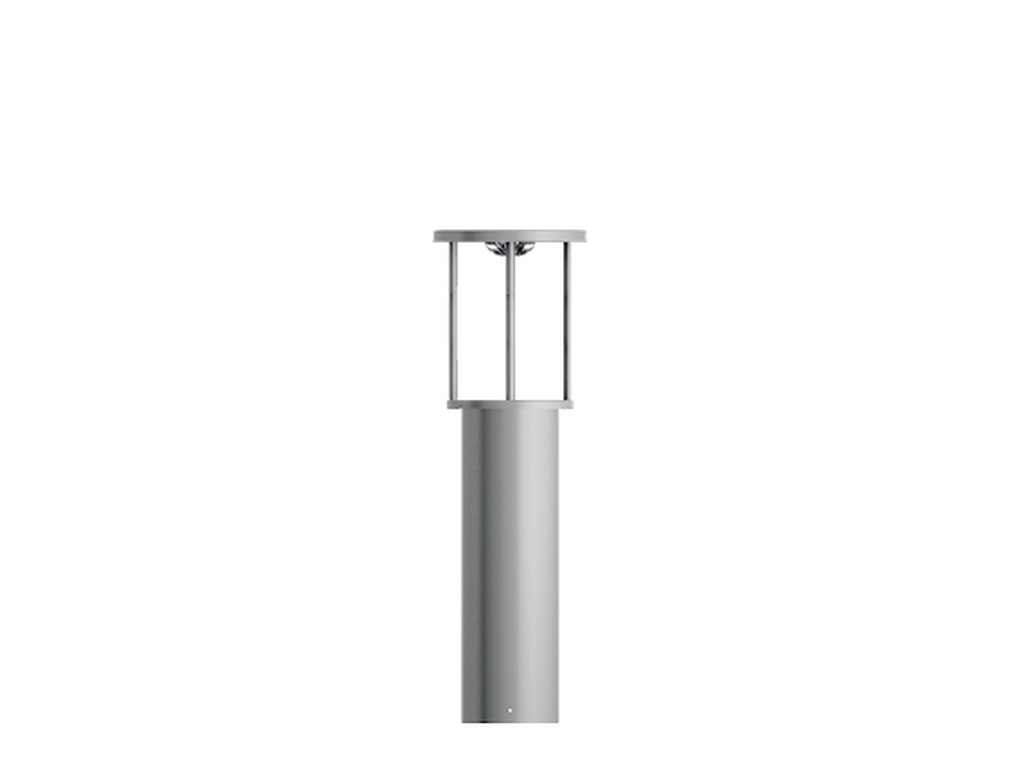

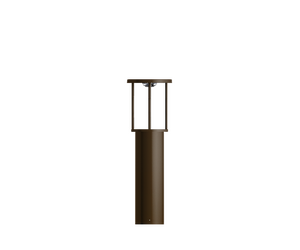

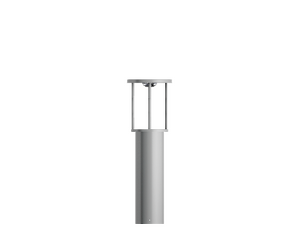

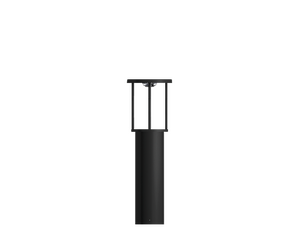

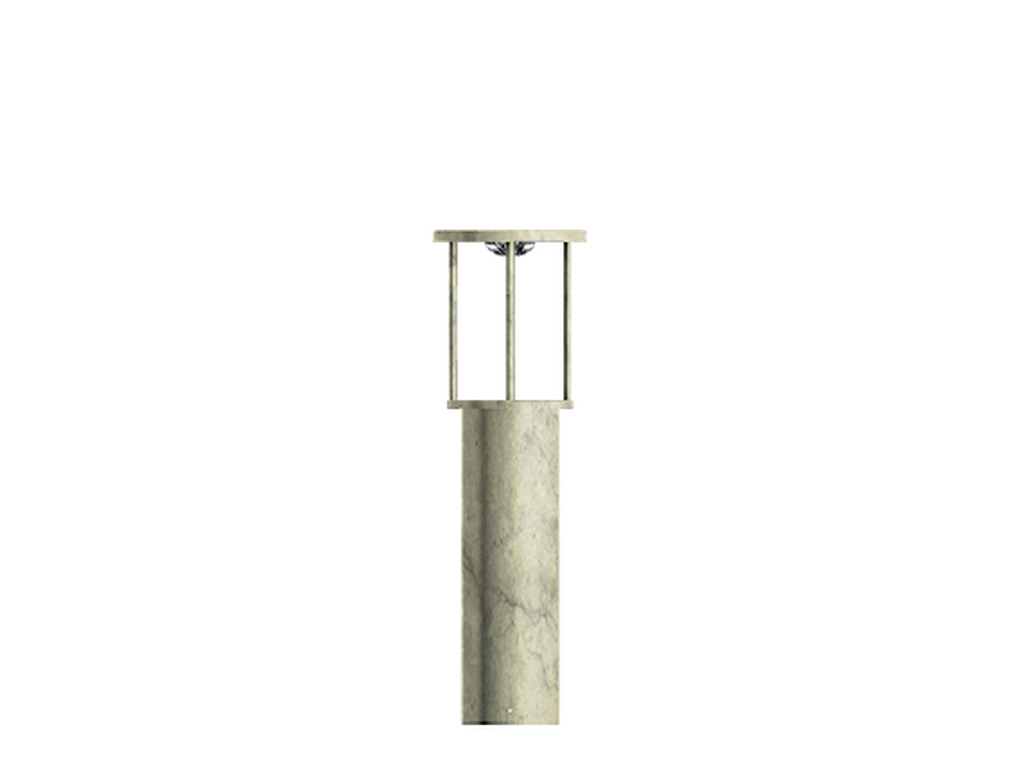

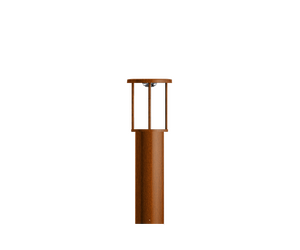

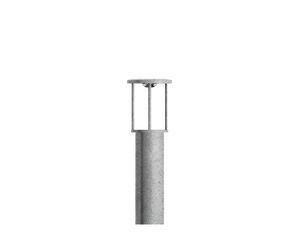

FORREY 5FOR-10041FORREY
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Ø160 - 824 mm
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
1 COB
Power (W)
48 W
Lumen (lm)
4221 - 4780 lm
Efficacy (lm/W)
89 - 101 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4, T5
Optic value
142˚x87˚, 131˚x100˚, 128˚x118˚, 143˚x89˚
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U2-G1, B2-U2-G2
ULR
1%
ULOR
1%
CIE flux code nº3
94, 95, 96
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
8.3 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,700
Lifetime L80B10 (hours)
> 63,500
Lifetime L80B50 (hours)
> 63,500
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic

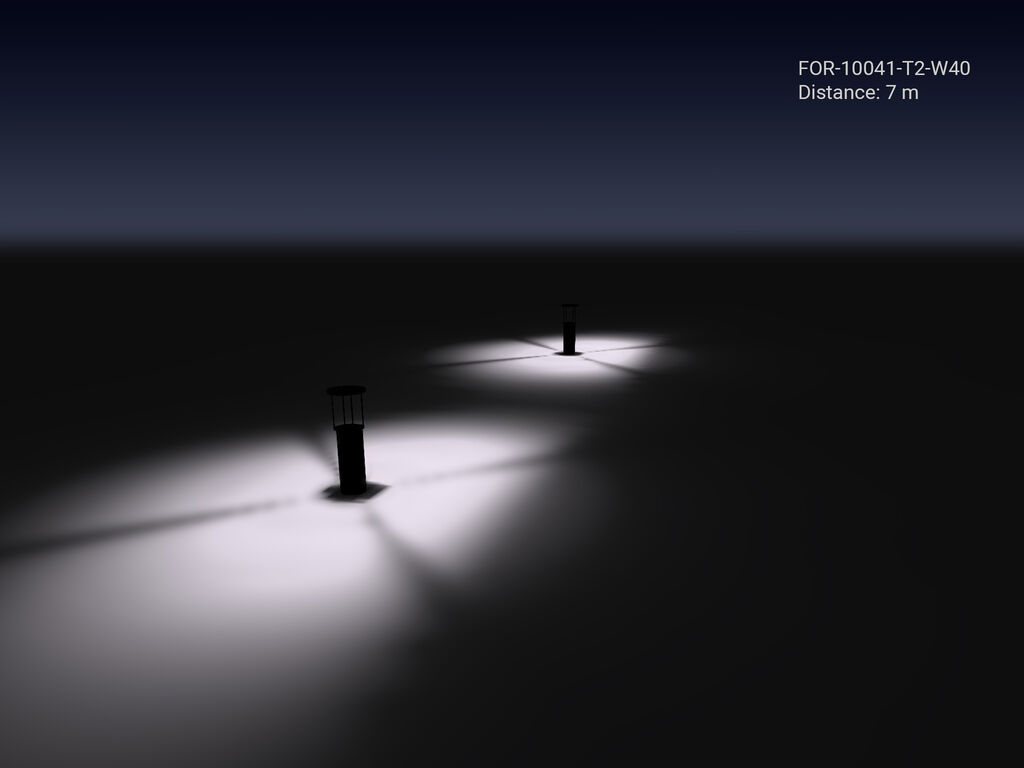

T2 (142˚x87˚)
T3 (131˚x100˚)
T4 (128˚x118˚)
T5 (143˚x89˚)
