FUNEN 3FUN-50023
(Version 1)
Underwater projectors, floodlights

Name: FUNEN 3
Brand: LIGMAN
SKU: FUN-50023
Availability: InStock

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.

Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.

Your request was successfully sent.

Without remote driver - Constant voltage (CV) 24 V

TECHNICAL SPECIFICATIONS

Material

Stainless Steel

Light source

9 LED

Power (W)

19 W

Lumen (lm)

1907 - 2319 lm

Efficacy (lm/W)

91 - 110 lm/W

Driver option

Remote driver (not included)

Driver

Constant voltage (CV)

Input voltage

24 VDC

Optic

N, M, W, VW, E

Optic value

11°, 17°, 32°, 71°, 14°x43°

CCT / CRI

3000K CRI80, 4000K CRI80

Bug

B2-U0-G0, B3-U0-G0

ULR

ULOR

CIE flux code nº3

100

Dimming type

On/Off

Product colours

Stainless Steel

Weight

1.4 kg

Operating temperature

-20 °C to 40 °C

Cable

One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable

Through wiring

Single cable entry

Lens / Reflector / Optic

Clear toughened glass

MacAdam Ellipse

3 SDCM

Lifetime L90B10 (hours)

> 120,000

Lifetime L80B10 (hours)

> 120,000

Lifetime L80B50 (hours)

> 120,000

DOWNLOADS

For BIM files (Revit - RFA), please check the Variant code

LIGHT EFFECT

Optic

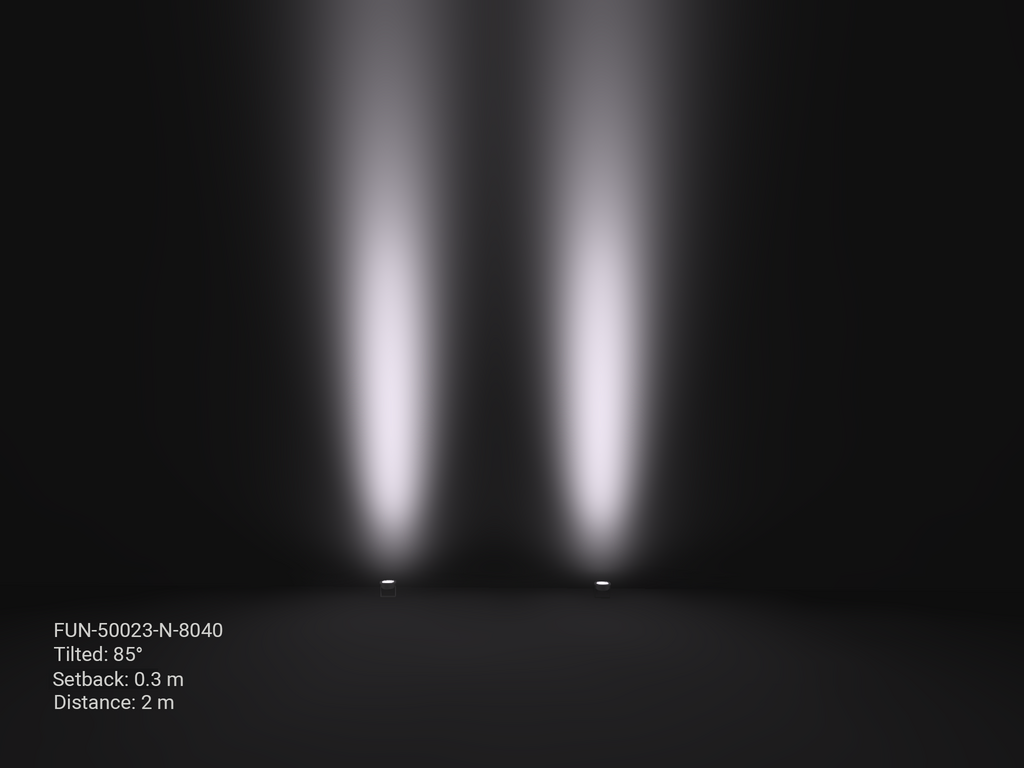

N (11°)

M (17°)

W (32°)

VW (71°)

E (14°x43°)

CODE FINDER

Lumen (lm)

Optic

Optic value

CCT / CRI

Dimming type

Product colour

Variant code

Lumen (lm)

Optic

Optic value

CCT / CRI

Dimming type

Product colour

Variant code: FUN-50023-N-8030-ND-00

Lumen (lm): 2169 lm

Optic: N

Optic value: 11°

CCT / CRI: 3000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel

Variant code: FUN-50023-N-8040-ND-00

Lumen (lm): 2319 lm

Optic: N

Optic value: 11°

CCT / CRI: 4000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel

Variant code: FUN-50023-M-8030-ND-00

Lumen (lm): 1946 lm

Optic: M

Optic value: 17°

CCT / CRI: 3000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel

Variant code: FUN-50023-M-8040-ND-00

Lumen (lm): 2080 lm

Optic: M

Optic value: 17°

CCT / CRI: 4000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel

Variant code: FUN-50023-W-8030-ND-00

Lumen (lm): 2006 lm

Optic: W

Optic value: 32°

CCT / CRI: 3000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel

Variant code: FUN-50023-W-8040-ND-00

Lumen (lm): 2144 lm

Optic: W

Optic value: 32°

CCT / CRI: 4000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel

Variant code: FUN-50023-VW-8030-ND-00

Lumen (lm): 1907 lm

Optic: VW

Optic value: 71°

CCT / CRI: 3000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel

Variant code: FUN-50023-VW-8040-ND-00

Lumen (lm): 2038 lm

Optic: VW

Optic value: 71°

CCT / CRI: 4000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel

Variant code: FUN-50023-E-8030-ND-00

Lumen (lm): 2081 lm

Optic: E

Optic value: 14°x43°

CCT / CRI: 3000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel

Variant code: FUN-50023-E-8040-ND-00

Lumen (lm): 2224 lm

Optic: E

Optic value: 14°x43°

CCT / CRI: 4000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel
