LIGMAN GINI 1 GN-30081.

GINI 1GN-30081GINI

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

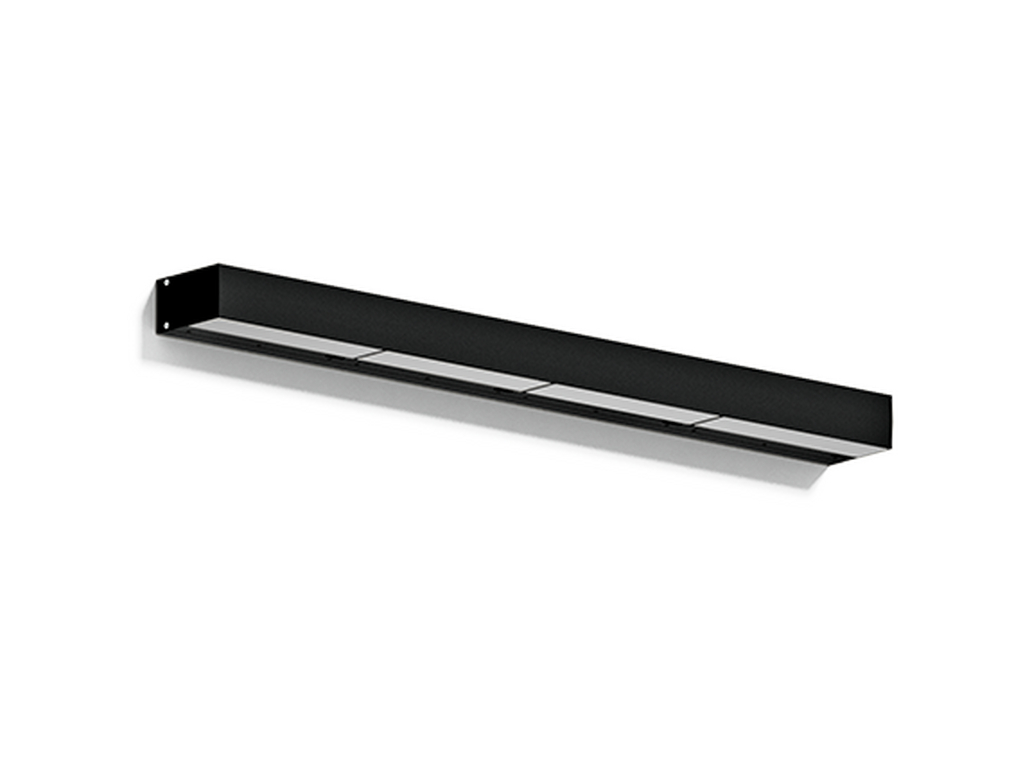

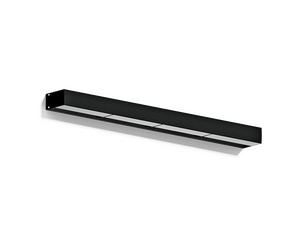

GINI 1Black
GINI 1Dark Grey

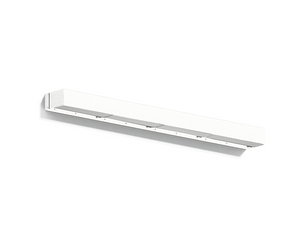

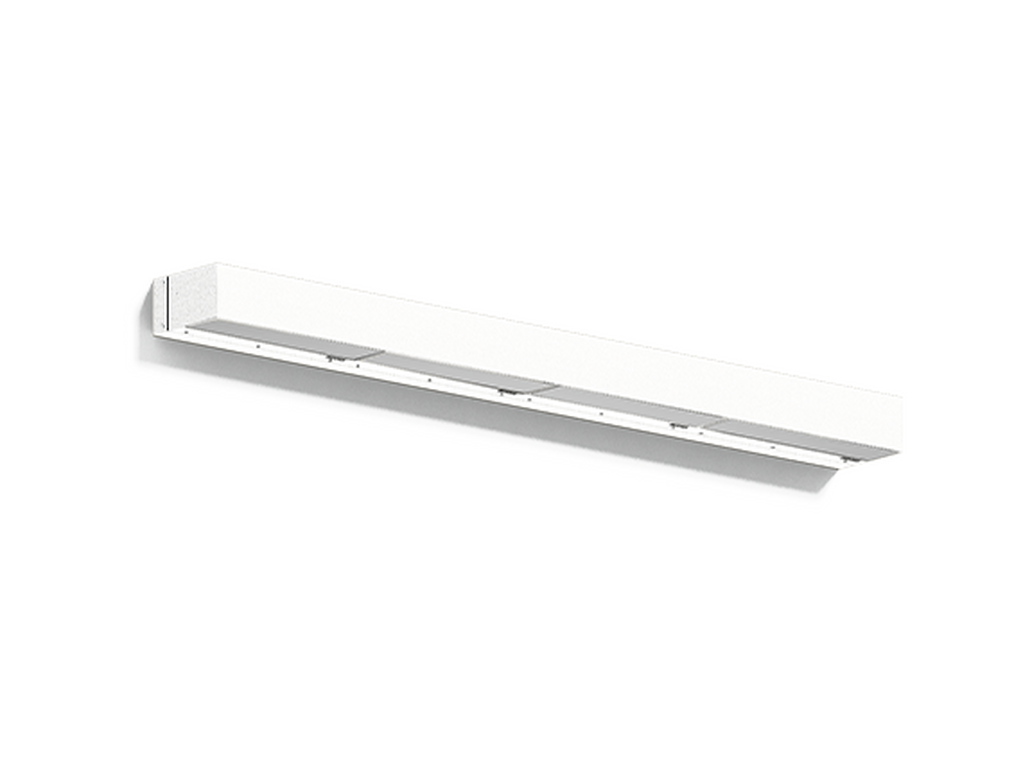

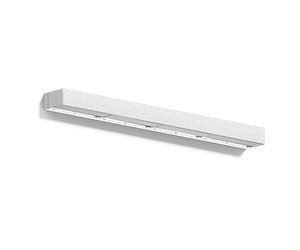

GINI 1White

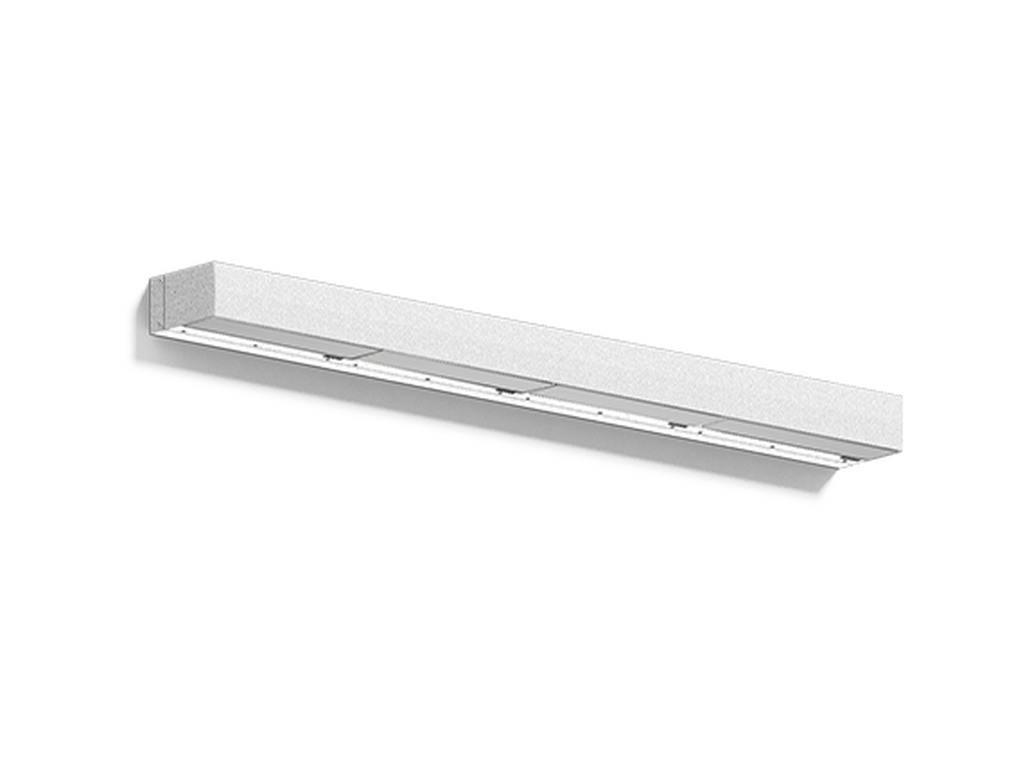

GINI 1Matt Silver

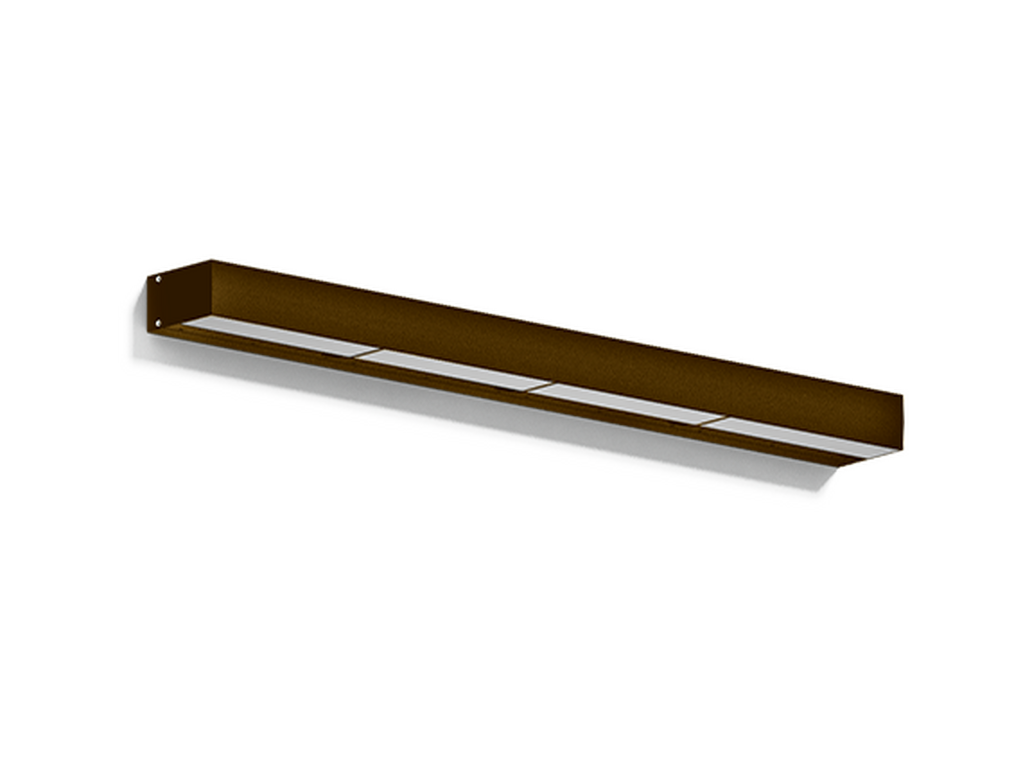

GINI 1Bronze

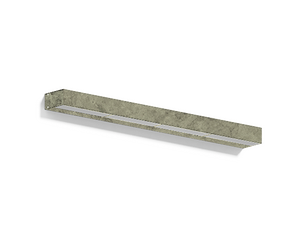

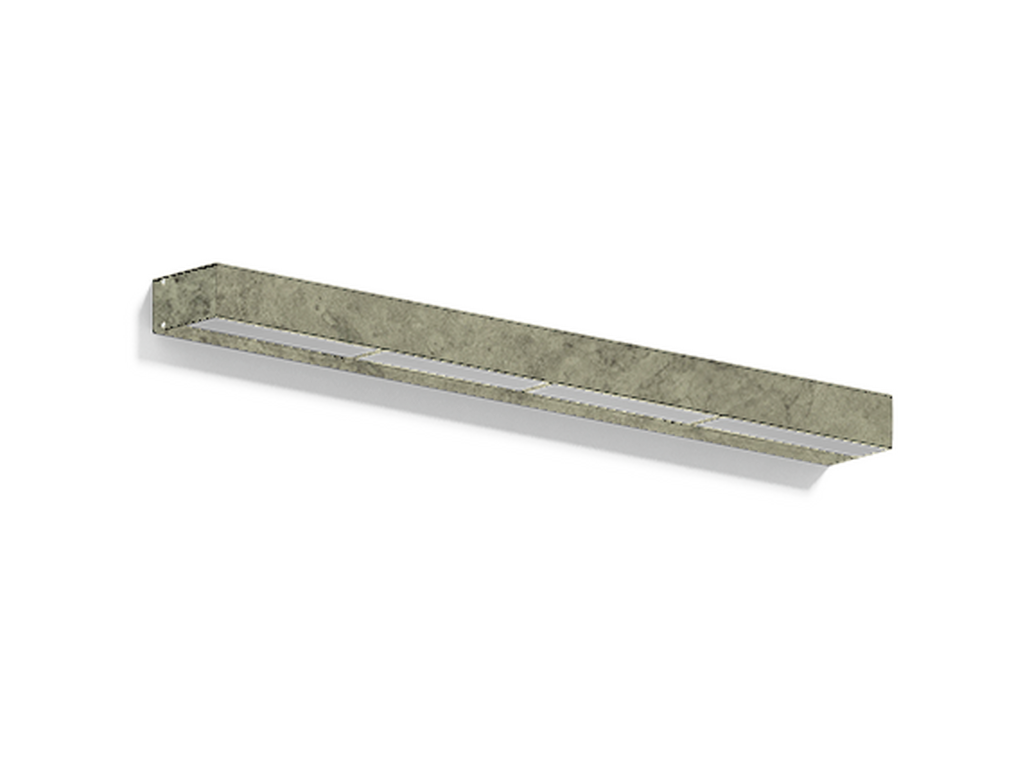

GINI 1Concrete - Urban
GINI 1Softscape - Urban

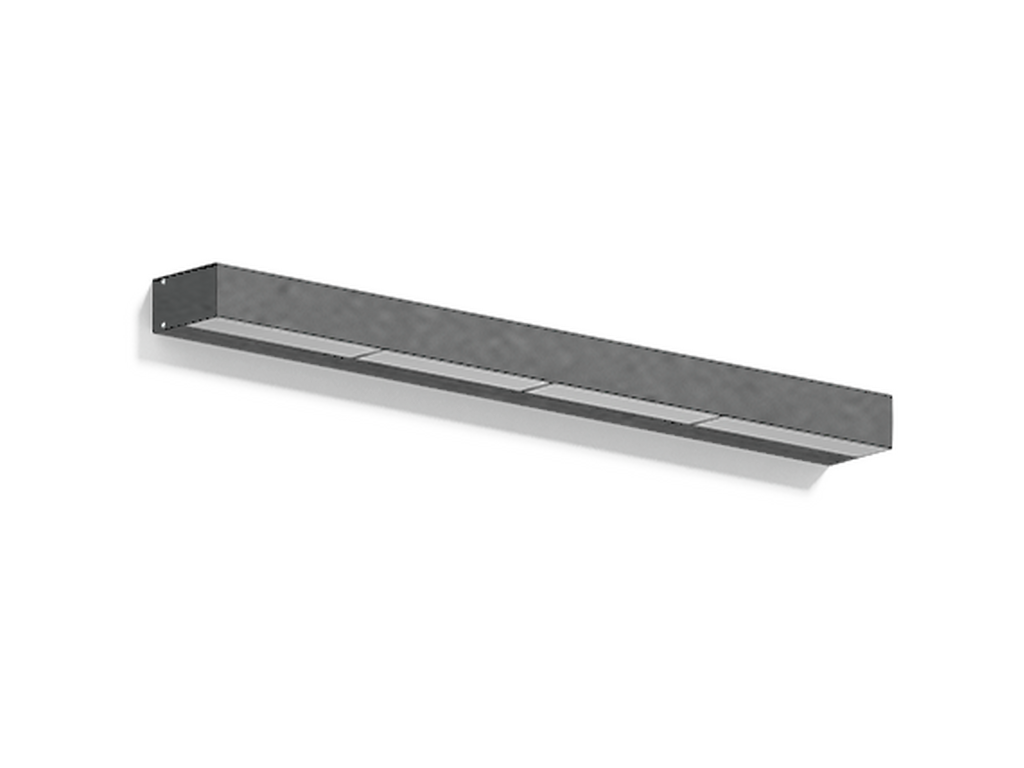

GINI 1Stone - Urban

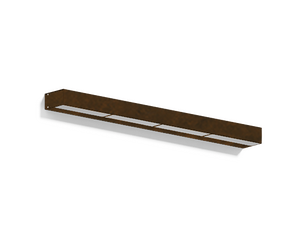

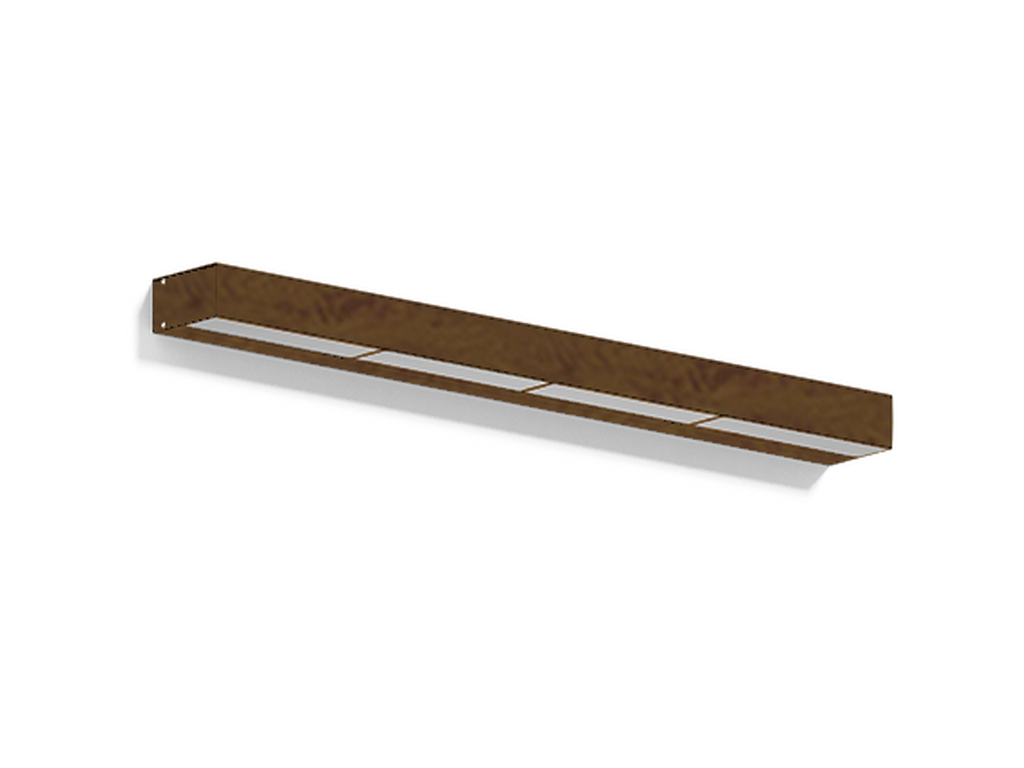

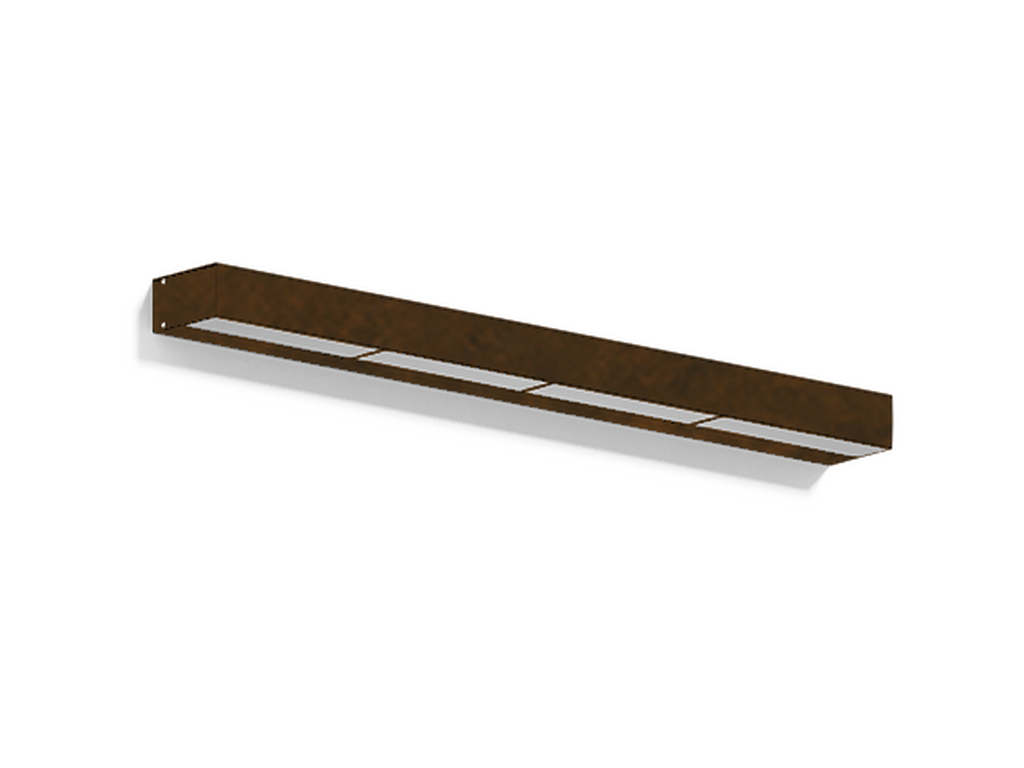

GINI 1Corten - Urban
GINI 1Oak - Woodland

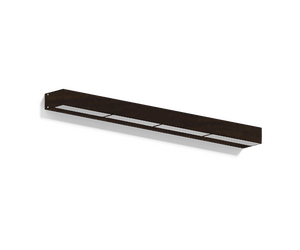

GINI 1Walnut - Woodland

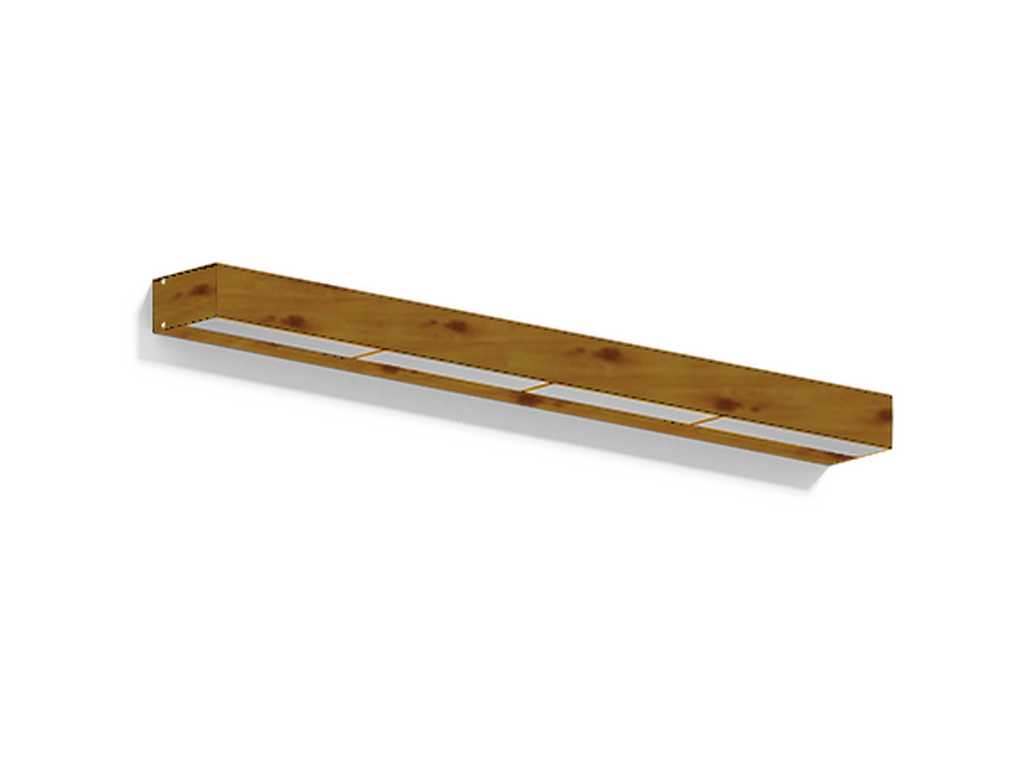

GINI 1Pine - Woodland
GINI 1Black
GINI 1Dark Grey
GINI 1White
GINI 1Matt Silver
GINI 1Bronze
GINI 1Concrete - Urban
GINI 1Softscape - Urban
GINI 1Stone - Urban
GINI 1Corten - Urban
GINI 1Oak - Woodland
GINI 1Walnut - Woodland
GINI 1Pine - Woodland
Down
CERETILAPClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
160 LED
Power (W)
72 W
Lumen (lm)
4785 - 4984 lm
Efficacy (lm/W)
66 - 69 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
95°x 86°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U1-G1
ULR
0%
ULOR
0%
CIE flux code nº3
98
Dimming type
On/Off, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
13.90 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Frosted toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 23,000
Lifetime L80B10 (hours)
> 45,000
Lifetime L80B50 (hours)
> 49,000
Variants (On/Off, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

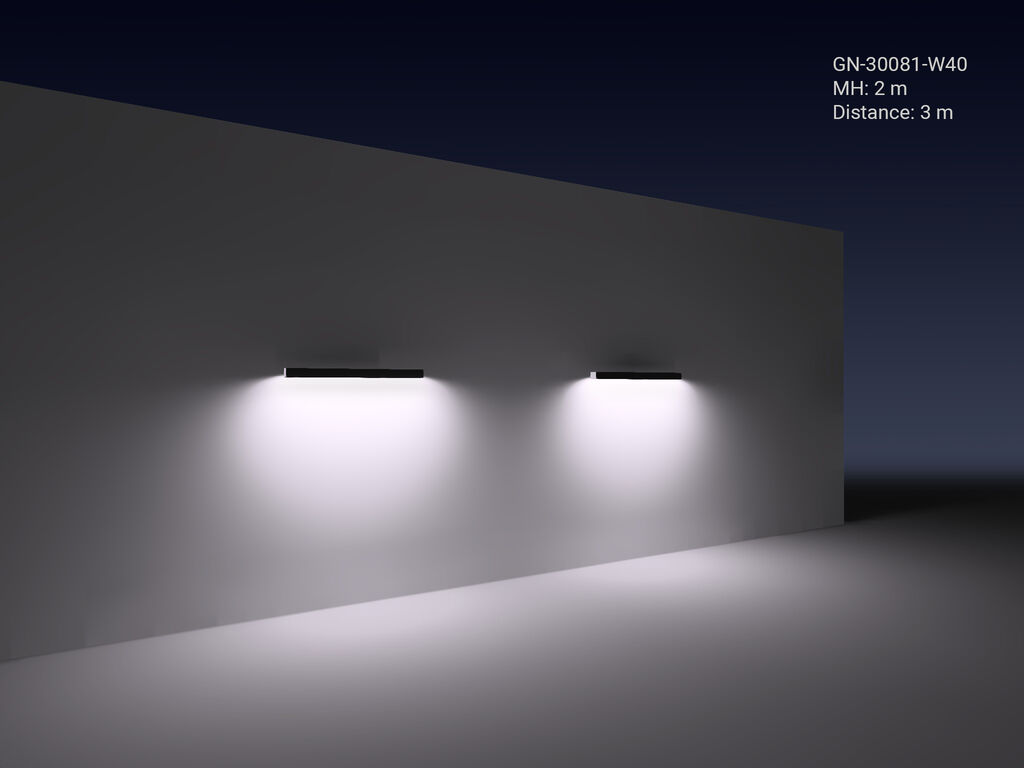

LIGHT EFFECT

Optic
G (95°x 86°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: GN-30081-8030-ND-01
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: GN-30081-8030-ND-02
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: GN-30081-8030-ND-03
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: GN-30081-8030-ND-05
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: GN-30081-8030-ND-06
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: GN-30081-8030-ND-SU01
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: GN-30081-8030-ND-SU02
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: GN-30081-8030-ND-SU03
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: GN-30081-8030-ND-SU04
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: GN-30081-8030-ND-SW01
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: GN-30081-8030-ND-SW02
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: GN-30081-8030-ND-SW03
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: GN-30081-8040-ND-01
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: GN-30081-8040-ND-02
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: GN-30081-8040-ND-03
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: GN-30081-8040-ND-05
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: GN-30081-8040-ND-06
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: GN-30081-8040-ND-SU01
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: GN-30081-8040-ND-SU02
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: GN-30081-8040-ND-SU03
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: GN-30081-8040-ND-SU04
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: GN-30081-8040-ND-SW01
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: GN-30081-8040-ND-SW02
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: GN-30081-8040-ND-SW03
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: GN-30081-8030-DA-01
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: GN-30081-8030-DA-02
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: GN-30081-8030-DA-03
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: GN-30081-8030-DA-05
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: GN-30081-8030-DA-06
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: GN-30081-8030-DA-SU01
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: GN-30081-8030-DA-SU02
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: GN-30081-8030-DA-SU03
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: GN-30081-8030-DA-SU04
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: GN-30081-8030-DA-SW01
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: GN-30081-8030-DA-SW02
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: GN-30081-8030-DA-SW03
Lumen (lm): 4785 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: GN-30081-8040-DA-01
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: GN-30081-8040-DA-02
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: GN-30081-8040-DA-03
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: GN-30081-8040-DA-05
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: GN-30081-8040-DA-06
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: GN-30081-8040-DA-SU01
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: GN-30081-8040-DA-SU02
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: GN-30081-8040-DA-SU03
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: GN-30081-8040-DA-SU04
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: GN-30081-8040-DA-SW01
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: GN-30081-8040-DA-SW02
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: GN-30081-8040-DA-SW03
Lumen (lm): 4984 lm
Optic: G
Optic value: 95°x 86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
