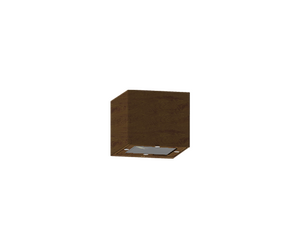

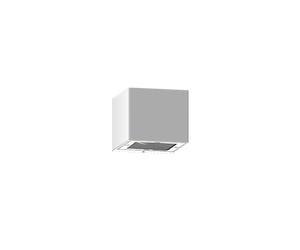

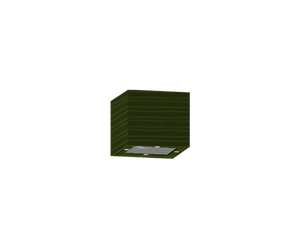

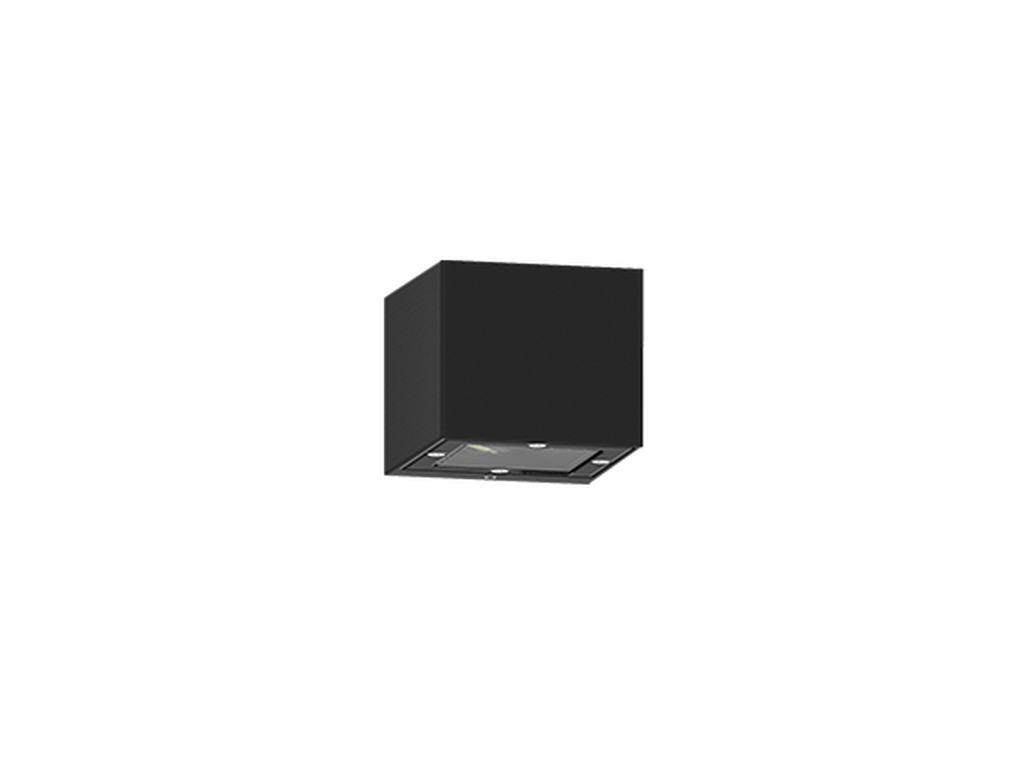

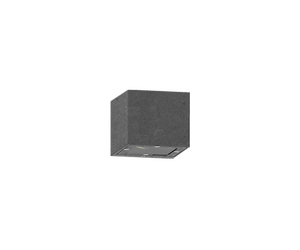

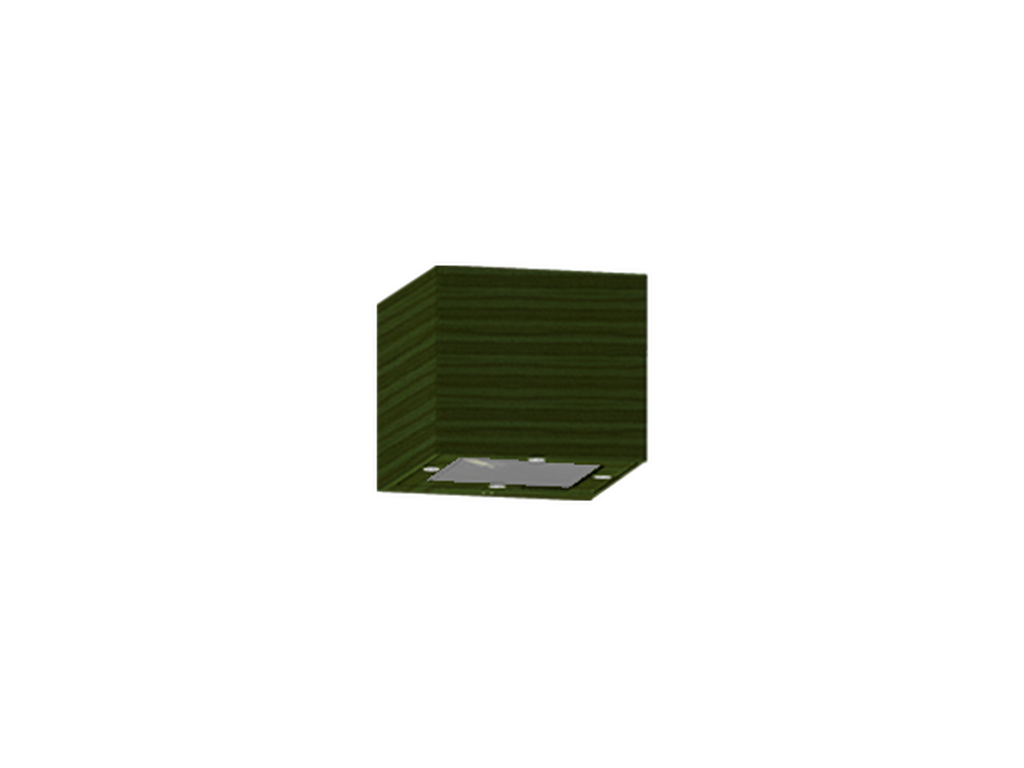

LIGMAN GINO 2 GI-31621.

GINO 2GI-31621GINO

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

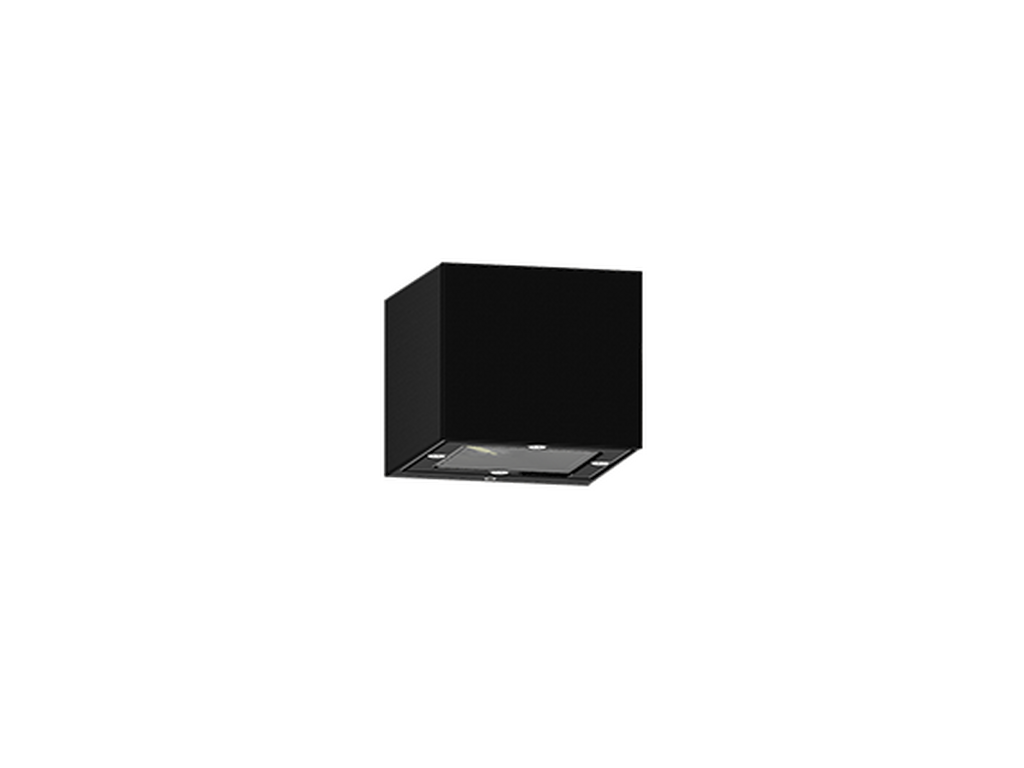

GINO 2Black
GINO 2Dark Grey

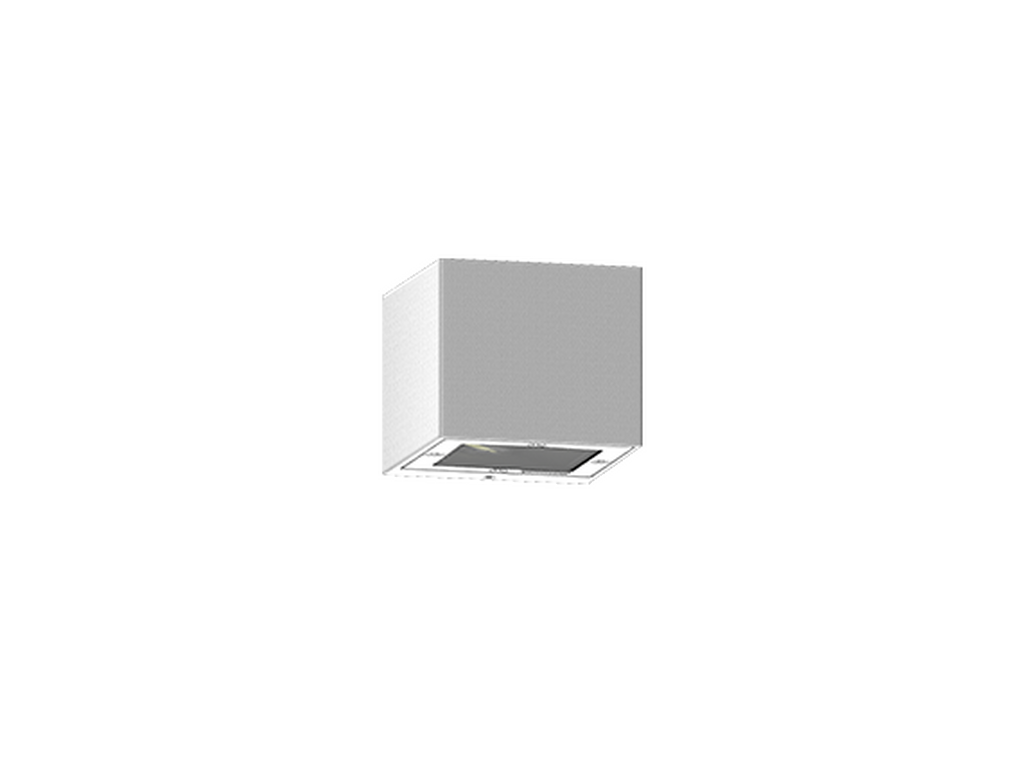

GINO 2White
GINO 2Matt Silver
GINO 2Bronze
GINO 2Concrete - Urban
GINO 2Softscape - Urban

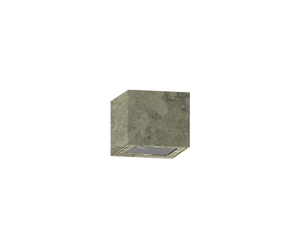

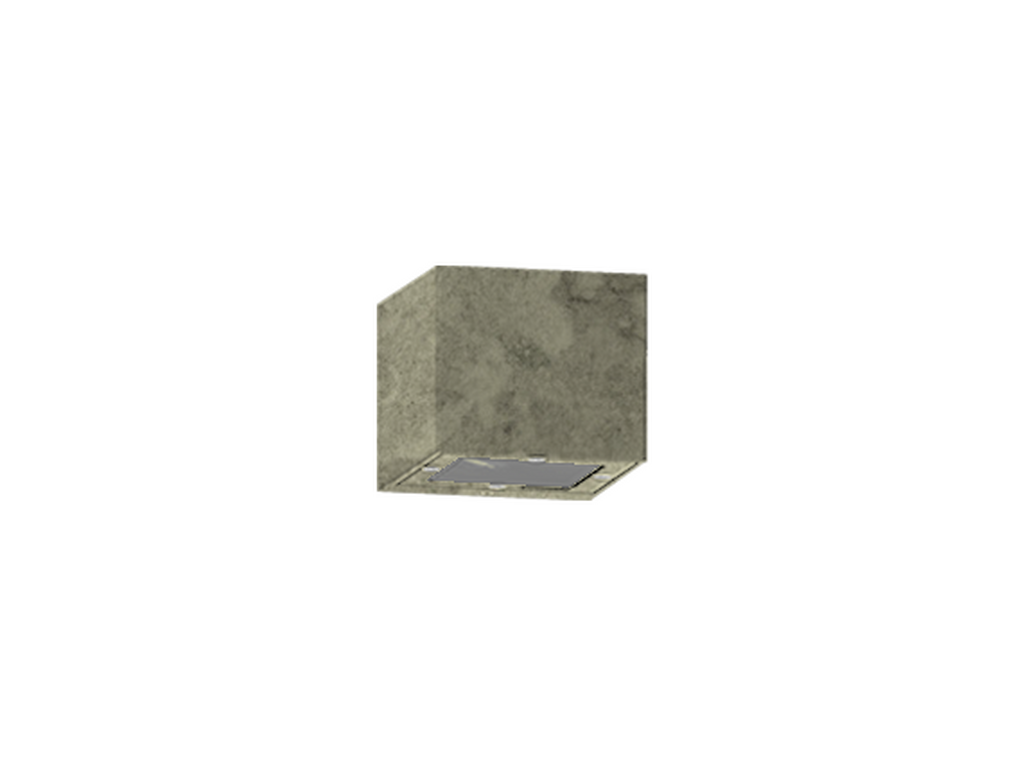

GINO 2Stone - Urban

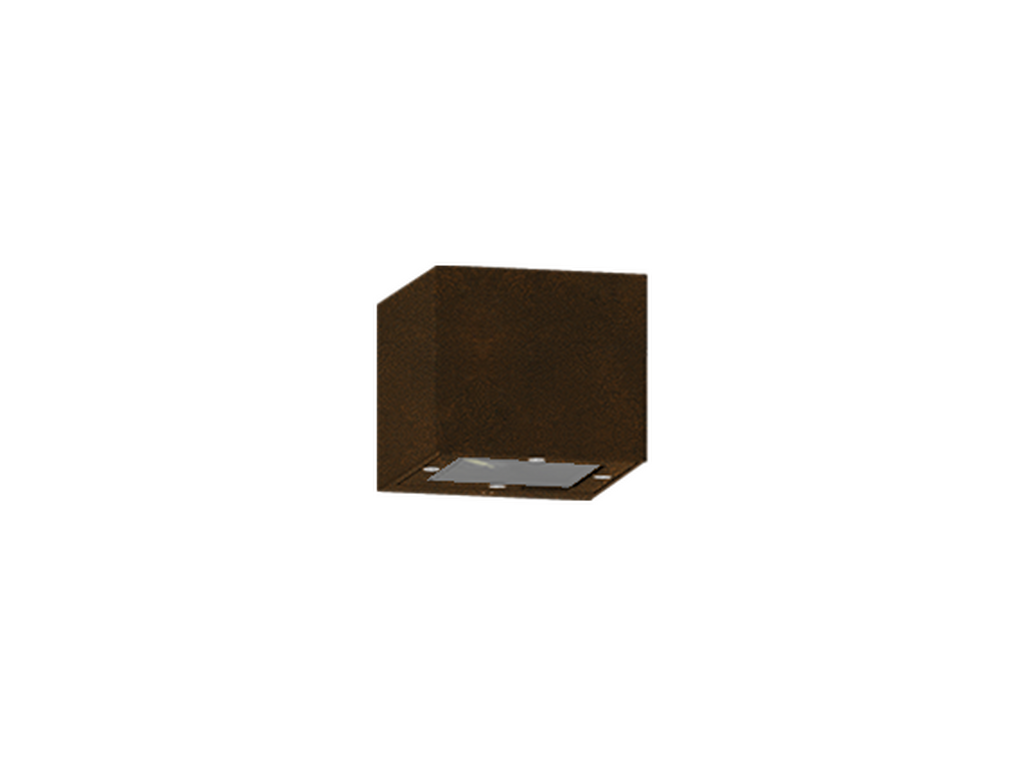

GINO 2Corten - Urban
GINO 2Oak - Woodland

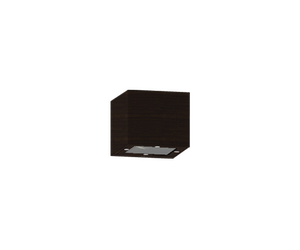

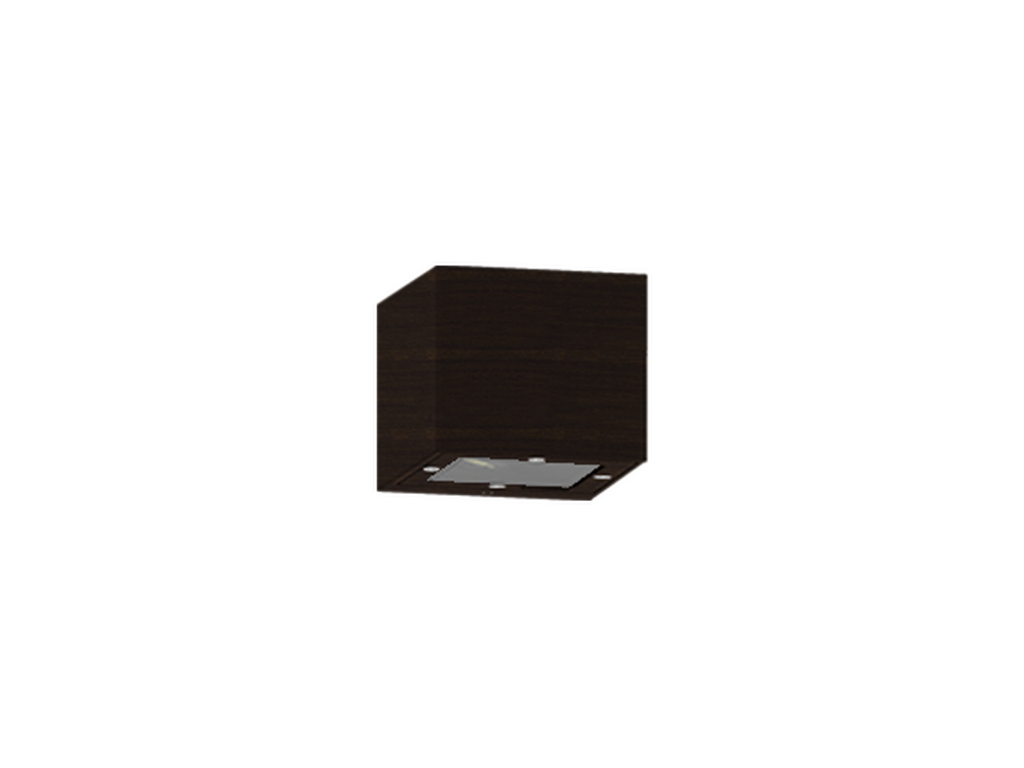

GINO 2Walnut - Woodland

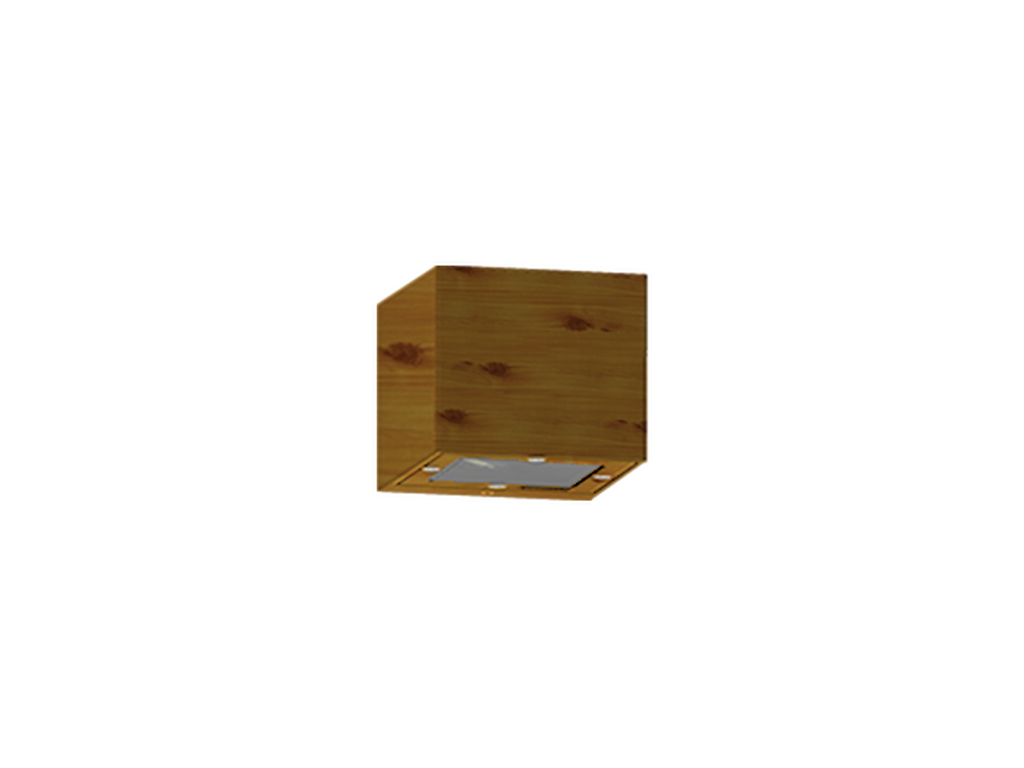

GINO 2Pine - Woodland
GINO 2Black
GINO 2Dark Grey
GINO 2White
GINO 2Matt Silver
GINO 2Bronze
GINO 2Concrete - Urban
GINO 2Softscape - Urban
GINO 2Stone - Urban
GINO 2Corten - Urban
GINO 2Oak - Woodland
GINO 2Walnut - Woodland
GINO 2Pine - Woodland
Clear diffuser - Down
CERETILAPBISClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
4 LED
Power (W)
5 W
Lumen (lm)
306 - 473 lm
Efficacy (lm/W)
61 - 95 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T1, T2, T3, T4
Optic value
30°, 56°, 88°x107°, 143°x61°, 129°x44°, 126°x83°, 93°x64°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B0-U0-G0, B1-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100, 98, 99
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
0.9 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear glass diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

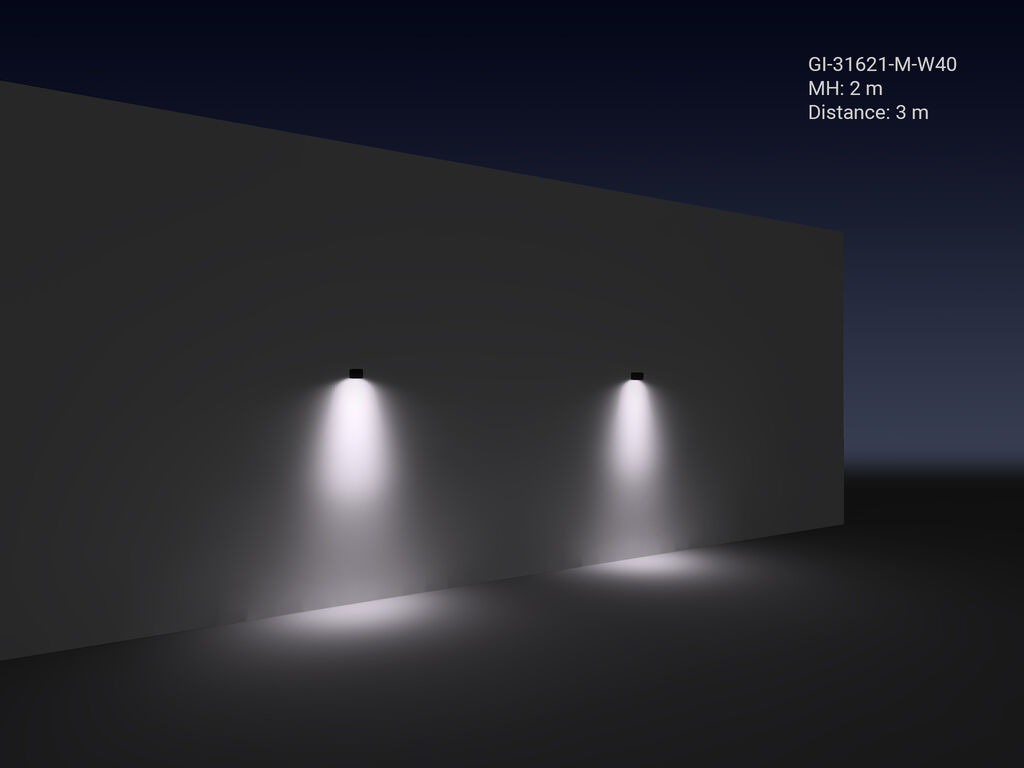

LIGHT EFFECT

Optic
M (30°)
W (56°)
EW (88°x107°)
T1 (143°x61°)
T2 (129°x44°)
T3 (126°x83°)
T4 (93°x64°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

PROJECT REFERENCE (GINO Surface facade luminaires)
