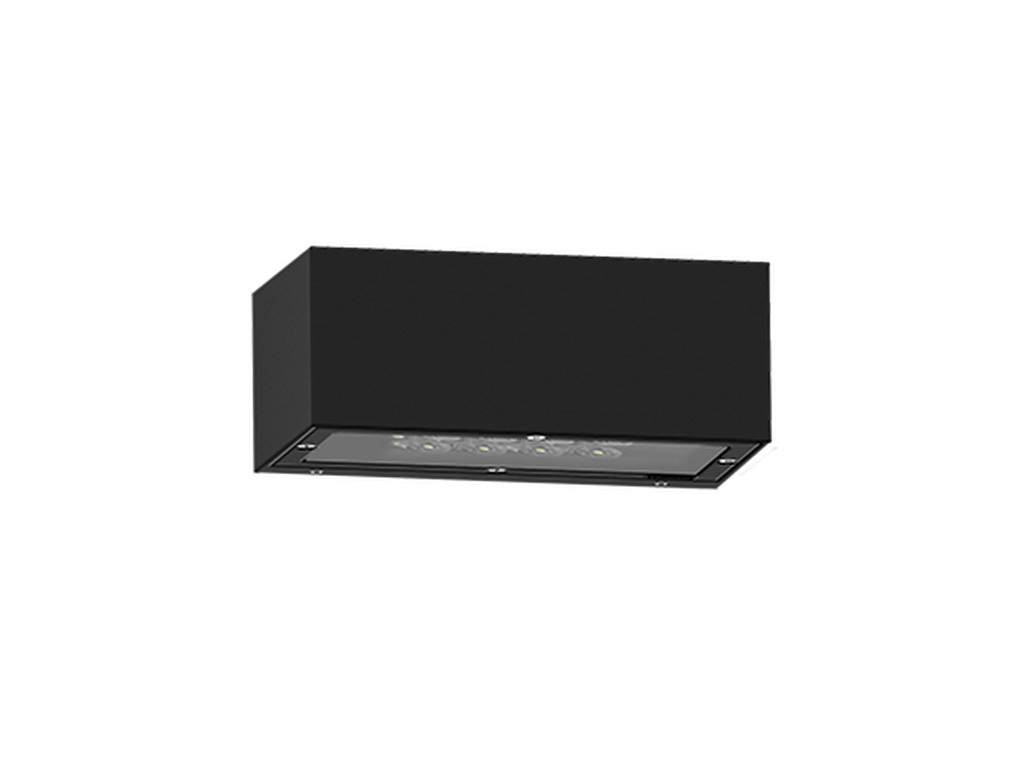

LIGMAN GINO 4 GI-31641.

GINO 4GI-31641GINO

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

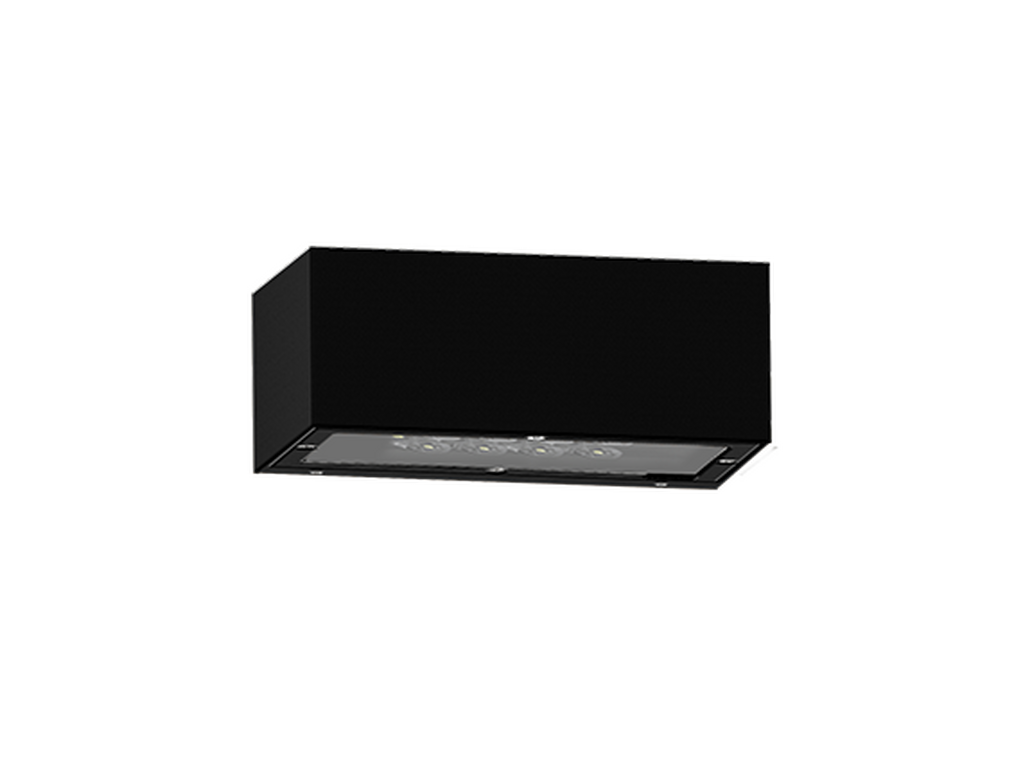

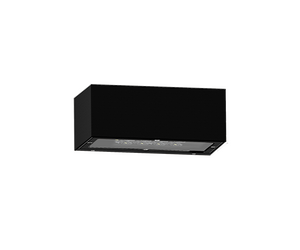

GINO 4Black

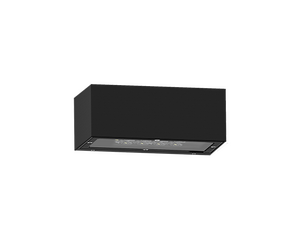

GINO 4Dark Grey

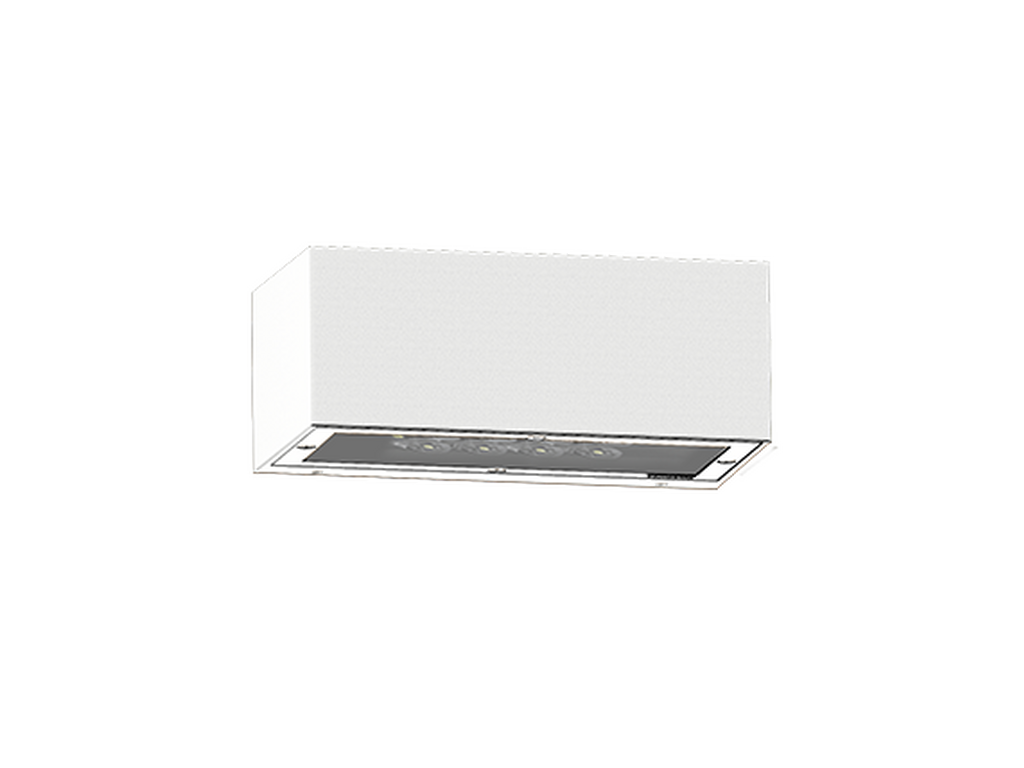

GINO 4White

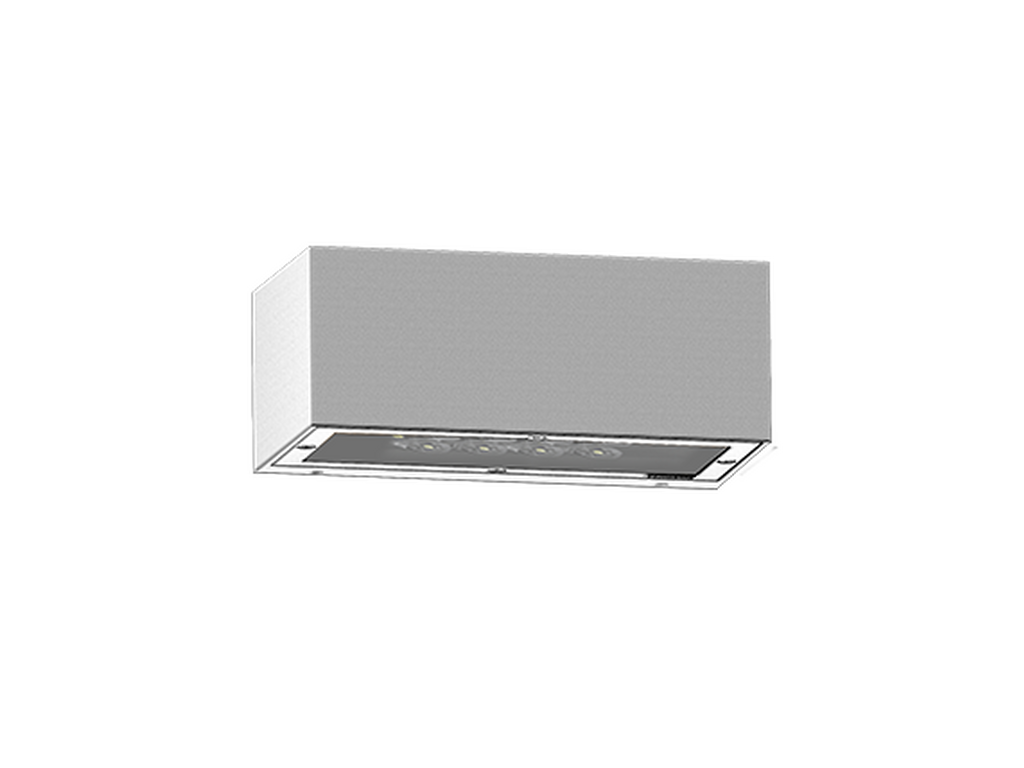

GINO 4Matt Silver
GINO 4Bronze
GINO 4Concrete - Urban
GINO 4Softscape - Urban
GINO 4Stone - Urban

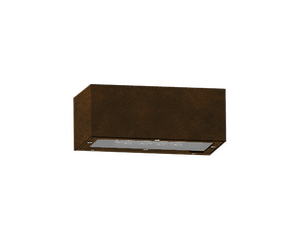

GINO 4Corten - Urban
GINO 4Oak - Woodland
GINO 4Walnut - Woodland

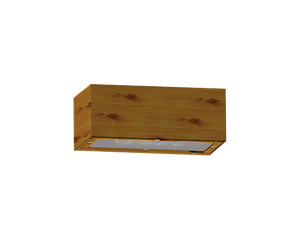

GINO 4Pine - Woodland
GINO 4Black
GINO 4Dark Grey
GINO 4White
GINO 4Matt Silver
GINO 4Bronze

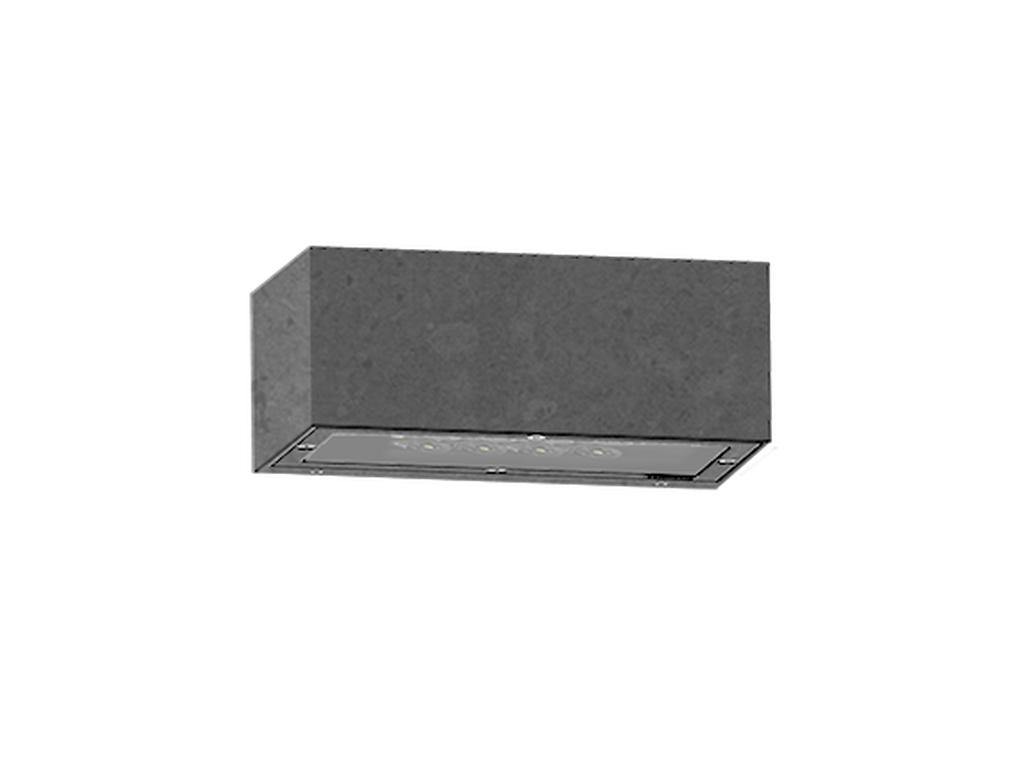

GINO 4Concrete - Urban
GINO 4Softscape - Urban
GINO 4Stone - Urban
GINO 4Corten - Urban
GINO 4Oak - Woodland
GINO 4Walnut - Woodland
GINO 4Pine - Woodland
Clear diffuser - Down
CERETILAPBISClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
8 LED
Power (W)
10 W
Lumen (lm)
966 - 1209 lm
Efficacy (lm/W)
97 - 121 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T1, T2, T3, T4
Optic value
30°, 56°, 90°x114°, 148°x70°, 136°x52°, 135°x89°, 104°x67°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B0-U0-G0, B1-U0-G0, B1-U0-G1
ULR
<1%
ULOR
<1%
CIE flux code nº3
100, 96, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.9 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear glass diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
M (30°)
W (56°)
EW (90°x114°)
T1 (148°x70°)
T2 (136°x52°)
T3 (135°x89°)
T4 (104°x67°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

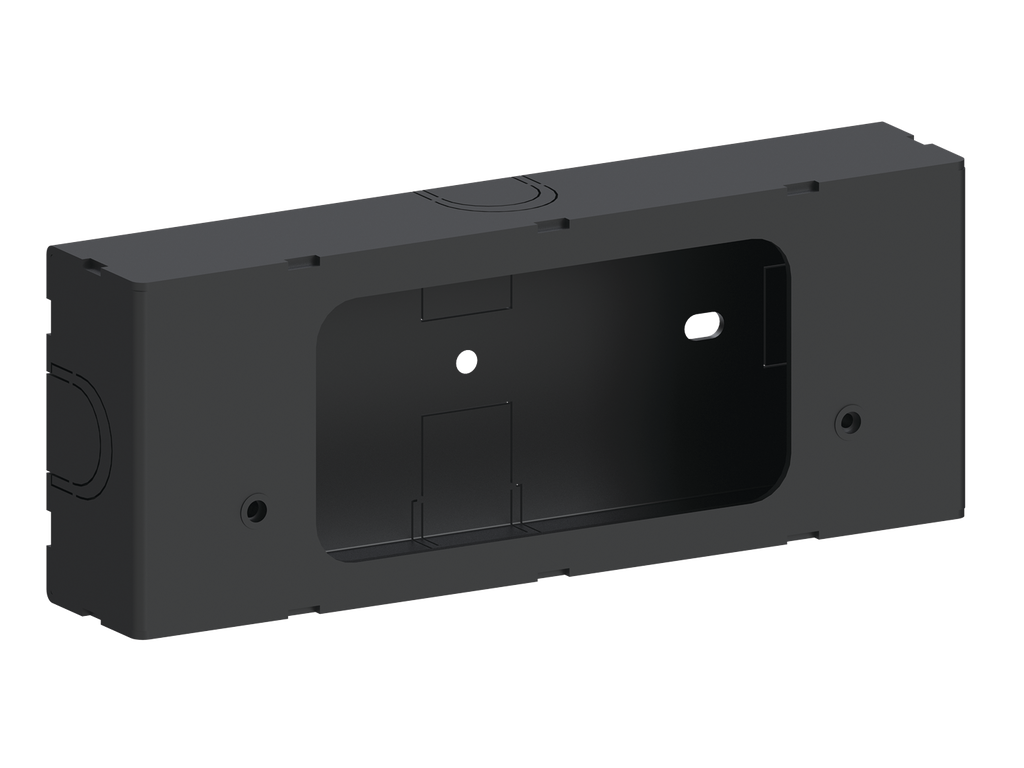

ACCESSORY

PROJECT REFERENCE (GINO Surface facade luminaires)
