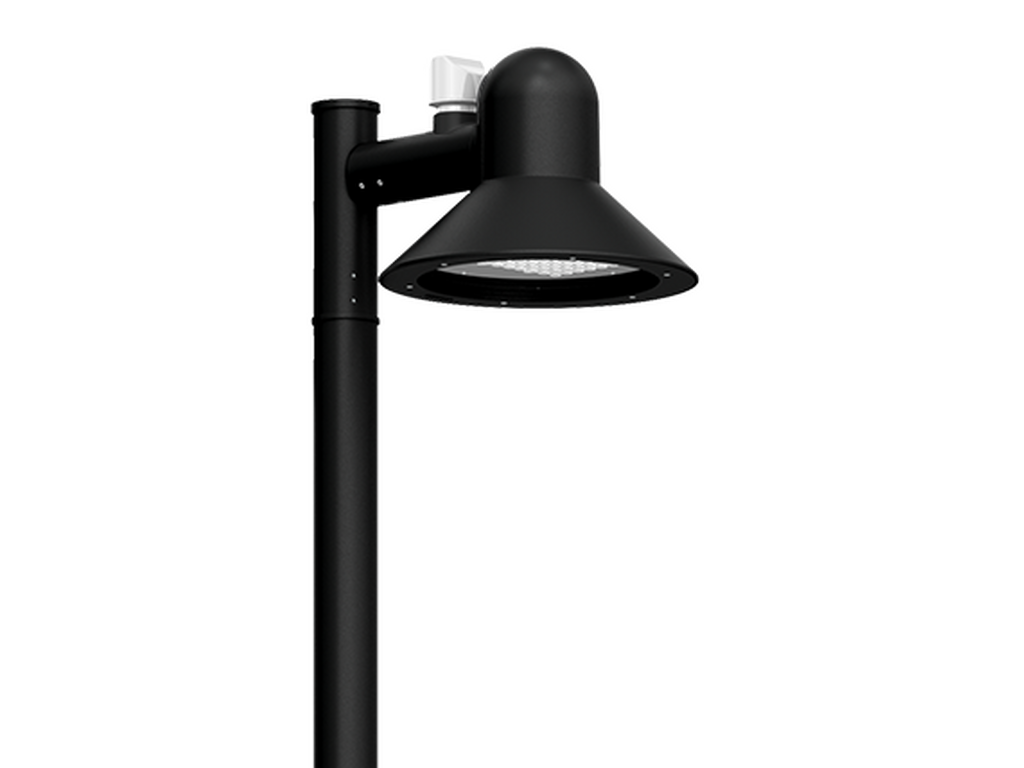

LIGMAN HAMILTON 1 HAM-20001-LC.

HAMILTON 1HAM-20001-LCHAMILTON

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
HAMILTON 1Black

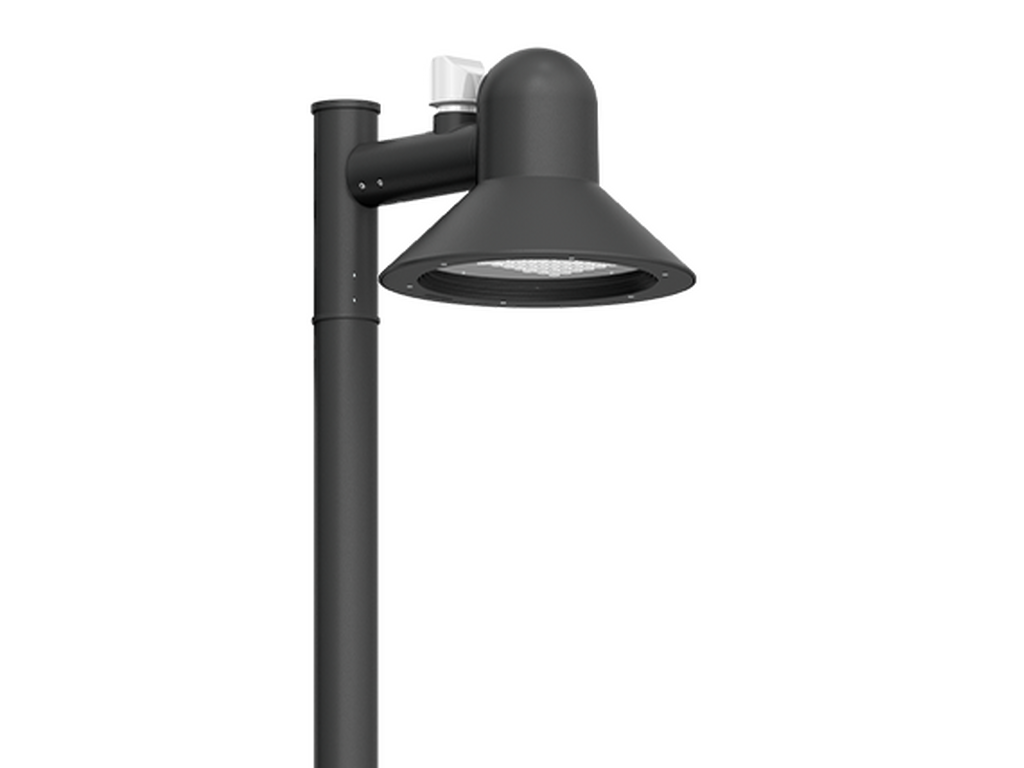

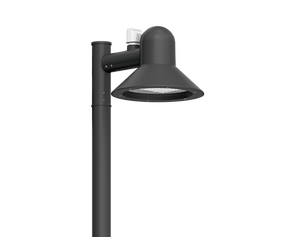

HAMILTON 1Dark Grey

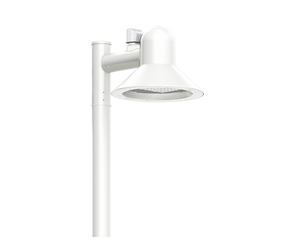

HAMILTON 1White

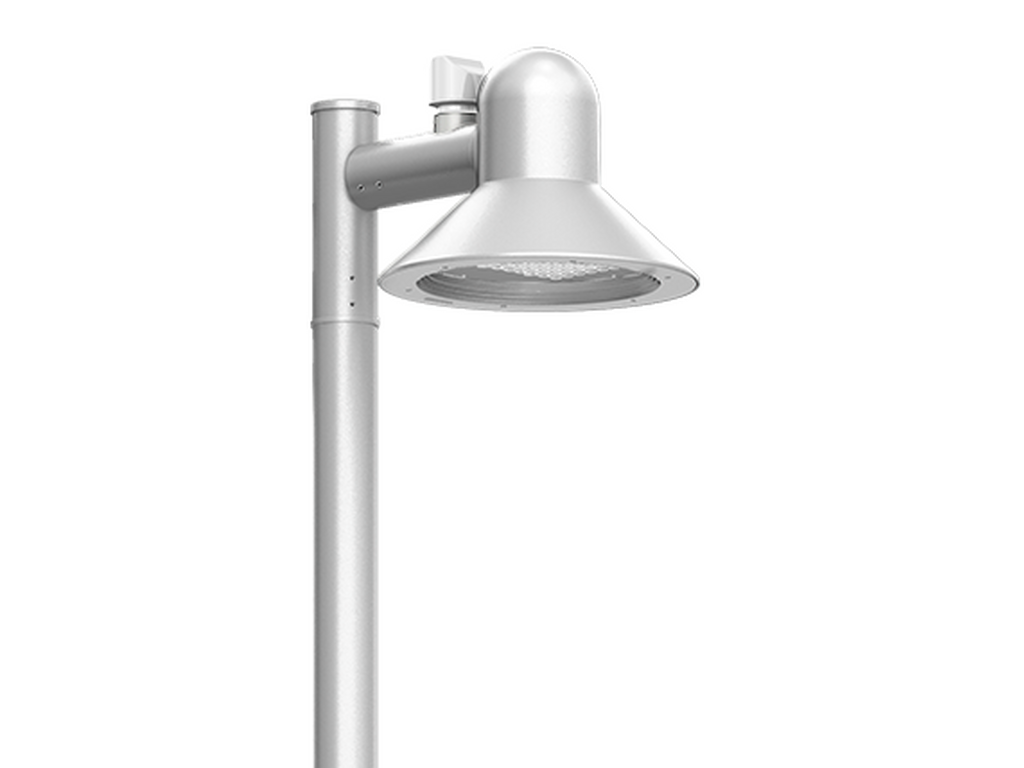

HAMILTON 1Matt Silver

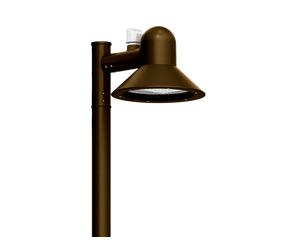

HAMILTON 1Bronze

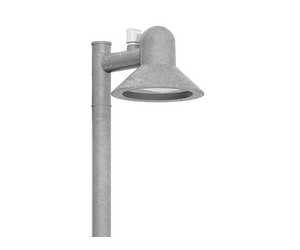

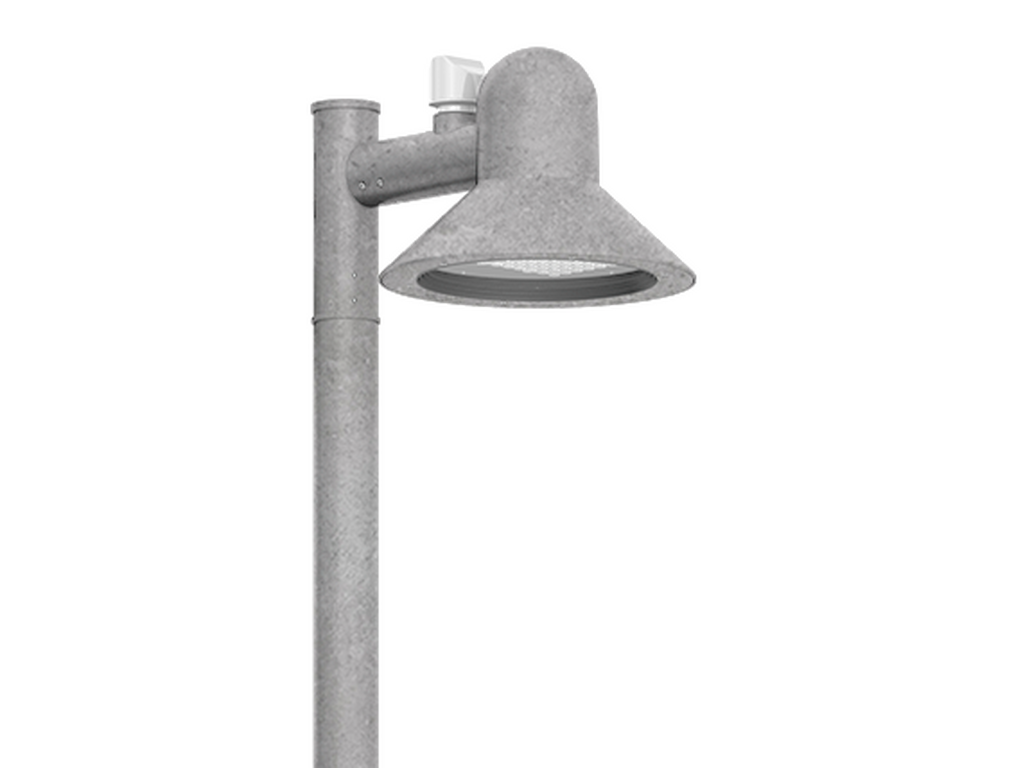

HAMILTON 1Concrete - Urban
HAMILTON 1Softscape - Urban
HAMILTON 1Stone - Urban

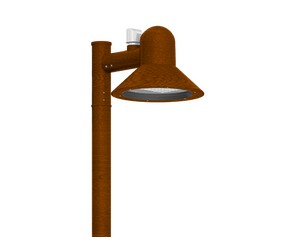

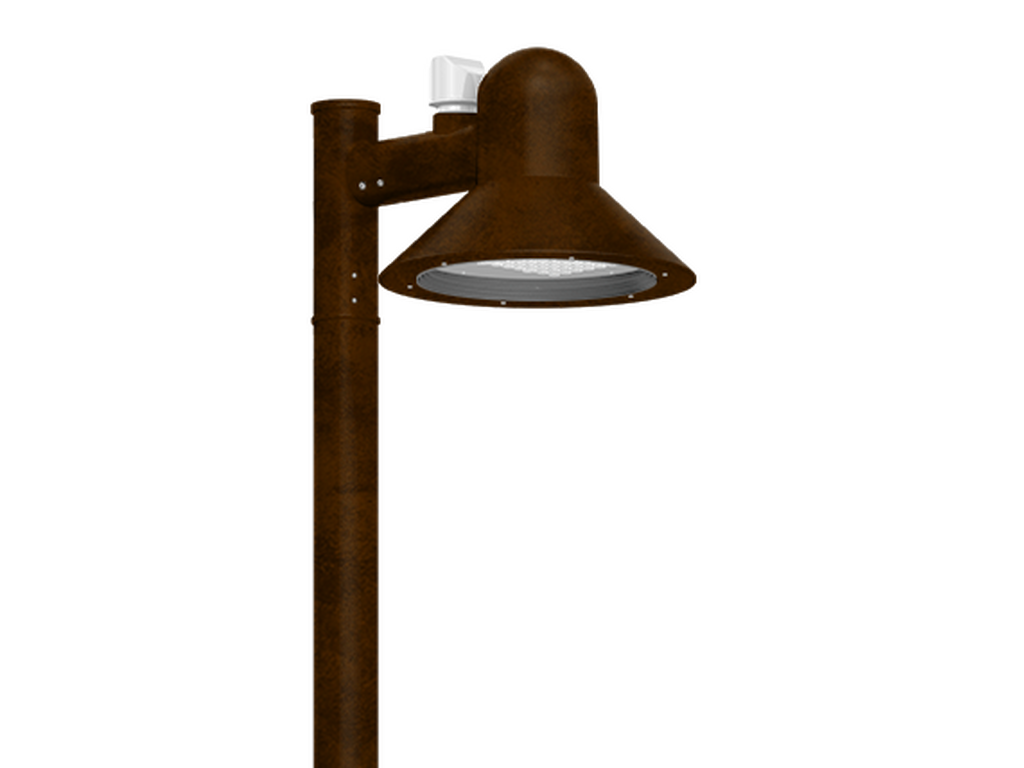

HAMILTON 1Corten - Urban

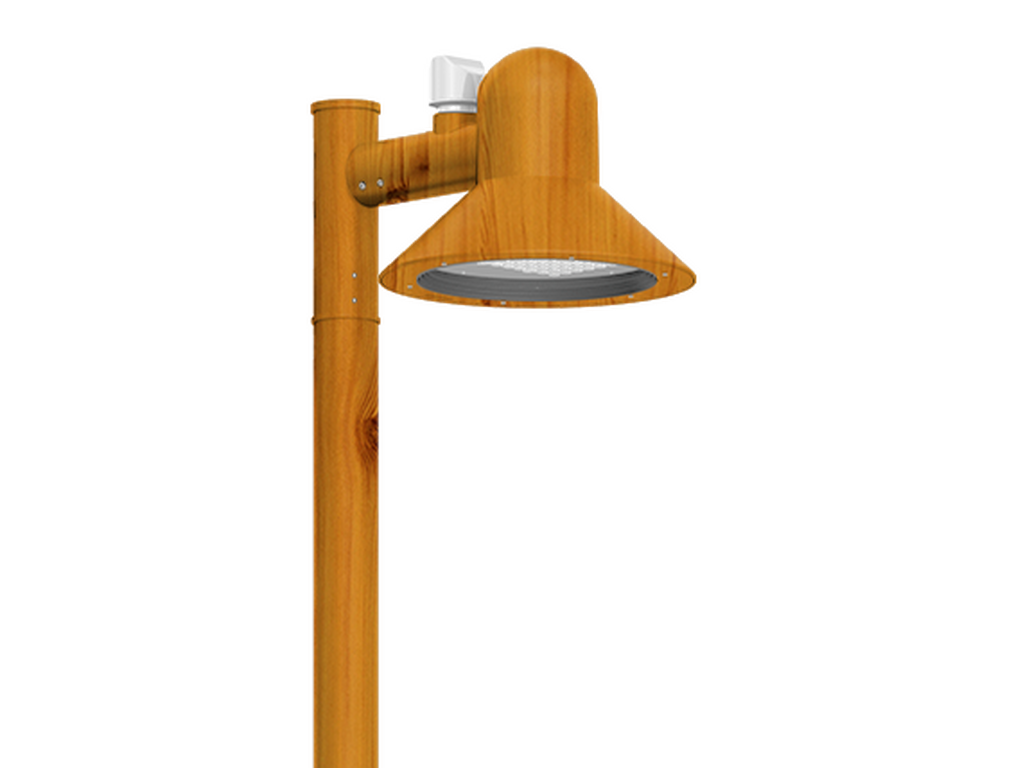

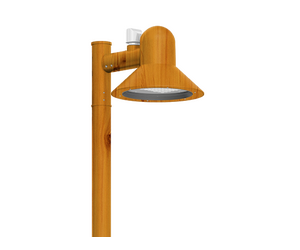

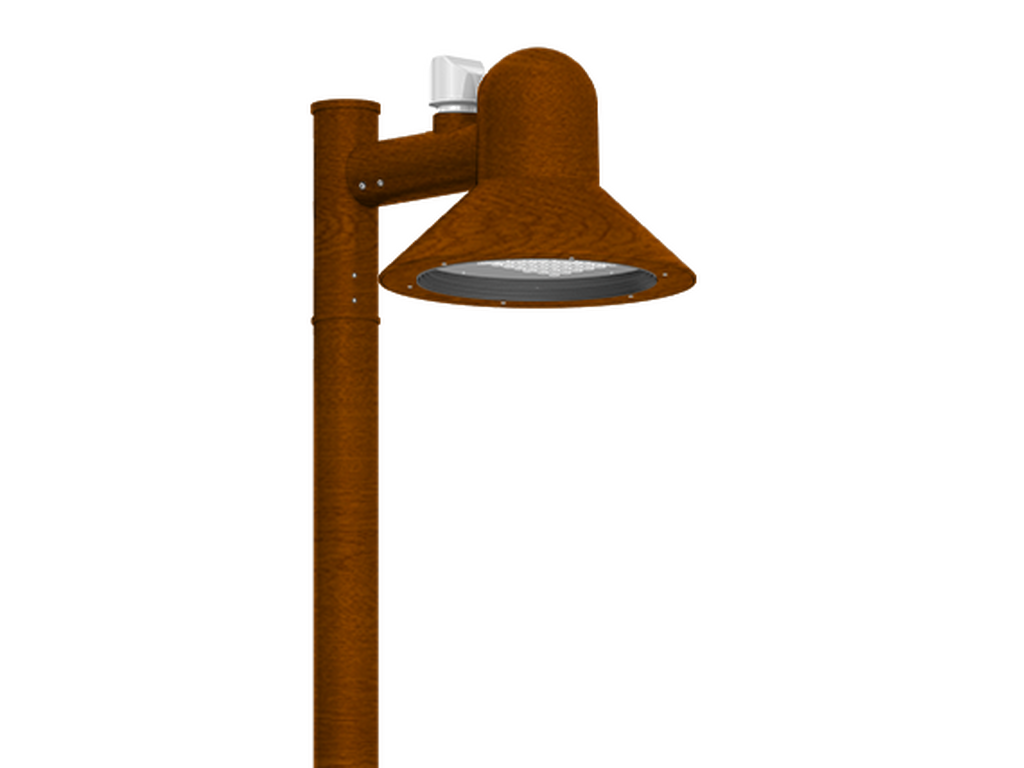

HAMILTON 1Oak - Woodland

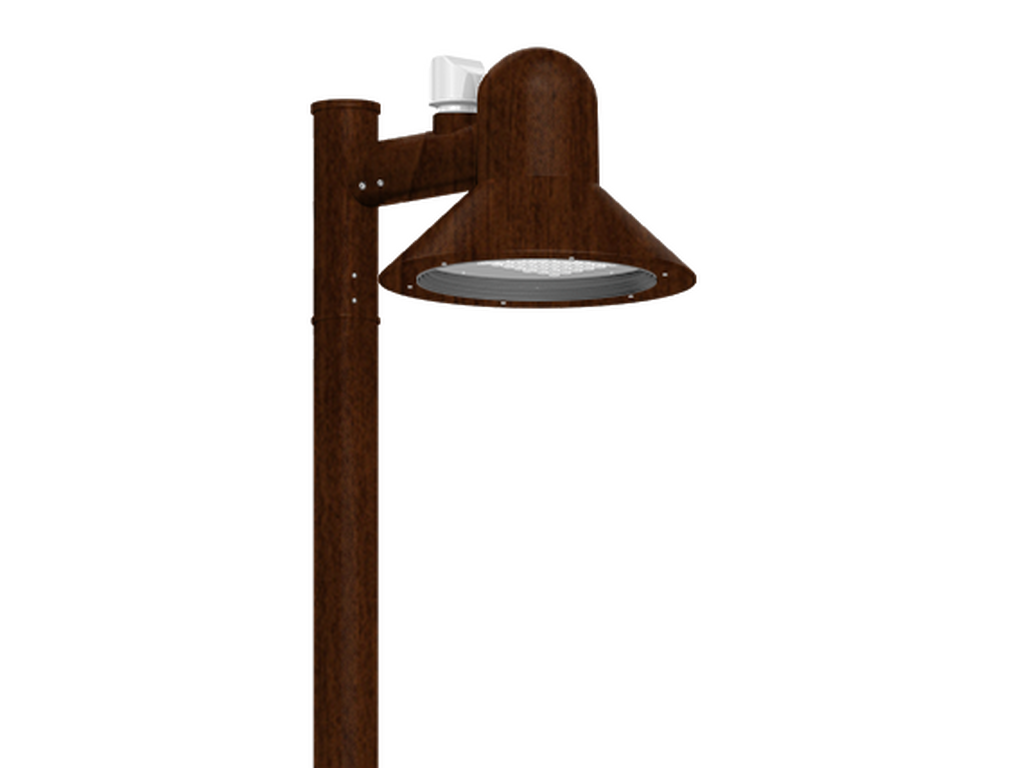

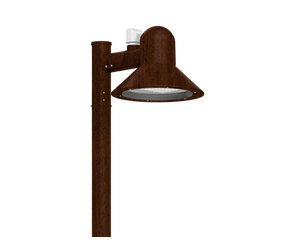

HAMILTON 1Walnut - Woodland
HAMILTON 1Pine - Woodland
HAMILTON 1Black
HAMILTON 1Dark Grey
HAMILTON 1White
HAMILTON 1Matt Silver

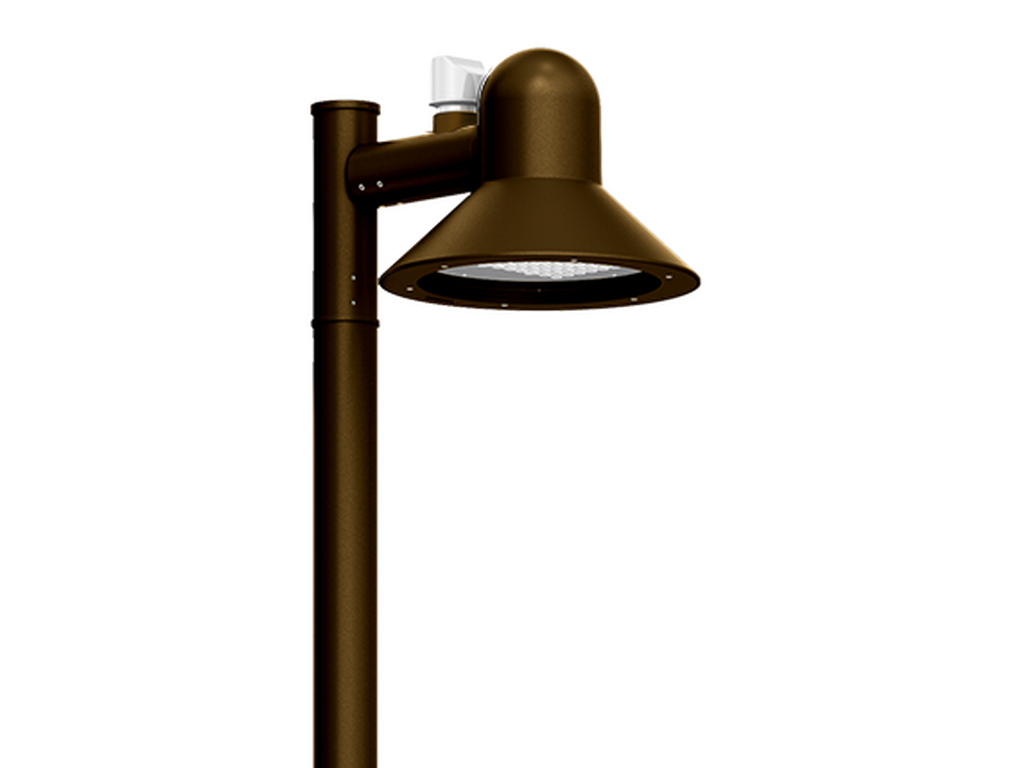

HAMILTON 1Bronze
HAMILTON 1Concrete - Urban
HAMILTON 1Softscape - Urban
HAMILTON 1Stone - Urban
HAMILTON 1Corten - Urban
HAMILTON 1Oak - Woodland

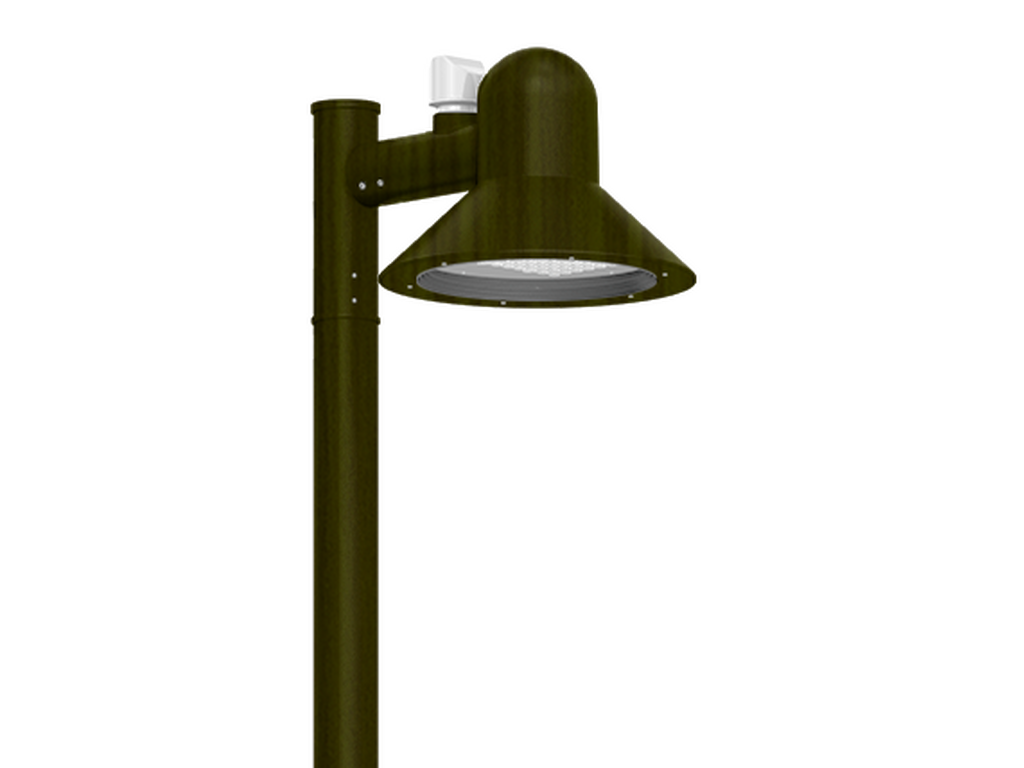

HAMILTON 1Walnut - Woodland
HAMILTON 1Pine - Woodland
LIGHTCONNECT™
CEClass IIP66IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
24 LED
Power (W)
53 W
Lumen (lm)
6126 - 7027 lm
Efficacy (lm/W)
116 - 133 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°, 57°, 110°, 142°x42°, 150°x71°, 122°x79°, 148°x63°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G0, B2-U0-G2, B3-U0-G0, B3-U0-G1
ULR
<1%
ULOR
<1%
CIE flux code nº3
97, 98, 99
Dimming type
DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
14.9 kg
Operating temperature
-20 °C to 50 °C
EPA (m2)
0.164
Cable
One IP68 connector supplied with 0.5 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

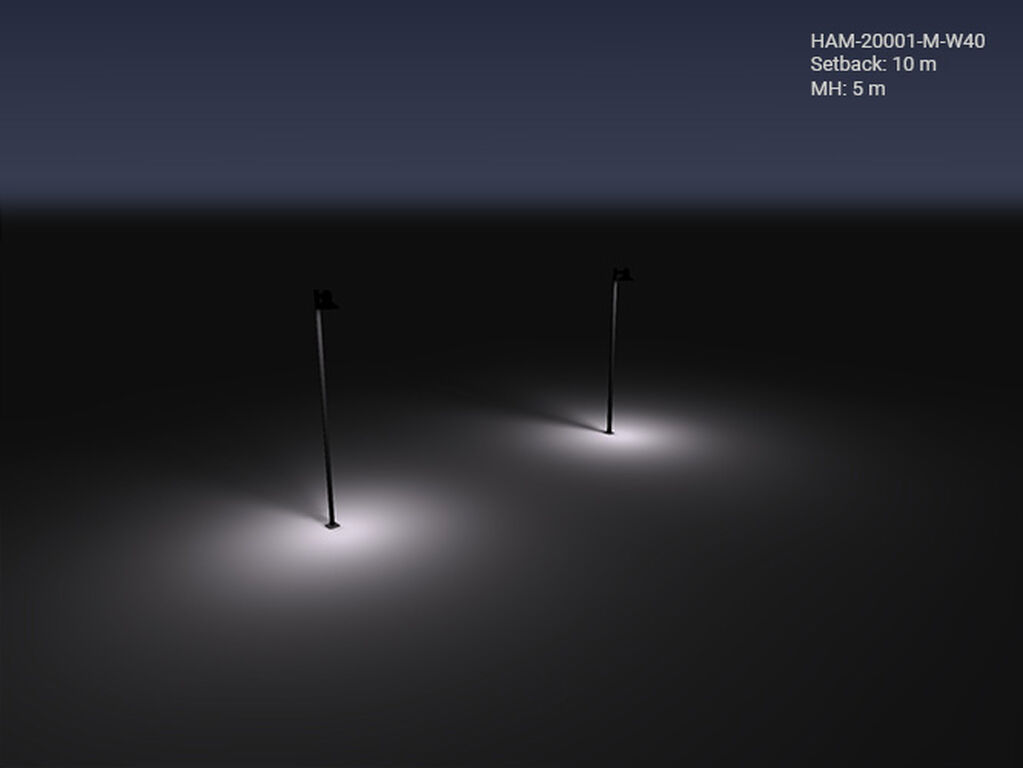

LIGHT EFFECT

Optic
M (30°)
W (57°)
EW (110°)
T2 (142°x42°)
T3 (150°x71°)
T4 (122°x79°)
ME (148°x63°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: HAM-20001-LC-M-8030-DA-01
Lumen (lm): 6559 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: HAM-20001-LC-M-8030-DA-02
Lumen (lm): 6559 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: HAM-20001-LC-M-8030-DA-03
Lumen (lm): 6559 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: HAM-20001-LC-M-8030-DA-05
Lumen (lm): 6559 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: HAM-20001-LC-M-8030-DA-06
Lumen (lm): 6559 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: HAM-20001-LC-M-8030-DA-SU01
Lumen (lm): 6559 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: HAM-20001-LC-M-8030-DA-SU02
Lumen (lm): 6559 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: HAM-20001-LC-M-8030-DA-SU03
Lumen (lm): 6559 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: HAM-20001-LC-M-8030-DA-SU04
Lumen (lm): 6559 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: HAM-20001-LC-M-8030-DA-SW01
Lumen (lm): 6559 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: HAM-20001-LC-M-8030-DA-SW02
Lumen (lm): 6559 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: HAM-20001-LC-M-8030-DA-SW03
Lumen (lm): 6559 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: HAM-20001-LC-M-8040-DA-01
Lumen (lm): 7014 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: HAM-20001-LC-M-8040-DA-02
Lumen (lm): 7014 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: HAM-20001-LC-M-8040-DA-03
Lumen (lm): 7014 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: HAM-20001-LC-M-8040-DA-05
Lumen (lm): 7014 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: HAM-20001-LC-M-8040-DA-06
Lumen (lm): 7014 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: HAM-20001-LC-M-8040-DA-SU01
Lumen (lm): 7014 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: HAM-20001-LC-M-8040-DA-SU02
Lumen (lm): 7014 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: HAM-20001-LC-M-8040-DA-SU03
Lumen (lm): 7014 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: HAM-20001-LC-M-8040-DA-SU04
Lumen (lm): 7014 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: HAM-20001-LC-M-8040-DA-SW01
Lumen (lm): 7014 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: HAM-20001-LC-M-8040-DA-SW02
Lumen (lm): 7014 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: HAM-20001-LC-M-8040-DA-SW03
Lumen (lm): 7014 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: HAM-20001-LC-W-8030-DA-01
Lumen (lm): 6451 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: HAM-20001-LC-W-8030-DA-02
Lumen (lm): 6451 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: HAM-20001-LC-W-8030-DA-03
Lumen (lm): 6451 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: HAM-20001-LC-W-8030-DA-05
Lumen (lm): 6451 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: HAM-20001-LC-W-8030-DA-06
Lumen (lm): 6451 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: HAM-20001-LC-W-8030-DA-SU01
Lumen (lm): 6451 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: HAM-20001-LC-W-8030-DA-SU02
Lumen (lm): 6451 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: HAM-20001-LC-W-8030-DA-SU03
Lumen (lm): 6451 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: HAM-20001-LC-W-8030-DA-SU04
Lumen (lm): 6451 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: HAM-20001-LC-W-8030-DA-SW01
Lumen (lm): 6451 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: HAM-20001-LC-W-8030-DA-SW02
Lumen (lm): 6451 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: HAM-20001-LC-W-8030-DA-SW03
Lumen (lm): 6451 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: HAM-20001-LC-W-8040-DA-01
Lumen (lm): 6898 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: HAM-20001-LC-W-8040-DA-02
Lumen (lm): 6898 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: HAM-20001-LC-W-8040-DA-03
Lumen (lm): 6898 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: HAM-20001-LC-W-8040-DA-05
Lumen (lm): 6898 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: HAM-20001-LC-W-8040-DA-06
Lumen (lm): 6898 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: HAM-20001-LC-W-8040-DA-SU01
Lumen (lm): 6898 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: HAM-20001-LC-W-8040-DA-SU02
Lumen (lm): 6898 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: HAM-20001-LC-W-8040-DA-SU03
Lumen (lm): 6898 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: HAM-20001-LC-W-8040-DA-SU04
Lumen (lm): 6898 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: HAM-20001-LC-W-8040-DA-SW01
Lumen (lm): 6898 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: HAM-20001-LC-W-8040-DA-SW02
Lumen (lm): 6898 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: HAM-20001-LC-W-8040-DA-SW03
Lumen (lm): 6898 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: HAM-20001-LC-EW-8030-DA-01
Lumen (lm): 6571 lm
Optic: EW
Optic value: 110°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: HAM-20001-LC-EW-8030-DA-02
Lumen (lm): 6571 lm
Optic: EW
Optic value: 110°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: HAM-20001-LC-EW-8030-DA-03
Lumen (lm): 6571 lm
Optic: EW
Optic value: 110°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: HAM-20001-LC-EW-8030-DA-05
Lumen (lm): 6571 lm
Optic: EW
Optic value: 110°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: HAM-20001-LC-EW-8030-DA-06
Lumen (lm): 6571 lm
Optic: EW
Optic value: 110°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: HAM-20001-LC-EW-8030-DA-SU01
Lumen (lm): 6571 lm
Optic: EW
Optic value: 110°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: HAM-20001-LC-EW-8030-DA-SU02
Lumen (lm): 6571 lm
Optic: EW
Optic value: 110°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: HAM-20001-LC-EW-8030-DA-SU03
Lumen (lm): 6571 lm
Optic: EW
Optic value: 110°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: HAM-20001-LC-EW-8030-DA-SU04
Lumen (lm): 6571 lm
Optic: EW
Optic value: 110°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: HAM-20001-LC-EW-8030-DA-SW01
Lumen (lm): 6571 lm
Optic: EW
Optic value: 110°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: HAM-20001-LC-EW-8030-DA-SW02
Lumen (lm): 6571 lm
Optic: EW
Optic value: 110°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: HAM-20001-LC-EW-8030-DA-SW03
Lumen (lm): 6571 lm
Optic: EW
Optic value: 110°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: HAM-20001-LC-EW-8040-DA-01
Lumen (lm): 7027 lm
Optic: EW
Optic value: 110°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: HAM-20001-LC-EW-8040-DA-02
Lumen (lm): 7027 lm
Optic: EW
Optic value: 110°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: HAM-20001-LC-EW-8040-DA-03
Lumen (lm): 7027 lm
Optic: EW
Optic value: 110°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: HAM-20001-LC-EW-8040-DA-05
Lumen (lm): 7027 lm
Optic: EW
Optic value: 110°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: HAM-20001-LC-EW-8040-DA-06
Lumen (lm): 7027 lm
Optic: EW
Optic value: 110°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: HAM-20001-LC-EW-8040-DA-SU01
Lumen (lm): 7027 lm
Optic: EW
Optic value: 110°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: HAM-20001-LC-EW-8040-DA-SU02
Lumen (lm): 7027 lm
Optic: EW
Optic value: 110°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: HAM-20001-LC-EW-8040-DA-SU03
Lumen (lm): 7027 lm
Optic: EW
Optic value: 110°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: HAM-20001-LC-EW-8040-DA-SU04
Lumen (lm): 7027 lm
Optic: EW
Optic value: 110°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: HAM-20001-LC-EW-8040-DA-SW01
Lumen (lm): 7027 lm
Optic: EW
Optic value: 110°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: HAM-20001-LC-EW-8040-DA-SW02
Lumen (lm): 7027 lm
Optic: EW
Optic value: 110°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: HAM-20001-LC-EW-8040-DA-SW03
Lumen (lm): 7027 lm
Optic: EW
Optic value: 110°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: HAM-20001-LC-T2-8030-DA-01
Lumen (lm): 6312 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: HAM-20001-LC-T2-8030-DA-02
Lumen (lm): 6312 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: HAM-20001-LC-T2-8030-DA-03
Lumen (lm): 6312 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: HAM-20001-LC-T2-8030-DA-05
Lumen (lm): 6312 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: HAM-20001-LC-T2-8030-DA-06
Lumen (lm): 6312 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: HAM-20001-LC-T2-8030-DA-SU01
Lumen (lm): 6312 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: HAM-20001-LC-T2-8030-DA-SU02
Lumen (lm): 6312 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: HAM-20001-LC-T2-8030-DA-SU03
Lumen (lm): 6312 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: HAM-20001-LC-T2-8030-DA-SU04
Lumen (lm): 6312 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: HAM-20001-LC-T2-8030-DA-SW01
Lumen (lm): 6312 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: HAM-20001-LC-T2-8030-DA-SW02
Lumen (lm): 6312 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: HAM-20001-LC-T2-8030-DA-SW03
Lumen (lm): 6312 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: HAM-20001-LC-T2-8040-DA-01
Lumen (lm): 6749 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: HAM-20001-LC-T2-8040-DA-02
Lumen (lm): 6749 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: HAM-20001-LC-T2-8040-DA-03
Lumen (lm): 6749 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: HAM-20001-LC-T2-8040-DA-05
Lumen (lm): 6749 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: HAM-20001-LC-T2-8040-DA-06
Lumen (lm): 6749 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: HAM-20001-LC-T2-8040-DA-SU01
Lumen (lm): 6749 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: HAM-20001-LC-T2-8040-DA-SU02
Lumen (lm): 6749 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: HAM-20001-LC-T2-8040-DA-SU03
Lumen (lm): 6749 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: HAM-20001-LC-T2-8040-DA-SU04
Lumen (lm): 6749 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: HAM-20001-LC-T2-8040-DA-SW01
Lumen (lm): 6749 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: HAM-20001-LC-T2-8040-DA-SW02
Lumen (lm): 6749 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: HAM-20001-LC-T2-8040-DA-SW03
Lumen (lm): 6749 lm
Optic: T2
Optic value: 142°x42°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: HAM-20001-LC-T3-8030-DA-01
Lumen (lm): 6126 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: HAM-20001-LC-T3-8030-DA-02
Lumen (lm): 6126 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: HAM-20001-LC-T3-8030-DA-03
Lumen (lm): 6126 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: HAM-20001-LC-T3-8030-DA-05
Lumen (lm): 6126 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: HAM-20001-LC-T3-8030-DA-06
Lumen (lm): 6126 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: HAM-20001-LC-T3-8030-DA-SU01
Lumen (lm): 6126 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: HAM-20001-LC-T3-8030-DA-SU02
Lumen (lm): 6126 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: HAM-20001-LC-T3-8030-DA-SU03
Lumen (lm): 6126 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: HAM-20001-LC-T3-8030-DA-SU04
Lumen (lm): 6126 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: HAM-20001-LC-T3-8030-DA-SW01
Lumen (lm): 6126 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: HAM-20001-LC-T3-8030-DA-SW02
Lumen (lm): 6126 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: HAM-20001-LC-T3-8030-DA-SW03
Lumen (lm): 6126 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: HAM-20001-LC-T3-8040-DA-01
Lumen (lm): 6551 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: HAM-20001-LC-T3-8040-DA-02
Lumen (lm): 6551 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: HAM-20001-LC-T3-8040-DA-03
Lumen (lm): 6551 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: HAM-20001-LC-T3-8040-DA-05
Lumen (lm): 6551 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: HAM-20001-LC-T3-8040-DA-06
Lumen (lm): 6551 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: HAM-20001-LC-T3-8040-DA-SU01
Lumen (lm): 6551 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: HAM-20001-LC-T3-8040-DA-SU02
Lumen (lm): 6551 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: HAM-20001-LC-T3-8040-DA-SU03
Lumen (lm): 6551 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: HAM-20001-LC-T3-8040-DA-SU04
Lumen (lm): 6551 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: HAM-20001-LC-T3-8040-DA-SW01
Lumen (lm): 6551 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: HAM-20001-LC-T3-8040-DA-SW02
Lumen (lm): 6551 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: HAM-20001-LC-T3-8040-DA-SW03
Lumen (lm): 6551 lm
Optic: T3
Optic value: 150°x71°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: HAM-20001-LC-T4-8030-DA-01
Lumen (lm): 6148 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: HAM-20001-LC-T4-8030-DA-02
Lumen (lm): 6148 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: HAM-20001-LC-T4-8030-DA-03
Lumen (lm): 6148 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: HAM-20001-LC-T4-8030-DA-05
Lumen (lm): 6148 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: HAM-20001-LC-T4-8030-DA-06
Lumen (lm): 6148 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: HAM-20001-LC-T4-8030-DA-SU01
Lumen (lm): 6148 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: HAM-20001-LC-T4-8030-DA-SU02
Lumen (lm): 6148 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: HAM-20001-LC-T4-8030-DA-SU03
Lumen (lm): 6148 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: HAM-20001-LC-T4-8030-DA-SU04
Lumen (lm): 6148 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: HAM-20001-LC-T4-8030-DA-SW01
Lumen (lm): 6148 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: HAM-20001-LC-T4-8030-DA-SW02
Lumen (lm): 6148 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: HAM-20001-LC-T4-8030-DA-SW03
Lumen (lm): 6148 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: HAM-20001-LC-T4-8040-DA-01
Lumen (lm): 6574 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: HAM-20001-LC-T4-8040-DA-02
Lumen (lm): 6574 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: HAM-20001-LC-T4-8040-DA-03
Lumen (lm): 6574 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: HAM-20001-LC-T4-8040-DA-05
Lumen (lm): 6574 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: HAM-20001-LC-T4-8040-DA-06
Lumen (lm): 6574 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: HAM-20001-LC-T4-8040-DA-SU01
Lumen (lm): 6574 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: HAM-20001-LC-T4-8040-DA-SU02
Lumen (lm): 6574 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: HAM-20001-LC-T4-8040-DA-SU03
Lumen (lm): 6574 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: HAM-20001-LC-T4-8040-DA-SU04
Lumen (lm): 6574 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: HAM-20001-LC-T4-8040-DA-SW01
Lumen (lm): 6574 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: HAM-20001-LC-T4-8040-DA-SW02
Lumen (lm): 6574 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: HAM-20001-LC-T4-8040-DA-SW03
Lumen (lm): 6574 lm
Optic: T4
Optic value: 122°x79°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: HAM-20001-LC-ME-8030-DA-01
Lumen (lm): 6166 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: HAM-20001-LC-ME-8030-DA-02
Lumen (lm): 6166 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: HAM-20001-LC-ME-8030-DA-03
Lumen (lm): 6166 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: HAM-20001-LC-ME-8030-DA-05
Lumen (lm): 6166 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: HAM-20001-LC-ME-8030-DA-06
Lumen (lm): 6166 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: HAM-20001-LC-ME-8030-DA-SU01
Lumen (lm): 6166 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: HAM-20001-LC-ME-8030-DA-SU02
Lumen (lm): 6166 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: HAM-20001-LC-ME-8030-DA-SU03
Lumen (lm): 6166 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: HAM-20001-LC-ME-8030-DA-SU04
Lumen (lm): 6166 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: HAM-20001-LC-ME-8030-DA-SW01
Lumen (lm): 6166 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: HAM-20001-LC-ME-8030-DA-SW02
Lumen (lm): 6166 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: HAM-20001-LC-ME-8030-DA-SW03
Lumen (lm): 6166 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: HAM-20001-LC-ME-8040-DA-01
Lumen (lm): 6593 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: HAM-20001-LC-ME-8040-DA-02
Lumen (lm): 6593 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: HAM-20001-LC-ME-8040-DA-03
Lumen (lm): 6593 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: HAM-20001-LC-ME-8040-DA-05
Lumen (lm): 6593 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: HAM-20001-LC-ME-8040-DA-06
Lumen (lm): 6593 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: HAM-20001-LC-ME-8040-DA-SU01
Lumen (lm): 6593 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: HAM-20001-LC-ME-8040-DA-SU02
Lumen (lm): 6593 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: HAM-20001-LC-ME-8040-DA-SU03
Lumen (lm): 6593 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: HAM-20001-LC-ME-8040-DA-SU04
Lumen (lm): 6593 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: HAM-20001-LC-ME-8040-DA-SW01
Lumen (lm): 6593 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: HAM-20001-LC-ME-8040-DA-SW02
Lumen (lm): 6593 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: HAM-20001-LC-ME-8040-DA-SW03
Lumen (lm): 6593 lm
Optic: ME
Optic value: 148°x63°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (HAMILTON Street & area lighting luminaires)
