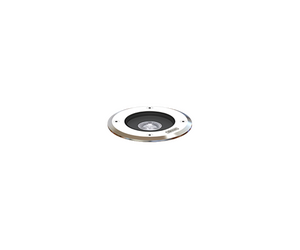

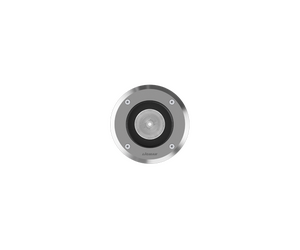

HARRIER 1HA-60037-SHARRIER

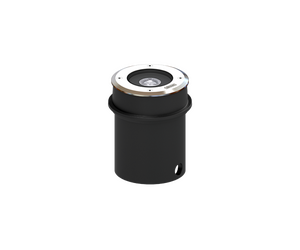

Integral control gear - With recessing box - Round - Stainless steel frame
TECHNICAL SPECIFICATIONS
Material
Stainless Steel
Light source
MR16-GU10
Power (W)
7.5 W
Lumen (lm)
260 - 402 lm
Efficacy (lm/W)
35 - 54 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, VW, E
Optic value
13°, 22°, 58°, 12°x50°
CCT / CRI
3000K CRI95, 4000K CRI95
Bug
B0-U3-G0
ULR
100%
ULOR
100%
Dimming type
On/Off
Product colours
Stainless Steel
Weight
0.7 kg
Operating temperature
-20 °C to 50 °C
Cable
One cable gland supplied with 1 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic

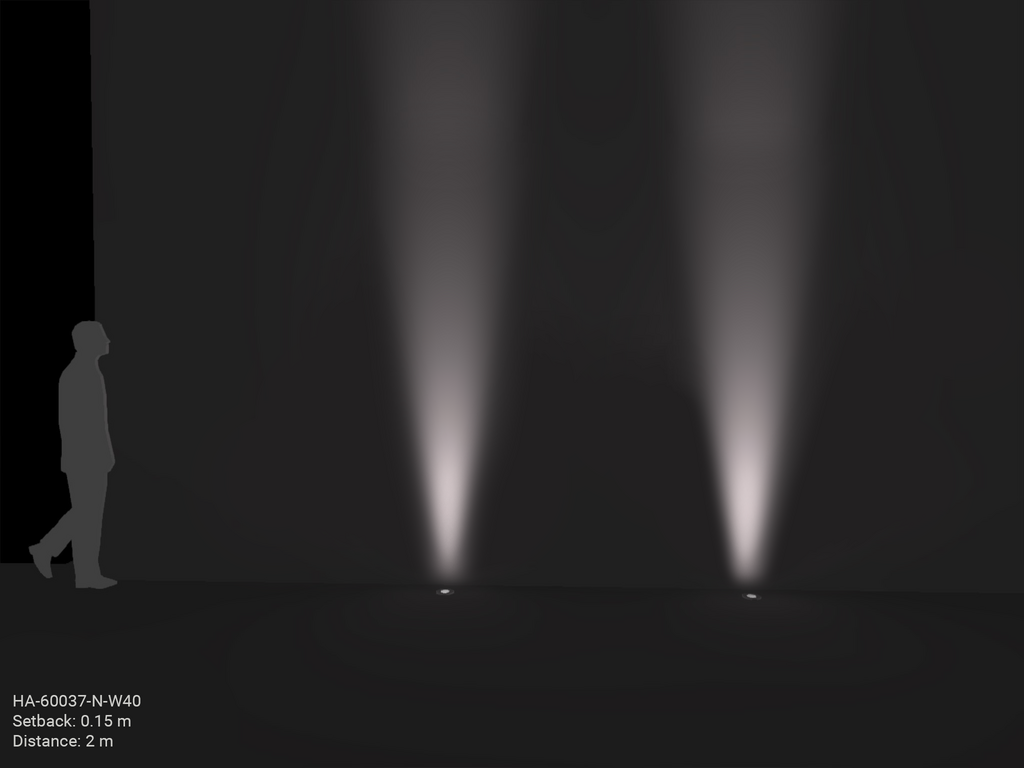

N (13°)
M (22°)
VW (58°)
E (12°x50°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: HA-60037-S-N-9530-ND-00
Lumen (lm): 349 lm
Optic: N
Optic value: 13°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60037-S-N-9540-ND-00
Lumen (lm): 402 lm
Optic: N
Optic value: 13°
CCT / CRI: 4000K CRI95
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60037-S-M-9530-ND-00
Lumen (lm): 305 lm
Optic: M
Optic value: 22°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60037-S-M-9540-ND-00
Lumen (lm): 351 lm
Optic: M
Optic value: 22°
CCT / CRI: 4000K CRI95
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60037-S-VW-9530-ND-00
Lumen (lm): 260 lm
Optic: VW
Optic value: 58°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60037-S-VW-9540-ND-00
Lumen (lm): 299 lm
Optic: VW
Optic value: 58°
CCT / CRI: 4000K CRI95
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60037-S-E-9530-ND-00
Lumen (lm): 294 lm
Optic: E
Optic value: 12°x50°
CCT / CRI: 3000K CRI95
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60037-S-E-9540-ND-00
Lumen (lm): 338 lm
Optic: E
Optic value: 12°x50°
CCT / CRI: 4000K CRI95
Dimming type: On/Off
Product colour: Stainless Steel
