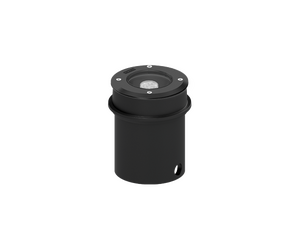

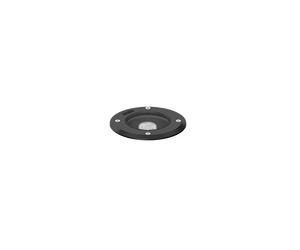

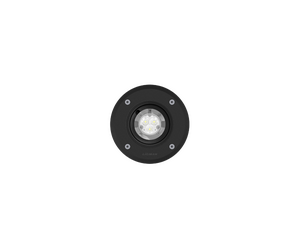

HARRIER 1HA-60385-AHARRIER
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - WoodlandWith remote box IP-rated / remote driver / recessing box - Round - Aluminium frame
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
3 LED
Power (W)
8 W
Lumen (lm)
531 - 733 lm
Efficacy (lm/W)
66 - 92 lm/W
Driver option
Remote driver (included)
Driver
Constant current (CC)
Input voltage
700 mA, 9 VDC
Optic
N, M, W
Optic value
24°, 28°, 45°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U4-G0
ULR
100%
ULOR
100%
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
0.5 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code

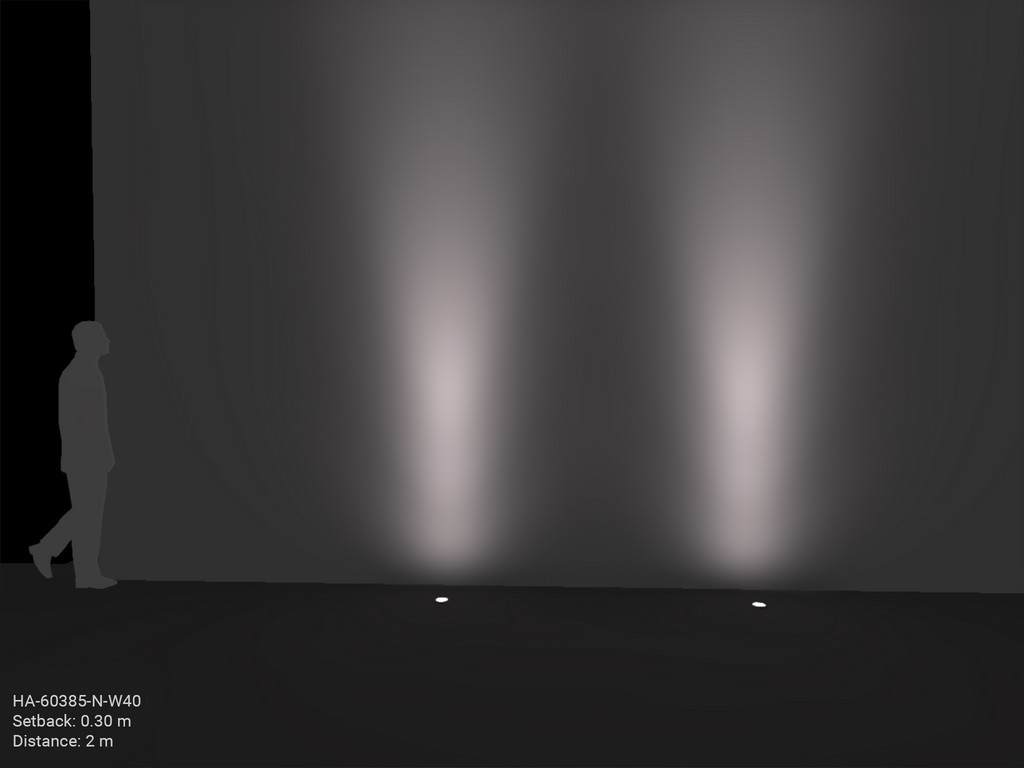

LIGHT EFFECT
Optic
N (24°)
M (28°)
W (45°)
