LIGMAN HARRIER 2 HA-60395-S.

HARRIER 2HA-60395-SHARRIER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

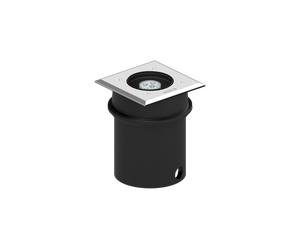

HARRIER 2
HARRIER 2
HARRIER 2
HARRIER 2
HARRIER 2
HARRIER 2
With remote box IP-rated / remote driver / recessing box - Square - Stainless steel frame
CERETILAPClass IIP67IK10

Technical information

Material
Stainless Steel
Light source
3 LED
Power (W)
8 W
Lumen (lm)
531 - 733 lm
Efficacy (lm/W)
66 - 92 lm/W
Driver option
Remote driver (included)
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W
Optic value
24°, 28°, 45°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U4-G0
ULR
100%
ULOR
100%
Dimming type
On/Off, 1-10V, DALI
Product colours
Stainless Steel
Weight
0.7 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

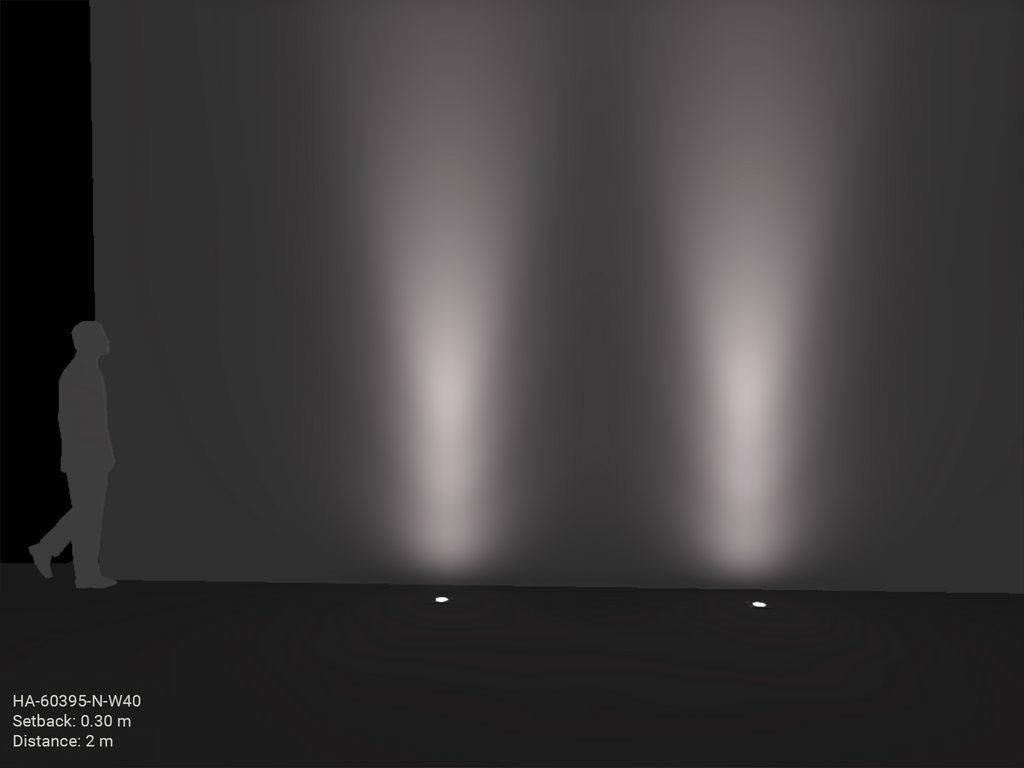

Light effect

Optic
N (24°)
M (28°)
W (45°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: HA-60395-S-N-8030-ND-00
Lumen (lm): 599 lm
Optic: N
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60395-S-N-8040-ND-00
Lumen (lm): 733 lm
Optic: N
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60395-S-N-8030-DI-00
Lumen (lm): 599 lm
Optic: N
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: HA-60395-S-N-8040-DI-00
Lumen (lm): 733 lm
Optic: N
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: HA-60395-S-N-8030-DA-00
Lumen (lm): 599 lm
Optic: N
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: HA-60395-S-N-8040-DA-00
Lumen (lm): 733 lm
Optic: N
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: HA-60395-S-M-8030-ND-00
Lumen (lm): 555 lm
Optic: M
Optic value: 28°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60395-S-M-8040-ND-00
Lumen (lm): 656 lm
Optic: M
Optic value: 28°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60395-S-M-8030-DI-00
Lumen (lm): 555 lm
Optic: M
Optic value: 28°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: HA-60395-S-M-8040-DI-00
Lumen (lm): 656 lm
Optic: M
Optic value: 28°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: HA-60395-S-M-8030-DA-00
Lumen (lm): 555 lm
Optic: M
Optic value: 28°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: HA-60395-S-M-8040-DA-00
Lumen (lm): 656 lm
Optic: M
Optic value: 28°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: HA-60395-S-W-8030-ND-00
Lumen (lm): 531 lm
Optic: W
Optic value: 45°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60395-S-W-8040-ND-00
Lumen (lm): 642 lm
Optic: W
Optic value: 45°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60395-S-W-8030-DI-00
Lumen (lm): 531 lm
Optic: W
Optic value: 45°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: HA-60395-S-W-8040-DI-00
Lumen (lm): 642 lm
Optic: W
Optic value: 45°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: HA-60395-S-W-8030-DA-00
Lumen (lm): 531 lm
Optic: W
Optic value: 45°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: HA-60395-S-W-8040-DA-00
Lumen (lm): 642 lm
Optic: W
Optic value: 45°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
