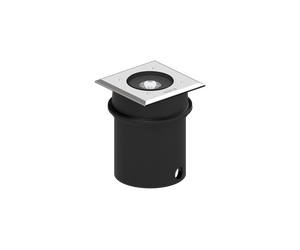

HARRIER 2
With remote box IP-rated / remote driver / recessing box - Square - Stainless steel frame
CERETILAPSNIClass IIP67IK10

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
1 LED
Power (W)
8 W
Lumen (lm)
548 - 555 lm
Efficacy (lm/W)
69 lm/W
Driver option
Remote driver (included)
Driver
Constant current (CC)
Input voltage
500 mA, 12 VDC
Optic
VN
Optic value
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U3-G0, B0-U4-G0
ULR
100%
ULOR
100%
Dimming type
On/Off, 1-10V, DALI
Product colours
Stainless Steel
Weight
0.7 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 109,000
Lifetime L80B10 (hours)
> 109,000
Lifetime L80B50 (hours)
> 109,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
VN (8°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: HA-60396-S-VN-8030-ND-00
Lumen (lm): 548 lm
Optic: VN
Optic value:
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60396-S-VN-8040-ND-00
Lumen (lm): 555 lm
Optic: VN
Optic value:
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: HA-60396-S-VN-8030-DI-00
Lumen (lm): 548 lm
Optic: VN
Optic value:
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: HA-60396-S-VN-8040-DI-00
Lumen (lm): 555 lm
Optic: VN
Optic value:
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: HA-60396-S-VN-8030-DA-00
Lumen (lm): 548 lm
Optic: VN
Optic value:
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: HA-60396-S-VN-8040-DA-00
Lumen (lm): 555 lm
Optic: VN
Optic value:
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
