Dome diffuser - TW
Class IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
160 LED
Power (W)
20 W
Lumen (lm)
1713 lm
Efficacy (lm/W)
86 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
116°x116°
CCT / CRI
TW (2700K - 6500K)
Bug
B1-U3-G1
ULR
9.25
ULOR
9.25
CIE flux code nº3
94
Dimming type
DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.9 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Opal UV-stabilised polycarbonate diffuser
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
G (116°x116°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: IT-31973-G-TW2765-DA-01
Lumen (lm): 1713 lm
Optic: G
Optic value: 116°x116°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI

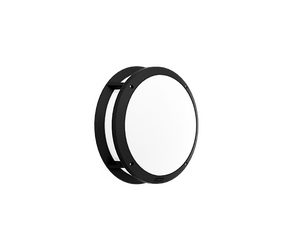

Product colour: Black
Variant code: IT-31973-G-TW2765-DA-02
Lumen (lm): 1713 lm
Optic: G
Optic value: 116°x116°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI
Product colour: Dark Grey
Variant code: IT-31973-G-TW2765-DA-03
Lumen (lm): 1713 lm
Optic: G
Optic value: 116°x116°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI
Product colour: White
Variant code: IT-31973-G-TW2765-DA-05
Lumen (lm): 1713 lm
Optic: G
Optic value: 116°x116°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI

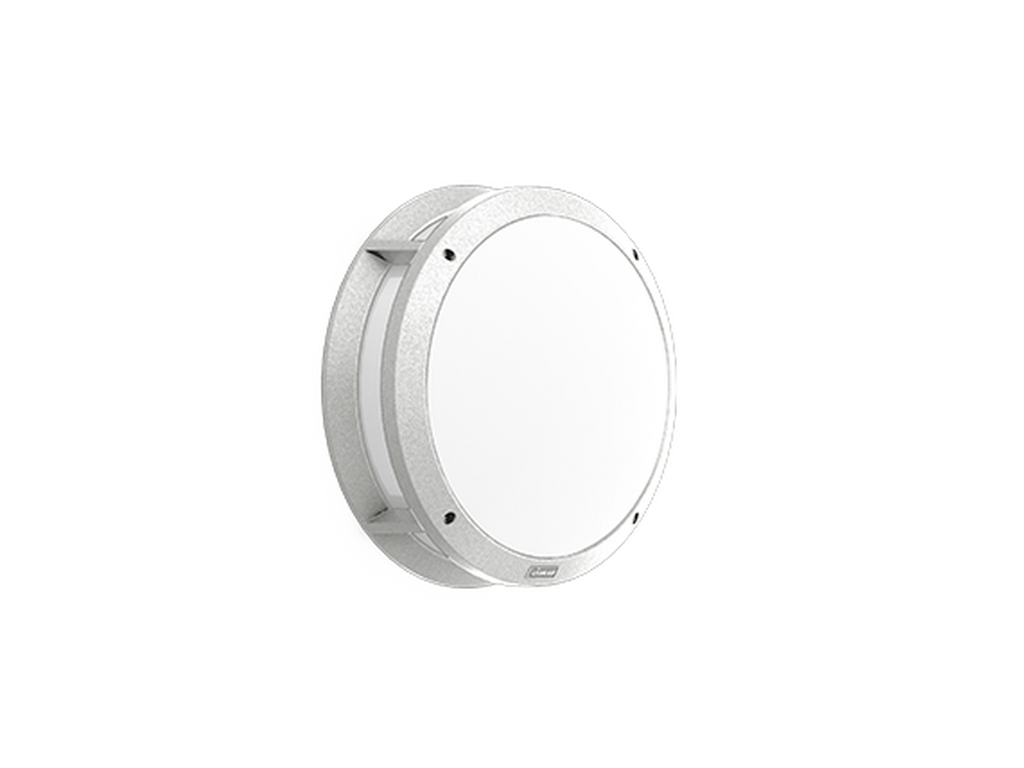

Product colour: Matt Silver
Variant code: IT-31973-G-TW2765-DA-06
Lumen (lm): 1713 lm
Optic: G
Optic value: 116°x116°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI

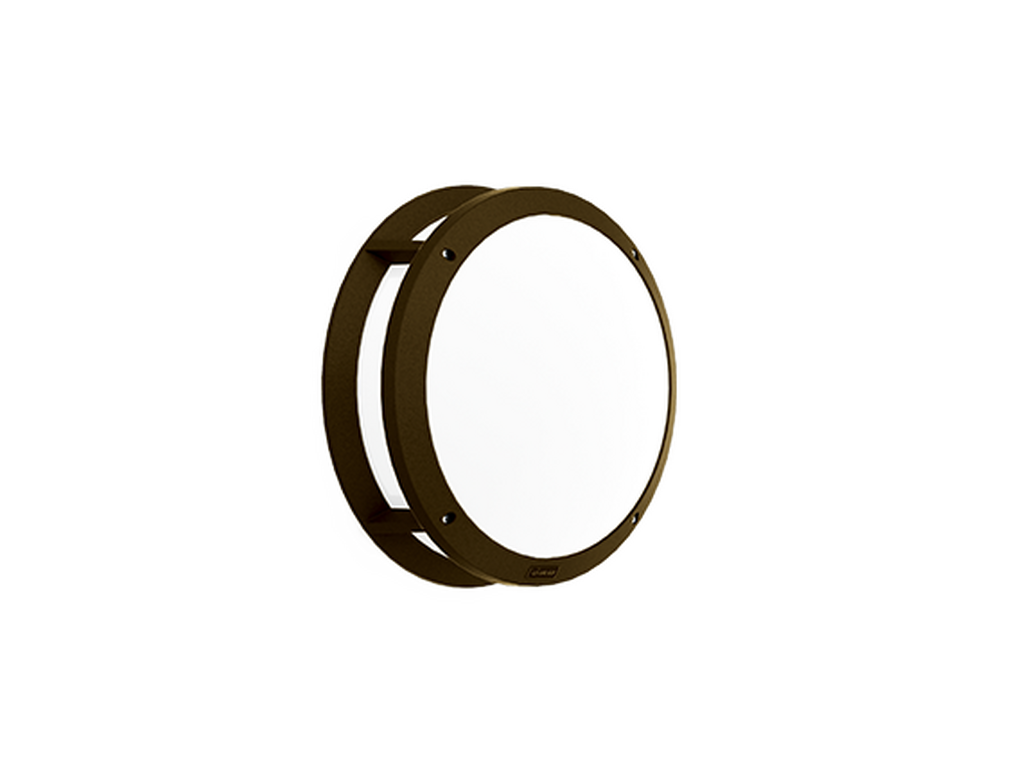

Product colour: Bronze
Variant code: IT-31973-G-TW2765-DA-SU01
Lumen (lm): 1713 lm
Optic: G
Optic value: 116°x116°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI

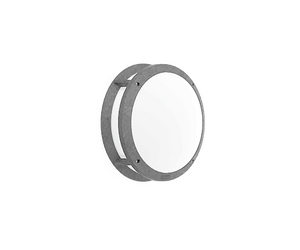

Product colour: Concrete - Urban
Variant code: IT-31973-G-TW2765-DA-SU02
Lumen (lm): 1713 lm
Optic: G
Optic value: 116°x116°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI

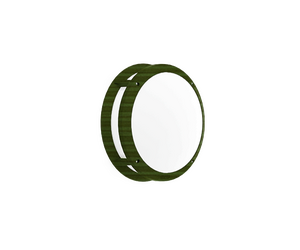

Product colour: Softscape - Urban
Variant code: IT-31973-G-TW2765-DA-SU03
Lumen (lm): 1713 lm
Optic: G
Optic value: 116°x116°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI
Product colour: Stone - Urban
Variant code: IT-31973-G-TW2765-DA-SU04
Lumen (lm): 1713 lm
Optic: G
Optic value: 116°x116°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI

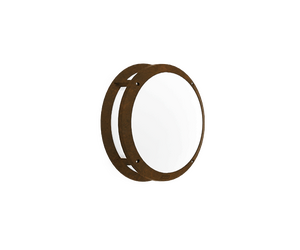

Product colour: Corten - Urban
Variant code: IT-31973-G-TW2765-DA-SW01
Lumen (lm): 1713 lm
Optic: G
Optic value: 116°x116°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: IT-31973-G-TW2765-DA-SW02
Lumen (lm): 1713 lm
Optic: G
Optic value: 116°x116°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI

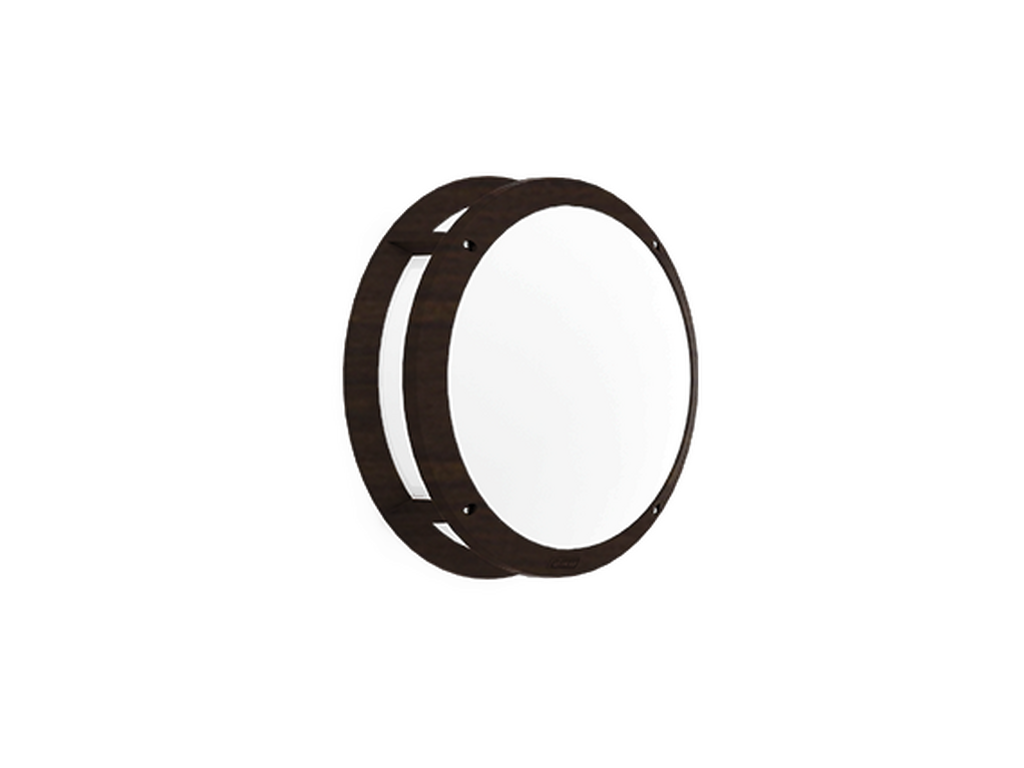

Product colour: Walnut - Woodland
Variant code: IT-31973-G-TW2765-DA-SW03
Lumen (lm): 1713 lm
Optic: G
Optic value: 116°x116°
CCT / CRI: TW (2700K - 6500K)
Dimming type: DALI

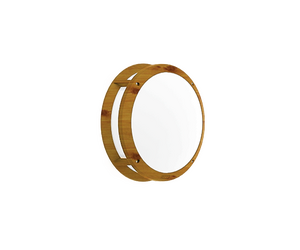

Product colour: Pine - Woodland
