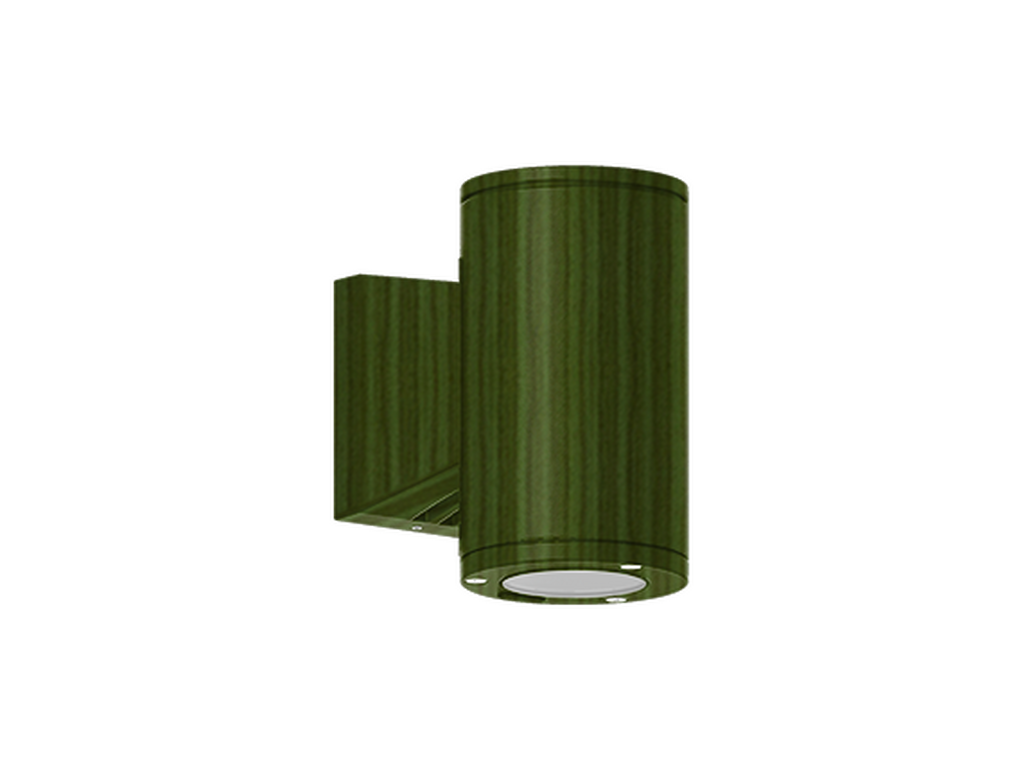

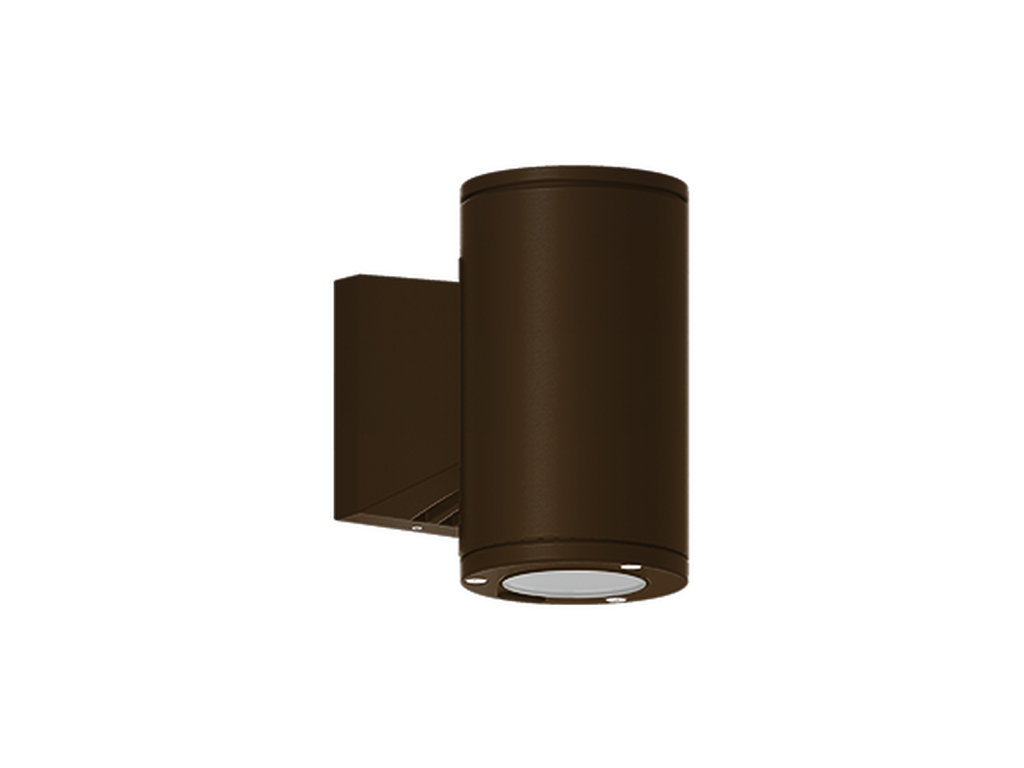

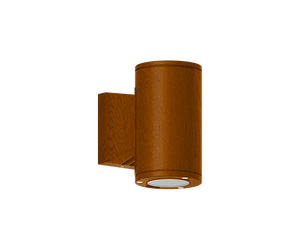

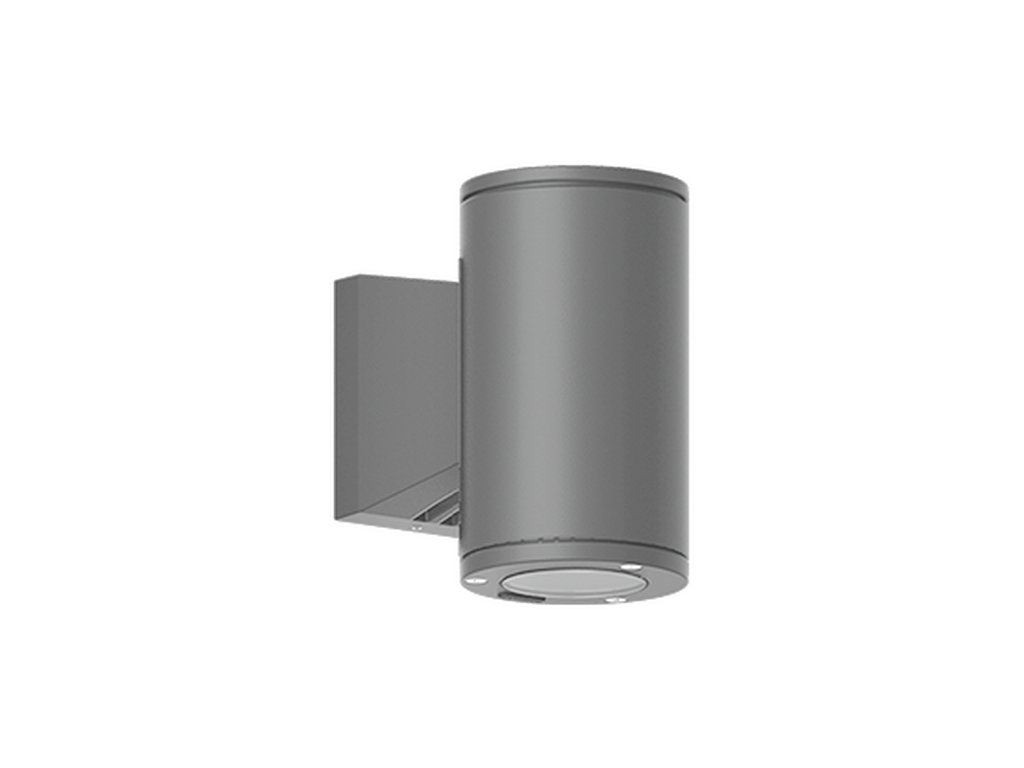

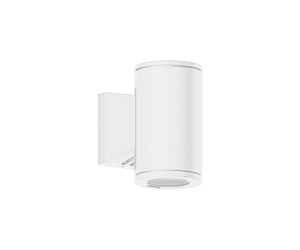

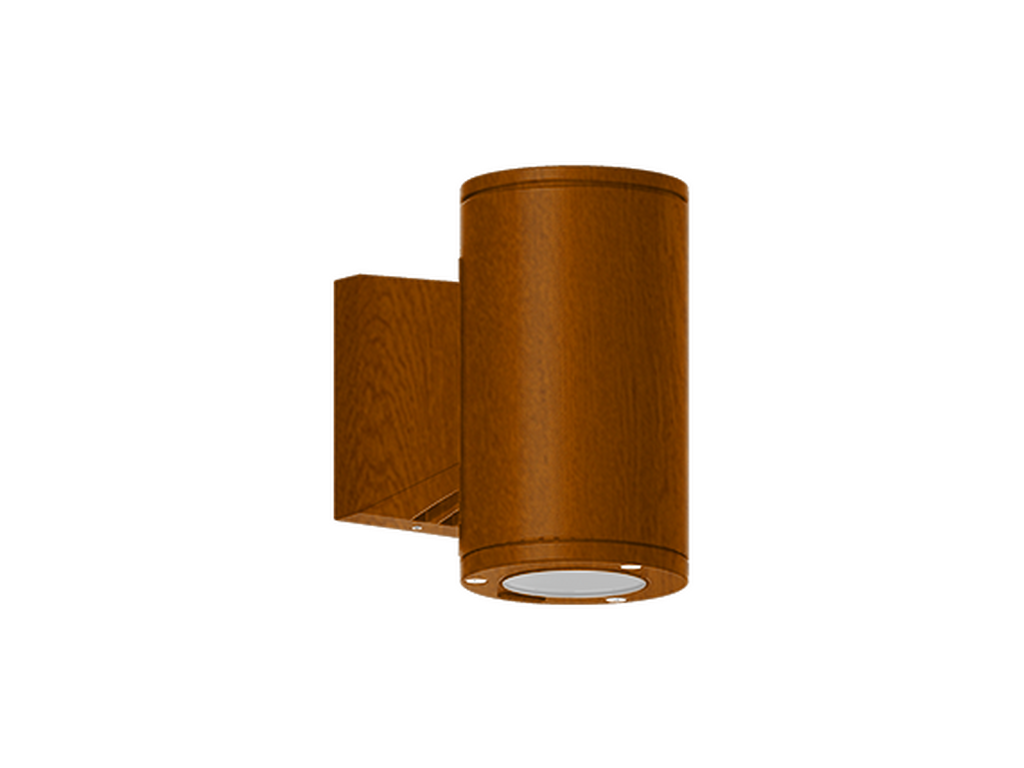

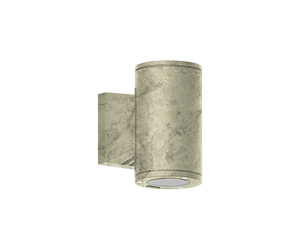

JET 1JE-30436JET

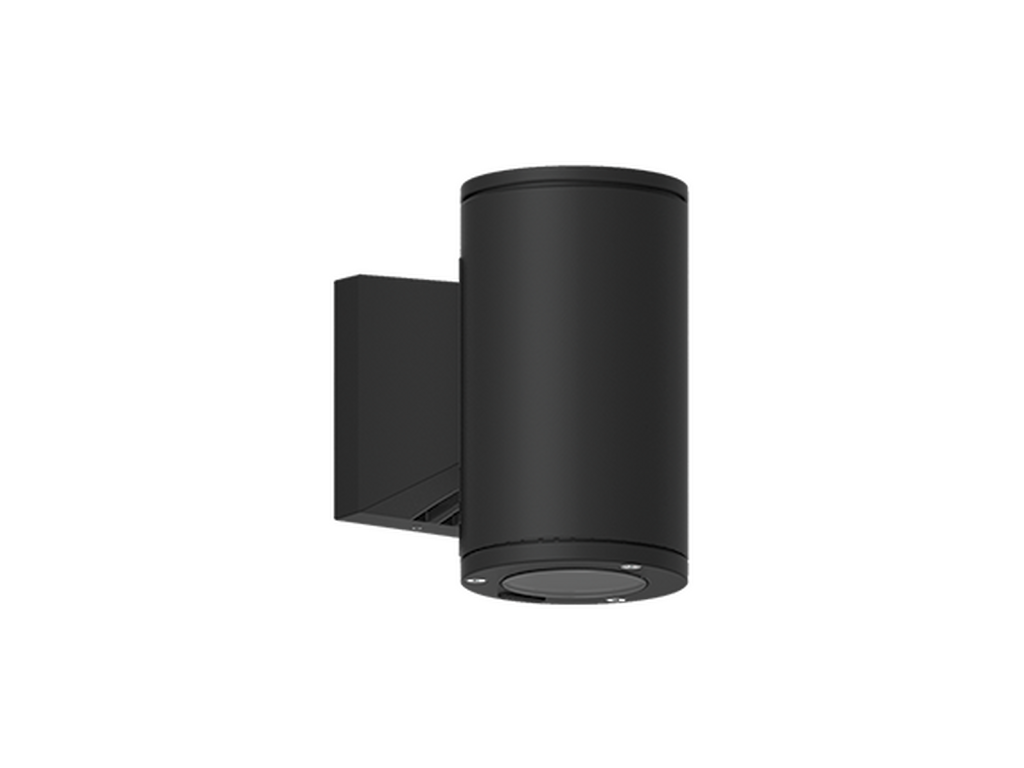

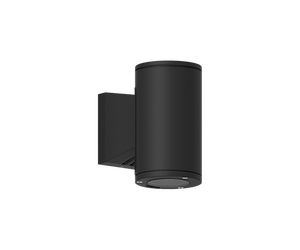

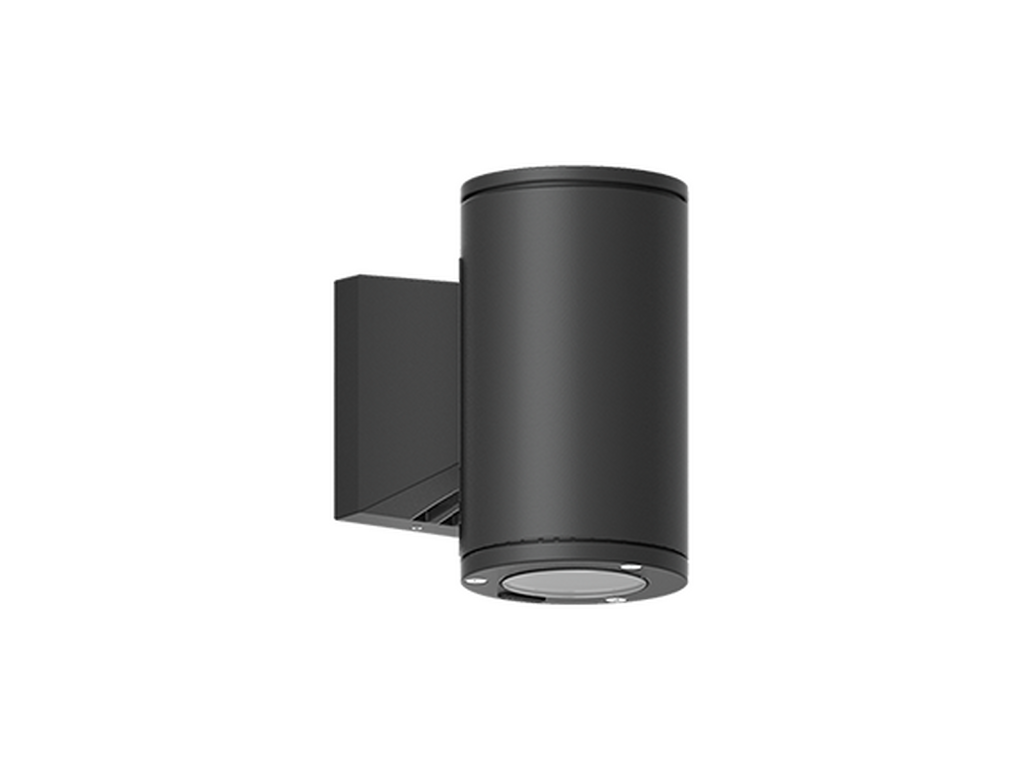

Black

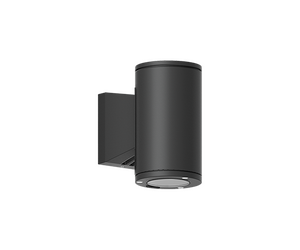

Dark Grey

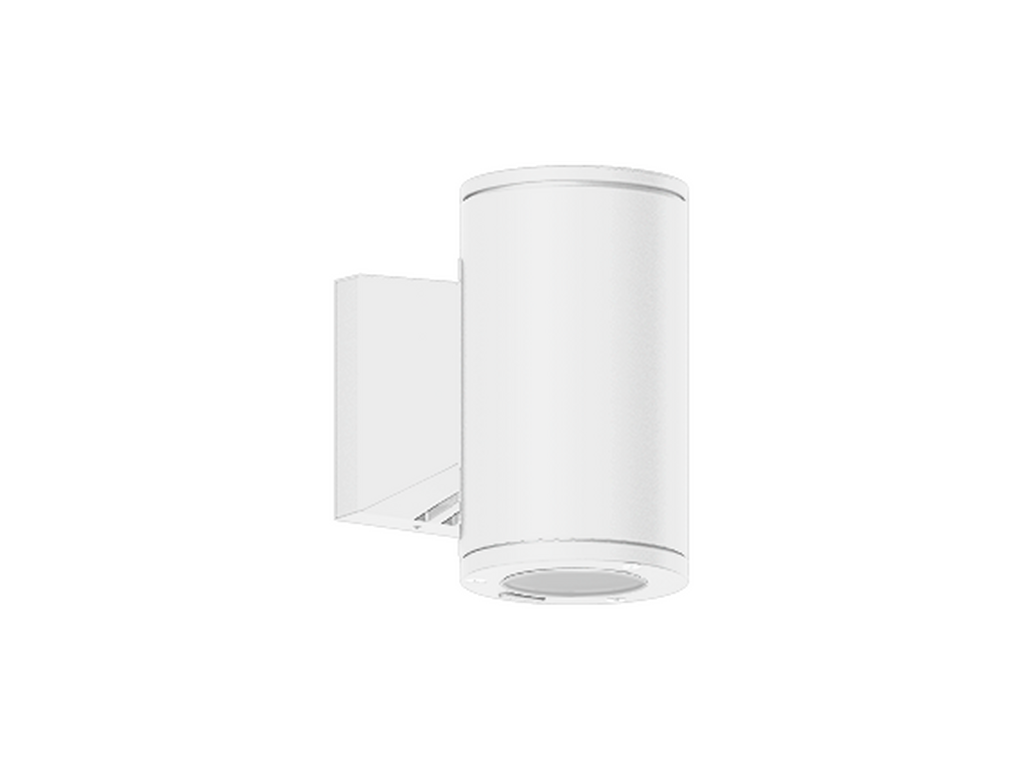

White
Matt Silver
Bronze

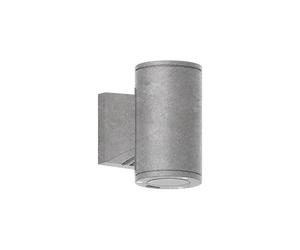

Concrete - Urban
Softscape - Urban

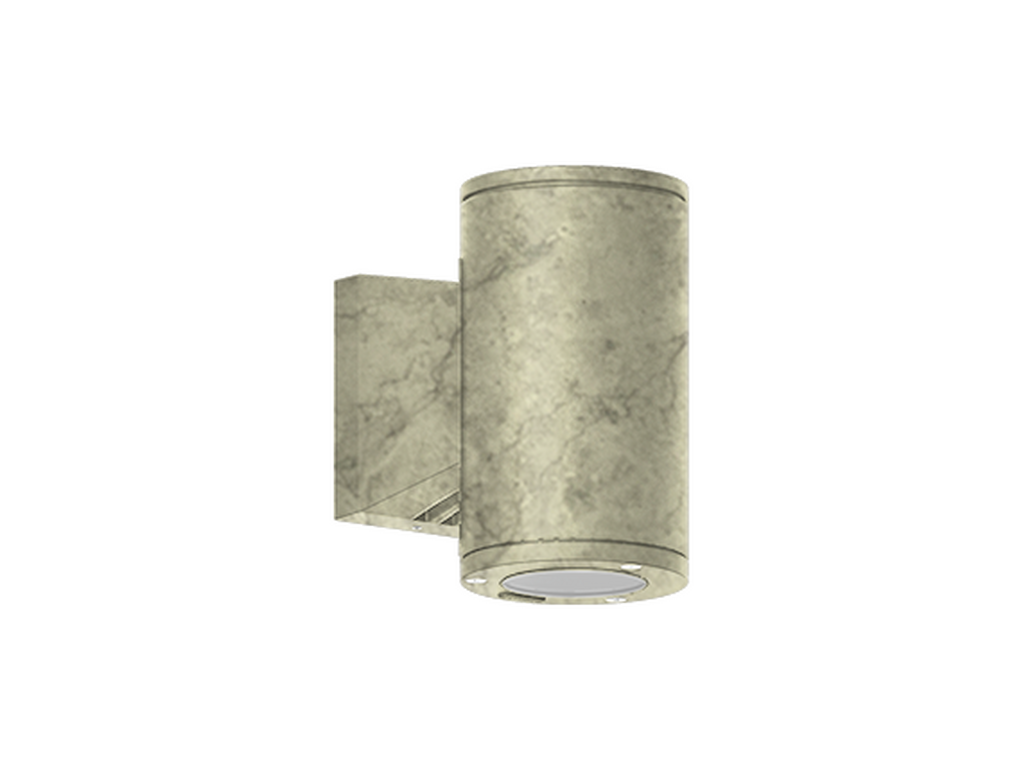

Stone - Urban

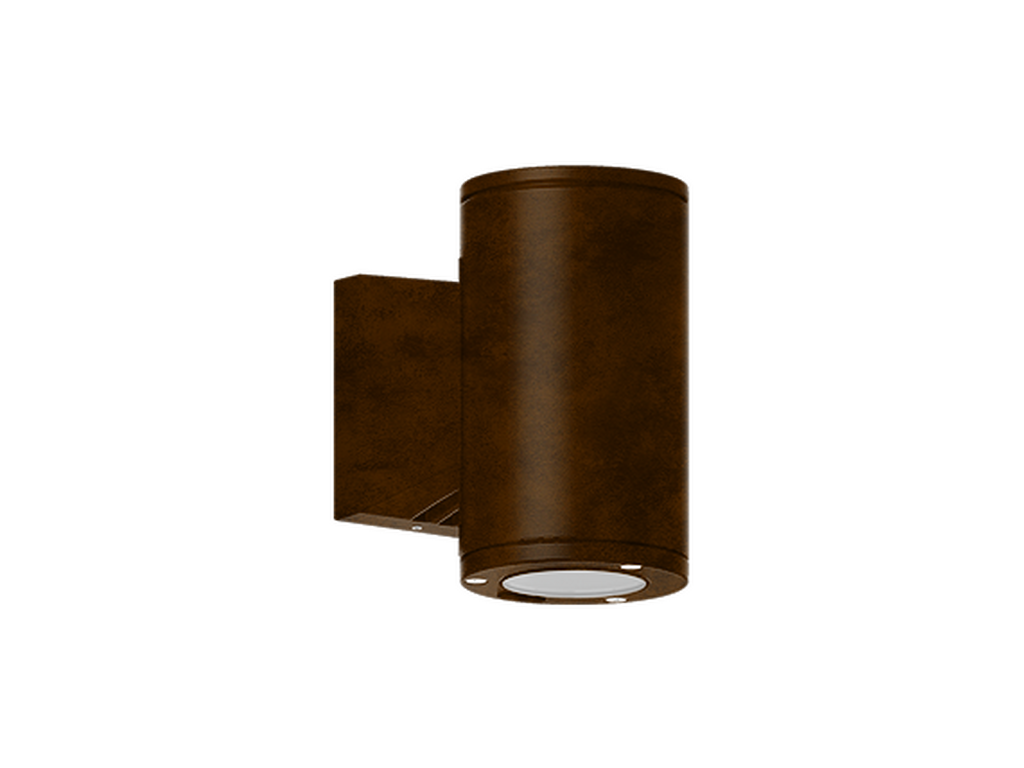

Corten - Urban

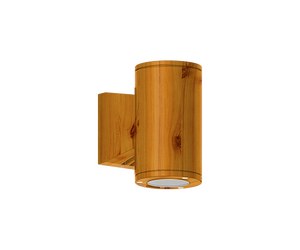

Oak - Woodland

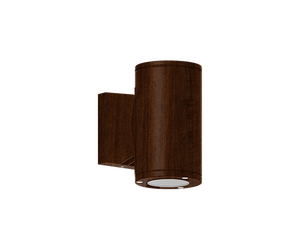

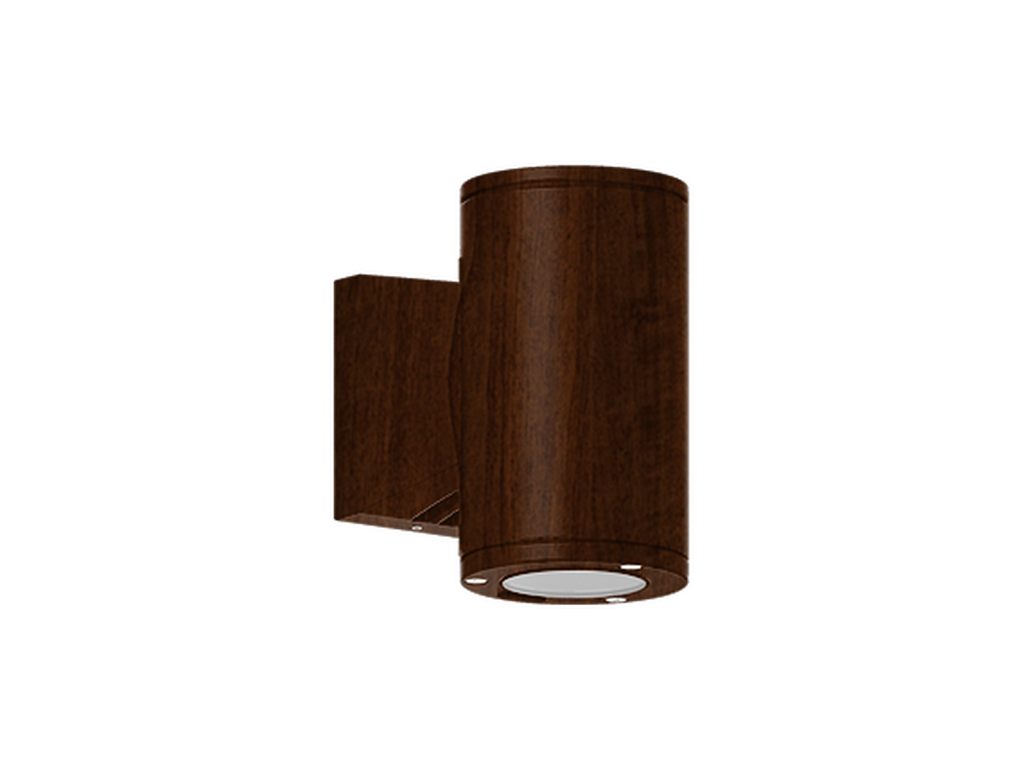

Walnut - Woodland

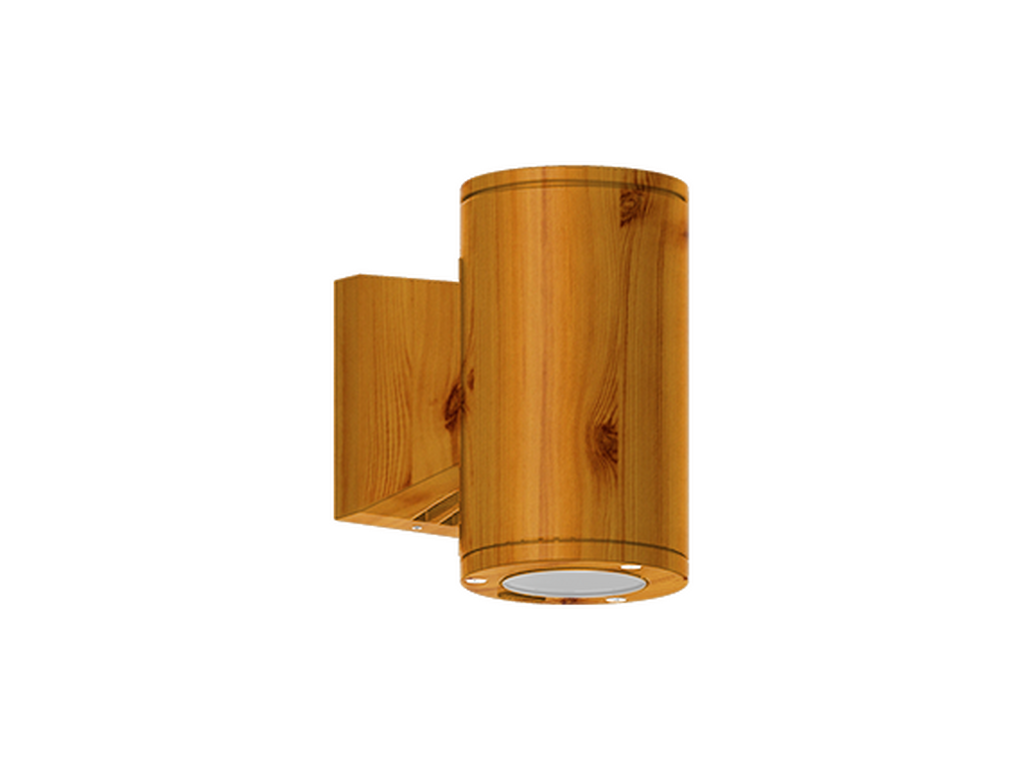

Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - WoodlandØ102 - 180 mm - Down (Optic) & Up (Optic 2nd) - Round
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
1 & 1 MR16-GU10
Power (W)
15 W
Lumen (lm)
508 - 790 lm
Efficacy (lm/W)
34 - 53 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, VW, E
Optic value
13°/60°, 23°/60°, 60°/60°, 12°x51°/60°
Optic (2nd)
N, M, VW, E
Optic (2nd) Value
13°, 23°, 60°, 12°x51°
CCT / CRI
3000K CRI95, 4000K CRI90
Bug
B0-U3-G0, B1-U3-G0
ULR
43%, 46%, 47%, 49%, 50%, 51%, 53%, 54%, 57%
ULOR
43%, 46%, 47%, 49%, 50%, 51%, 53%, 54%, 57%
CIE flux code nº3
100, 99
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.1 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code

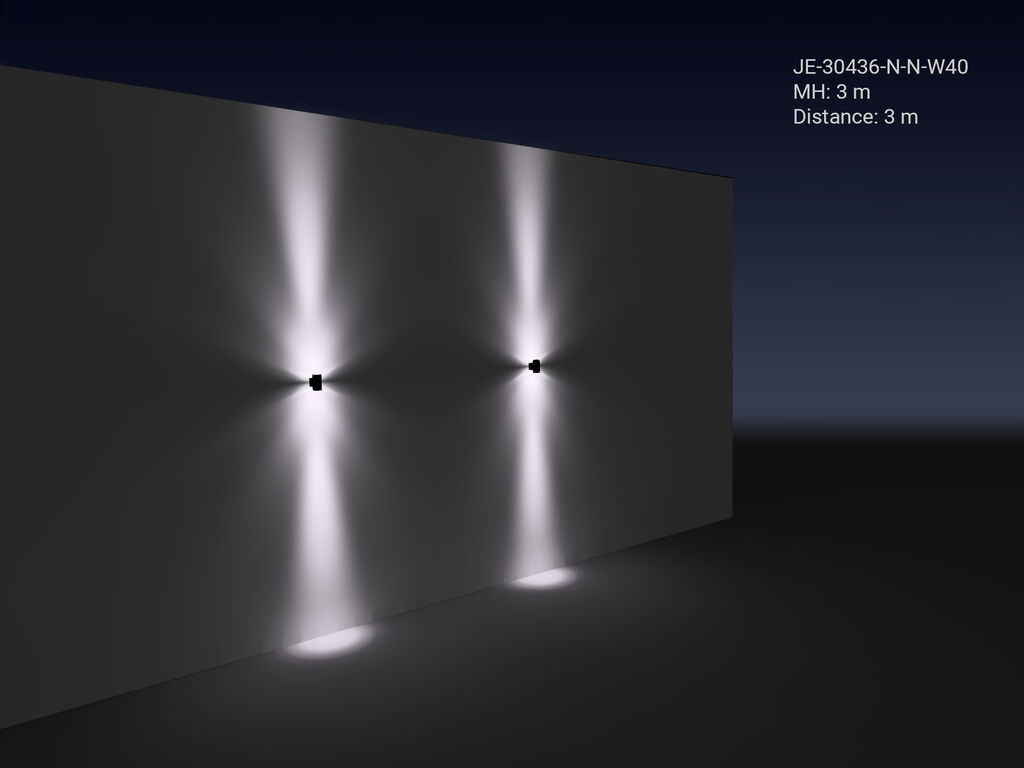

LIGHT EFFECT
Optic
N (13°/60°) / VW (60°)
M (23°/60°) / VW (60°)
VW (60°/60°) / VW (60°)
E (12°x51°/60°) / VW (60°)
