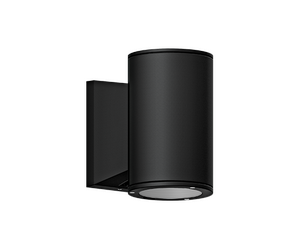

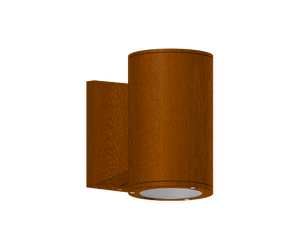

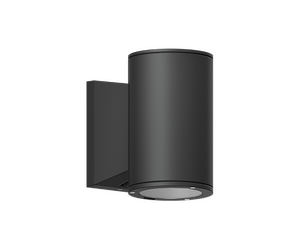

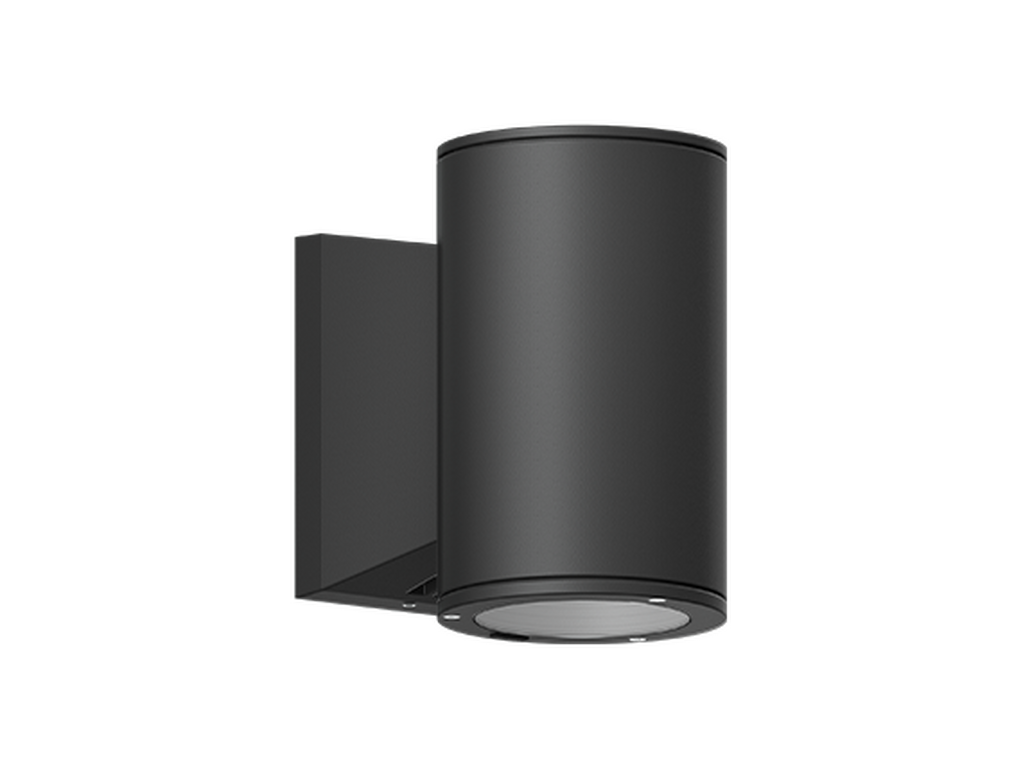

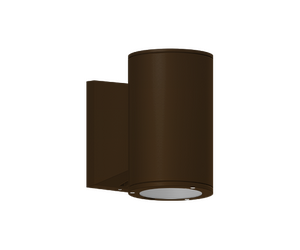

JET 37JE-30381 (Version 2)
JET

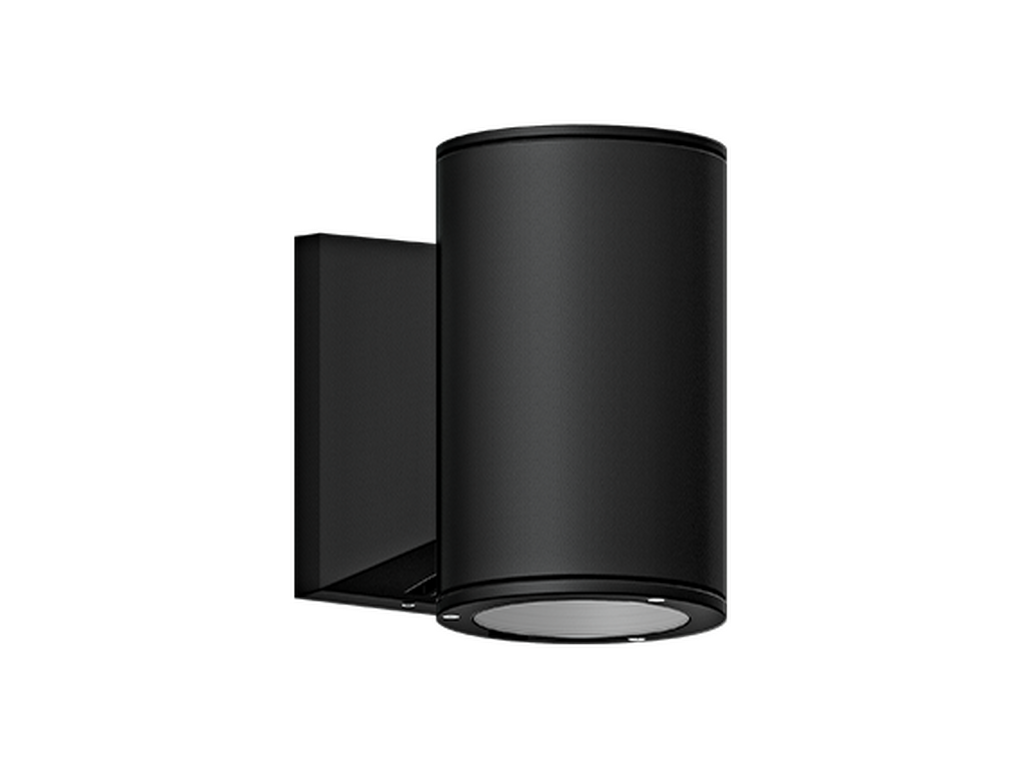

Black
Dark Grey

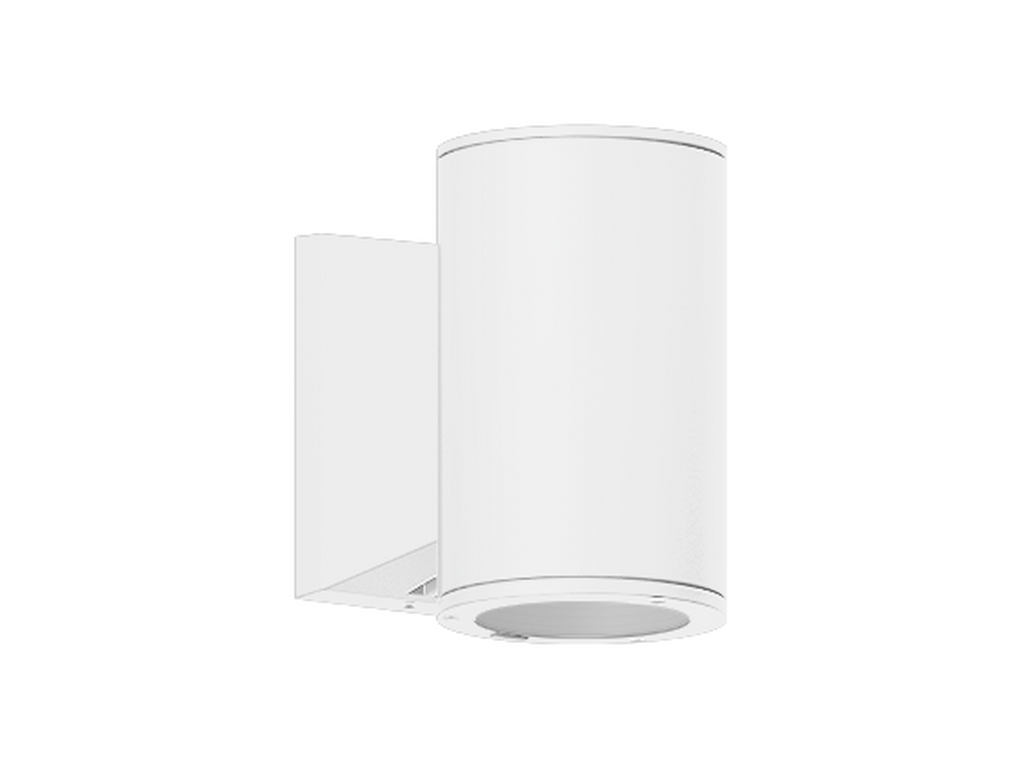

White

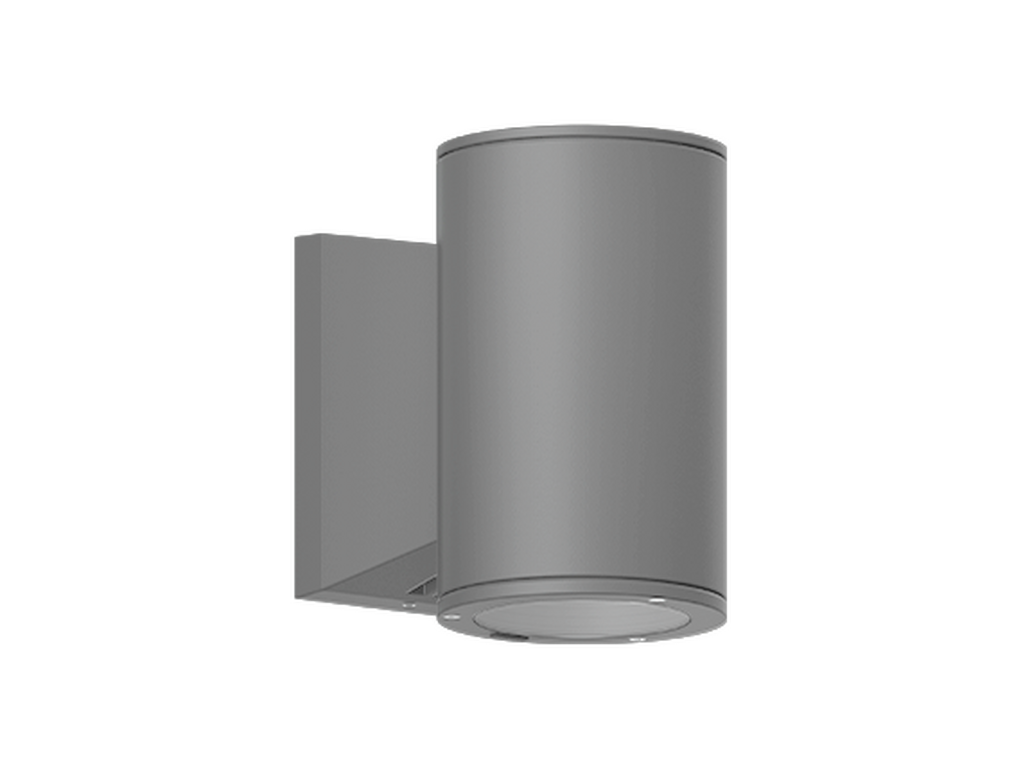

Matt Silver
Bronze
Concrete - Urban
Softscape - Urban

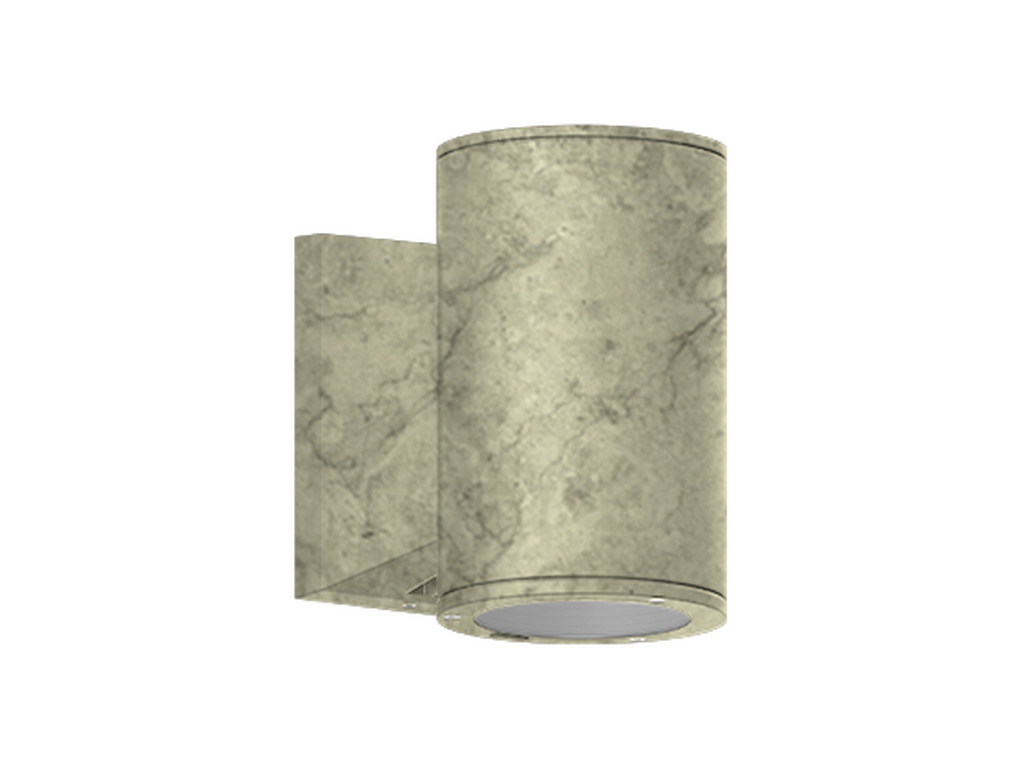

Stone - Urban

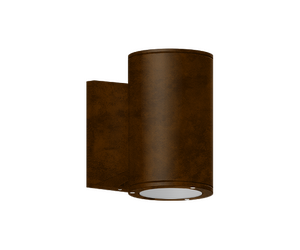

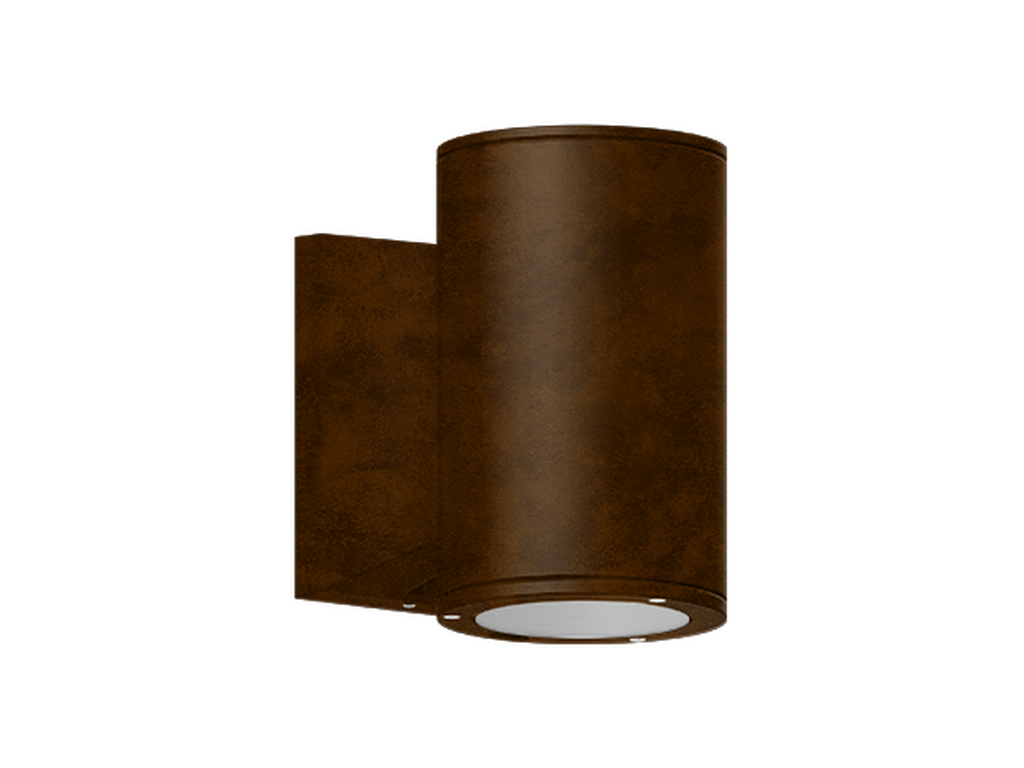

Corten - Urban
Oak - Woodland

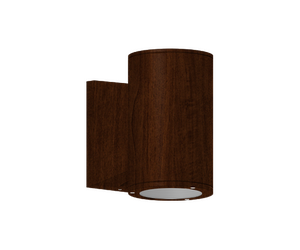

Walnut - Woodland

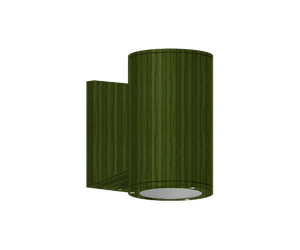

Pine - Woodland
Black

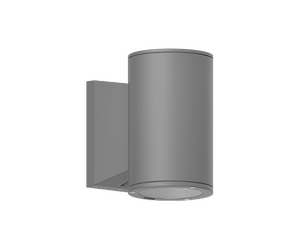

Dark Grey

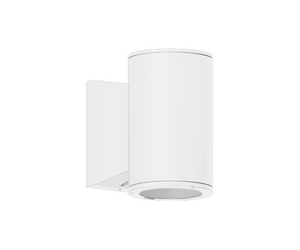

White
Matt Silver
Bronze

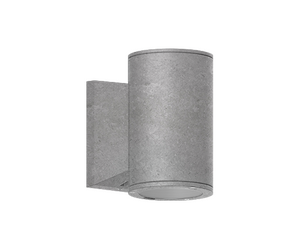

Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban

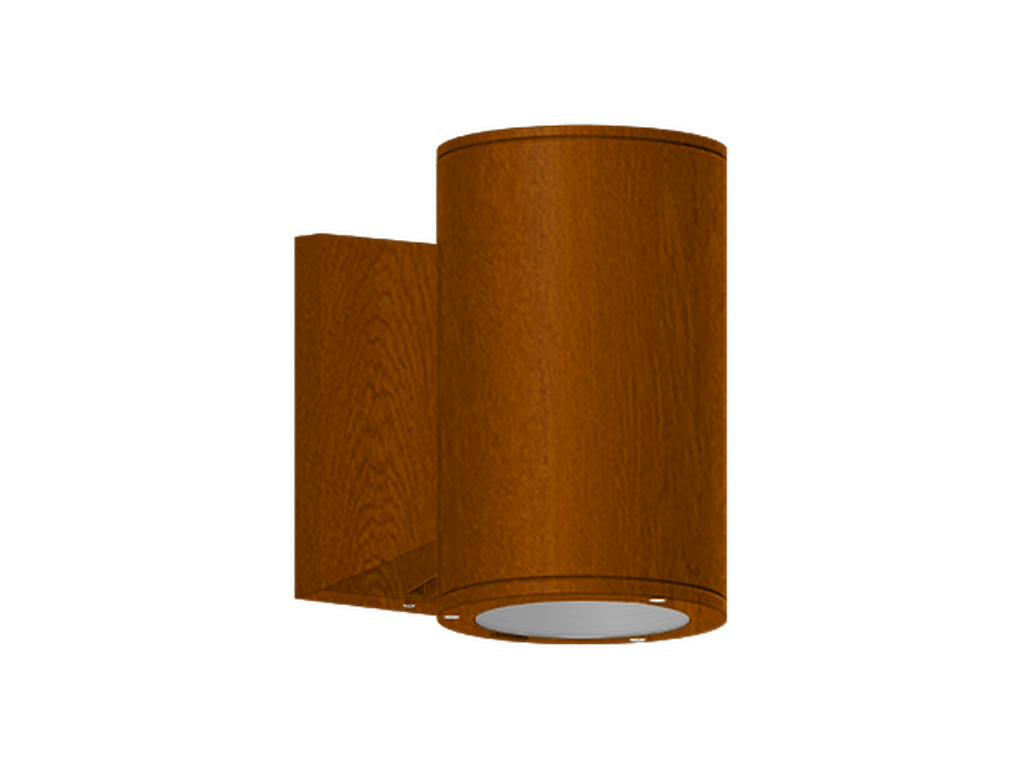

Oak - Woodland

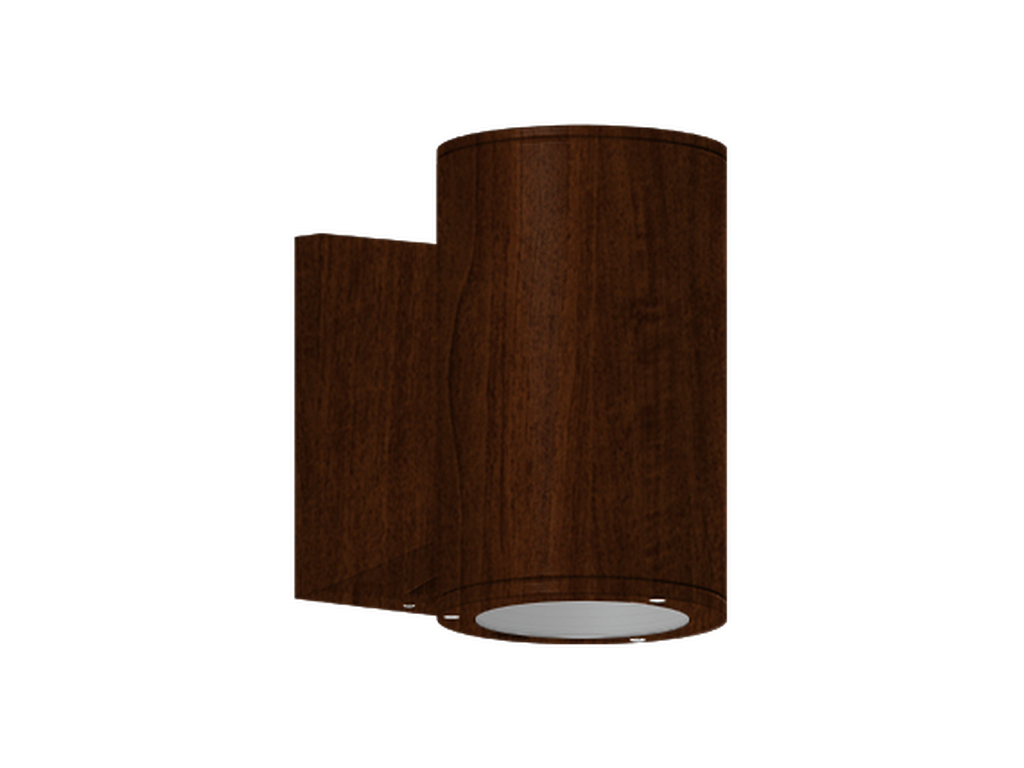

Walnut - Woodland

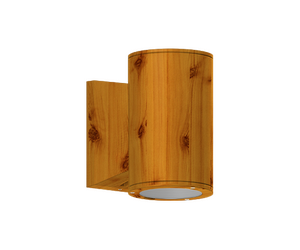

Pine - WoodlandØ160 - 262 mm - Down (Optic) & Up (Optic 2nd) - Round
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
1 & 1 COB
Power (W)
70 W
Lumen (lm)
6950 - 8188 lm
Efficacy (lm/W)
99 - 117 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW
Optic value
16°, 26°, 42°, 59°
Optic (2nd)
N, M, W, VW
Optic (2nd) Value
16°, 26°, 42°, 59°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B3-U5-G0
ULR
47%, 48%, 49%, 50%, 51%, 52%
ULOR
47%, 48%, 49%, 50%, 51%, 52%
CIE flux code nº3
100, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
5.0 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,700
Lifetime L80B10 (hours)
> 63,500
Lifetime L80B50 (hours)
> 63,500
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code

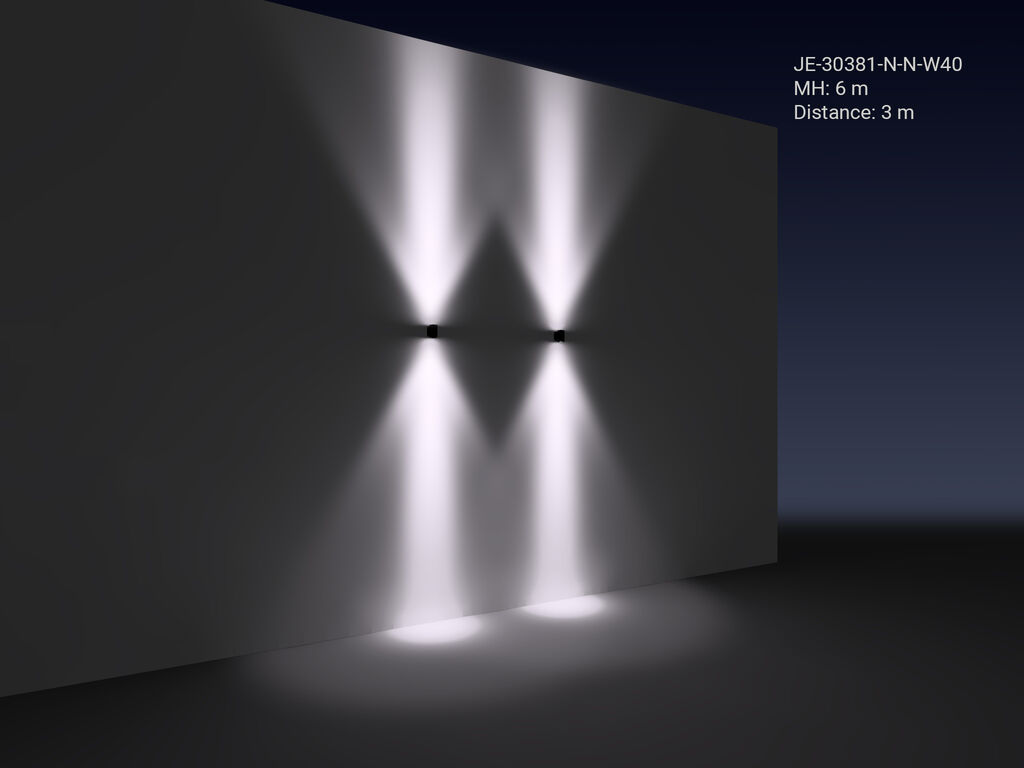

LIGHT EFFECT
Optic
N (16°) / N (16°)
N (16°) / M (26°)
N (16°) / W (42°)
N (16°) / VW (59°)
M (26°) / N (16°)
M (26°) / M (26°)
M (26°) / W (42°)
M (26°) / VW (59°)
W (42°) / N (16°)
W (42°) / M (26°)
W (42°) / W (42°)
W (42°) / VW (59°)
VW (59°) / N (16°)
VW (59°) / M (26°)
VW (59°) / W (42°)
VW (59°) / VW (59°)
