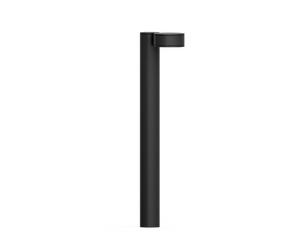

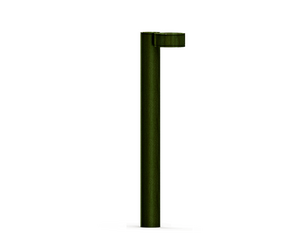

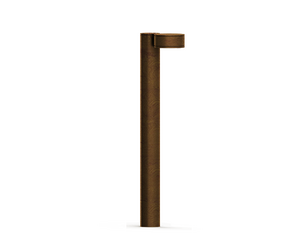

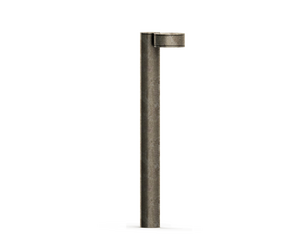

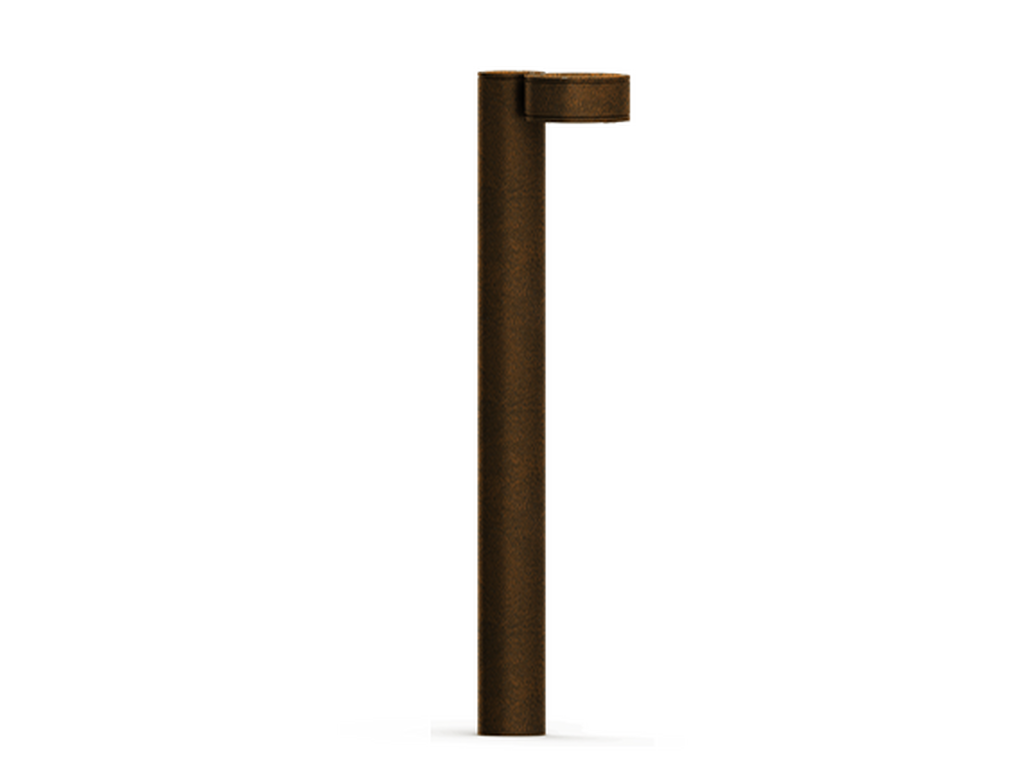

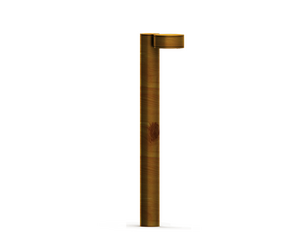

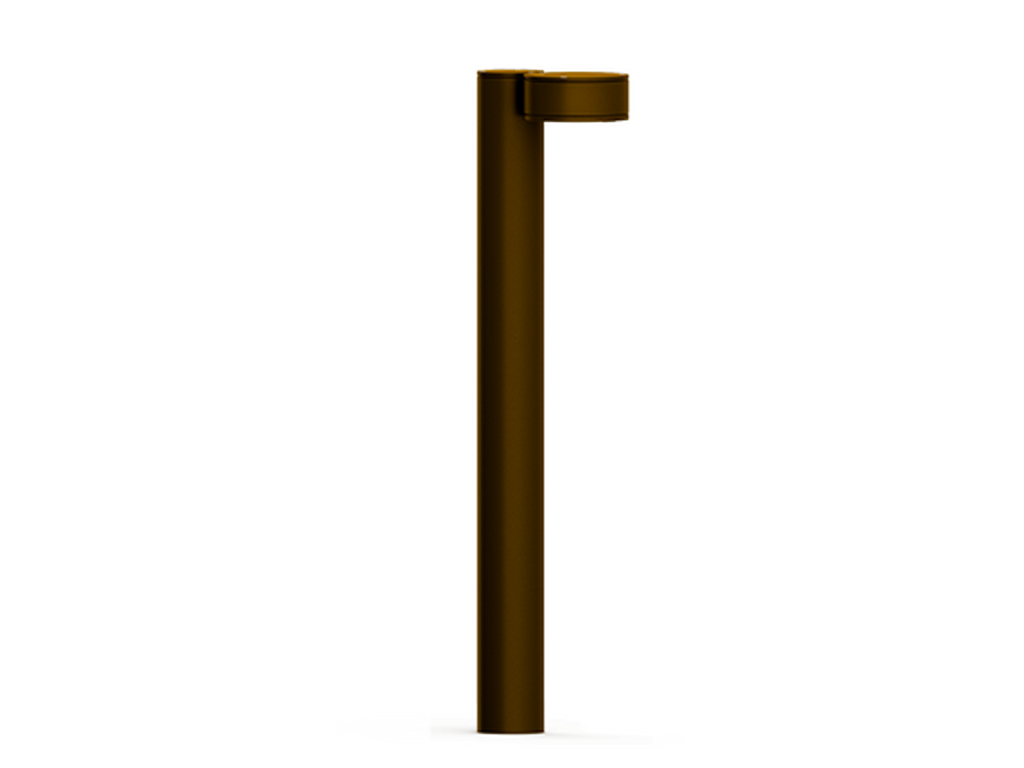

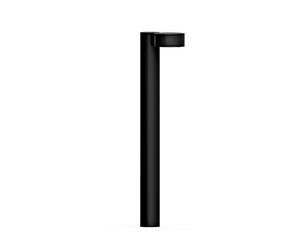

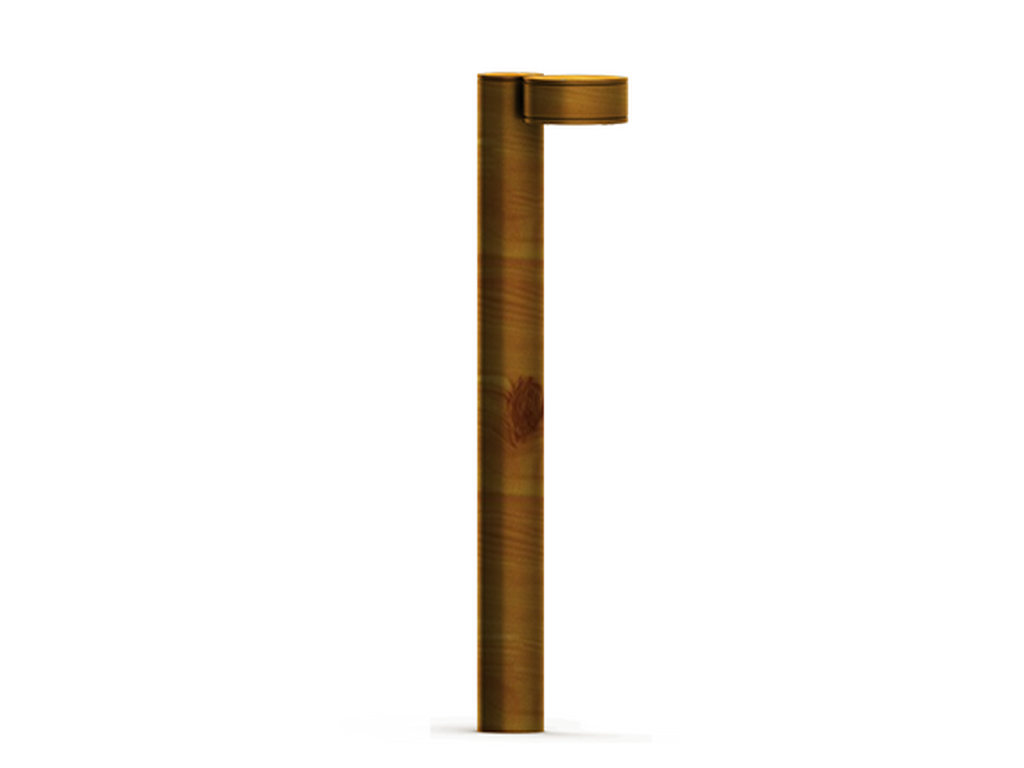

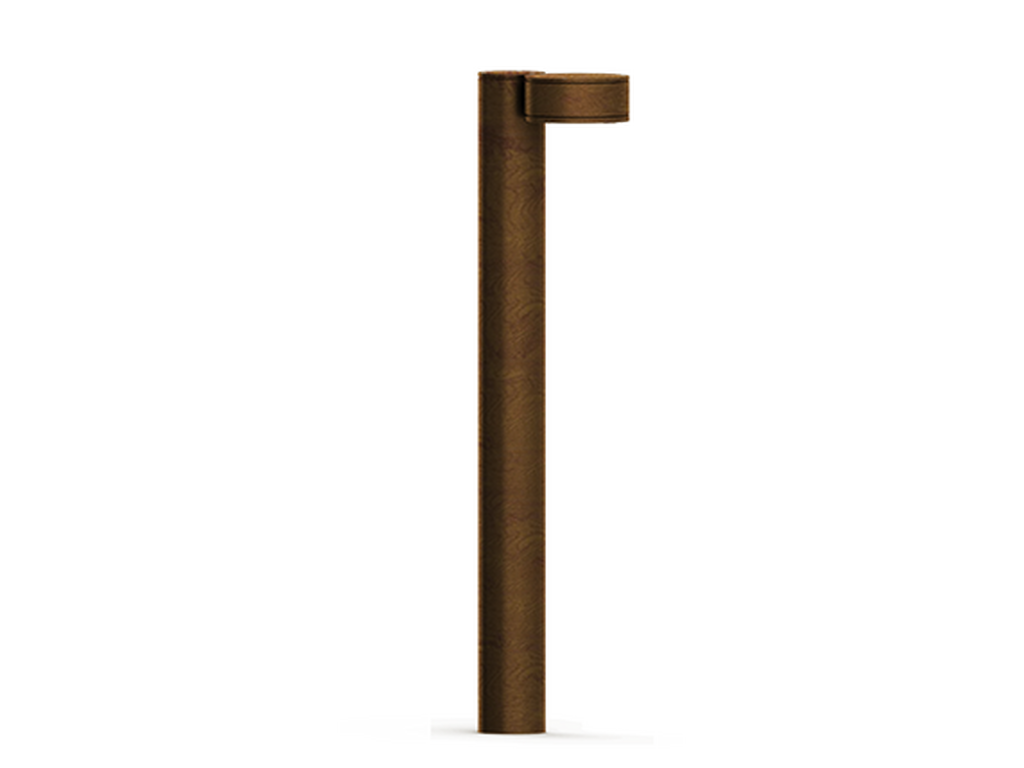

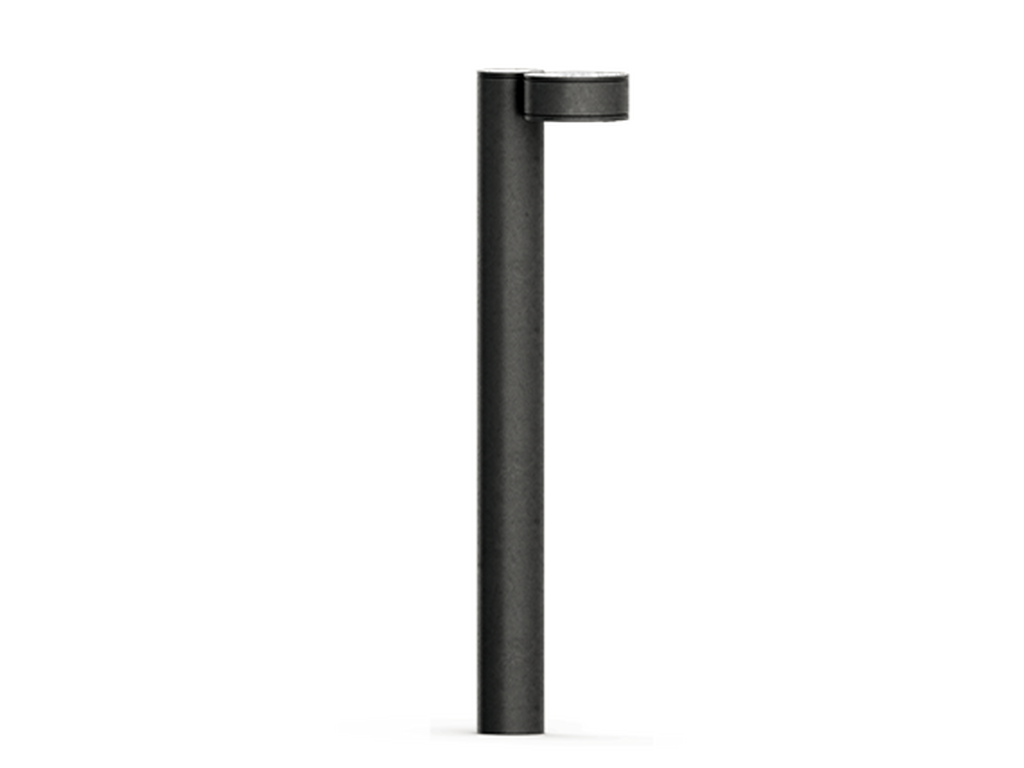

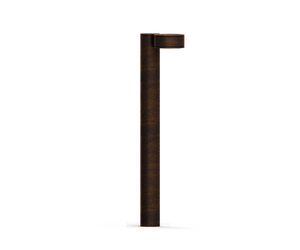

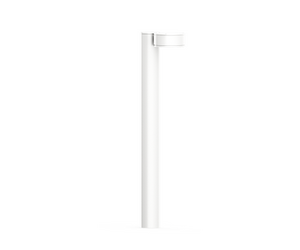

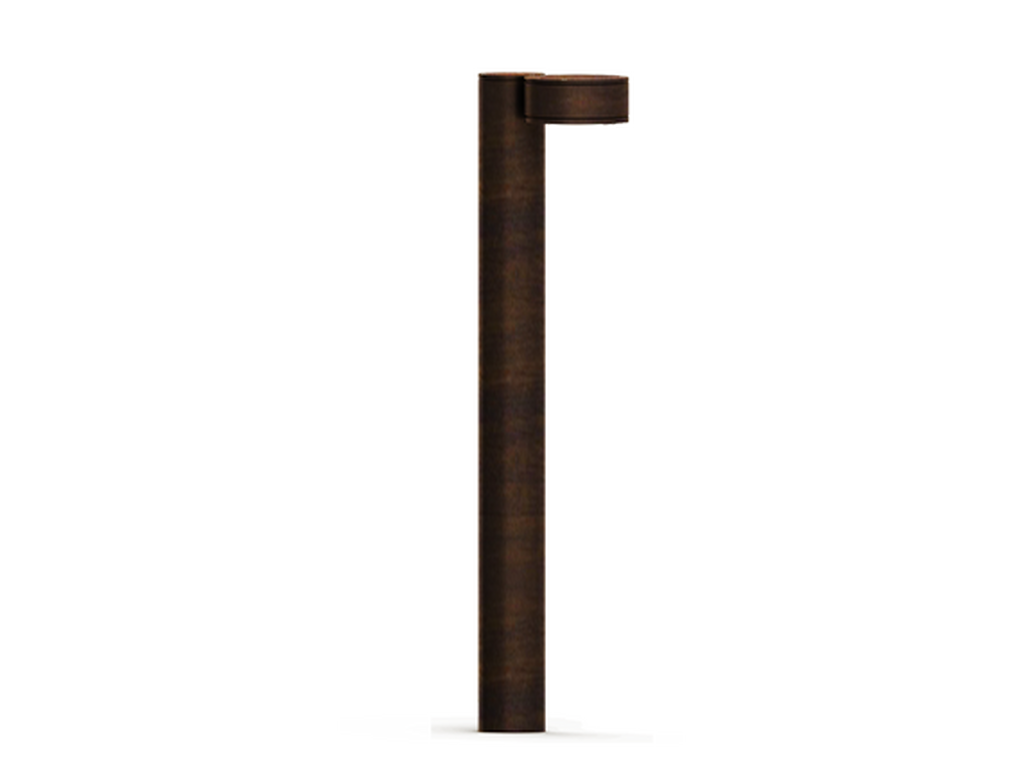

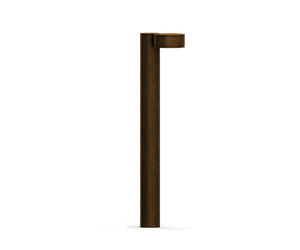

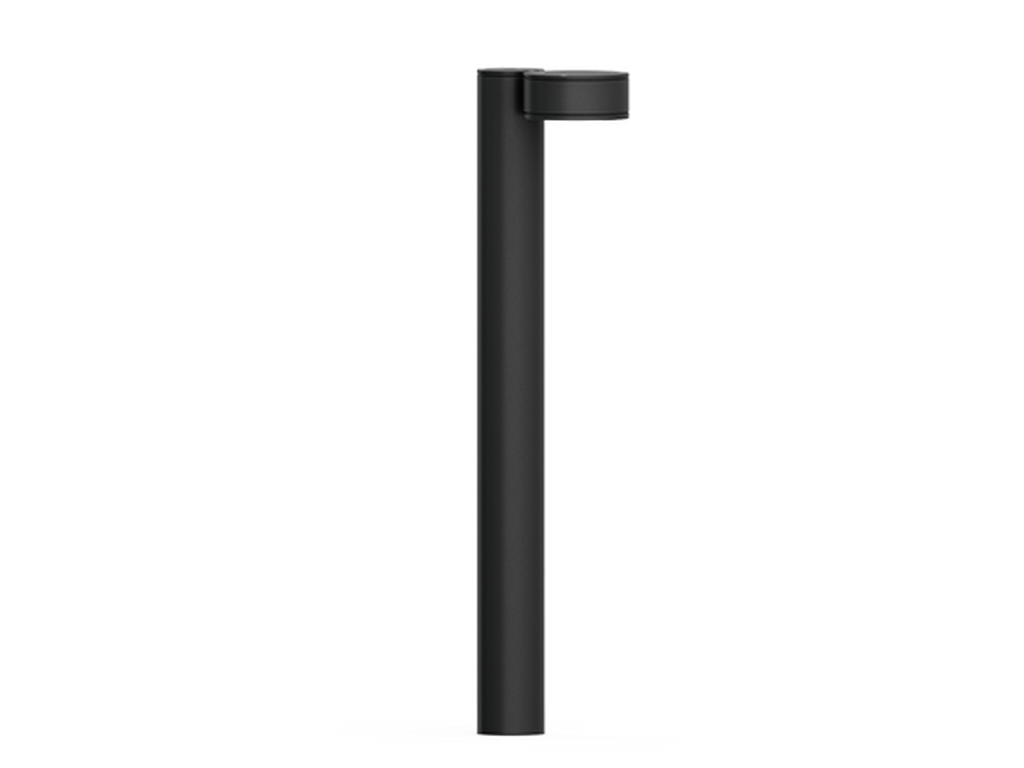

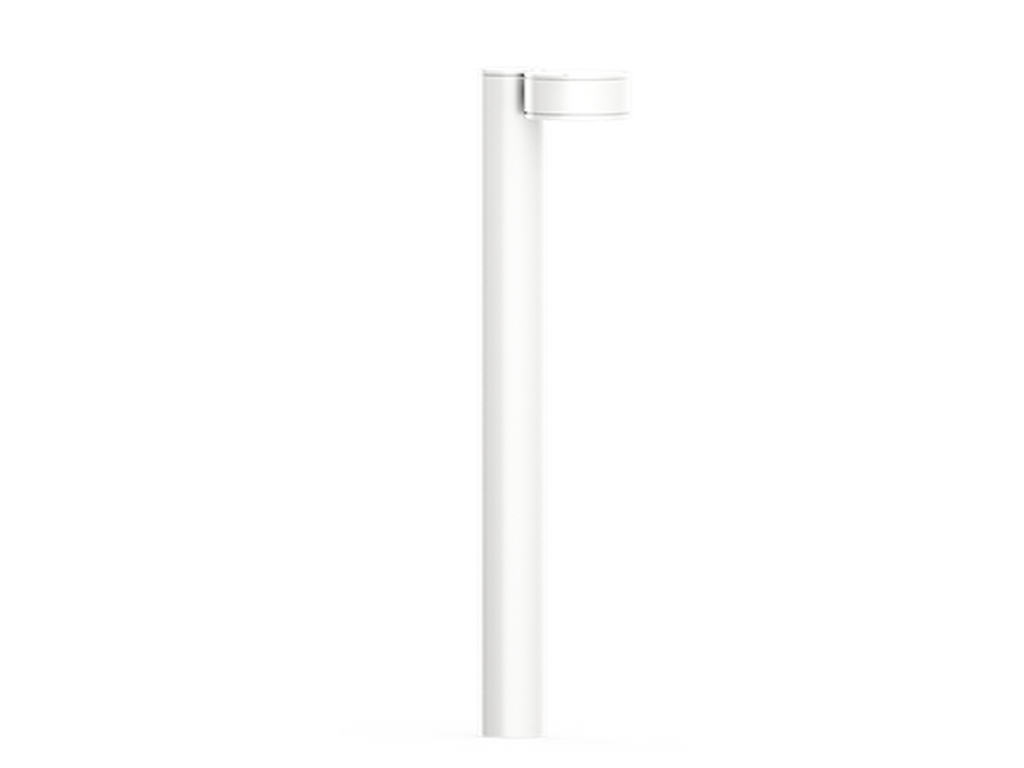

JET 57JE-10571 (Version 2)
JET
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Ø102 - 1000 mm - 1 side - Round
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
4 LED
Power (W)
11 W
Lumen (lm)
953 - 1132 lm
Efficacy (lm/W)
87 - 103 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, EW, T2, T3, T4, ME
Optic value
30°, 116°, 131°x43°, 124°x61°, 94°x68°, 138°x58°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U0-G0, B1-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
96, 97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
5.4 kg
Operating temperature
-20 °C to 50 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code

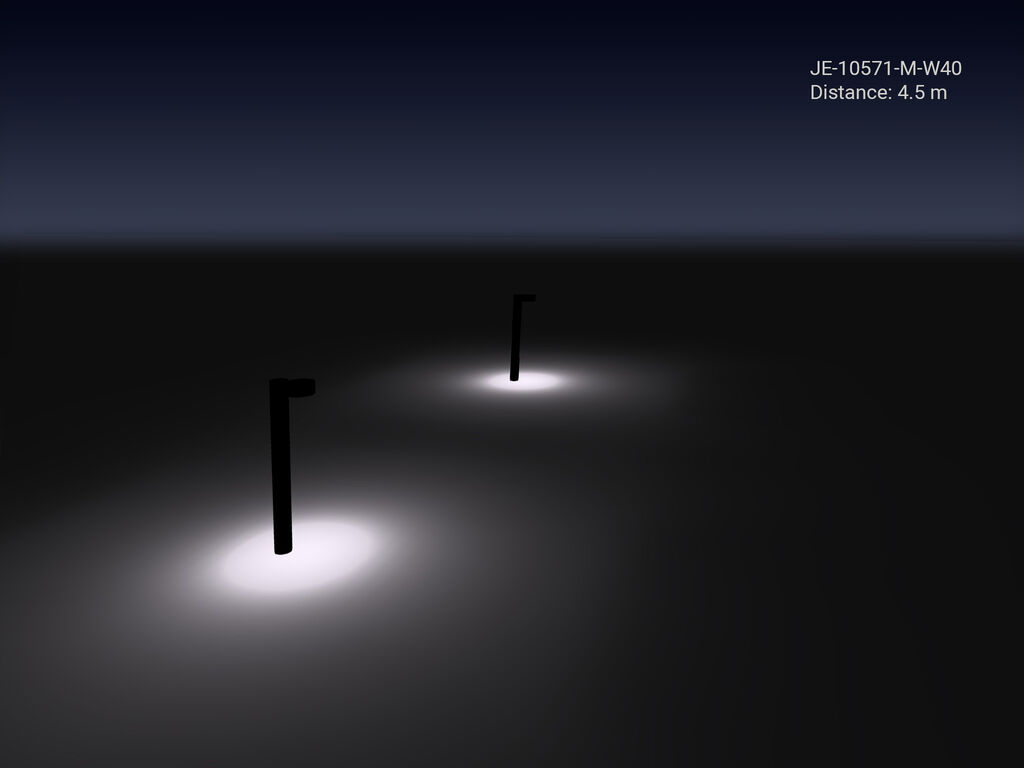

LIGHT EFFECT
Optic
M (30°)
EW (116°)
T2 (131°x43°)
T3 (124°x61°)
T4 (94°x68°)
ME (138°x58°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
