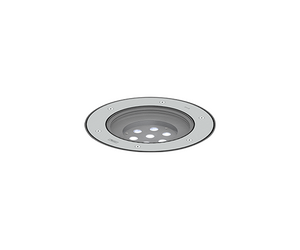

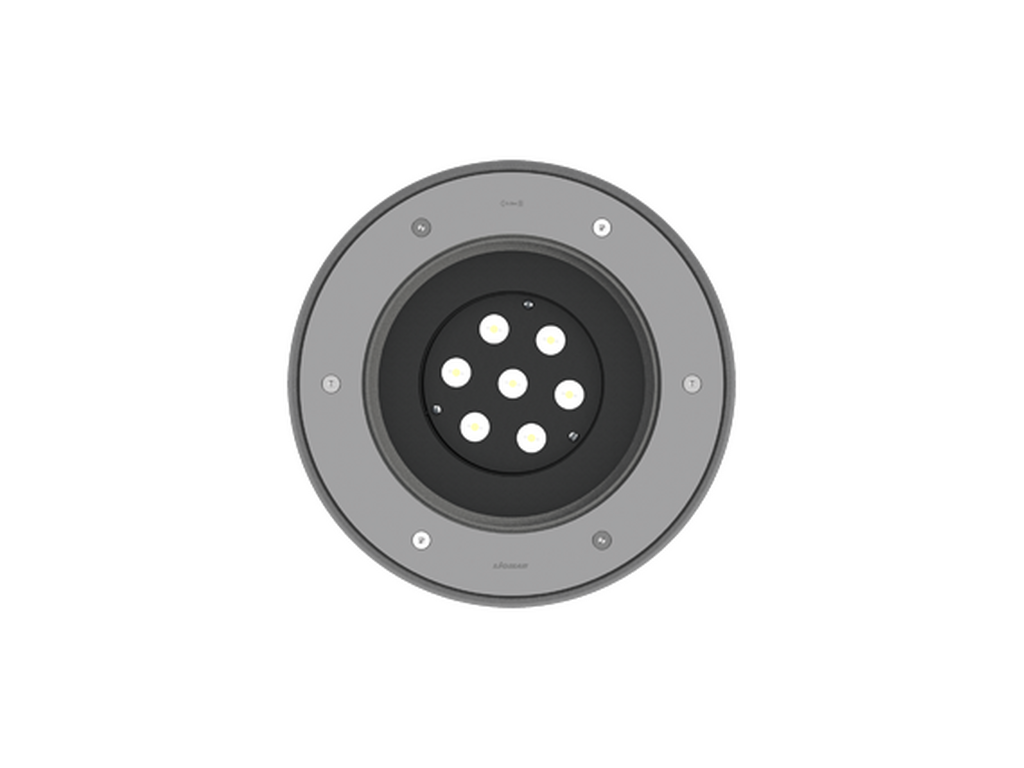

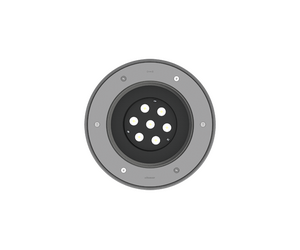

KIOS 7
KIOS 7
KIOS 7
KIOS 7
KIOS 7
KIOS 7

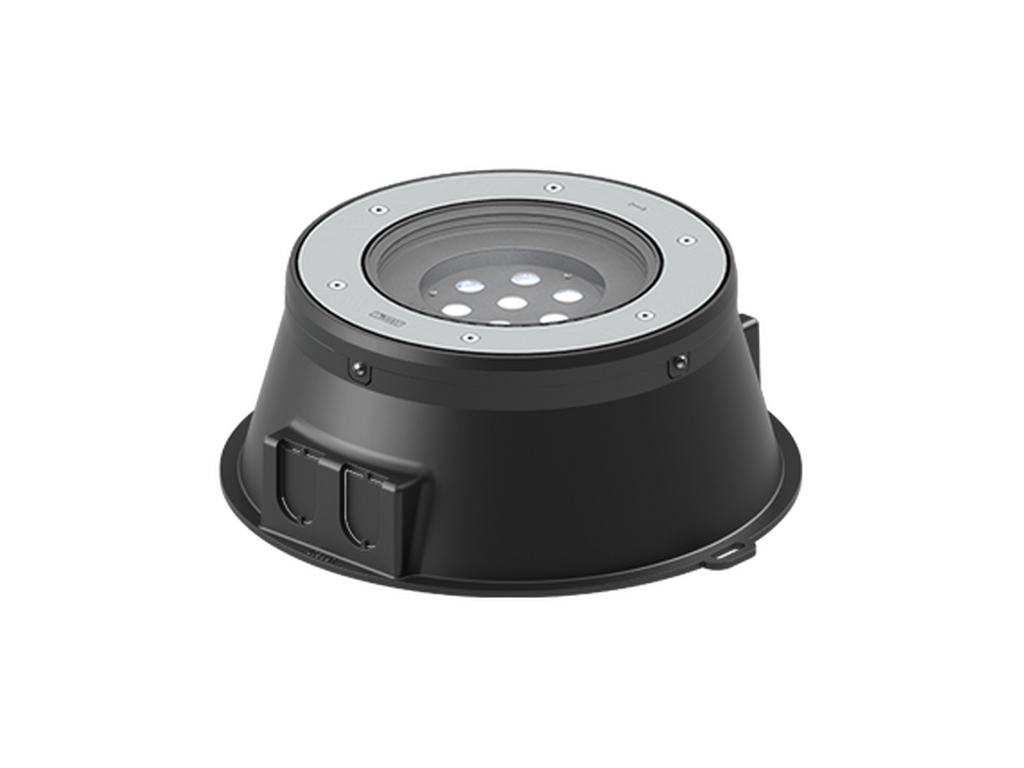

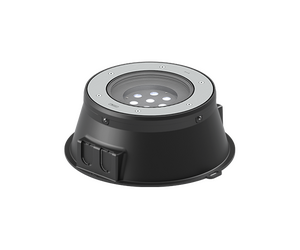

With recessing box / driver - Flat frame - RGBW
CERETILAPBISClass IIP67IK10

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
7 LED
Power (W)
29 W
Lumen (lm)
1063 - 1299 lm
Efficacy (lm/W)
37 - 45 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, E
Optic value
21°, 35°, 26°x48°
CCT / CRI
RGBW30, RGBW40
Bug
B0-U5-G0
ULR
100%
ULOR
100%
Dimming type
DMX, DMX/RDM
Product colours
Stainless Steel
Weight
6.5 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
Variants (DMX/RDM)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

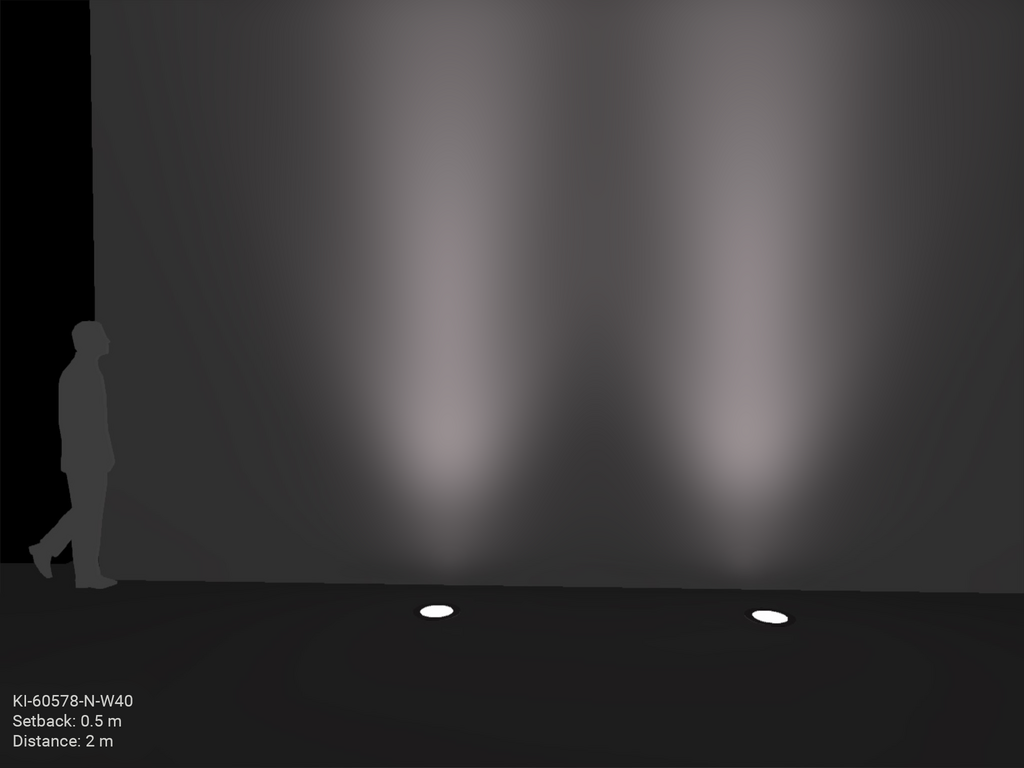

LIGHT EFFECT

Optic
N (21°)
M (35°)
E (26°x48°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: KI-60578-N-30-DMX-00
Lumen (lm): 1299 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: KI-60578-N-40-DMX-00
Lumen (lm): 1299 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: KI-60578-N-30-DMXRDM-00
Lumen (lm): 1299 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: KI-60578-N-40-DMXRDM-00
Lumen (lm): 1299 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: KI-60578-M-30-DMX-00
Lumen (lm): 1110 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: KI-60578-M-40-DMX-00
Lumen (lm): 1110 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: KI-60578-M-30-DMXRDM-00
Lumen (lm): 1110 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: KI-60578-M-40-DMXRDM-00
Lumen (lm): 1110 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: KI-60578-E-30-DMX-00
Lumen (lm): 1063 lm
Optic: E
Optic value: 26°x48°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: KI-60578-E-40-DMX-00
Lumen (lm): 1063 lm
Optic: E
Optic value: 26°x48°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: KI-60578-E-30-DMXRDM-00
Lumen (lm): 1063 lm
Optic: E
Optic value: 26°x48°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: KI-60578-E-40-DMXRDM-00
Lumen (lm): 1063 lm
Optic: E
Optic value: 26°x48°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel

ACCESSORY

PROJECT REFERENCE (KIOS In-ground luminaires)
