KIOS

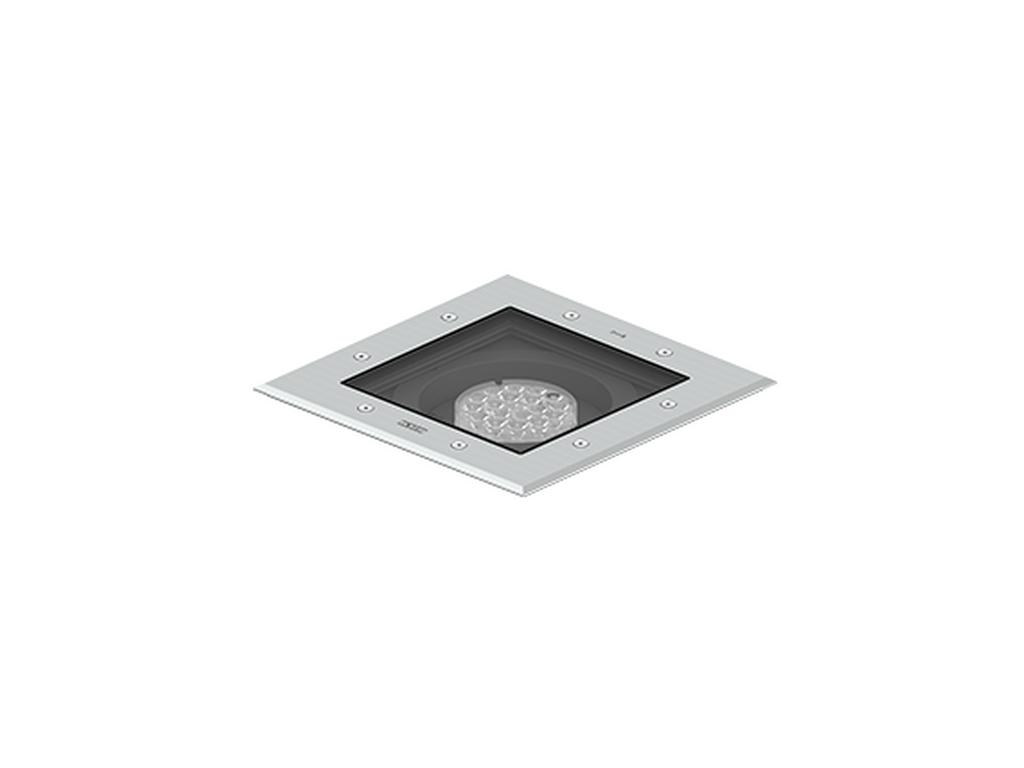

KIOSTurtle FriendlyMicroVOSIn-ground luminaires

Professional technical in-ground lighting solutions. Sophisticated and expansive; single, twin-lamp, white and RGBW DMX, with 10 beam types.

CERETILAPClass IIP67IK10BIS

TECHNICAL SPECIFICATIONS

Luminaire Structure

- Die-cast aluminium housing
- Pre-treated before powder coating ensuring high corrosion resistance
- 5.5 mm thick front ring in grade 316 stainless steel
- Single cable entry, through wiring upon request
- Stainless steel fasteners in grade 304 with zinc flake coating (ZFC)
- Durable silicone rubber gasket
- High-efficiency PMMA lens
- Clear or frosted toughened glass
- Integral control gear
- Recessing box in high-density polyethylene is included
- Suitable for drive-over with a maximum load of 2000 kg
- Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 50 km/h
- Load is transferred by the housing to the foundation
- The distance between the floodlight and the illuminated surface should be at least 0.5 m

Feature

1-10V3000K-4000KClass I with provisions for Class llCut-off 80° - UplightDALIDifferent sizesDMXDMX RDMLIGMAN's high-power LEDs circular or square moduleLuminaire body with integral heatsinkNon-dimmableRGBWThrough wiring

Optic

VN
N
M
W
E
T2
T3
T4
C
F

PRODUCTS

Power (W)
Optic
Driver option
Class
IP
IK
