LIGMAN KWH 2 KWH-30011.

KWH 2KWH-30011KWH

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

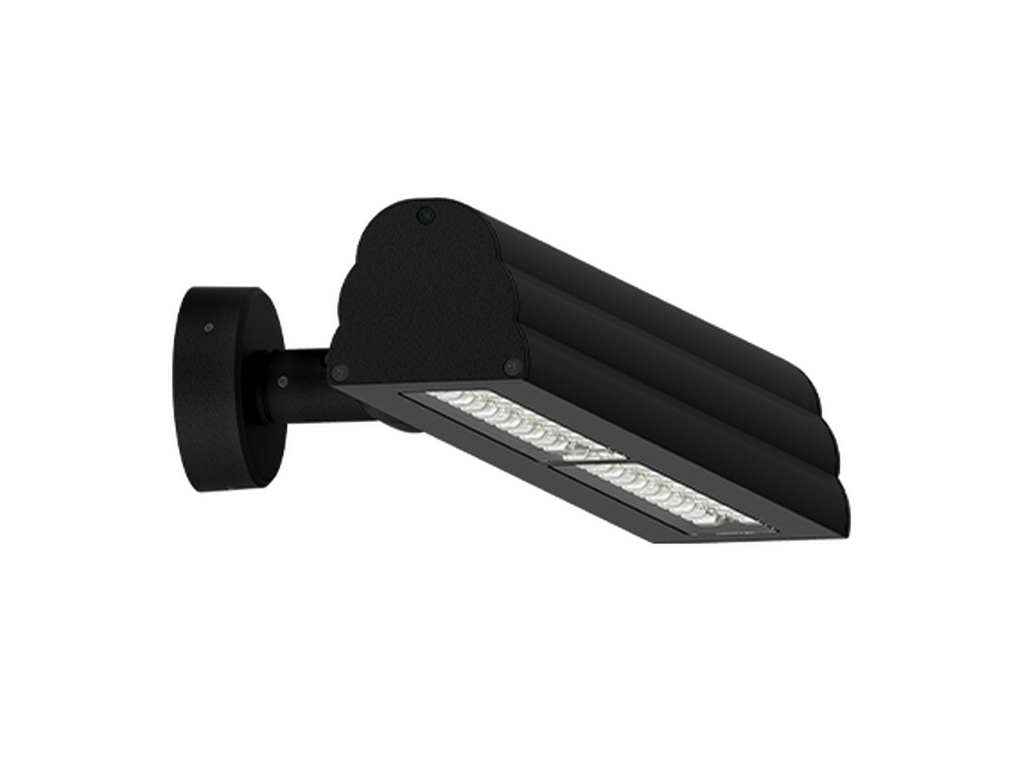

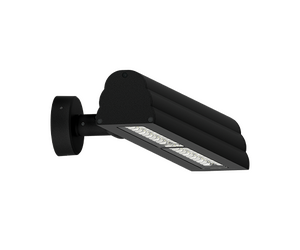

KWH 2Black
KWH 2Dark Grey

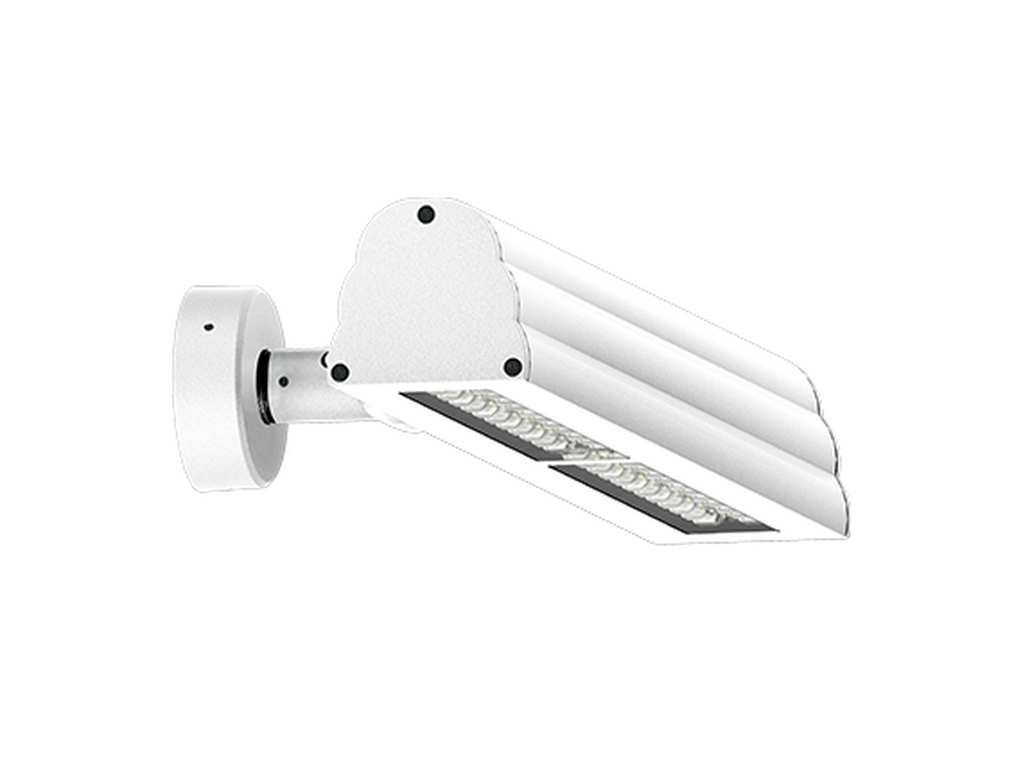

KWH 2White

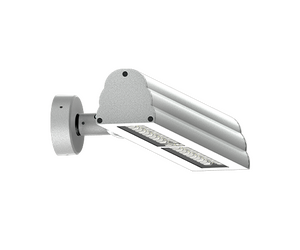

KWH 2Matt Silver

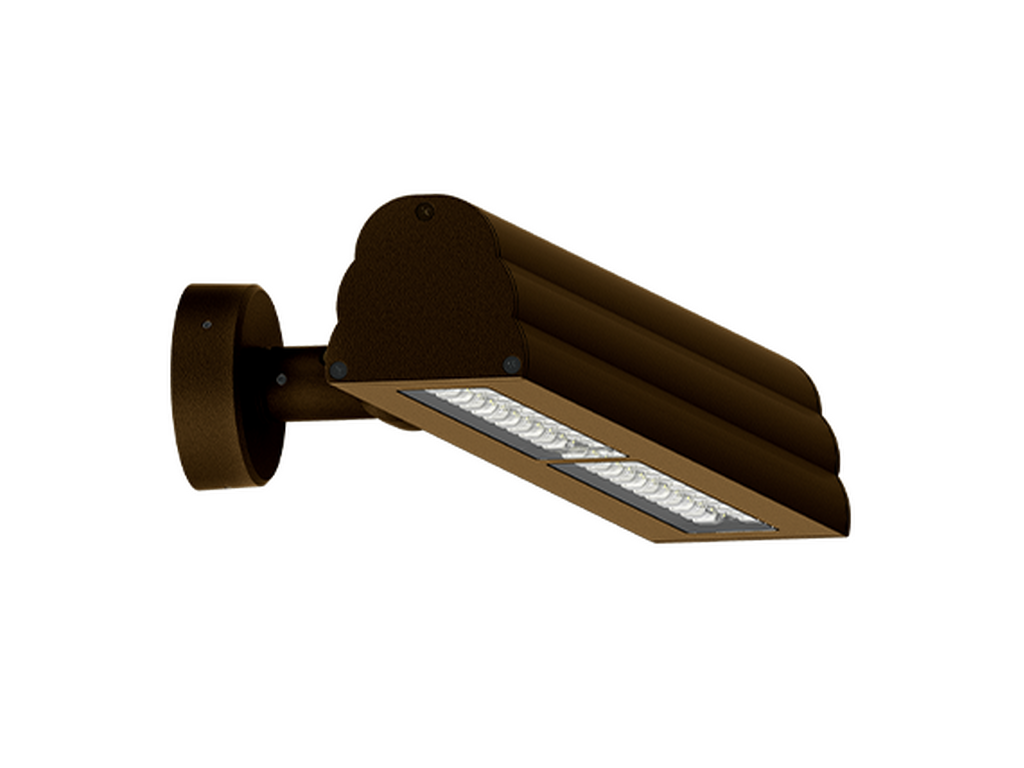

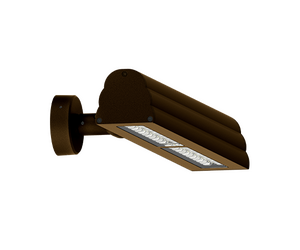

KWH 2Bronze

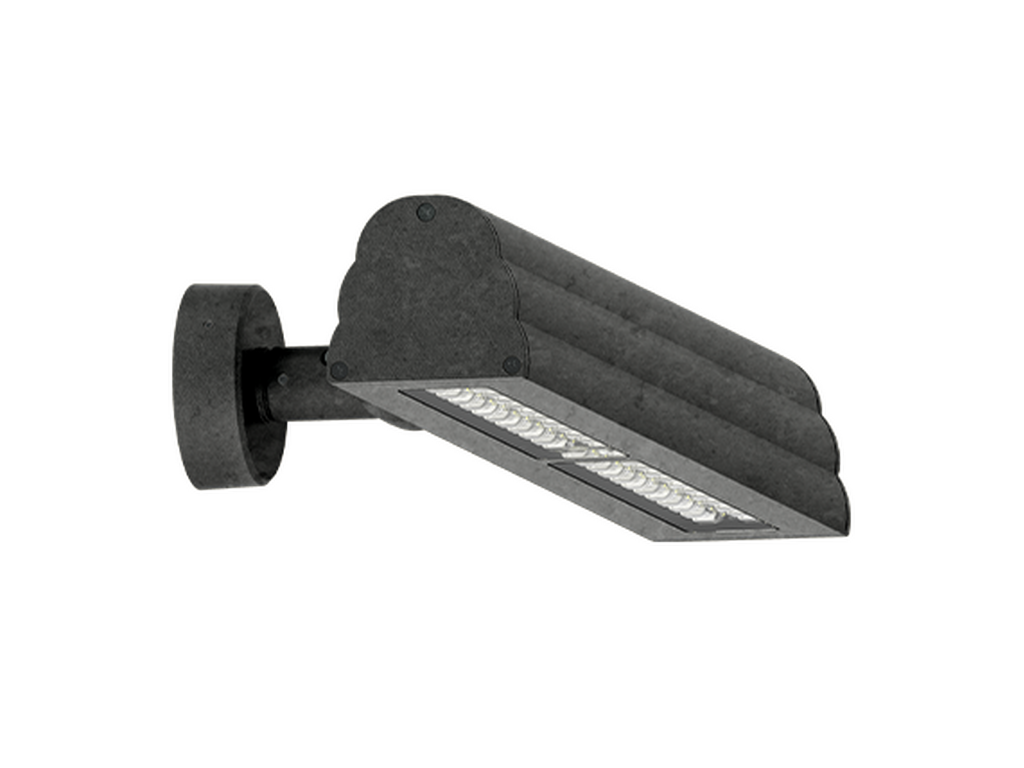

KWH 2Concrete - Urban
KWH 2Softscape - Urban
KWH 2Stone - Urban
KWH 2Corten - Urban
KWH 2Oak - Woodland

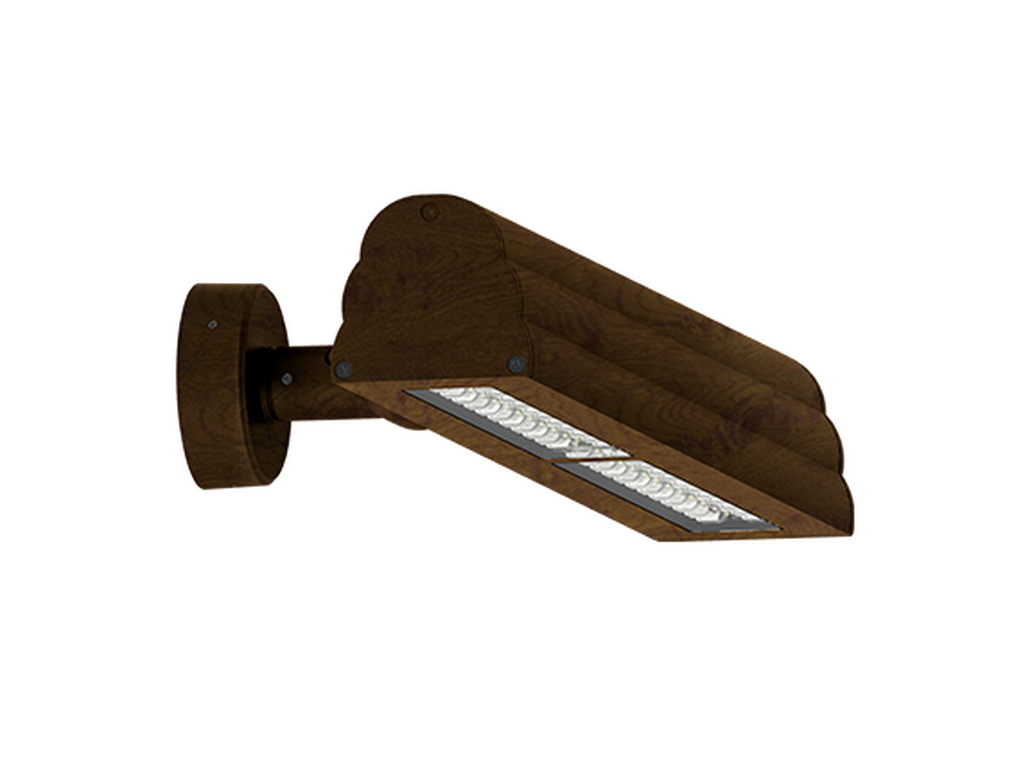

KWH 2Walnut - Woodland

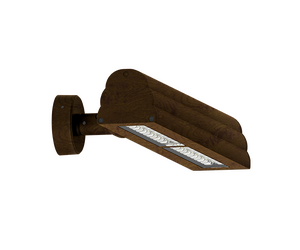

KWH 2Pine - Woodland

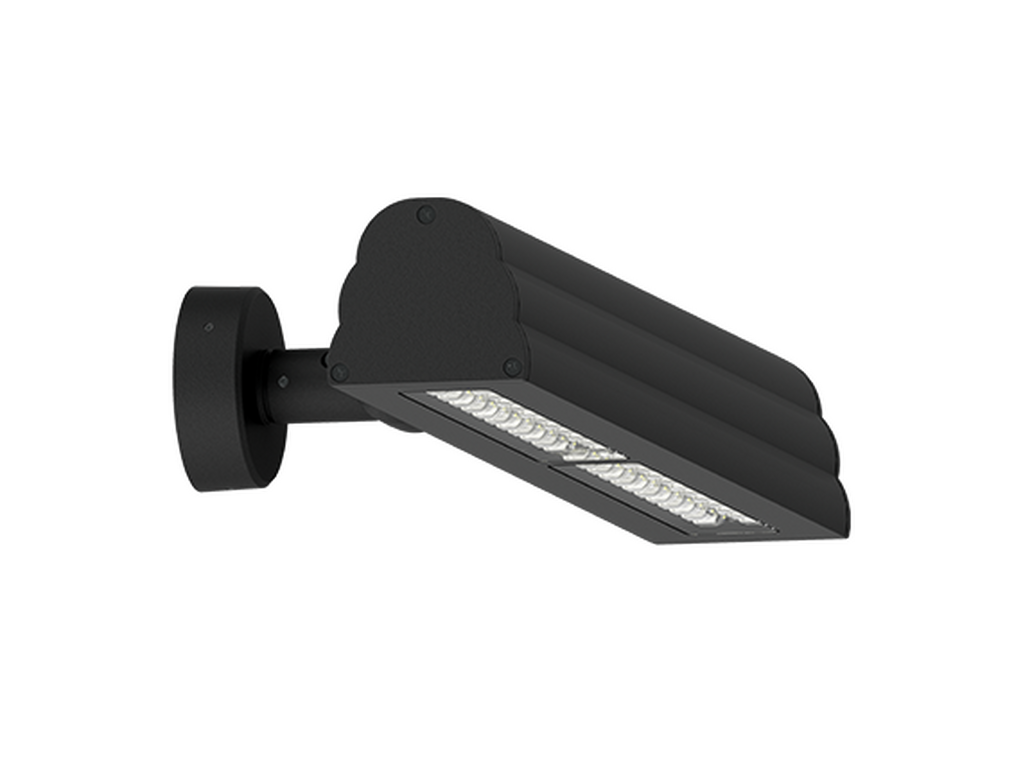

KWH 2Black
KWH 2Dark Grey

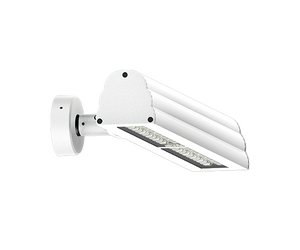

KWH 2White

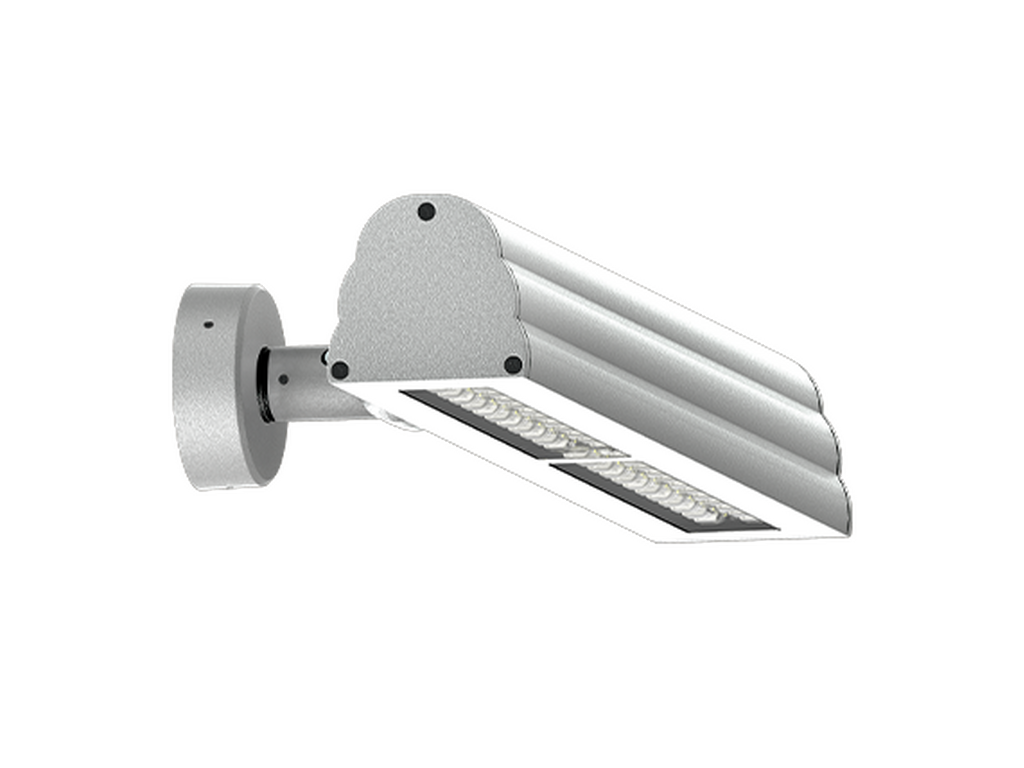

KWH 2Matt Silver
KWH 2Bronze
KWH 2Concrete - Urban
KWH 2Softscape - Urban

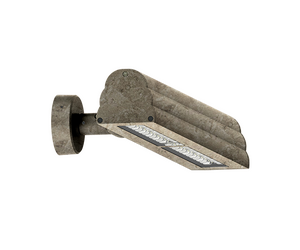

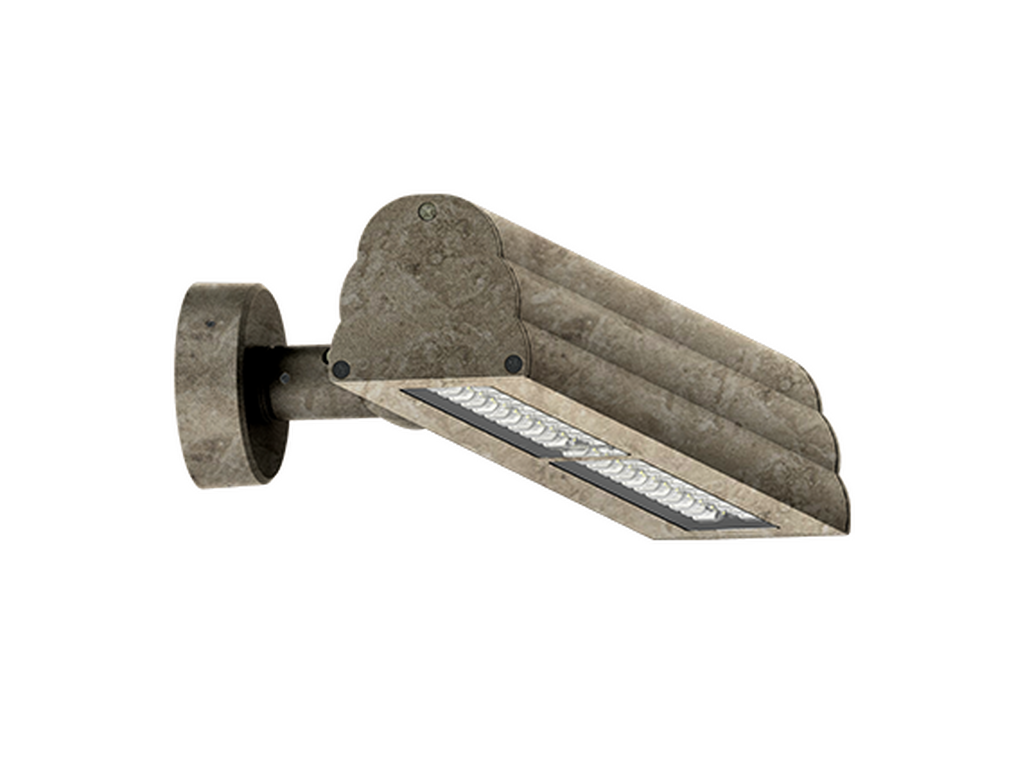

KWH 2Stone - Urban

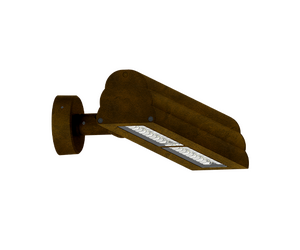

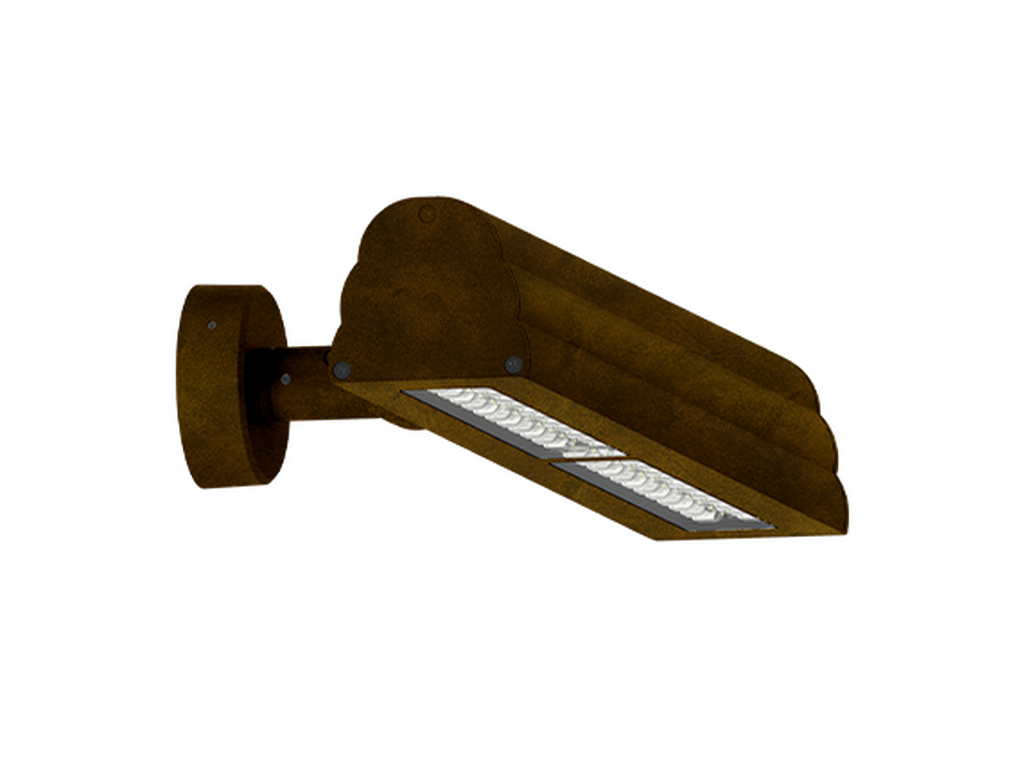

KWH 2Corten - Urban
KWH 2Oak - Woodland

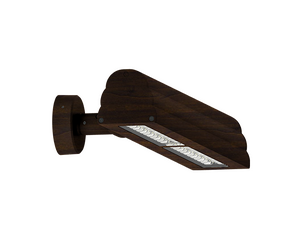

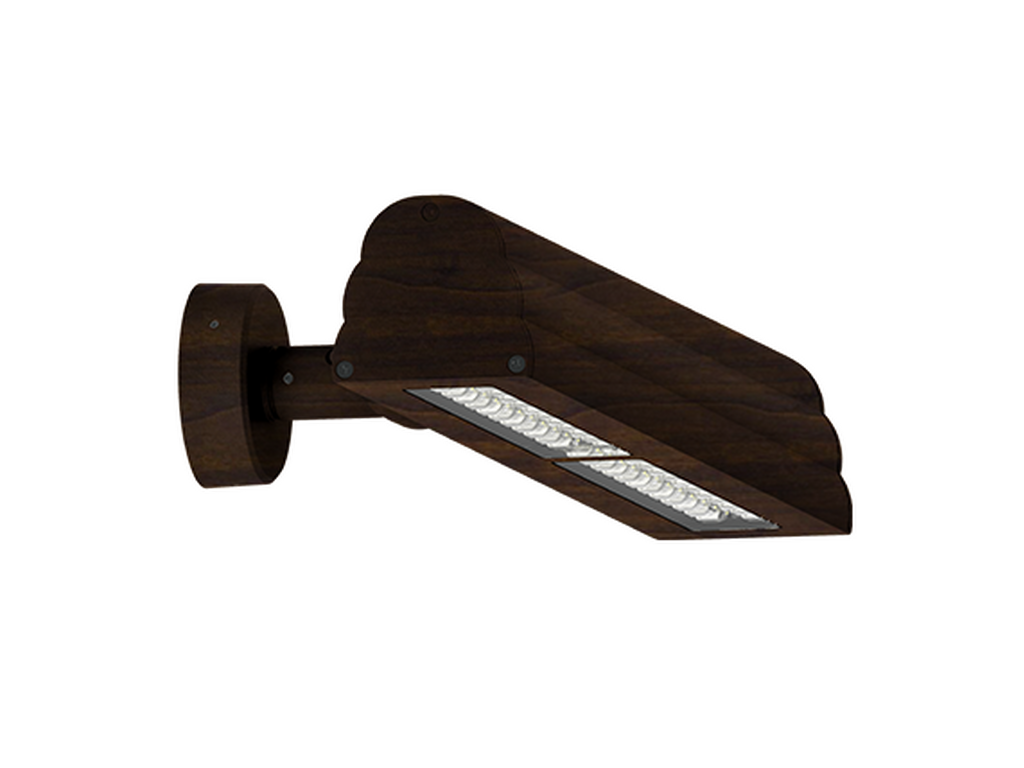

KWH 2Walnut - Woodland

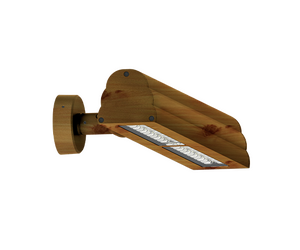

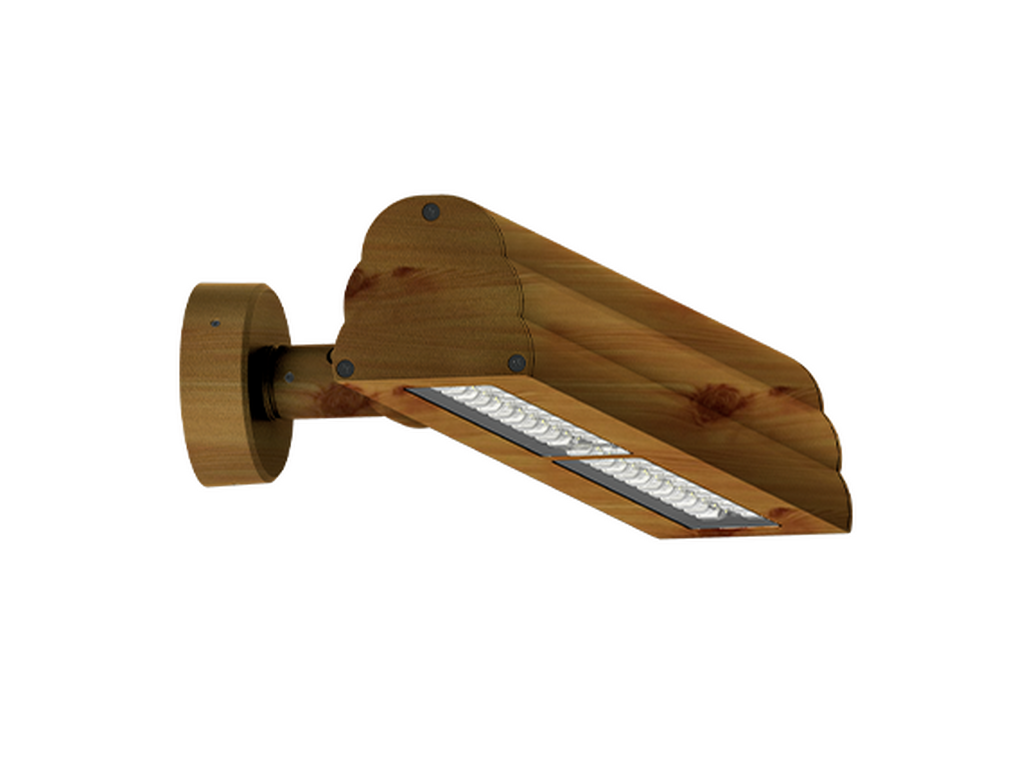

KWH 2Pine - Woodland
Medium
CEClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
4 x 12 LED
Power (W)
38 W
Lumen (lm)
4280 - 5182 lm
Efficacy (lm/W)
113 - 136 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T1, T2, T3, T4, ME, SCL
Optic value
31°, 55°, 115°, 132°x34°, 142°x49°, 150°x74°, 116°x79°, 150°x67°, 156°x52°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G0, B2-U0-G2, B3-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
95, 96, 97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
6.4 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
M (31°)
W (55°)
EW (115°)
T1 (132°x34°)
T2 (142°x49°)
T3 (150°x74°)
T4 (116°x79°)
ME (150°x67°)
SCL (156°x52°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

PROJECT REFERENCE (KWH Surface facade luminaires)
