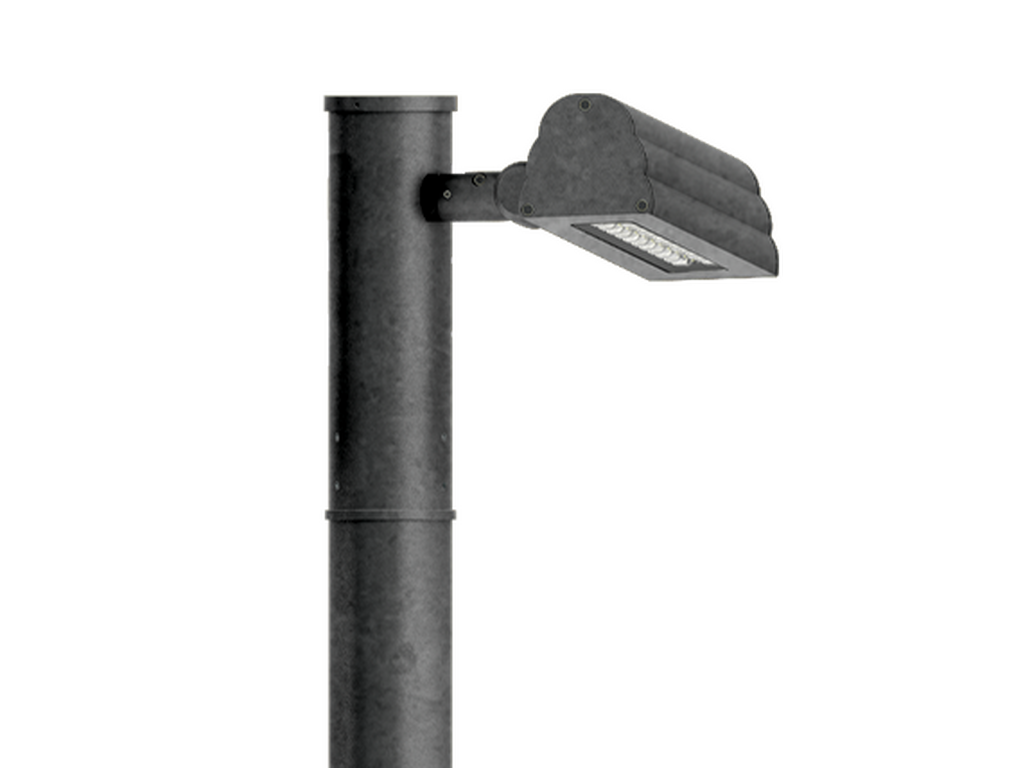

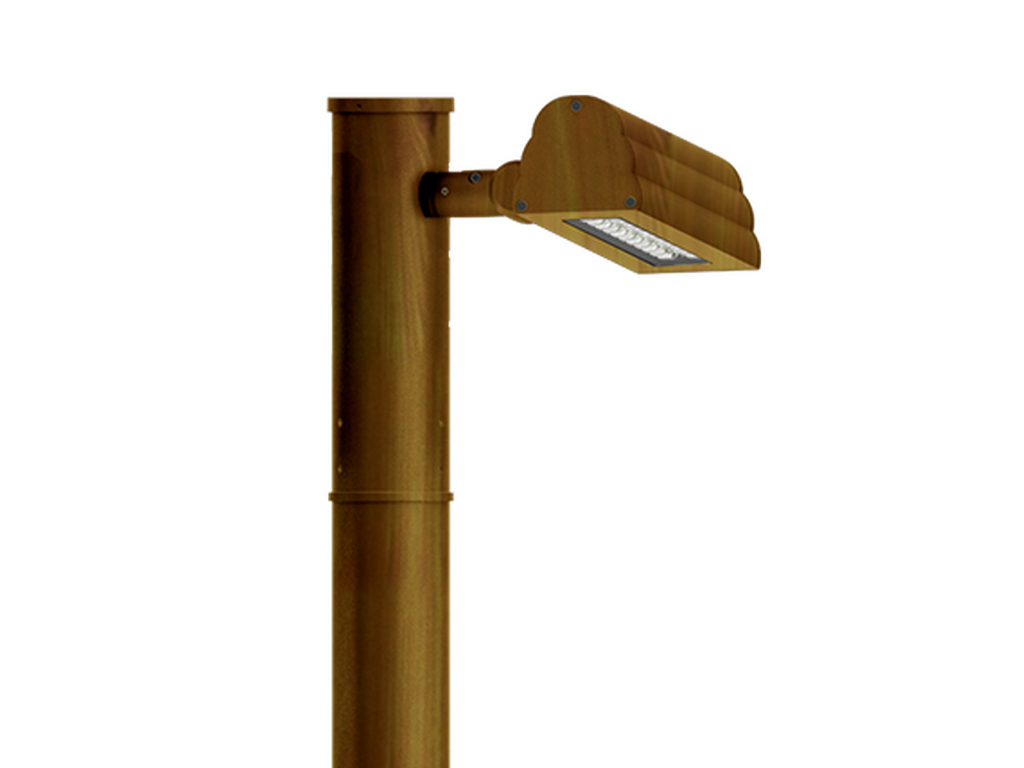

LIGMAN KWH 4 KWH-20001.

KWH 4KWH-20001KWH

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

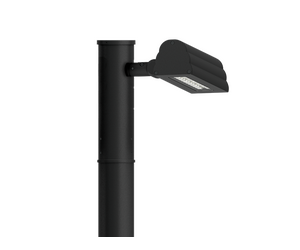

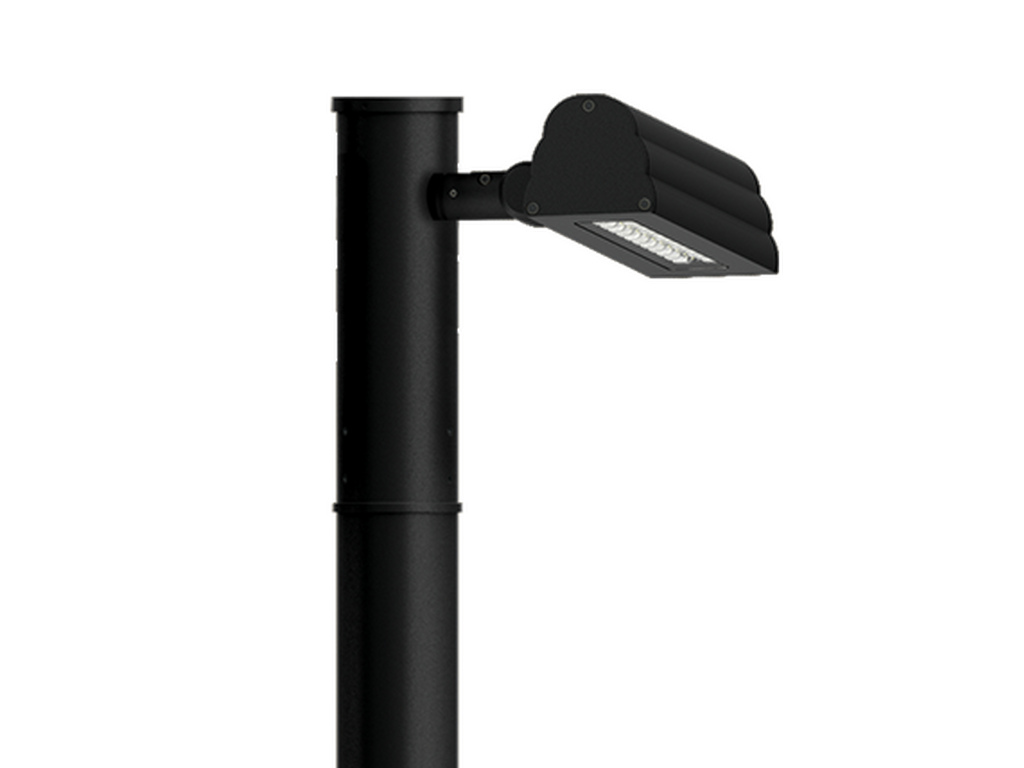

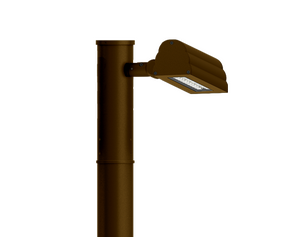

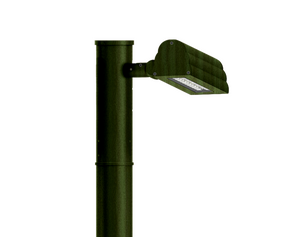

KWH 4Black

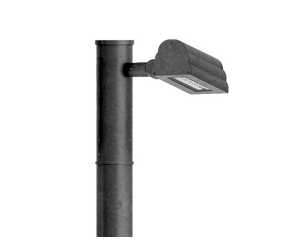

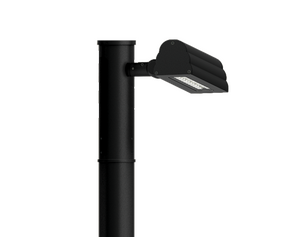

KWH 4Dark Grey

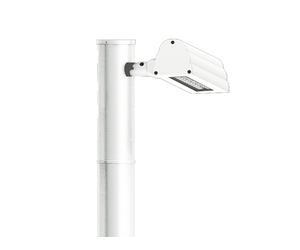

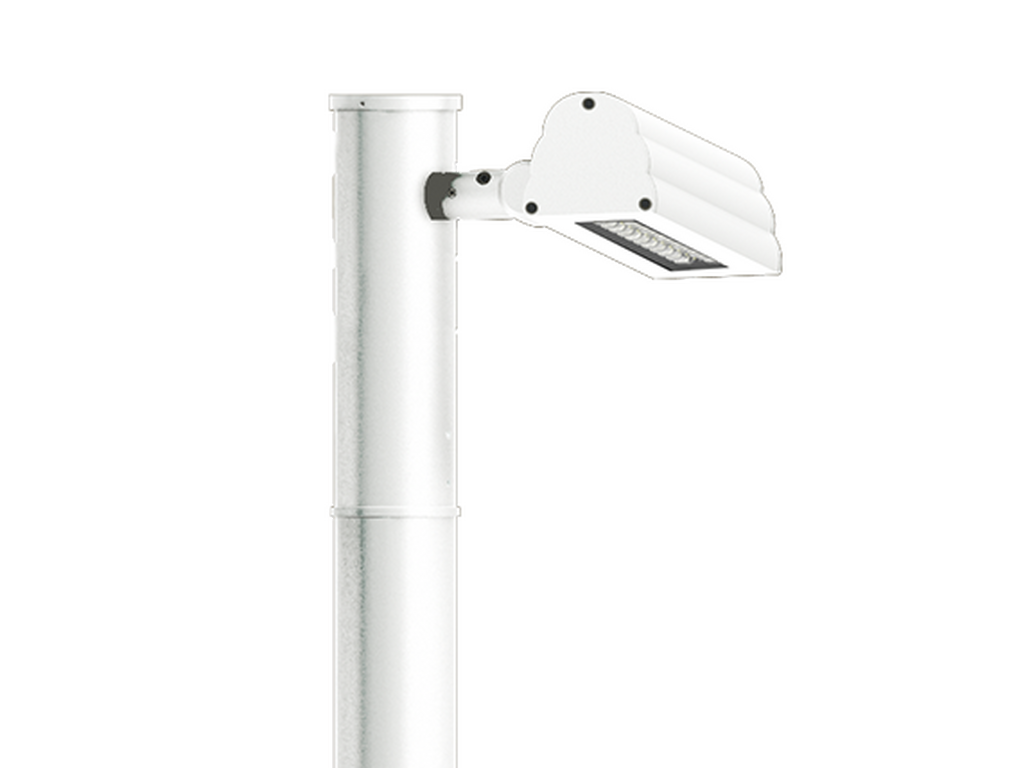

KWH 4White
KWH 4Matt Silver

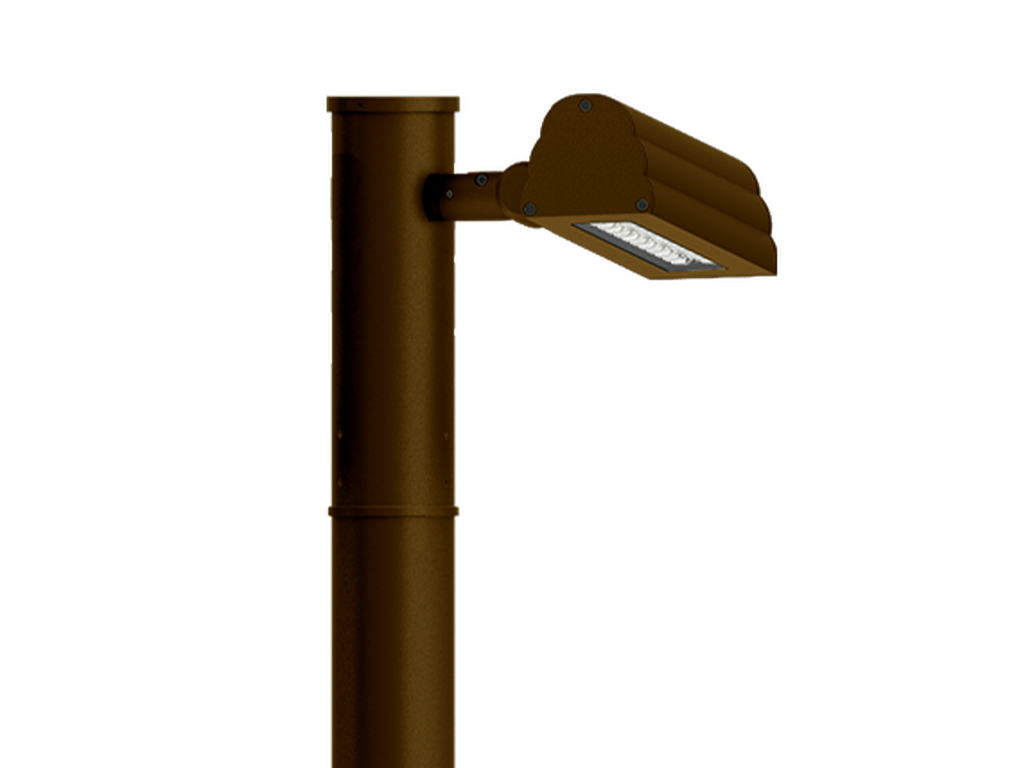

KWH 4Bronze
KWH 4Concrete - Urban
KWH 4Softscape - Urban

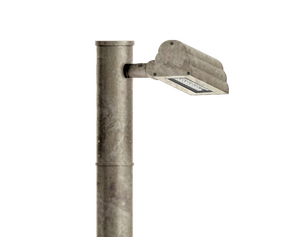

KWH 4Stone - Urban

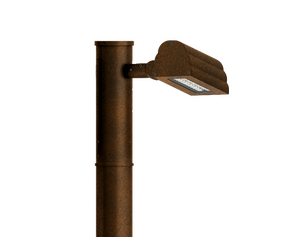

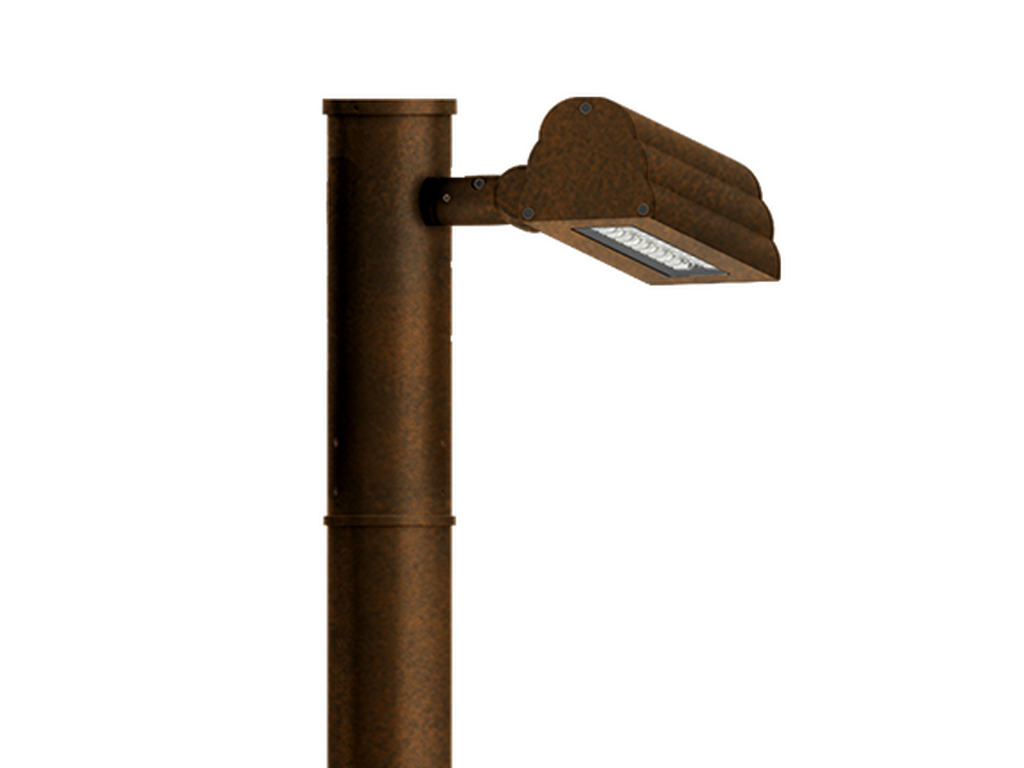

KWH 4Corten - Urban

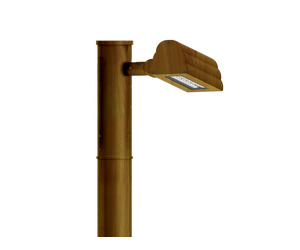

KWH 4Oak - Woodland
KWH 4Walnut - Woodland
KWH 4Pine - Woodland
KWH 4Black
KWH 4Dark Grey
KWH 4White
KWH 4Matt Silver
KWH 4Bronze
KWH 4Concrete - Urban
KWH 4Softscape - Urban
KWH 4Stone - Urban
KWH 4Corten - Urban
KWH 4Oak - Woodland
KWH 4Walnut - Woodland
KWH 4Pine - Woodland
Small
CEClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
2 x 12 LED
Power (W)
19 W
Lumen (lm)
2140 - 2591 lm
Efficacy (lm/W)
113 - 136 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T1, T2, T3, T4, ME, SCL
Optic value
31°, 55°, 107°, 132°x34°, 142°x49°, 150°x74°, 116°x79°, 150°x67°, 156°x52°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B1-U0-G1, B2-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
95, 96, 97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
6.0 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.068
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic

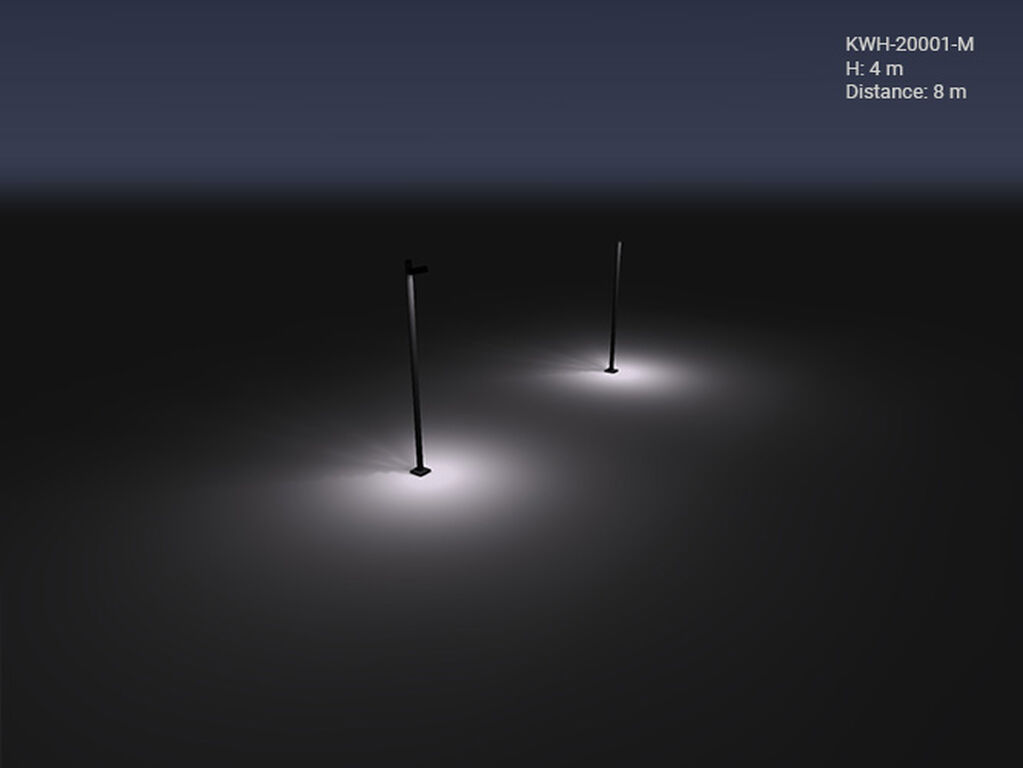

M (31°)
W (55°)
EW (107°)
T1 (132°x34°)
T2 (142°x49°)
T3 (150°x74°)
T4 (116°x79°)
ME (150°x67°)
SCL (156°x52°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

PROJECT REFERENCE (KWH Post top luminaires)
