LIGMAN LADOR 10 LD-80011.

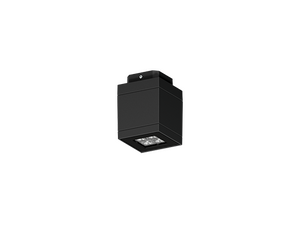

LADOR 10LD-80011Surface exterior downlights

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
LADOR 10
LADOR 10
LADOR 10
LADOR 10
LADOR 10Black
LADOR 10Dark Grey
LADOR 10White
LADOR 10Matt Silver
LADOR 10Bronze
LADOR 10Concrete - Urban
LADOR 10Softscape - Urban
LADOR 10Stone - Urban
LADOR 10Corten - Urban
LADOR 10Oak - Woodland
LADOR 10Walnut - Woodland
LADOR 10Pine - Woodland
LADOR 10
LADOR 10
LADOR 10
LADOR 10
LADOR 10Black
LADOR 10Dark Grey
LADOR 10White
LADOR 10Matt Silver
LADOR 10Bronze
LADOR 10Concrete - Urban
LADOR 10Softscape - Urban
LADOR 10Stone - Urban
LADOR 10Corten - Urban
LADOR 10Oak - Woodland
LADOR 10Walnut - Woodland
LADOR 10Pine - Woodland

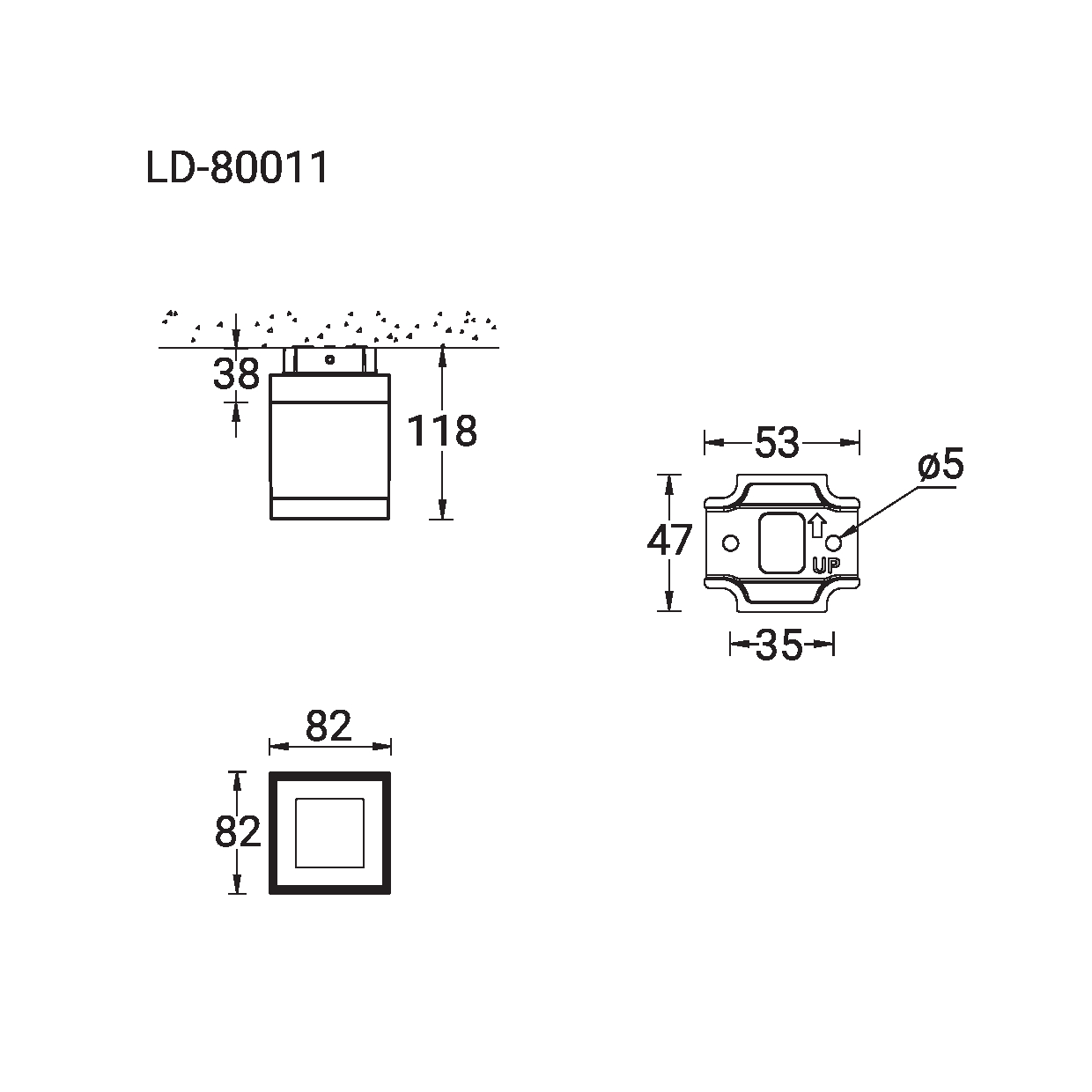

Integral control gear - 82x82 mm - Class I
CEBISClass IIP65IK07

Technical information

Material
Aluminium
Light source
4 LED
Power (W)
10 W
Lumen (lm)
906 - 1112 lm
Efficacy (lm/W)
91 - 111 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW, E
Optic value
10°, 16°, 34°, 68°, 43°x11°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B2-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.1 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000
Variants (On/Off)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Light effect

Optic
N (10°)
M (16°)
W (34°)
VW (68°)
E (43°x11°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: LD-80011-N-8030-ND-01
Lumen (lm): 1057 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LD-80011-N-8030-ND-02
Lumen (lm): 1057 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LD-80011-N-8030-ND-03
Lumen (lm): 1057 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LD-80011-N-8030-ND-05
Lumen (lm): 1057 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LD-80011-N-8030-ND-06
Lumen (lm): 1057 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LD-80011-N-8030-ND-SU01
Lumen (lm): 1057 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LD-80011-N-8030-ND-SU02
Lumen (lm): 1057 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LD-80011-N-8030-ND-SU03
Lumen (lm): 1057 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LD-80011-N-8030-ND-SU04
Lumen (lm): 1057 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LD-80011-N-8030-ND-SW01
Lumen (lm): 1057 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LD-80011-N-8030-ND-SW02
Lumen (lm): 1057 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LD-80011-N-8030-ND-SW03
Lumen (lm): 1057 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LD-80011-N-8040-ND-01
Lumen (lm): 1112 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LD-80011-N-8040-ND-02
Lumen (lm): 1112 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LD-80011-N-8040-ND-03
Lumen (lm): 1112 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LD-80011-N-8040-ND-05
Lumen (lm): 1112 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LD-80011-N-8040-ND-06
Lumen (lm): 1112 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LD-80011-N-8040-ND-SU01
Lumen (lm): 1112 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LD-80011-N-8040-ND-SU02
Lumen (lm): 1112 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LD-80011-N-8040-ND-SU03
Lumen (lm): 1112 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LD-80011-N-8040-ND-SU04
Lumen (lm): 1112 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LD-80011-N-8040-ND-SW01
Lumen (lm): 1112 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LD-80011-N-8040-ND-SW02
Lumen (lm): 1112 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LD-80011-N-8040-ND-SW03
Lumen (lm): 1112 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LD-80011-M-8030-ND-01
Lumen (lm): 950 lm
Optic: M
Optic value: 16°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LD-80011-M-8030-ND-02
Lumen (lm): 950 lm
Optic: M
Optic value: 16°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LD-80011-M-8030-ND-03
Lumen (lm): 950 lm
Optic: M
Optic value: 16°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LD-80011-M-8030-ND-05
Lumen (lm): 950 lm
Optic: M
Optic value: 16°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LD-80011-M-8030-ND-06
Lumen (lm): 950 lm
Optic: M
Optic value: 16°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LD-80011-M-8030-ND-SU01
Lumen (lm): 950 lm
Optic: M
Optic value: 16°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LD-80011-M-8030-ND-SU02
Lumen (lm): 950 lm
Optic: M
Optic value: 16°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LD-80011-M-8030-ND-SU03
Lumen (lm): 950 lm
Optic: M
Optic value: 16°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LD-80011-M-8030-ND-SU04
Lumen (lm): 950 lm
Optic: M
Optic value: 16°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LD-80011-M-8030-ND-SW01
Lumen (lm): 950 lm
Optic: M
Optic value: 16°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LD-80011-M-8030-ND-SW02
Lumen (lm): 950 lm
Optic: M
Optic value: 16°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LD-80011-M-8030-ND-SW03
Lumen (lm): 950 lm
Optic: M
Optic value: 16°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LD-80011-M-8040-ND-01
Lumen (lm): 1000 lm
Optic: M
Optic value: 16°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LD-80011-M-8040-ND-02
Lumen (lm): 1000 lm
Optic: M
Optic value: 16°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LD-80011-M-8040-ND-03
Lumen (lm): 1000 lm
Optic: M
Optic value: 16°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LD-80011-M-8040-ND-05
Lumen (lm): 1000 lm
Optic: M
Optic value: 16°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LD-80011-M-8040-ND-06
Lumen (lm): 1000 lm
Optic: M
Optic value: 16°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LD-80011-M-8040-ND-SU01
Lumen (lm): 1000 lm
Optic: M
Optic value: 16°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LD-80011-M-8040-ND-SU02
Lumen (lm): 1000 lm
Optic: M
Optic value: 16°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LD-80011-M-8040-ND-SU03
Lumen (lm): 1000 lm
Optic: M
Optic value: 16°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LD-80011-M-8040-ND-SU04
Lumen (lm): 1000 lm
Optic: M
Optic value: 16°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LD-80011-M-8040-ND-SW01
Lumen (lm): 1000 lm
Optic: M
Optic value: 16°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LD-80011-M-8040-ND-SW02
Lumen (lm): 1000 lm
Optic: M
Optic value: 16°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LD-80011-M-8040-ND-SW03
Lumen (lm): 1000 lm
Optic: M
Optic value: 16°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LD-80011-W-8030-ND-01
Lumen (lm): 946 lm
Optic: W
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LD-80011-W-8030-ND-02
Lumen (lm): 946 lm
Optic: W
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LD-80011-W-8030-ND-03
Lumen (lm): 946 lm
Optic: W
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LD-80011-W-8030-ND-05
Lumen (lm): 946 lm
Optic: W
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LD-80011-W-8030-ND-06
Lumen (lm): 946 lm
Optic: W
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LD-80011-W-8030-ND-SU01
Lumen (lm): 946 lm
Optic: W
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LD-80011-W-8030-ND-SU02
Lumen (lm): 946 lm
Optic: W
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LD-80011-W-8030-ND-SU03
Lumen (lm): 946 lm
Optic: W
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LD-80011-W-8030-ND-SU04
Lumen (lm): 946 lm
Optic: W
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LD-80011-W-8030-ND-SW01
Lumen (lm): 946 lm
Optic: W
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LD-80011-W-8030-ND-SW02
Lumen (lm): 946 lm
Optic: W
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LD-80011-W-8030-ND-SW03
Lumen (lm): 946 lm
Optic: W
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LD-80011-W-8040-ND-01
Lumen (lm): 996 lm
Optic: W
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LD-80011-W-8040-ND-02
Lumen (lm): 996 lm
Optic: W
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LD-80011-W-8040-ND-03
Lumen (lm): 996 lm
Optic: W
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LD-80011-W-8040-ND-05
Lumen (lm): 996 lm
Optic: W
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LD-80011-W-8040-ND-06
Lumen (lm): 996 lm
Optic: W
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LD-80011-W-8040-ND-SU01
Lumen (lm): 996 lm
Optic: W
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LD-80011-W-8040-ND-SU02
Lumen (lm): 996 lm
Optic: W
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LD-80011-W-8040-ND-SU03
Lumen (lm): 996 lm
Optic: W
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LD-80011-W-8040-ND-SU04
Lumen (lm): 996 lm
Optic: W
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LD-80011-W-8040-ND-SW01
Lumen (lm): 996 lm
Optic: W
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LD-80011-W-8040-ND-SW02
Lumen (lm): 996 lm
Optic: W
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LD-80011-W-8040-ND-SW03
Lumen (lm): 996 lm
Optic: W
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LD-80011-VW-8030-ND-01
Lumen (lm): 906 lm
Optic: VW
Optic value: 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LD-80011-VW-8030-ND-02
Lumen (lm): 906 lm
Optic: VW
Optic value: 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LD-80011-VW-8030-ND-03
Lumen (lm): 906 lm
Optic: VW
Optic value: 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LD-80011-VW-8030-ND-05
Lumen (lm): 906 lm
Optic: VW
Optic value: 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LD-80011-VW-8030-ND-06
Lumen (lm): 906 lm
Optic: VW
Optic value: 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LD-80011-VW-8030-ND-SU01
Lumen (lm): 906 lm
Optic: VW
Optic value: 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LD-80011-VW-8030-ND-SU02
Lumen (lm): 906 lm
Optic: VW
Optic value: 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LD-80011-VW-8030-ND-SU03
Lumen (lm): 906 lm
Optic: VW
Optic value: 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LD-80011-VW-8030-ND-SU04
Lumen (lm): 906 lm
Optic: VW
Optic value: 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LD-80011-VW-8030-ND-SW01
Lumen (lm): 906 lm
Optic: VW
Optic value: 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LD-80011-VW-8030-ND-SW02
Lumen (lm): 906 lm
Optic: VW
Optic value: 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LD-80011-VW-8030-ND-SW03
Lumen (lm): 906 lm
Optic: VW
Optic value: 68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LD-80011-VW-8040-ND-01
Lumen (lm): 954 lm
Optic: VW
Optic value: 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LD-80011-VW-8040-ND-02
Lumen (lm): 954 lm
Optic: VW
Optic value: 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LD-80011-VW-8040-ND-03
Lumen (lm): 954 lm
Optic: VW
Optic value: 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LD-80011-VW-8040-ND-05
Lumen (lm): 954 lm
Optic: VW
Optic value: 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LD-80011-VW-8040-ND-06
Lumen (lm): 954 lm
Optic: VW
Optic value: 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LD-80011-VW-8040-ND-SU01
Lumen (lm): 954 lm
Optic: VW
Optic value: 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LD-80011-VW-8040-ND-SU02
Lumen (lm): 954 lm
Optic: VW
Optic value: 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LD-80011-VW-8040-ND-SU03
Lumen (lm): 954 lm
Optic: VW
Optic value: 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LD-80011-VW-8040-ND-SU04
Lumen (lm): 954 lm
Optic: VW
Optic value: 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LD-80011-VW-8040-ND-SW01
Lumen (lm): 954 lm
Optic: VW
Optic value: 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LD-80011-VW-8040-ND-SW02
Lumen (lm): 954 lm
Optic: VW
Optic value: 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LD-80011-VW-8040-ND-SW03
Lumen (lm): 954 lm
Optic: VW
Optic value: 68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LD-80011-E-8030-ND-01
Lumen (lm): 1005 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LD-80011-E-8030-ND-02
Lumen (lm): 1005 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LD-80011-E-8030-ND-03
Lumen (lm): 1005 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LD-80011-E-8030-ND-05
Lumen (lm): 1005 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LD-80011-E-8030-ND-06
Lumen (lm): 1005 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LD-80011-E-8030-ND-SU01
Lumen (lm): 1005 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LD-80011-E-8030-ND-SU02
Lumen (lm): 1005 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LD-80011-E-8030-ND-SU03
Lumen (lm): 1005 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LD-80011-E-8030-ND-SU04
Lumen (lm): 1005 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LD-80011-E-8030-ND-SW01
Lumen (lm): 1005 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LD-80011-E-8030-ND-SW02
Lumen (lm): 1005 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LD-80011-E-8030-ND-SW03
Lumen (lm): 1005 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LD-80011-E-8040-ND-01
Lumen (lm): 1058 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LD-80011-E-8040-ND-02
Lumen (lm): 1058 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LD-80011-E-8040-ND-03
Lumen (lm): 1058 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LD-80011-E-8040-ND-05
Lumen (lm): 1058 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LD-80011-E-8040-ND-06
Lumen (lm): 1058 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LD-80011-E-8040-ND-SU01
Lumen (lm): 1058 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LD-80011-E-8040-ND-SU02
Lumen (lm): 1058 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LD-80011-E-8040-ND-SU03
Lumen (lm): 1058 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LD-80011-E-8040-ND-SU04
Lumen (lm): 1058 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LD-80011-E-8040-ND-SW01
Lumen (lm): 1058 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LD-80011-E-8040-ND-SW02
Lumen (lm): 1058 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LD-80011-E-8040-ND-SW03
Lumen (lm): 1058 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland

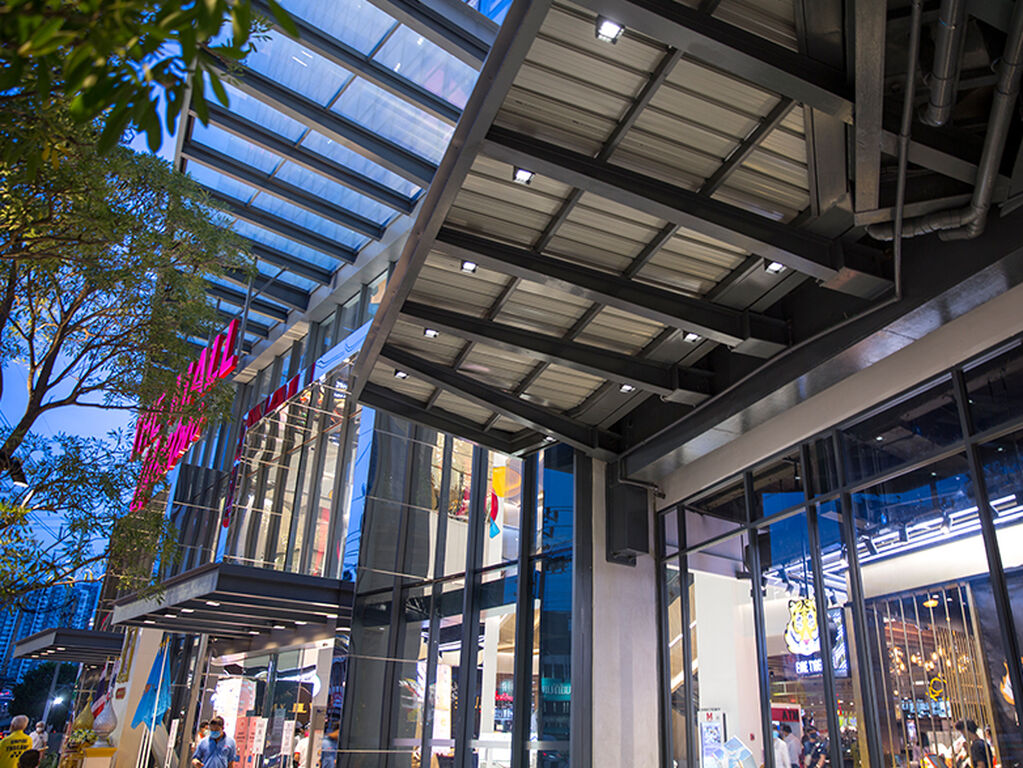

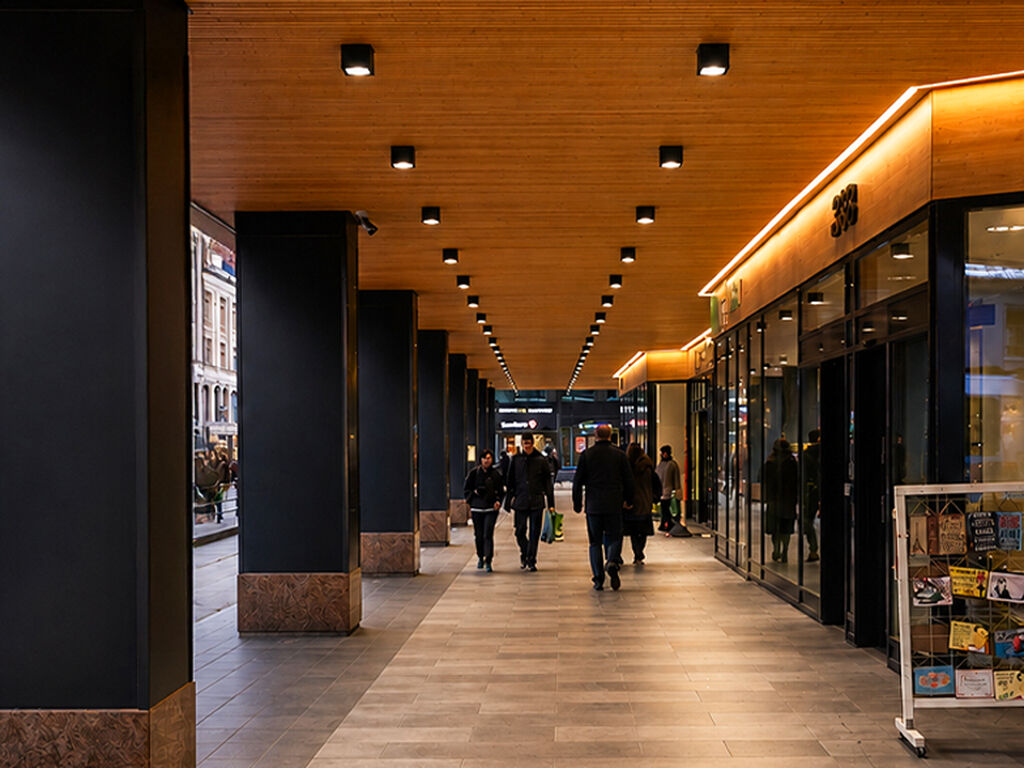

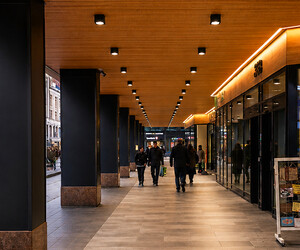

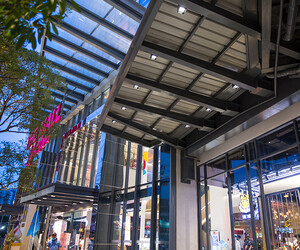

Project reference (LADOR Surface exterior downlights)

Need professional lighting expertise? Chat with our specialists.
LIGMAN.AIBETA
LIGMAN.AI Assistant
Online
Rename
