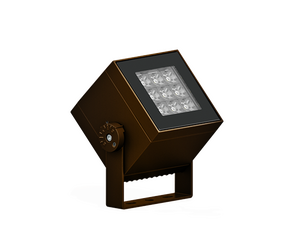

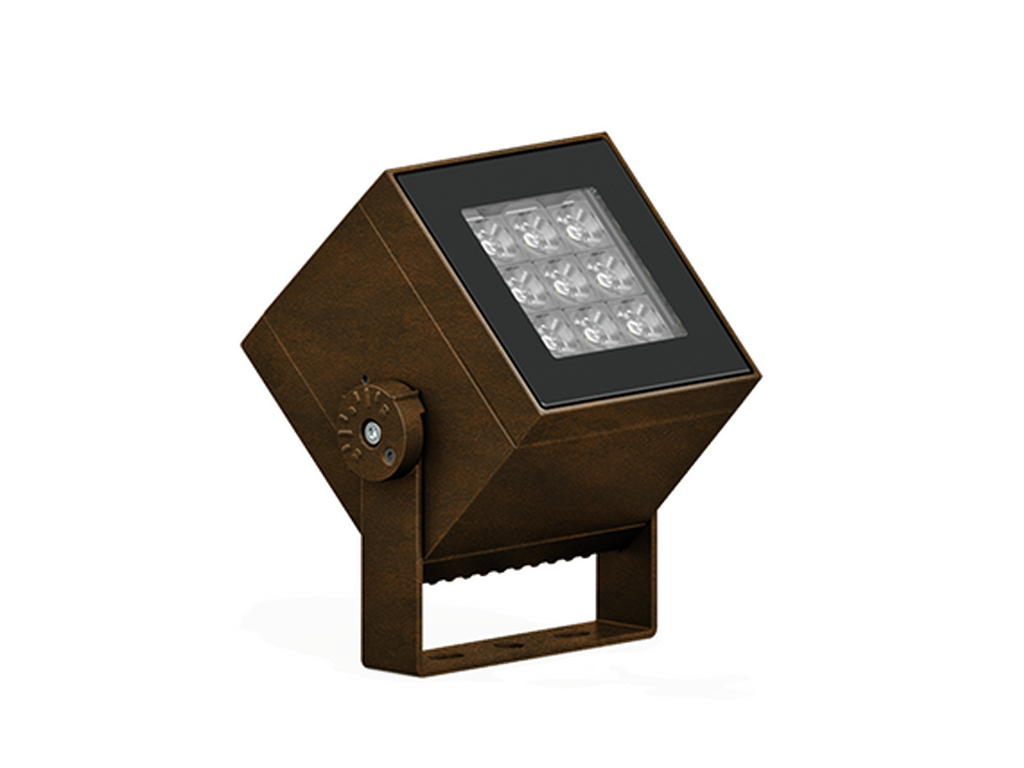

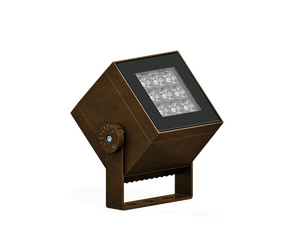

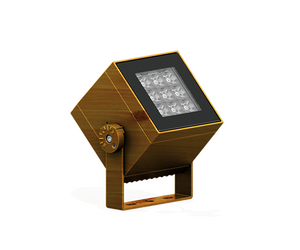

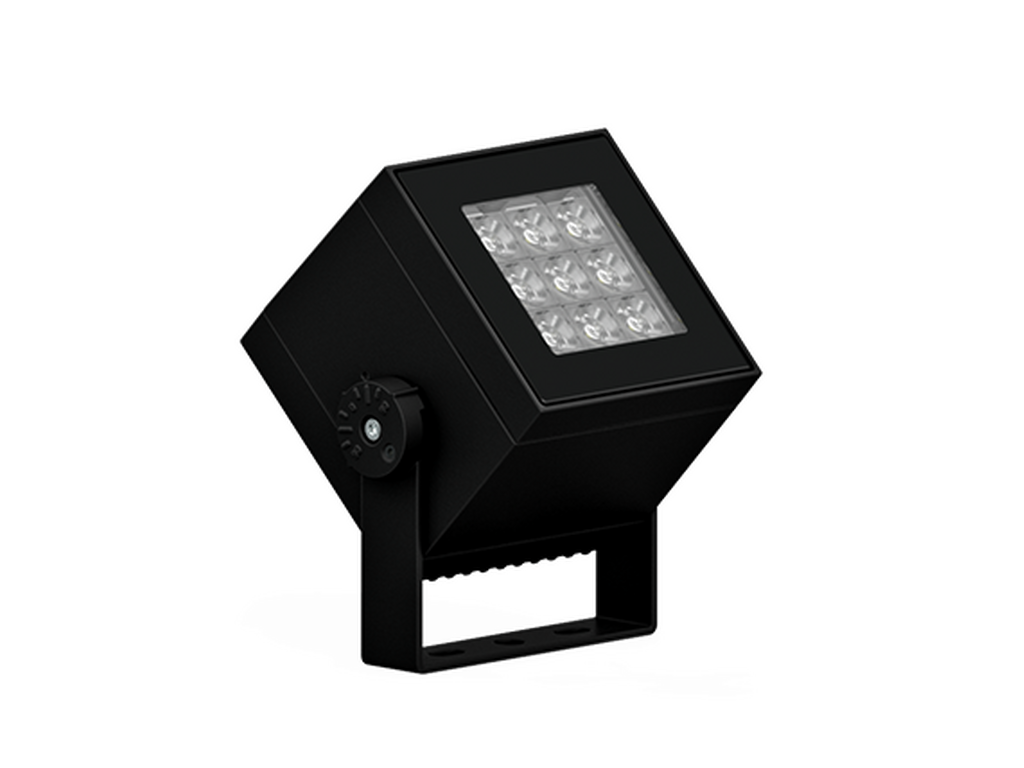

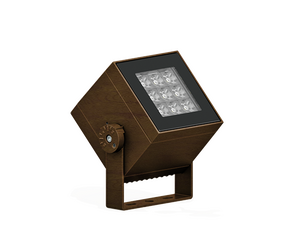

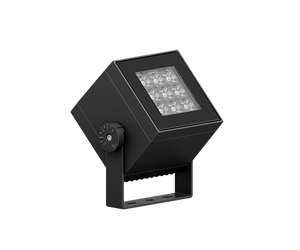

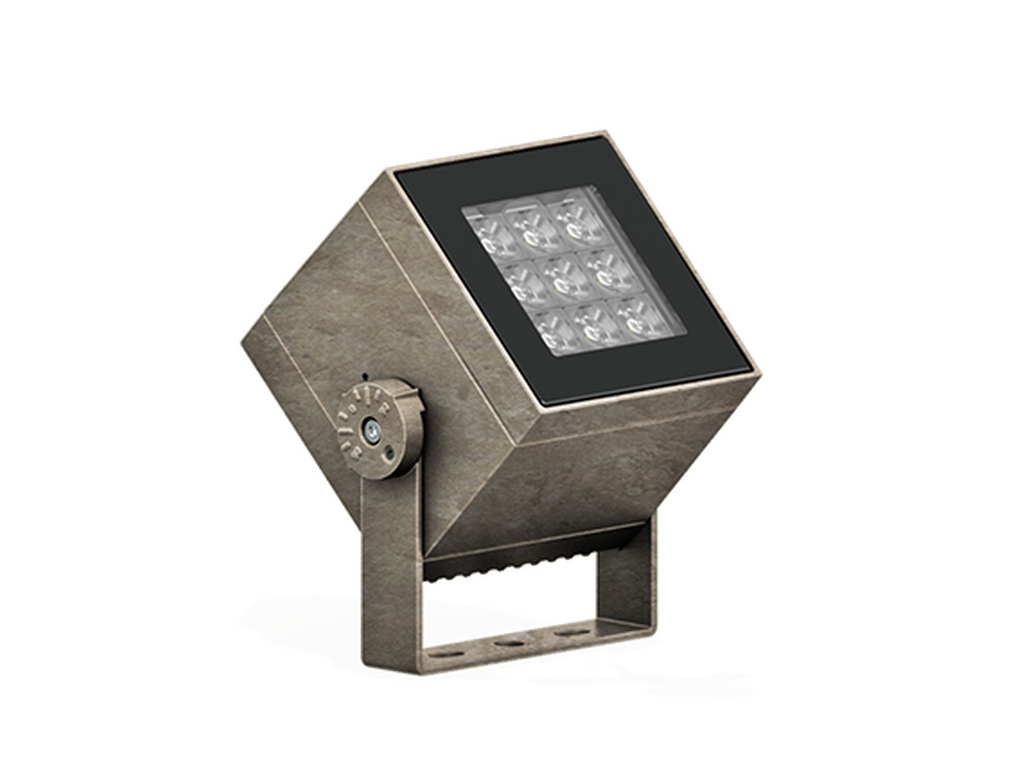

LIGMAN LADOR 3 LD-50021.

LADOR 3LD-50021Floodlights, projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
LADOR 3Black
LADOR 3Dark Grey
LADOR 3White
LADOR 3Matt Silver
LADOR 3Bronze
LADOR 3Concrete - Urban
LADOR 3Softscape - Urban
LADOR 3Stone - Urban

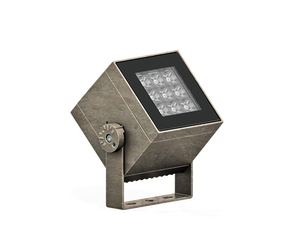

LADOR 3Corten - Urban
LADOR 3Oak - Woodland
LADOR 3Walnut - Woodland
LADOR 3Pine - Woodland

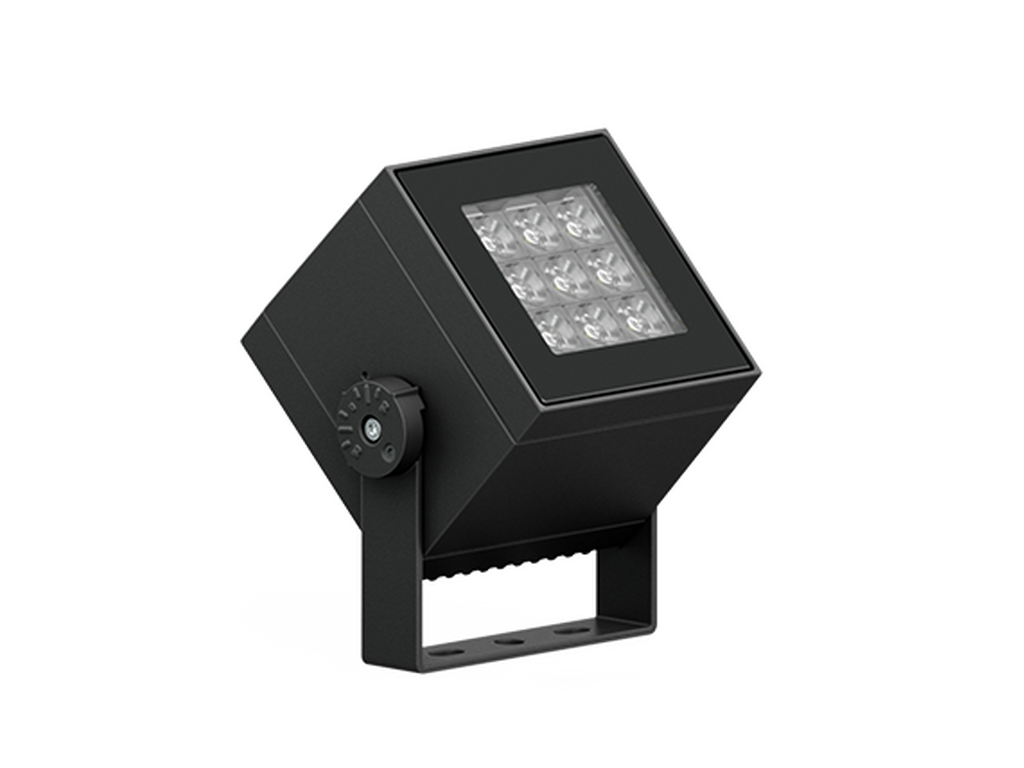

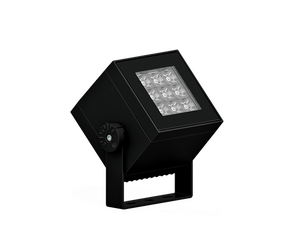

LADOR 3Black
LADOR 3Dark Grey

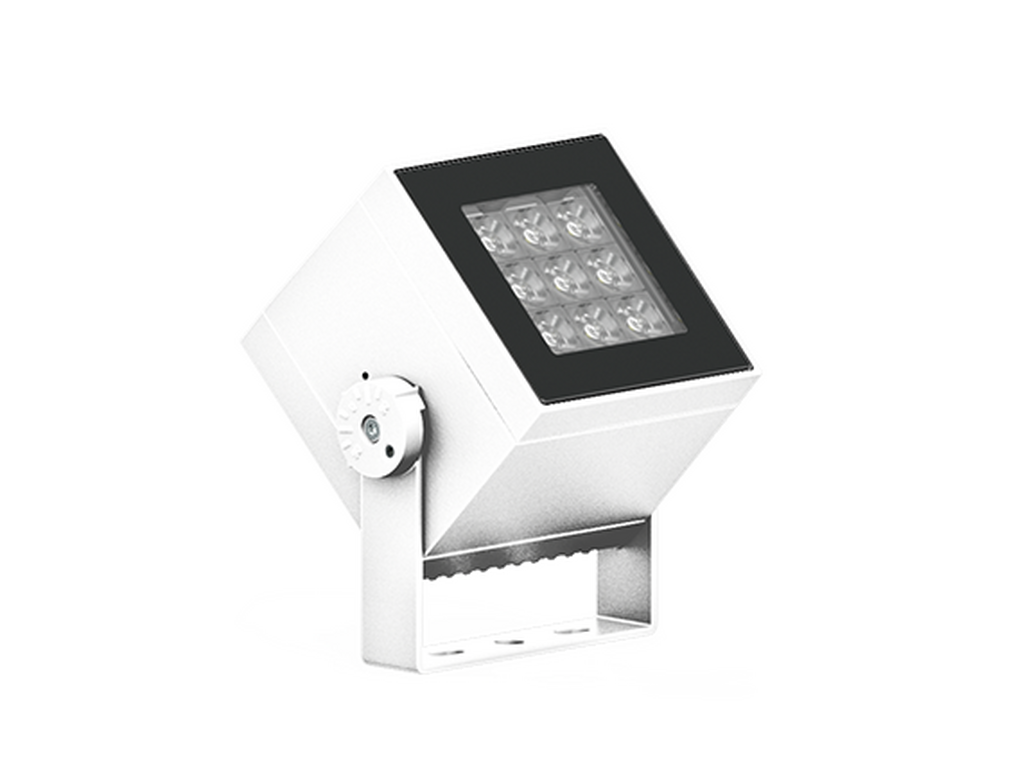

LADOR 3White

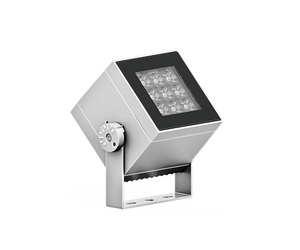

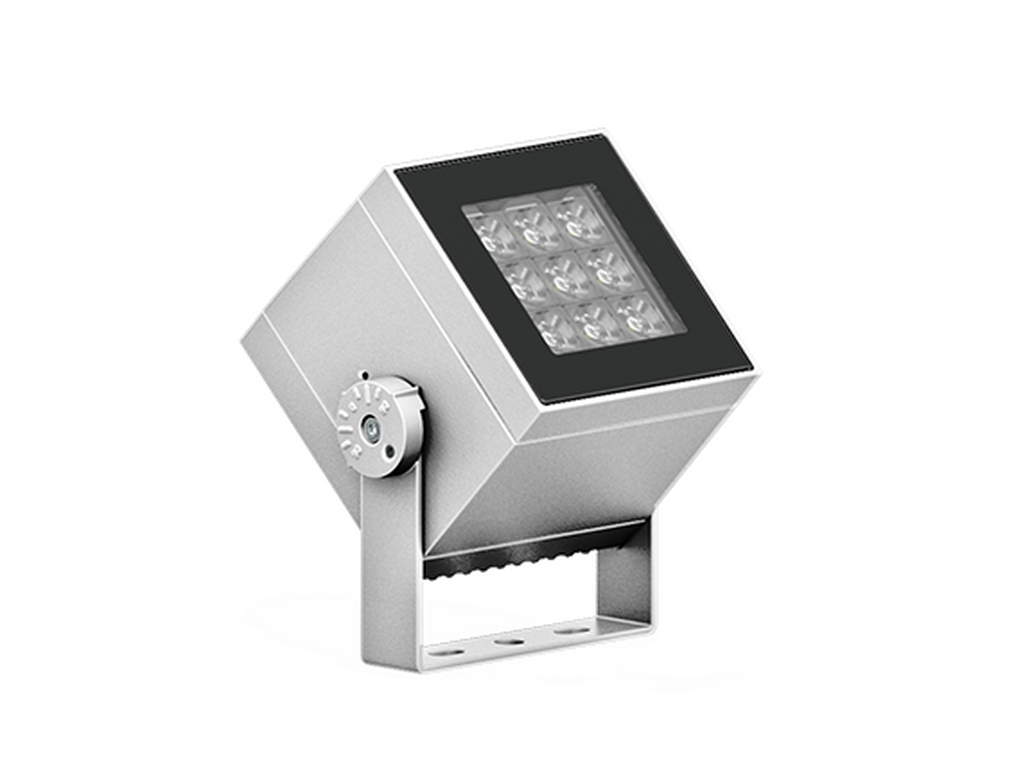

LADOR 3Matt Silver

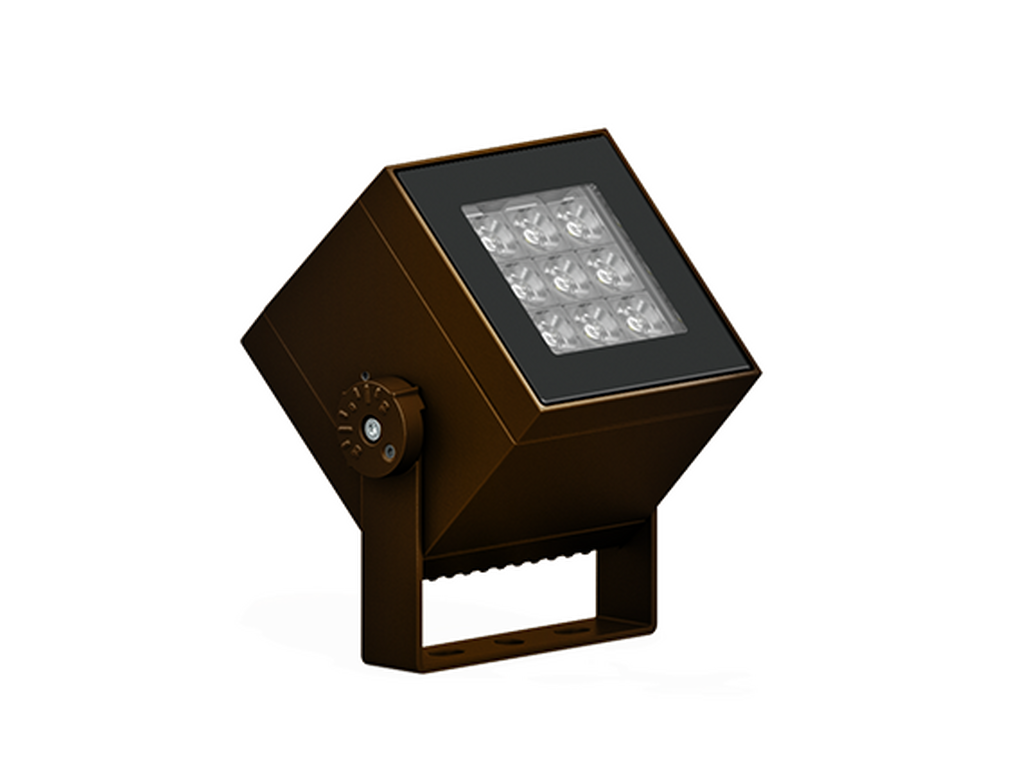

LADOR 3Bronze
LADOR 3Concrete - Urban
LADOR 3Softscape - Urban
LADOR 3Stone - Urban
LADOR 3Corten - Urban

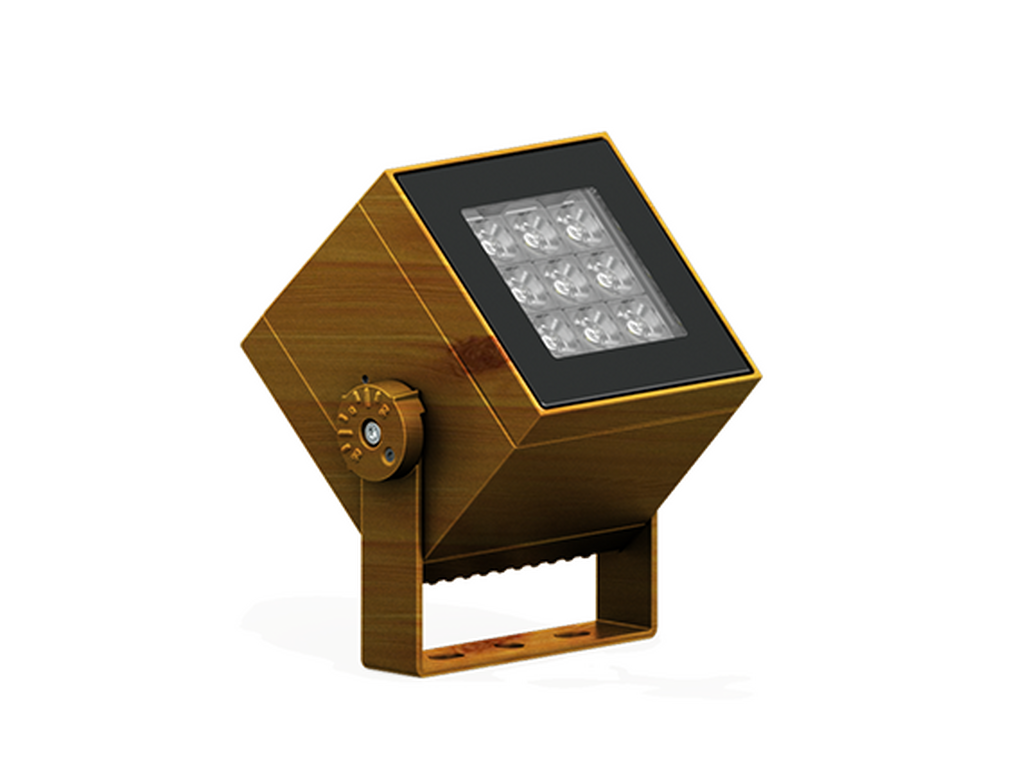

LADOR 3Oak - Woodland

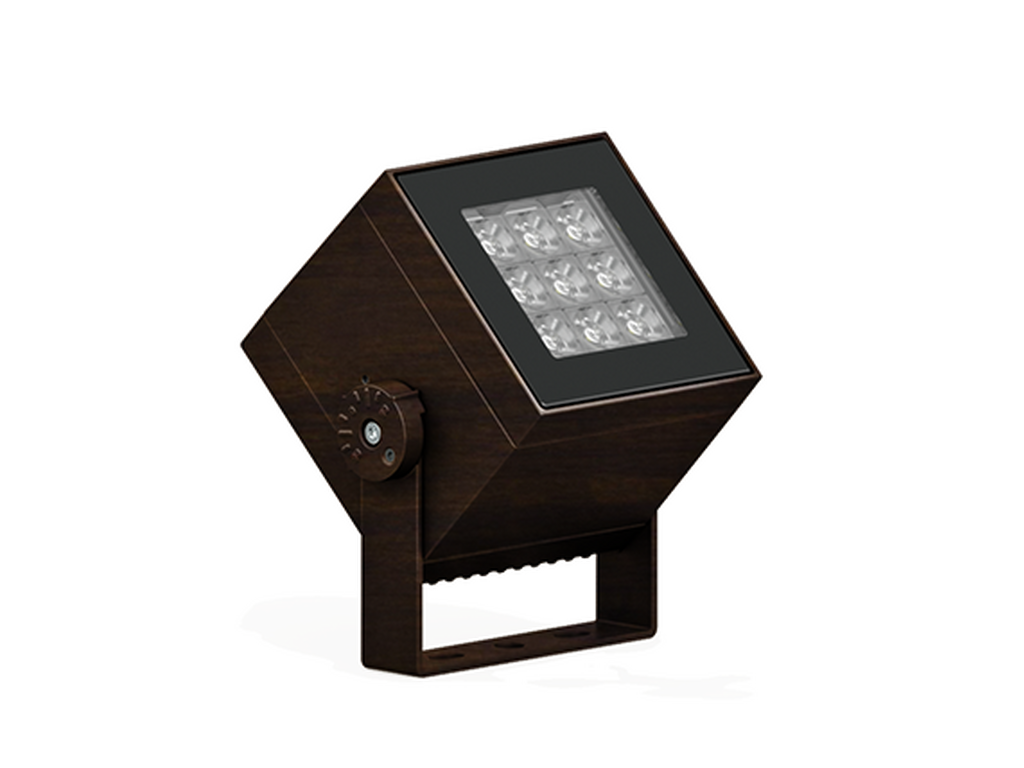

LADOR 3Walnut - Woodland
LADOR 3Pine - Woodland
Integral control gear - 120x120 mm - Class I
CERETILAPBISClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
9 LED
Power (W)
21 W
Lumen (lm)
1306 - 2364 lm
Efficacy (lm/W)
62 - 113 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW, E
Optic value
10°, 17°, 34°, 70°, 43°x11°
CCT / CRI
3000K CRI80, 4000K CRI80, TW(AMBER - 3000K)
Bug
B1-U0-G0, B2-U0-G0, B3-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100
Dimming type
On/Off, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.2 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.019
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000
Variants (On/Off, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

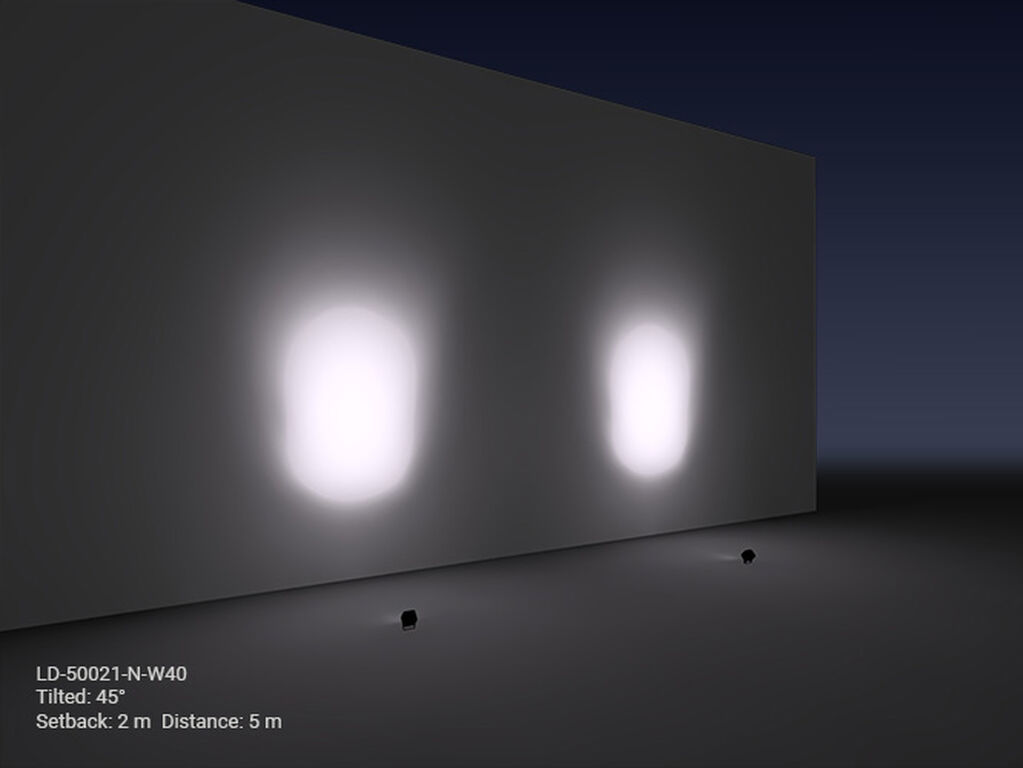

LIGHT EFFECT

Optic
N (10°)
M (17°)
W (34°)
VW (70°)
E (43°x11°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
