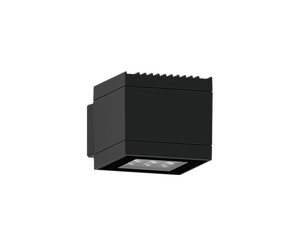

Integral control gear - 120x120 mm - Class I
CERETILAPClass IIP65IK08

Technical information

Material
Aluminium
Light source
9 LED
Power (W)
21 W
Lumen (lm)
1921 - 2364 lm
Efficacy (lm/W)
91 - 113 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW, E
Optic value
10°, 17°, 34°, 70°, 43°x11°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U0-G0, B3-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100
Dimming type
On/Off, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.0 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000
Variants (On/Off, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Light effect

Optic
N (10°)
M (17°)
W (34°)
VW (70°)
E (43°x11°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory

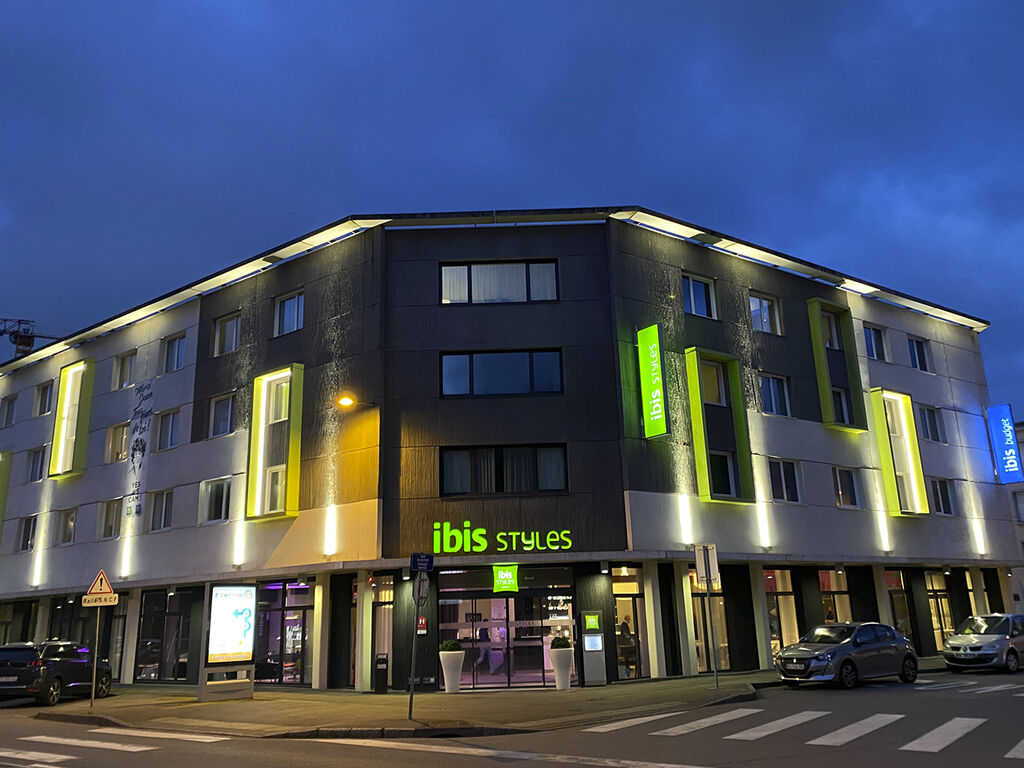

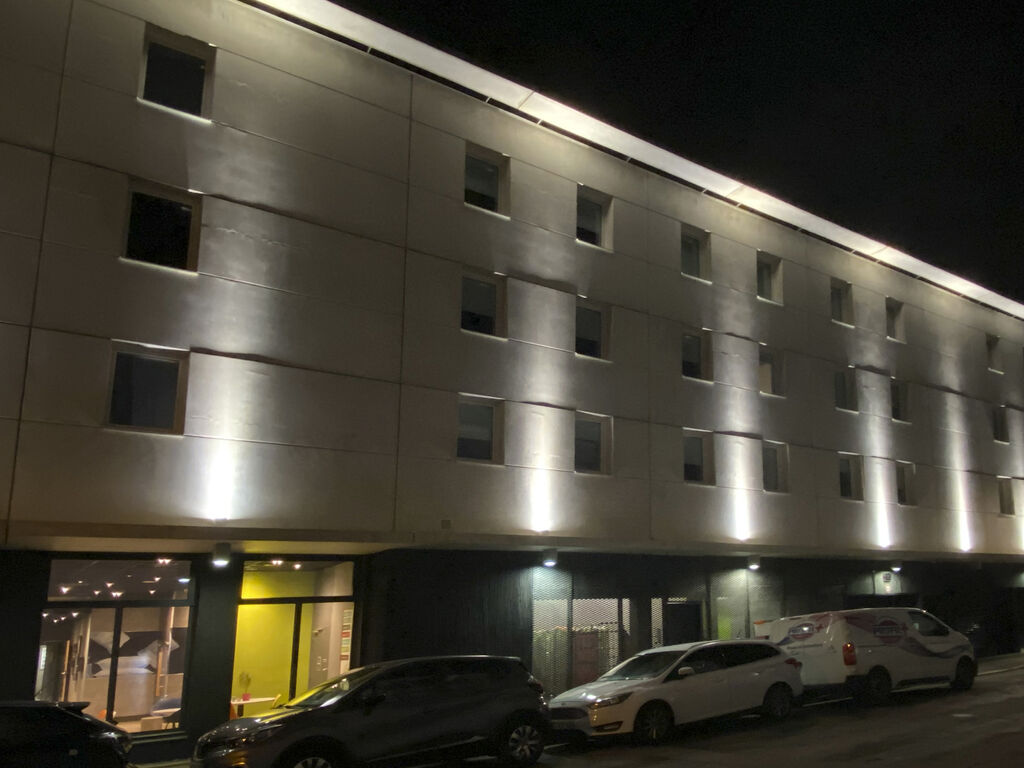

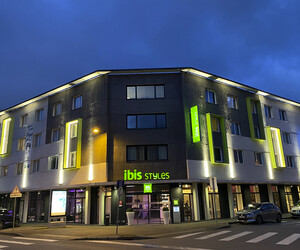

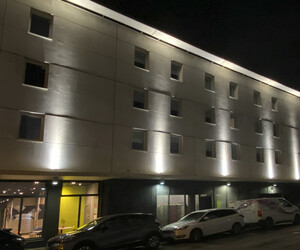

Project reference (LADOR Surface facade luminaires)
