NEW

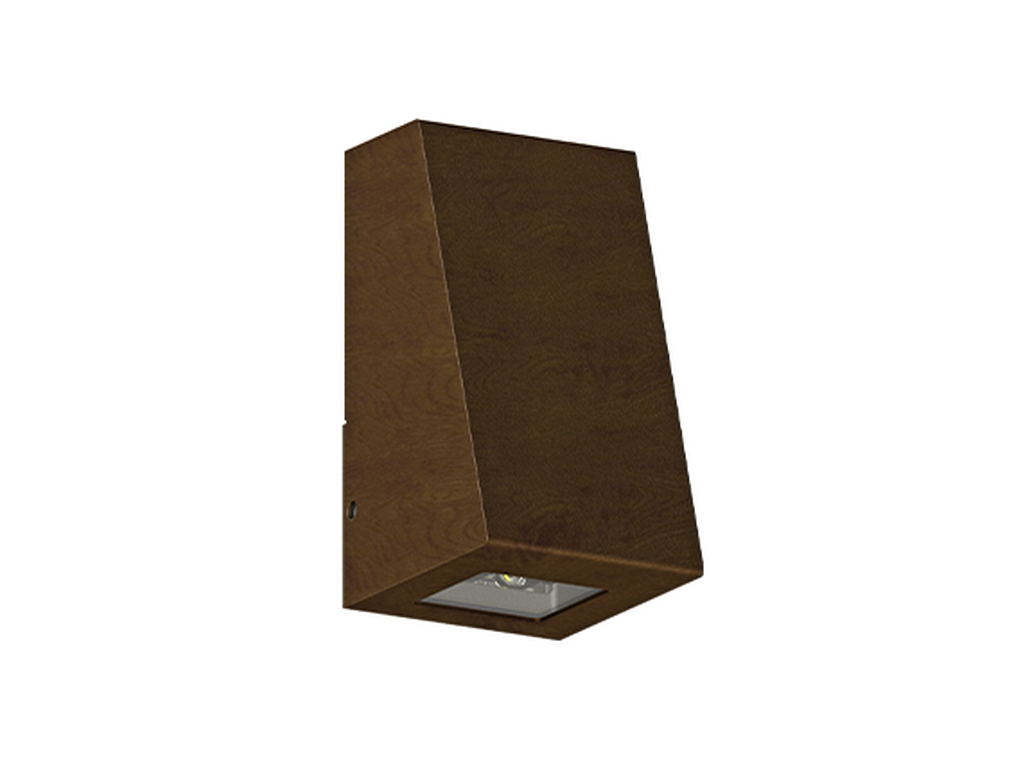

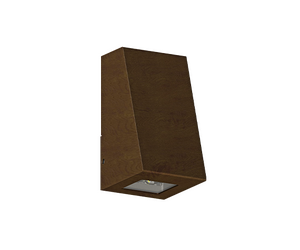

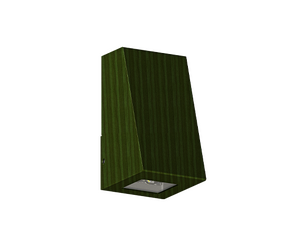

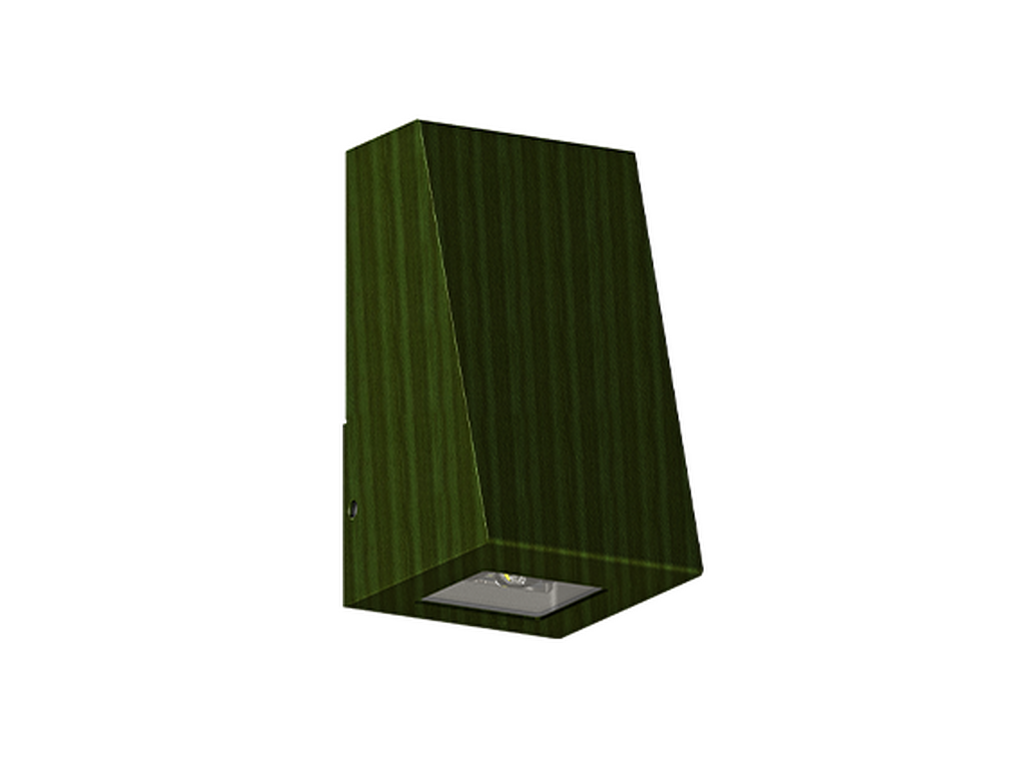

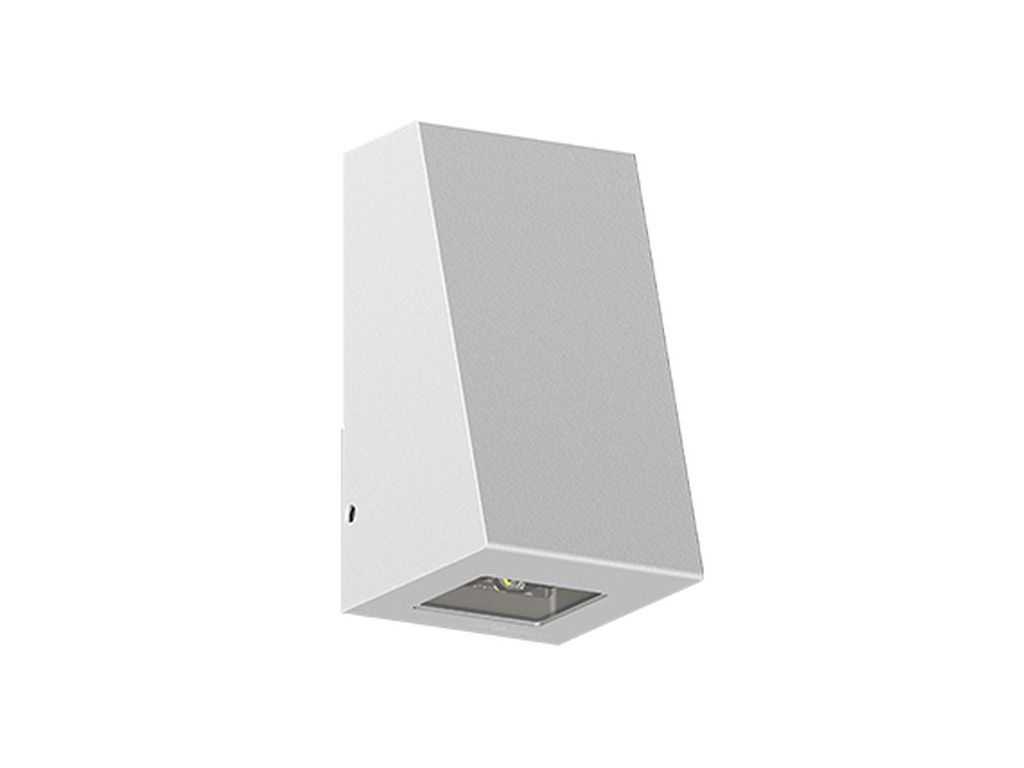

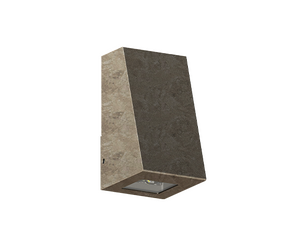

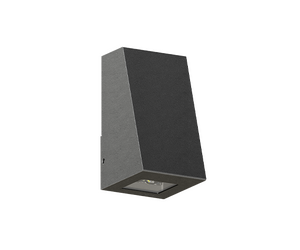

LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1
LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1LEEDS WEDGE 1
Small
CEClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
4 LED
Power (Luminaire)
8 W
Lumen (Luminaire)
576 - 795 lm
Luminaire luminous efficacy
72 - 99 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
EW, M, ME, T2, T3, T4, W
Optic value
112°x80°, 122°x50°, 129°x49°, 30°, 56°, 89°x60°, 99°x102°
CCT / CRI
3000K, 4000K
Bug
B0-U0-G0, B1-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100, 99
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
0.8 kg
Operating temperature
-20 °C to 40 °C
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
90,000
Lifetime L80B10 (hours)
90,000
Lifetime L80B50 (hours)
90,000

LIGHT EFFECT

Light distribution
EW (99°x102°)

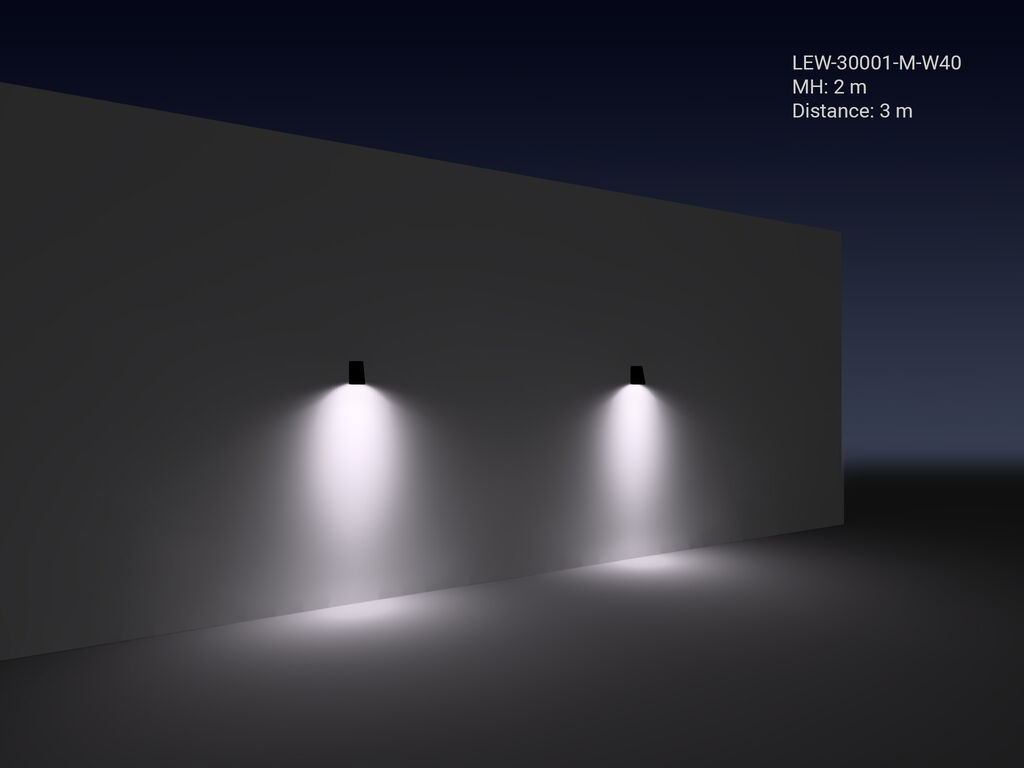

M (30°)
ME (122°x50°)
T2 (129°x49°)
T3 (112°x80°)
T4 (89°x60°)
W (56°)

CODE FINDER

Lumen
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: LEW-30001-EW-W30-ND-01
Lumen: 679 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 3000K
Dimming type: On/Off

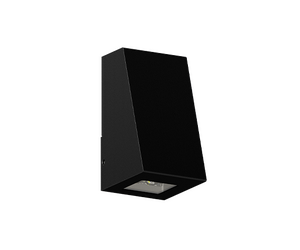

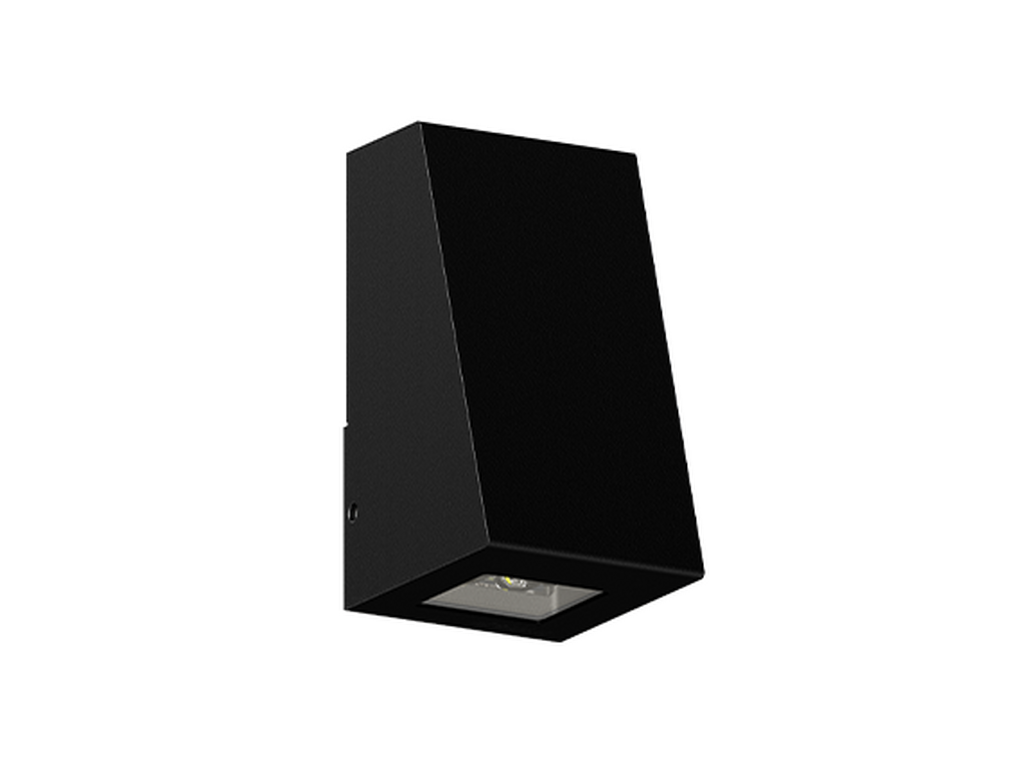

Product colour: Black
Variant code: LEW-30001-EW-W30-ND-02
Lumen: 679 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 3000K
Dimming type: On/Off

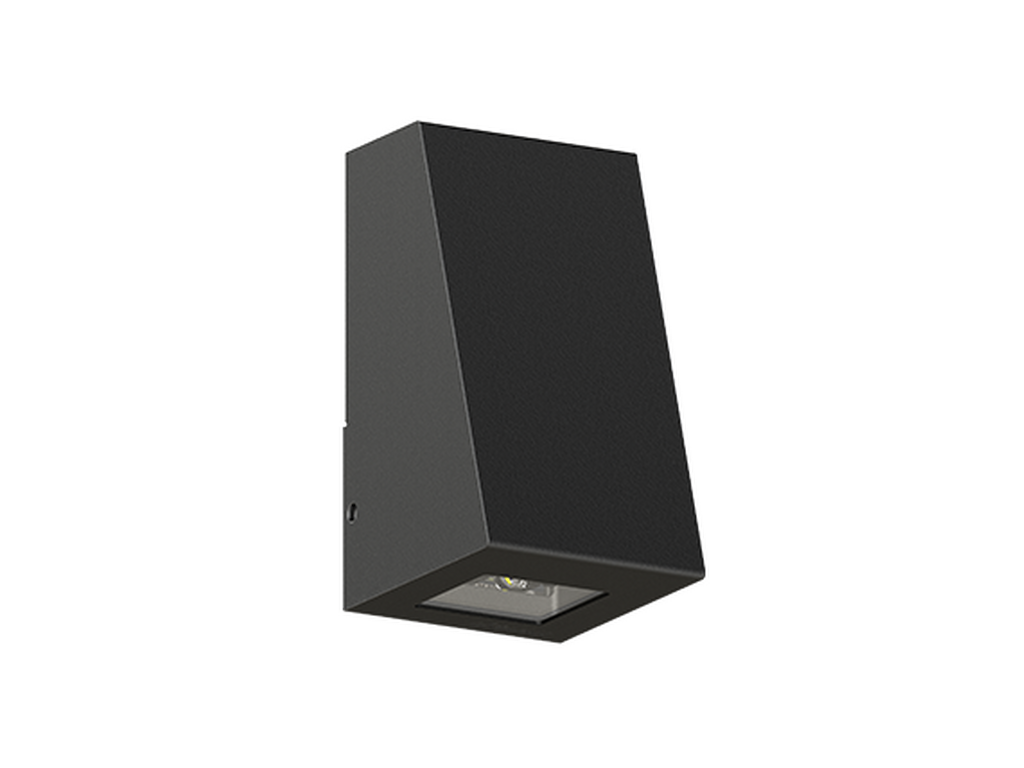

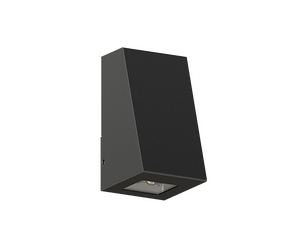

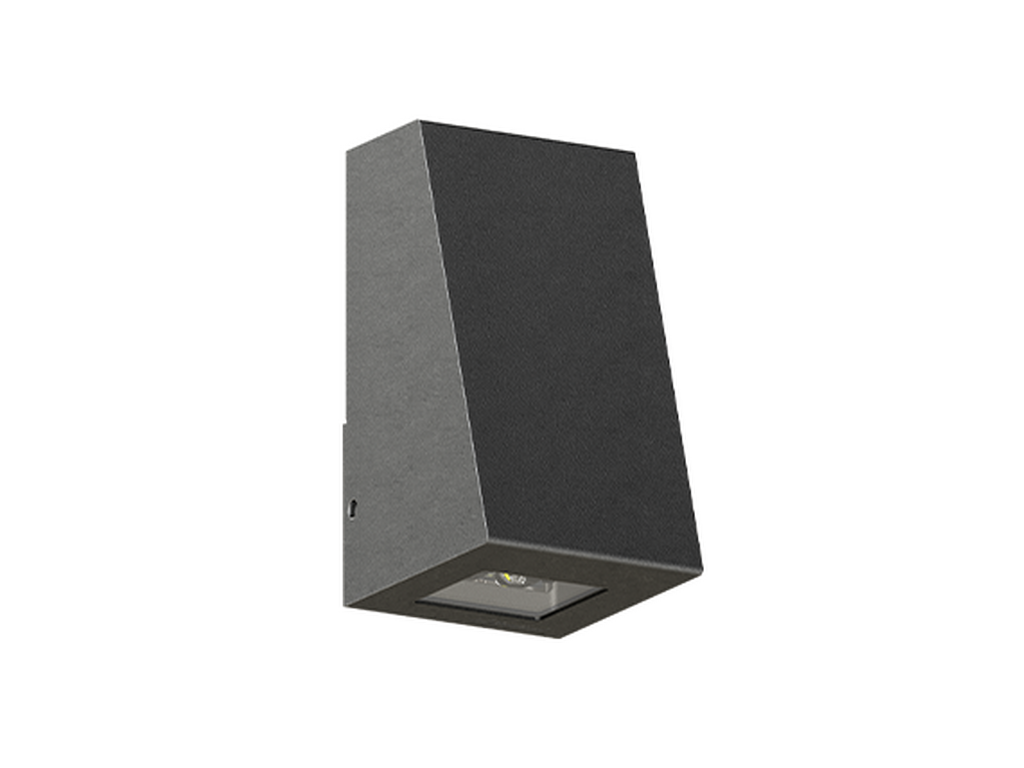

Product colour: Dark Grey
Variant code: LEW-30001-EW-W30-ND-03
Lumen: 679 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 3000K
Dimming type: On/Off

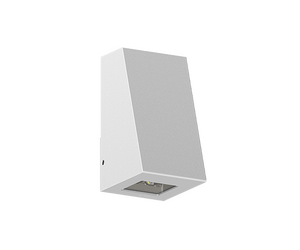

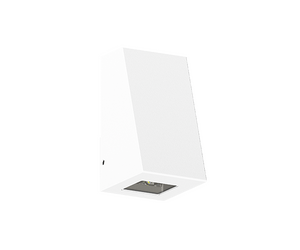

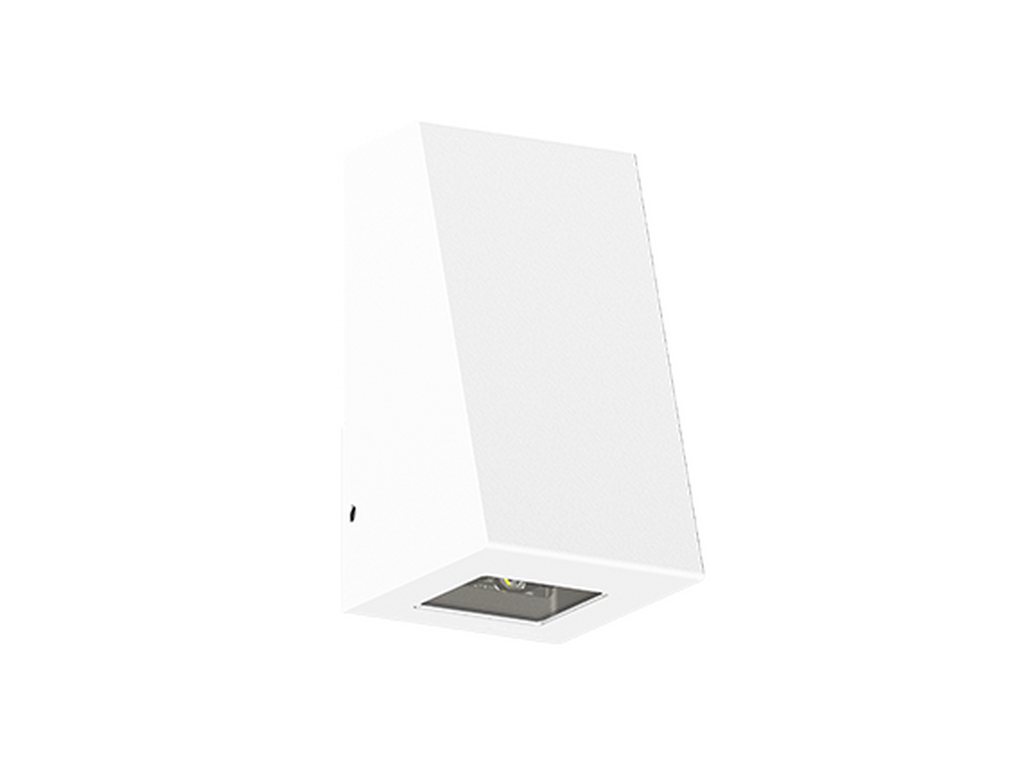

Product colour: White
Variant code: LEW-30001-EW-W30-ND-05
Lumen: 679 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LEW-30001-EW-W30-ND-06
Lumen: 679 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 3000K
Dimming type: On/Off

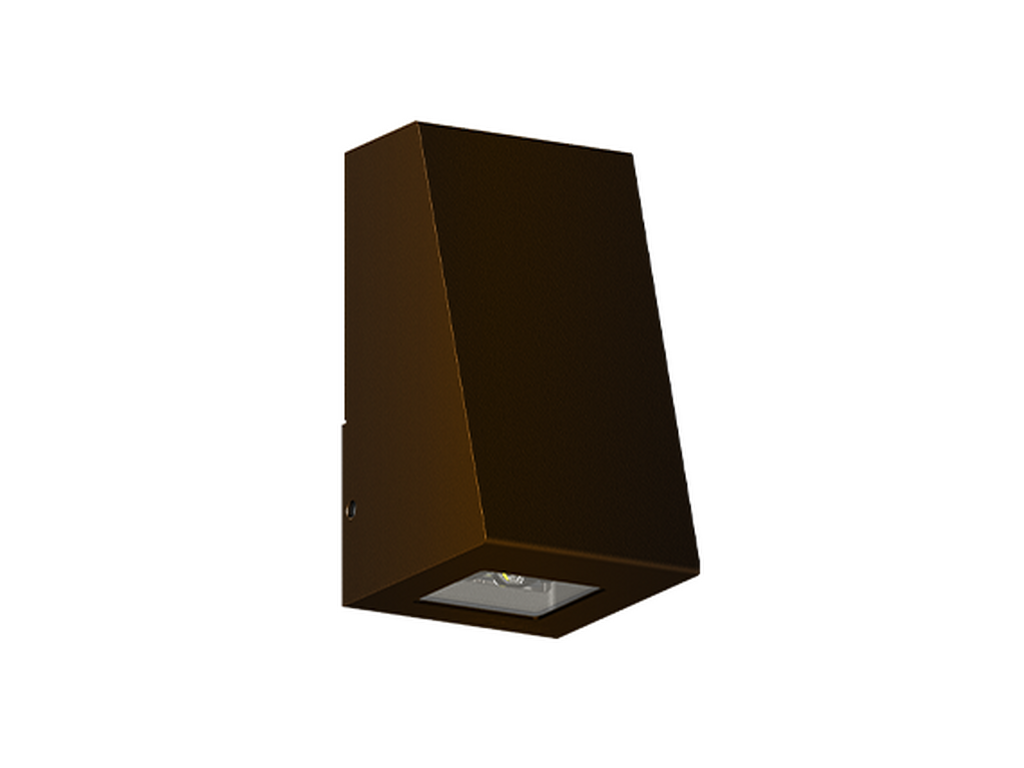

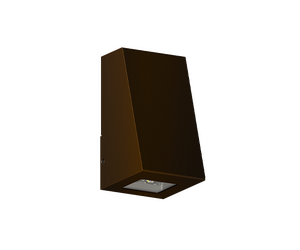

Product colour: Bronze
Variant code: LEW-30001-EW-W30-ND-SU01
Lumen: 679 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LEW-30001-EW-W30-ND-SU02
Lumen: 679 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LEW-30001-EW-W30-ND-SU03
Lumen: 679 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 3000K
Dimming type: On/Off

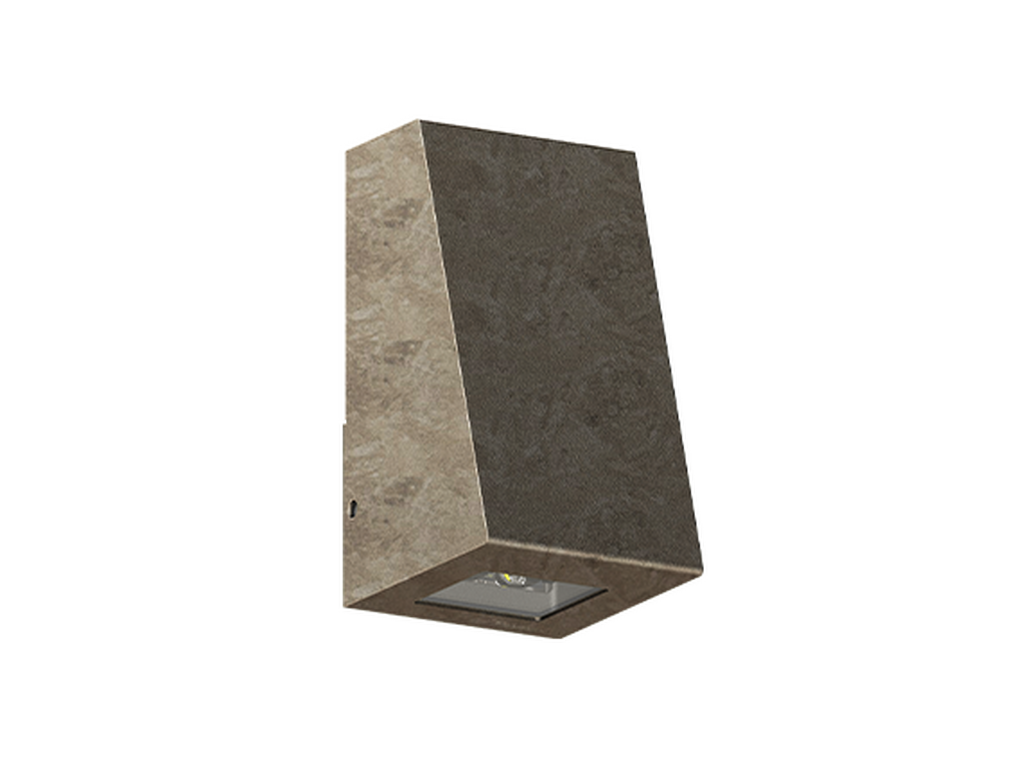

Product colour: Stone - Urban
Variant code: LEW-30001-EW-W30-ND-SU04
Lumen: 679 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 3000K
Dimming type: On/Off

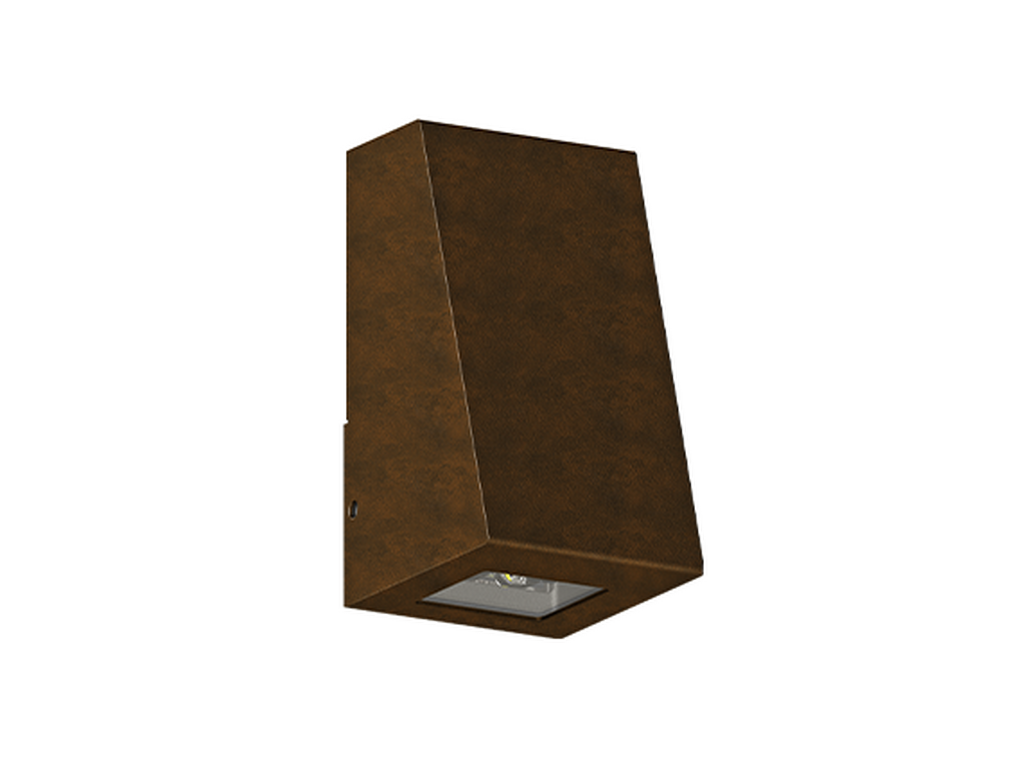

Product colour: Corten - Urban
Variant code: LEW-30001-EW-W30-ND-SW01
Lumen: 679 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 3000K
Dimming type: On/Off

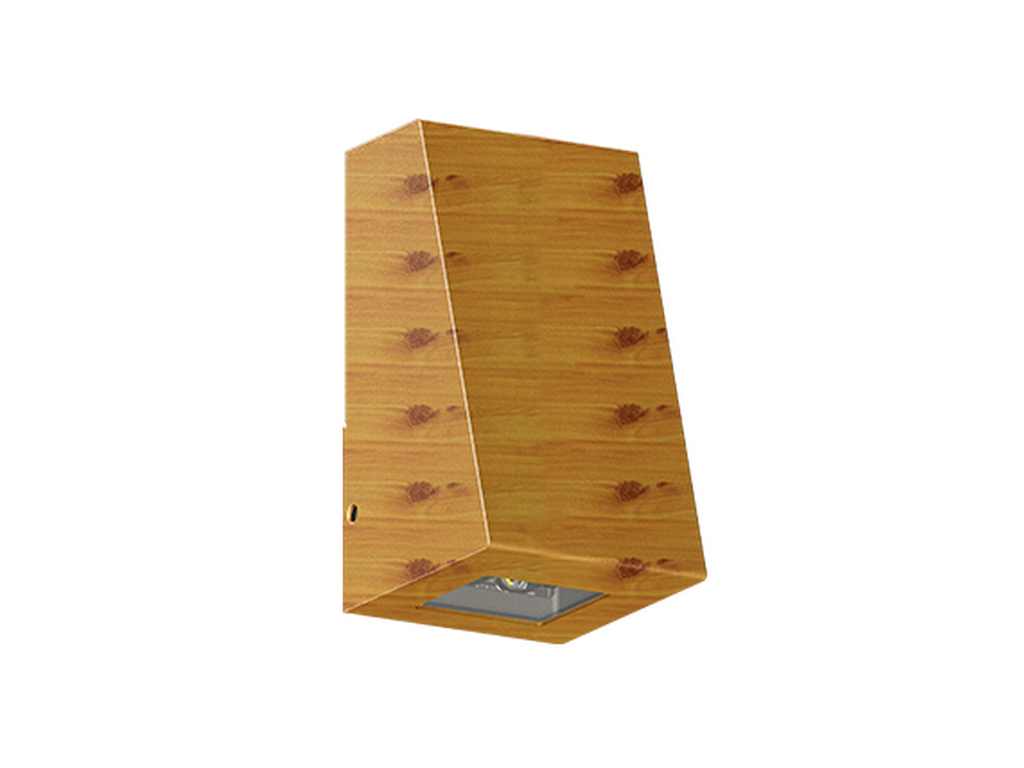

Product colour: Oak - Woodland
Variant code: LEW-30001-EW-W30-ND-SW02
Lumen: 679 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 3000K
Dimming type: On/Off

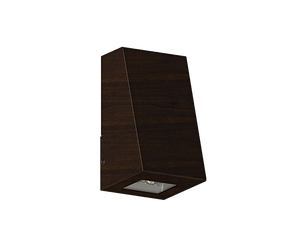

Product colour: Walnut - Woodland
Variant code: LEW-30001-EW-W30-ND-SW03
Lumen: 679 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LEW-30001-EW-W40-ND-01
Lumen: 719 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Black
Variant code: LEW-30001-EW-W40-ND-02
Lumen: 719 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LEW-30001-EW-W40-ND-03
Lumen: 719 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: White
Variant code: LEW-30001-EW-W40-ND-05
Lumen: 719 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LEW-30001-EW-W40-ND-06
Lumen: 719 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Bronze
Variant code: LEW-30001-EW-W40-ND-SU01
Lumen: 719 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LEW-30001-EW-W40-ND-SU02
Lumen: 719 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LEW-30001-EW-W40-ND-SU03
Lumen: 719 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LEW-30001-EW-W40-ND-SU04
Lumen: 719 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LEW-30001-EW-W40-ND-SW01
Lumen: 719 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LEW-30001-EW-W40-ND-SW02
Lumen: 719 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LEW-30001-EW-W40-ND-SW03
Lumen: 719 lm
Optic: EW
Optic value: 99°x102°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LEW-30001-M-W30-ND-01
Lumen: 751 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Black
Variant code: LEW-30001-M-W30-ND-02
Lumen: 751 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LEW-30001-M-W30-ND-03
Lumen: 751 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: White
Variant code: LEW-30001-M-W30-ND-05
Lumen: 751 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LEW-30001-M-W30-ND-06
Lumen: 751 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Bronze
Variant code: LEW-30001-M-W30-ND-SU01
Lumen: 751 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LEW-30001-M-W30-ND-SU02
Lumen: 751 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LEW-30001-M-W30-ND-SU03
Lumen: 751 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LEW-30001-M-W30-ND-SU04
Lumen: 751 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LEW-30001-M-W30-ND-SW01
Lumen: 751 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LEW-30001-M-W30-ND-SW02
Lumen: 751 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LEW-30001-M-W30-ND-SW03
Lumen: 751 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LEW-30001-M-W40-ND-01
Lumen: 795 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Black
Variant code: LEW-30001-M-W40-ND-02
Lumen: 795 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LEW-30001-M-W40-ND-03
Lumen: 795 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: White
Variant code: LEW-30001-M-W40-ND-05
Lumen: 795 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LEW-30001-M-W40-ND-06
Lumen: 795 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Bronze
Variant code: LEW-30001-M-W40-ND-SU01
Lumen: 795 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LEW-30001-M-W40-ND-SU02
Lumen: 795 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LEW-30001-M-W40-ND-SU03
Lumen: 795 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LEW-30001-M-W40-ND-SU04
Lumen: 795 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LEW-30001-M-W40-ND-SW01
Lumen: 795 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LEW-30001-M-W40-ND-SW02
Lumen: 795 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LEW-30001-M-W40-ND-SW03
Lumen: 795 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LEW-30001-ME-W30-ND-01
Lumen: 589 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Black
Variant code: LEW-30001-ME-W30-ND-02
Lumen: 589 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LEW-30001-ME-W30-ND-03
Lumen: 589 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: White
Variant code: LEW-30001-ME-W30-ND-05
Lumen: 589 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LEW-30001-ME-W30-ND-06
Lumen: 589 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Bronze
Variant code: LEW-30001-ME-W30-ND-SU01
Lumen: 589 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LEW-30001-ME-W30-ND-SU02
Lumen: 589 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LEW-30001-ME-W30-ND-SU03
Lumen: 589 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LEW-30001-ME-W30-ND-SU04
Lumen: 589 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LEW-30001-ME-W30-ND-SW01
Lumen: 589 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LEW-30001-ME-W30-ND-SW02
Lumen: 589 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LEW-30001-ME-W30-ND-SW03
Lumen: 589 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LEW-30001-ME-W40-ND-01
Lumen: 624 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Black
Variant code: LEW-30001-ME-W40-ND-02
Lumen: 624 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LEW-30001-ME-W40-ND-03
Lumen: 624 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: White
Variant code: LEW-30001-ME-W40-ND-05
Lumen: 624 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LEW-30001-ME-W40-ND-06
Lumen: 624 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Bronze
Variant code: LEW-30001-ME-W40-ND-SU01
Lumen: 624 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LEW-30001-ME-W40-ND-SU02
Lumen: 624 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LEW-30001-ME-W40-ND-SU03
Lumen: 624 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LEW-30001-ME-W40-ND-SU04
Lumen: 624 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LEW-30001-ME-W40-ND-SW01
Lumen: 624 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LEW-30001-ME-W40-ND-SW02
Lumen: 624 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LEW-30001-ME-W40-ND-SW03
Lumen: 624 lm
Optic: ME
Optic value: 122°x50°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LEW-30001-T2-W30-ND-01
Lumen: 597 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Black
Variant code: LEW-30001-T2-W30-ND-02
Lumen: 597 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LEW-30001-T2-W30-ND-03
Lumen: 597 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: White
Variant code: LEW-30001-T2-W30-ND-05
Lumen: 597 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LEW-30001-T2-W30-ND-06
Lumen: 597 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Bronze
Variant code: LEW-30001-T2-W30-ND-SU01
Lumen: 597 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LEW-30001-T2-W30-ND-SU02
Lumen: 597 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LEW-30001-T2-W30-ND-SU03
Lumen: 597 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LEW-30001-T2-W30-ND-SU04
Lumen: 597 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LEW-30001-T2-W30-ND-SW01
Lumen: 597 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LEW-30001-T2-W30-ND-SW02
Lumen: 597 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LEW-30001-T2-W30-ND-SW03
Lumen: 597 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LEW-30001-T2-W40-ND-01
Lumen: 632 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Black
Variant code: LEW-30001-T2-W40-ND-02
Lumen: 632 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LEW-30001-T2-W40-ND-03
Lumen: 632 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: White
Variant code: LEW-30001-T2-W40-ND-05
Lumen: 632 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LEW-30001-T2-W40-ND-06
Lumen: 632 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Bronze
Variant code: LEW-30001-T2-W40-ND-SU01
Lumen: 632 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LEW-30001-T2-W40-ND-SU02
Lumen: 632 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LEW-30001-T2-W40-ND-SU03
Lumen: 632 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LEW-30001-T2-W40-ND-SU04
Lumen: 632 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LEW-30001-T2-W40-ND-SW01
Lumen: 632 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LEW-30001-T2-W40-ND-SW02
Lumen: 632 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LEW-30001-T2-W40-ND-SW03
Lumen: 632 lm
Optic: T2
Optic value: 129°x49°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LEW-30001-T3-W30-ND-01
Lumen: 576 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Black
Variant code: LEW-30001-T3-W30-ND-02
Lumen: 576 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LEW-30001-T3-W30-ND-03
Lumen: 576 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: White
Variant code: LEW-30001-T3-W30-ND-05
Lumen: 576 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LEW-30001-T3-W30-ND-06
Lumen: 576 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Bronze
Variant code: LEW-30001-T3-W30-ND-SU01
Lumen: 576 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LEW-30001-T3-W30-ND-SU02
Lumen: 576 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LEW-30001-T3-W30-ND-SU03
Lumen: 576 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LEW-30001-T3-W30-ND-SU04
Lumen: 576 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LEW-30001-T3-W30-ND-SW01
Lumen: 576 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LEW-30001-T3-W30-ND-SW02
Lumen: 576 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LEW-30001-T3-W30-ND-SW03
Lumen: 576 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LEW-30001-T3-W40-ND-01
Lumen: 610 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Black
Variant code: LEW-30001-T3-W40-ND-02
Lumen: 610 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LEW-30001-T3-W40-ND-03
Lumen: 610 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: White
Variant code: LEW-30001-T3-W40-ND-05
Lumen: 610 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LEW-30001-T3-W40-ND-06
Lumen: 610 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Bronze
Variant code: LEW-30001-T3-W40-ND-SU01
Lumen: 610 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LEW-30001-T3-W40-ND-SU02
Lumen: 610 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LEW-30001-T3-W40-ND-SU03
Lumen: 610 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LEW-30001-T3-W40-ND-SU04
Lumen: 610 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LEW-30001-T3-W40-ND-SW01
Lumen: 610 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LEW-30001-T3-W40-ND-SW02
Lumen: 610 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LEW-30001-T3-W40-ND-SW03
Lumen: 610 lm
Optic: T3
Optic value: 112°x80°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LEW-30001-T4-W30-ND-01
Lumen: 606 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Black
Variant code: LEW-30001-T4-W30-ND-02
Lumen: 606 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LEW-30001-T4-W30-ND-03
Lumen: 606 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: White
Variant code: LEW-30001-T4-W30-ND-05
Lumen: 606 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LEW-30001-T4-W30-ND-06
Lumen: 606 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Bronze
Variant code: LEW-30001-T4-W30-ND-SU01
Lumen: 606 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LEW-30001-T4-W30-ND-SU02
Lumen: 606 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LEW-30001-T4-W30-ND-SU03
Lumen: 606 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LEW-30001-T4-W30-ND-SU04
Lumen: 606 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LEW-30001-T4-W30-ND-SW01
Lumen: 606 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LEW-30001-T4-W30-ND-SW02
Lumen: 606 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LEW-30001-T4-W30-ND-SW03
Lumen: 606 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LEW-30001-T4-W40-ND-01
Lumen: 642 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Black
Variant code: LEW-30001-T4-W40-ND-02
Lumen: 642 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LEW-30001-T4-W40-ND-03
Lumen: 642 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: White
Variant code: LEW-30001-T4-W40-ND-05
Lumen: 642 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LEW-30001-T4-W40-ND-06
Lumen: 642 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Bronze
Variant code: LEW-30001-T4-W40-ND-SU01
Lumen: 642 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LEW-30001-T4-W40-ND-SU02
Lumen: 642 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LEW-30001-T4-W40-ND-SU03
Lumen: 642 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LEW-30001-T4-W40-ND-SU04
Lumen: 642 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LEW-30001-T4-W40-ND-SW01
Lumen: 642 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LEW-30001-T4-W40-ND-SW02
Lumen: 642 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LEW-30001-T4-W40-ND-SW03
Lumen: 642 lm
Optic: T4
Optic value: 89°x60°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LEW-30001-W-W30-ND-01
Lumen: 730 lm
Optic: W
Optic value: 56°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Black
Variant code: LEW-30001-W-W30-ND-02
Lumen: 730 lm
Optic: W
Optic value: 56°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LEW-30001-W-W30-ND-03
Lumen: 730 lm
Optic: W
Optic value: 56°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: White
Variant code: LEW-30001-W-W30-ND-05
Lumen: 730 lm
Optic: W
Optic value: 56°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LEW-30001-W-W30-ND-06
Lumen: 730 lm
Optic: W
Optic value: 56°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Bronze
Variant code: LEW-30001-W-W30-ND-SU01
Lumen: 730 lm
Optic: W
Optic value: 56°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LEW-30001-W-W30-ND-SU02
Lumen: 730 lm
Optic: W
Optic value: 56°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LEW-30001-W-W30-ND-SU03
Lumen: 730 lm
Optic: W
Optic value: 56°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LEW-30001-W-W30-ND-SU04
Lumen: 730 lm
Optic: W
Optic value: 56°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LEW-30001-W-W30-ND-SW01
Lumen: 730 lm
Optic: W
Optic value: 56°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LEW-30001-W-W30-ND-SW02
Lumen: 730 lm
Optic: W
Optic value: 56°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LEW-30001-W-W30-ND-SW03
Lumen: 730 lm
Optic: W
Optic value: 56°
CCT / CRI: 3000K
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LEW-30001-W-W40-ND-01
Lumen: 773 lm
Optic: W
Optic value: 56°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Black
Variant code: LEW-30001-W-W40-ND-02
Lumen: 773 lm
Optic: W
Optic value: 56°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LEW-30001-W-W40-ND-03
Lumen: 773 lm
Optic: W
Optic value: 56°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: White
Variant code: LEW-30001-W-W40-ND-05
Lumen: 773 lm
Optic: W
Optic value: 56°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LEW-30001-W-W40-ND-06
Lumen: 773 lm
Optic: W
Optic value: 56°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Bronze
Variant code: LEW-30001-W-W40-ND-SU01
Lumen: 773 lm
Optic: W
Optic value: 56°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LEW-30001-W-W40-ND-SU02
Lumen: 773 lm
Optic: W
Optic value: 56°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LEW-30001-W-W40-ND-SU03
Lumen: 773 lm
Optic: W
Optic value: 56°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LEW-30001-W-W40-ND-SU04
Lumen: 773 lm
Optic: W
Optic value: 56°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LEW-30001-W-W40-ND-SW01
Lumen: 773 lm
Optic: W
Optic value: 56°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LEW-30001-W-W40-ND-SW02
Lumen: 773 lm
Optic: W
Optic value: 56°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LEW-30001-W-W40-ND-SW03
Lumen: 773 lm
Optic: W
Optic value: 56°
CCT / CRI: 4000K
Dimming type: On/Off
Product colour: Pine - Woodland
