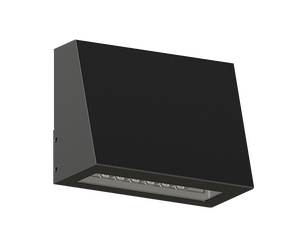

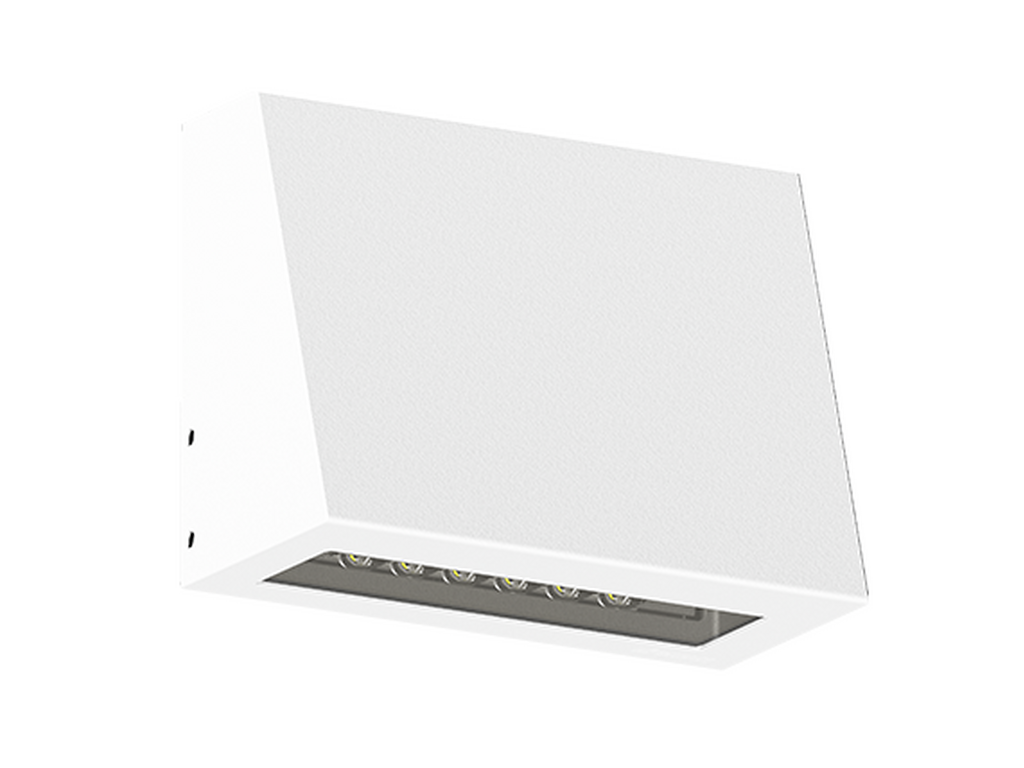

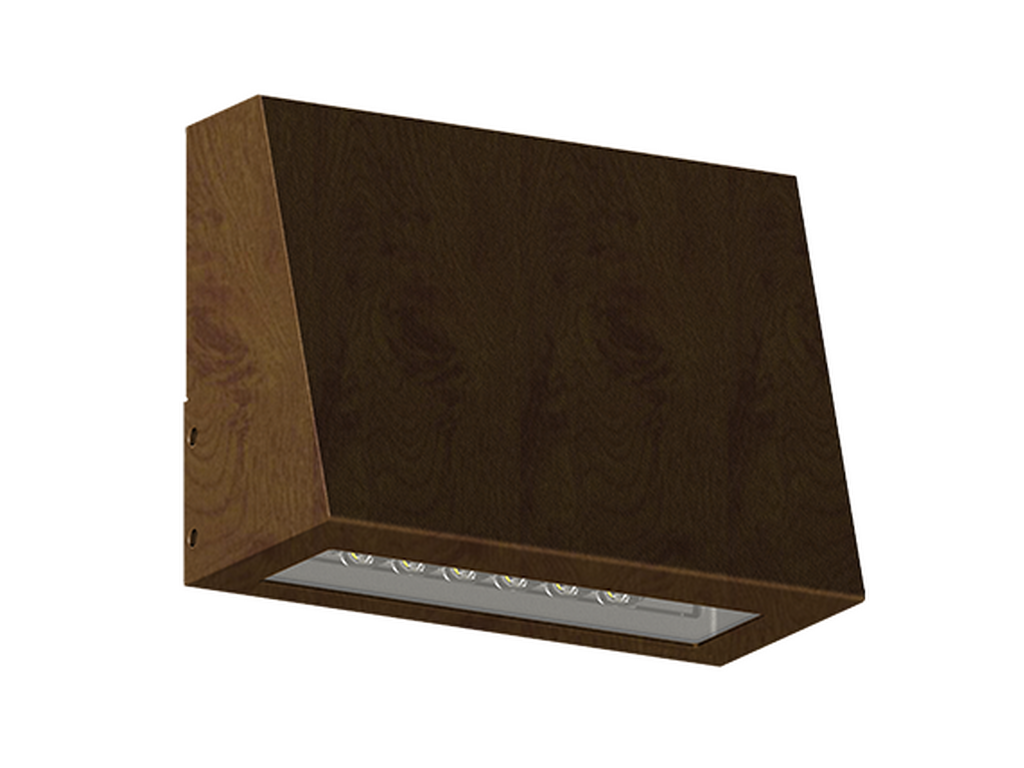

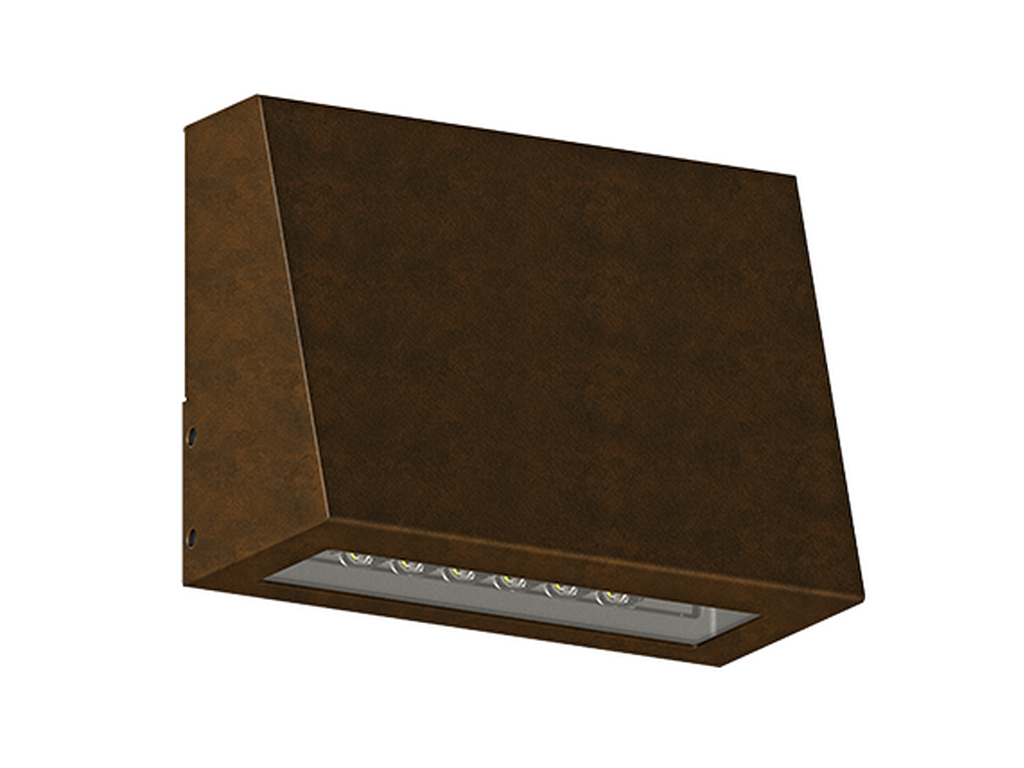

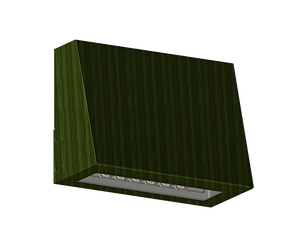

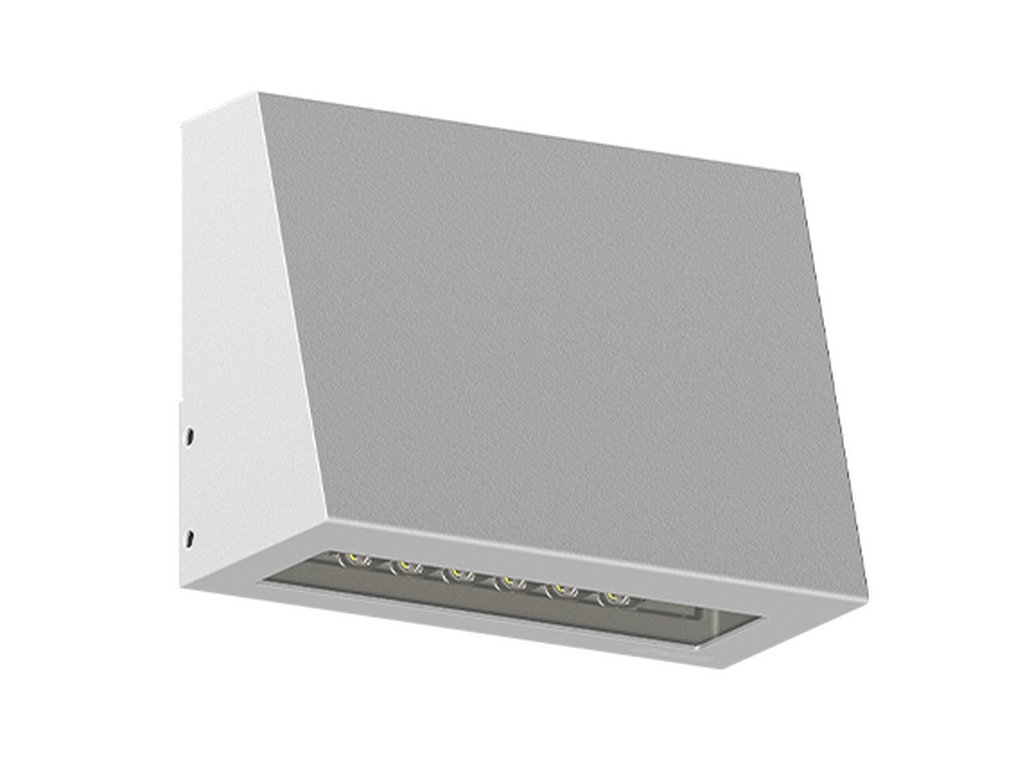

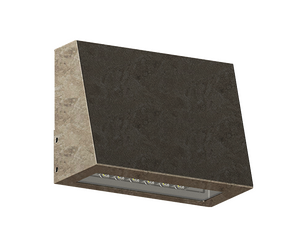

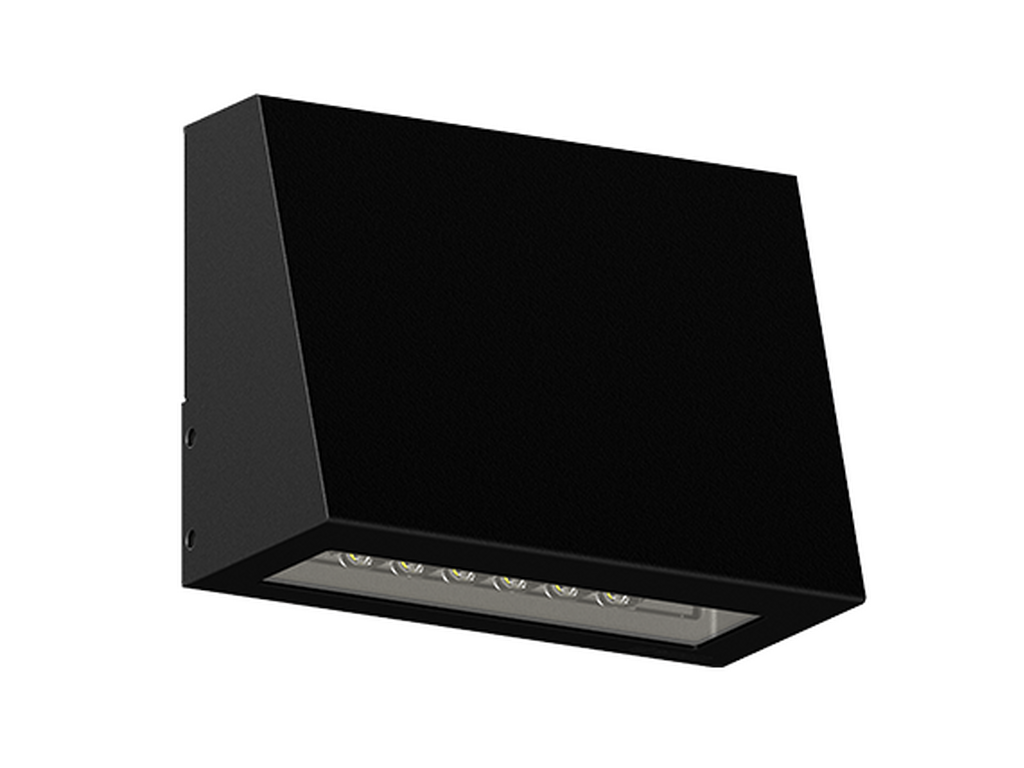

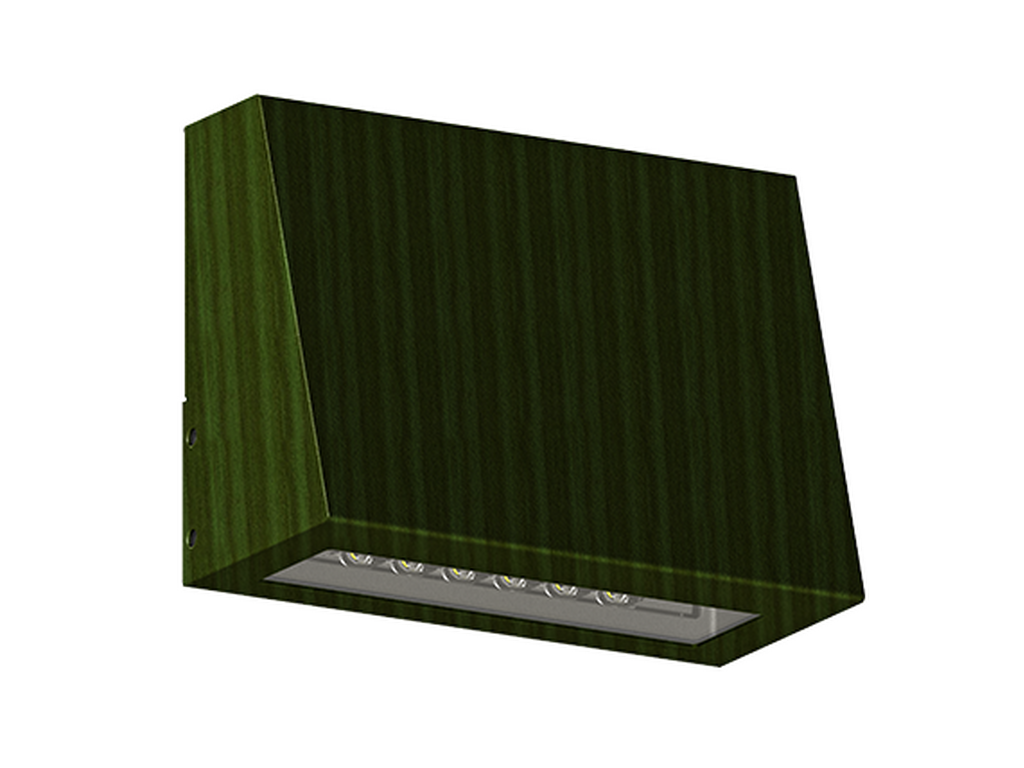

LEEDS WEDGE 3LEW-30021LEEDS WEDGE
Black
Dark Grey

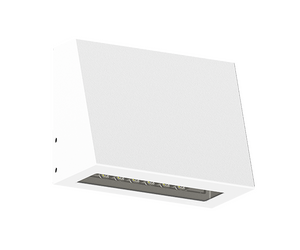

White

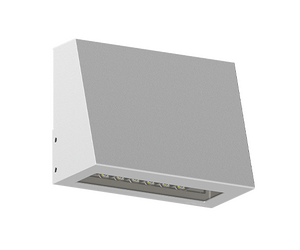

Matt Silver

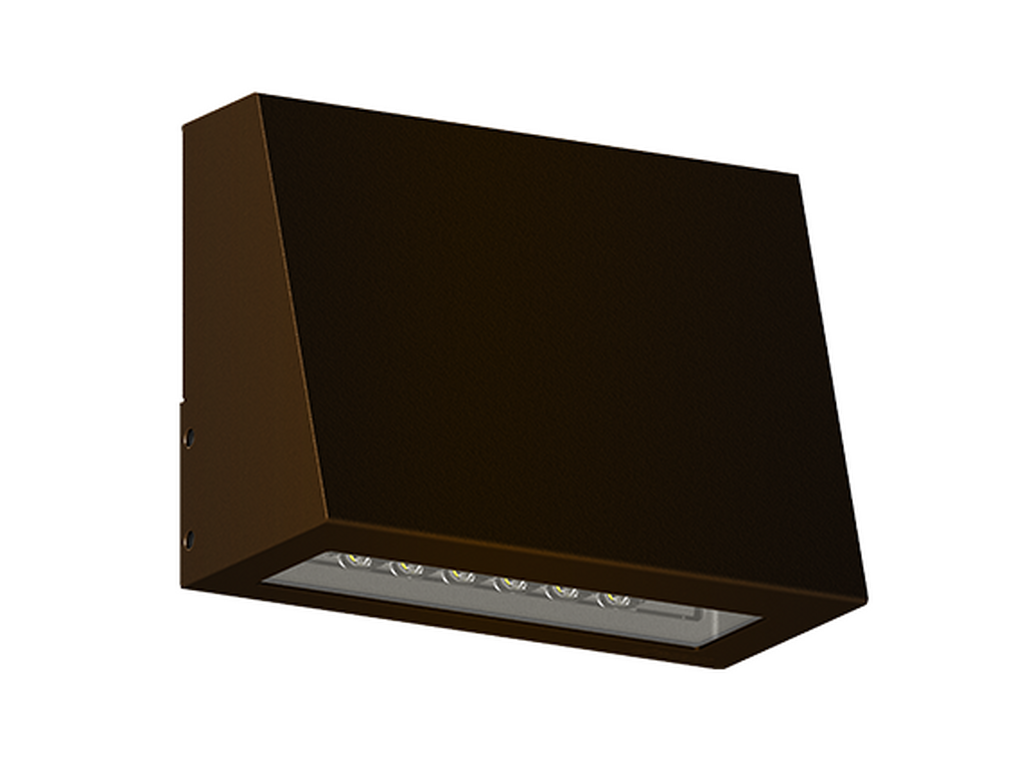

Bronze

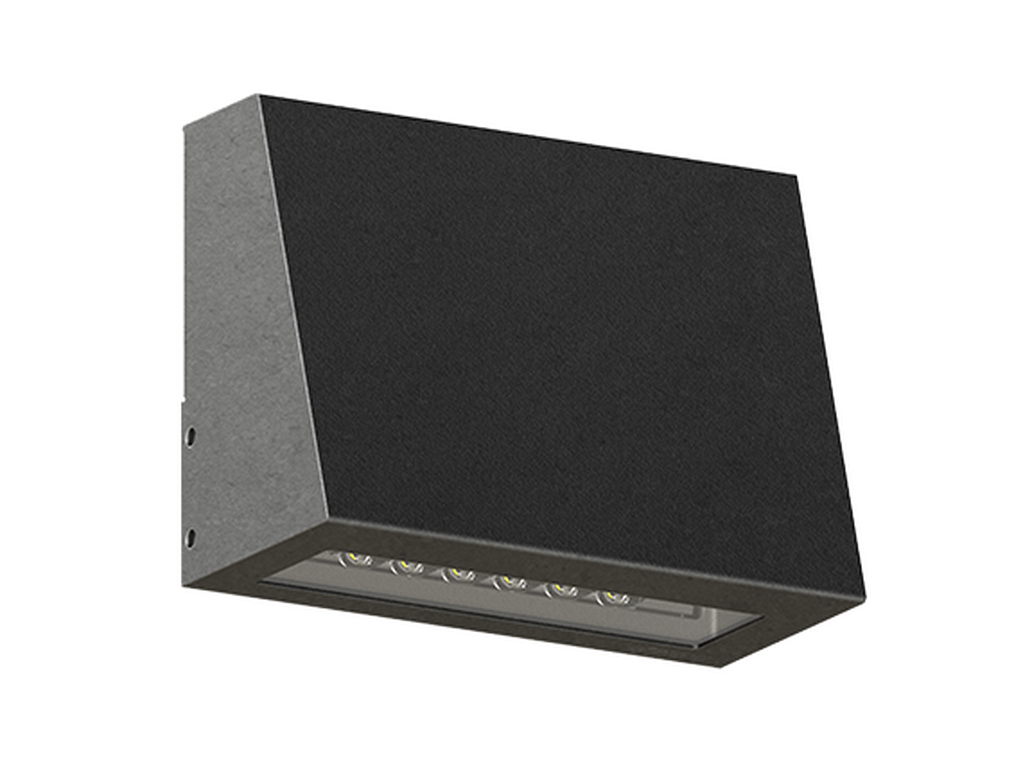

Concrete - Urban
Softscape - Urban
Stone - Urban

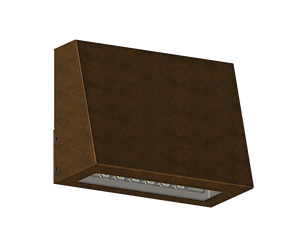

Corten - Urban
Oak - Woodland

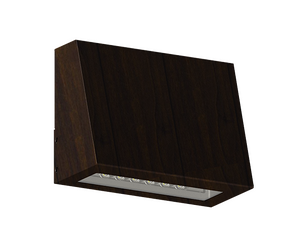

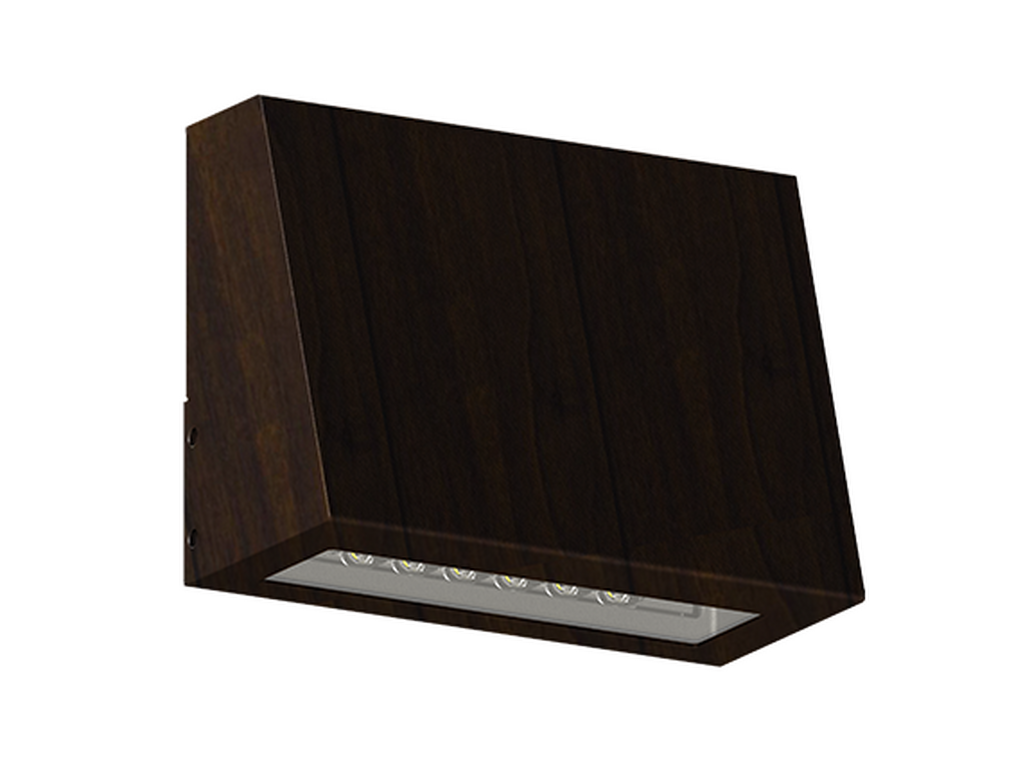

Walnut - Woodland

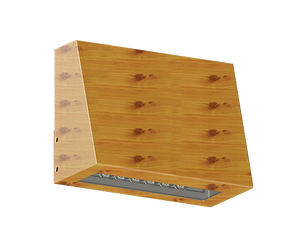

Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Large
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
12 LED
Power (W)
20 W
Lumen (lm)
1846 - 2422 lm
Efficacy (lm/W)
92 - 121 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T1, T2, T3, T4, ME
Optic value
30°, 56°, 109°x102°, 145°x73°, 137°x58°, 124°x86°, 108°x66°, 140°x62°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B1-U0-G1, B2-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100, 97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.8 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
