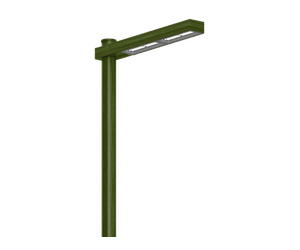

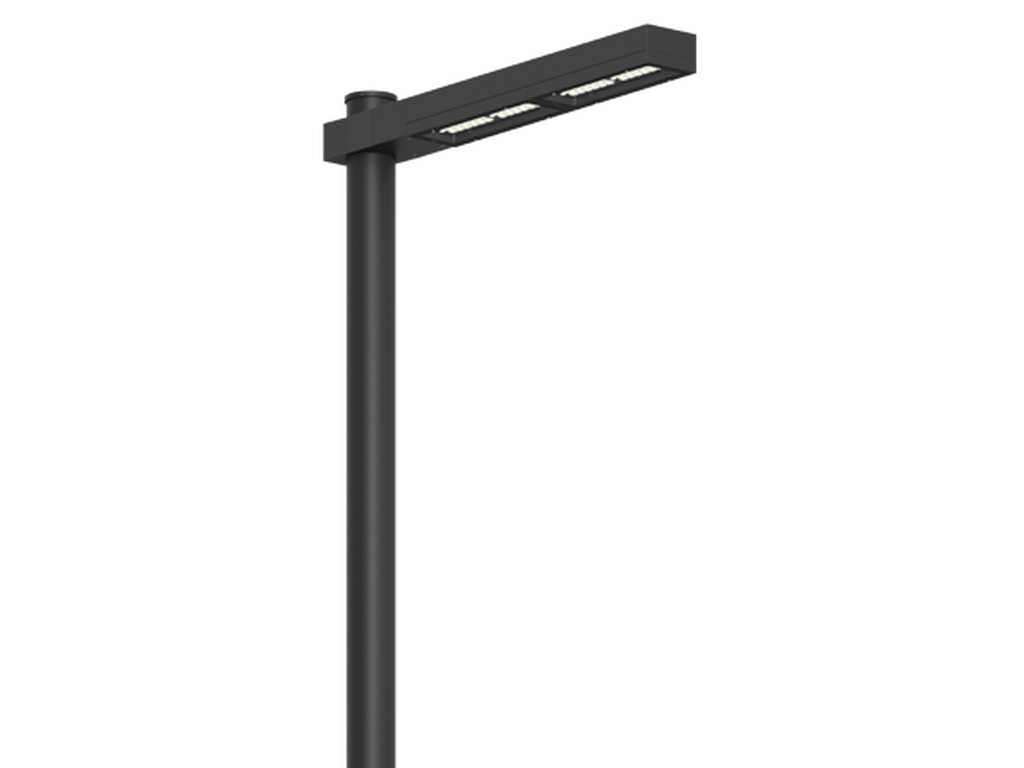

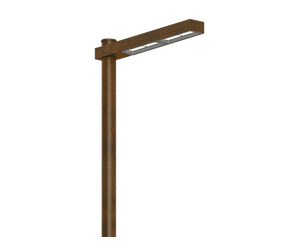

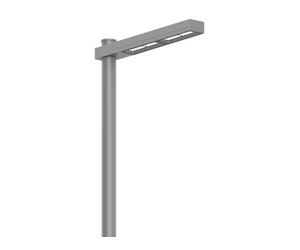

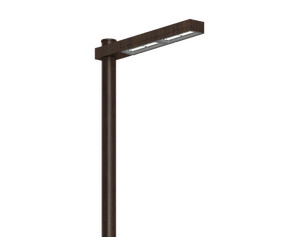

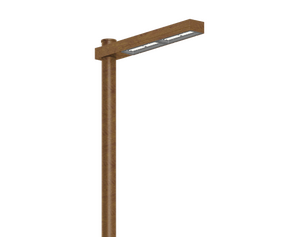

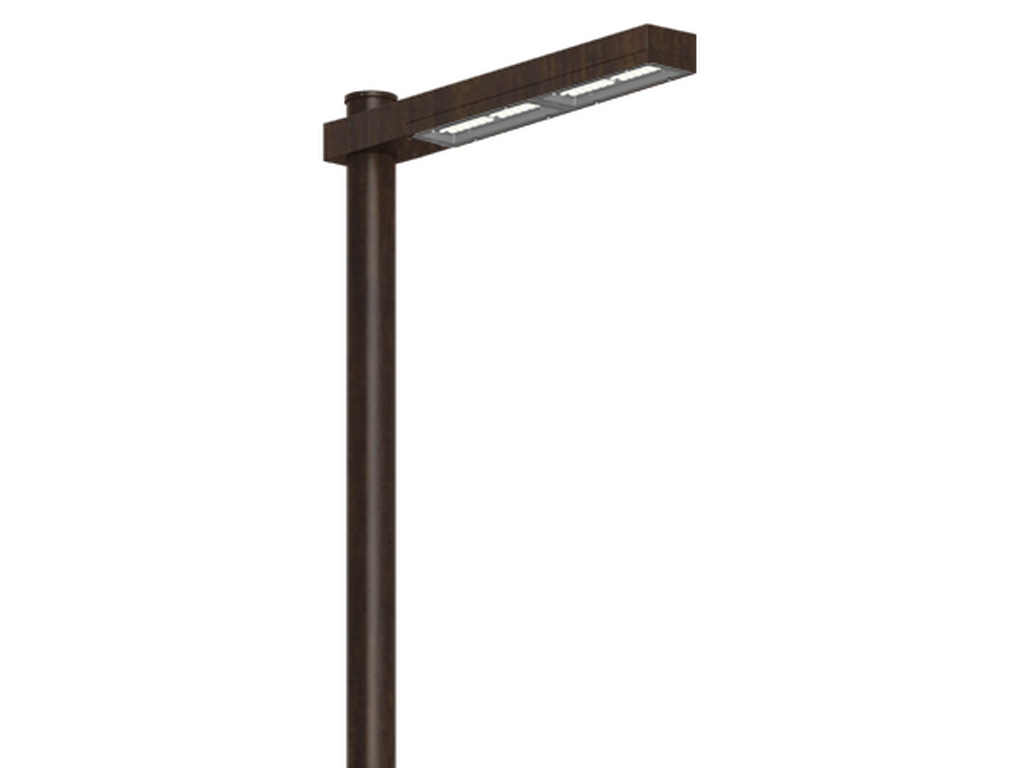

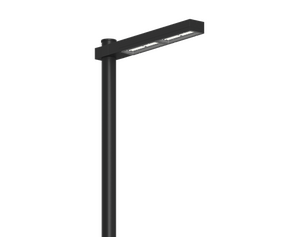

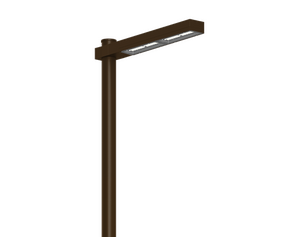

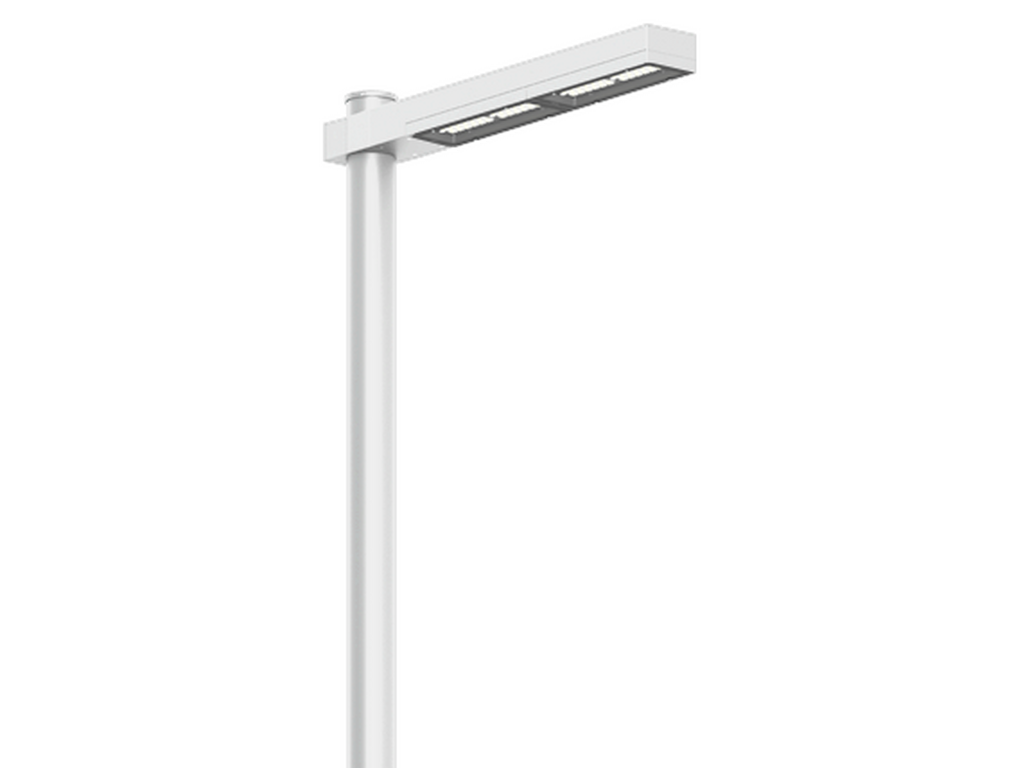

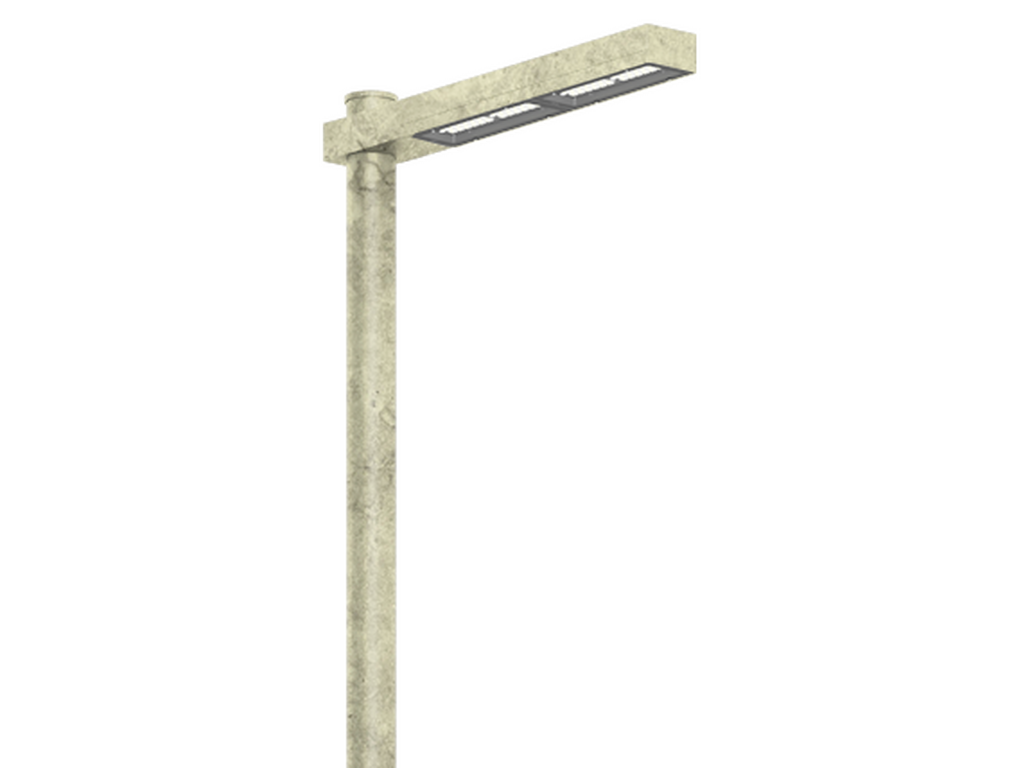

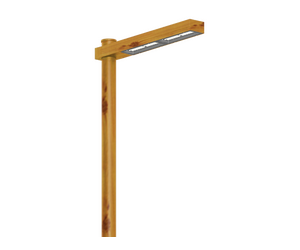

LIGHT LINEAR DENVER 1DE-20003LIGHT LINEAR DENVER
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
1 side - Supplied with specific 4 m cylindrical, straight aluminium pole: APD140114-DE1
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
48 LED
Power (W)
105 W
Lumen (lm)
10921 - 12518 lm
Efficacy (lm/W)
104 - 119 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz

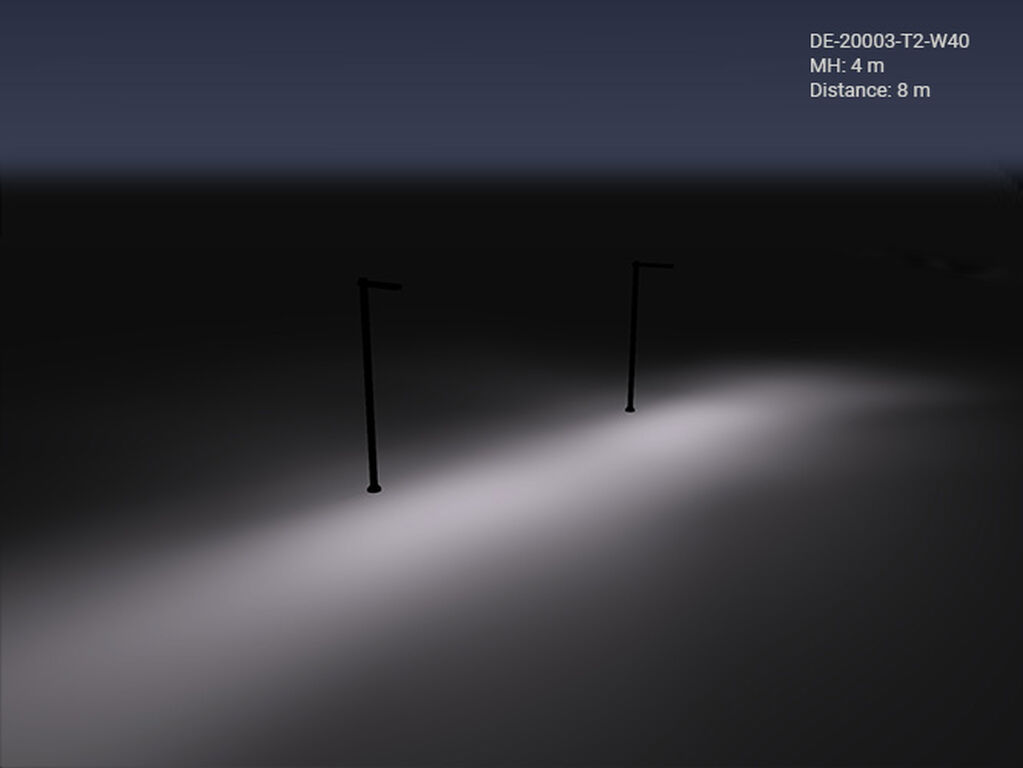

Optic
T2, T3, T4, ME
Optic value
139°x47°, 132°x68°, 98°x73°, 133°x59°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U0-G2
ULR
0%
ULOR
0%
CIE flux code nº3
98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
27.0 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
