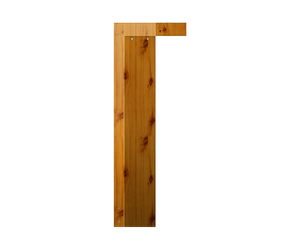

LIGHT LINEAR PT 1LI-10021LIGHT LINEAR PT
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland

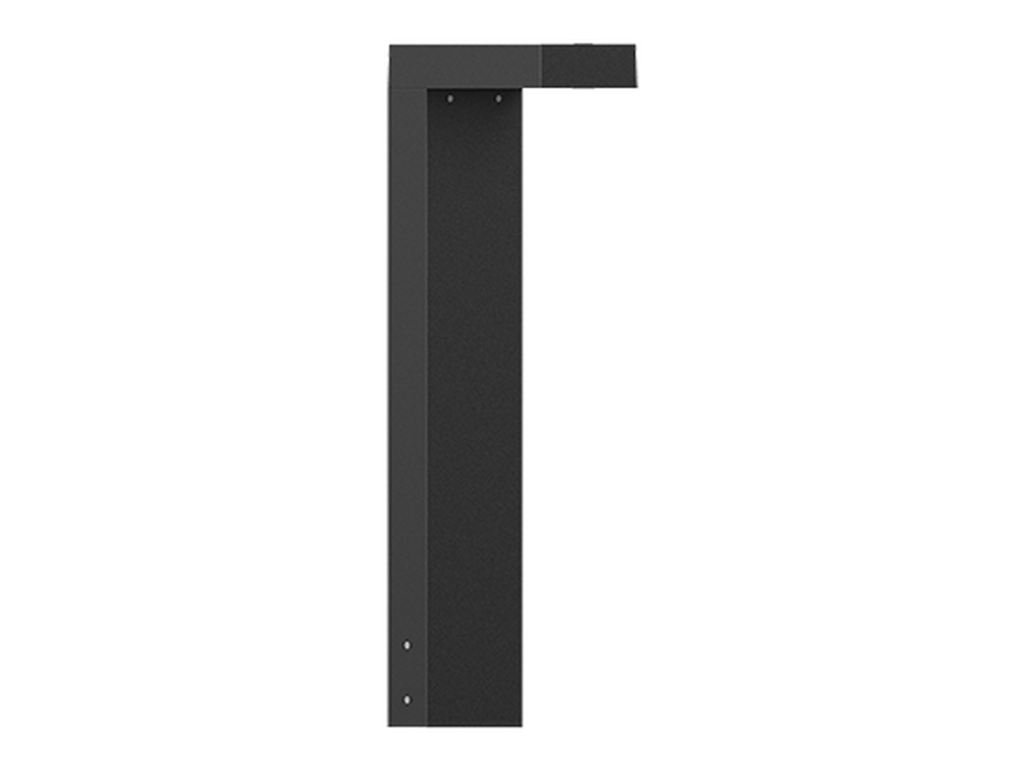

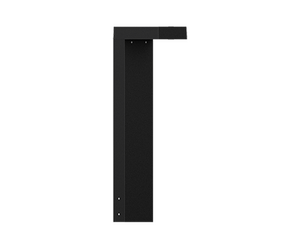

Black
Dark Grey
White
Matt Silver
Bronze

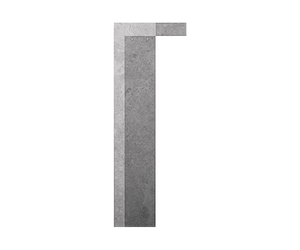

Concrete - Urban
Softscape - Urban
Stone - Urban

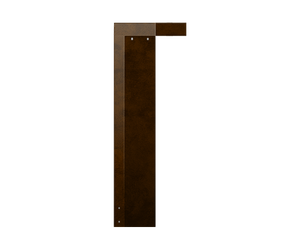

Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland

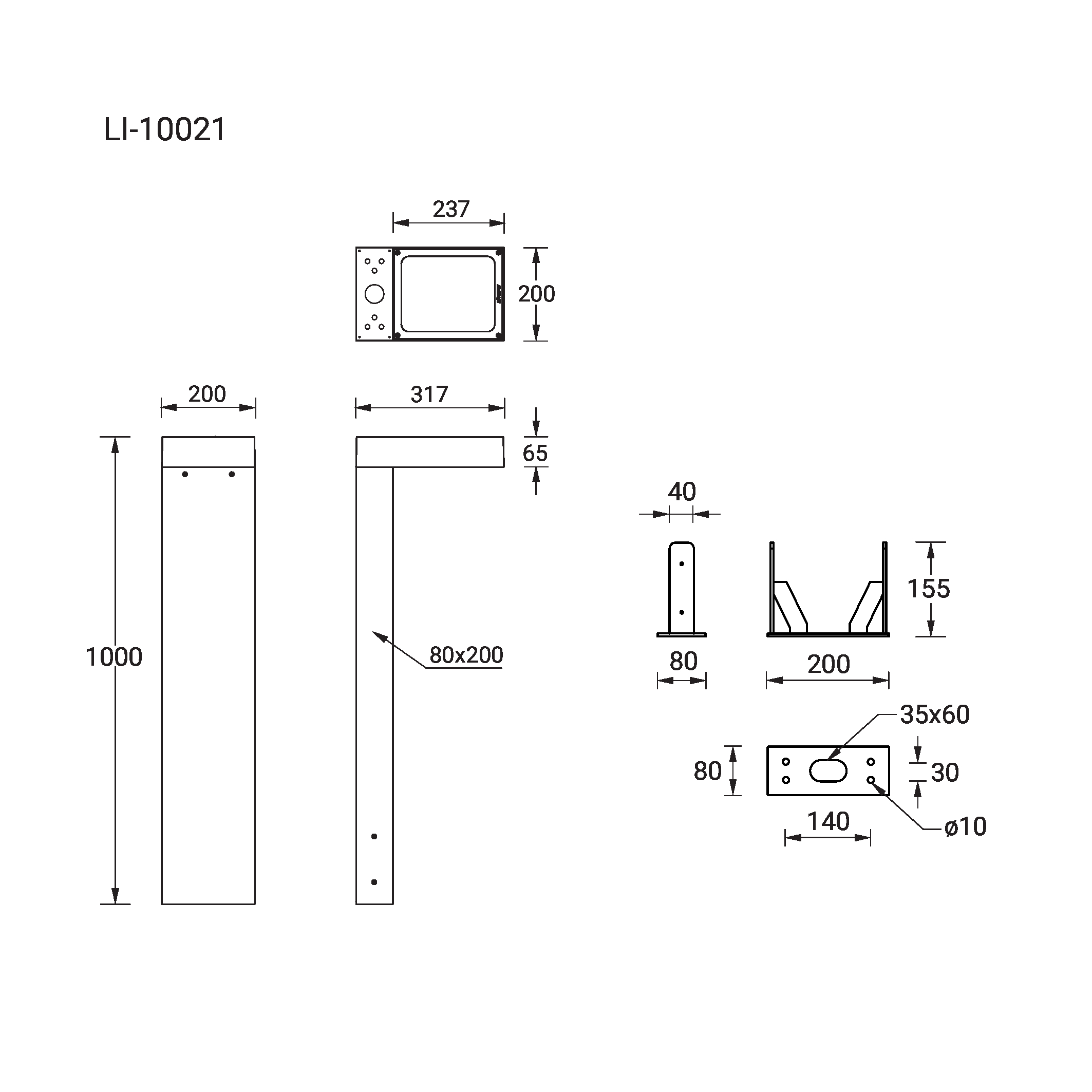

200x80 mm - 1000 mm - 1 side
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
12 LED
Power (W)
28 W
Lumen (lm)
2950 - 3169 lm
Efficacy (lm/W)
105 - 113 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4
Optic value
143°x56°, 142°x70°, 100°x76°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1
ULR
0%
ULOR
0%
CIE flux code nº3
97, 98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
11.2 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic

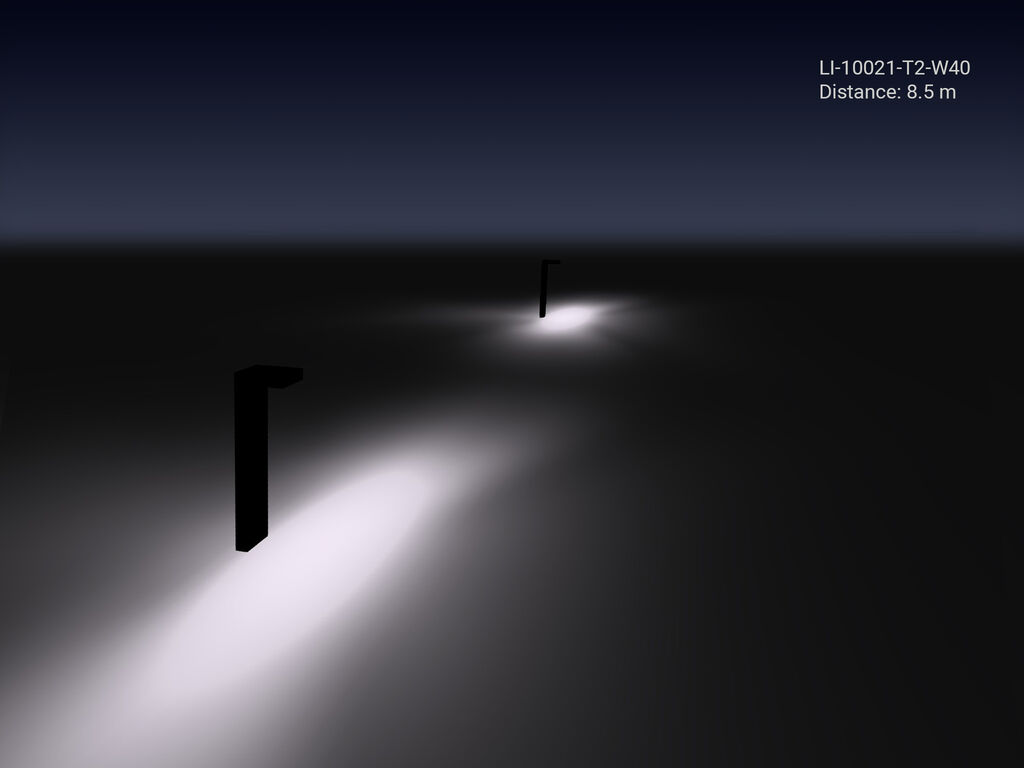

T2 (143°x56°)
T3 (142°x70°)
T4 (100°x76°)
