LIGMAN LIGHT LINEAR PT 3 LI-21173-LC.

LIGHT LINEAR PT 3LI-21173-LCLIGHT LINEAR PT

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
LIGHT LINEAR PT 3Black
LIGHT LINEAR PT 3Dark Grey

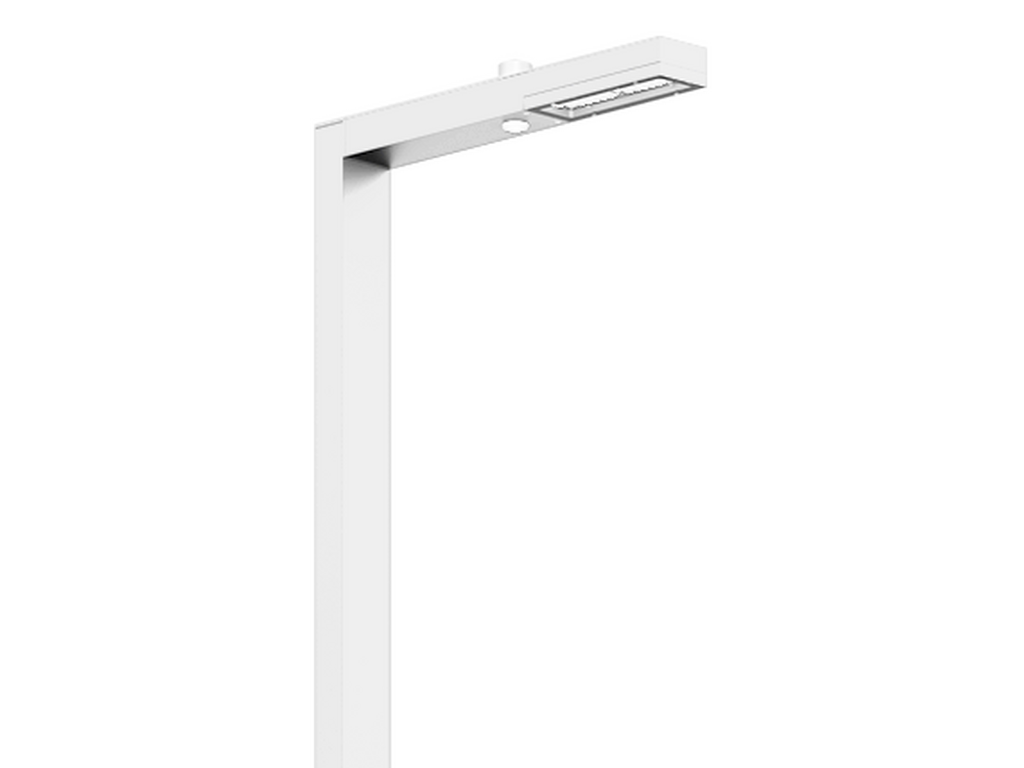

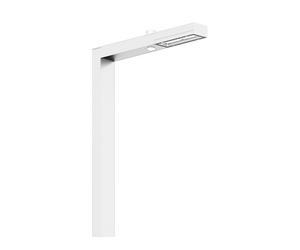

LIGHT LINEAR PT 3White
LIGHT LINEAR PT 3Matt Silver

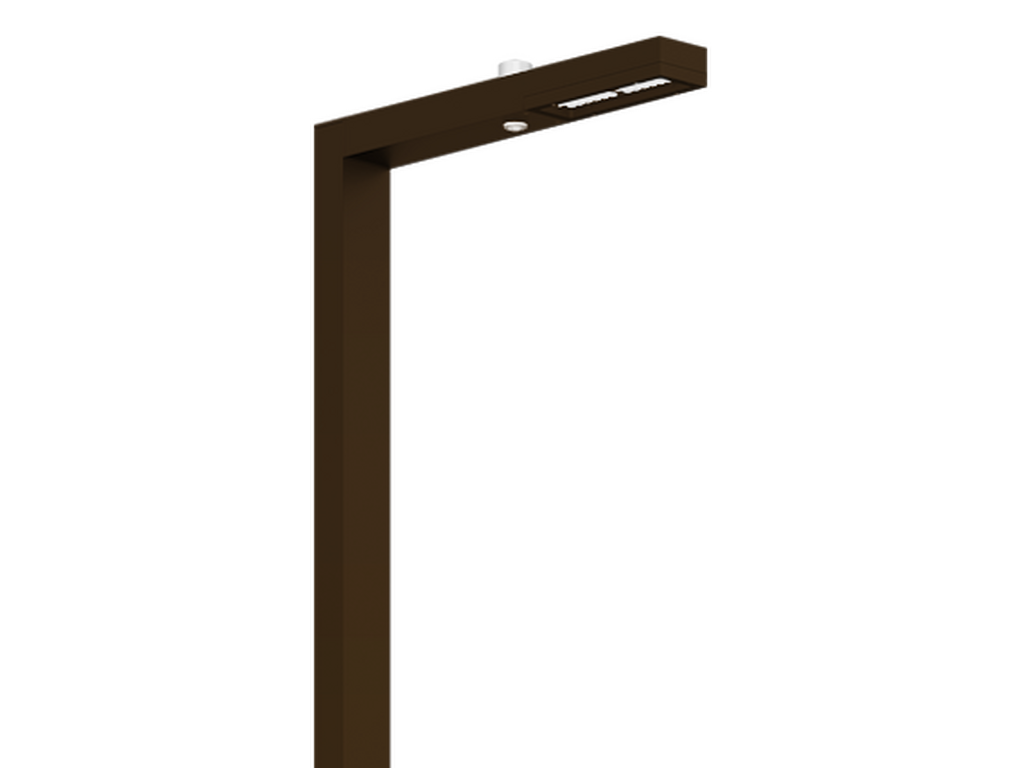

LIGHT LINEAR PT 3Bronze
LIGHT LINEAR PT 3Concrete - Urban
LIGHT LINEAR PT 3Softscape - Urban
LIGHT LINEAR PT 3Stone - Urban

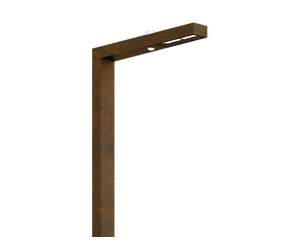

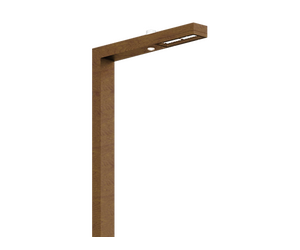

LIGHT LINEAR PT 3Corten - Urban
LIGHT LINEAR PT 3Oak - Woodland

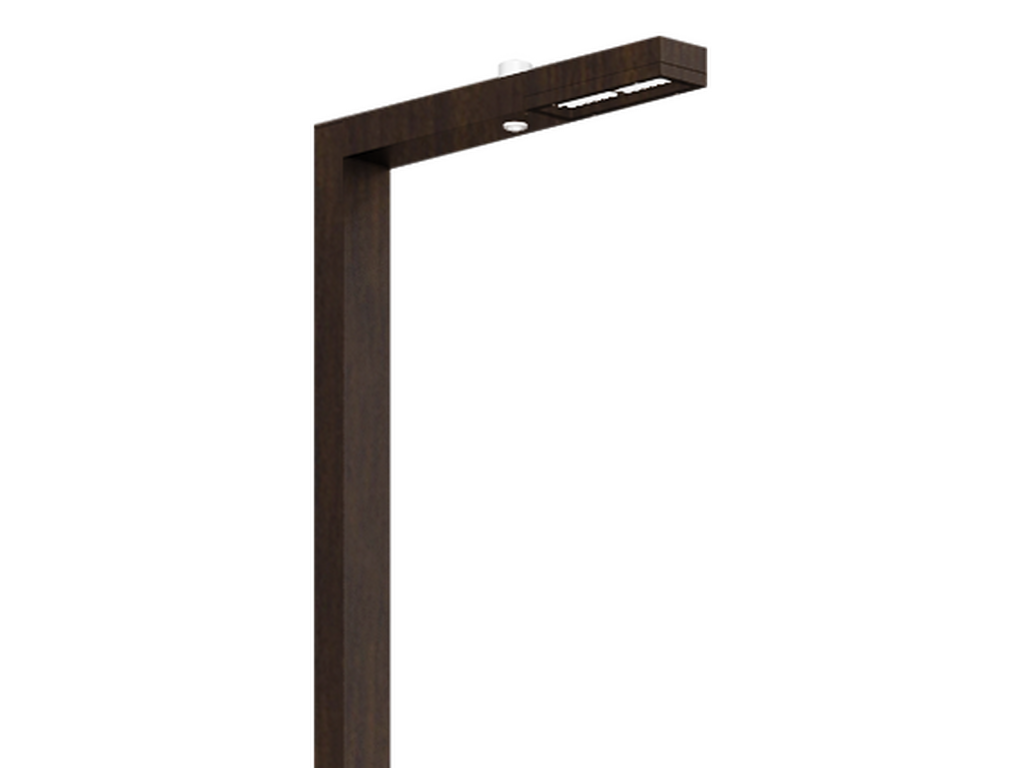

LIGHT LINEAR PT 3Walnut - Woodland

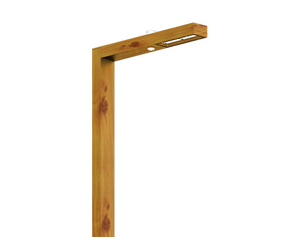

LIGHT LINEAR PT 3Pine - Woodland
LIGHT LINEAR PT 3Black
LIGHT LINEAR PT 3Dark Grey
LIGHT LINEAR PT 3White
LIGHT LINEAR PT 3Matt Silver
LIGHT LINEAR PT 3Bronze
LIGHT LINEAR PT 3Concrete - Urban
LIGHT LINEAR PT 3Softscape - Urban
LIGHT LINEAR PT 3Stone - Urban
LIGHT LINEAR PT 3Corten - Urban
LIGHT LINEAR PT 3Oak - Woodland
LIGHT LINEAR PT 3Walnut - Woodland
LIGHT LINEAR PT 3Pine - Woodland
1 side - Supplied with specific square, straight aluminium pole - Height options: 3 - 6 m - LIGHTCONNECT™
CEZhaga-D4iClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
2 x 12 LED
Power (W)
82 W
Lumen (lm)
8300 - 9680 lm
Efficacy (lm/W)
101 - 118 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4
Optic value
43°x140°, 72°x126°, 66°x112°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B3-U1-G2, B3-U1-G3
ULR
<1%
ULOR
<1%
CIE flux code nº3
97, 98
Dimming type
DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
29.5 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.090
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic

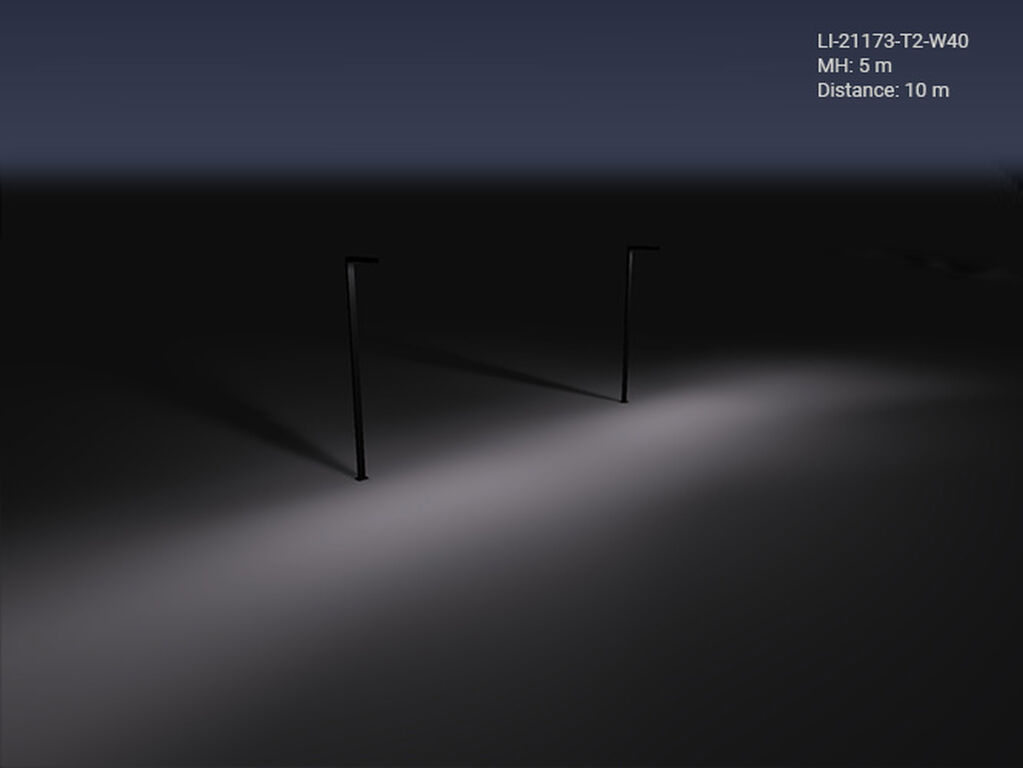

T2 (43°x140°)
T3 (72°x126°)
T4 (66°x112°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: LI-21173-LC-T2-8027-DA-01
Lumen (lm): 8885 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-21173-LC-T2-8027-DA-02
Lumen (lm): 8885 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-21173-LC-T2-8027-DA-03
Lumen (lm): 8885 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-21173-LC-T2-8027-DA-05
Lumen (lm): 8885 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-21173-LC-T2-8027-DA-06
Lumen (lm): 8885 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-21173-LC-T2-8027-DA-SU01
Lumen (lm): 8885 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-21173-LC-T2-8027-DA-SU02
Lumen (lm): 8885 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-21173-LC-T2-8027-DA-SU03
Lumen (lm): 8885 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-21173-LC-T2-8027-DA-SU04
Lumen (lm): 8885 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-21173-LC-T2-8027-DA-SW01
Lumen (lm): 8885 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-21173-LC-T2-8027-DA-SW02
Lumen (lm): 8885 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-21173-LC-T2-8027-DA-SW03
Lumen (lm): 8885 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LI-21173-LC-T2-8030-DA-01
Lumen (lm): 9385 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-21173-LC-T2-8030-DA-02
Lumen (lm): 9385 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-21173-LC-T2-8030-DA-03
Lumen (lm): 9385 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-21173-LC-T2-8030-DA-05
Lumen (lm): 9385 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-21173-LC-T2-8030-DA-06
Lumen (lm): 9385 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-21173-LC-T2-8030-DA-SU01
Lumen (lm): 9385 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-21173-LC-T2-8030-DA-SU02
Lumen (lm): 9385 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-21173-LC-T2-8030-DA-SU03
Lumen (lm): 9385 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-21173-LC-T2-8030-DA-SU04
Lumen (lm): 9385 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-21173-LC-T2-8030-DA-SW01
Lumen (lm): 9385 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-21173-LC-T2-8030-DA-SW02
Lumen (lm): 9385 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-21173-LC-T2-8030-DA-SW03
Lumen (lm): 9385 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LI-21173-LC-T2-8040-DA-01
Lumen (lm): 9680 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-21173-LC-T2-8040-DA-02
Lumen (lm): 9680 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-21173-LC-T2-8040-DA-03
Lumen (lm): 9680 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-21173-LC-T2-8040-DA-05
Lumen (lm): 9680 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-21173-LC-T2-8040-DA-06
Lumen (lm): 9680 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-21173-LC-T2-8040-DA-SU01
Lumen (lm): 9680 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-21173-LC-T2-8040-DA-SU02
Lumen (lm): 9680 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-21173-LC-T2-8040-DA-SU03
Lumen (lm): 9680 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-21173-LC-T2-8040-DA-SU04
Lumen (lm): 9680 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-21173-LC-T2-8040-DA-SW01
Lumen (lm): 9680 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-21173-LC-T2-8040-DA-SW02
Lumen (lm): 9680 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-21173-LC-T2-8040-DA-SW03
Lumen (lm): 9680 lm
Optic: T2
Optic value: 43°x140°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LI-21173-LC-T3-8027-DA-01
Lumen (lm): 8300 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-21173-LC-T3-8027-DA-02
Lumen (lm): 8300 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-21173-LC-T3-8027-DA-03
Lumen (lm): 8300 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-21173-LC-T3-8027-DA-05
Lumen (lm): 8300 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-21173-LC-T3-8027-DA-06
Lumen (lm): 8300 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-21173-LC-T3-8027-DA-SU01
Lumen (lm): 8300 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-21173-LC-T3-8027-DA-SU02
Lumen (lm): 8300 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-21173-LC-T3-8027-DA-SU03
Lumen (lm): 8300 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-21173-LC-T3-8027-DA-SU04
Lumen (lm): 8300 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-21173-LC-T3-8027-DA-SW01
Lumen (lm): 8300 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-21173-LC-T3-8027-DA-SW02
Lumen (lm): 8300 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-21173-LC-T3-8027-DA-SW03
Lumen (lm): 8300 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LI-21173-LC-T3-8030-DA-01
Lumen (lm): 8767 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-21173-LC-T3-8030-DA-02
Lumen (lm): 8767 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-21173-LC-T3-8030-DA-03
Lumen (lm): 8767 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-21173-LC-T3-8030-DA-05
Lumen (lm): 8767 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-21173-LC-T3-8030-DA-06
Lumen (lm): 8767 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-21173-LC-T3-8030-DA-SU01
Lumen (lm): 8767 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-21173-LC-T3-8030-DA-SU02
Lumen (lm): 8767 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-21173-LC-T3-8030-DA-SU03
Lumen (lm): 8767 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-21173-LC-T3-8030-DA-SU04
Lumen (lm): 8767 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-21173-LC-T3-8030-DA-SW01
Lumen (lm): 8767 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-21173-LC-T3-8030-DA-SW02
Lumen (lm): 8767 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-21173-LC-T3-8030-DA-SW03
Lumen (lm): 8767 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LI-21173-LC-T3-8040-DA-01
Lumen (lm): 9042 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-21173-LC-T3-8040-DA-02
Lumen (lm): 9042 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-21173-LC-T3-8040-DA-03
Lumen (lm): 9042 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-21173-LC-T3-8040-DA-05
Lumen (lm): 9042 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-21173-LC-T3-8040-DA-06
Lumen (lm): 9042 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-21173-LC-T3-8040-DA-SU01
Lumen (lm): 9042 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-21173-LC-T3-8040-DA-SU02
Lumen (lm): 9042 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-21173-LC-T3-8040-DA-SU03
Lumen (lm): 9042 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-21173-LC-T3-8040-DA-SU04
Lumen (lm): 9042 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-21173-LC-T3-8040-DA-SW01
Lumen (lm): 9042 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-21173-LC-T3-8040-DA-SW02
Lumen (lm): 9042 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-21173-LC-T3-8040-DA-SW03
Lumen (lm): 9042 lm
Optic: T3
Optic value: 72°x126°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LI-21173-LC-T4-8027-DA-01
Lumen (lm): 8843 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-21173-LC-T4-8027-DA-02
Lumen (lm): 8843 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-21173-LC-T4-8027-DA-03
Lumen (lm): 8843 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-21173-LC-T4-8027-DA-05
Lumen (lm): 8843 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-21173-LC-T4-8027-DA-06
Lumen (lm): 8843 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-21173-LC-T4-8027-DA-SU01
Lumen (lm): 8843 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-21173-LC-T4-8027-DA-SU02
Lumen (lm): 8843 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-21173-LC-T4-8027-DA-SU03
Lumen (lm): 8843 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-21173-LC-T4-8027-DA-SU04
Lumen (lm): 8843 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-21173-LC-T4-8027-DA-SW01
Lumen (lm): 8843 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-21173-LC-T4-8027-DA-SW02
Lumen (lm): 8843 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-21173-LC-T4-8027-DA-SW03
Lumen (lm): 8843 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 2700K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LI-21173-LC-T4-8030-DA-01
Lumen (lm): 9341 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-21173-LC-T4-8030-DA-02
Lumen (lm): 9341 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-21173-LC-T4-8030-DA-03
Lumen (lm): 9341 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-21173-LC-T4-8030-DA-05
Lumen (lm): 9341 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-21173-LC-T4-8030-DA-06
Lumen (lm): 9341 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-21173-LC-T4-8030-DA-SU01
Lumen (lm): 9341 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-21173-LC-T4-8030-DA-SU02
Lumen (lm): 9341 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-21173-LC-T4-8030-DA-SU03
Lumen (lm): 9341 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-21173-LC-T4-8030-DA-SU04
Lumen (lm): 9341 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-21173-LC-T4-8030-DA-SW01
Lumen (lm): 9341 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-21173-LC-T4-8030-DA-SW02
Lumen (lm): 9341 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-21173-LC-T4-8030-DA-SW03
Lumen (lm): 9341 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LI-21173-LC-T4-8040-DA-01
Lumen (lm): 9634 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LI-21173-LC-T4-8040-DA-02
Lumen (lm): 9634 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LI-21173-LC-T4-8040-DA-03
Lumen (lm): 9634 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LI-21173-LC-T4-8040-DA-05
Lumen (lm): 9634 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LI-21173-LC-T4-8040-DA-06
Lumen (lm): 9634 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LI-21173-LC-T4-8040-DA-SU01
Lumen (lm): 9634 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LI-21173-LC-T4-8040-DA-SU02
Lumen (lm): 9634 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LI-21173-LC-T4-8040-DA-SU03
Lumen (lm): 9634 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LI-21173-LC-T4-8040-DA-SU04
Lumen (lm): 9634 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LI-21173-LC-T4-8040-DA-SW01
Lumen (lm): 9634 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LI-21173-LC-T4-8040-DA-SW02
Lumen (lm): 9634 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LI-21173-LC-T4-8040-DA-SW03
Lumen (lm): 9634 lm
Optic: T4
Optic value: 66°x112°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

Pole (required)

PROJECT REFERENCE (LIGHT LINEAR PT Street & area lighting luminaires)
