LIGMAN LIGHT LINEAR PT 5 LI-21181-LC.

LIGHT LINEAR PT 5LI-21181-LCLIGHT LINEAR PT

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
LIGHT LINEAR PT 5Black
LIGHT LINEAR PT 5Dark Grey

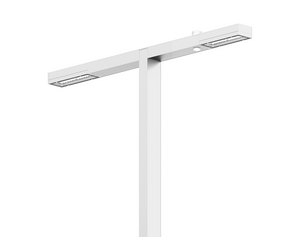

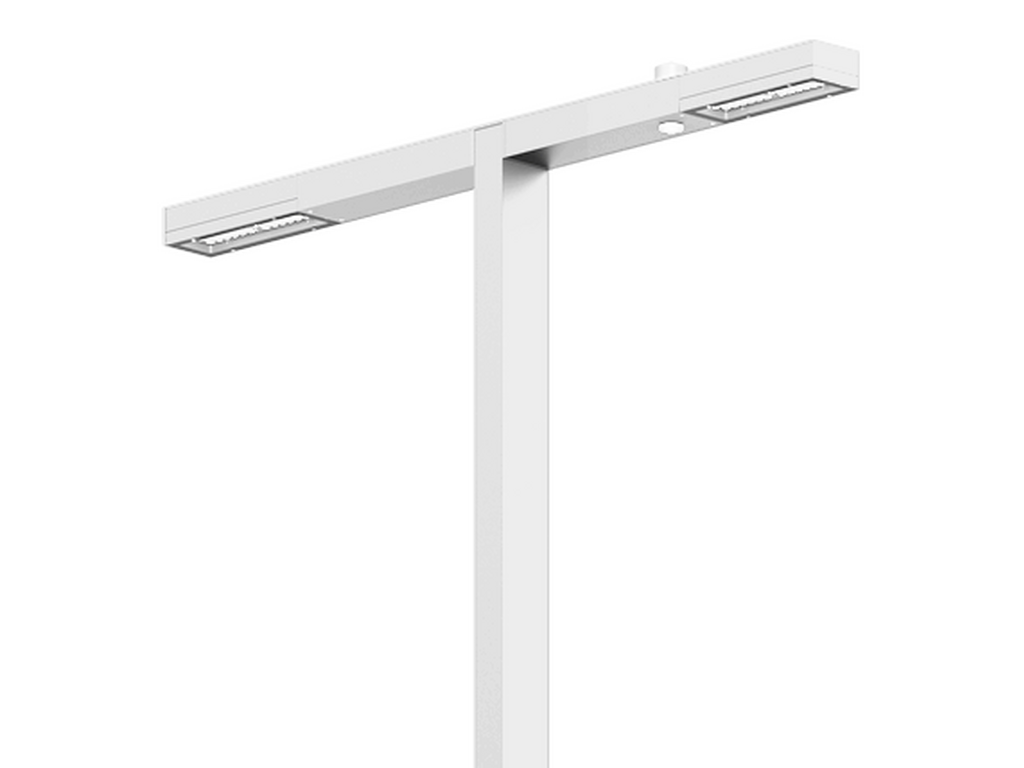

LIGHT LINEAR PT 5White

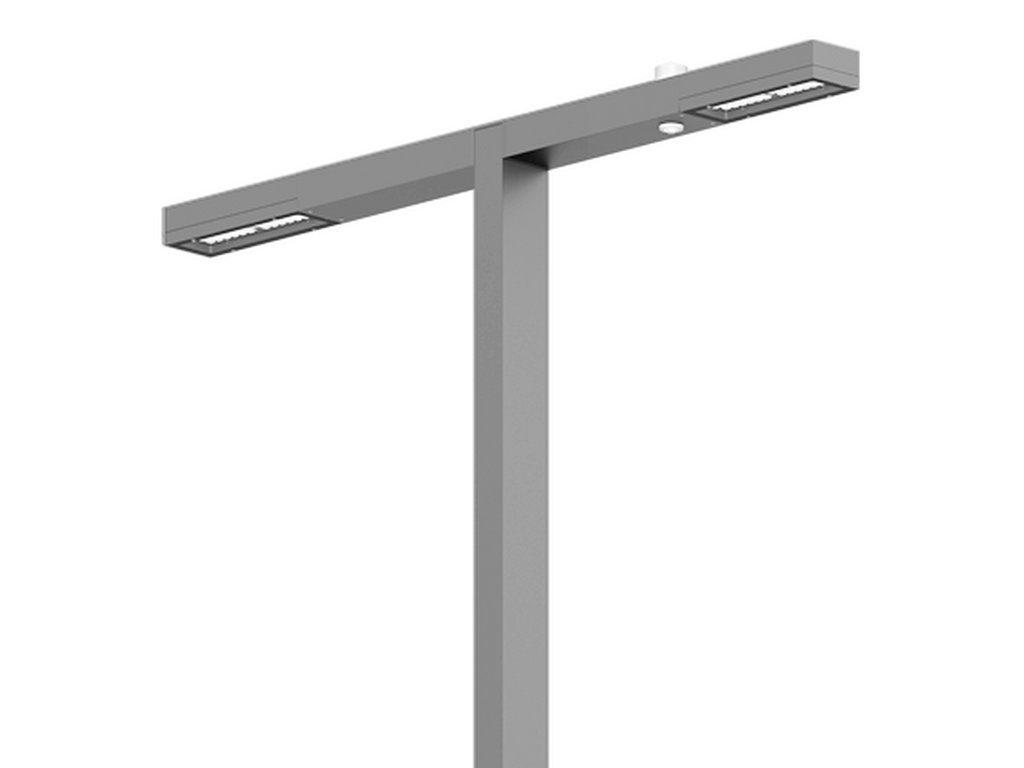

LIGHT LINEAR PT 5Matt Silver

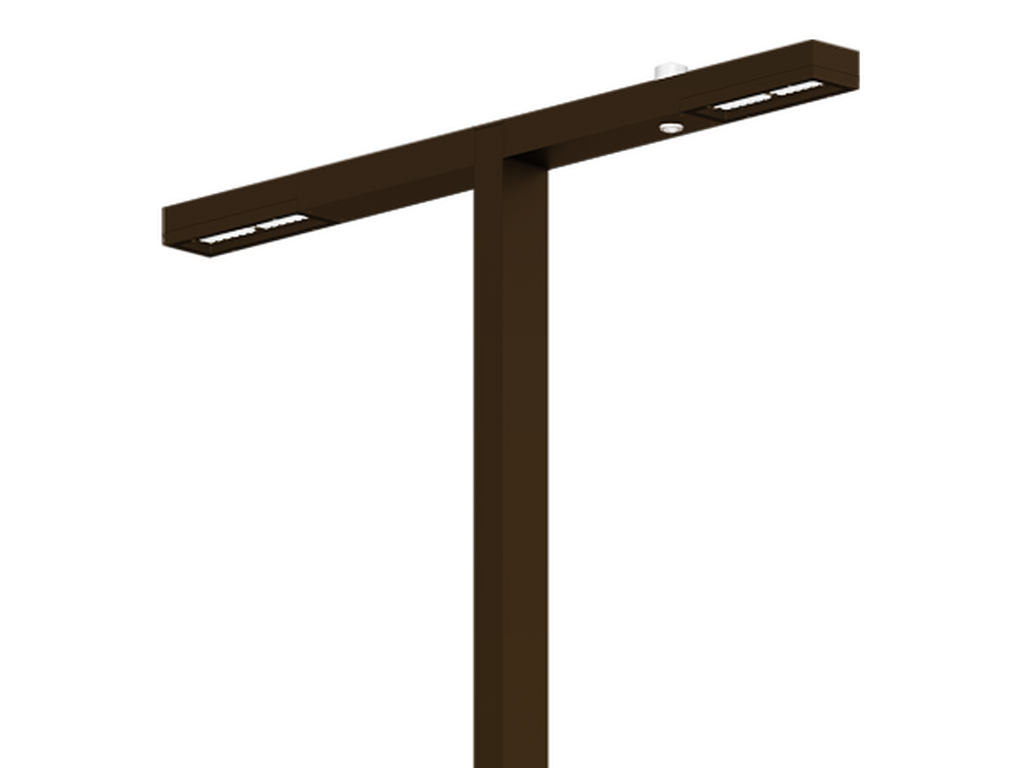

LIGHT LINEAR PT 5Bronze
LIGHT LINEAR PT 5Concrete - Urban
LIGHT LINEAR PT 5Softscape - Urban

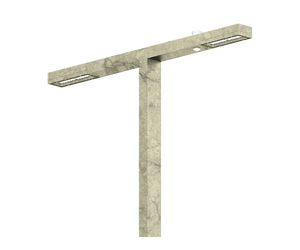

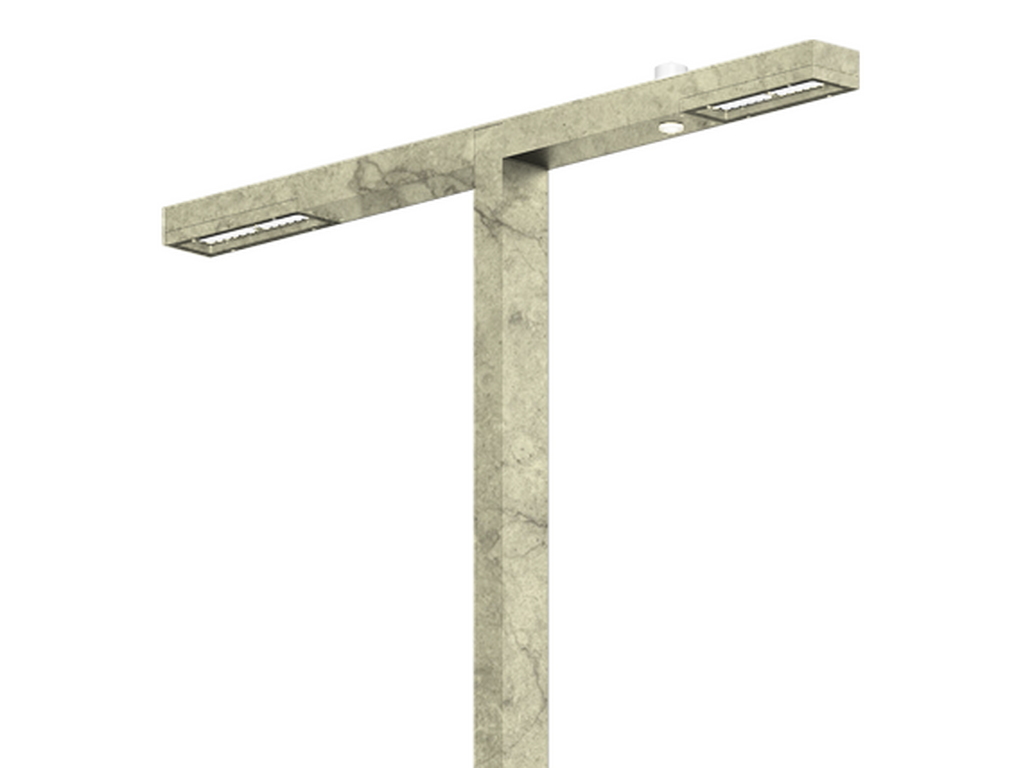

LIGHT LINEAR PT 5Stone - Urban

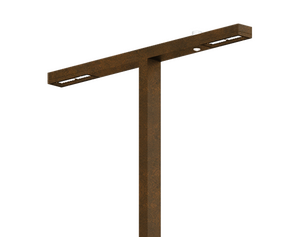

LIGHT LINEAR PT 5Corten - Urban
LIGHT LINEAR PT 5Oak - Woodland

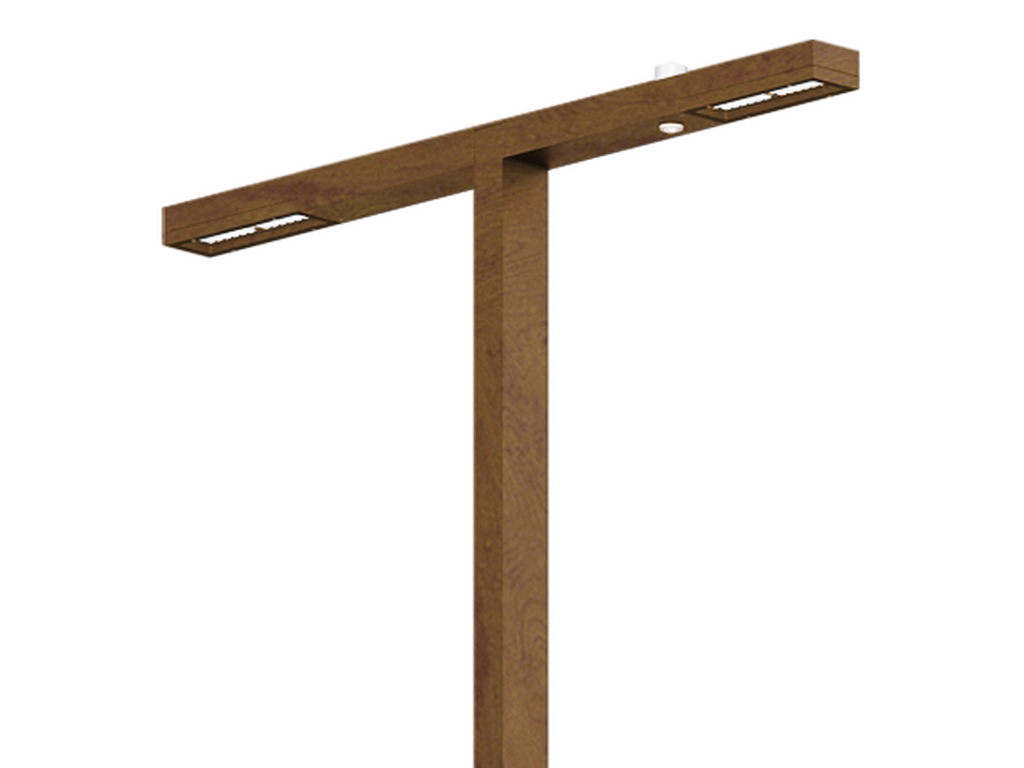

LIGHT LINEAR PT 5Walnut - Woodland

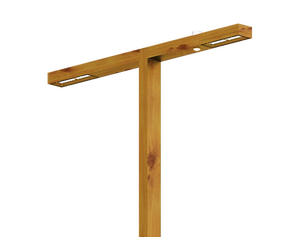

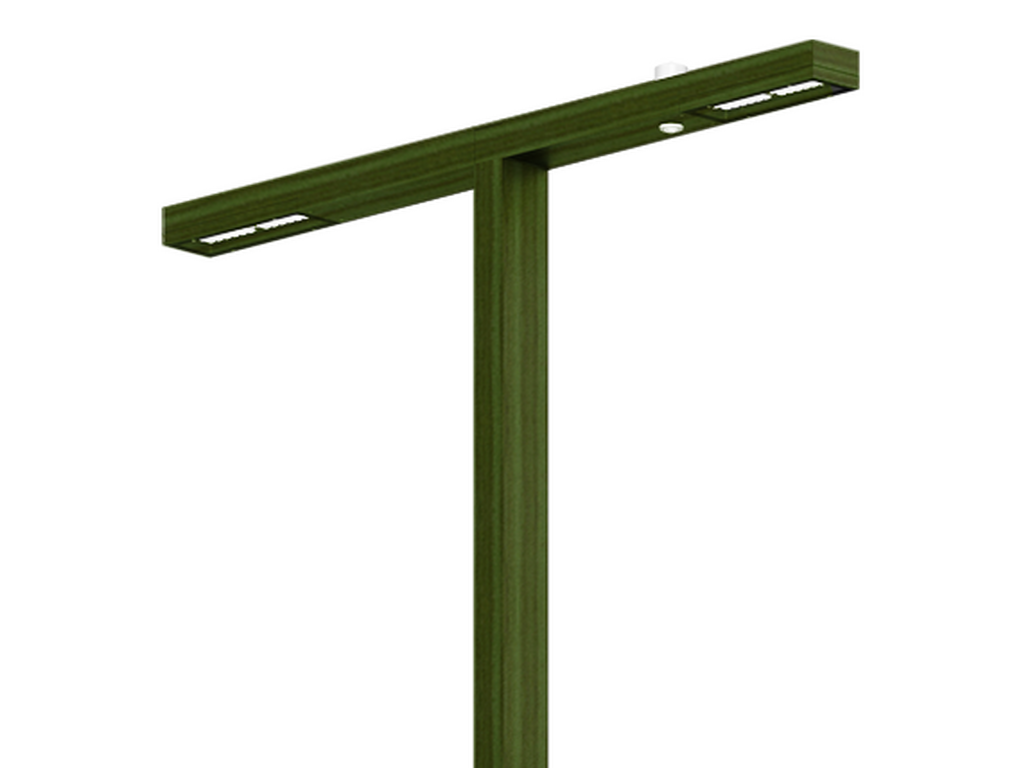

LIGHT LINEAR PT 5Pine - Woodland
LIGHT LINEAR PT 5Black
LIGHT LINEAR PT 5Dark Grey
LIGHT LINEAR PT 5White
LIGHT LINEAR PT 5Matt Silver
LIGHT LINEAR PT 5Bronze
LIGHT LINEAR PT 5Concrete - Urban
LIGHT LINEAR PT 5Softscape - Urban
LIGHT LINEAR PT 5Stone - Urban
LIGHT LINEAR PT 5Corten - Urban
LIGHT LINEAR PT 5Oak - Woodland
LIGHT LINEAR PT 5Walnut - Woodland
LIGHT LINEAR PT 5Pine - Woodland
2 sides - Supplied with specific square, straight aluminium pole - Height options: 3 - 6 m - LIGHTCONNECT™
CEZhaga-D4iClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
2 x 24 LED
Power (W)
107 W
Lumen (lm)
12250 - 14288 lm
Efficacy (lm/W)
113 - 132 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4
Optic value
140°x43°, 144°x72°, 120°x79°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G2
ULR
<1%
ULOR
<1%
CIE flux code nº3
97, 98
Dimming type
DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
36.8 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.180
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic

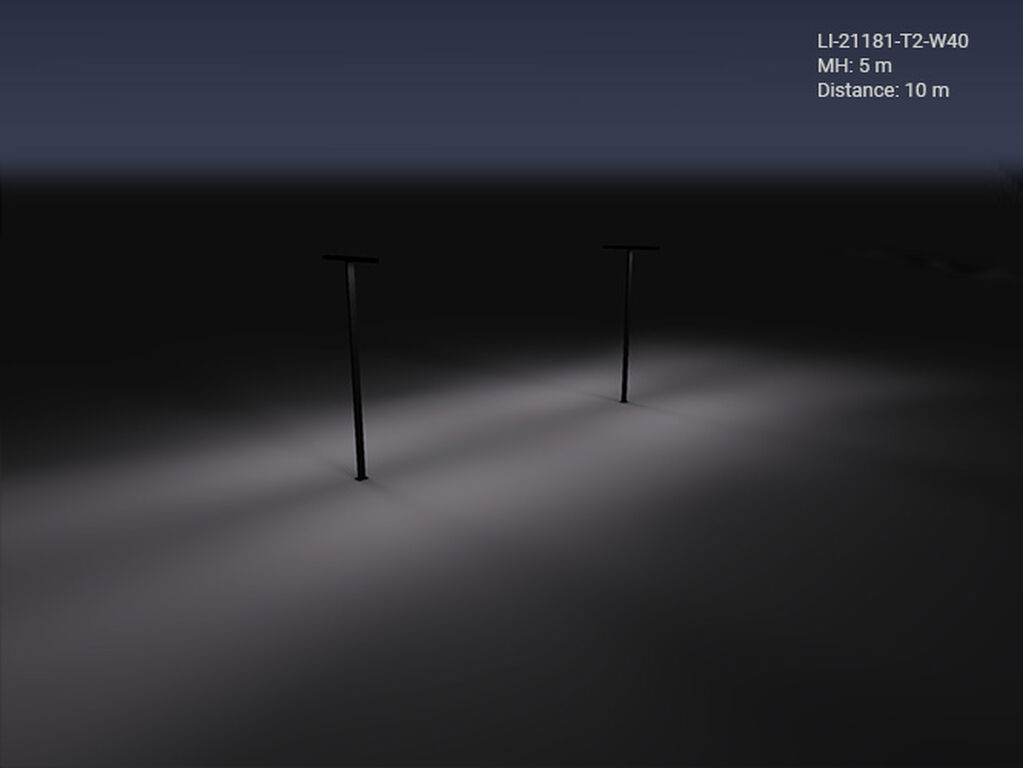

T2 (140°x43°)
T3 (144°x72°)
T4 (120°x79°)

CODE FINDER

Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code: LI-21181-LC-T2-8027-DA-01
Lumen (lm): 13114 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Black
Variant code: LI-21181-LC-T2-8027-DA-02
Lumen (lm): 13114 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Dark Grey
Variant code: LI-21181-LC-T2-8027-DA-03
Lumen (lm): 13114 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: White
Variant code: LI-21181-LC-T2-8027-DA-05
Lumen (lm): 13114 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Matt Silver
Variant code: LI-21181-LC-T2-8027-DA-06
Lumen (lm): 13114 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Bronze
Variant code: LI-21181-LC-T2-8027-DA-SU01
Lumen (lm): 13114 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Concrete - Urban
Variant code: LI-21181-LC-T2-8027-DA-SU02
Lumen (lm): 13114 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Softscape - Urban
Variant code: LI-21181-LC-T2-8027-DA-SU03
Lumen (lm): 13114 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Stone - Urban
Variant code: LI-21181-LC-T2-8027-DA-SU04
Lumen (lm): 13114 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Corten - Urban
Variant code: LI-21181-LC-T2-8027-DA-SW01
Lumen (lm): 13114 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Oak - Woodland
Variant code: LI-21181-LC-T2-8027-DA-SW02
Lumen (lm): 13114 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Walnut - Woodland
Variant code: LI-21181-LC-T2-8027-DA-SW03
Lumen (lm): 13114 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Pine - Woodland
Variant code: LI-21181-LC-T2-8030-DA-01
Lumen (lm): 13854 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Black
Variant code: LI-21181-LC-T2-8030-DA-02
Lumen (lm): 13854 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Dark Grey
Variant code: LI-21181-LC-T2-8030-DA-03
Lumen (lm): 13854 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: White
Variant code: LI-21181-LC-T2-8030-DA-05
Lumen (lm): 13854 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Matt Silver
Variant code: LI-21181-LC-T2-8030-DA-06
Lumen (lm): 13854 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Bronze
Variant code: LI-21181-LC-T2-8030-DA-SU01
Lumen (lm): 13854 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Concrete - Urban
Variant code: LI-21181-LC-T2-8030-DA-SU02
Lumen (lm): 13854 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Softscape - Urban
Variant code: LI-21181-LC-T2-8030-DA-SU03
Lumen (lm): 13854 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Stone - Urban
Variant code: LI-21181-LC-T2-8030-DA-SU04
Lumen (lm): 13854 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Corten - Urban
Variant code: LI-21181-LC-T2-8030-DA-SW01
Lumen (lm): 13854 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Oak - Woodland
Variant code: LI-21181-LC-T2-8030-DA-SW02
Lumen (lm): 13854 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Walnut - Woodland
Variant code: LI-21181-LC-T2-8030-DA-SW03
Lumen (lm): 13854 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Pine - Woodland
Variant code: LI-21181-LC-T2-8040-DA-01
Lumen (lm): 14288 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Black
Variant code: LI-21181-LC-T2-8040-DA-02
Lumen (lm): 14288 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Dark Grey
Variant code: LI-21181-LC-T2-8040-DA-03
Lumen (lm): 14288 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: White
Variant code: LI-21181-LC-T2-8040-DA-05
Lumen (lm): 14288 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Matt Silver
Variant code: LI-21181-LC-T2-8040-DA-06
Lumen (lm): 14288 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Bronze
Variant code: LI-21181-LC-T2-8040-DA-SU01
Lumen (lm): 14288 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Concrete - Urban
Variant code: LI-21181-LC-T2-8040-DA-SU02
Lumen (lm): 14288 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Softscape - Urban
Variant code: LI-21181-LC-T2-8040-DA-SU03
Lumen (lm): 14288 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Stone - Urban
Variant code: LI-21181-LC-T2-8040-DA-SU04
Lumen (lm): 14288 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Corten - Urban
Variant code: LI-21181-LC-T2-8040-DA-SW01
Lumen (lm): 14288 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Oak - Woodland
Variant code: LI-21181-LC-T2-8040-DA-SW02
Lumen (lm): 14288 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Walnut - Woodland
Variant code: LI-21181-LC-T2-8040-DA-SW03
Lumen (lm): 14288 lm
Optic: T2
Optic value: 140°x43°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Pine - Woodland
Variant code: LI-21181-LC-T3-8027-DA-01
Lumen (lm): 12250 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Black
Variant code: LI-21181-LC-T3-8027-DA-02
Lumen (lm): 12250 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Dark Grey
Variant code: LI-21181-LC-T3-8027-DA-03
Lumen (lm): 12250 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: White
Variant code: LI-21181-LC-T3-8027-DA-05
Lumen (lm): 12250 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Matt Silver
Variant code: LI-21181-LC-T3-8027-DA-06
Lumen (lm): 12250 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Bronze
Variant code: LI-21181-LC-T3-8027-DA-SU01
Lumen (lm): 12250 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Concrete - Urban
Variant code: LI-21181-LC-T3-8027-DA-SU02
Lumen (lm): 12250 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Softscape - Urban
Variant code: LI-21181-LC-T3-8027-DA-SU03
Lumen (lm): 12250 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Stone - Urban
Variant code: LI-21181-LC-T3-8027-DA-SU04
Lumen (lm): 12250 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Corten - Urban
Variant code: LI-21181-LC-T3-8027-DA-SW01
Lumen (lm): 12250 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Oak - Woodland
Variant code: LI-21181-LC-T3-8027-DA-SW02
Lumen (lm): 12250 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Walnut - Woodland
Variant code: LI-21181-LC-T3-8027-DA-SW03
Lumen (lm): 12250 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Pine - Woodland
Variant code: LI-21181-LC-T3-8030-DA-01
Lumen (lm): 12940 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Black
Variant code: LI-21181-LC-T3-8030-DA-02
Lumen (lm): 12940 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Dark Grey
Variant code: LI-21181-LC-T3-8030-DA-03
Lumen (lm): 12940 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: White
Variant code: LI-21181-LC-T3-8030-DA-05
Lumen (lm): 12940 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Matt Silver
Variant code: LI-21181-LC-T3-8030-DA-06
Lumen (lm): 12940 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Bronze
Variant code: LI-21181-LC-T3-8030-DA-SU01
Lumen (lm): 12940 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Concrete - Urban
Variant code: LI-21181-LC-T3-8030-DA-SU02
Lumen (lm): 12940 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Softscape - Urban
Variant code: LI-21181-LC-T3-8030-DA-SU03
Lumen (lm): 12940 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Stone - Urban
Variant code: LI-21181-LC-T3-8030-DA-SU04
Lumen (lm): 12940 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Corten - Urban
Variant code: LI-21181-LC-T3-8030-DA-SW01
Lumen (lm): 12940 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Oak - Woodland
Variant code: LI-21181-LC-T3-8030-DA-SW02
Lumen (lm): 12940 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Walnut - Woodland
Variant code: LI-21181-LC-T3-8030-DA-SW03
Lumen (lm): 12940 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Pine - Woodland
Variant code: LI-21181-LC-T3-8040-DA-01
Lumen (lm): 13346 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Black
Variant code: LI-21181-LC-T3-8040-DA-02
Lumen (lm): 13346 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Dark Grey
Variant code: LI-21181-LC-T3-8040-DA-03
Lumen (lm): 13346 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: White
Variant code: LI-21181-LC-T3-8040-DA-05
Lumen (lm): 13346 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Matt Silver
Variant code: LI-21181-LC-T3-8040-DA-06
Lumen (lm): 13346 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Bronze
Variant code: LI-21181-LC-T3-8040-DA-SU01
Lumen (lm): 13346 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Concrete - Urban
Variant code: LI-21181-LC-T3-8040-DA-SU02
Lumen (lm): 13346 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Softscape - Urban
Variant code: LI-21181-LC-T3-8040-DA-SU03
Lumen (lm): 13346 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Stone - Urban
Variant code: LI-21181-LC-T3-8040-DA-SU04
Lumen (lm): 13346 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Corten - Urban
Variant code: LI-21181-LC-T3-8040-DA-SW01
Lumen (lm): 13346 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Oak - Woodland
Variant code: LI-21181-LC-T3-8040-DA-SW02
Lumen (lm): 13346 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Walnut - Woodland
Variant code: LI-21181-LC-T3-8040-DA-SW03
Lumen (lm): 13346 lm
Optic: T3
Optic value: 144°x72°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Pine - Woodland
Variant code: LI-21181-LC-T4-8027-DA-01
Lumen (lm): 13052 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Black
Variant code: LI-21181-LC-T4-8027-DA-02
Lumen (lm): 13052 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Dark Grey
Variant code: LI-21181-LC-T4-8027-DA-03
Lumen (lm): 13052 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: White
Variant code: LI-21181-LC-T4-8027-DA-05
Lumen (lm): 13052 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Matt Silver
Variant code: LI-21181-LC-T4-8027-DA-06
Lumen (lm): 13052 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Bronze
Variant code: LI-21181-LC-T4-8027-DA-SU01
Lumen (lm): 13052 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Concrete - Urban
Variant code: LI-21181-LC-T4-8027-DA-SU02
Lumen (lm): 13052 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Softscape - Urban
Variant code: LI-21181-LC-T4-8027-DA-SU03
Lumen (lm): 13052 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Stone - Urban
Variant code: LI-21181-LC-T4-8027-DA-SU04
Lumen (lm): 13052 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Corten - Urban
Variant code: LI-21181-LC-T4-8027-DA-SW01
Lumen (lm): 13052 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Oak - Woodland
Variant code: LI-21181-LC-T4-8027-DA-SW02
Lumen (lm): 13052 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Walnut - Woodland
Variant code: LI-21181-LC-T4-8027-DA-SW03
Lumen (lm): 13052 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Pine - Woodland
Variant code: LI-21181-LC-T4-8030-DA-01
Lumen (lm): 13788 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Black
Variant code: LI-21181-LC-T4-8030-DA-02
Lumen (lm): 13788 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Dark Grey
Variant code: LI-21181-LC-T4-8030-DA-03
Lumen (lm): 13788 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: White
Variant code: LI-21181-LC-T4-8030-DA-05
Lumen (lm): 13788 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Matt Silver
Variant code: LI-21181-LC-T4-8030-DA-06
Lumen (lm): 13788 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Bronze
Variant code: LI-21181-LC-T4-8030-DA-SU01
Lumen (lm): 13788 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Concrete - Urban
Variant code: LI-21181-LC-T4-8030-DA-SU02
Lumen (lm): 13788 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Softscape - Urban
Variant code: LI-21181-LC-T4-8030-DA-SU03
Lumen (lm): 13788 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Stone - Urban
Variant code: LI-21181-LC-T4-8030-DA-SU04
Lumen (lm): 13788 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Corten - Urban
Variant code: LI-21181-LC-T4-8030-DA-SW01
Lumen (lm): 13788 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Oak - Woodland
Variant code: LI-21181-LC-T4-8030-DA-SW02
Lumen (lm): 13788 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Walnut - Woodland
Variant code: LI-21181-LC-T4-8030-DA-SW03
Lumen (lm): 13788 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Pine - Woodland
Variant code: LI-21181-LC-T4-8040-DA-01
Lumen (lm): 14220 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Black
Variant code: LI-21181-LC-T4-8040-DA-02
Lumen (lm): 14220 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Dark Grey
Variant code: LI-21181-LC-T4-8040-DA-03
Lumen (lm): 14220 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: White
Variant code: LI-21181-LC-T4-8040-DA-05
Lumen (lm): 14220 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Matt Silver
Variant code: LI-21181-LC-T4-8040-DA-06
Lumen (lm): 14220 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Bronze
Variant code: LI-21181-LC-T4-8040-DA-SU01
Lumen (lm): 14220 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Concrete - Urban
Variant code: LI-21181-LC-T4-8040-DA-SU02
Lumen (lm): 14220 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Softscape - Urban
Variant code: LI-21181-LC-T4-8040-DA-SU03
Lumen (lm): 14220 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Stone - Urban
Variant code: LI-21181-LC-T4-8040-DA-SU04
Lumen (lm): 14220 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Corten - Urban
Variant code: LI-21181-LC-T4-8040-DA-SW01
Lumen (lm): 14220 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Oak - Woodland
Variant code: LI-21181-LC-T4-8040-DA-SW02
Lumen (lm): 14220 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Walnut - Woodland
Variant code: LI-21181-LC-T4-8040-DA-SW03
Lumen (lm): 14220 lm
Optic: T4
Optic value: 120°x79°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Pine - Woodland

ACCESSORY

Pole (required)

PROJECT REFERENCE (LIGHT LINEAR PT Street & area lighting luminaires)
