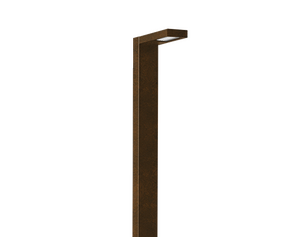

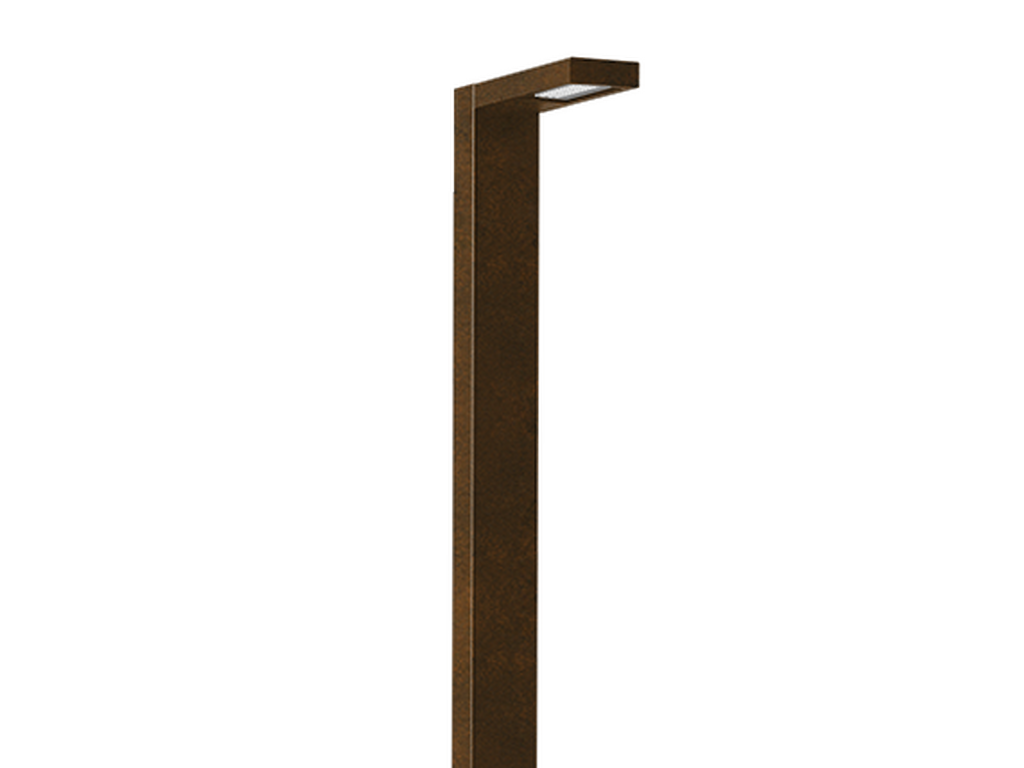

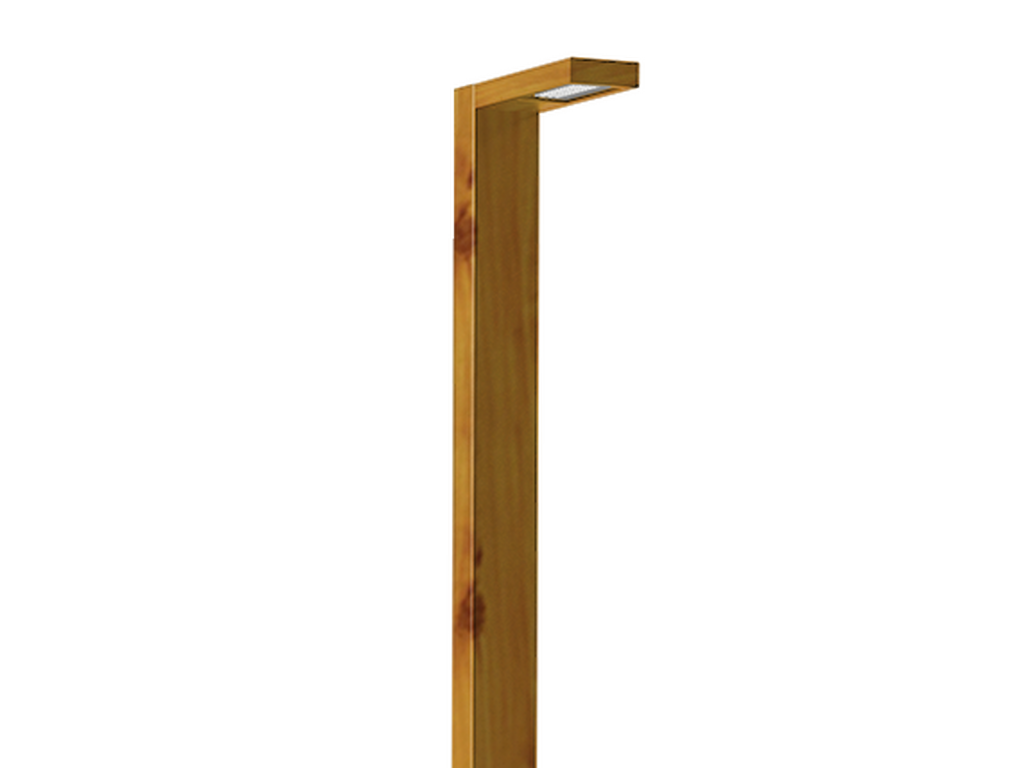

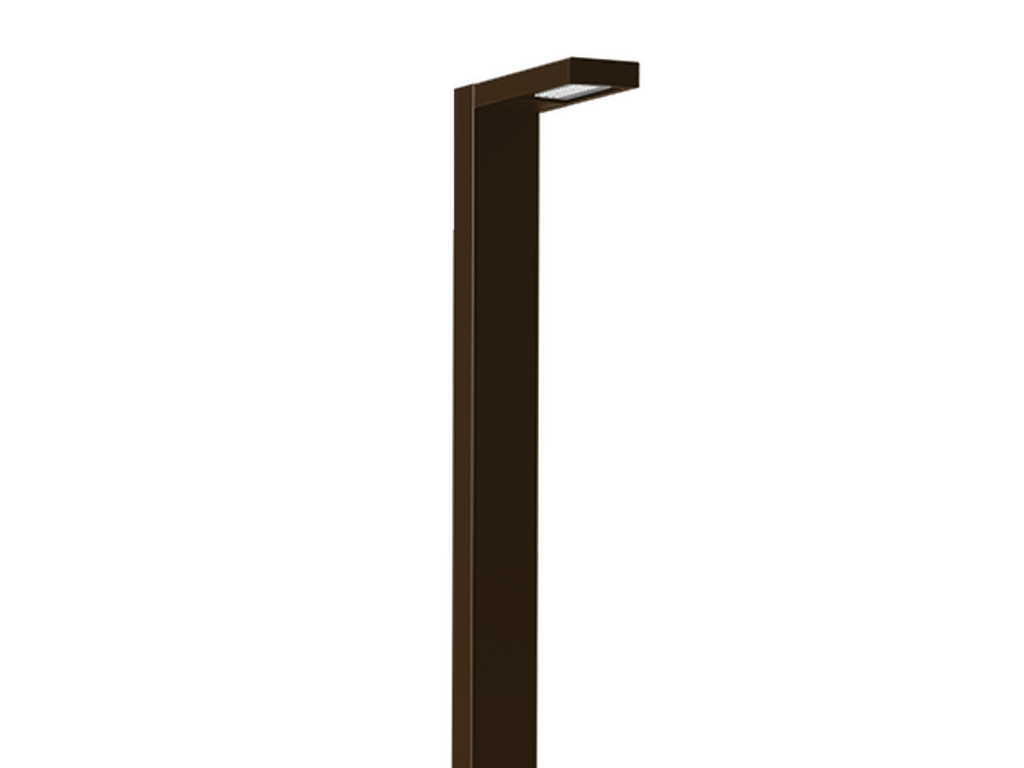

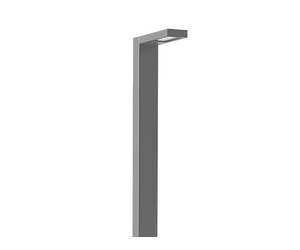

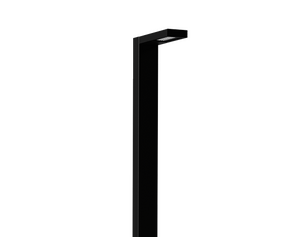

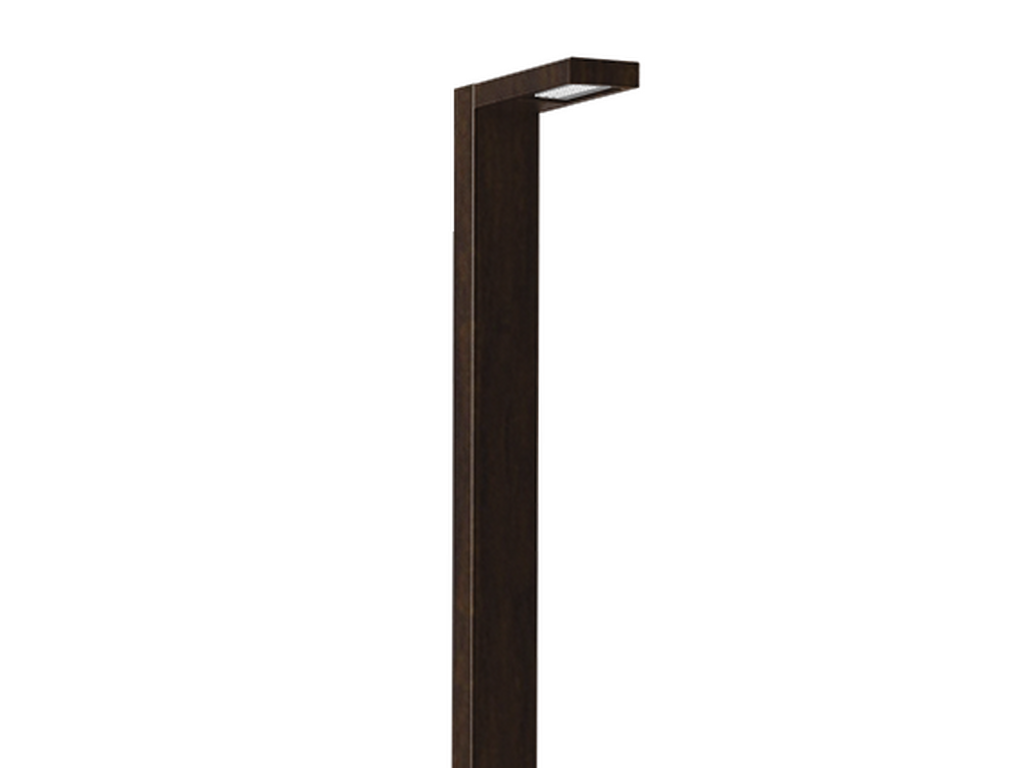

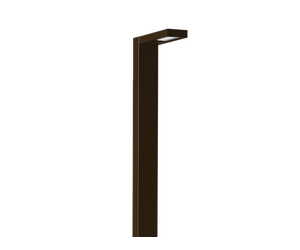

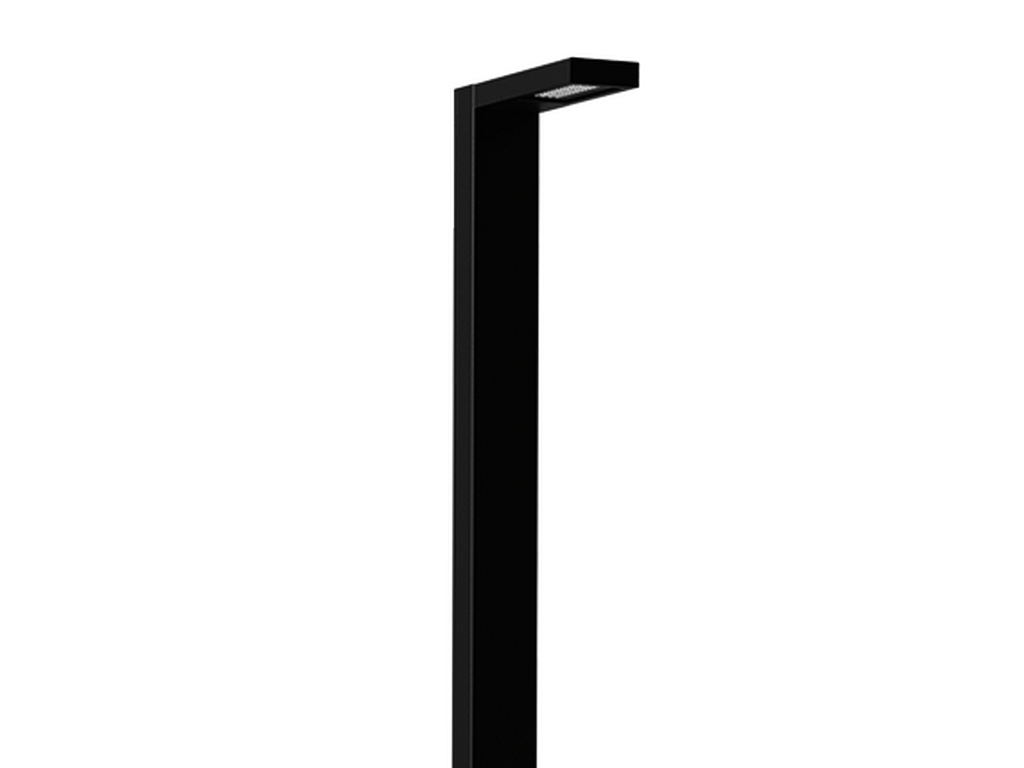

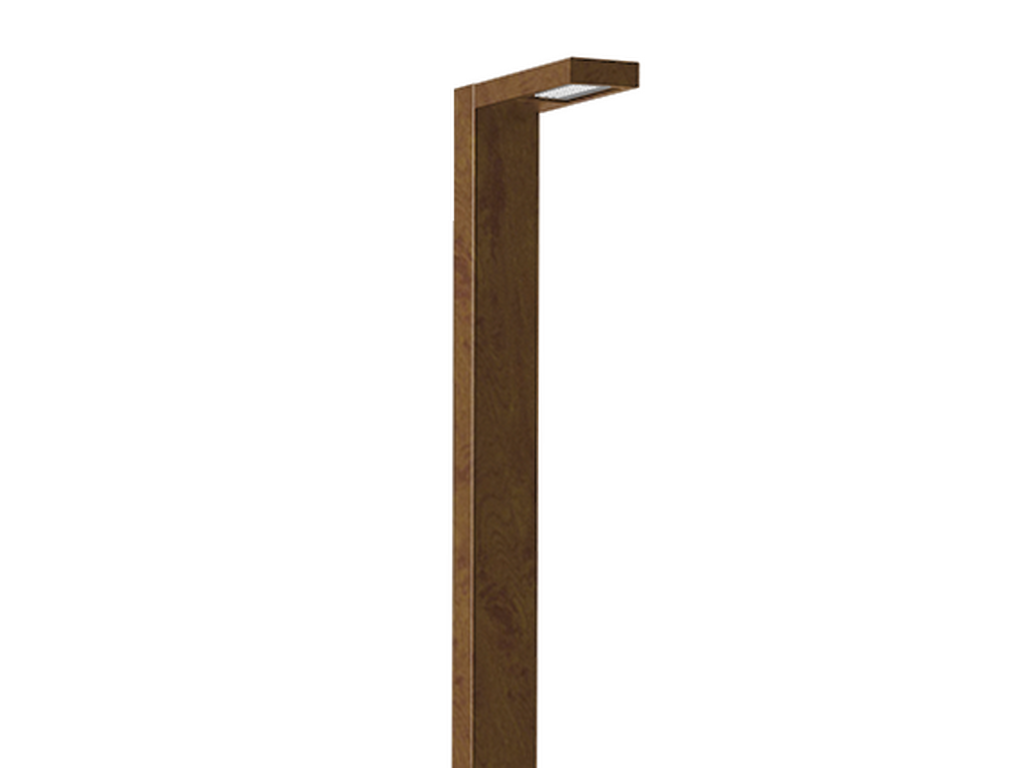

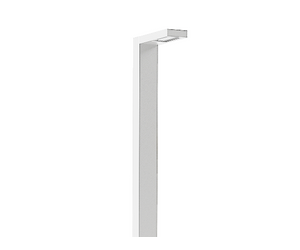

LIGHT LINEAR PT-X 13LI-21332LIGHT LINEAR PT-X
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
1 side - Supplied with specific square, straight galvanised pole - Height options: 6 - 10 m
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
2 x 24 LED
Power (W)
136 W
Lumen (lm)
16032 - 19320 lm
Efficacy (lm/W)
118 - 142 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T1, T2, T3, T4, ME
Optic value
36°, 57°, 112°, 144°x71°, 137°x61°, 129°x91°, 105°x71°, 138°x62°
CCT / CRI
3000K CRI70, 4000K CRI70
Bug
B3-U0-G2, B3-U0-G3, B4-U0-G1, B4-U0-G4, B5-U0-G1
ULR
0%
ULOR
0%
CIE flux code nº3
96, 97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
16 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens
MacAdam Ellipse
5 SDCM
Lifetime L90B10 (hours)
> 35,000
Lifetime L80B10 (hours)
> 74,000
Lifetime L80B50 (hours)
> 80,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic
M (36°)
W (57°)
EW (112°)
T1 (144°x71°)
T2 (137°x61°)
T3 (129°x91°)
T4 (105°x71°)
ME (138°x62°)
