LIGMAN LIGHT LINEAR PT-X 16 LI-21343.

LIGHT LINEAR PT-X 16LI-21343LIGHT LINEAR PT-X

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

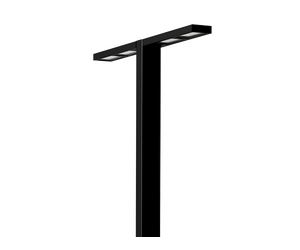

LIGHT LINEAR PT-X 16Black
LIGHT LINEAR PT-X 16Dark Grey
LIGHT LINEAR PT-X 16White
LIGHT LINEAR PT-X 16Matt Silver

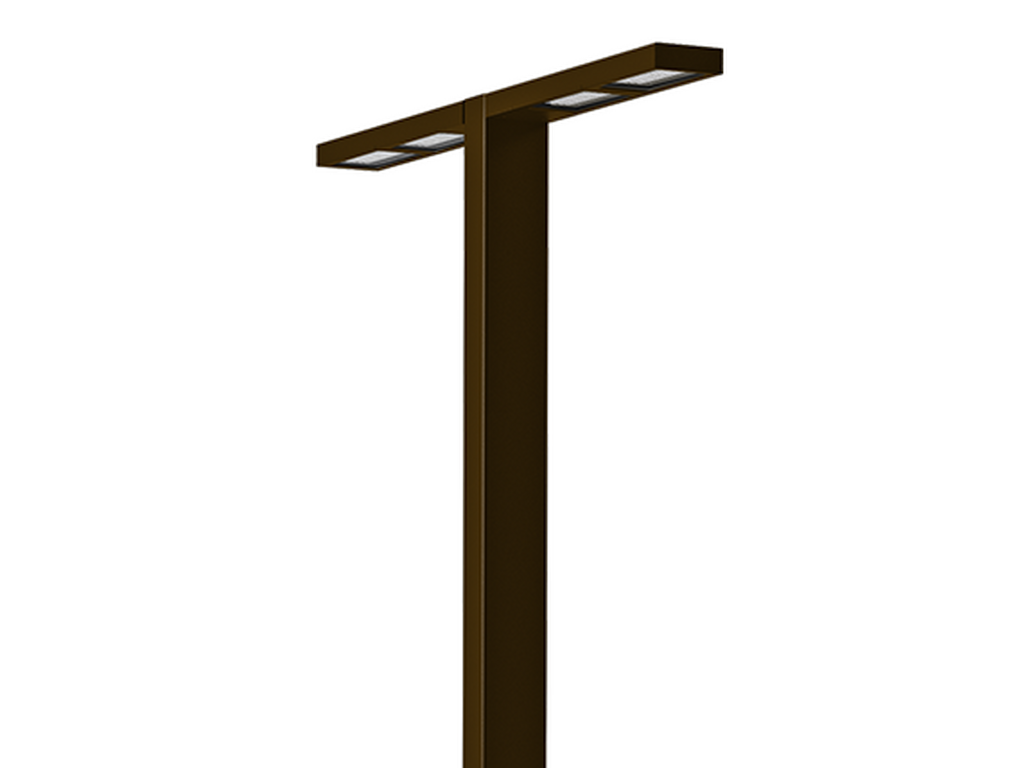

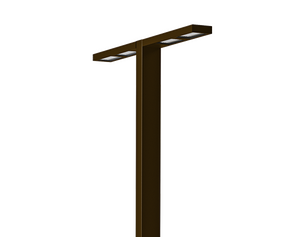

LIGHT LINEAR PT-X 16Bronze

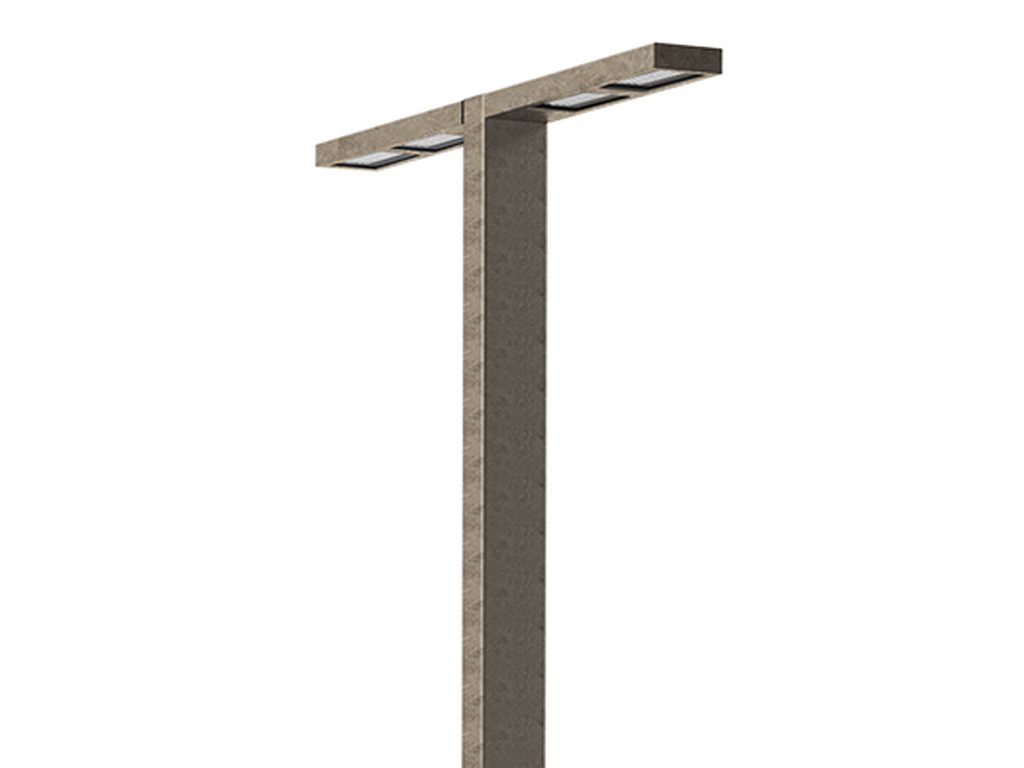

LIGHT LINEAR PT-X 16Concrete - Urban
LIGHT LINEAR PT-X 16Softscape - Urban
LIGHT LINEAR PT-X 16Stone - Urban

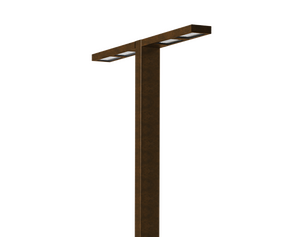

LIGHT LINEAR PT-X 16Corten - Urban

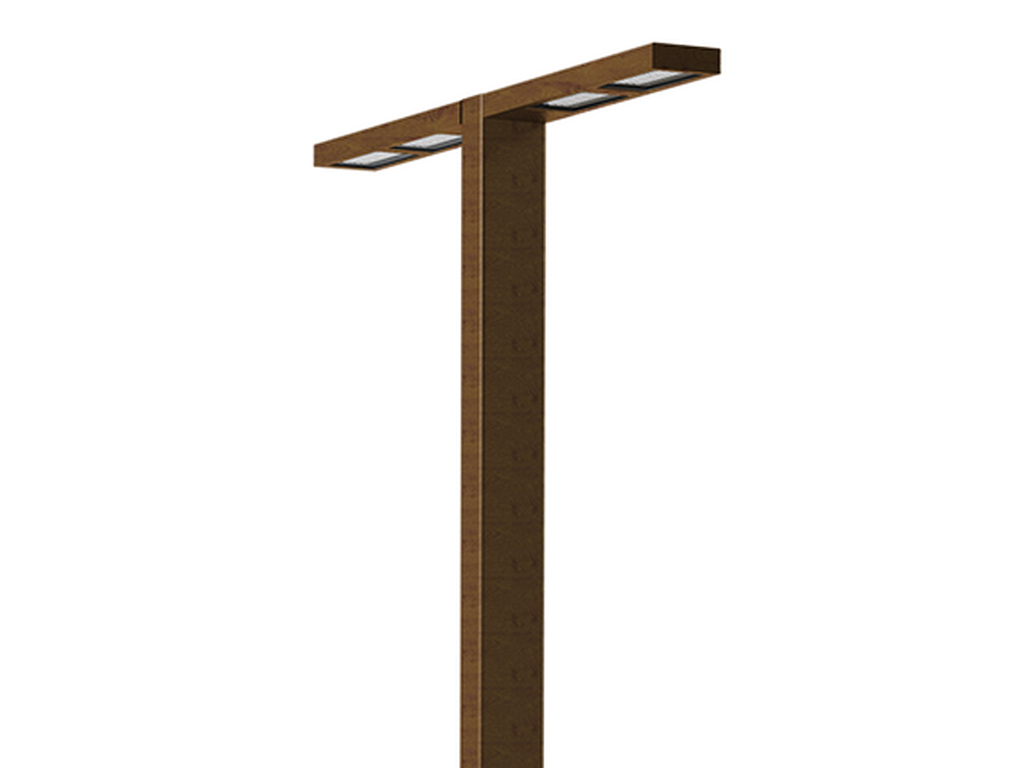

LIGHT LINEAR PT-X 16Oak - Woodland

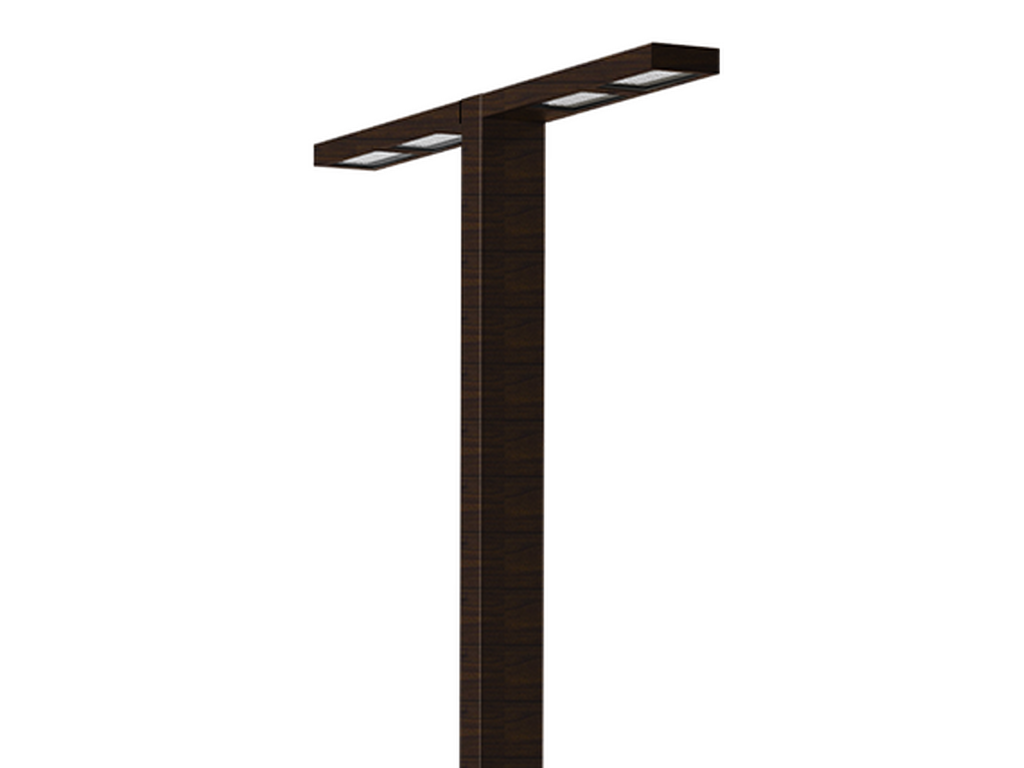

LIGHT LINEAR PT-X 16Walnut - Woodland
LIGHT LINEAR PT-X 16Pine - Woodland

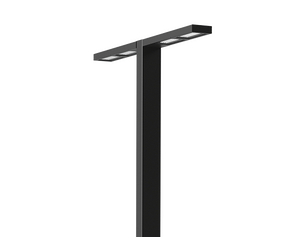

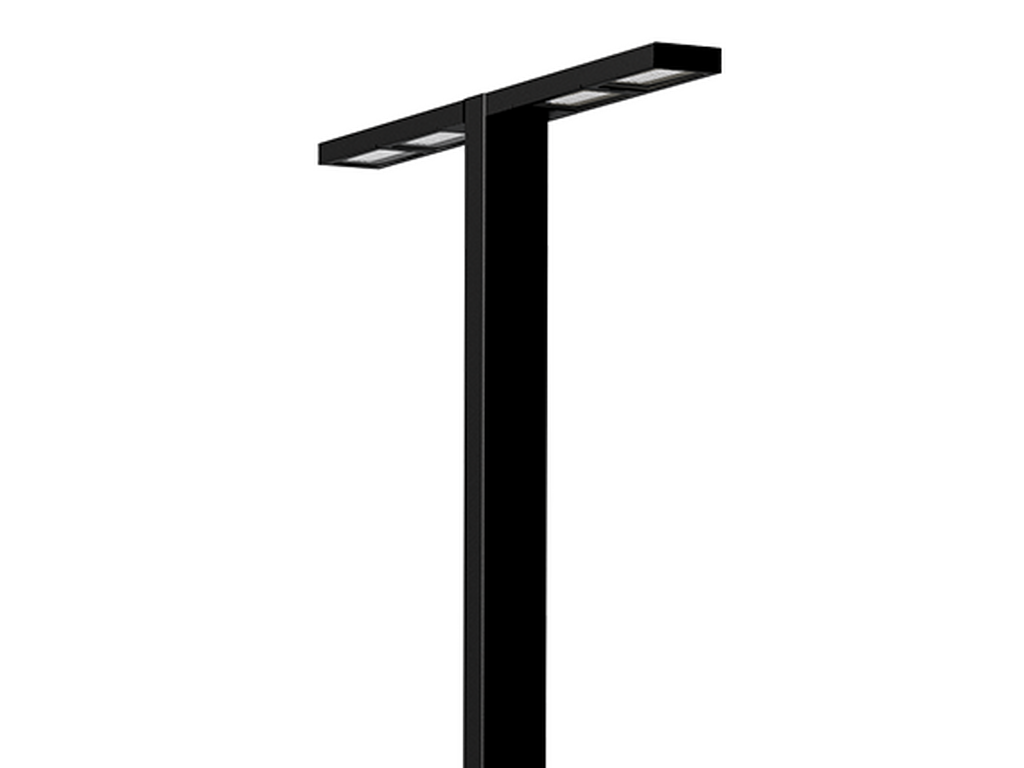

LIGHT LINEAR PT-X 16Black

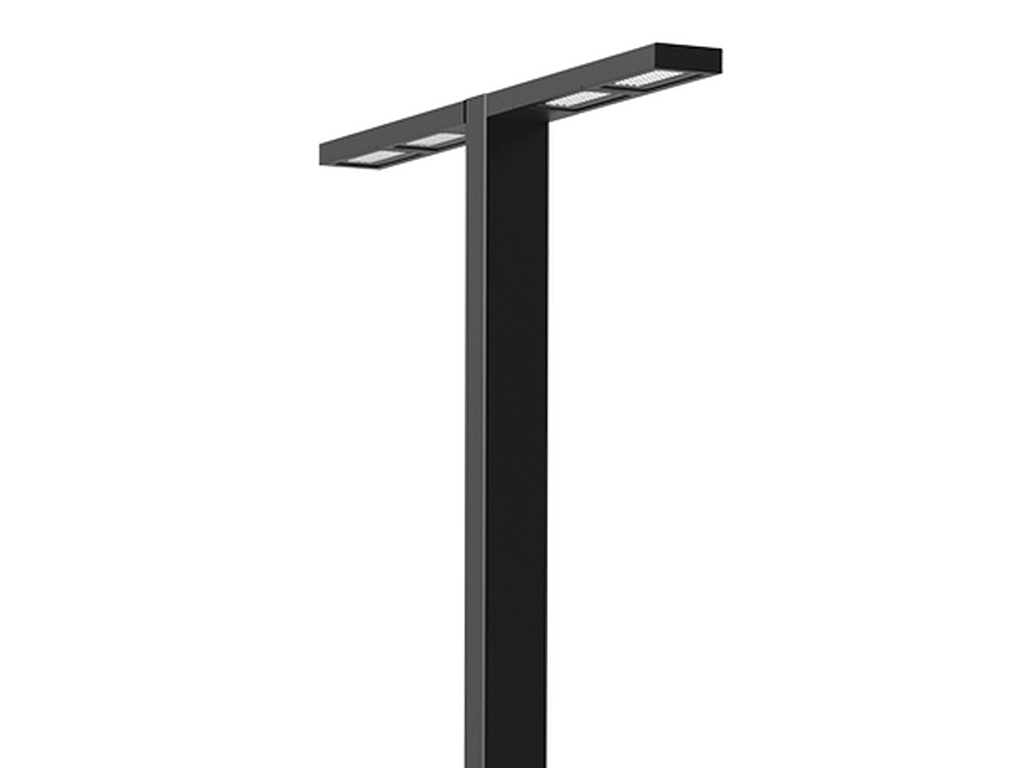

LIGHT LINEAR PT-X 16Dark Grey

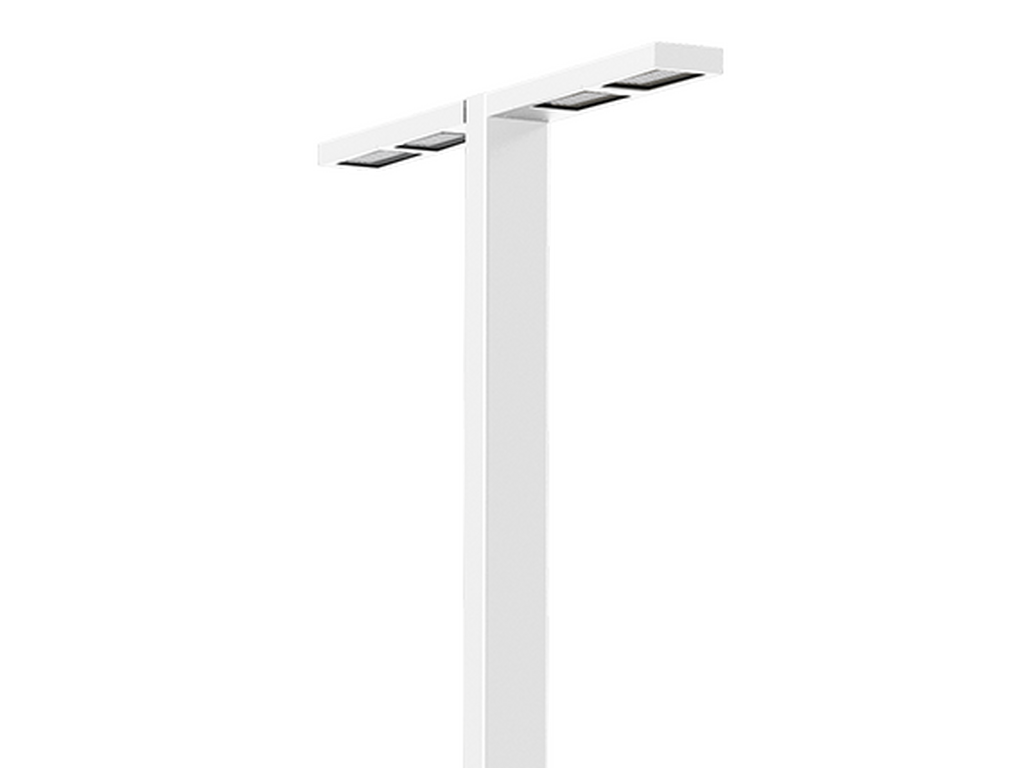

LIGHT LINEAR PT-X 16White

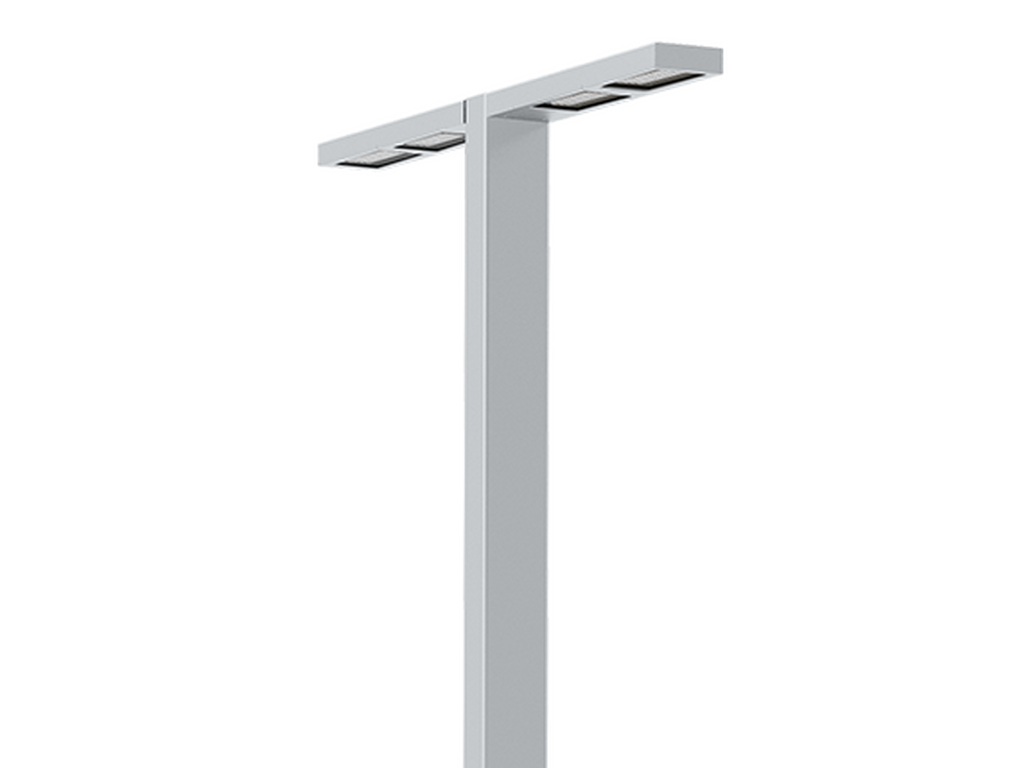

LIGHT LINEAR PT-X 16Matt Silver
LIGHT LINEAR PT-X 16Bronze
LIGHT LINEAR PT-X 16Concrete - Urban
LIGHT LINEAR PT-X 16Softscape - Urban
LIGHT LINEAR PT-X 16Stone - Urban
LIGHT LINEAR PT-X 16Corten - Urban
LIGHT LINEAR PT-X 16Oak - Woodland
LIGHT LINEAR PT-X 16Walnut - Woodland
LIGHT LINEAR PT-X 16Pine - Woodland
2 sides - Supplied with specific square, straight aluminium pole - Height options: 6 - 10 m
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
2 x 96 LED
Power (W)
416 W
Lumen (lm)
24230 - 30588 lm
Efficacy (lm/W)
58 - 74 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T1, T2, T3, T4, ME
Optic value
36°, 57°, 115°, 130°x38°, 140°x39°, 148°x76°, 116°x86°, 146°x67°
CCT / CRI
2700K CRI70, 3000K CRI70, 4000K CRI70
Bug
B3-U0-G3, B4-U0-G4, B5-U0-G1
ULR
<1%
ULOR
<1%
CIE flux code nº3
96, 97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2x26.0 kg
Operating temperature
-20 °C to 50 °C
EPA (m2)
0.348
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens

LIGHT EFFECT

Optic

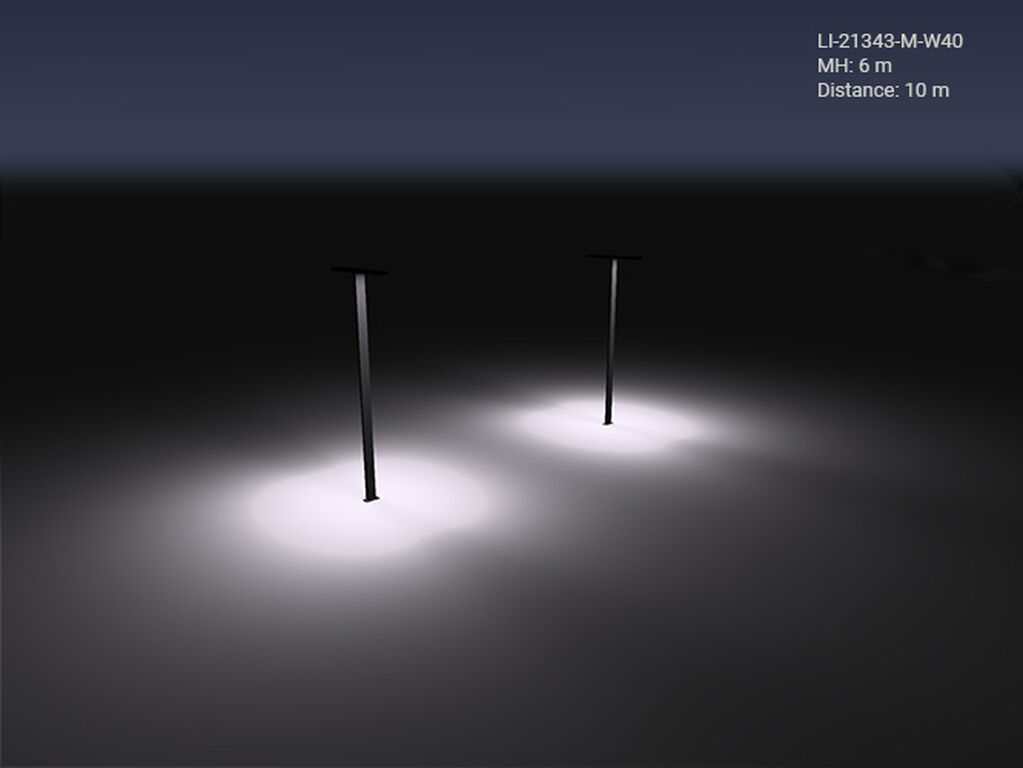

M (36°)
W (57°)
EW (115°)
T1 (130°x38°)
T2 (140°x39°)
T3 (148°x76°)
T4 (116°x86°)
ME (146°x67°)

CODE FINDER

Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour

ACCESSORY

Pole (required)
