LIGHT LINEAR VT 6VT-20023LIGHT LINEAR VT
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland

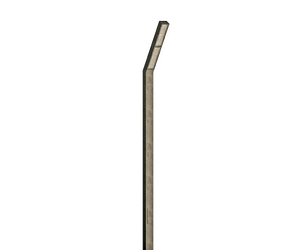

1 side angular - Supplied with specific square, straight aluminium pole - Height options: 3 - 6 m
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
4 x 12 LED
Power (W)
107 W
Lumen (lm)
6526 - 9405 lm
Efficacy (lm/W)
61 - 88 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T1, T2, T3, T4
Optic value
113°x35°, 131°x36°, 99°x47°, 47°x20°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U2-G2, B1-U2-G1, B1-U2-G2
ULR
0%, 1%
ULOR
0%, 1%
CIE flux code nº3
96, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
30.4 kg
Operating temperature
-20 °C to 50 °C
Cable
One cable gland supplied with 1 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual

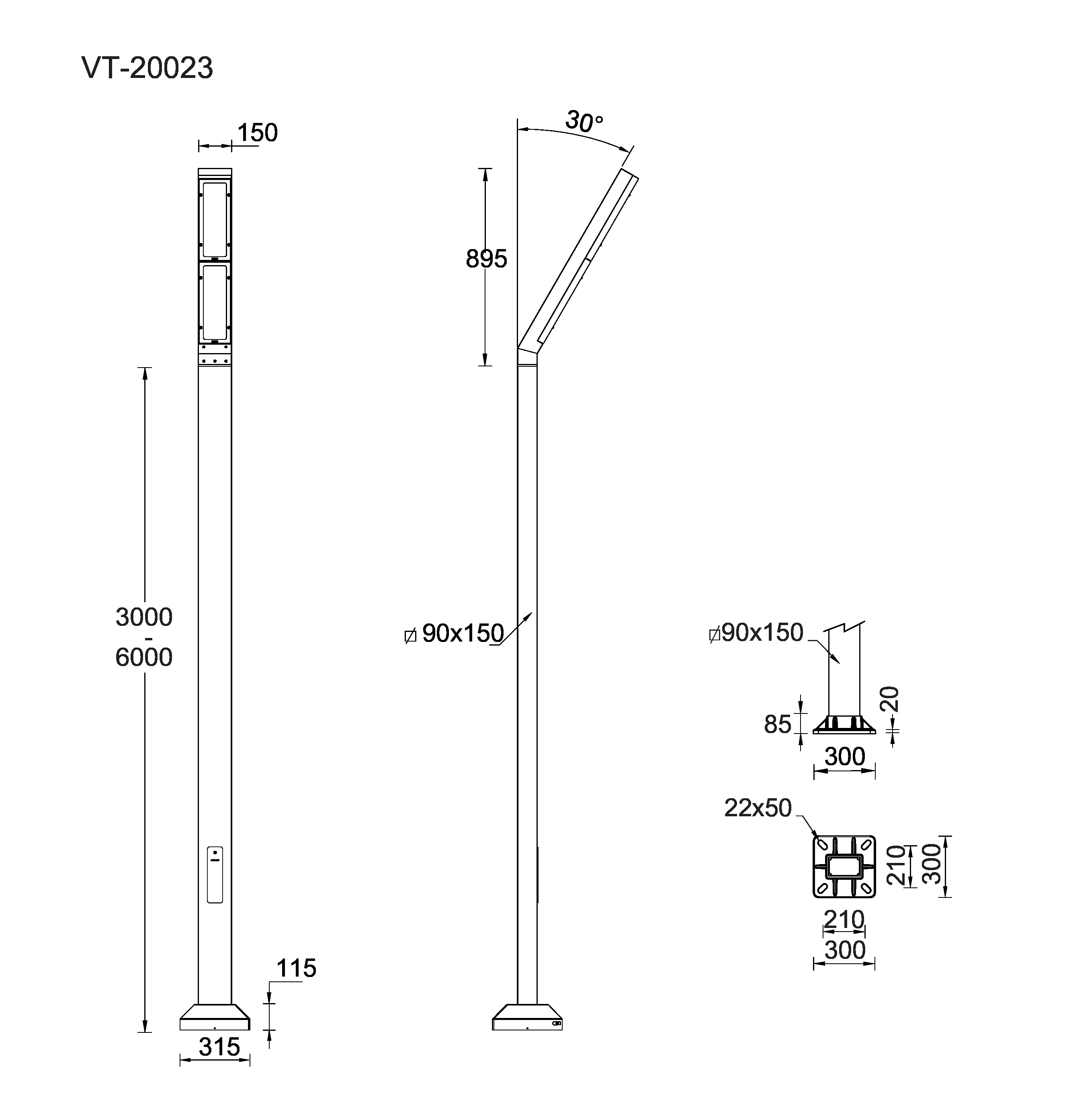

Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code

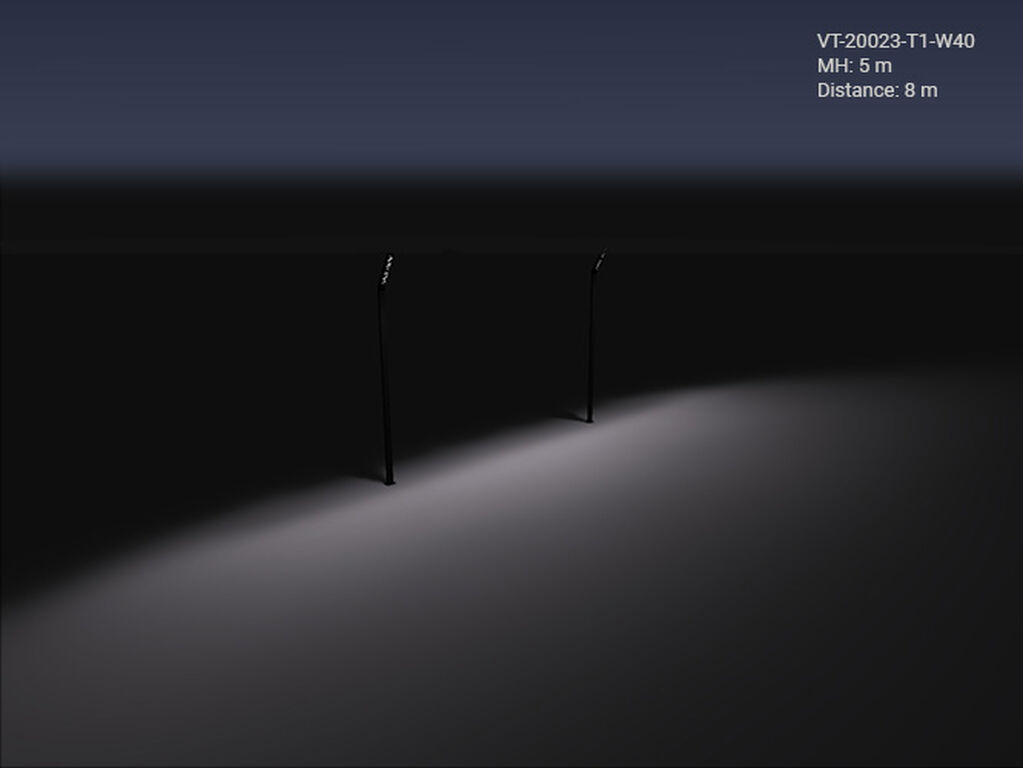

LIGHT EFFECT
Optic
T1 (113°x35°)
T2 (131°x36°)
T3 (99°x47°)
T4 (47°x20°)
