LIGHTALK 1
With recessing box - Integral control gear - 655 mm - Class I
CERETILAPClass IIP67IK10

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
18 LED
Power (W)
28 W
Lumen (lm)
1943 - 2847 lm
Efficacy (lm/W)
69 - 102 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
VN, N, M, W, E
Optic value
12°, 14°, 24°, 44°, 18° x35°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U5-G0
ULR
100%
ULOR
100%
Dimming type
On/Off, 1-10V, DALI
Product colours
Stainless Steel
Weight
4.6 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP67 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

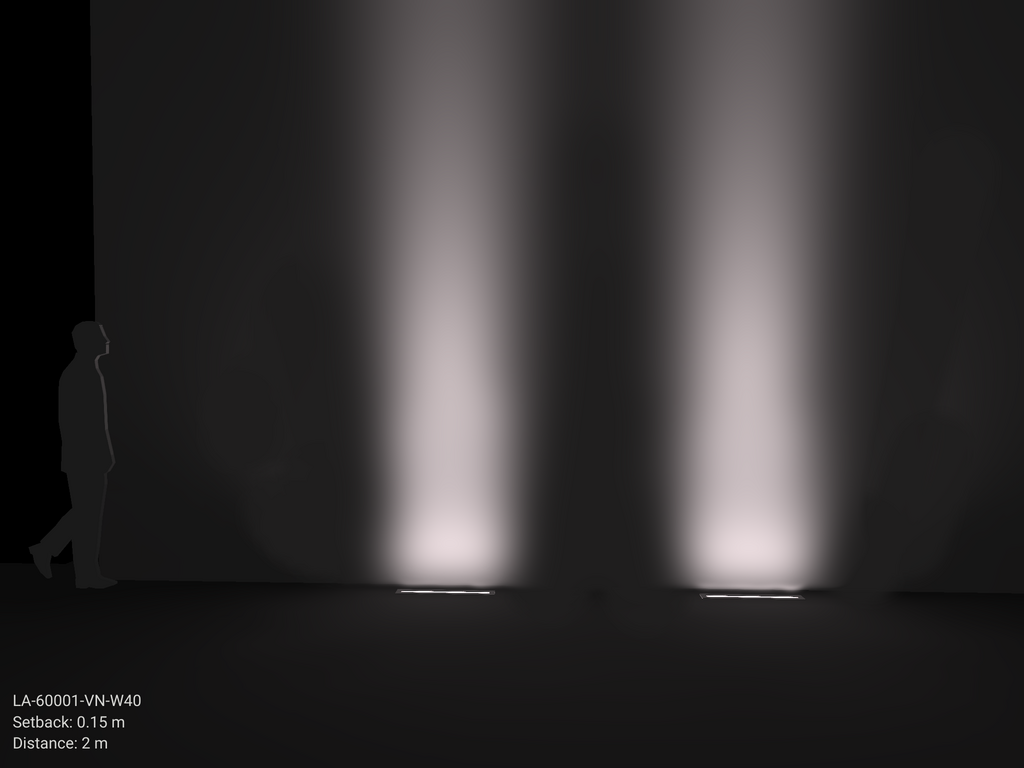

LIGHT EFFECT

Optic
VN (12°)
N (14°)
M (24°)
W (44°)
E (18° x35°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: LA-60001-VN-8030-ND-00
Lumen (lm): 2258 lm
Optic: VN
Optic value: 12°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LA-60001-VN-8040-ND-00
Lumen (lm): 2648 lm
Optic: VN
Optic value: 12°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LA-60001-VN-8030-DI-00
Lumen (lm): 2258 lm
Optic: VN
Optic value: 12°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LA-60001-VN-8040-DI-00
Lumen (lm): 2648 lm
Optic: VN
Optic value: 12°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LA-60001-VN-8030-DA-00
Lumen (lm): 2258 lm
Optic: VN
Optic value: 12°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: LA-60001-VN-8040-DA-00
Lumen (lm): 2648 lm
Optic: VN
Optic value: 12°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: LA-60001-N-8030-ND-00
Lumen (lm): 1943 lm
Optic: N
Optic value: 14°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LA-60001-N-8040-ND-00
Lumen (lm): 2279 lm
Optic: N
Optic value: 14°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LA-60001-N-8030-DI-00
Lumen (lm): 1943 lm
Optic: N
Optic value: 14°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LA-60001-N-8040-DI-00
Lumen (lm): 2279 lm
Optic: N
Optic value: 14°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LA-60001-N-8030-DA-00
Lumen (lm): 1943 lm
Optic: N
Optic value: 14°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: LA-60001-N-8040-DA-00
Lumen (lm): 2279 lm
Optic: N
Optic value: 14°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: LA-60001-M-8030-ND-00
Lumen (lm): 2428 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LA-60001-M-8040-ND-00
Lumen (lm): 2847 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LA-60001-M-8030-DI-00
Lumen (lm): 2428 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LA-60001-M-8040-DI-00
Lumen (lm): 2847 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LA-60001-M-8030-DA-00
Lumen (lm): 2428 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: LA-60001-M-8040-DA-00
Lumen (lm): 2847 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: LA-60001-W-8030-ND-00
Lumen (lm): 1974 lm
Optic: W
Optic value: 44°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LA-60001-W-8040-ND-00
Lumen (lm): 2315 lm
Optic: W
Optic value: 44°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LA-60001-W-8030-DI-00
Lumen (lm): 1974 lm
Optic: W
Optic value: 44°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LA-60001-W-8040-DI-00
Lumen (lm): 2315 lm
Optic: W
Optic value: 44°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LA-60001-W-8030-DA-00
Lumen (lm): 1974 lm
Optic: W
Optic value: 44°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: LA-60001-W-8040-DA-00
Lumen (lm): 2315 lm
Optic: W
Optic value: 44°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: LA-60001-E-8030-ND-00
Lumen (lm): 2244 lm
Optic: E
Optic value: 18° x35°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LA-60001-E-8040-ND-00
Lumen (lm): 2631 lm
Optic: E
Optic value: 18° x35°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: LA-60001-E-8030-DI-00
Lumen (lm): 2244 lm
Optic: E
Optic value: 18° x35°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LA-60001-E-8040-DI-00
Lumen (lm): 2631 lm
Optic: E
Optic value: 18° x35°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: LA-60001-E-8030-DA-00
Lumen (lm): 2244 lm
Optic: E
Optic value: 18° x35°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: LA-60001-E-8040-DA-00
Lumen (lm): 2631 lm
Optic: E
Optic value: 18° x35°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel

ACCESSORY

PROJECT REFERENCE (LIGHTALK In-ground luminaires)
