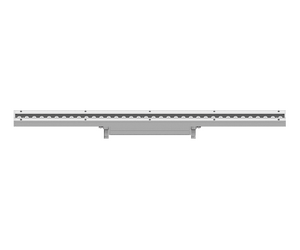

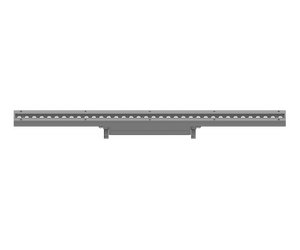

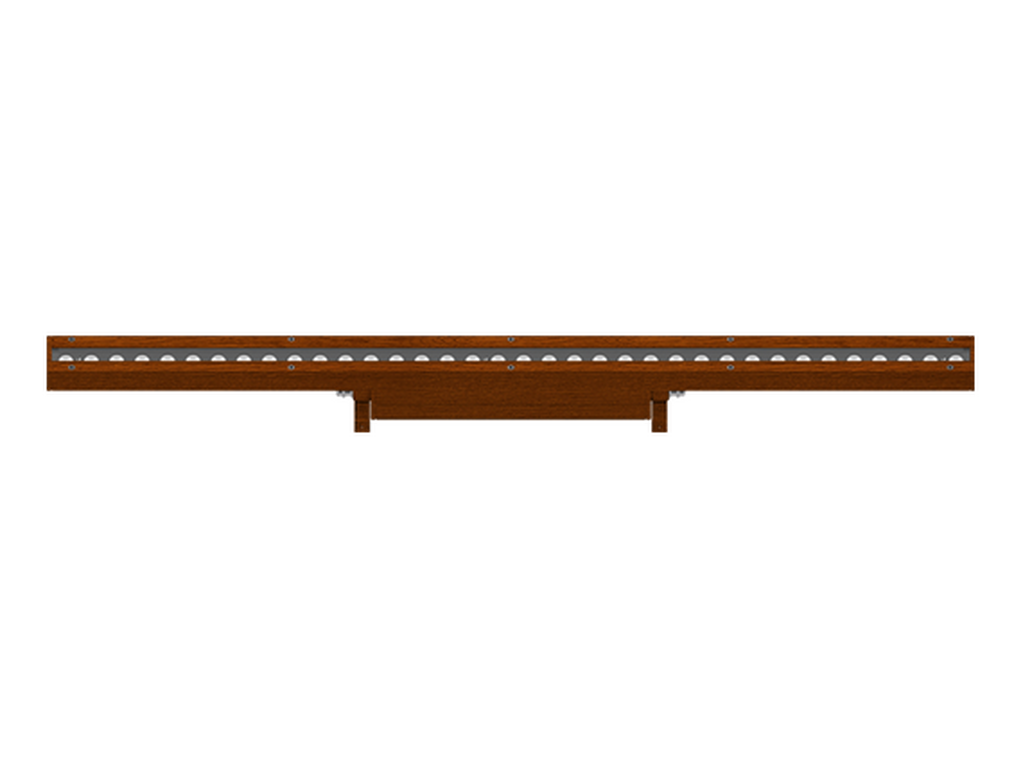

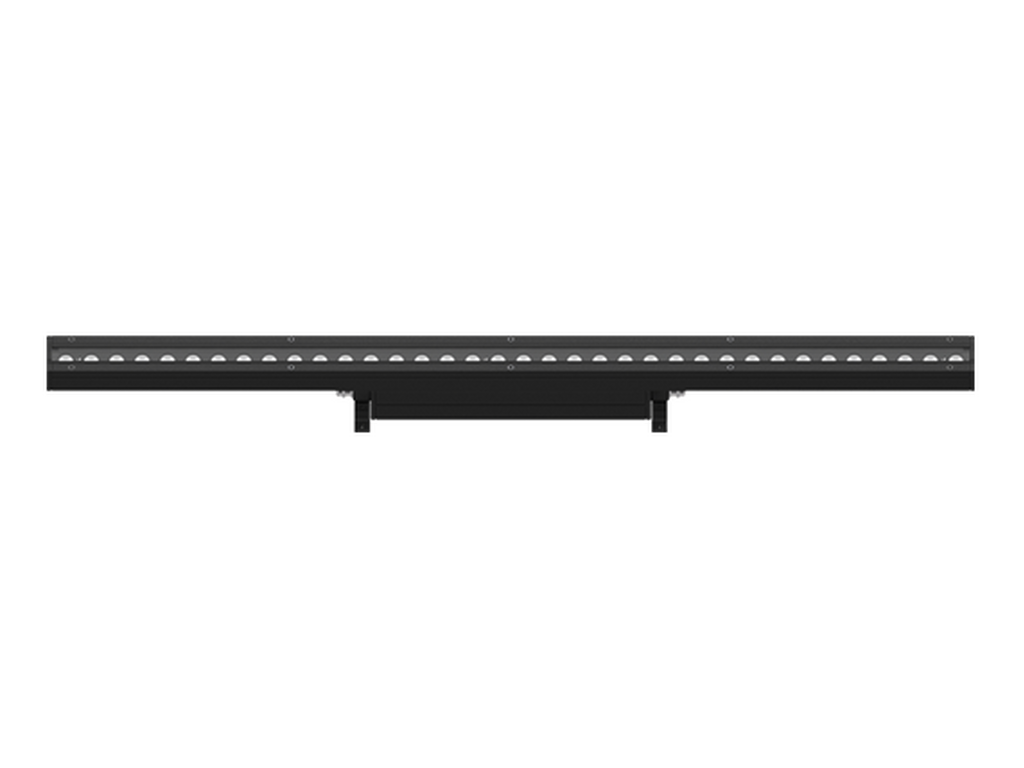

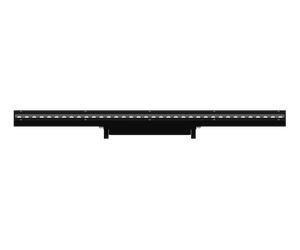

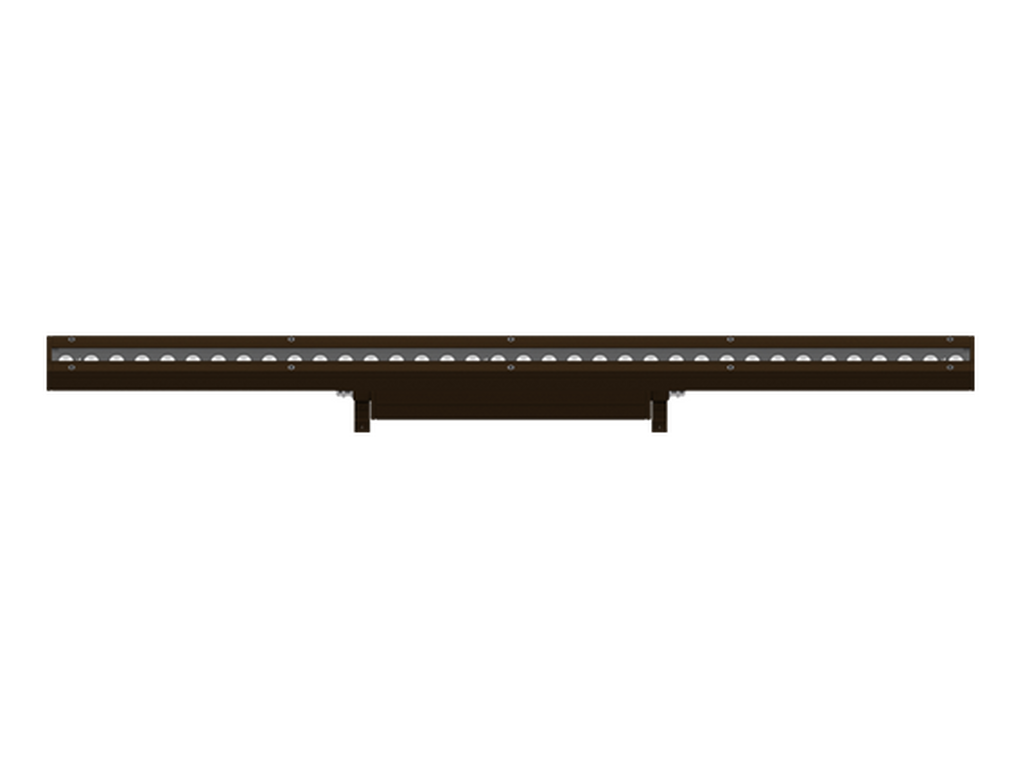

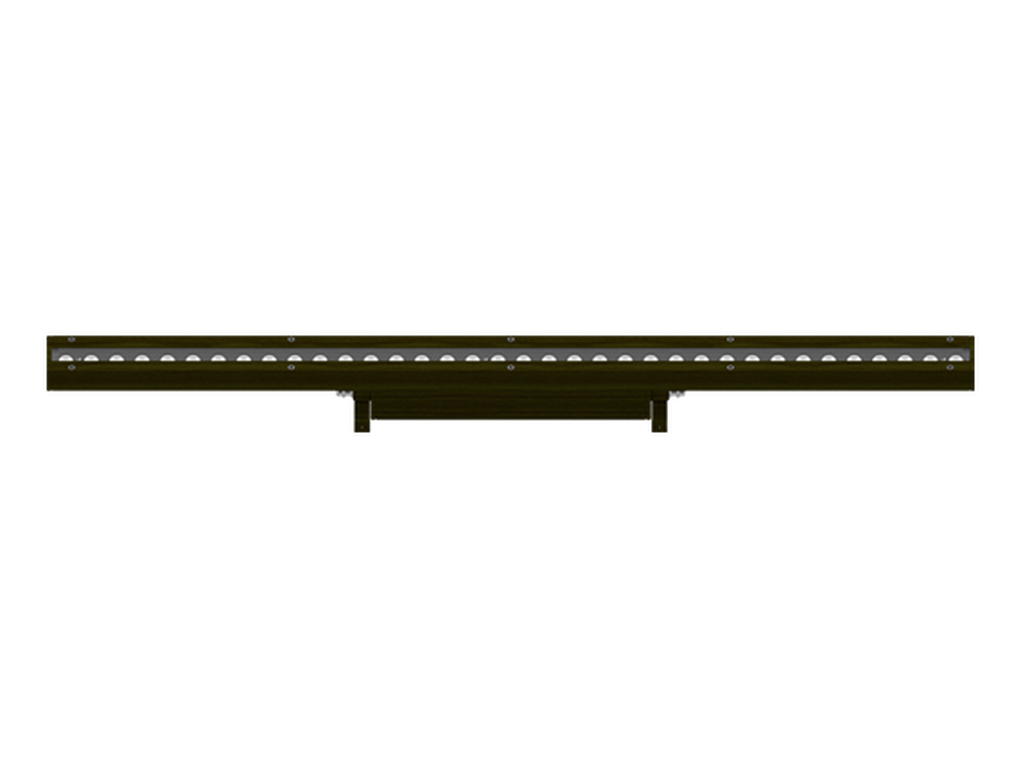

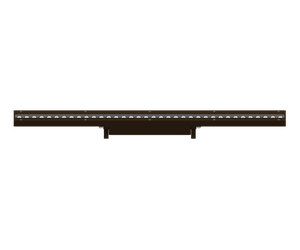

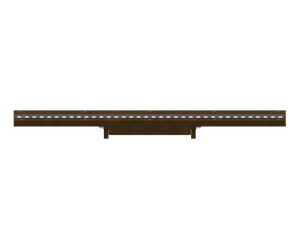

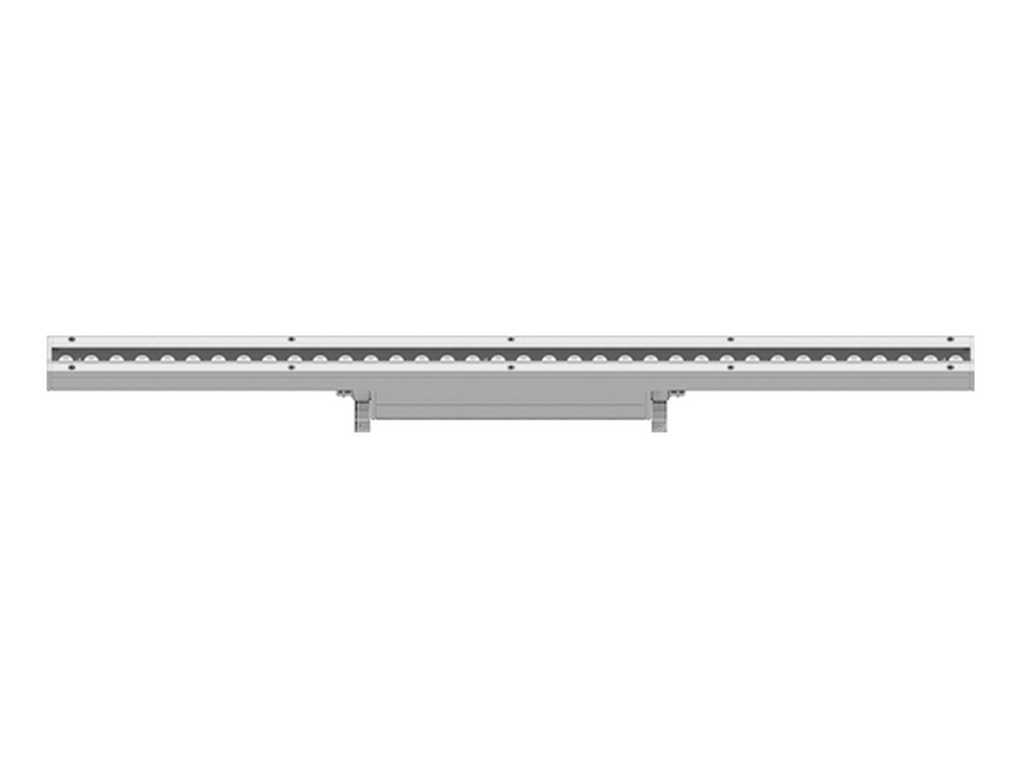

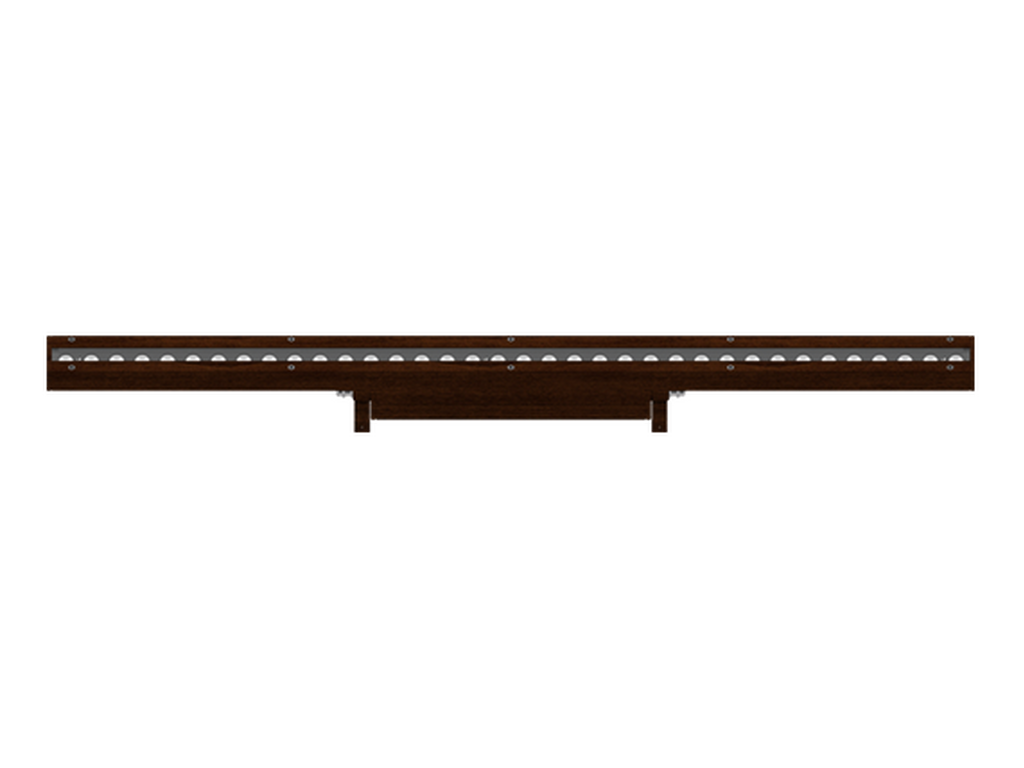

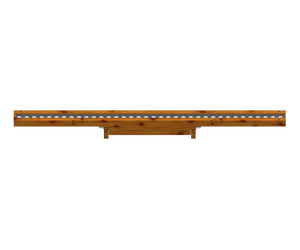

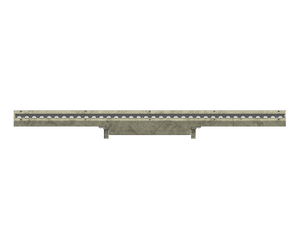

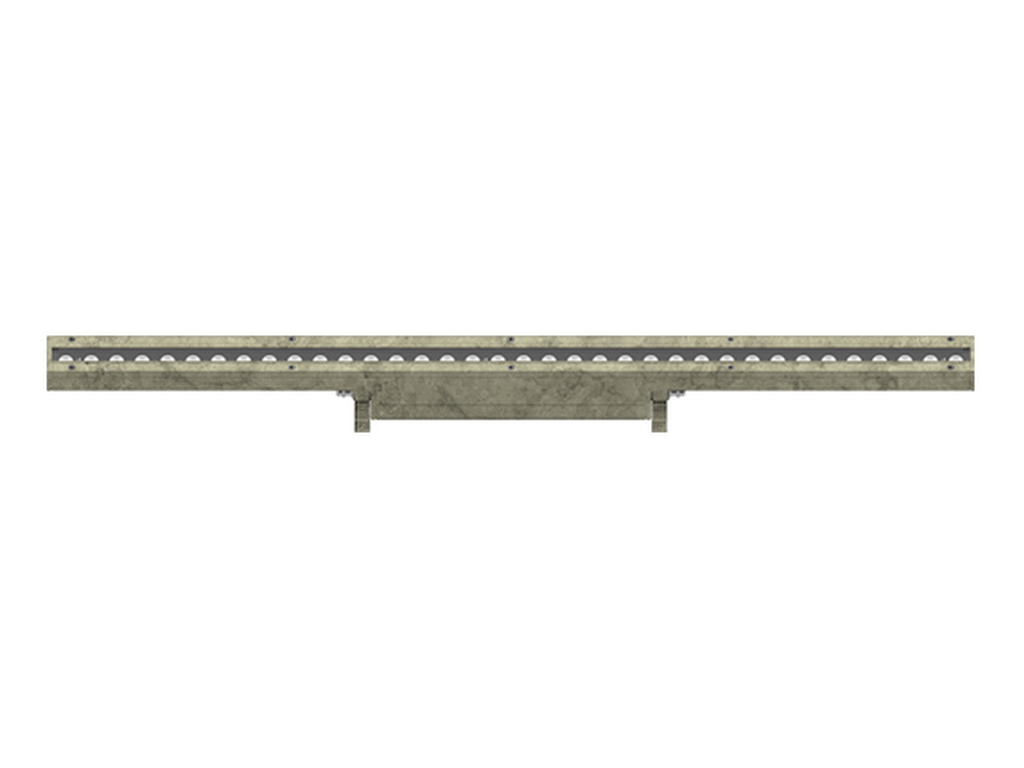

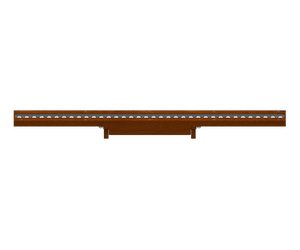

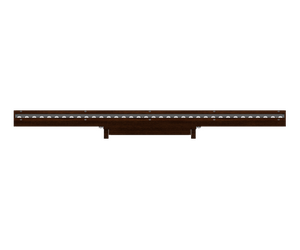

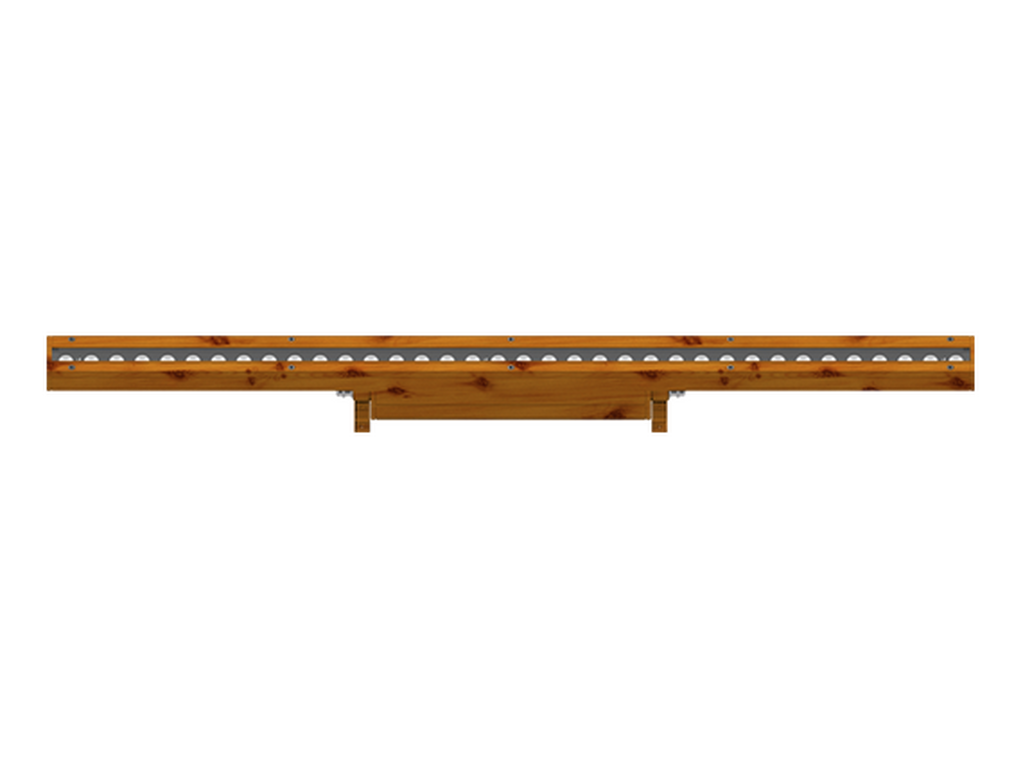

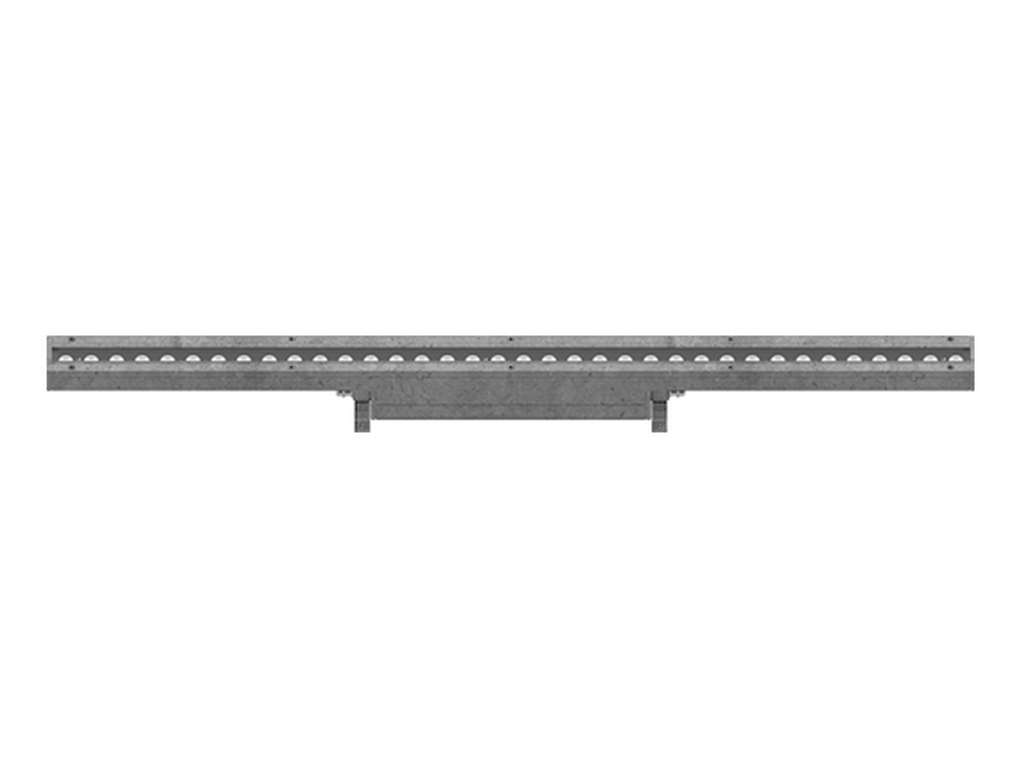

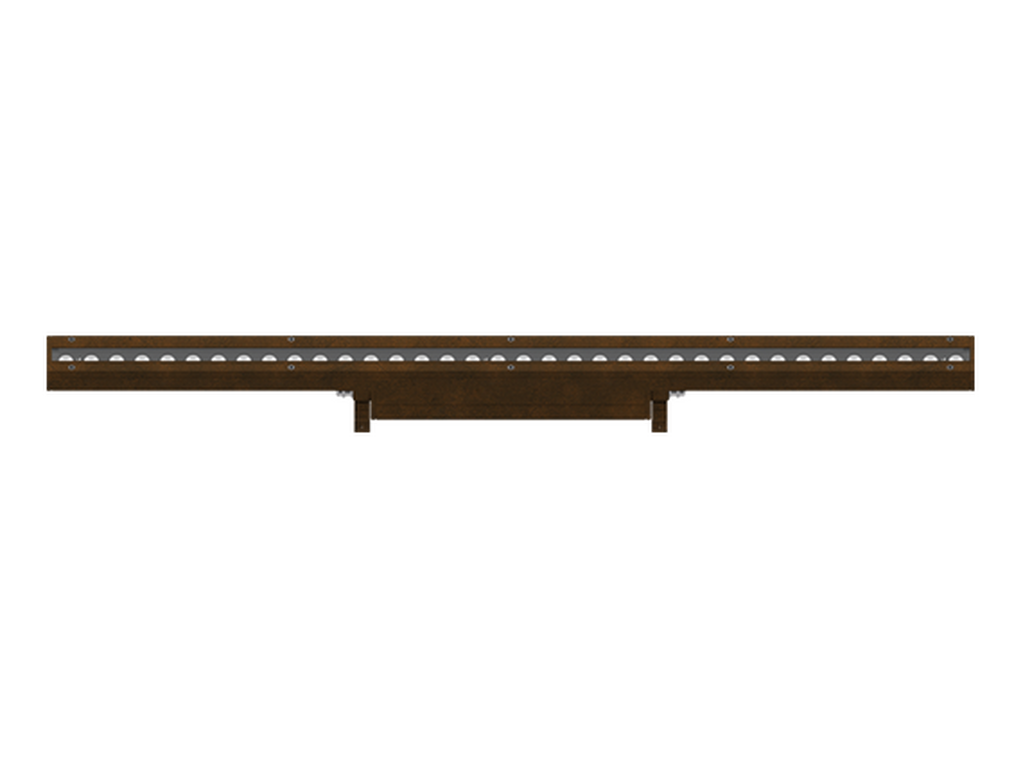

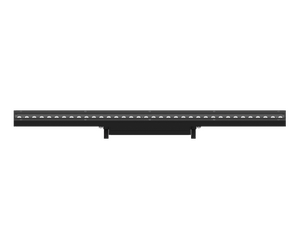

LIGHTALK 15LA-30036 (Version 1)
Wall washer floodlights
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - WoodlandWithout remote driver - Constant voltage (CV) 24 V - 1205 mm - Class III - RGBW
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
36 LED
Power (W)
70 W
Lumen (lm)
1810 - 3896 lm
Efficacy (lm/W)
26 - 56 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
N, M, W, E
Optic value
16°, 32°, 55°, 20°x30°
CCT / CRI
RGB+Amber, RGBW30, RGBW40
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
6.2 kg
Operating temperature
-20 °C to 40 °C
Cable
Four IP67 connectors supplied with 2x0.2 m of 3x1.0 sqmm outdoor cable and 2x0.2 m of 2x0.5 sqmm outdoor shielded cable
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Clear toughened glass
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic
N (16°)
M (32°)
W (55°)
E (20°x30°)
