LIGMAN LIGHTALK 17 LA-40032.

LIGHTALK 17LA-40032

(Version 1)

LIGHTALK

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
LIGHTALK 17Black
LIGHTALK 17Dark Grey
LIGHTALK 17White
LIGHTALK 17Matt Silver
LIGHTALK 17Bronze
LIGHTALK 17Concrete - Urban
LIGHTALK 17Softscape - Urban
LIGHTALK 17Stone - Urban
LIGHTALK 17Corten - Urban
LIGHTALK 17Oak - Woodland
LIGHTALK 17Walnut - Woodland
LIGHTALK 17Pine - Woodland
LIGHTALK 17Black
LIGHTALK 17Dark Grey
LIGHTALK 17White
LIGHTALK 17Matt Silver
LIGHTALK 17Bronze
LIGHTALK 17Concrete - Urban
LIGHTALK 17Softscape - Urban
LIGHTALK 17Stone - Urban
LIGHTALK 17Corten - Urban
LIGHTALK 17Oak - Woodland
LIGHTALK 17Walnut - Woodland
LIGHTALK 17Pine - Woodland
Without remote driver / recessing box - Constant voltage (CV) 24 V - 655 mm - Class III - RGBW
CEClass IIIIP67IK10

Technical information

Material
Aluminium
Light source
18 LED
Power (W)
35 W
Lumen (lm)
905 - 1948 lm
Efficacy (lm/W)
26 - 56 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
N, M, W, E
Optic value
16°, 32°, 55°, 20°x30°
CCT / CRI
RGB+Amber, RGBW30, RGBW40
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
4.0 kg
Operating temperature
-20 °C to 40 °C
Cable
Four IP67 connectors supplied with 2x0.2 m of 3x1.0 sqmm outdoor cable and 2x0.2 m of 2x0.5 sqmm outdoor shielded cable
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Clear toughened glass

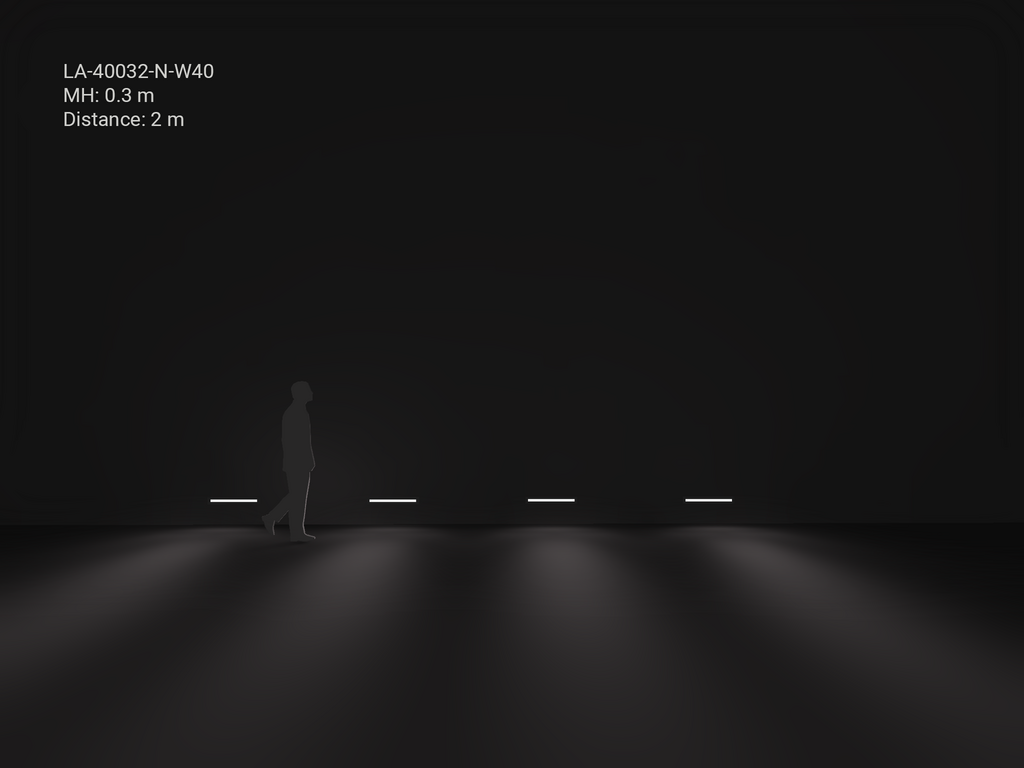

Light effect

Optic
N (16°)
M (32°)
W (55°)
E (20°x30°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory

Project reference (LIGHTALK Recessed luminaires)
