LIGHTSOFT 1LH-10665LIGHTSOFT

Please contact the following LIGMAN office:

LIGMAN Lighting USA Inc. (Factory 3)
7144 NW Progress Court, Hillsboro, 97124 Oregon
United States
Tel: +1 503 645 0500
[email protected]

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

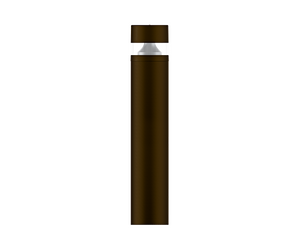

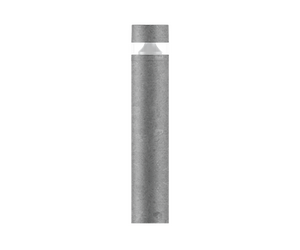

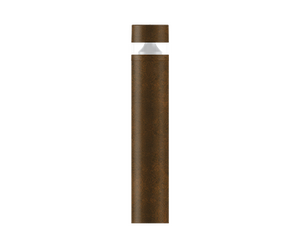

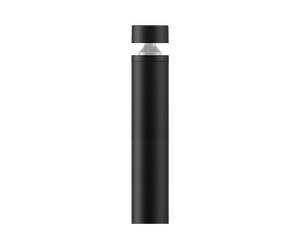

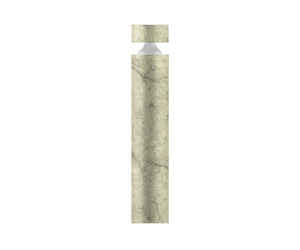

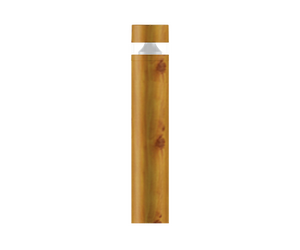

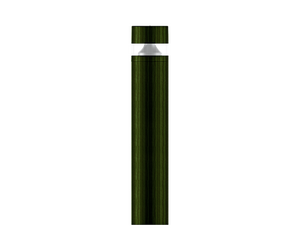

LIGHTSOFT 1Black
LIGHTSOFT 1Dark Grey
LIGHTSOFT 1White
LIGHTSOFT 1Matt Silver
LIGHTSOFT 1Bronze
LIGHTSOFT 1Concrete - Urban
LIGHTSOFT 1Softscape - Urban
LIGHTSOFT 1Stone - Urban
LIGHTSOFT 1Corten - Urban
LIGHTSOFT 1Oak - Woodland
LIGHTSOFT 1Walnut - Woodland
LIGHTSOFT 1Pine - Woodland
LIGHTSOFT 1Black
LIGHTSOFT 1Dark Grey
LIGHTSOFT 1White
LIGHTSOFT 1Matt Silver
LIGHTSOFT 1Bronze
LIGHTSOFT 1Concrete - Urban
LIGHTSOFT 1Softscape - Urban
LIGHTSOFT 1Stone - Urban
LIGHTSOFT 1Corten - Urban
LIGHTSOFT 1Oak - Woodland
LIGHTSOFT 1Walnut - Woodland
LIGHTSOFT 1Pine - Woodland

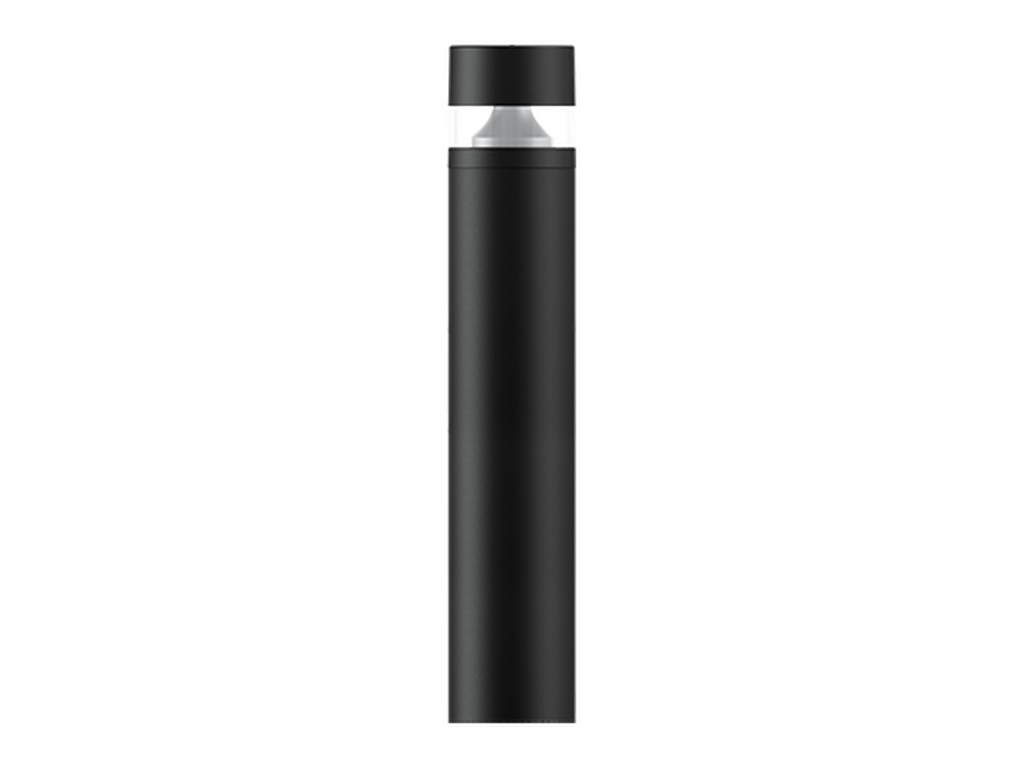

Ø186 - 1000 mm - Round - IK10 - With sensor option
CERETILAPClass IIP65IK10

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
12 LED
Power (Luminaire)
27 W
Lumen (Luminaire)
1161 - 1188 lm
Luminaire luminous efficacy
43 - 44 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
360°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U3-G1
ULR
8%
ULOR
8%
CIE flux code nº3
75
Dimming type
1-10V, DALI, On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
7.7 kg
Operating temperature
-20 °C to 40 °C
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
120,000
Lifetime L80B10 (hours)
120,000
Lifetime L80B50 (hours)
120,000

LIGHT EFFECT

Light distribution
G (360°)

CODE FINDER

Lumen
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: LH-10665-W30-DA-01
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LH-10665-W30-DA-02
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LH-10665-W30-DA-03
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LH-10665-W30-DA-05
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LH-10665-W30-DA-06
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LH-10665-W30-DA-SU01
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LH-10665-W30-DA-SU02
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LH-10665-W30-DA-SU03
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LH-10665-W30-DA-SU04
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LH-10665-W30-DA-SW01
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LH-10665-W30-DA-SW02
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LH-10665-W30-DA-SW03
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LH-10665-W30-DI-01
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: LH-10665-W30-DI-02
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: LH-10665-W30-DI-03
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: LH-10665-W30-DI-05
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: LH-10665-W30-DI-06
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: LH-10665-W30-DI-SU01
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: LH-10665-W30-DI-SU02
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: LH-10665-W30-DI-SU03
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: LH-10665-W30-DI-SU04
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: LH-10665-W30-DI-SW01
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: LH-10665-W30-DI-SW02
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: LH-10665-W30-DI-SW03
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: LH-10665-W30-ND-01
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LH-10665-W30-ND-02
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LH-10665-W30-ND-03
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LH-10665-W30-ND-05
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LH-10665-W30-ND-06
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LH-10665-W30-ND-SU01
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LH-10665-W30-ND-SU02
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LH-10665-W30-ND-SU03
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LH-10665-W30-ND-SU04
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LH-10665-W30-ND-SW01
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LH-10665-W30-ND-SW02
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LH-10665-W30-ND-SW03
Lumen: 1161 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: LH-10665-W40-DA-01
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: LH-10665-W40-DA-02
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: LH-10665-W40-DA-03
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: LH-10665-W40-DA-05
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: LH-10665-W40-DA-06
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: LH-10665-W40-DA-SU01
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: LH-10665-W40-DA-SU02
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: LH-10665-W40-DA-SU03
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: LH-10665-W40-DA-SU04
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: LH-10665-W40-DA-SW01
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: LH-10665-W40-DA-SW02
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: LH-10665-W40-DA-SW03
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: LH-10665-W40-DI-01
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: LH-10665-W40-DI-02
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: LH-10665-W40-DI-03
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: LH-10665-W40-DI-05
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: LH-10665-W40-DI-06
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: LH-10665-W40-DI-SU01
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: LH-10665-W40-DI-SU02
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: LH-10665-W40-DI-SU03
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: LH-10665-W40-DI-SU04
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: LH-10665-W40-DI-SW01
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: LH-10665-W40-DI-SW02
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: LH-10665-W40-DI-SW03
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: LH-10665-W40-ND-01
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: LH-10665-W40-ND-02
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: LH-10665-W40-ND-03
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: LH-10665-W40-ND-05
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: LH-10665-W40-ND-06
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: LH-10665-W40-ND-SU01
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: LH-10665-W40-ND-SU02
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: LH-10665-W40-ND-SU03
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: LH-10665-W40-ND-SU04
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: LH-10665-W40-ND-SW01
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: LH-10665-W40-ND-SW02
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: LH-10665-W40-ND-SW03
Lumen: 1188 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
